Toyota RAV4

2000-05 → 2005-11 · chassis ACA2#,CLA2#,ZCA2# · catalogue 662220 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

13 part groups · 2 illustrations

Illustrations

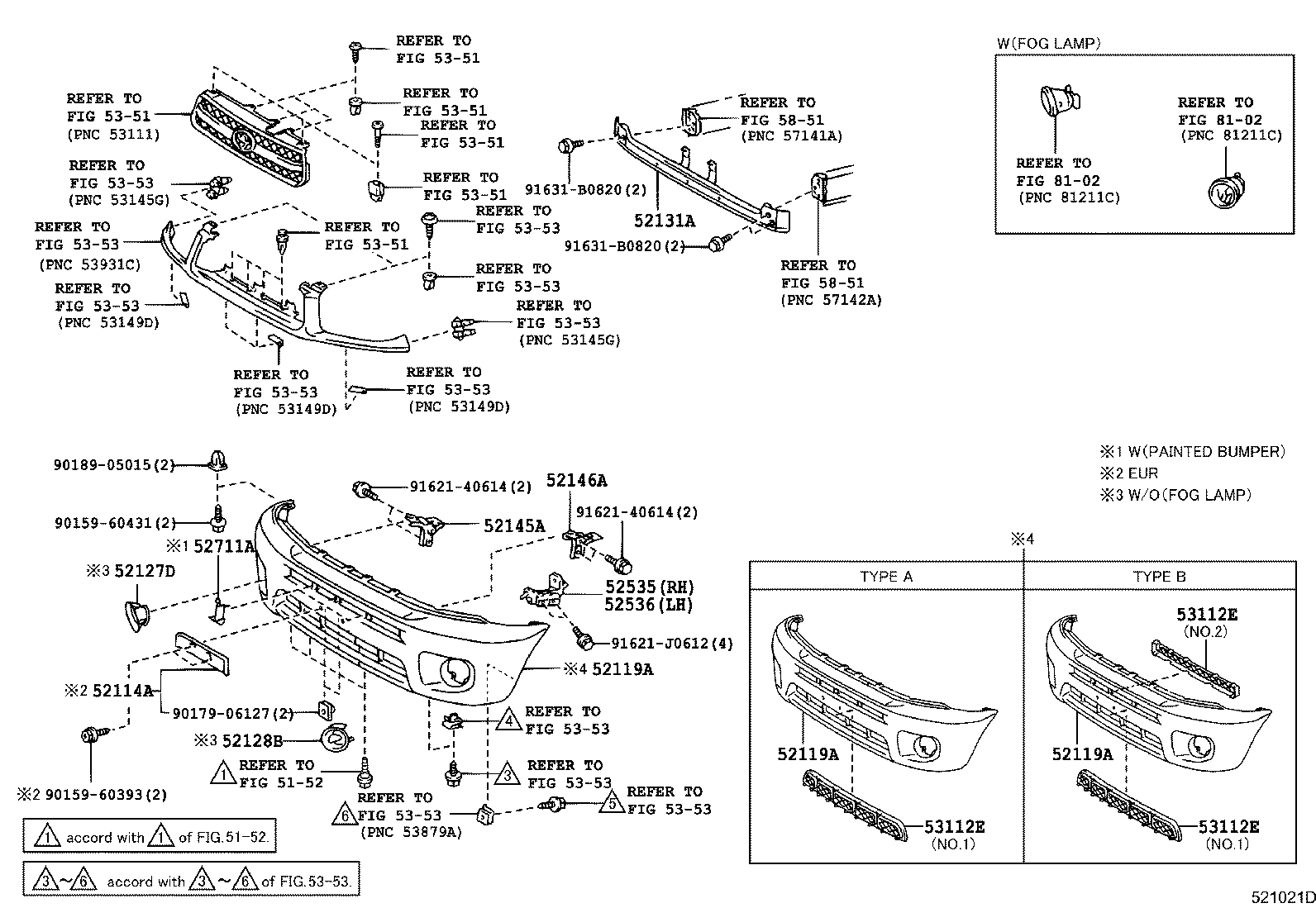

Figure 520627D 520627D 2000-05 → 2003-07 Figure 521021D 521021D 2003-07 → —

Part groups

PNCDescription
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52145A Stay, Front Bumper, NO.2 RH
52146A Stay, Front Bumper, NO.2 LH
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52711A Garnish, Front Bumper
53112E Grille, Radiator, Lower NO.1
53127A Grille, Radiator, Lower RH
53128A Grille, Radiator, Lower LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
