Toyota RAV4
2000-05 → 2005-11 · chassis ACA2#,CLA2#,ZCA2# · catalogue 662220 · Europe
Discontinued model
Data version 2006-05

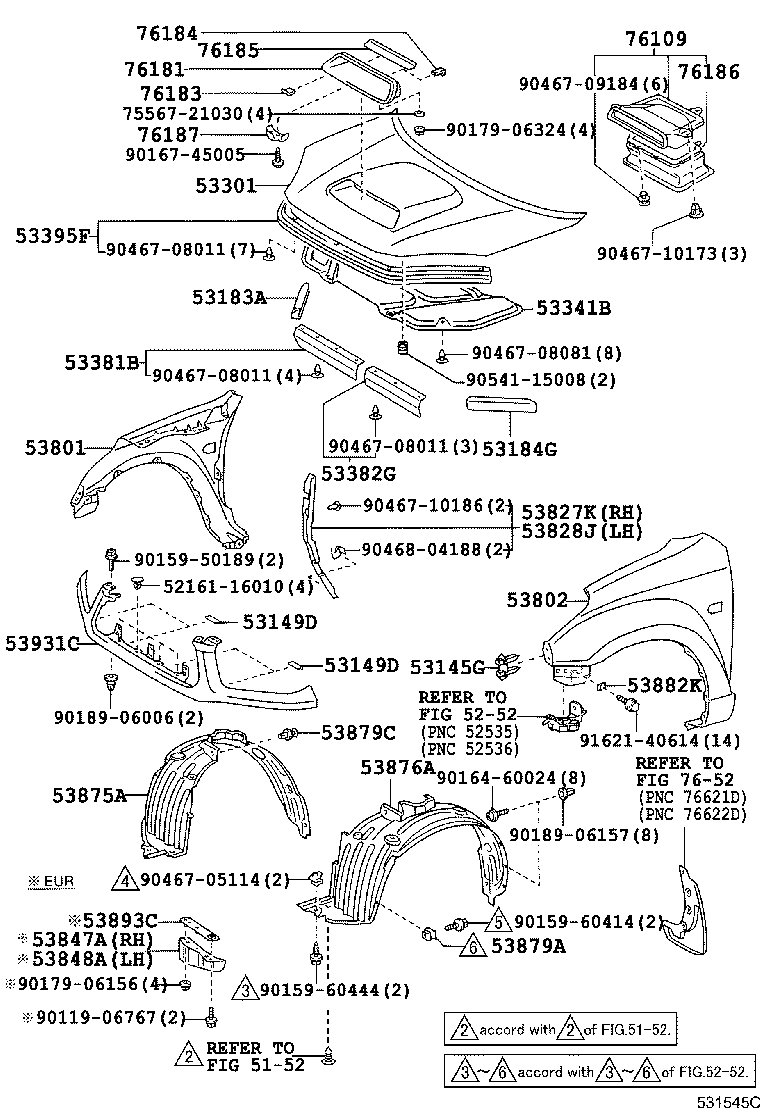

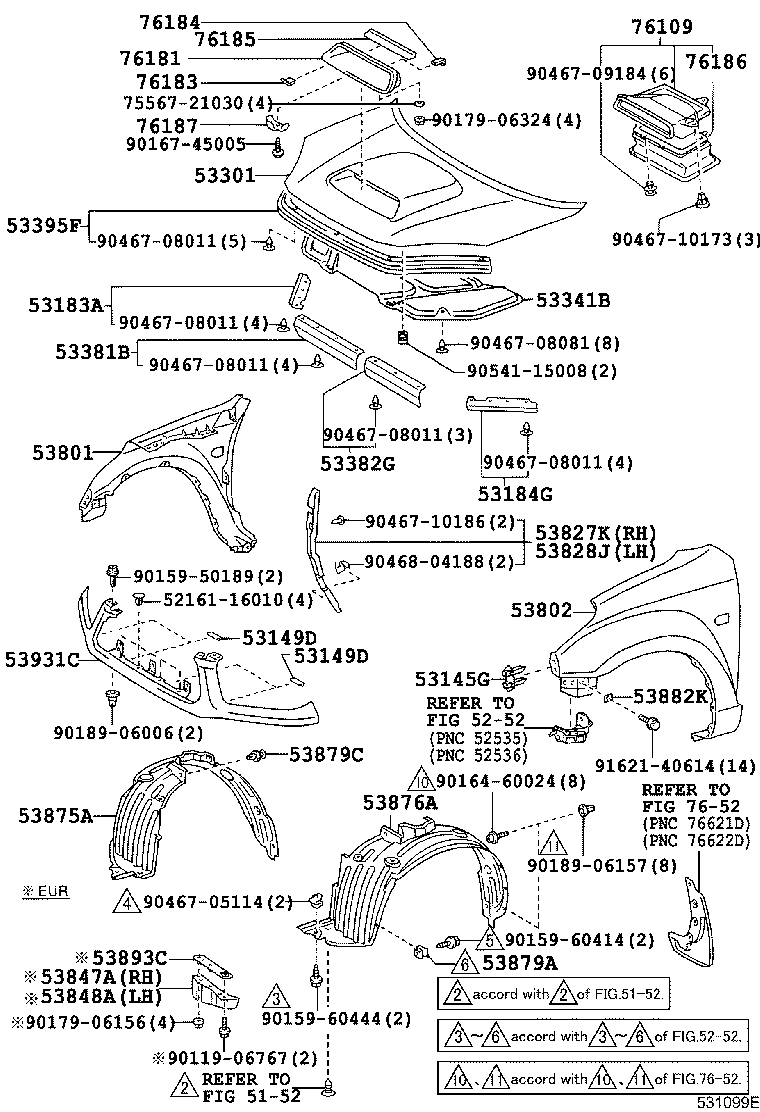

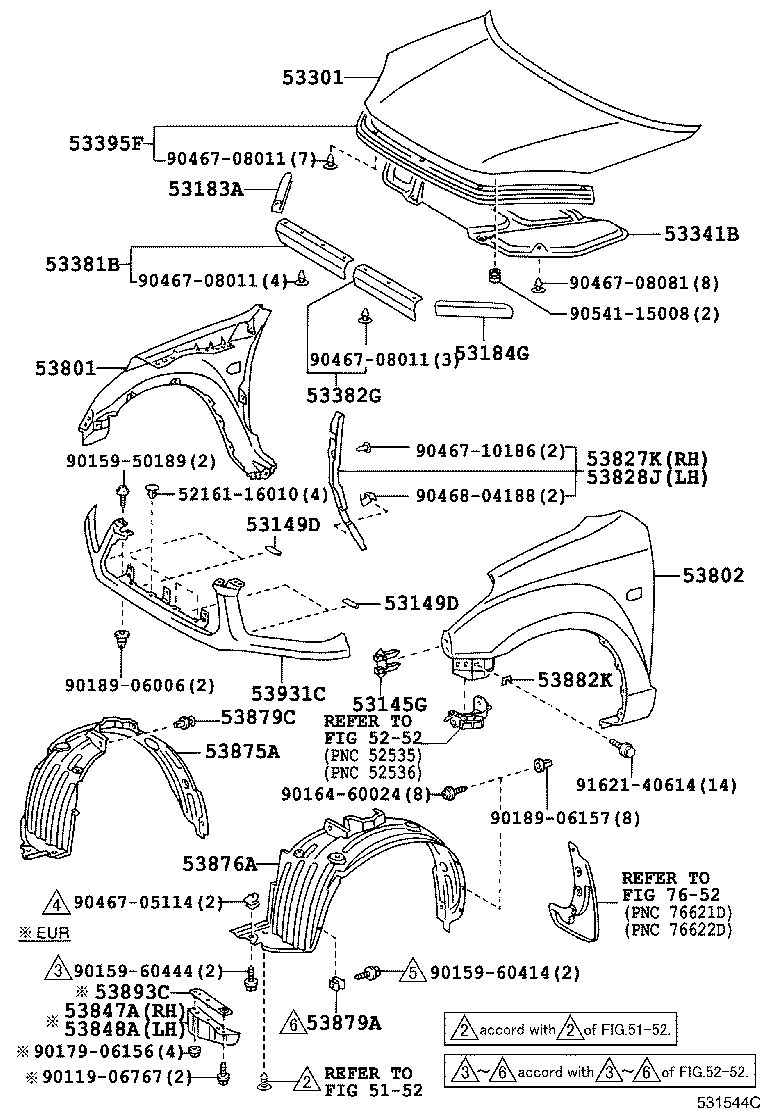

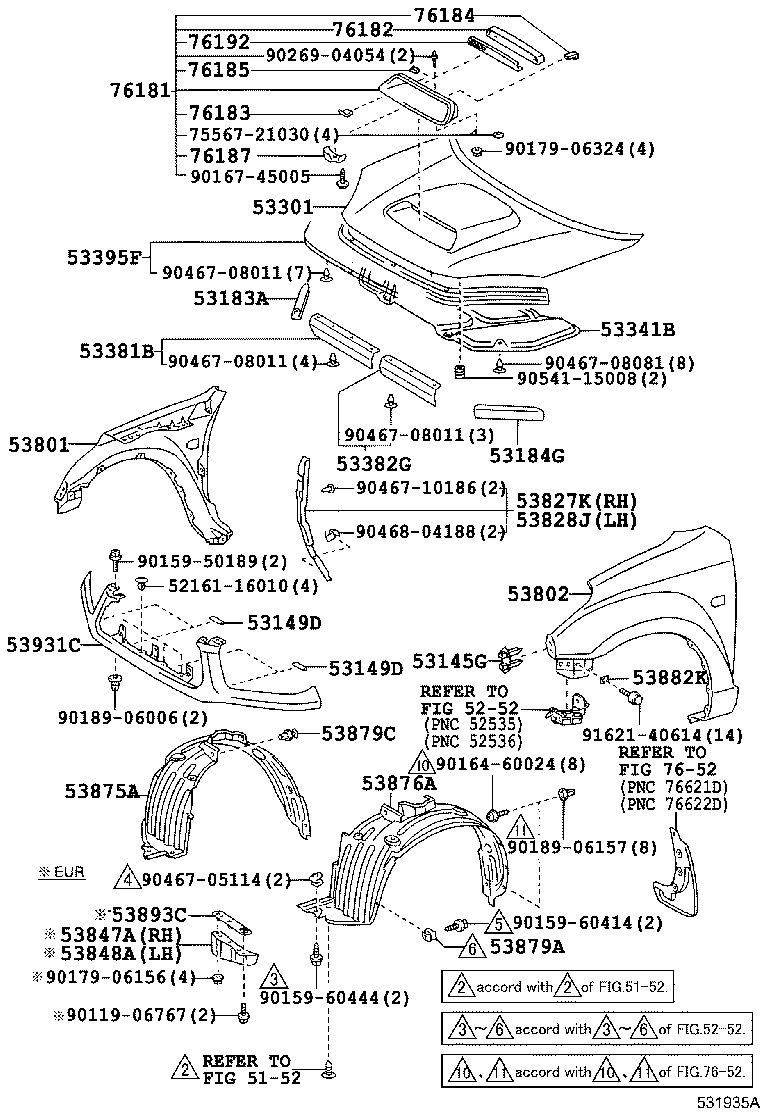

Hood & Front Fender
31 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 53145G | Clip, Radiator Grille |
| 53149D | Protector, Radiator Grille, NO.2 |
| 53183A | Seal, Headlamp Cover, RH |
| 53184G | Seal, Headlamp Cover, LH |
| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53381B | Seal, Hood TO Radiator Support, RH |
| 53382G | Seal, Hood TO Radiator Support, LH |
| 53395F | Seal, Hood TO Radiator Grille |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53827K | Protector, Front Fender Side Panel, RH |
| 53828J | Protector, Front Fender Side Panel, LH |
| 53847A | Extension, Front Wheel Opening OR Arch Moulding, RH |
| 53848A | Extension, Front Wheel Opening OR Arch Moulding, LH |
| 53875A | Liner, Front Fender, RH |
| 53876A | Liner, Front Fender, LH |
| 53879A | Retainer, Front Fender Liner |
| 53879C | Retainer, Front Fender Liner |
| 53882K | Seal, Front Fender |
| 53893C | Retainer, Front Fender Splash Shield, Front |
| 53931C | Panel, Front End |
| 76109 | Guide Sub-assy, Hood Air Intake |
| 76181 | Bulge, Hood |
| 76182 | Guide, Hood Air Intake |
| 76183 | Protector, Hood Bulge, NO.1 |
| 76184 | Protector, Hood Bulge, NO.2 |
| 76185 | Protector, Hood Bulge, NO.3 |
| 76186 | Seal, Hood Air Intake |
| 76187 | Retainer, Hood Air Intake Guide, NO.1 |
| 76192 | Plate, Hood Bulge |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
