Toyota RAV4

2000-05 → 2005-11 · chassis ACA2#,CLA2#,ZCA2# · catalogue 662220 · Europe

Discontinued model Data version 2006-05

Roof Panel & Back Panel

41 part groups · 4 illustrations

PNC	Description
63102A	Panel Sub-assy, Windshield Header
63105A	Frame Sub-assy, Back Door Opening
63111	Panel, Roof
63118	Support, Roof Panel, RH
63119	Support, Roof Panel, LH
63141G	Reinforcement, Roof Panel, NO.1
63142	Reinforcement, Roof Panel, NO.2
63143A	Reinforcement, Roof Panel
63144B	Reinforcement, Roof Panel, NO.4
63148A	Reinforcement, Roof Panel, NO.7
63178B	Reinforcement, Roof Panel, RH NO.8
63185D	Bracket, Roof Rack, Front
63187A	Bracket, Roof Rack, Rear
63188A	Reinforcement, Roof Panel, LH NO.8

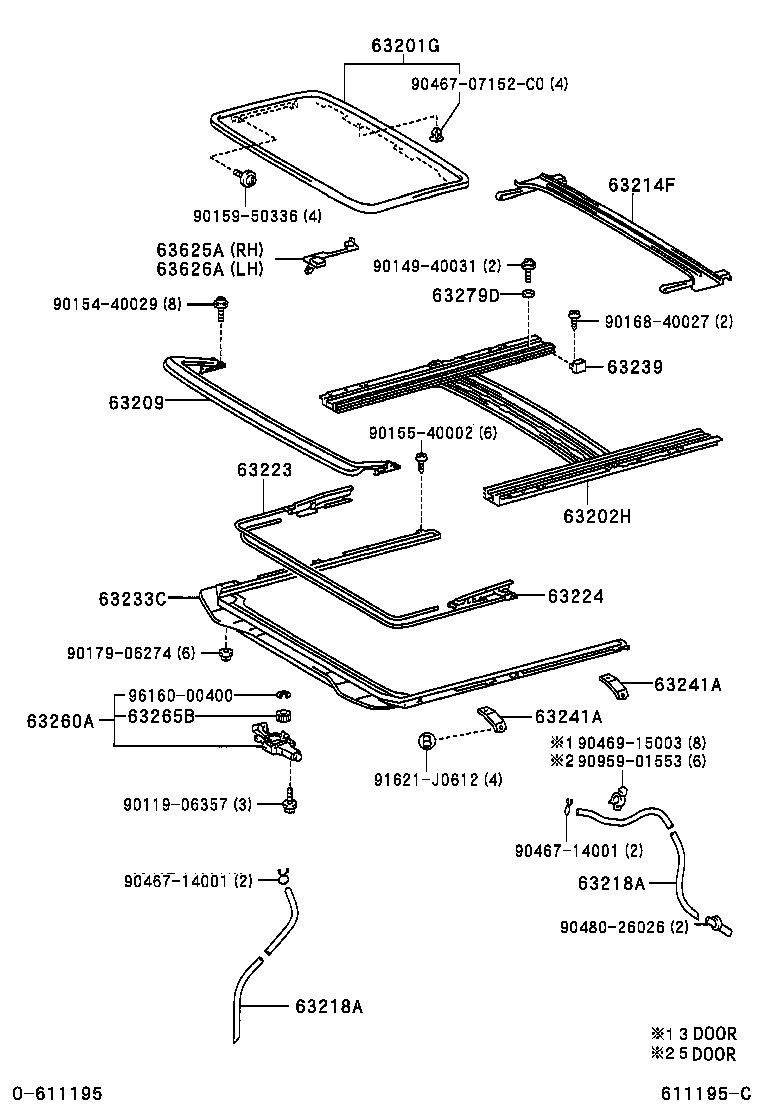

63201G	Glass Sub-assy, Sliding Roof
63202H	Rail Sub-assy, Slide Roof
63209	Panel Sub-assy, Roof Wind Deflector
63214F	Channel, Roof Drip, Rear
63218A	Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63223	Cable, Sliding Roof Drive, RH
63224	Cable, Sliding Roof Drive, LH
63233C	Panel, Sliding Roof Housing
63239	Stopper, Sliding Roof Panel
63241A	Bracket, Sliding Roof Housing Front Mounting, RH
63260A	Gear Sub-assy, Sliding Roof Drive
63265B	Gear, Sliding Roof Drive
63279D	Stopper, Sliding Roof Guide Rail
63437A	Seal, Roof Carrier, NO.2

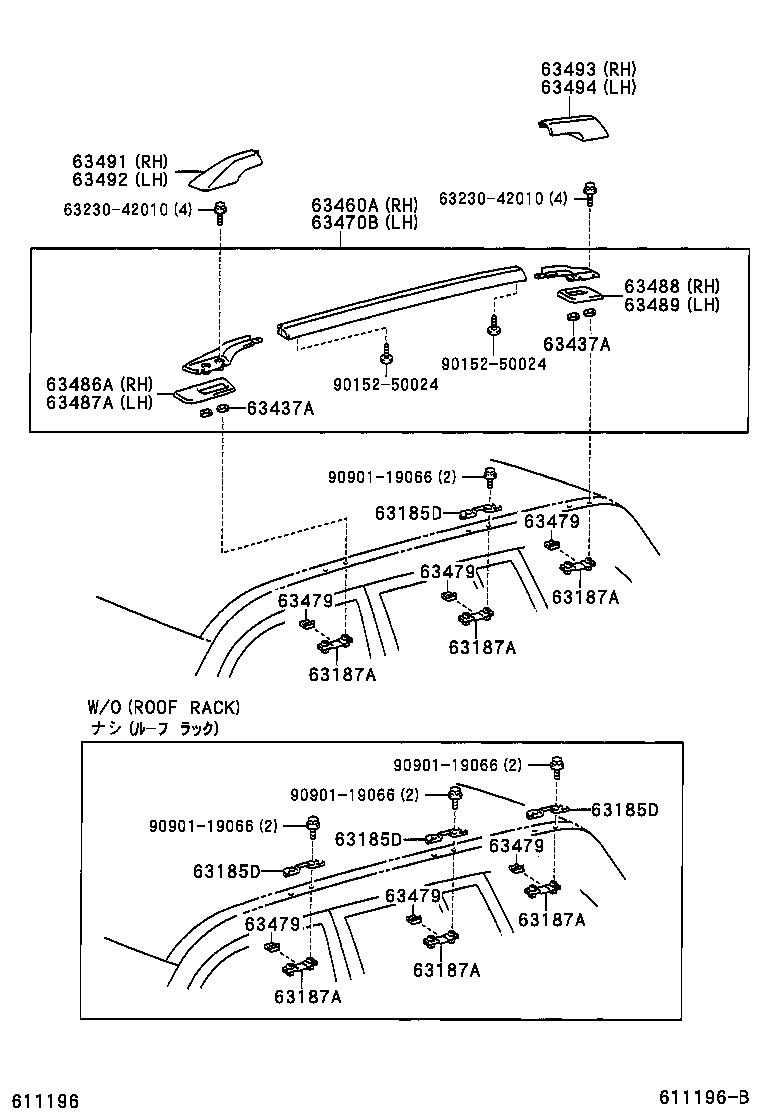

63460A	Rack Assy, Roof, RH
63470B	Rack Assy, Roof, LH
63479	Retainer, Roof Inner Rack
63486A	Cushion, Roof Rack Leg, Front RH
63487A	Cushion, Roof Rack Leg, Front LH
63488	Cushion, Roof Rack Leg, Rear RH
63489	Cushion, Roof Rack Leg, Rear LH
63491	Cover, Roof Rack Leg, Front RH
63492	Cover, Roof Rack Leg, Front LH
63493	Cover, Roof Rack Leg, Rear RH
63494	Cover, Roof Rack Leg, Rear LH
63625A	Block, Sliding Roof Guide, RH
63626A	Block, Sliding Roof Guide, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
