Toyota RAV4
2000-05 → 2005-11 · chassis ACA2#,CLA2#,ZCA2# · catalogue 662220 · Europe
Discontinued model
Data version 2006-05
Inside Trim Board

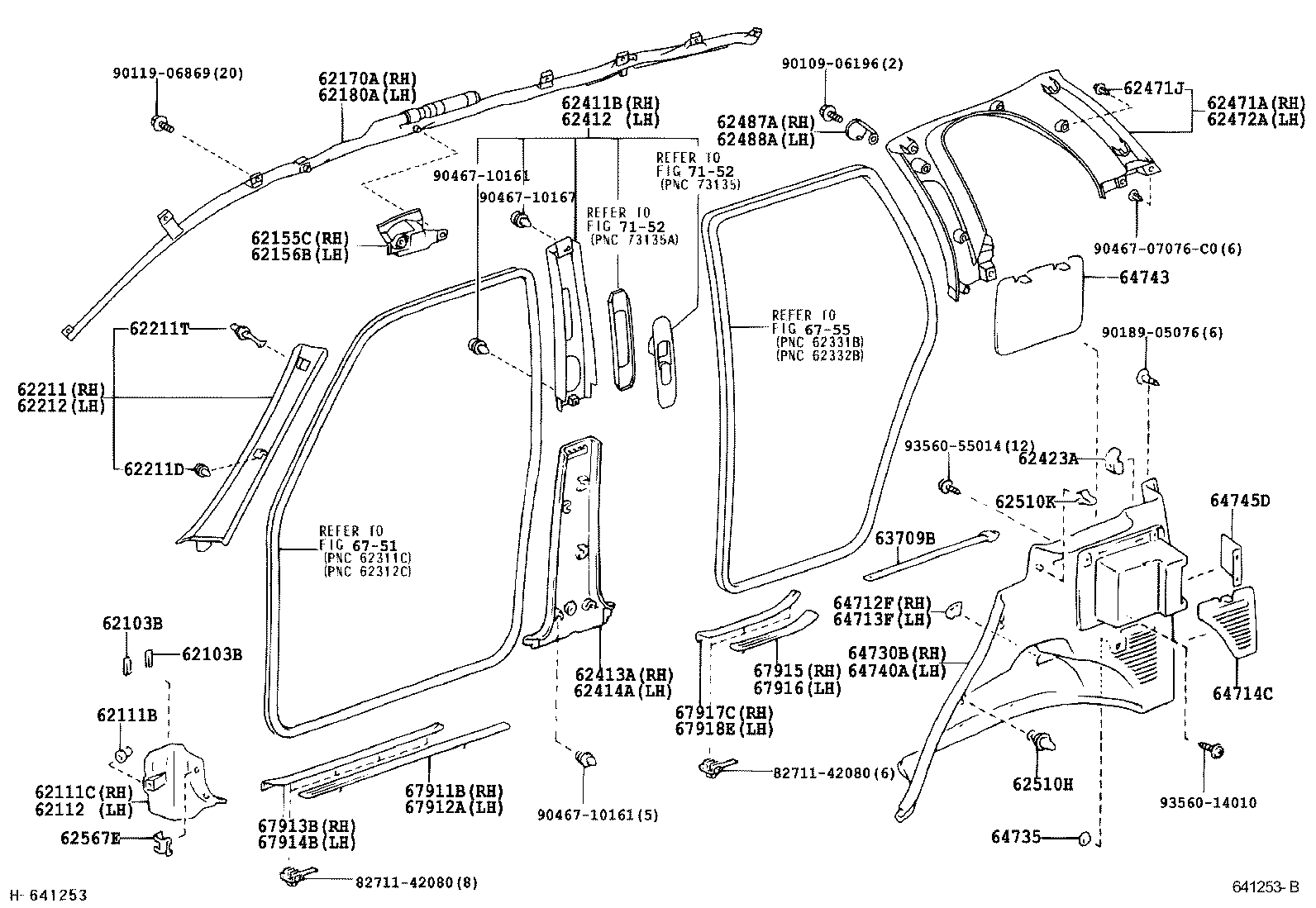

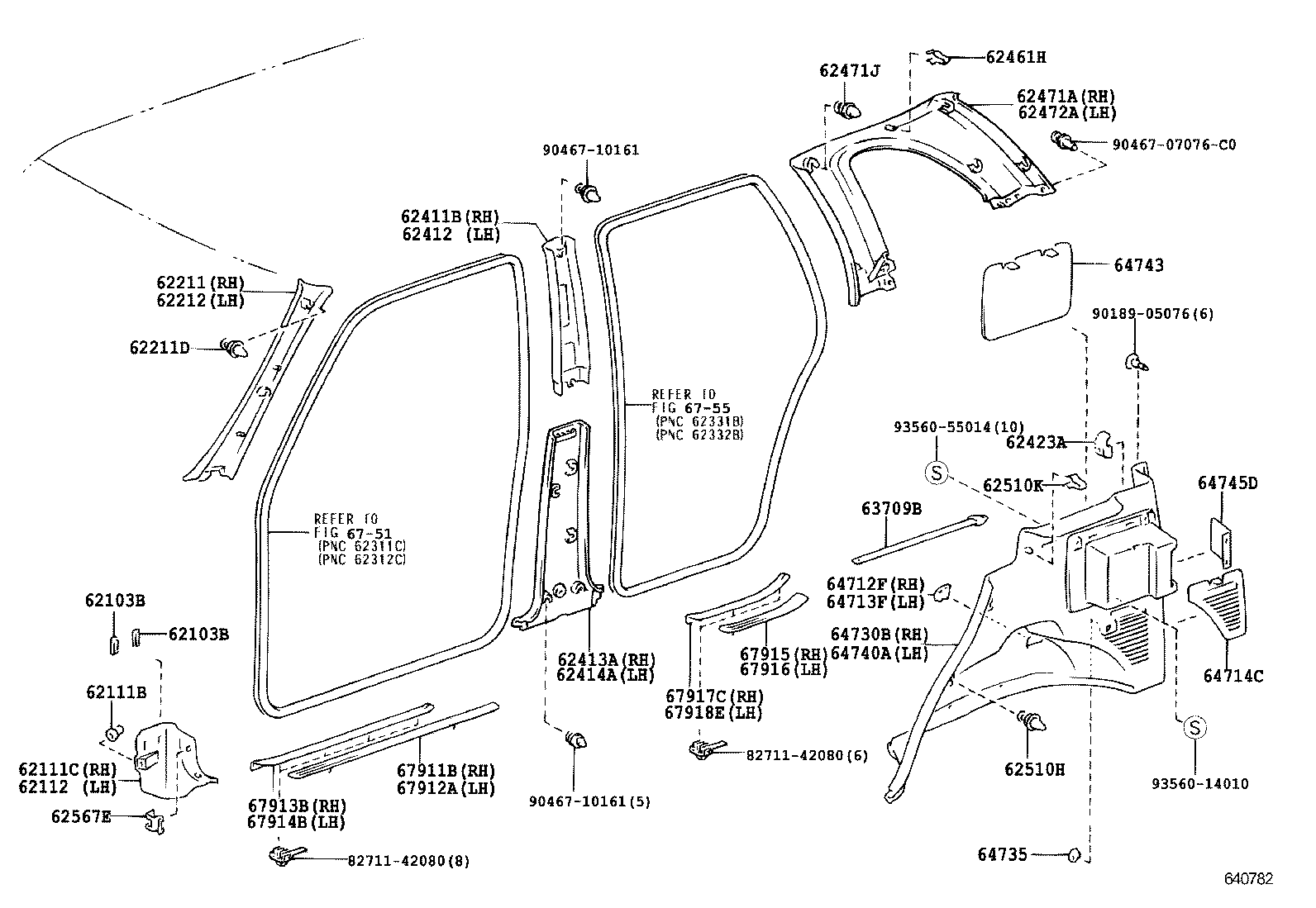

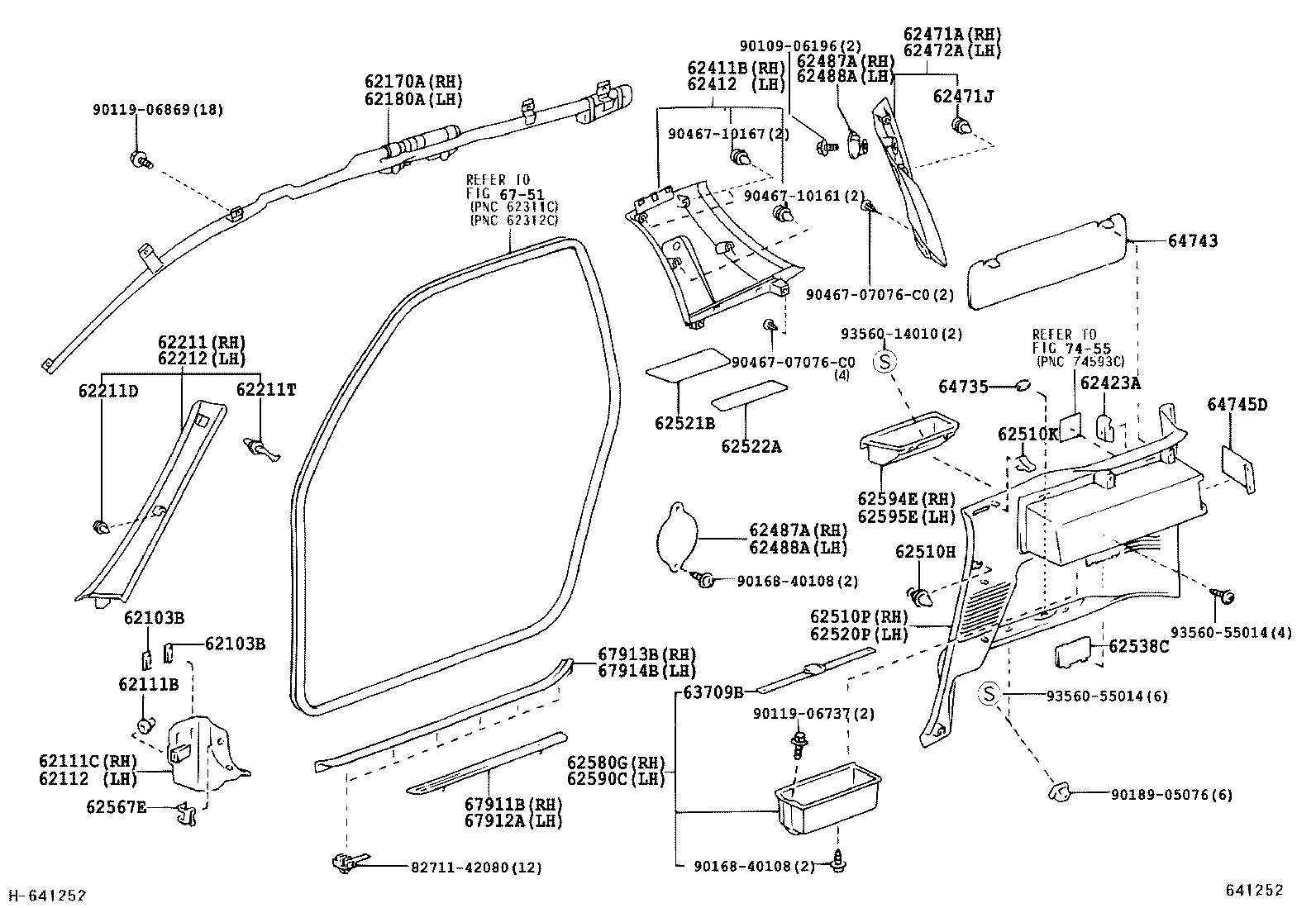

52 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62103B | Plug(FOR COWL SIDE TRIM BOARD) |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62155C | Bracket, Curtain Shield Airbag, RH |
| 62156B | Bracket, Curtain Shield Airbag, LH |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62211D | Clip(FOR FRONT BODY PILLAR GARNISH) |
| 62211T | Clip(FOR FRONT PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412 | Garnish, Center Pillar, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62423A | Hook, Side Window Garnish |
| 62461H | Clip (FOR ROOF SIDE INNER GARNISH) |
| 62471A | Garnish, Roof Side, Inner RH |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62472A | Garnish, Roof Side, Inner LH |
| 62487A | Cover, Roof Side Inner Garnish, RH |
| 62488A | Cover, Roof Side Inner Garnish, LH |
| 62510H | Clip(FOR QUARTER TRIM FRONT PANEL) |
| 62510K | Clip(FOR QUARTER TRIM FRONT PANEL) |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62521B | Cover, Quarter Trim, RH |
| 62522A | Cover, Quarter Trim, LH |
| 62538C | Cover, Quarter Trim, Hole |
| 62567E | Clamp, Rocker Panel Inner Protector, NO.2 |
| 62580G | Box Assy, Side Trim, RH |
| 62590C | Box Assy, Side Trim, LH |
| 62594E | Pocket, Quarter Trim, RH |
| 62595E | Pocket, Quarter Trim, LH |
| 63709B | Band Sub-assy, Room Rack |
| 64712F | Cover, Deck Side Trim, Front RH |
| 64713F | Cover, Deck Side Trim, Front LH |
| 64714C | Cover, Deck Side Trim, RH |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64735 | Cover, Deck Trim Side Service Hole |
| 64740A | Panel Assy, Deck Trim Side, LH |
| 64743 | Cover, Side Trim Tool Bag |
| 64745D | Cover, Rear Combination Lamp Service, RH |
| 67911B | Plate, Front Door Scuff, Outside, RH |
| 67912A | Plate, Front Door Scuff, Outside LH |
| 67913B | Plate, Front Door Scuff, RH |
| 67914B | Plate, Front Door Scuff, LH |
| 67915 | Plate, Rear Door Scuff, Outside RH |
| 67916 | Plate, Rear Door Scuff, Outside LH |
| 67917C | Plate, Rear Door Scuff, RH |
| 67918E | Plate, Rear Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
