Toyota RAV4

2000-05 → 2005-11 · chassis ACA2#,CLA2#,ZCA2# · catalogue 662220 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

21 part groups · 2 illustrations

Illustrations

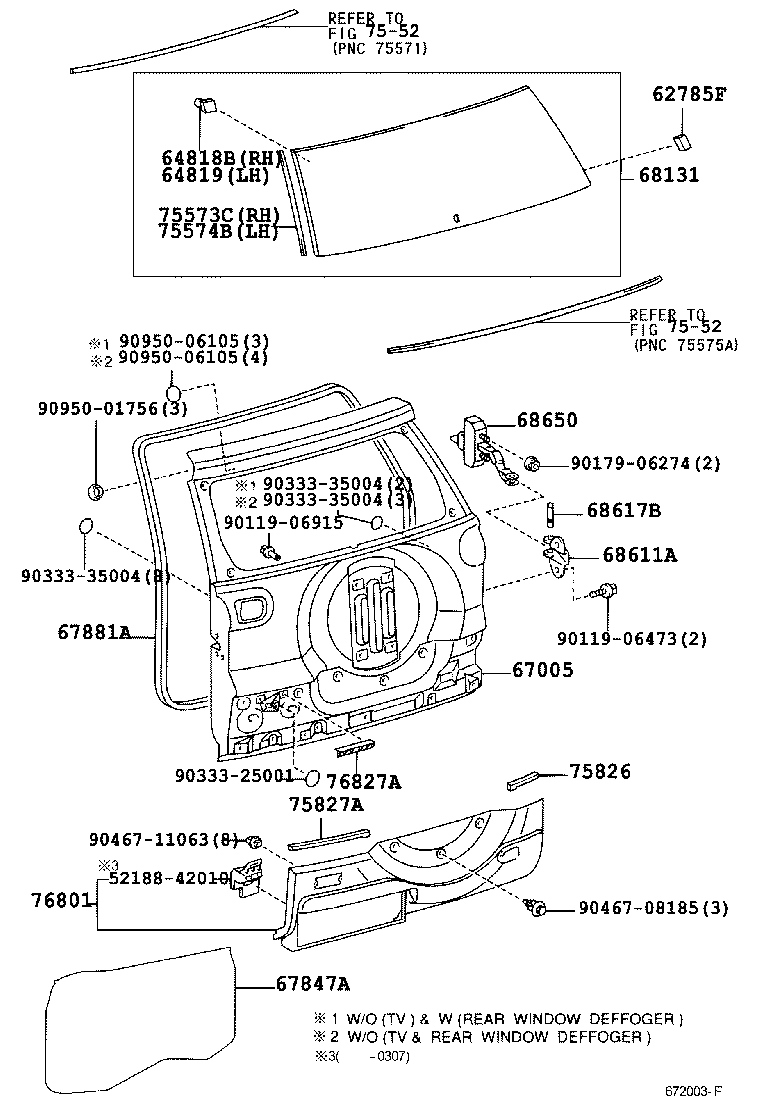

Figure 671987A 671987A 2000-05 → — Figure 672003F 672003F 2000-05 → —

Part groups

PNCDescription
62785F Spacer, Back Door Glass
64818B Spacer, Back Door Glass, NO.1
64819 Spacer, Back Window Glass, NO.2
67005 Panel Sub-assy, Back Door
67709B Pocket Sub-assy, Back Door Trim
67750A Clip(FOR BACK DOOR TRIM)
67751 Board, Back Door Trim
67847A Cover, Back Door Service Hole
67881A Weatherstrip, Back Door
67937B Garnish, Back Door Side, RH
67938A Garnish, Back Door Side, LH
68131 Glass, Back Door
68611A Base, Back Door Check
68617B Pin, Back Door Check
68650 Check Assy, Back Door
75573C Moulding, Back Window, Outside
75574B Moulding, Back Window, Outside LH
75826 Pad, Back Door Outside Moulding, RH
75827A Pad, Back Door Outside Moulding, LH
76801 Garnish Sub-assy, Back Door, Outside
76827A Retainer, Back Door Garnish, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
