Toyota RAV4

2000-05 → 2005-11 · chassis ACA2#,CLA2#,ZCA2# · catalogue 662220 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

9 part groups · 3 illustrations

Illustrations

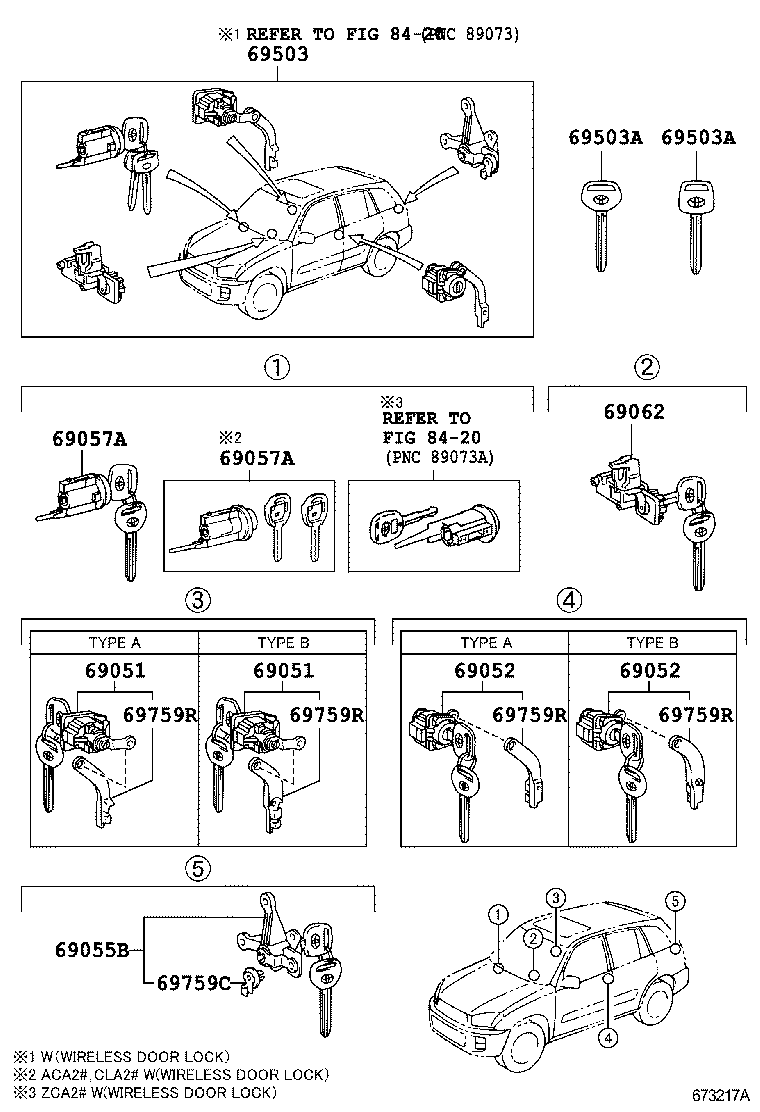

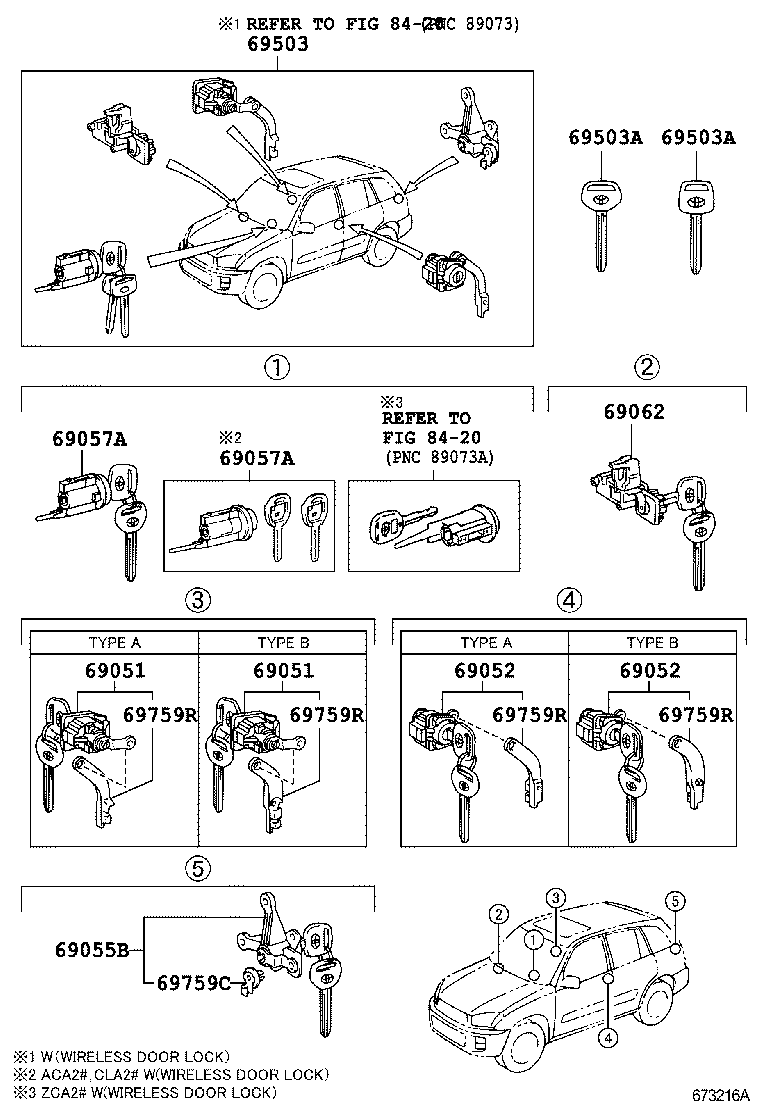

Figure 671989 671989 2000-05 → 2003-07 Figure 673216A 673216A 2003-07 → — Figure 673217A 673217A 2003-07 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055B Cylinder & Key Set, Back Door Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69062 Cylinder & Key Set, Glove Compartment Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69759C Snap, Back Door Lock Cylinder
69759R Snap, Front Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
