Toyota RAV4
2000-05 → 2005-11 · chassis ACA2#,CLA2#,ZCA2# · catalogue 662220 · Europe
Discontinued model
Data version 2006-05
Seat Belt

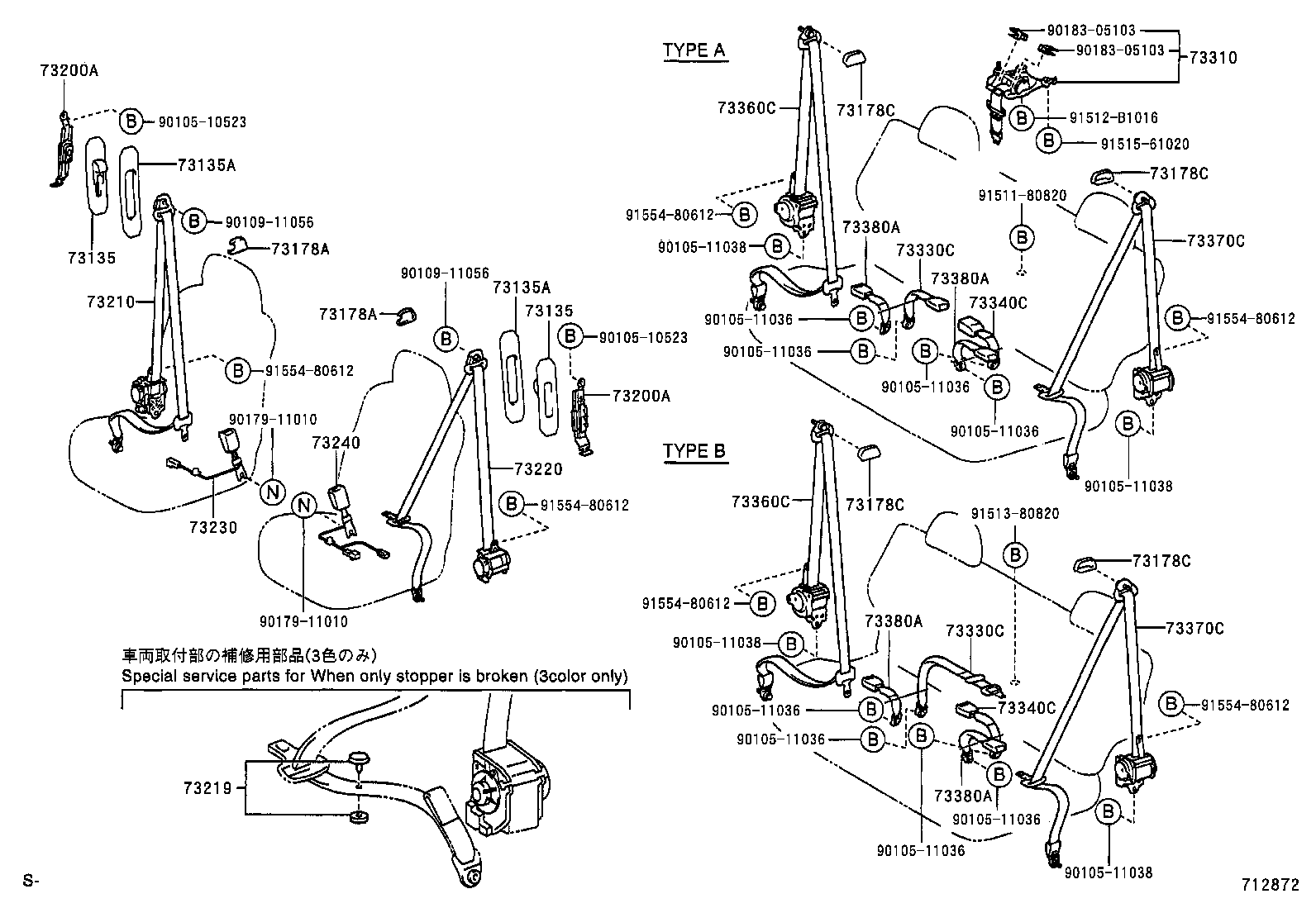

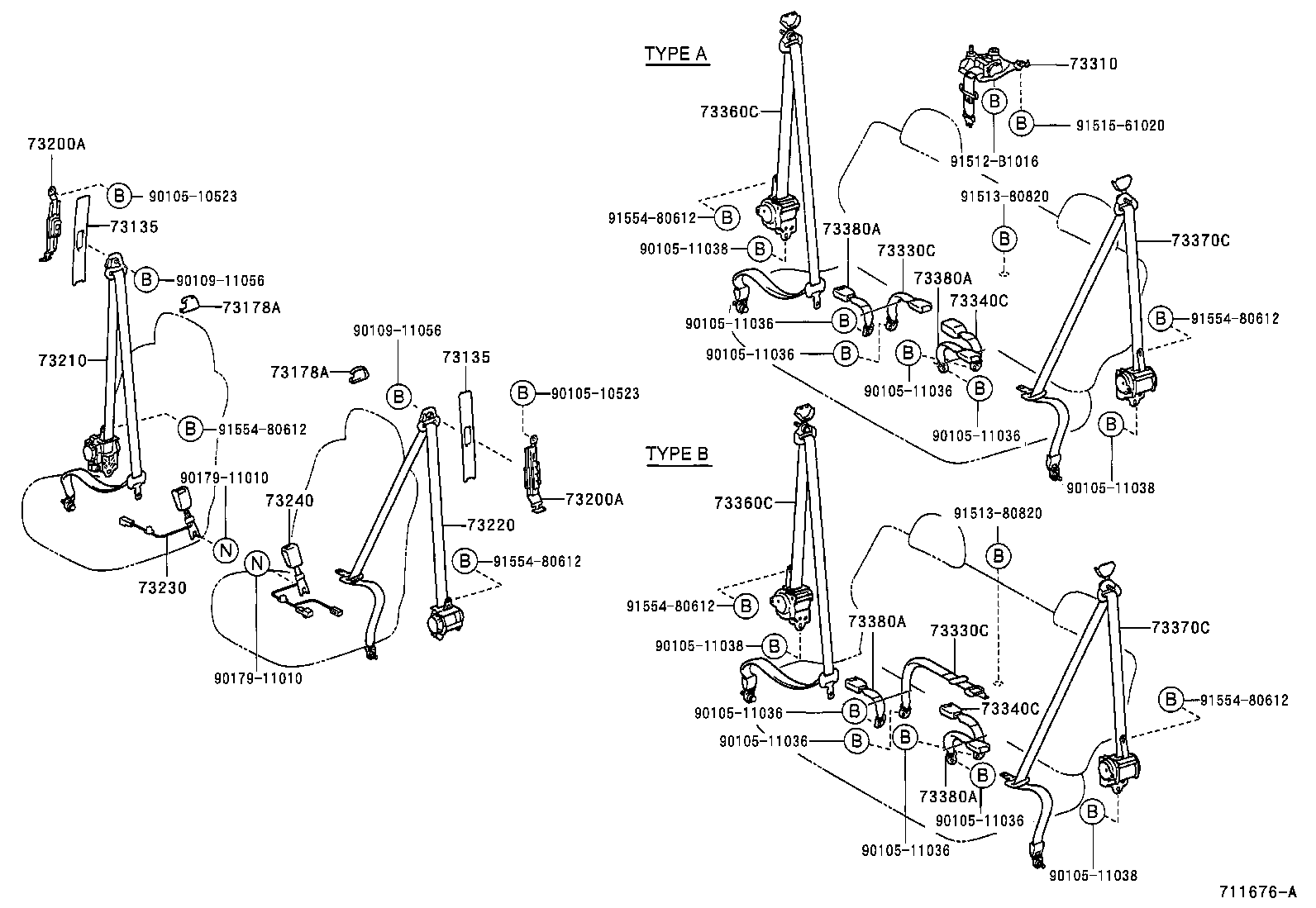

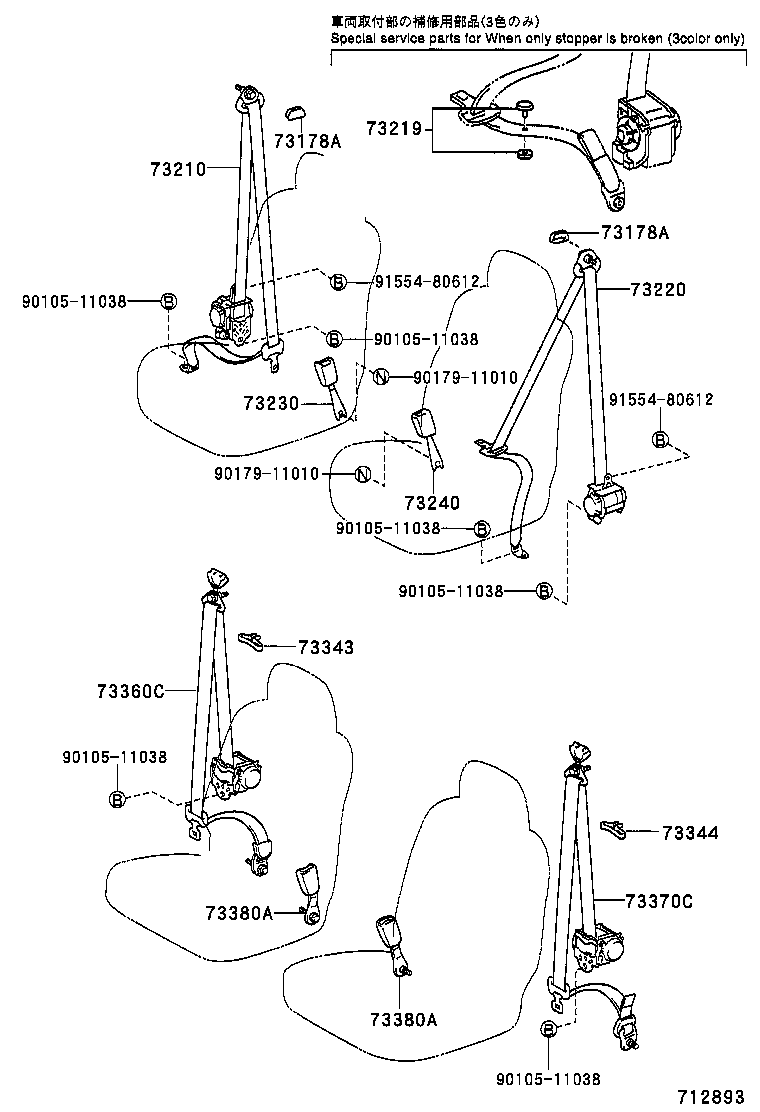

18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 73135 | Cover, Shoulder Belt Anchorage Plate |
| 73135A | Cover, Shoulder Belt Anchor, RH |
| 73178A | Cap, Seat Belt Anchor Cover |
| 73178C | Cap, Seat Belt Anchor Cover |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73310 | Belt Assy, Rear Seat 3 Point Type, RH |
| 73330C | Belt Assy, Rear Seat Lap Type, Center RH |
| 73340C | Belt Assy, Rear Seat Lap Type, Center LH |
| 73343 | Guide, Rear Seat Shoulder Belt, RH |
| 73344 | Guide, Rear Seat Shoulder Belt, LH |
| 73360C | Belt Assy, Rear NO.1 Seat, Outer RH |
| 73370C | Belt Assy, Rear NO.1 Seat, Outer LH |
| 73380A | Belt Assy, Rear Seat, Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
