Toyota RAV4
2000-05 → 2005-11 · chassis ACA2#,CLA2#,ZCA2# · catalogue 662220 · Europe
Discontinued model
Data version 2006-05

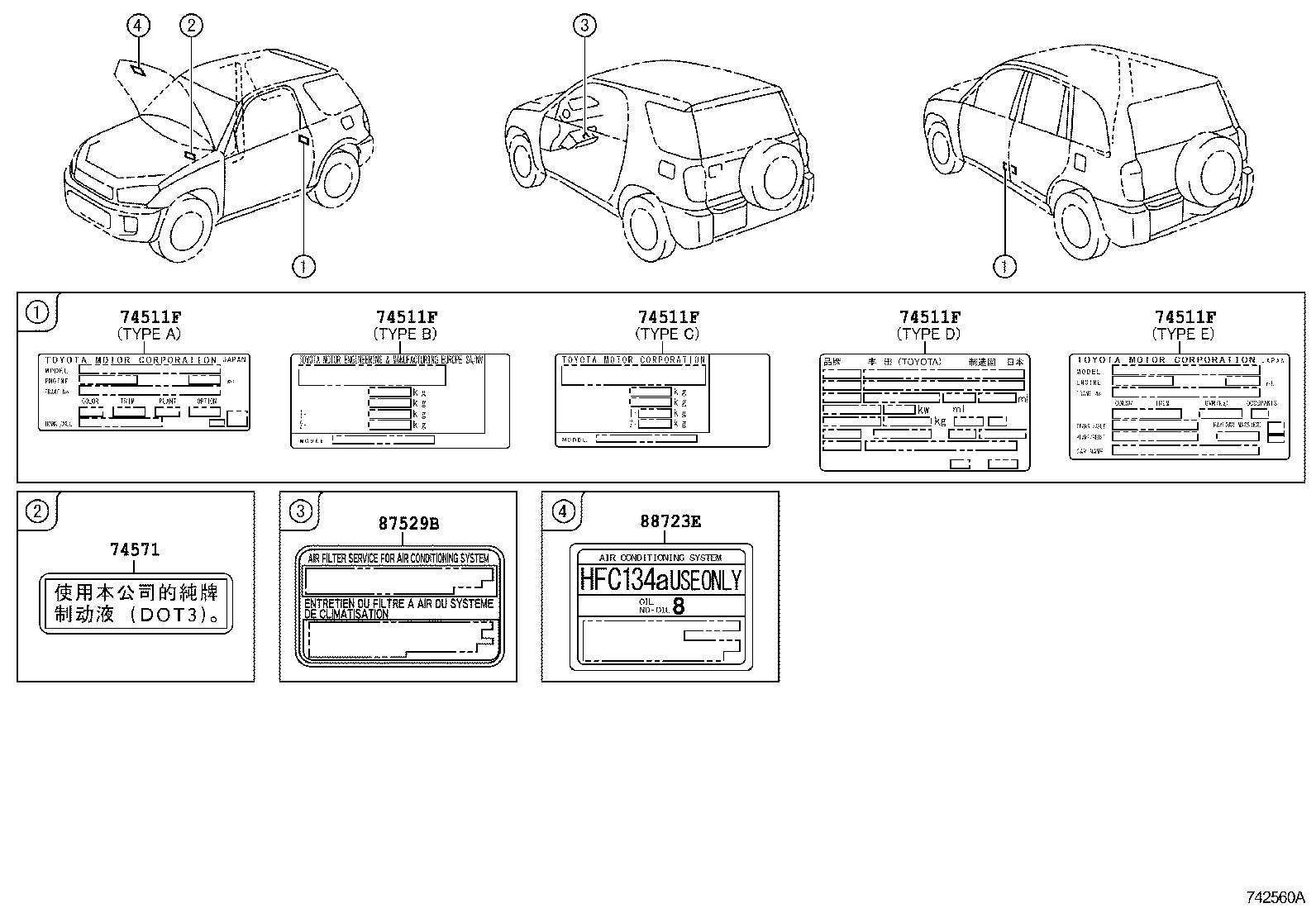

Caution Plate
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11296C | Label, Engine Service Information |
| 41992 | Label, Differential Notice |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515A | Plate, Theft Warning |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |
| 74544E | Label, Rear NO.2 Seat Information |
| 74548C | Label, Battery Cover Caution |
| 74559A | Plate, Fuel Caution |
| 74559B | Label, Fuel Information |
| 74567A | Plate, E.C.E Approved Number |
| 74571 | Plate, Brake Fluid Caution |
| 74579 | Plate, Unleaded Fuel Caution |
| 74593C | Label, Trim Pocket Notice |
| 74596A | Label, Side Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
