Toyota RAV4

2000-05 → 2005-11 · chassis ACA2#,CLA2#,ZCA2# · catalogue 662220 · Europe

Discontinued model Data version 2006-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

40 part groups · 2 illustrations

Illustrations

750754B 2000-05 → —

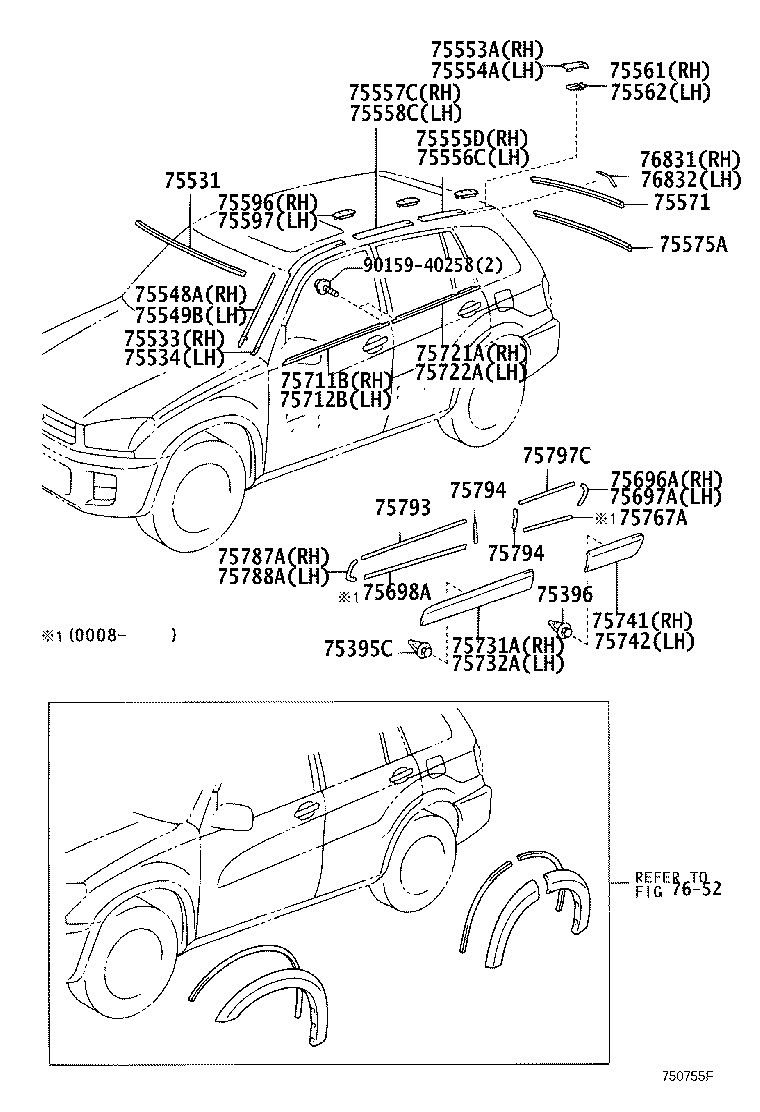

750755F 2000-05 → —

Part groups

PNC	Description
75395C	Clip, Outside Moulding, NO.1
75396	Clip, Outside Moulding, NO.2
75531	Moulding, Windshield, Outer Upper
75533	Moulding, Windshield, Outside RH
75534	Moulding, Windshield, Outside LH
75548A	Fastener, Windshield Outside Moulding, NO.1
75549B	Fastener, Windshield Outside Moulding, NO.2
75553A	Moulding, Roof Drip Side Finish, Rear RH
75554A	Moulding, Roof Drip Side Finish, Rear LH
75555D	Moulding, Roof Drip Side Finish, Center RH
75556C	Moulding, Roof Drip Side Finish, Center LH
75557C	Moulding, Roof Drip Side Finish, Center NO.2 RH
75558C	Moulding, Roof Drip Side Finish, Center NO.2 LH
75561	Clip, Roof Drip Side Finish Moulding, NO.1
75562	Clip, Roof Drip Side Finish Moulding, NO.2
75571	Moulding, Back Window, Outside Upper
75575A	Moulding, Back Window, Outside Lower
75596	Cover, Roof Drip Side Finish Moulding Joint, RH
75597	Cover, Roof Drip Side Finish Moulding Joint, LH
75696	Pad, Body Outside Moulding, NO.1
75696A	Pad, Body Outside Moulding
75697	Pad, Body Outside Moulding, NO.2
75697A	Pad, Body Outside Moulding, NO.2
75698A	Pad, Body Outside Moulding, NO.3
75711B	Moulding, Front Door Belt, RH
75712B	Moulding, Front Door Belt, LH
75721A	Moulding, Rear Door Belt, RH
75722A	Moulding, Rear Door Belt, LH
75731A	Moulding, Front Door, Outside RH
75732A	Moulding, Front Door, Outside LH
75741	Moulding, Rear Door, Outside RH
75742	Moulding, Rear Door, Outside LH
75767A	Pad, Rear Door Moulding, NO.1
75787A	Pad, Front Door Outside Moulding, RH
75788A	Pad, Front Door Outside Moulding, LH
75793	Pad, Front Door Outside Moulding, Upper
75794	Pad, Front Door Outside Moulding, Rear
75797C	Pad, Rear Door Outside Moulding, Upper
76831	Cover, Back Door Finish Panel
76832	Cover, Back Door Finish Panel, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
