Toyota RAV4

2000-05 → 2005-11 · chassis ACA2#,CLA2#,ZCA2# · catalogue 662220 · Europe

Discontinued model Data version 2006-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Fog Lamp

7 part groups · 2 illustrations

Illustrations

811488 2000-05 → —

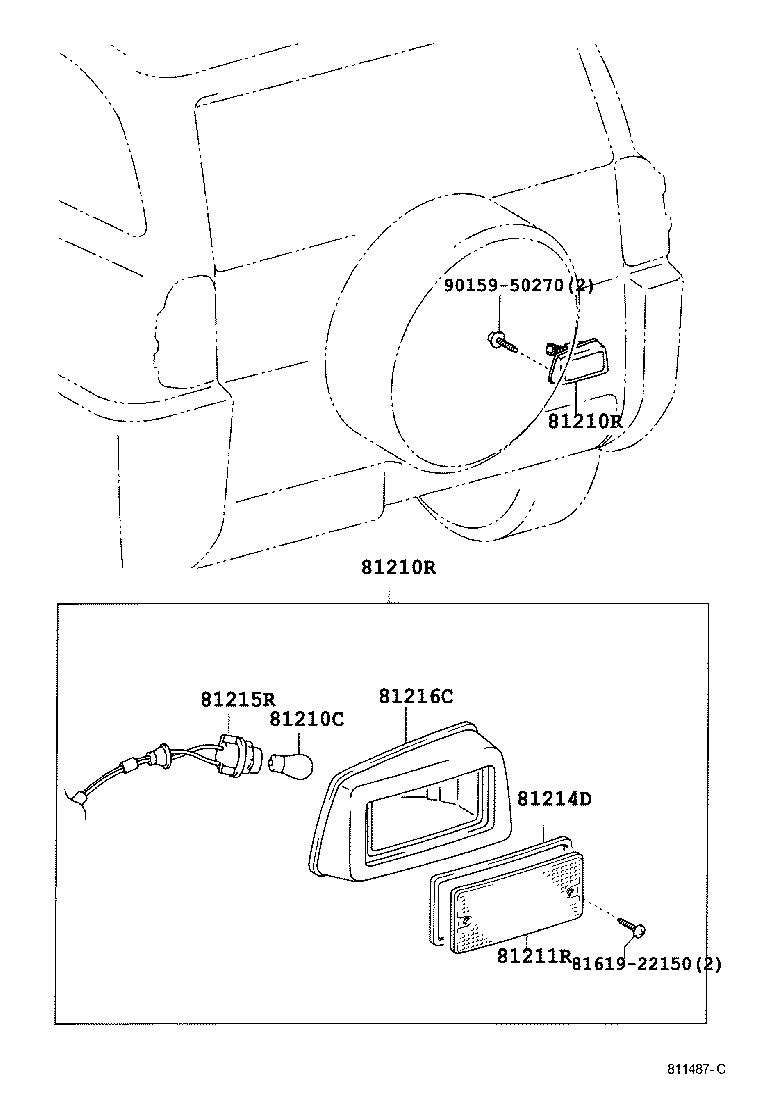

Figure 811487C

811487C 2000-05 → —

Part groups

PNC	Description
81210C	Bulb, Rear Fog Lamp
81210R	Lamp Assy, Rear Fog
81211R	Lens, Rear Fog Lamp
81214D	Gasket, Rear Fog Lamp Body
81215R	Socket & Wire, Rear Fog Lamp
81216C	Rim, Rear Fog Lamp, RH, NO.1
81224	Gasket, Fog Lamp Body, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
