Toyota RAV4

2000-05 → 2005-11 · chassis ACA2#,CLA2#,ZCA2# · catalogue 662220 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

38 part groups · 13 illustrations

Illustrations

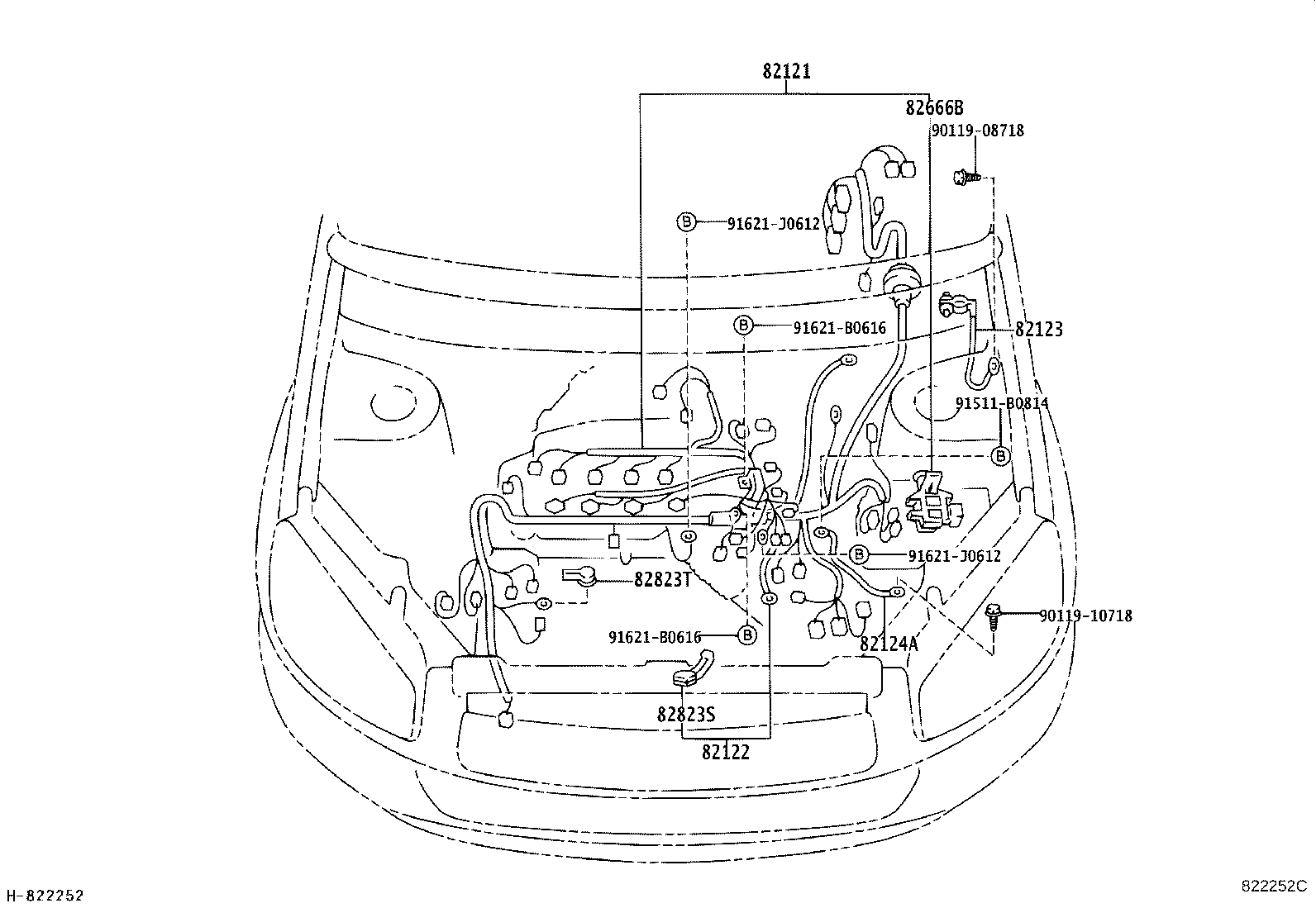

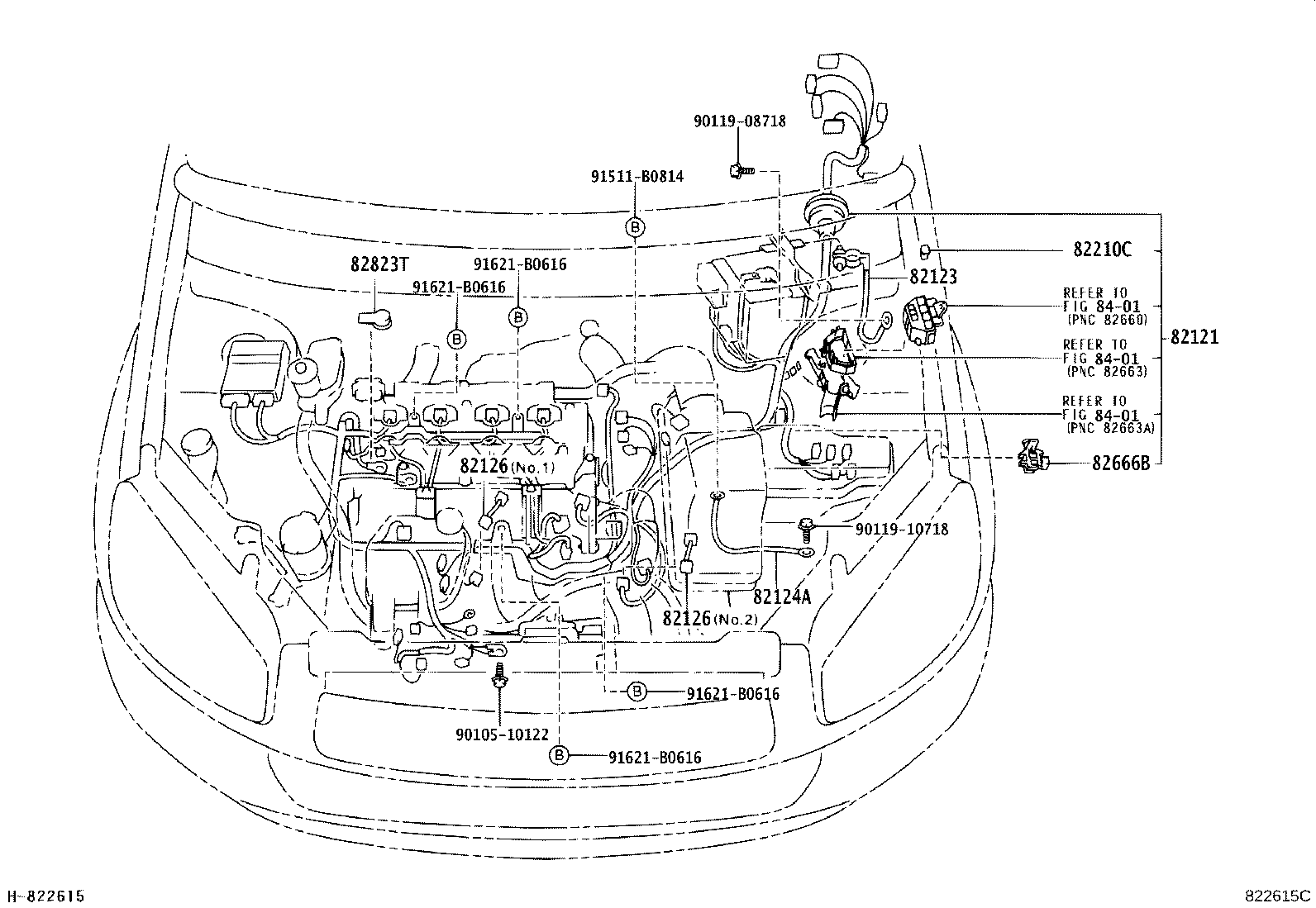

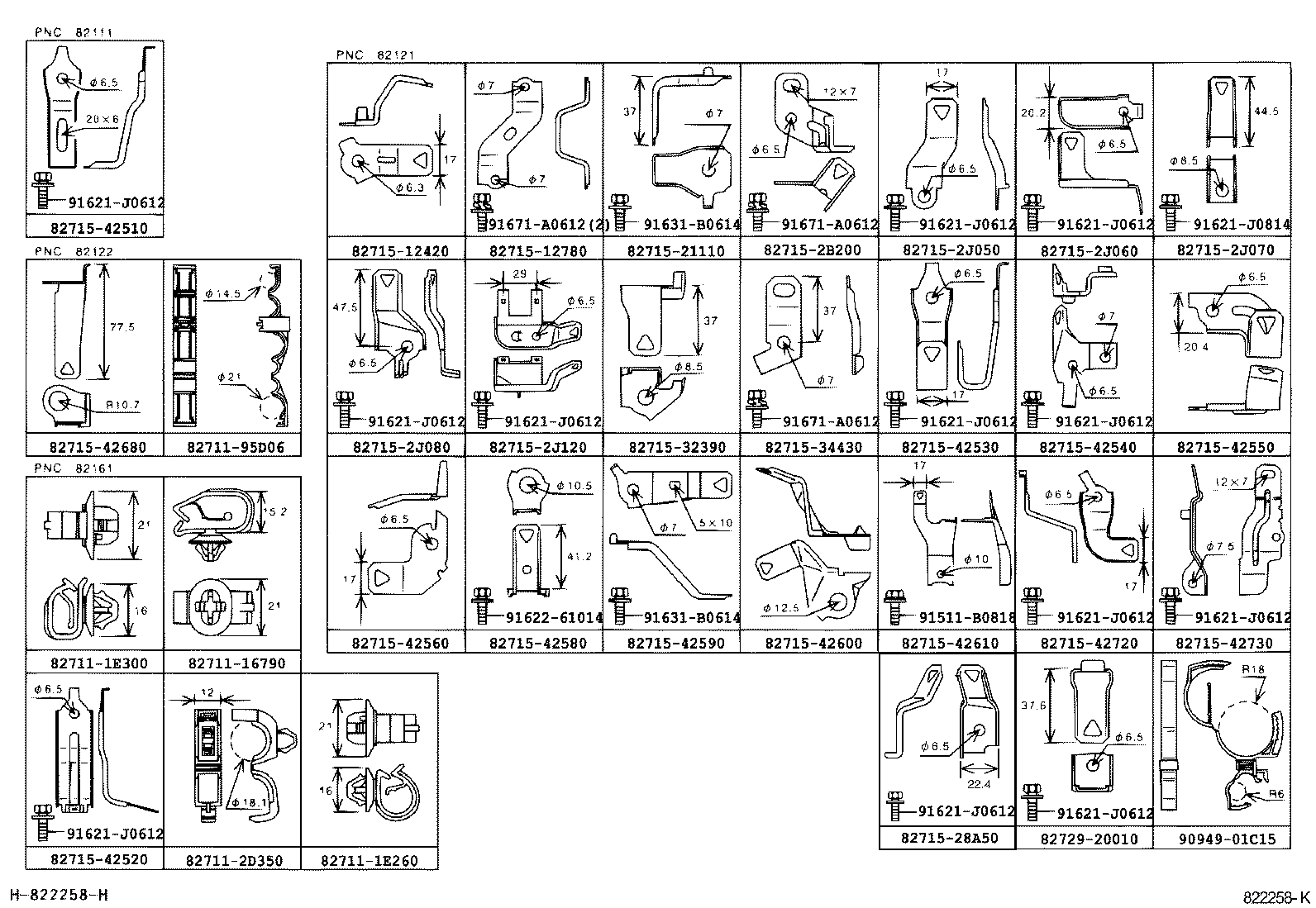

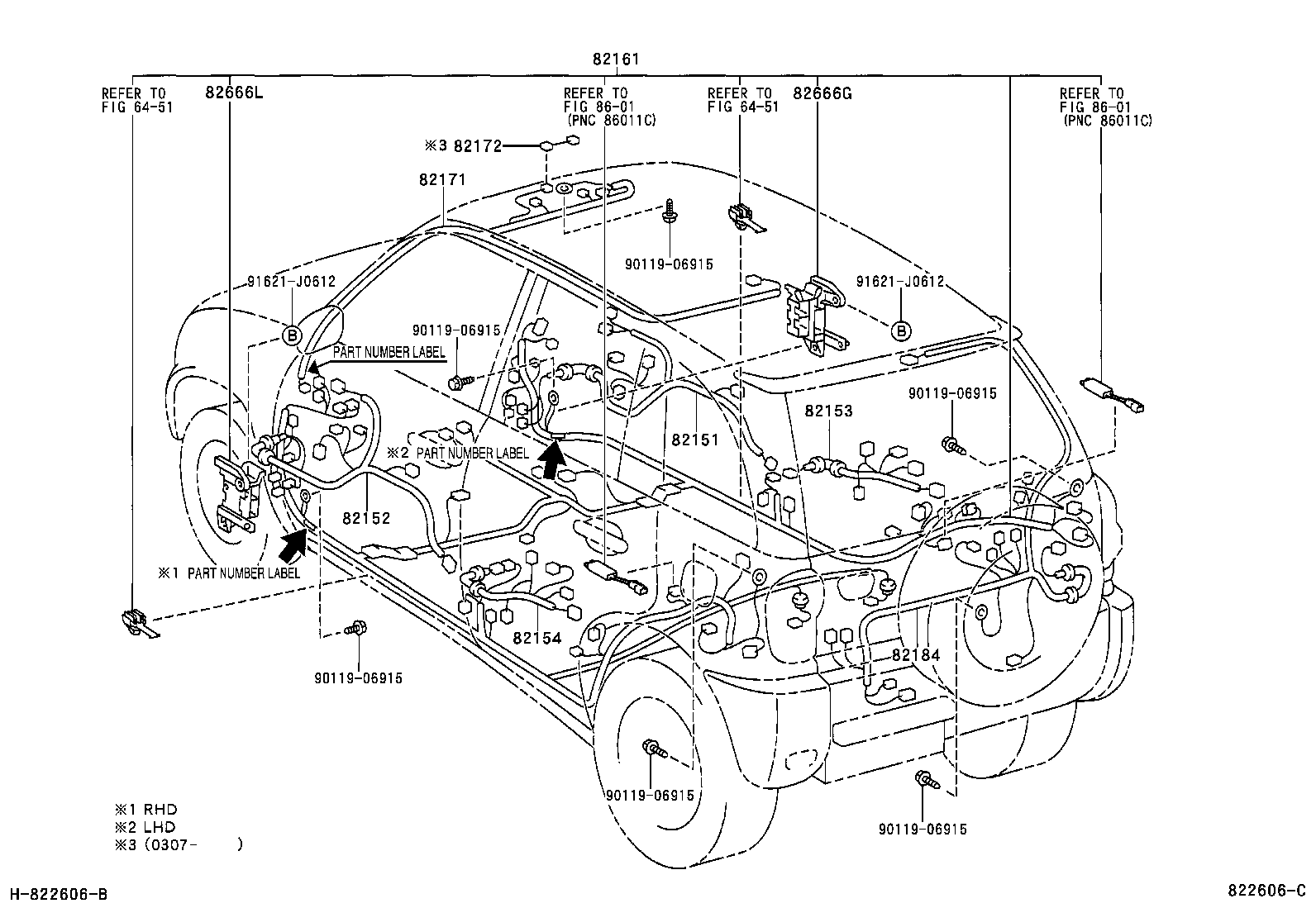

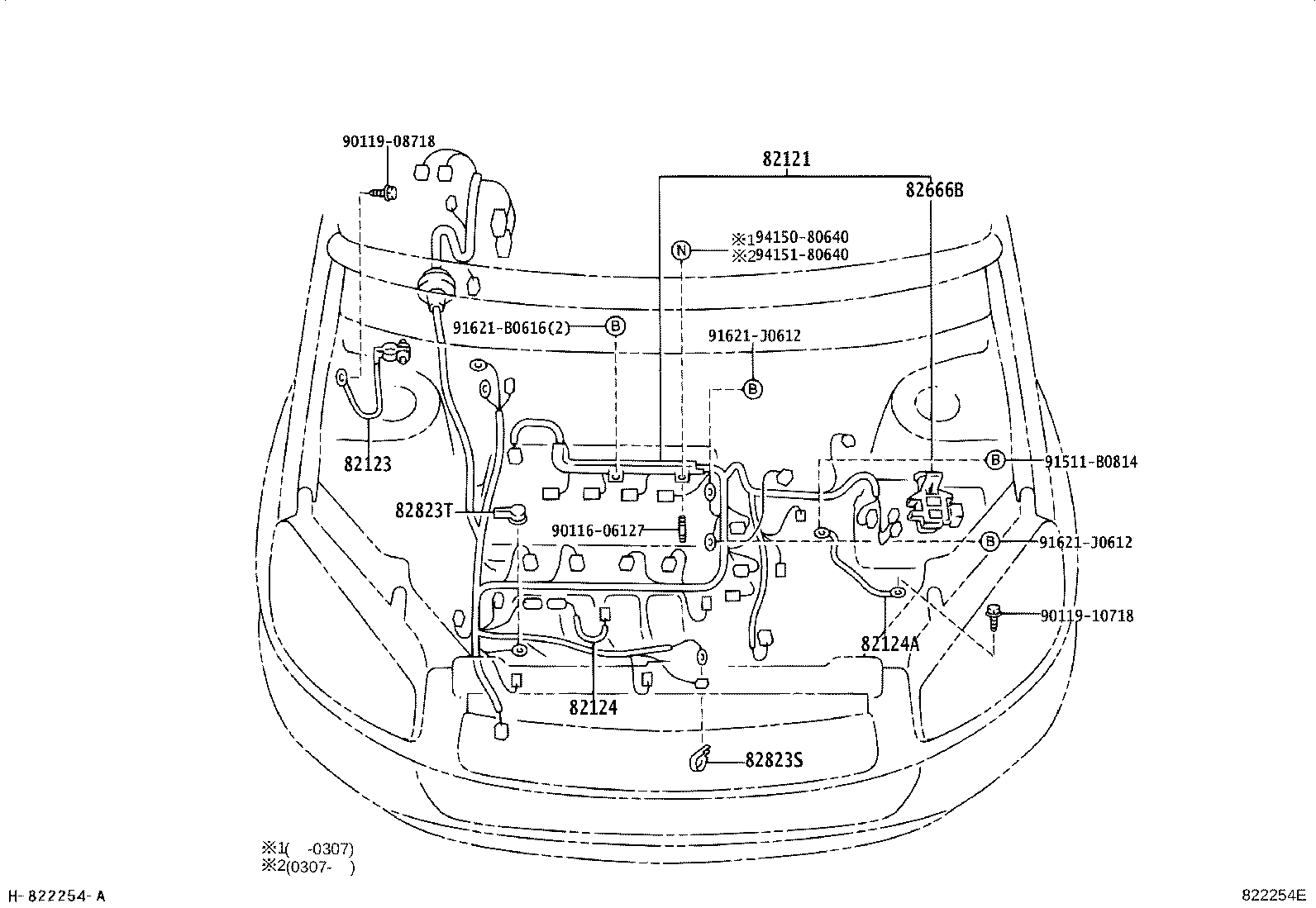

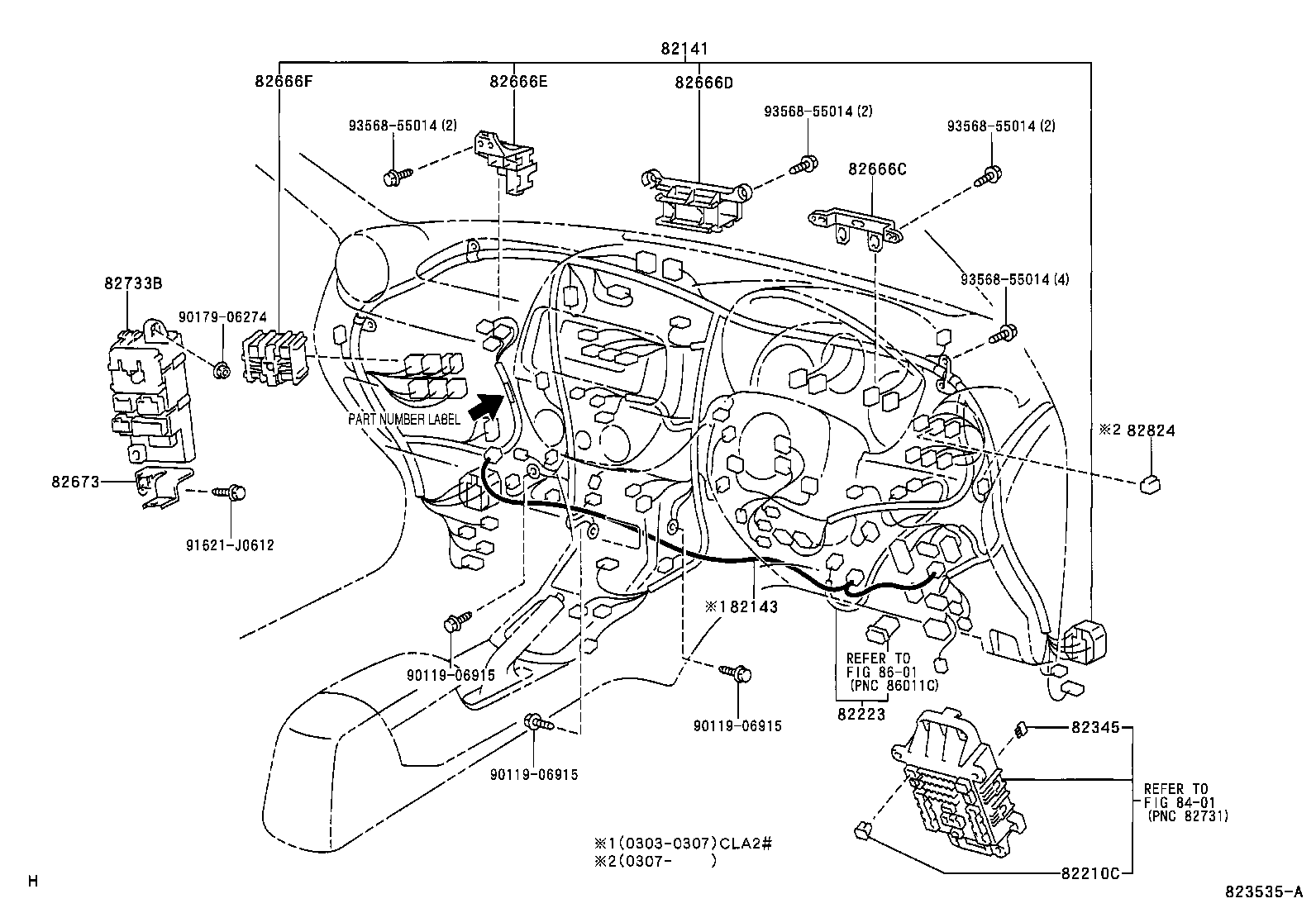

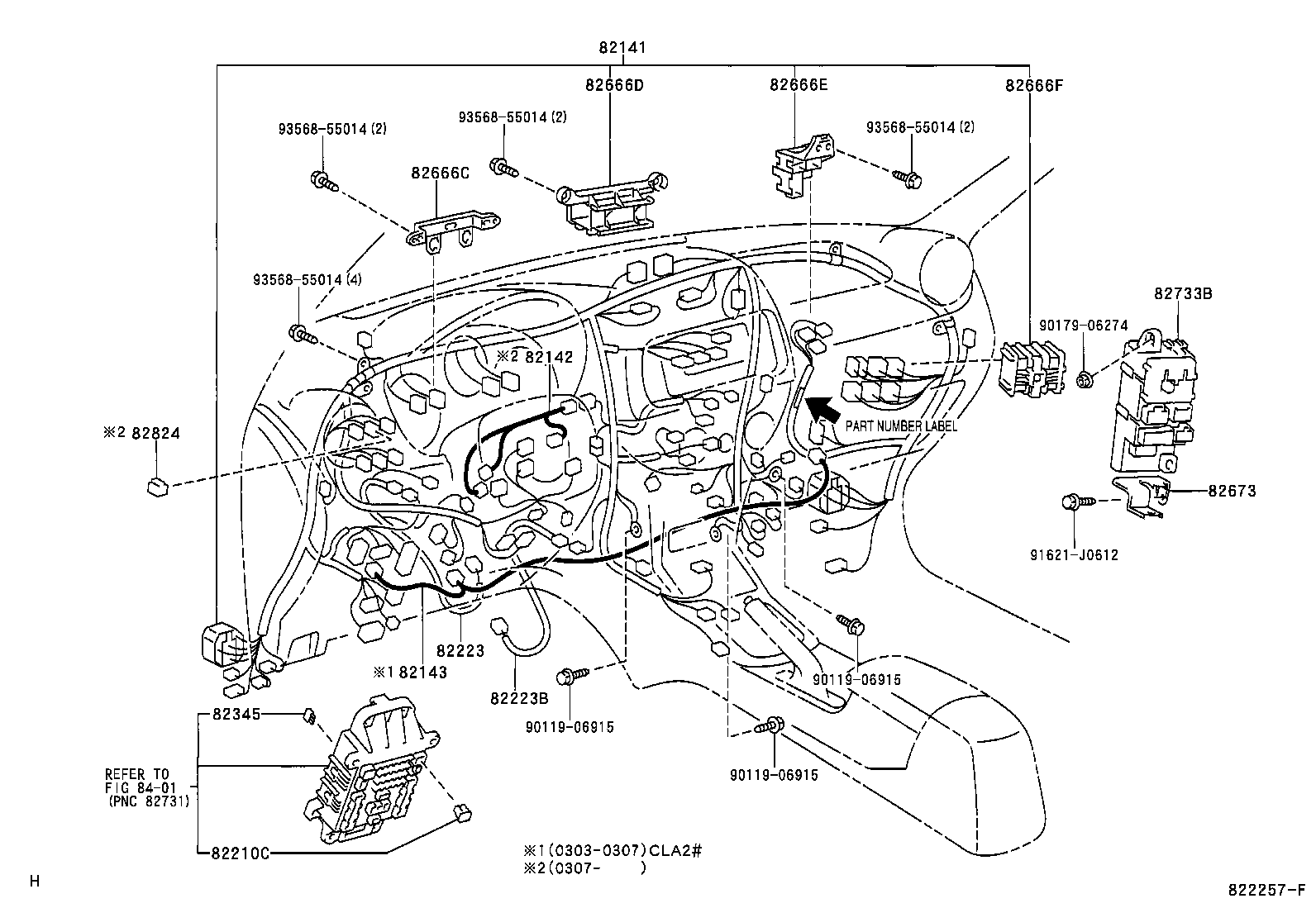

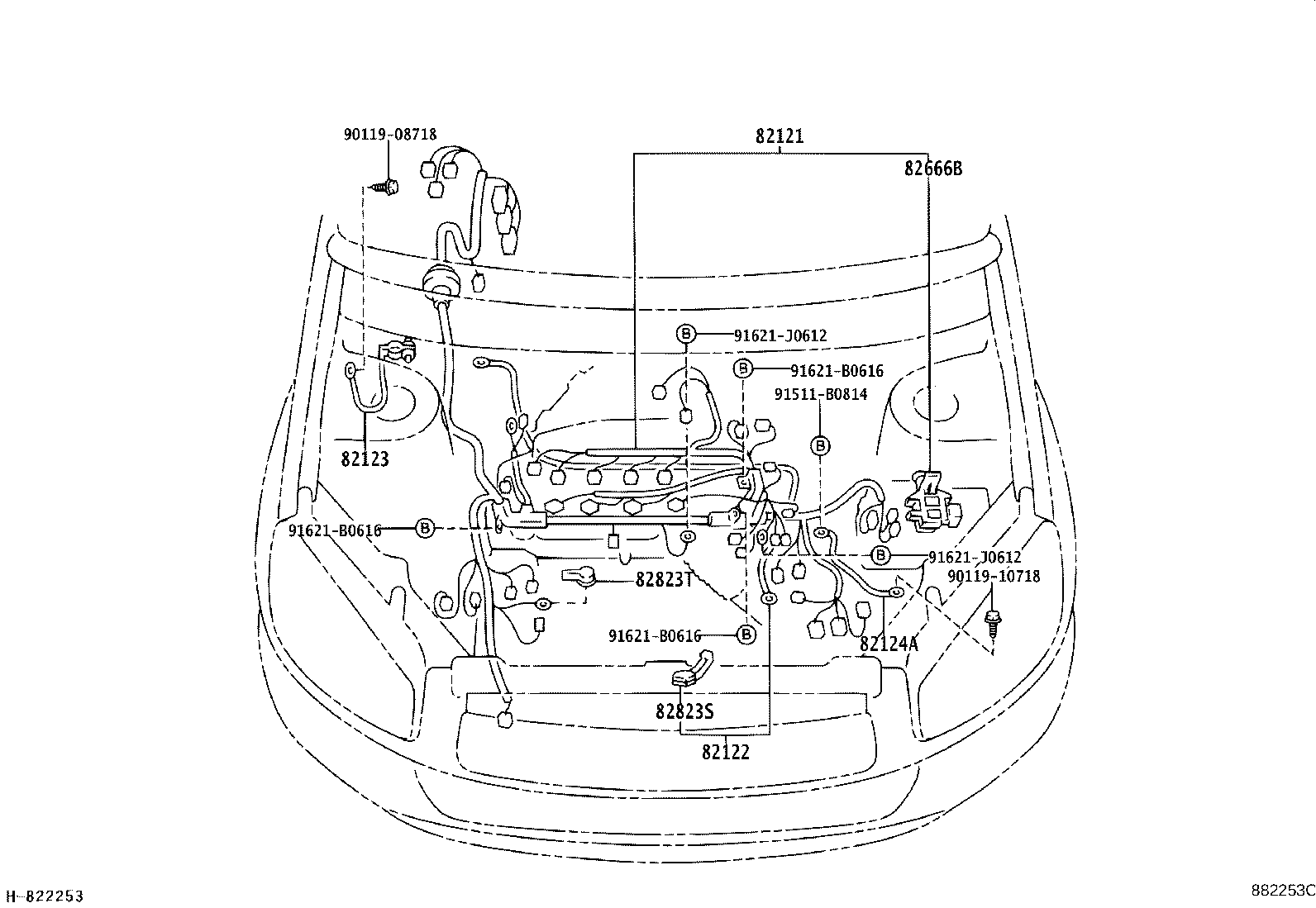

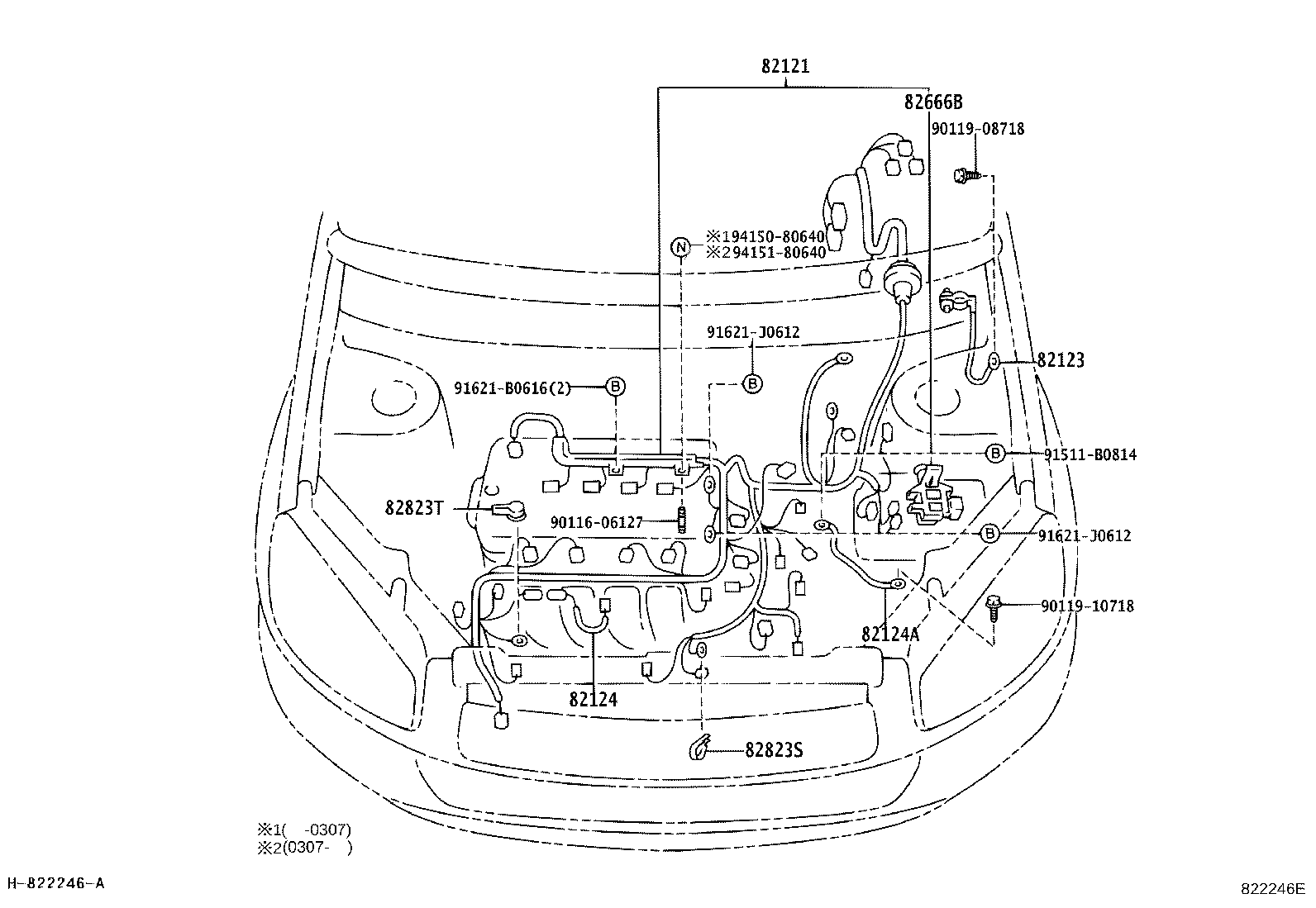

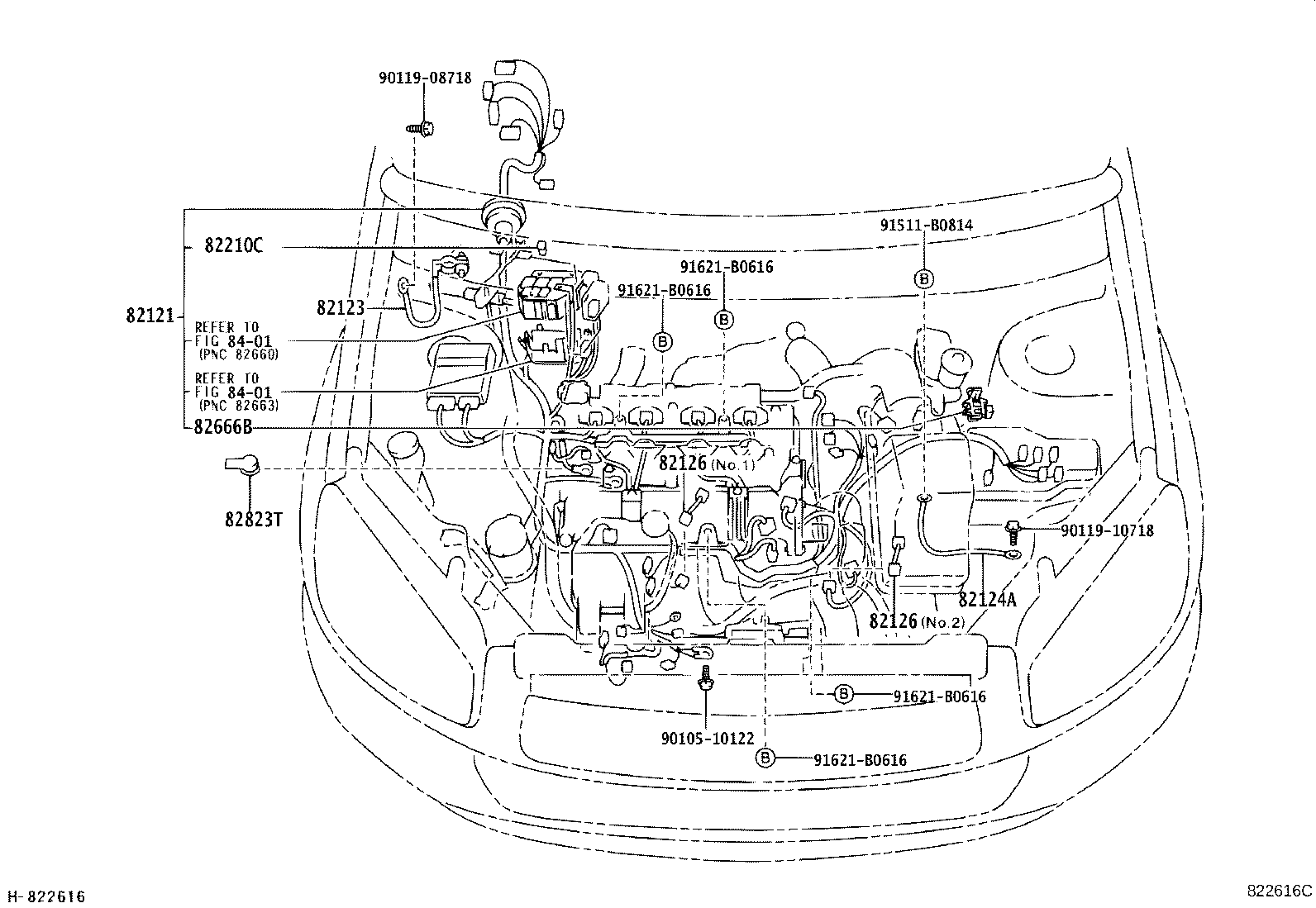

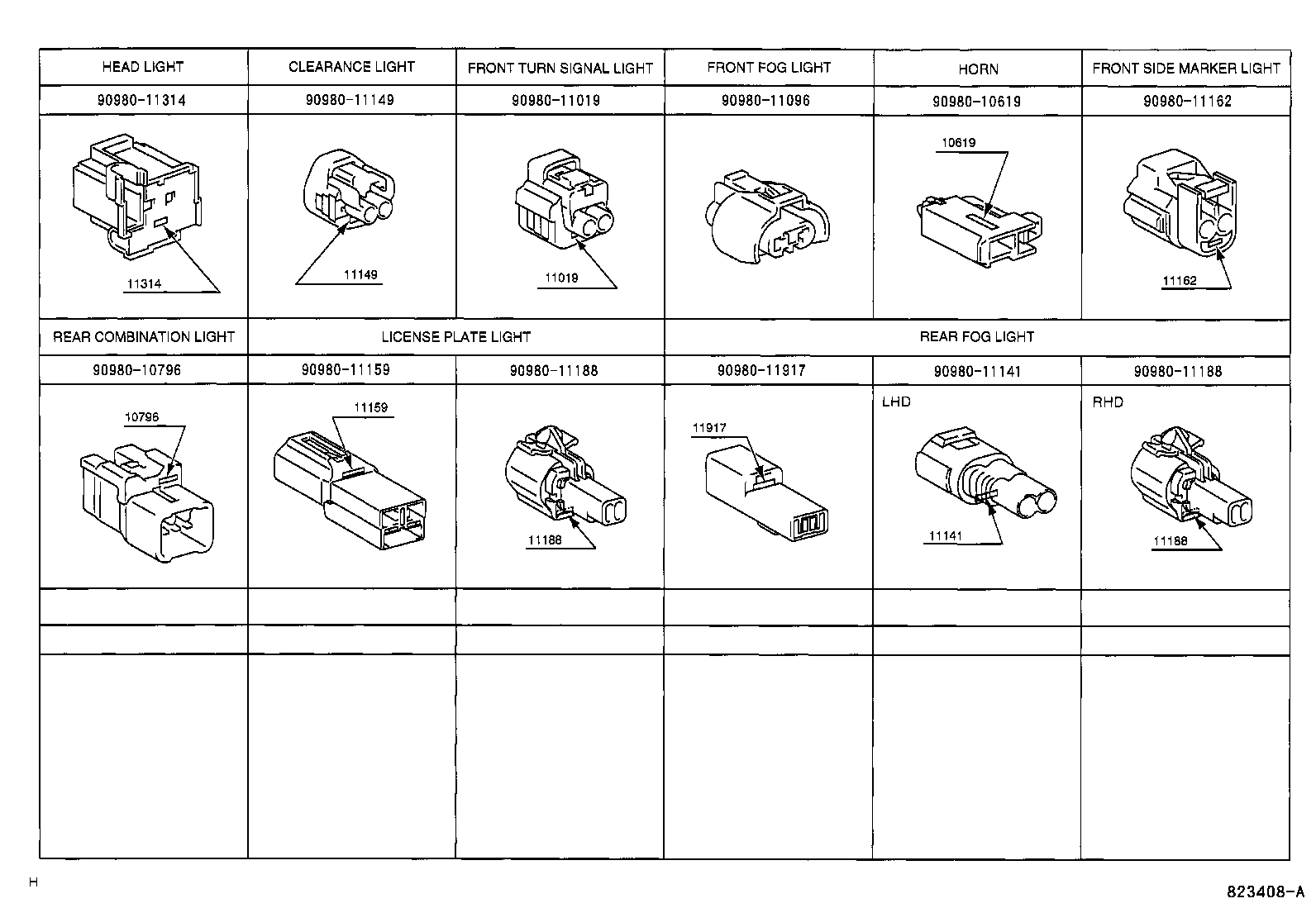

Figure 822614B 822614B 2000-05 → — Figure 822252C 822252C 2000-05 → — Figure 822253C 822253C 2000-05 → — Figure 822246G 822246G 2000-05 → — Figure 822254E 822254E 2000-05 → — Figure 822615C 822615C 2001-05 → — Figure 822616C 822616C 2001-05 → — Figure 823535A 823535A 2000-05 → — Figure 822257F 822257F 2000-05 → — Figure 822606C 822606C 2000-05 → — Figure 822258K 822258K 2000-05 → — Figure 822251B 822251B 2000-05 → — Figure 823408A 823408A 2000-05 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82124A Wire, Engine, NO.5
82126 Wire, Engine
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82184 Wire, Back Door, NO.1
82210C Fusible Link
82223 Wire, Switch
82223B Wire, Switch, NO.2
82345 Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82673 Bracket, Junction Block
82733B Block, Passenger Side Junction
82821A Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
