Toyota RAV4
2000-05 → 2005-11 · chassis ACA2#,CLA2#,ZCA2# · catalogue 662220 · Europe
Discontinued model
Data version 2006-05
Switch & Relay & Computer
99 part groups · 14 illustrations
Illustrations
Part groups

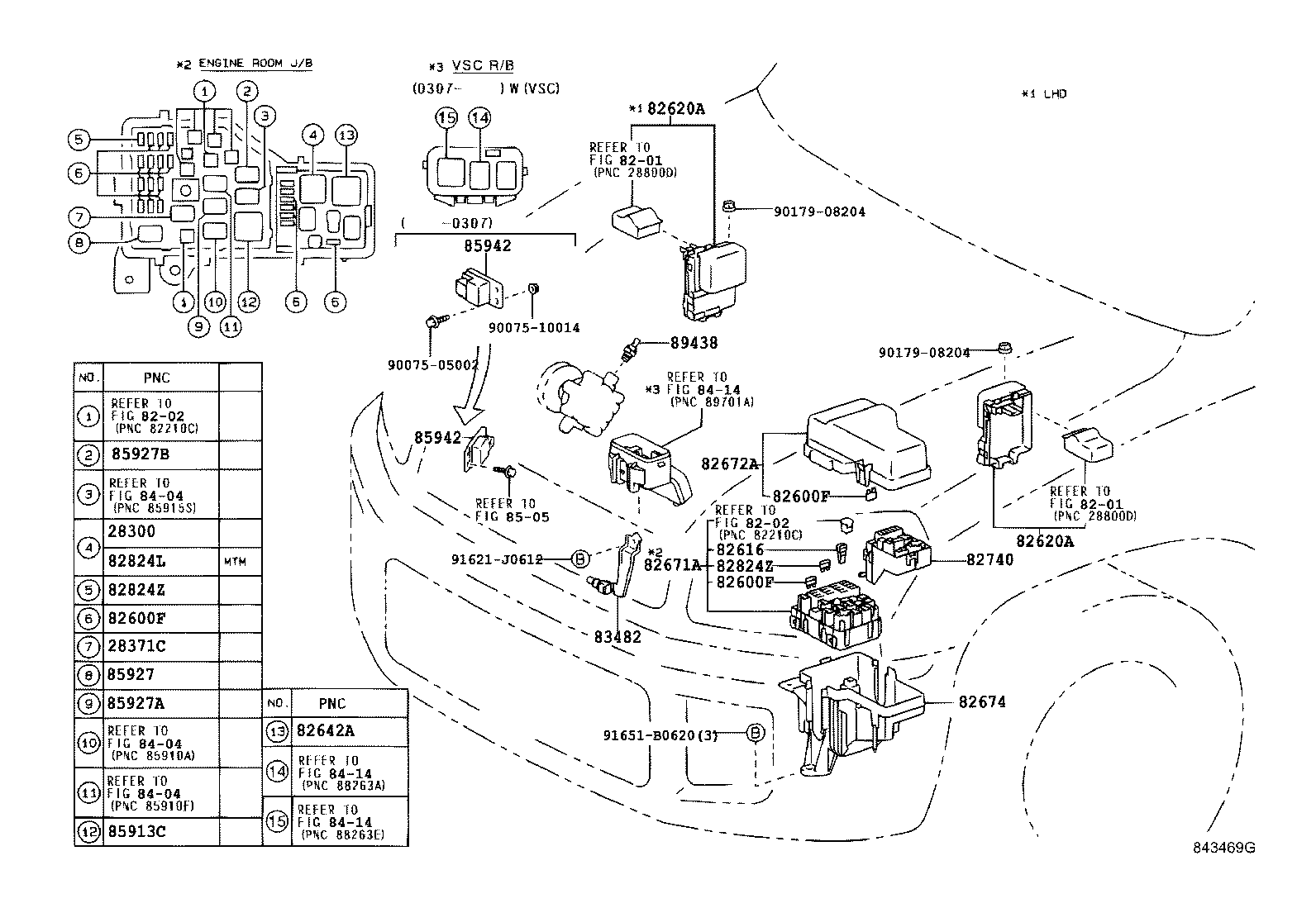

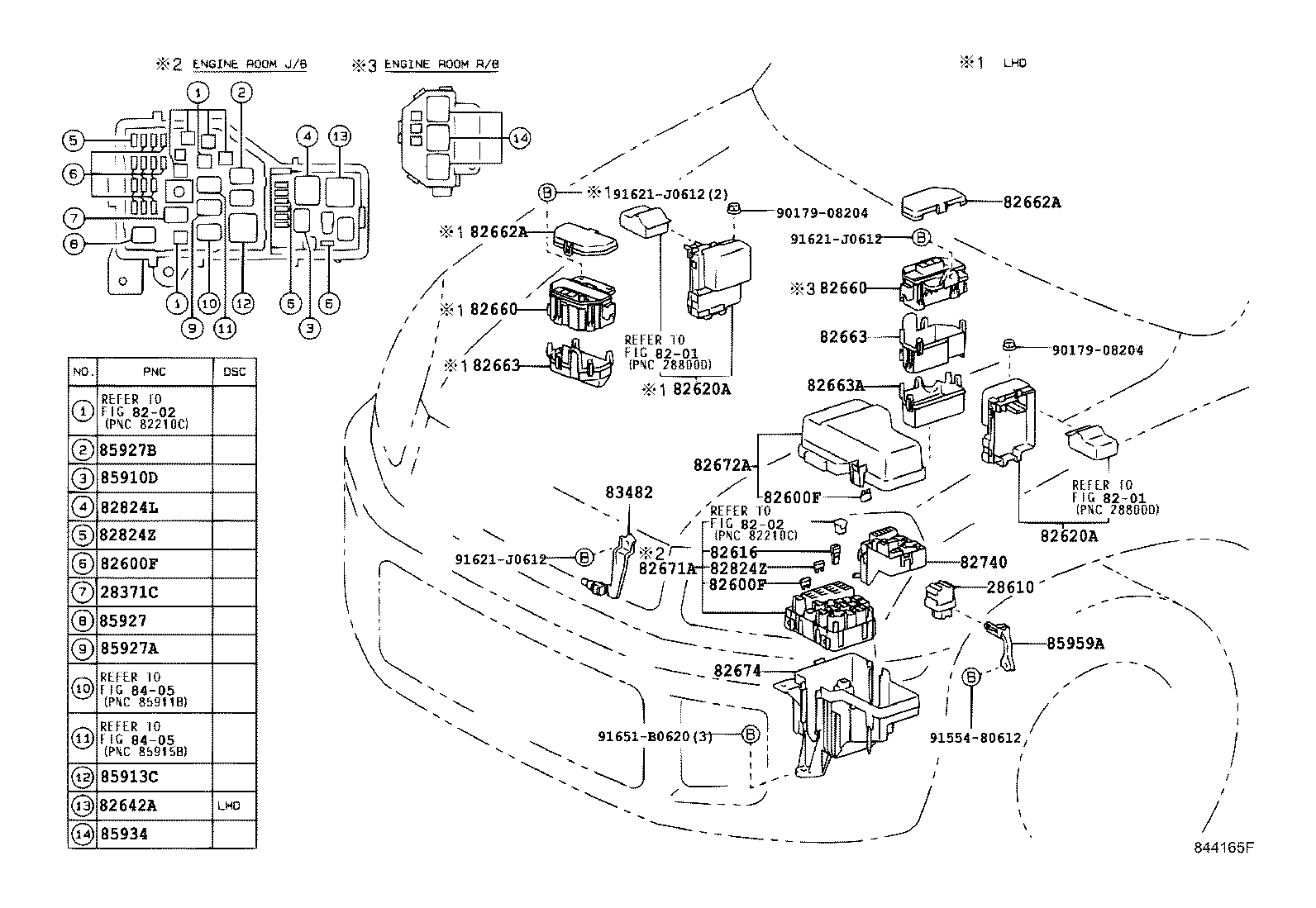

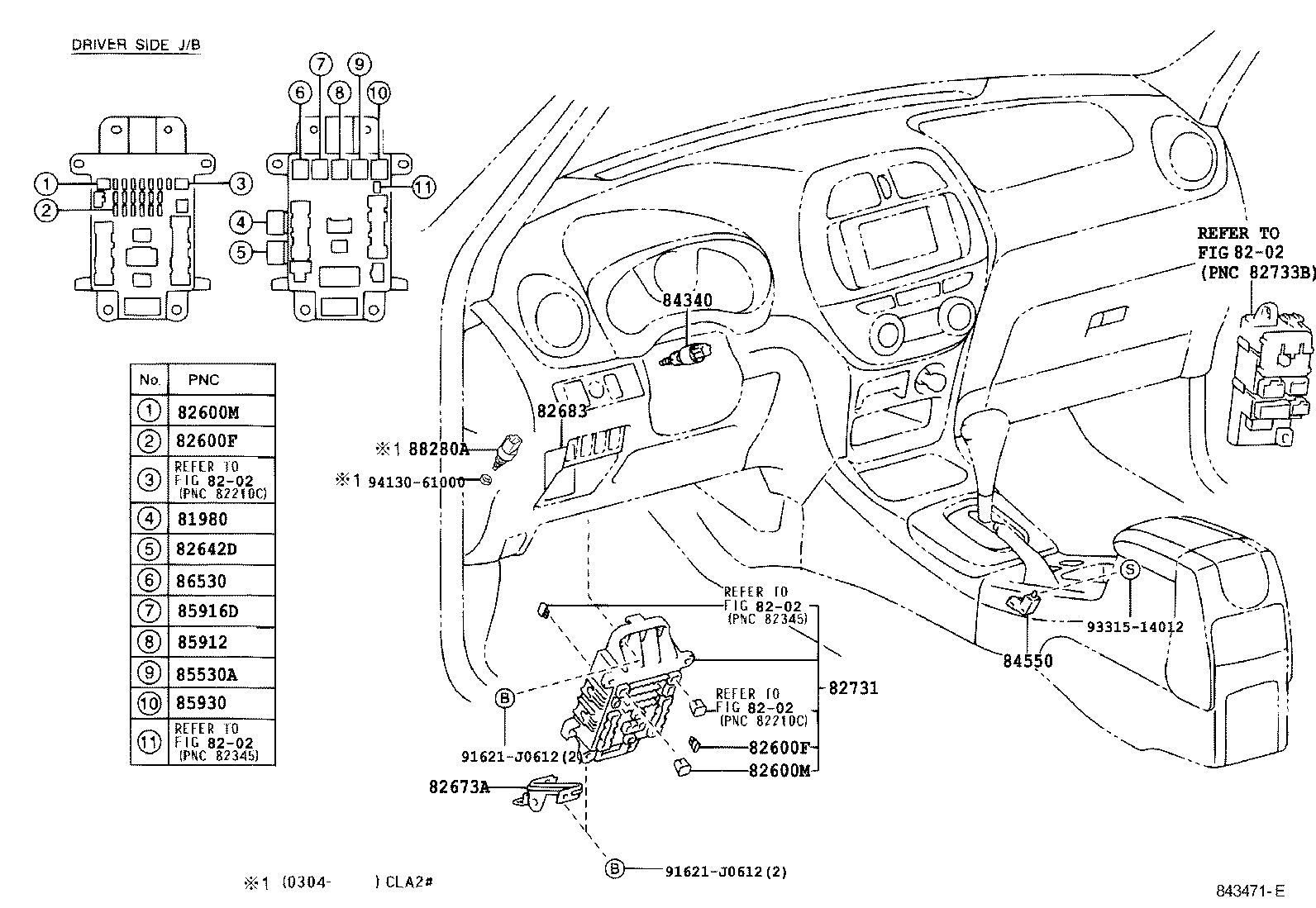

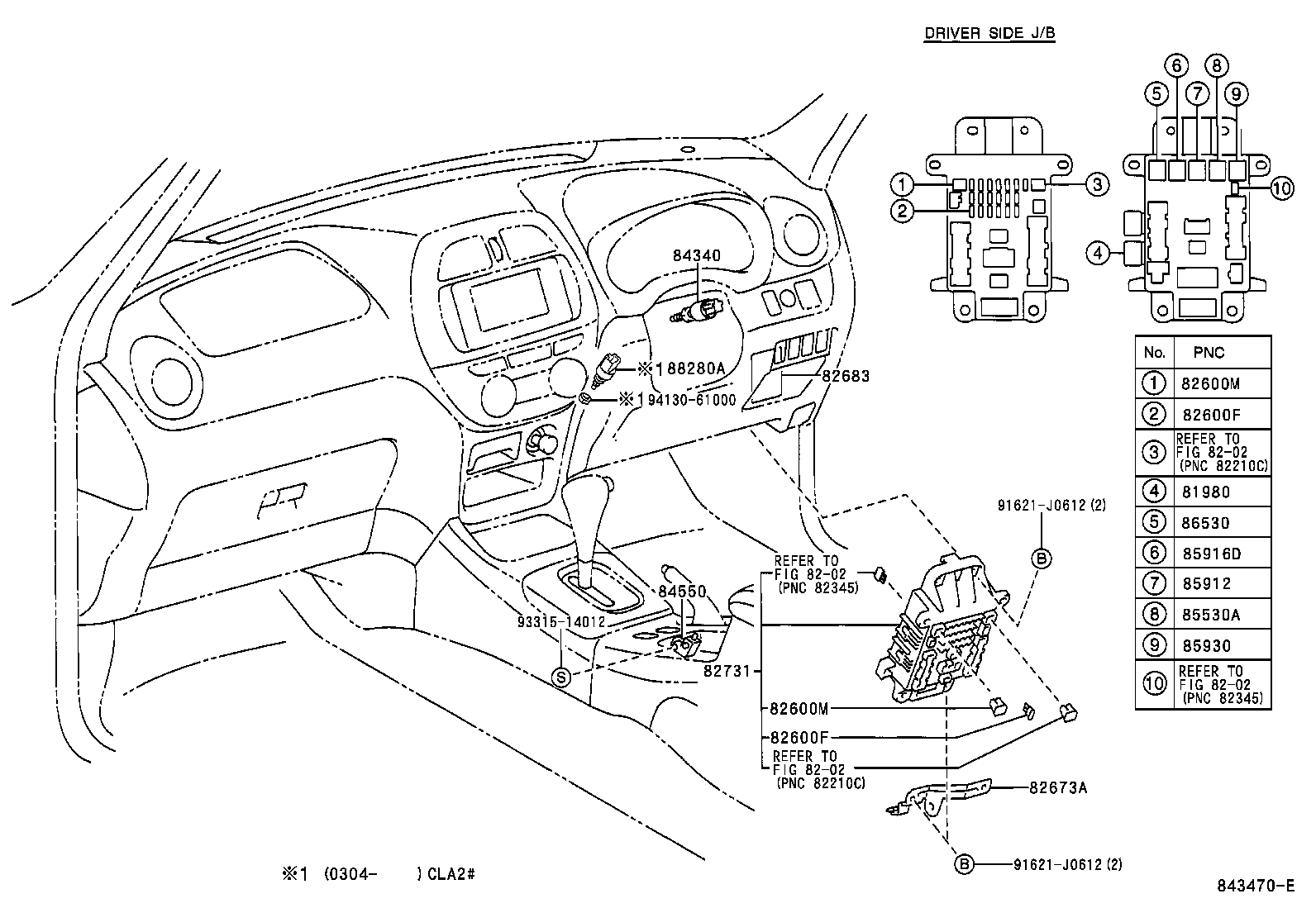

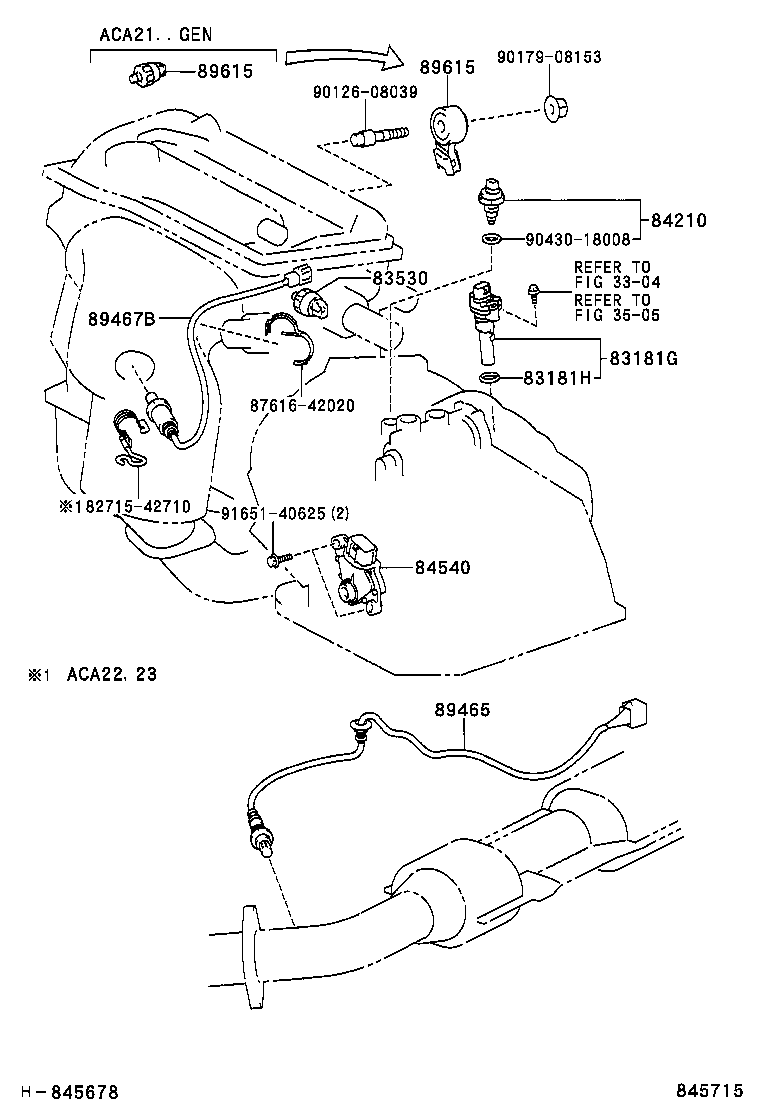

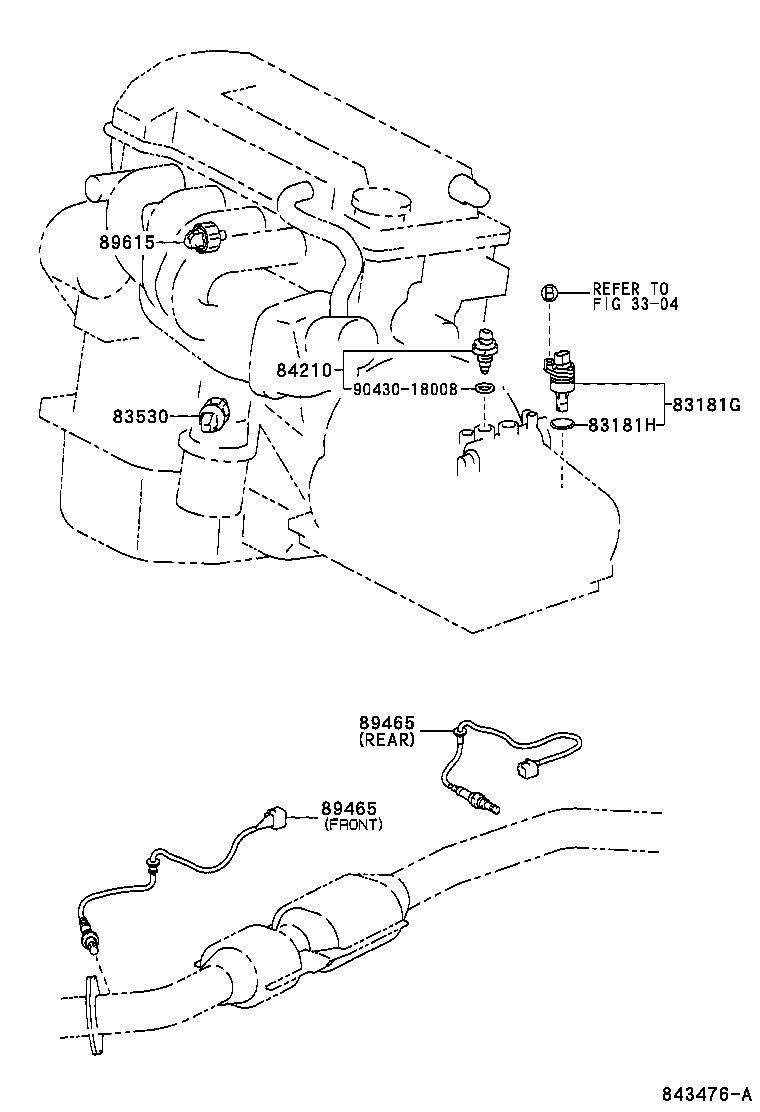

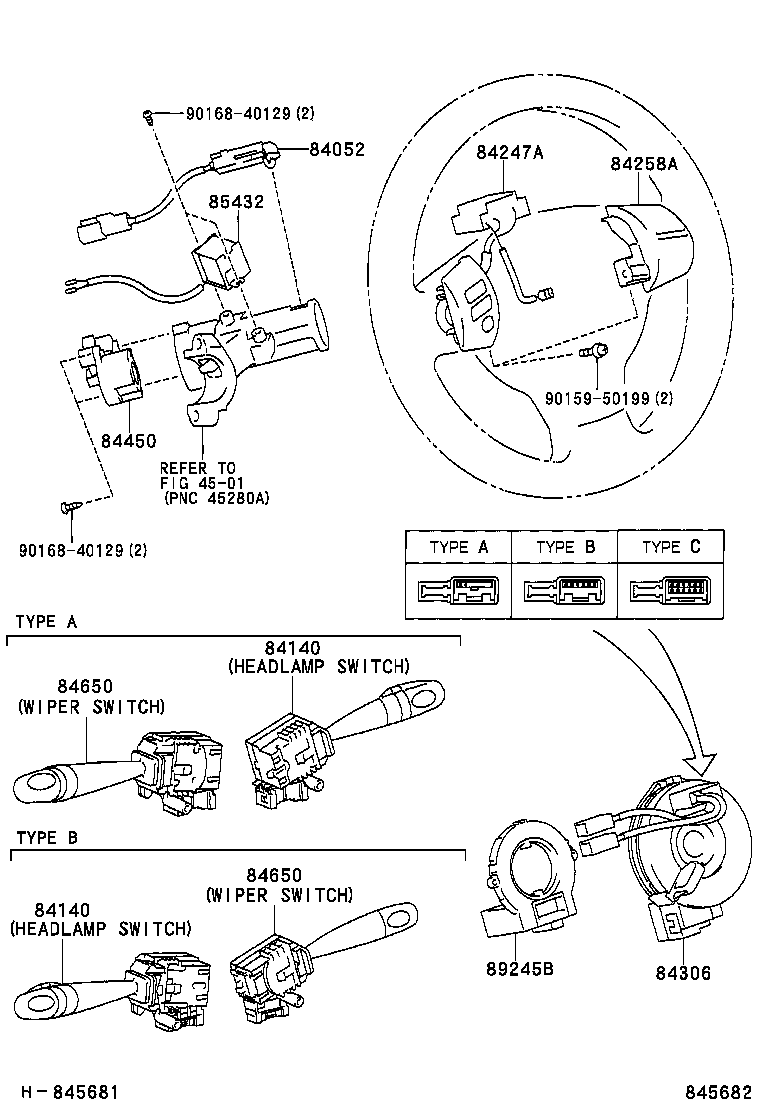

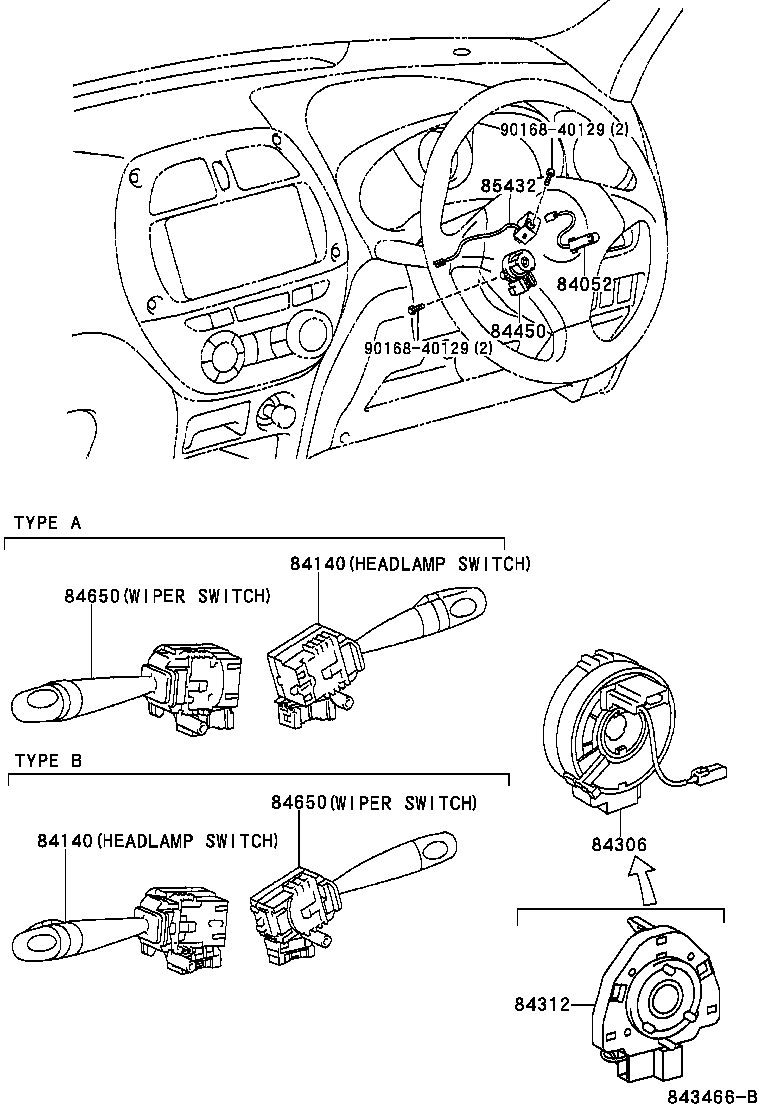

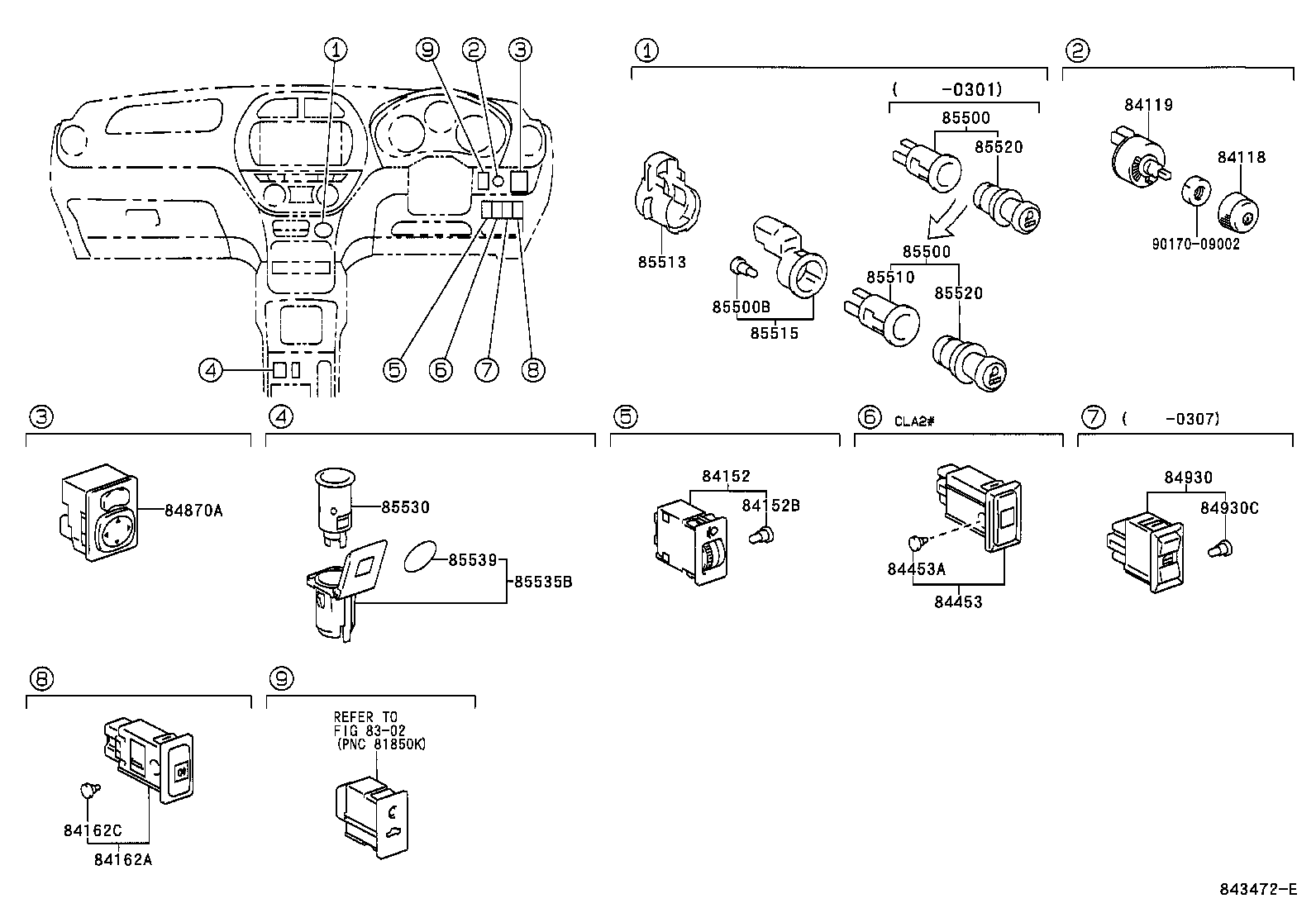

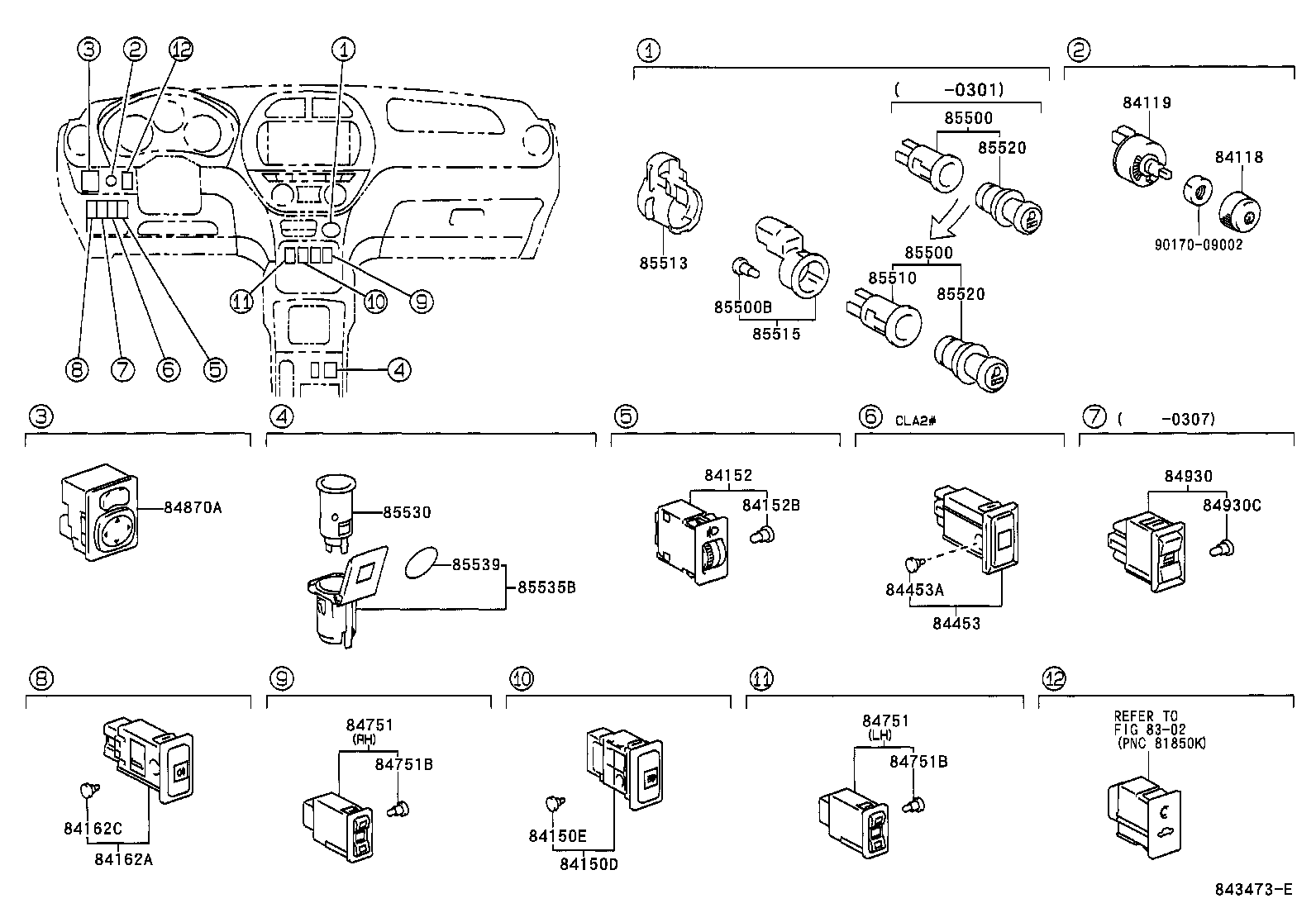

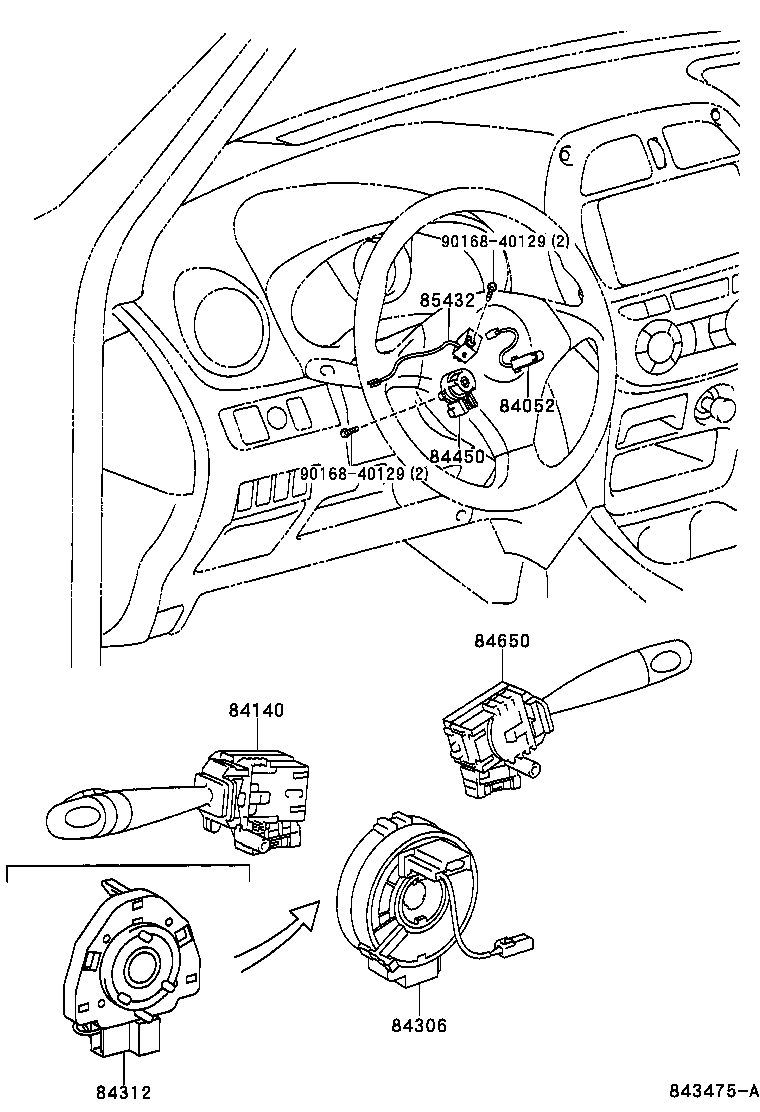

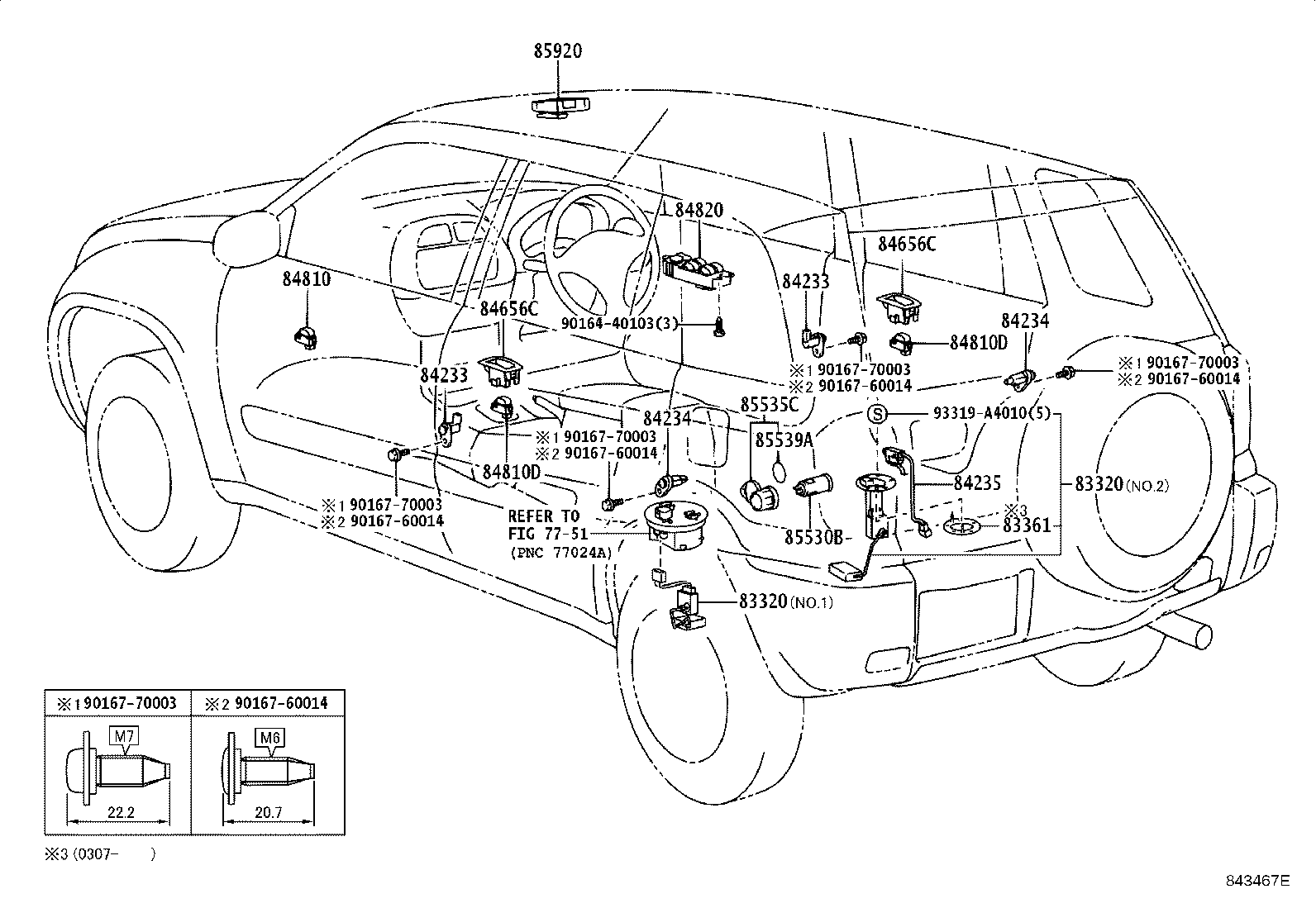

| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371C | Relay, Ignition, NO.2 |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82600M | Fuse, Medium Current |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82642A | Relay, Running Light |
| 82642D | Relay, Running Light NO.2 |
| 82660 | Block Assy, Relay, Engine Room |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82671A | Block, Junction |
| 82672A | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82674 | Cover, Junction Block Lower |
| 82683 | Plate, Fuse Block Caution |
| 82731 | Block, Driver Side Junction |
| 82740 | Block Assy, Engine Room Relay |
| 82824L | Pin, Short |
| 82824Z | Pin, Short |
| 83181G | Sensor, Speedometer |
| 83181H | Ring, O (FOR SPEEDOMETER SENSOR) |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83482 | Sensor, Outer Ambient Temperature |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84052 | Switch Assy, Un-lock Warning |
| 84118 | Knob, Light Control Rheostat |
| 84119 | Rheostat, Light Control |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84150D | Switch Assy, Headlamp Cleaner |
| 84150E | Bulb, Headlamp Cleaner Switch |
| 84152 | Switch, Headlamp Leveling |
| 84152B | Bulb (FOR HEADLAMP LEVELING SWITCH) |
| 84162A | Switch, Rear Fog Lamp |
| 84162C | Bulb (FOR REAR FOG LAMP SWITCH) |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84235 | Switch Assy, Courtesy Lamp(FOR BACK DOOR) |
| 84247A | Switch, Steering Pad, LH |
| 84258A | Cover, Steering Pad, RH |
| 84306 | Cable Sub-assy, Spiral |
| 84312 | Plate, Horn Contact |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84453 | Switch, Idle UP |
| 84453A | Bulb, Idle UP Switch |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84656C | Bezel, Switch NO.2 |
| 84751 | Switch, Seat Heater |
| 84751B | Bulb, Seat Heater Switch |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84930 | Switch Assy, Door Control |
| 84930C | Bulb(FOR DOOR CONTROL SWITCH) |
| 85432 | Solenoid, Key Interlock |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85510 | Socket & Retainer Assy, Cigarlighter |
| 85513 | Cover, Cigarette Lighter |
| 85515 | Stay, Cigarette Lighter Bezel |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530A | Relay, Power Outlet Socket |
| 85530B | Socket Assy, Power Outlet, Rear NO.1 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85535C | Cover, Power Outlet Socket, Rear |
| 85539 | Label, Power Outlet Notice |
| 85539A | Label, Power Outlet Notice, Rear |
| 85910D | Relay (FOR HEATER IDLE UP) |
| 85912 | Relay, Defogger |
| 85913C | Relay, Heater, NO.1 |
| 85916D | Relay, Fog Lamp |
| 85920 | Relay & Switch Assy, Sliding Roof |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85927B | Relay, Cooling Fan, NO.3 |
| 85930 | Relay Assy, Power Window |
| 85934 | Relay, Magnet-clutch |
| 85942 | Relay, Headlamp Cleaner Control |
| 85959A | Holder, Relay |
| 86530 | Relay Assy, Horn |
| 88280A | Switch Assy, Clutch |
| 89245B | Sensor, Steering |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89438 | Switch, Power Steering Oil Pressure |
| 89465 | Sensor, Oxygen |
| 89467B | Sensor, Air Fuel Ratio |
| 89491 | Sensor, Engine Oil Level |
| 89491A | Gasket, Engine Oil Level Sensor |
| 89615 | Sensor, Knock Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
