Toyota RAV4

2000-05 → 2005-11 · chassis ACA2#,CLA2#,ZCA2# · catalogue 662220 · Europe

Discontinued model Data version 2006-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

6 part groups · 2 illustrations

Illustrations

Figure 861171G

861171G 2000-05 → —

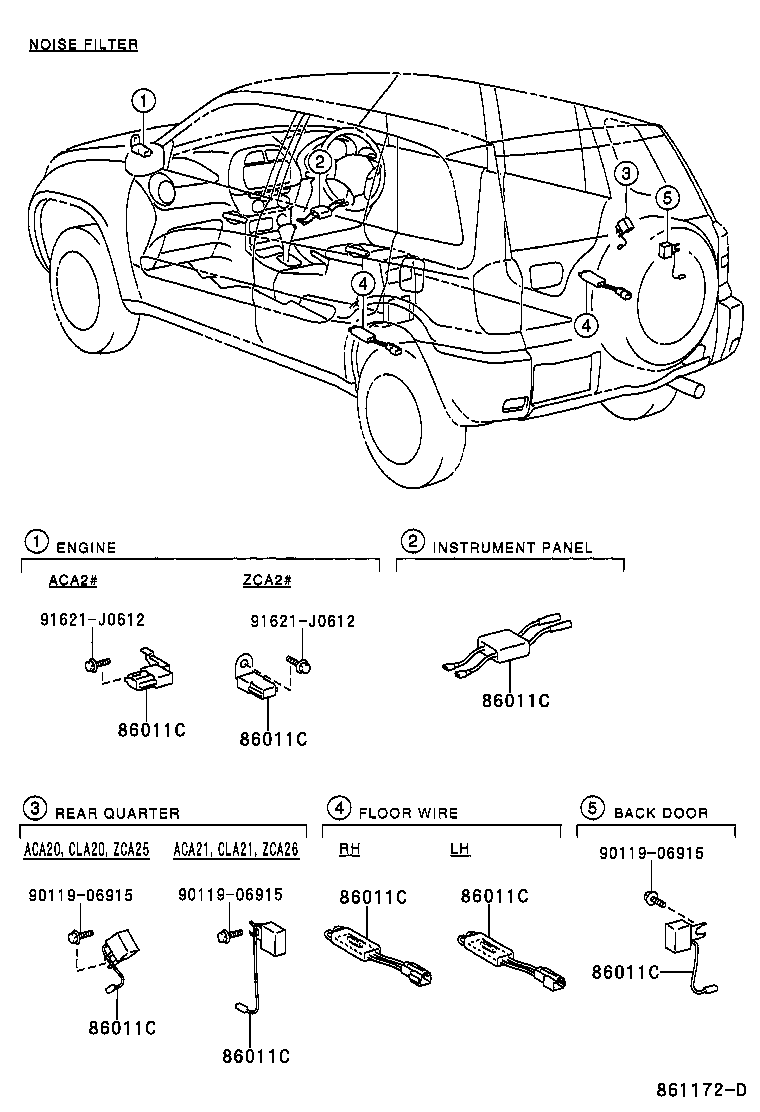

Figure 861172D

861172D 2000-05 → —

Part groups

PNC	Description
86011C	Filter, Noise
86120	Receiver Assy, Radio
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2
86221D	Panel, Radio Receiver
86270A	Disc Player Assy

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
