Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 15 illustrations

Illustrations

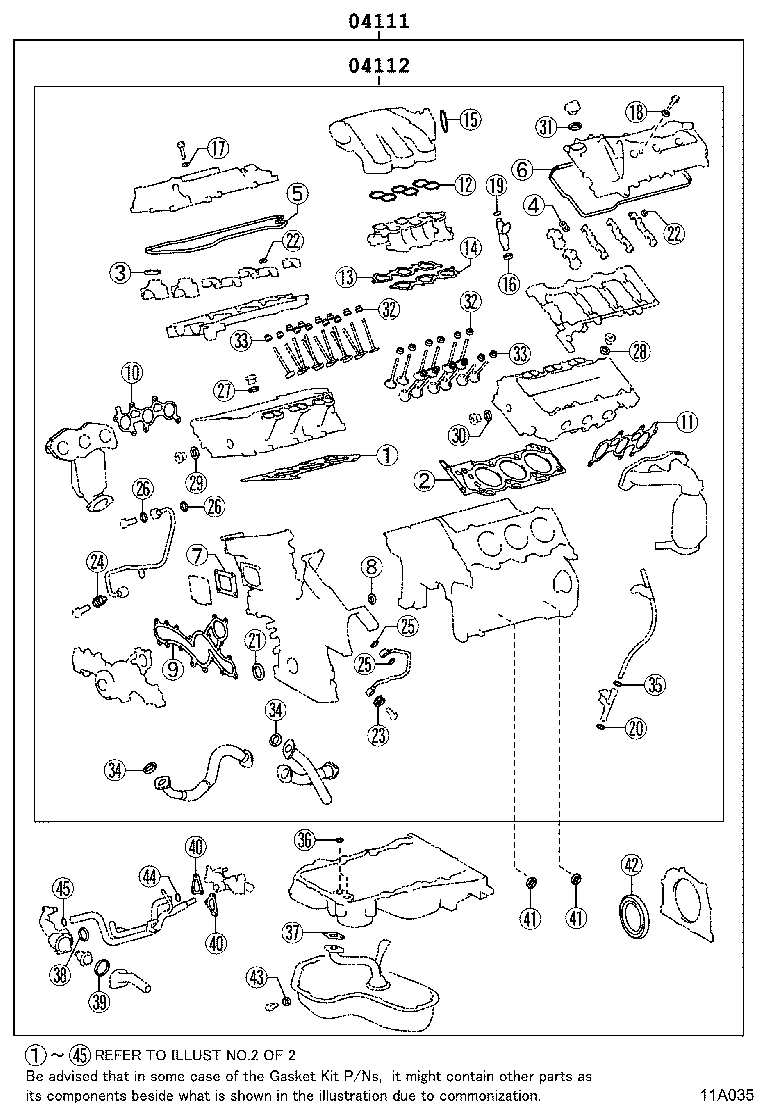

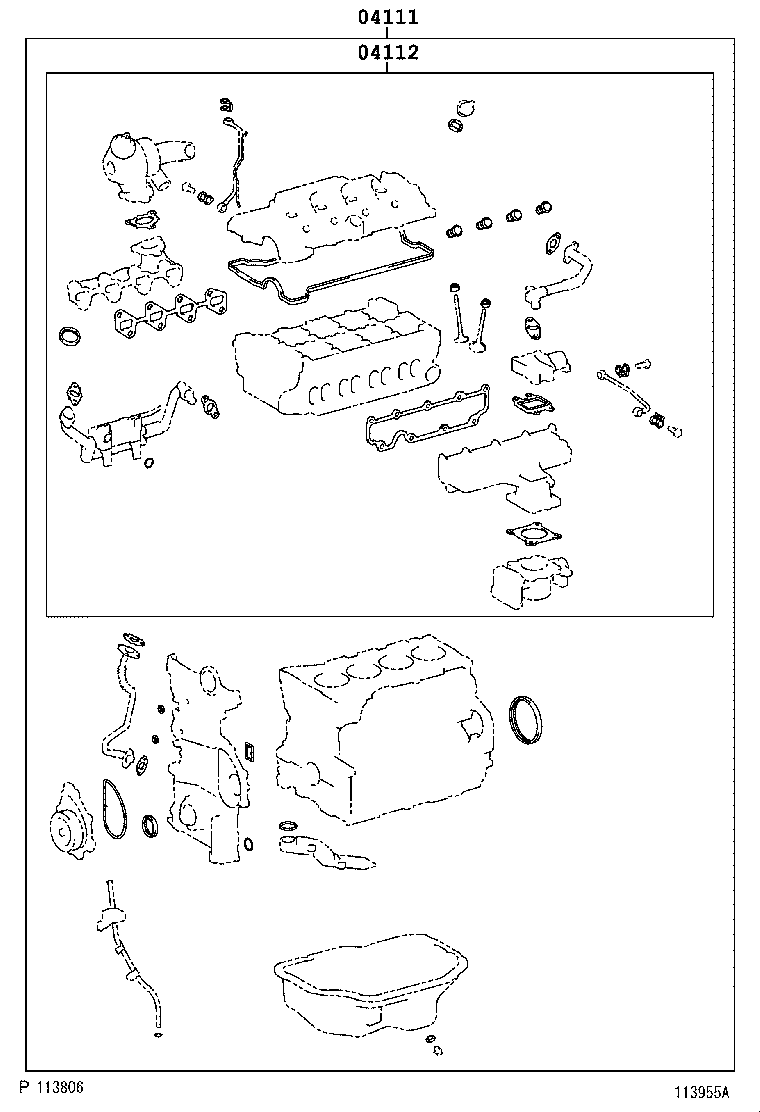

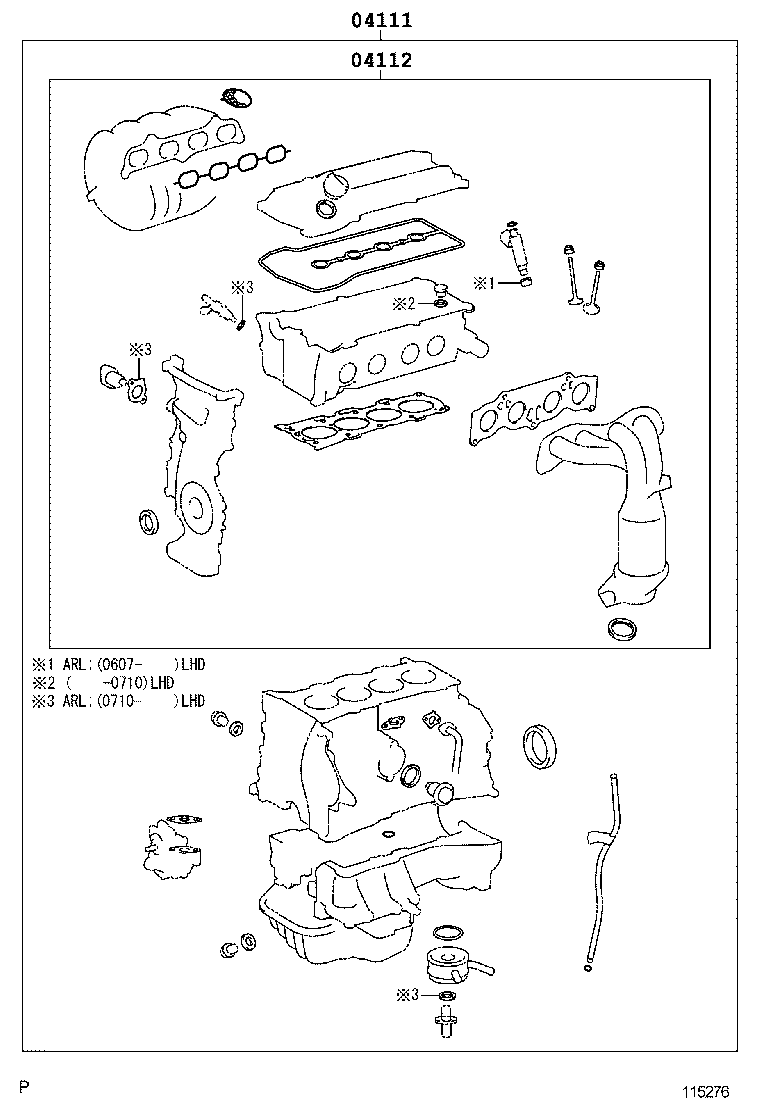

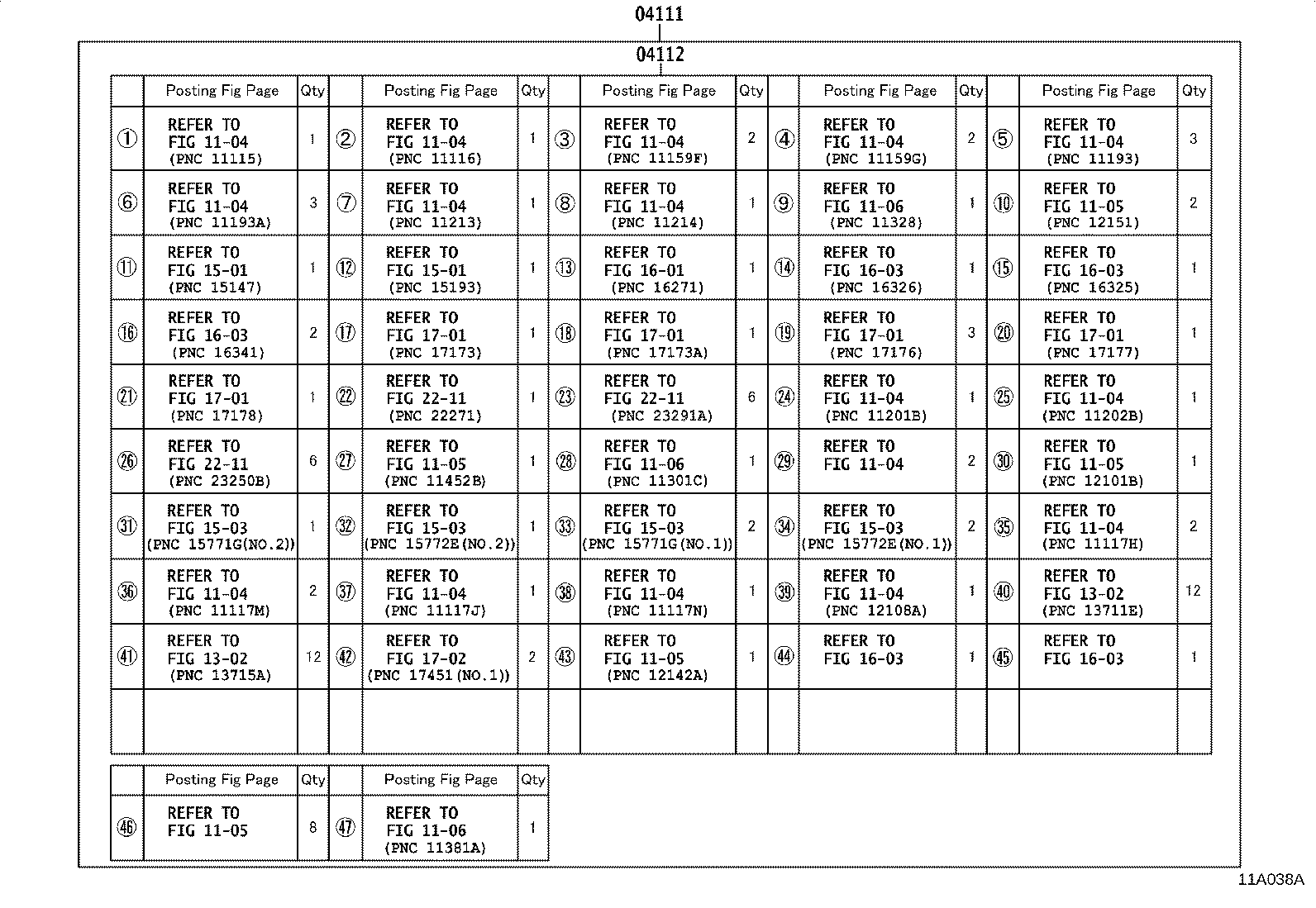

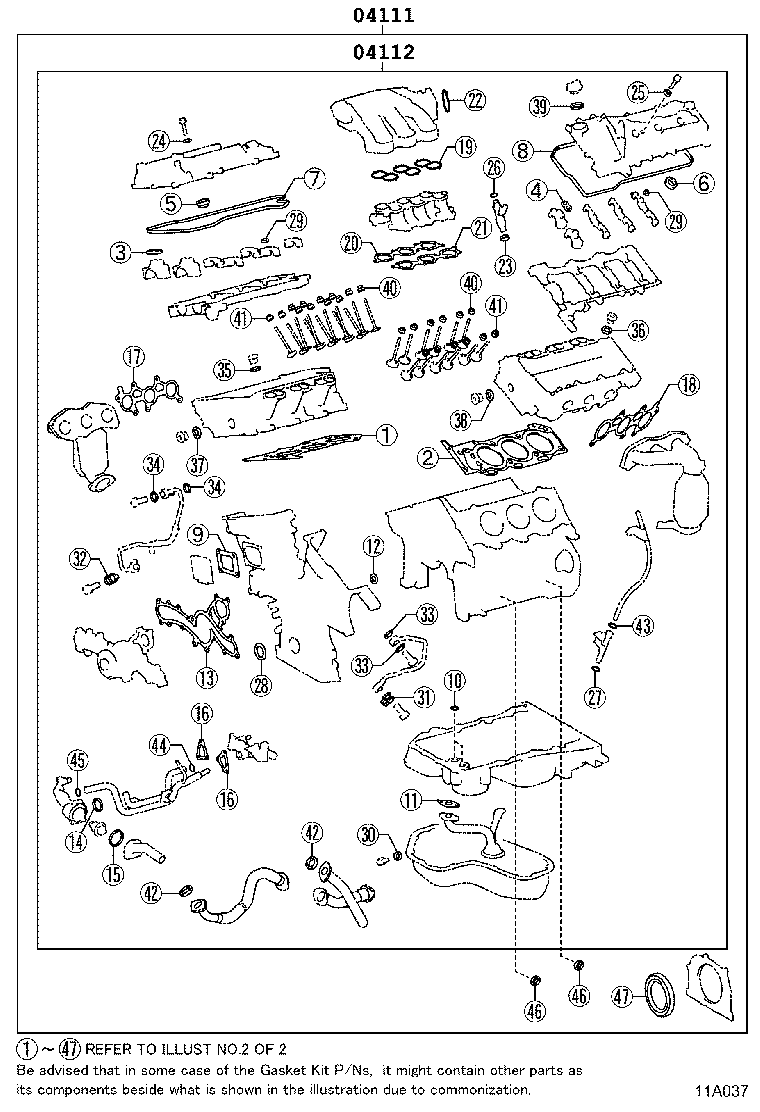

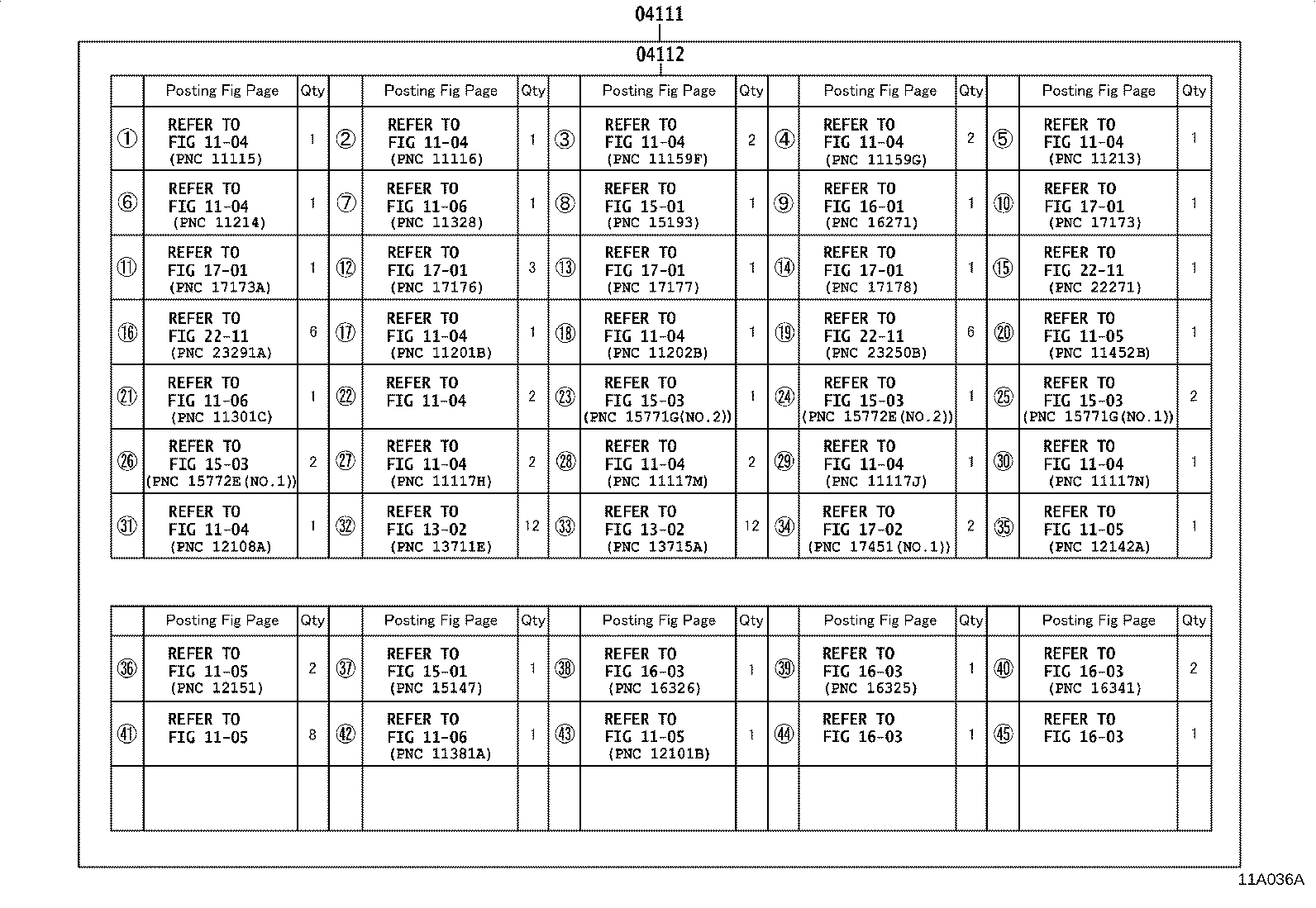

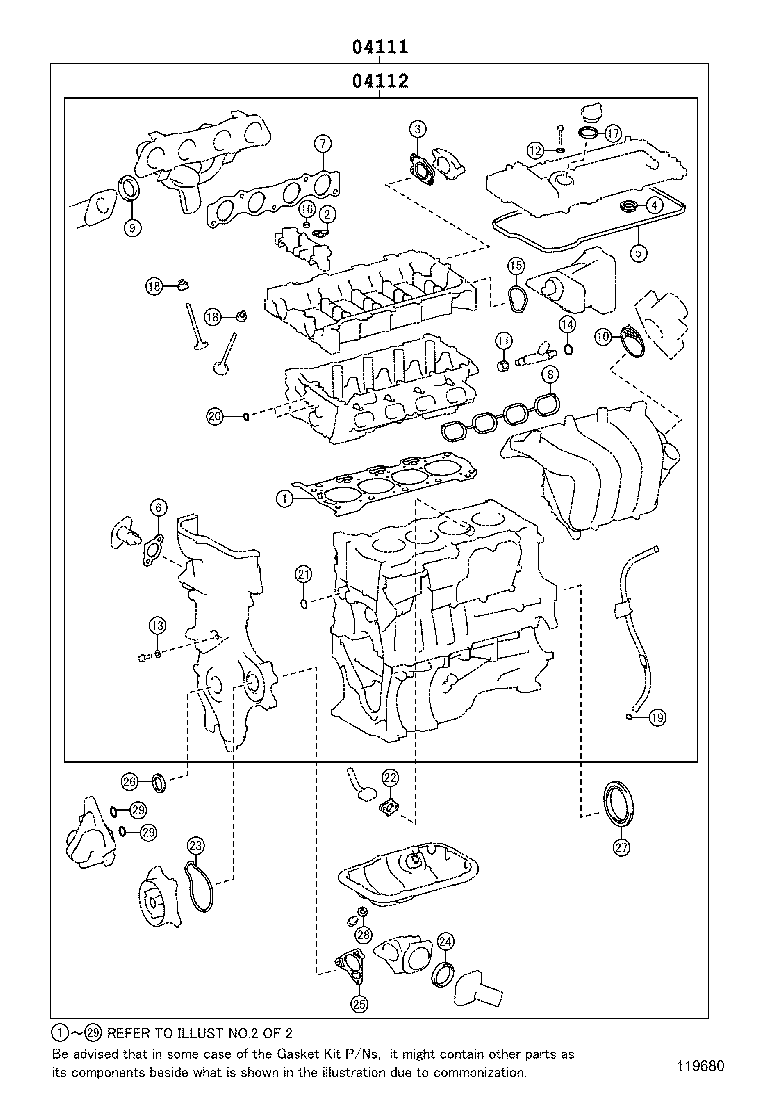

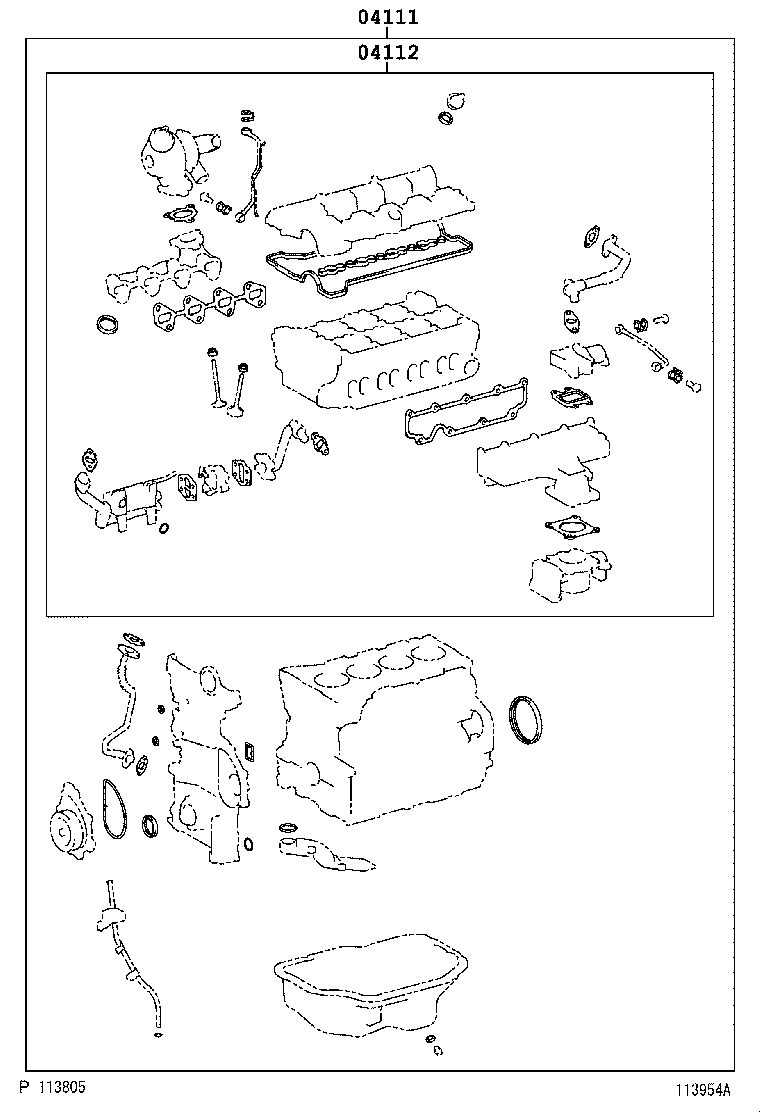

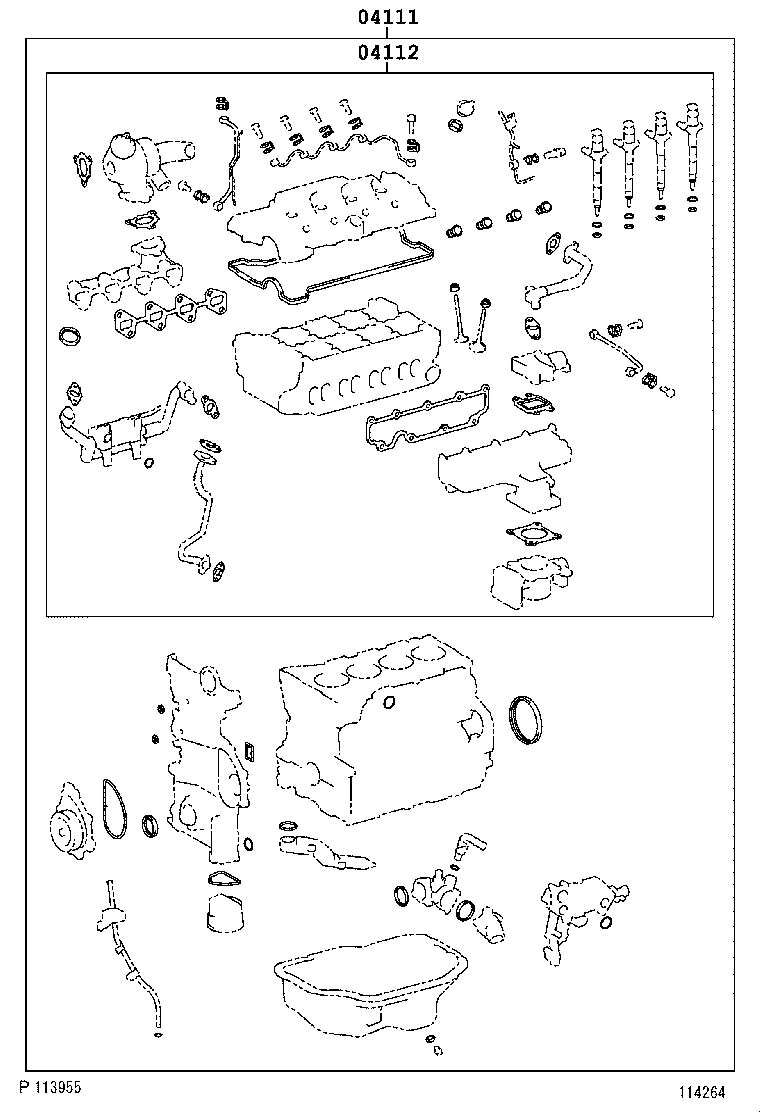

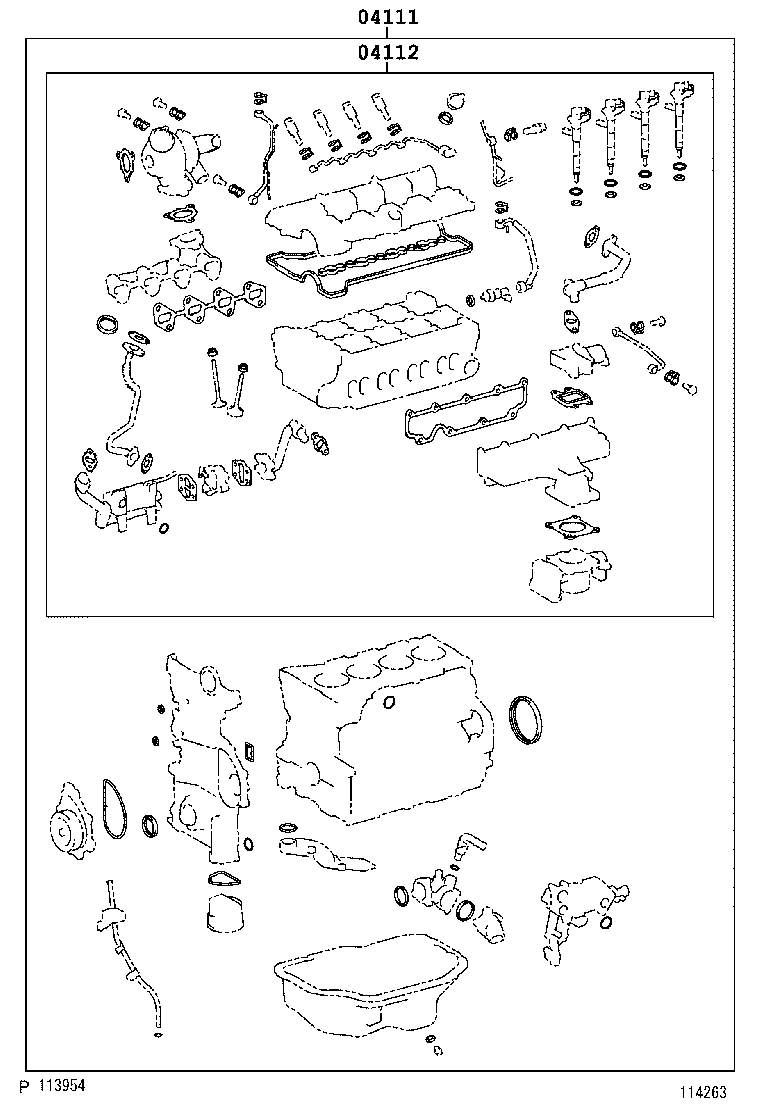

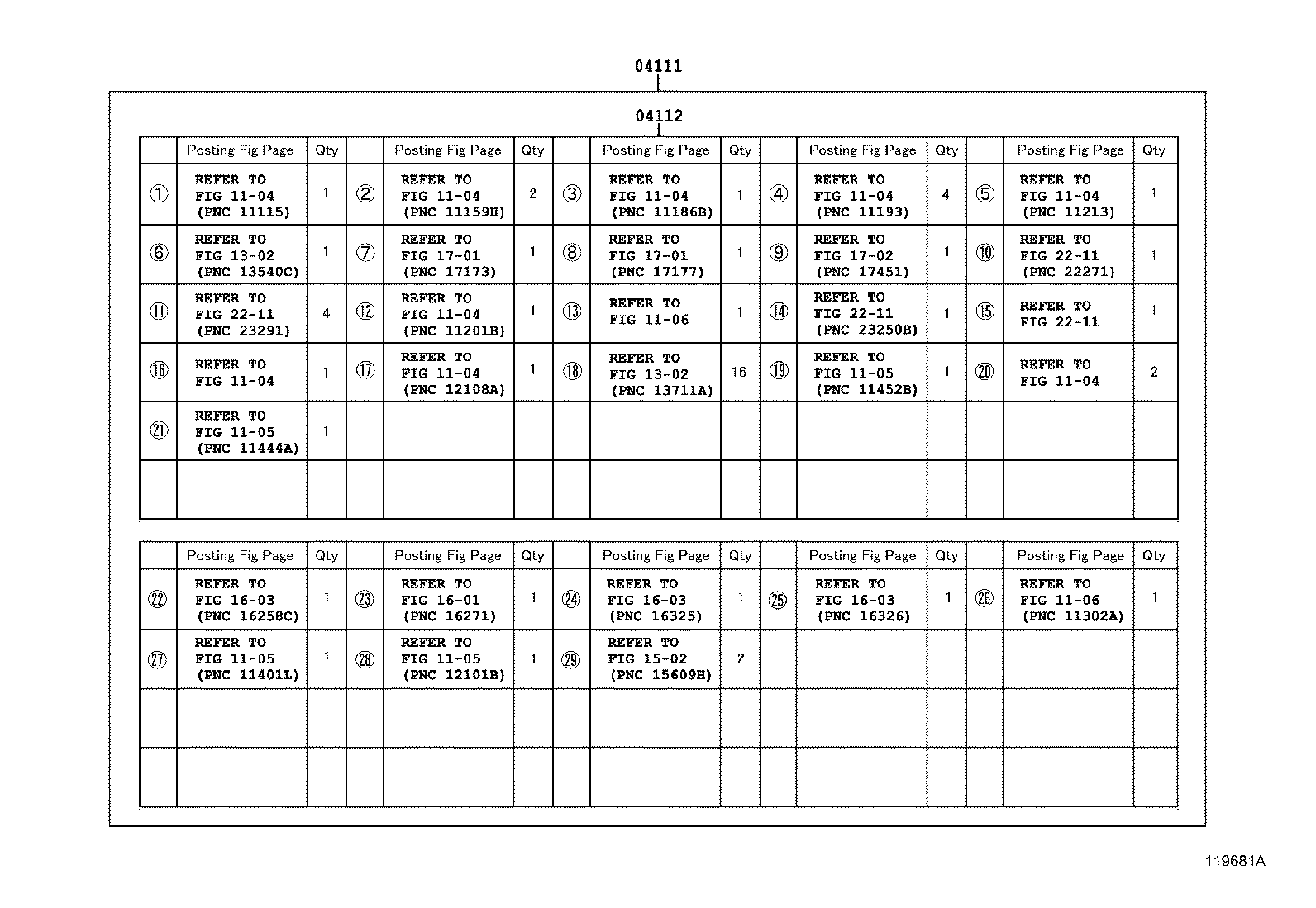

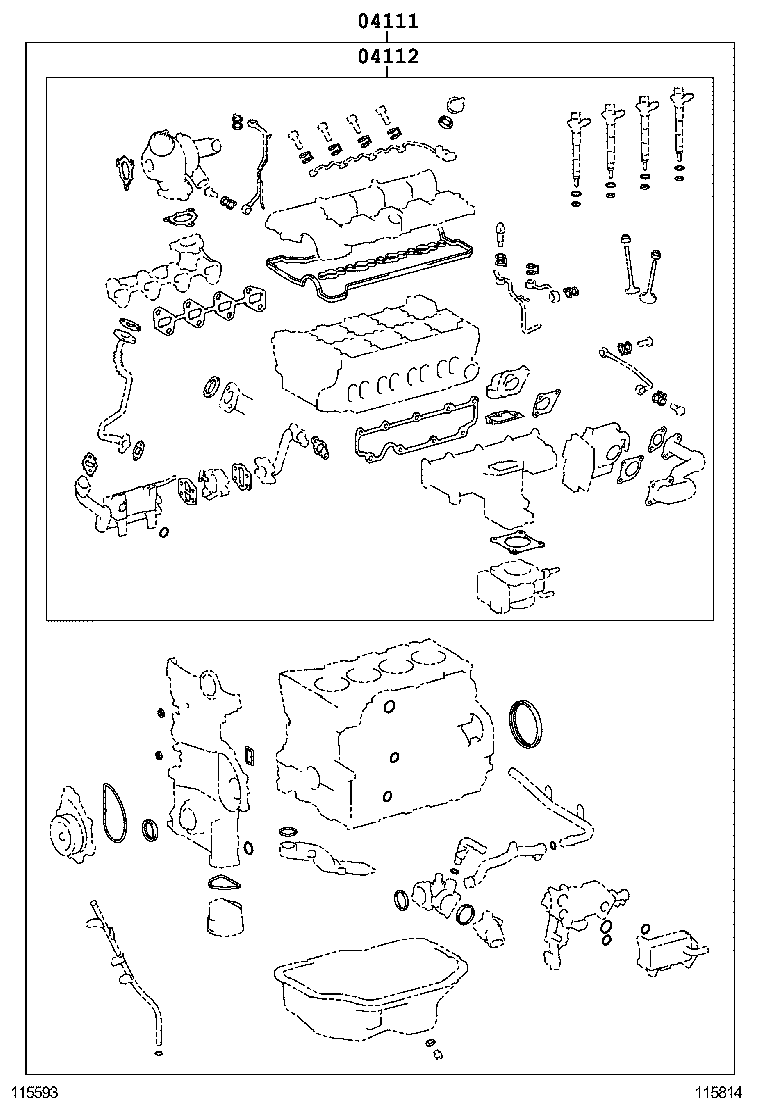

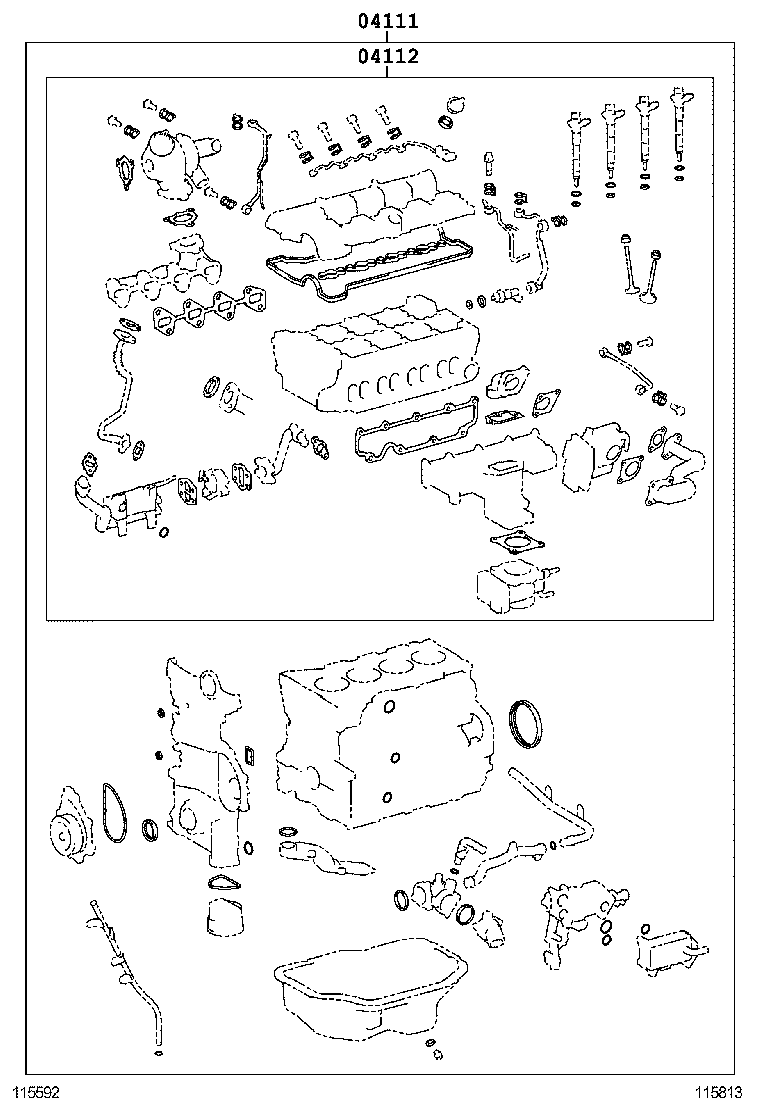

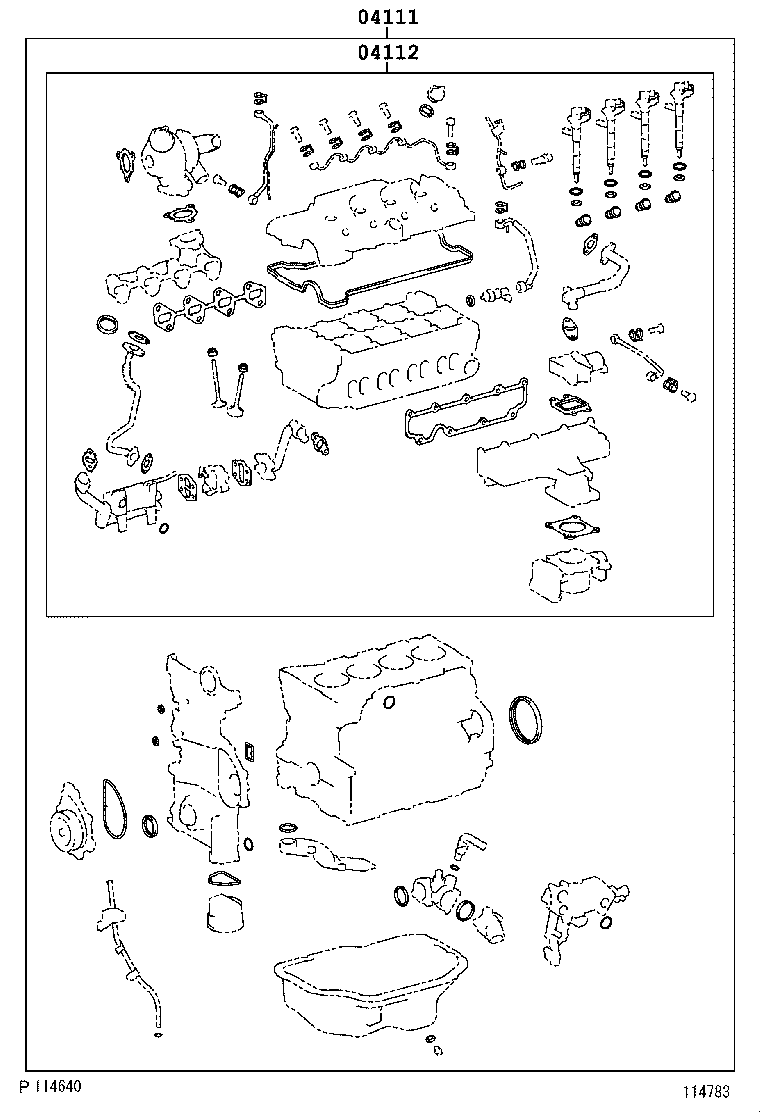

Figure 113953B 113953B 2005-11 → — Figure 115276 115276 2005-11 → — Figure 113954A 113954A 2005-11 → 2006-01 Figure 114263 114263 2006-01 → 2008-12 Figure 114783 114783 2007-01 → 2008-12 Figure 115813 115813 2008-12 → — Figure 113955A 113955A 2005-11 → 2006-01 Figure 114264 114264 2006-01 → 2008-12 Figure 115814 115814 2008-12 → — Figure 11A035 11A035 2007-08 → 2011-08 Figure 11A036A 11A036A 2007-08 → 2011-08 Figure 11A037 11A037 2011-08 → 2012-12 Figure 11A038A 11A038A 2011-08 → 2012-12 Figure 119680 119680 2008-12 → 2012-12 Figure 119681A 119681A 2008-12 → 2012-12

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
