Toyota RAV4
2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe
Supported model
Data version 2013-01

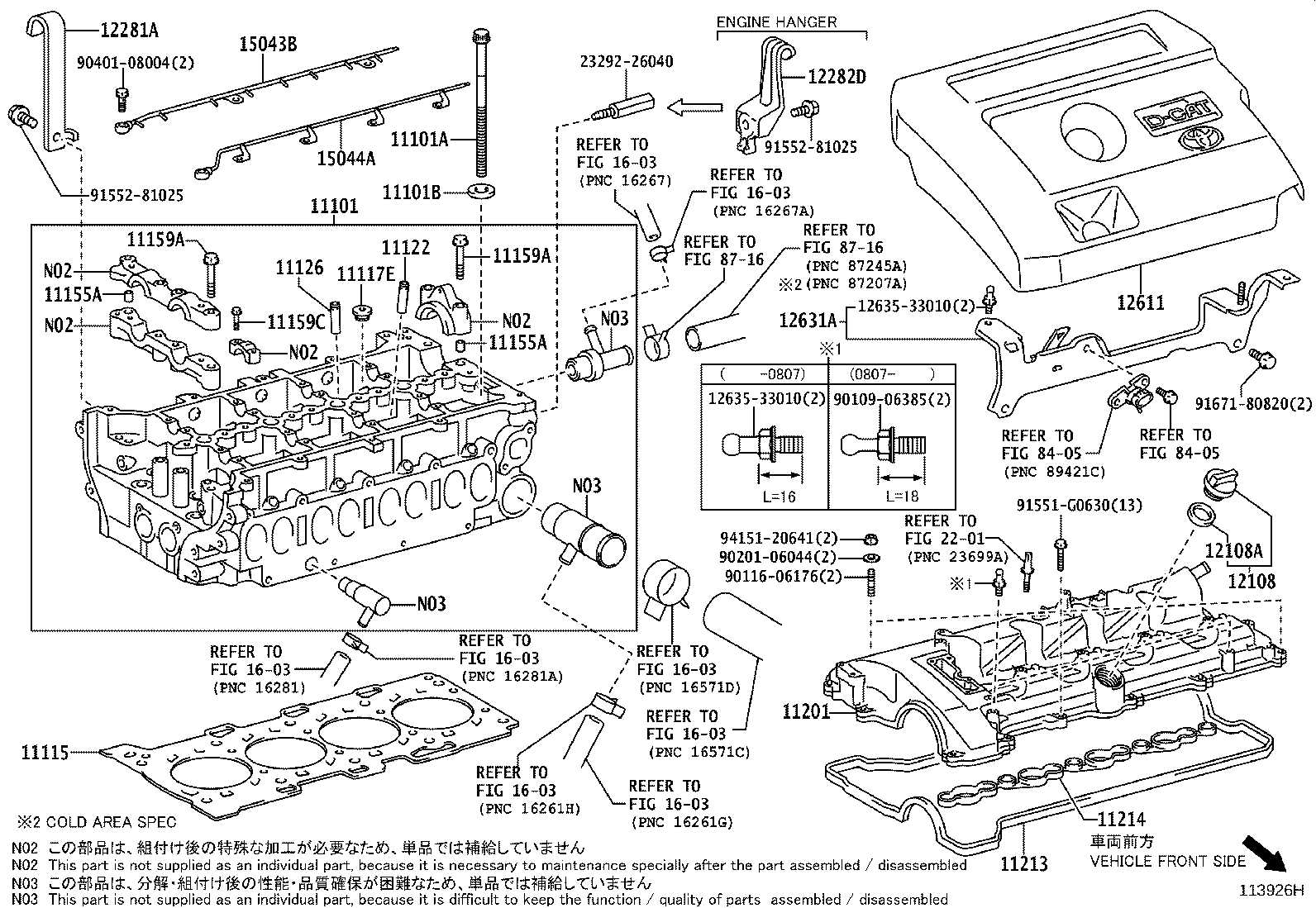

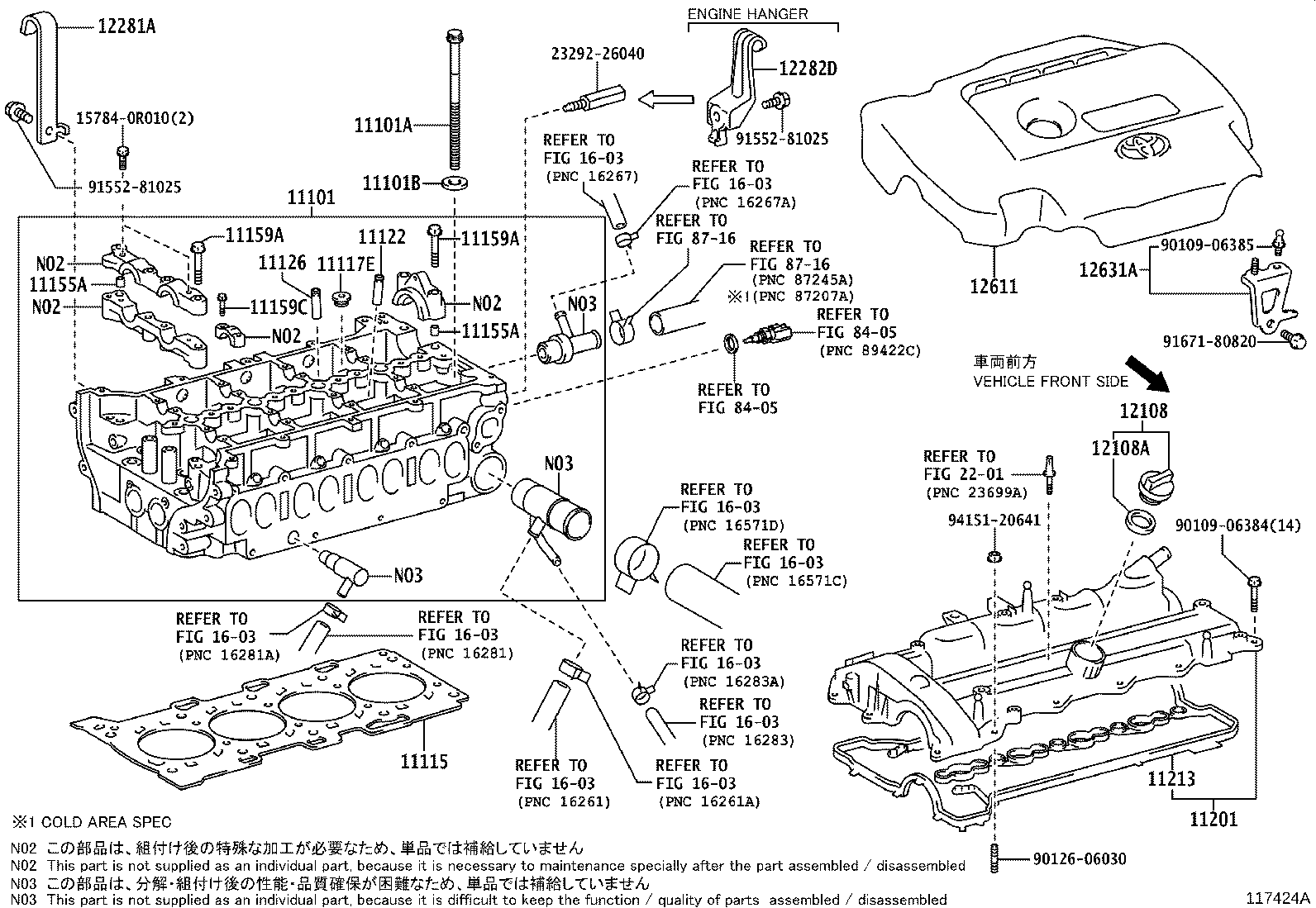

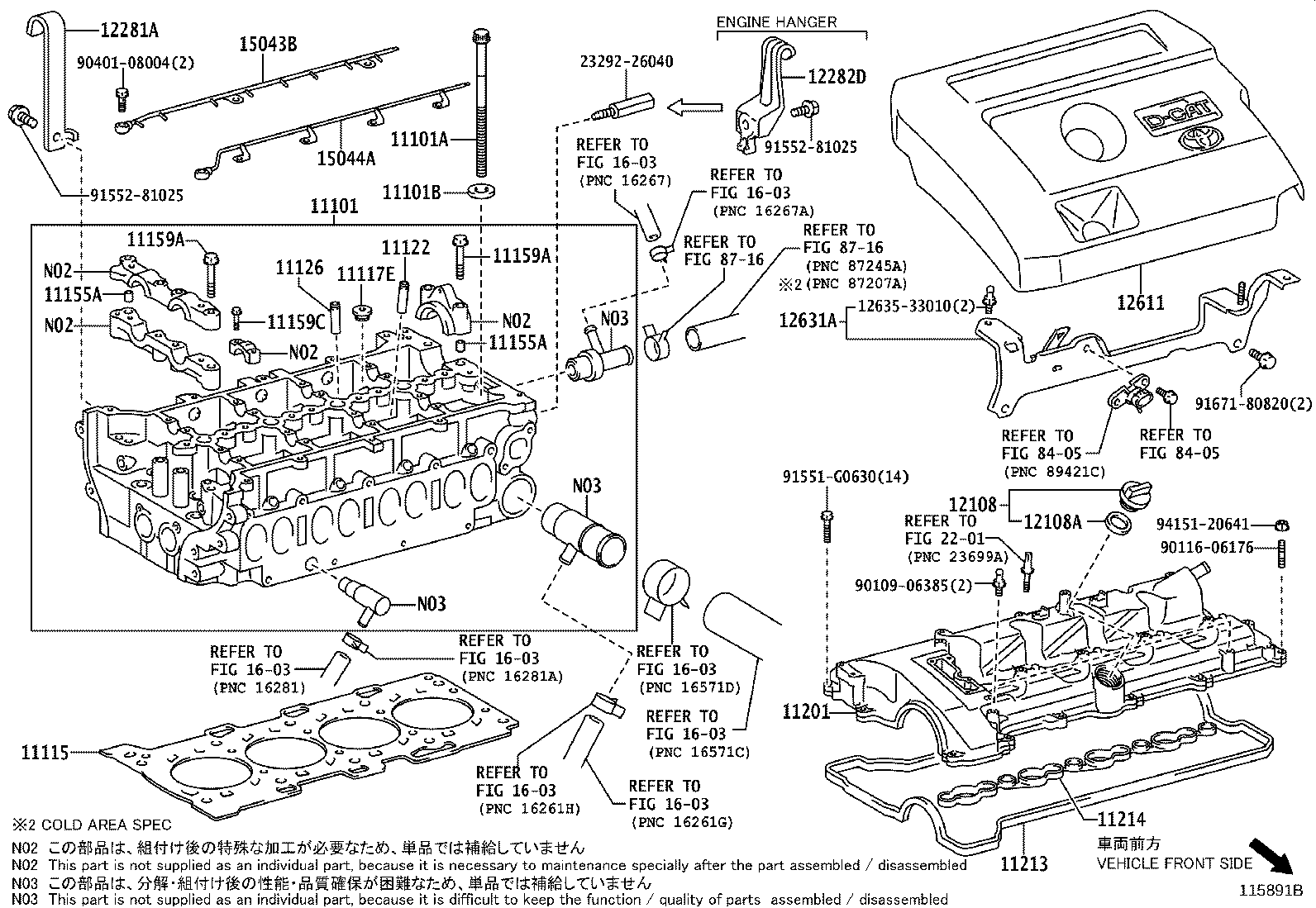

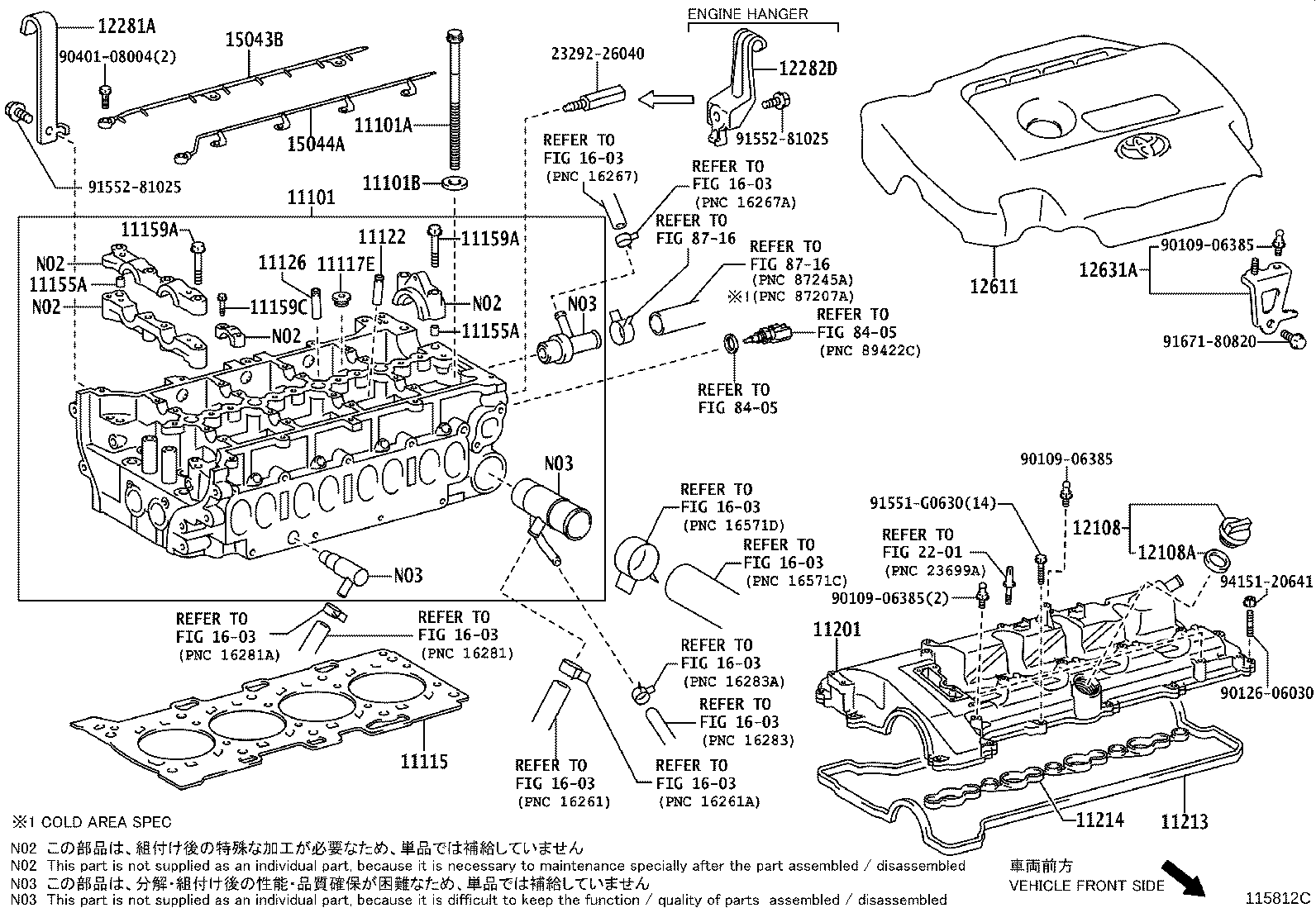

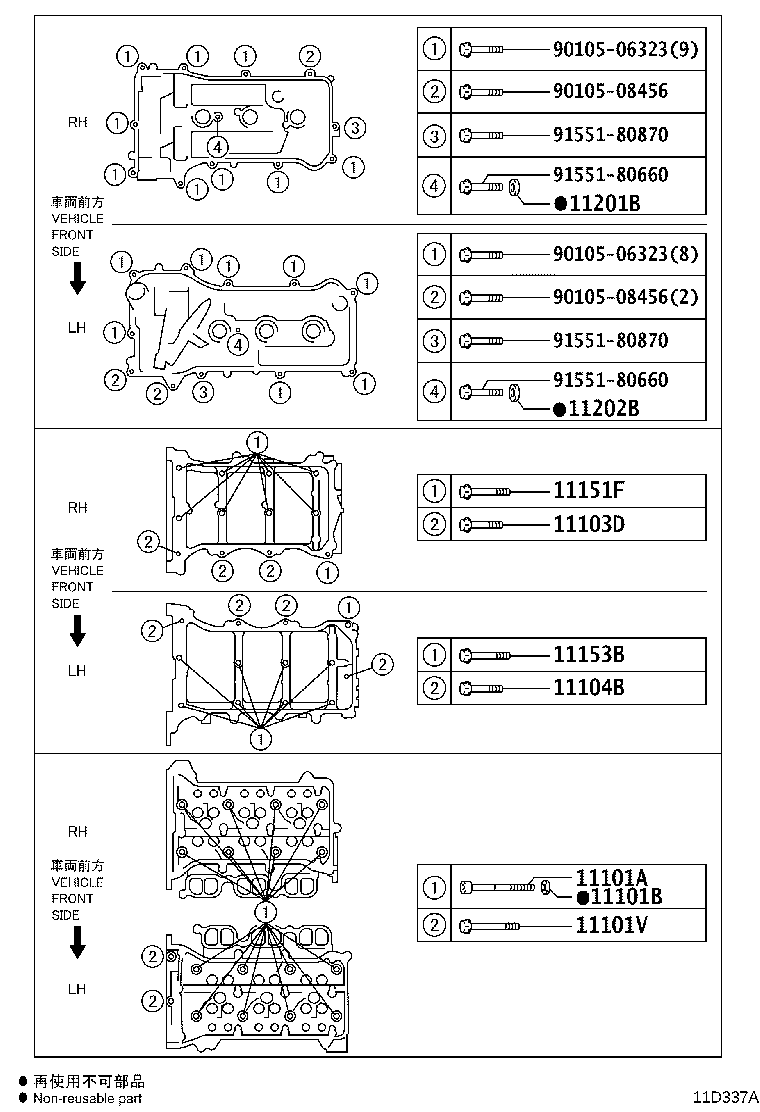

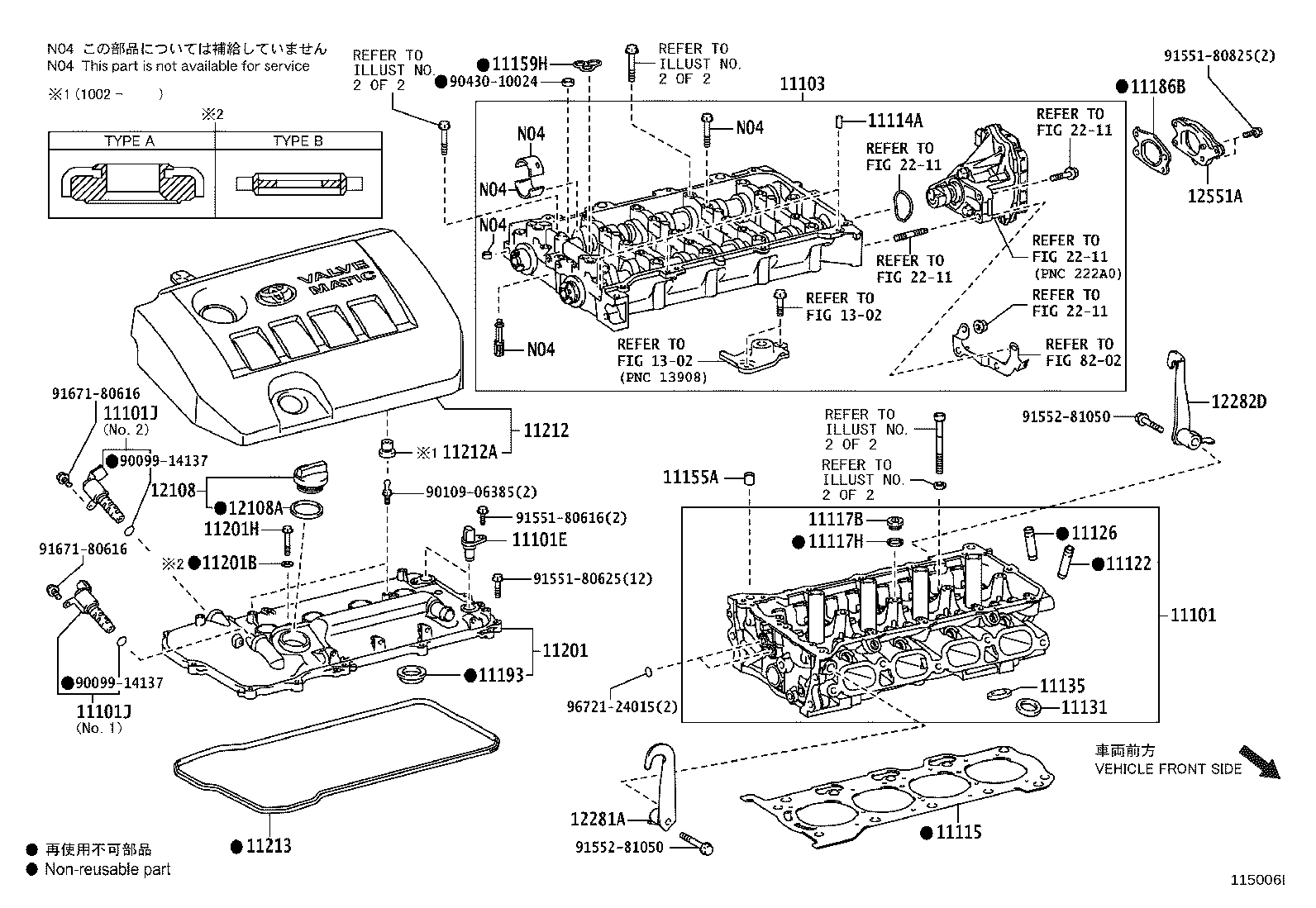

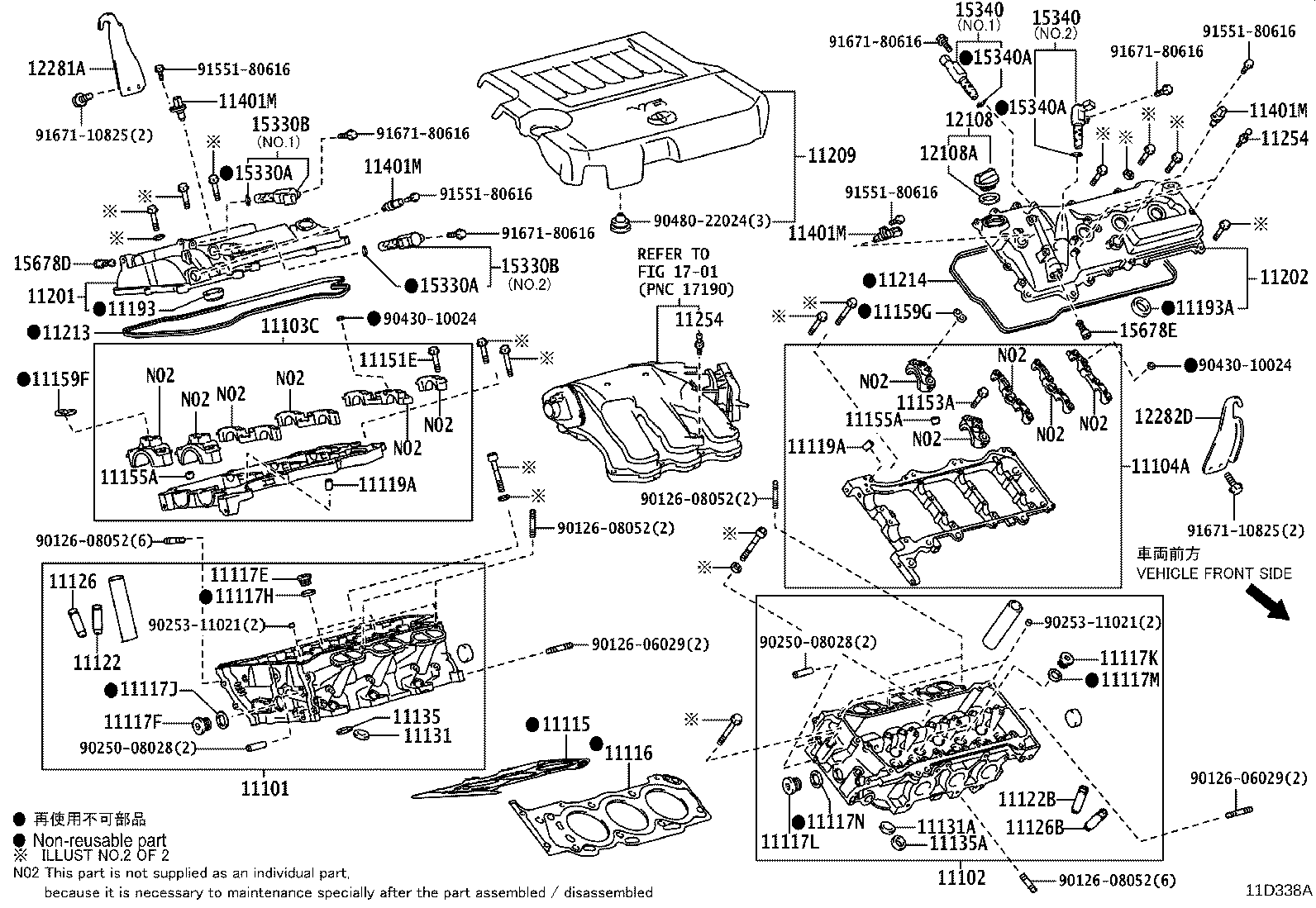

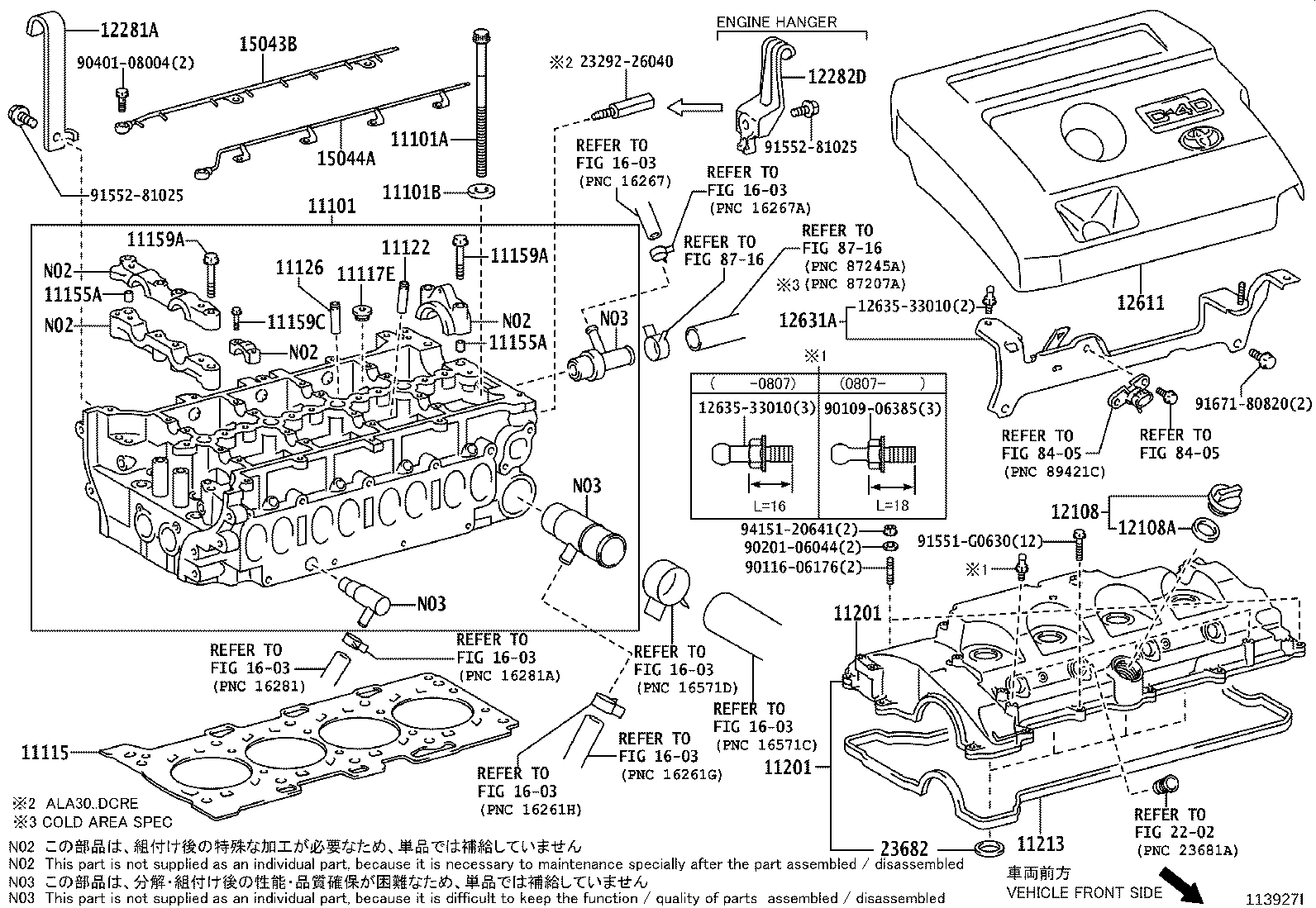

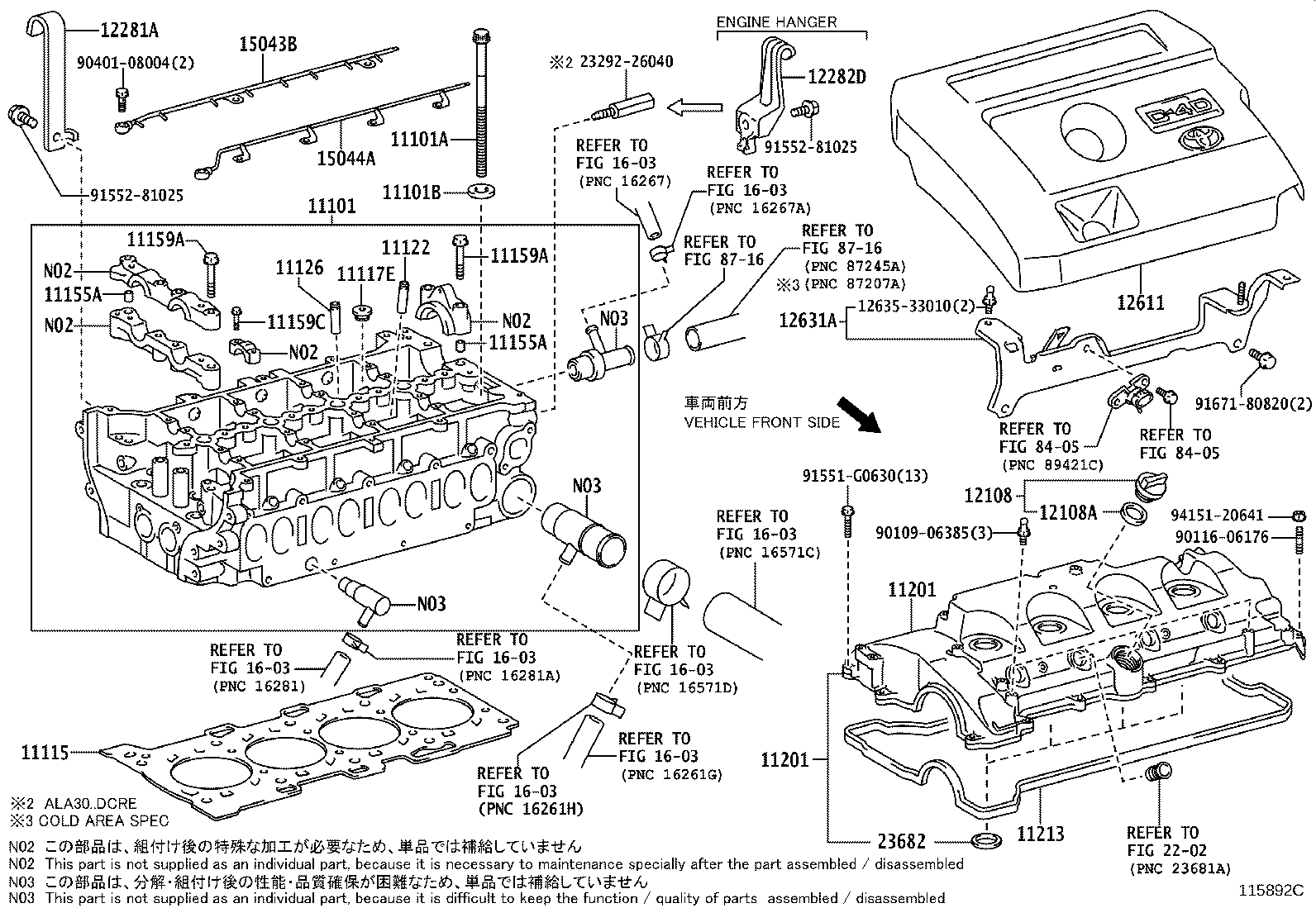

Cylinder Head
76 part groups · 11 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 11101 | Head Sub-assy, Cylinder |
| 11101A | Bolt(FOR CYLINDER HEAD SET) |
| 11101B | Washer, Plate(FOR CYLINDER HEAD SET) |
| 11101E | Sensor, Cam Position |
| 11101J | Valve Assy, Camshaft Timing Oil Control |
| 11101V | Bolt(FOR CYLINDER HEAD SET SUB) |
| 11102 | Head, Cylinder, LH |
| 11102A | Sensor, Camshaft Position |
| 11103 | Housing Sub-assy, Camshaft |
| 11103C | Housing Sub-assy, Camshaft, RH |
| 11103D | Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH) |
| 11104A | Housing Sub-assy, Camshaft, LH |
| 11104B | Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, LH) |
| 11114A | Pin, Straight |
| 11115 | Gasket, Cylinder Head |
| 11116 | Gasket, Cylinder Head, NO.2 |
| 11117B | Plug, W/Head Taper Screw, NO.2 |
| 11117E | Plug, W/Head Straight Screw, NO.1 |
| 11117F | Plug, W/Head Straight Screw, NO.2 |
| 11117H | Gasket(FOR WATER HOLE) |
| 11117J | Gasket(FOR CYLINDER HEAD SCREW PLUG) |
| 11117K | Plug, W/Head Straight Screw, LH NO.1 |
| 11117L | Plug, W/Head Straight Screw, LH NO.2 |
| 11117M | Gasket(FOR WATER HOLE NO.2) |
| 11117N | Gasket(FOR CYLINDER HEAD SCREW PLUG NO.2) |
| 11119A | Pin, Straight, NO.1 |
| 11122 | Bush, Intake Valve Guide |
| 11122B | Bush, Intake Valve Guide, NO.2 |
| 11126 | Bush, Exhaust Valve Guide |
| 11126B | Bush, Exhaust Valve Guide, NO.2 |
| 11131 | Seat, Intake Valve |
| 11131A | Seat, Intake Valve, NO.2 |
| 11135 | Seat, Exhaust Valve |
| 11135A | Seat, Exhaust Valve, NO.2 |
| 11151E | Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1) |
| 11151F | Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2) |
| 11153A | Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1) |
| 11153B | Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2) |
| 11155A | Pin, Ring W/Head |
| 11159A | Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11159C | Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11159F | Gasket, Camshaft Bearing Cap Oil Hole, RH |
| 11159G | Gasket, Camshaft Bearing Cap Oil Hole, LH |
| 11159H | Gasket, Camshaft Bearing Cap Oil Hole |
| 11186B | Gasket, Camshaft Housing Rear Cover |
| 11193 | Gasket, Spark Plug Tube |
| 11193A | Gasket, Spark Plug Tube, LH |
| 11201 | Cover Sub-assy, Cylinder Head |
| 11201B | Washer, Seal(FOR CYLINDER HEAD COVER) |
| 11201H | Bolt(FOR CYLINDER HEAD COVER) |
| 11202 | Cover Sub-assy, Cylinder Head, LH |
| 11202B | Washer, Seal(FOR CYLINDER HEAD COVER, LH) |
| 11209 | Cover Sub-assy, V-bank |
| 11212 | Cover, Cylinder Head, NO.2 |
| 11212A | Cushion, Cylinder Head Cover |
| 11213 | Gasket, Cylinder Head Cover |
| 11214 | Gasket, Cylinder Head Cover, NO.2 |
| 11254 | Bracket, V-bank Cover, NO.1 |
| 11401M | Sensor, Crank Position, NO.2 |
| 12108 | Cap Sub-assy, Oil Filler |
| 12108A | Gasket(FOR OIL FILLER CAP) |
| 12281A | Hanger, Engine, NO.1 |
| 12282D | Hanger, Engine, NO.2 |
| 12551A | Bracket, Vacuum Pump, NO.1 |
| 12601B | Cover Sub-assy, Engine, NO.1 |
| 12611 | Cover, Engine, NO.1 |
| 12631A | Bracket, Engine Cover |
| 15043B | Pipe Sub-assy, Camshaft Oil Delivery, RH |
| 15044A | Pipe Sub-assy, Camshaft Oil Delivery, LH |
| 15330A | Ring, O(FOR CAM TIMING OIL CONTROL VALVE) |
| 15330B | Valve Assy, Cam Timing Oil Control, RH |
| 15340 | Valve Assy, Cam Timing Oil Control, LH |
| 15340A | Ring, O(FOR CAM TIMING OIL CONTROL VALVE) |
| 15678D | Filter, Oil Control Valve, RH |
| 15678E | Filter, Oil Control Valve, LH |
| 23682 | Gasket, Nozzle Holder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
