Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

14 part groups · 4 illustrations

Illustrations

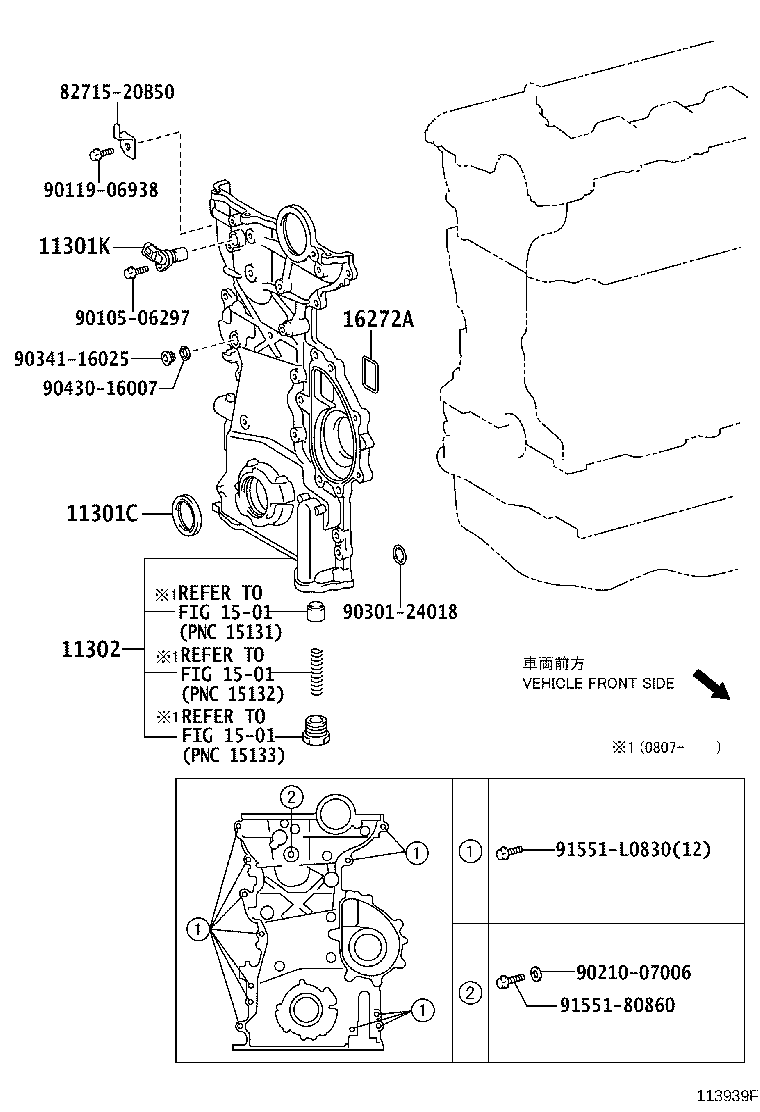

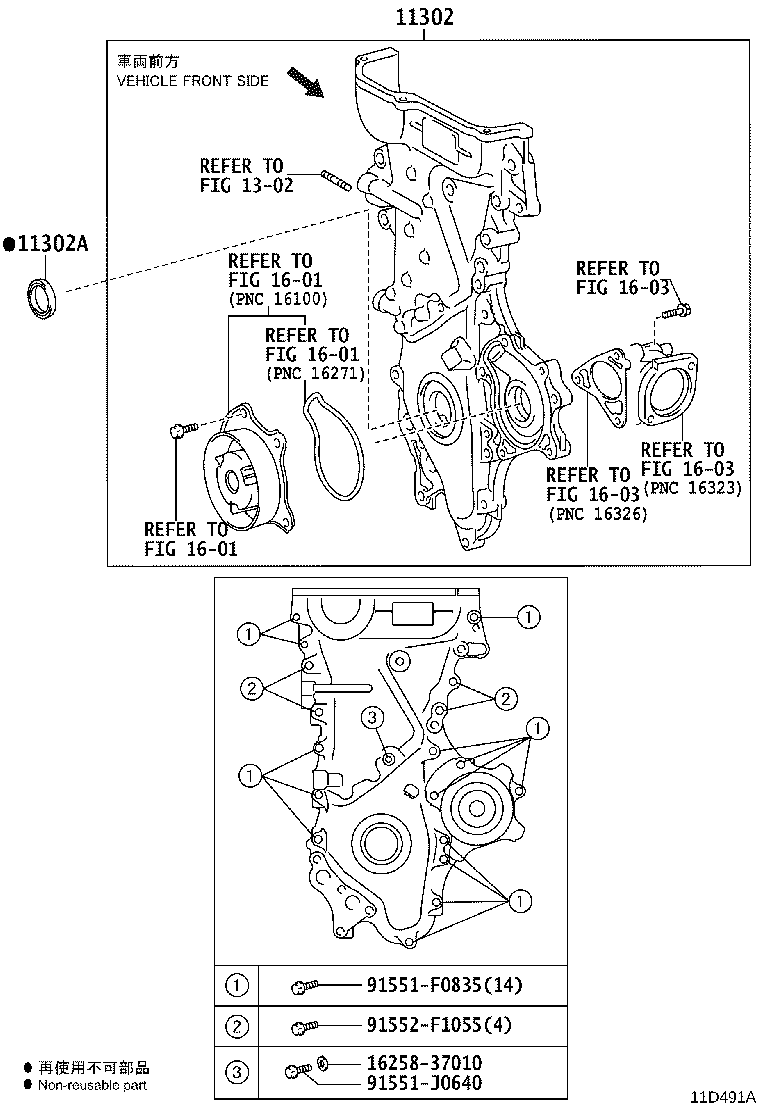

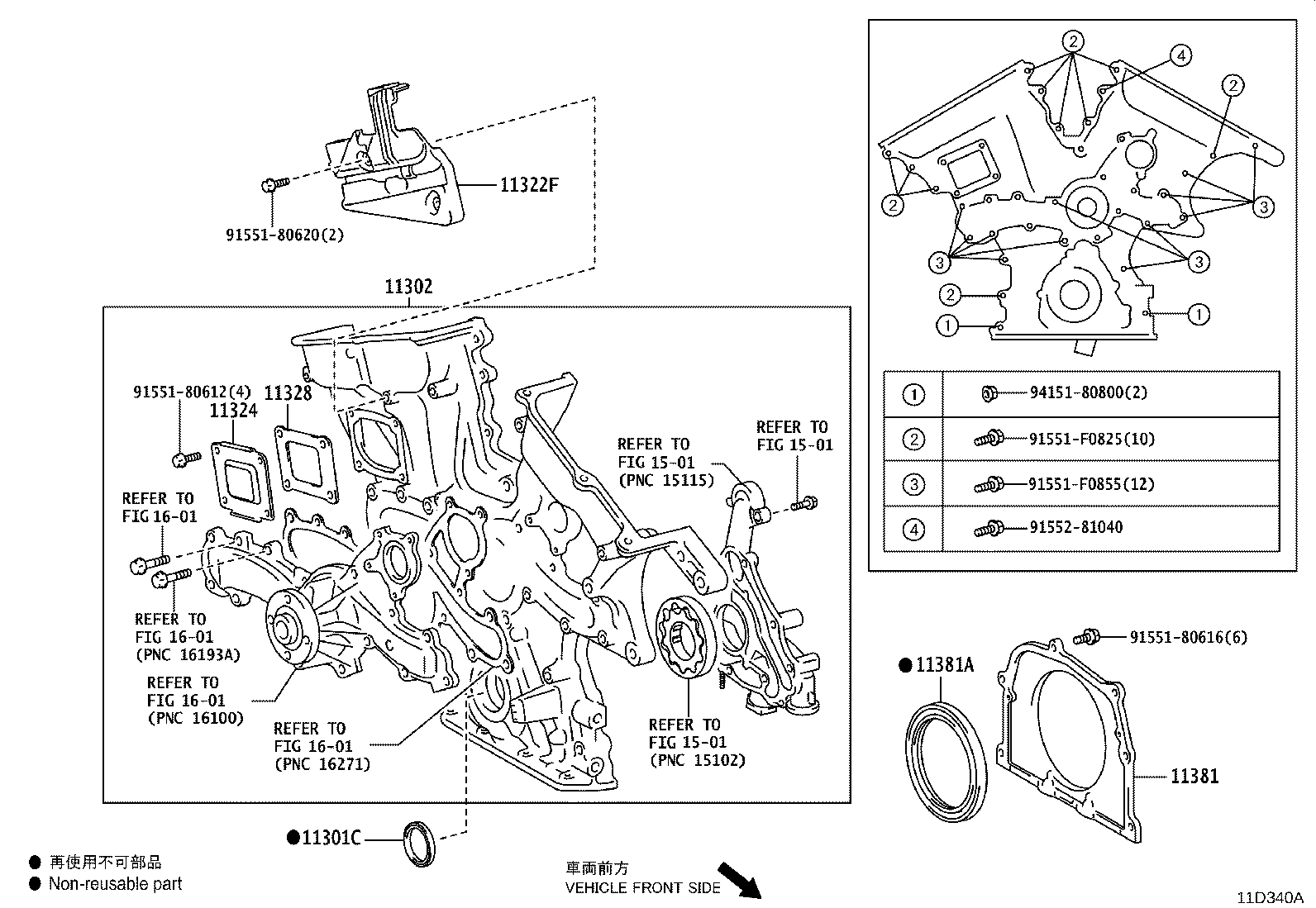

Figure 115253F 115253F 2005-11 → — Figure 113939F 113939F 2005-11 → — Figure 11D340A 11D340A 2007-08 → — Figure 11D491A 11D491A 2008-12 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11322F Cover, Timing Gear, NO.2
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
16272A Gasket, Water Pump NO.2
16603B Pulley Sub-assy, Idler
16631A Bracket, Idler Pulley
16659B Plate, Idler Pulley Cover, NO.2
19529A Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
