Toyota RAV4
2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe
Supported model
Data version 2013-01

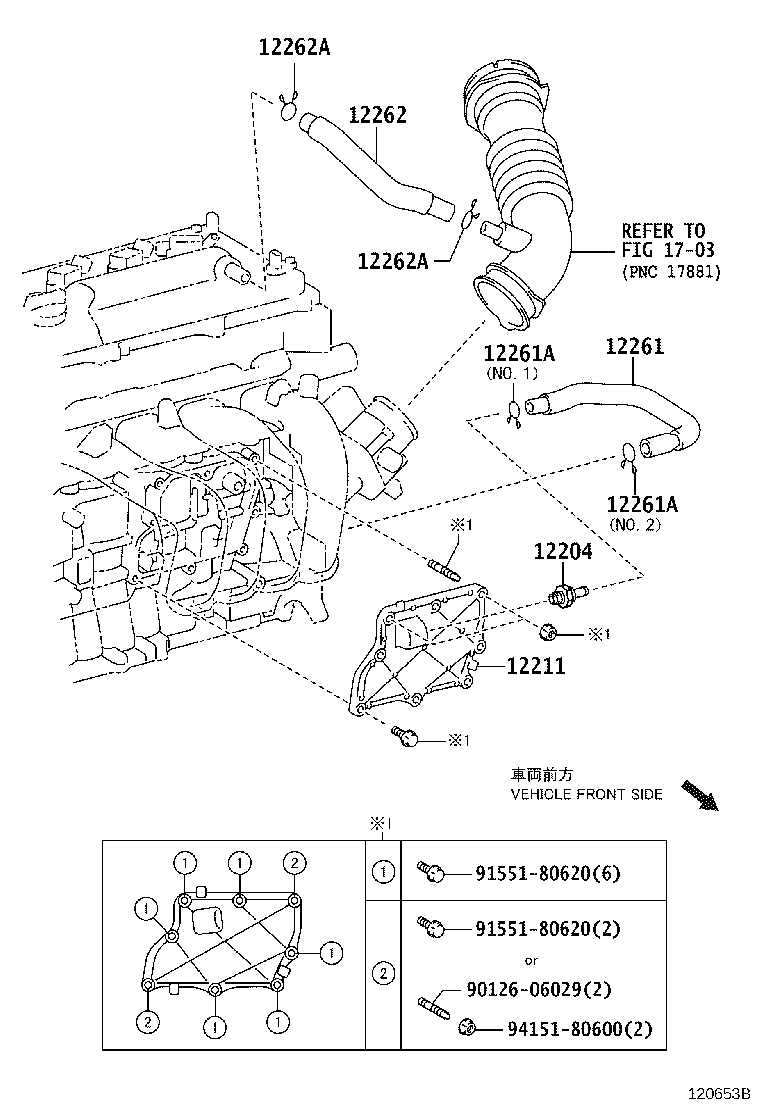

Ventilation Hose
6 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 12204 | Valve Sub-assy, Ventilation |
| 12211 | Case, Ventilation, NO.1 |
| 12261 | Hose, Ventilation |
| 12261A | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
