Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

15 part groups · 5 illustrations

Illustrations

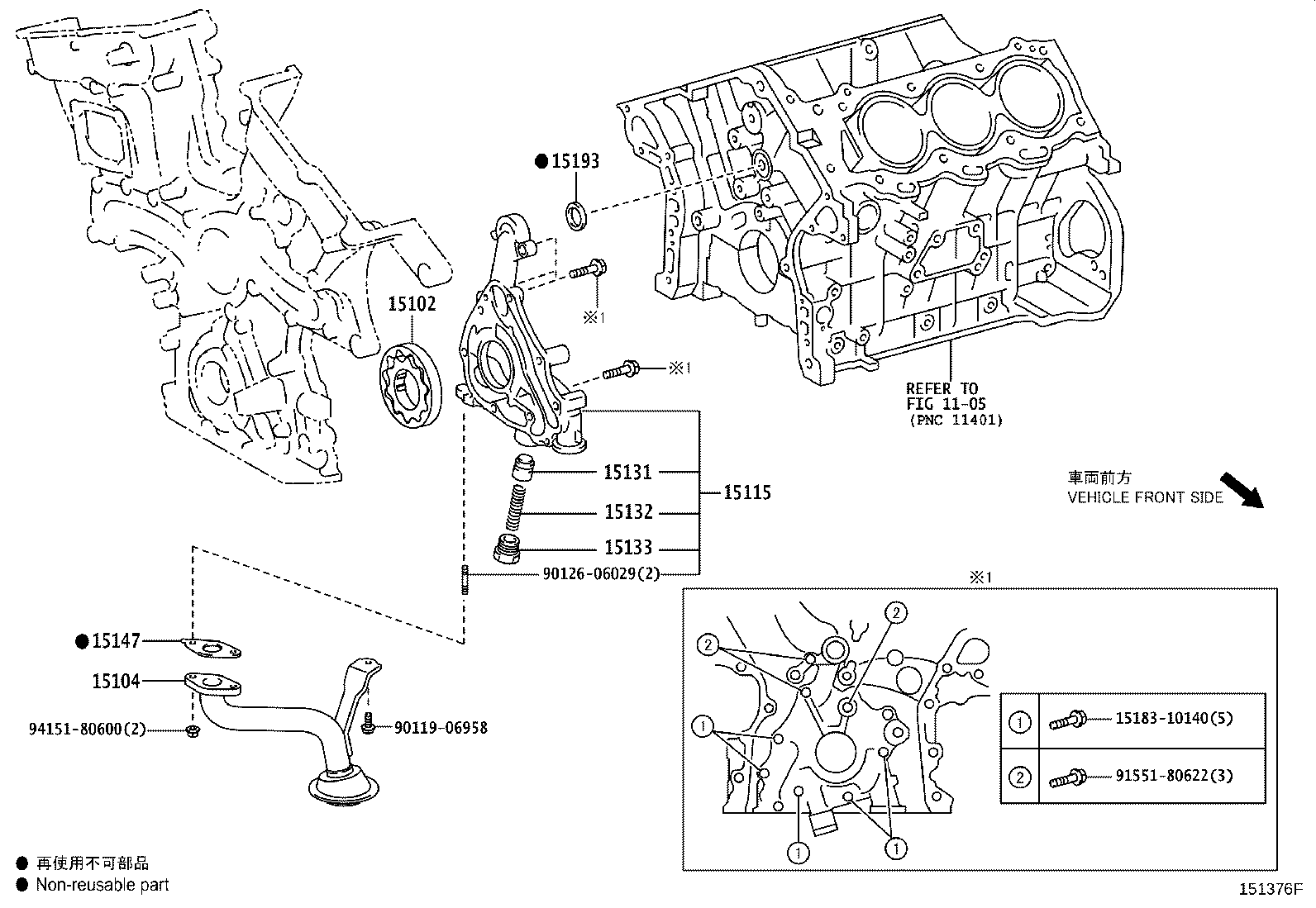

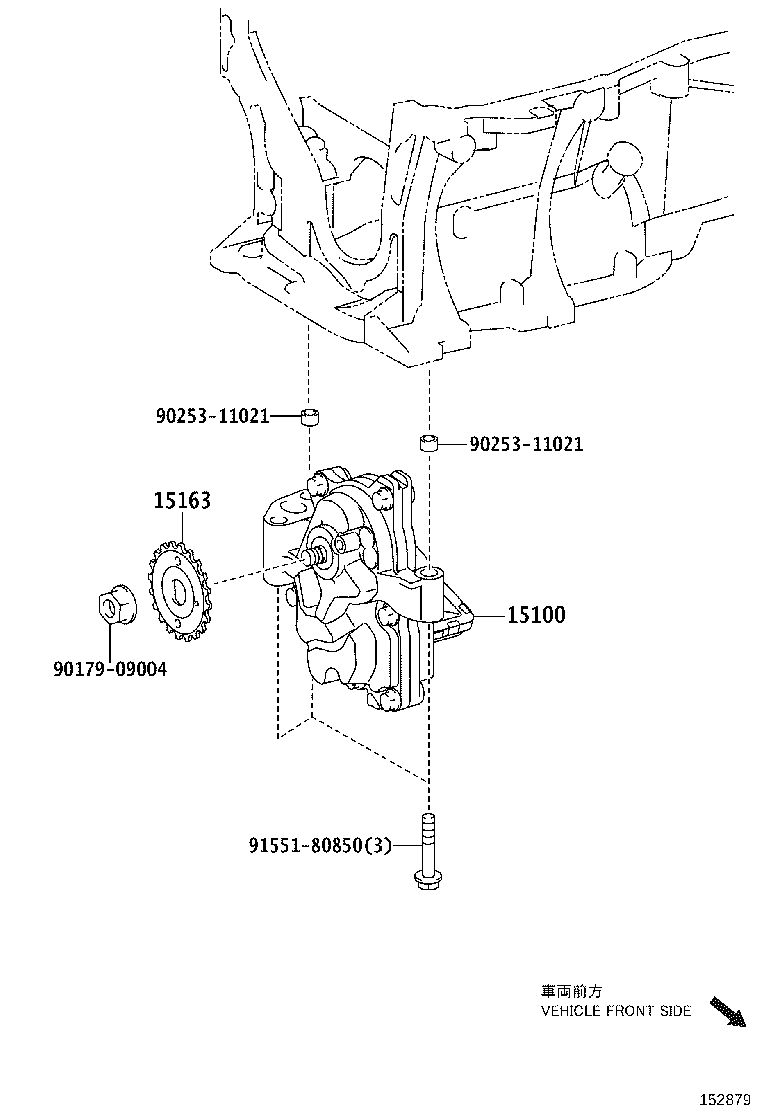

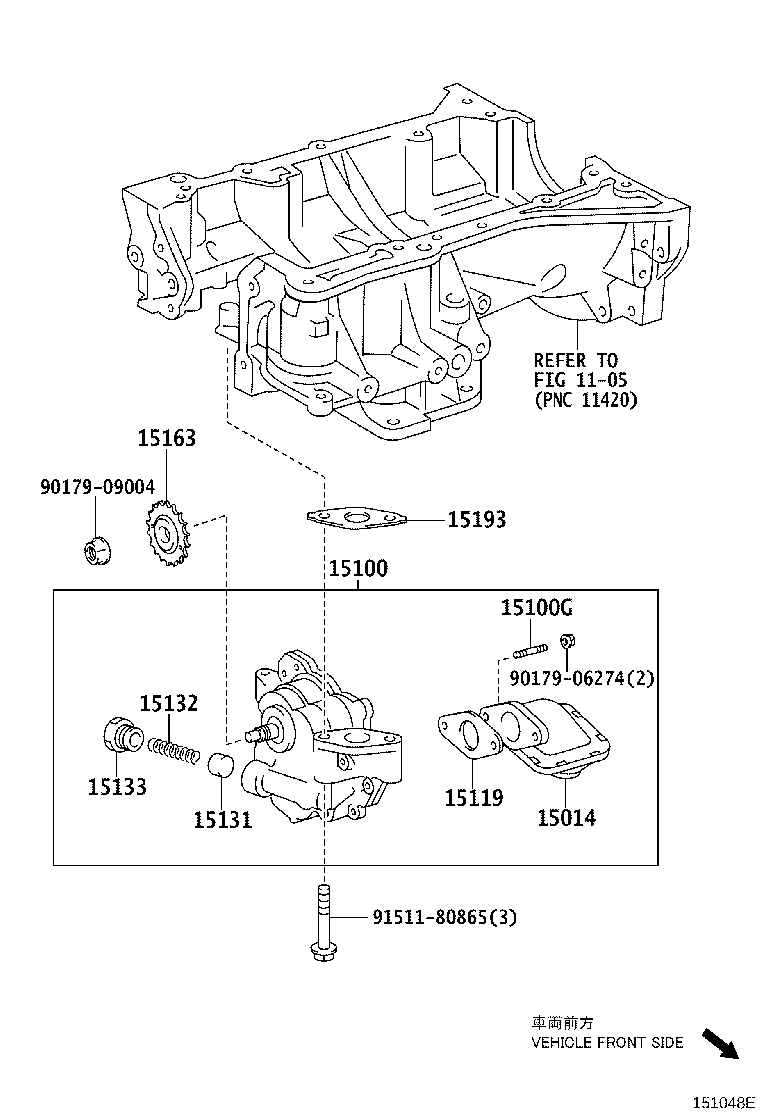

Figure 151047D 151047D 2005-11 → — Figure 151048E 151048E 2005-11 → — Figure 151049E 151049E 2005-11 → — Figure 151376F 151376F 2007-08 → — Figure 152879 152879 2008-12 → —

Part groups

PNCDescription
15012 Cover Sub-assy, Oil Pump
15014 Strainer Set, Oil Pump
15100 Pump Assy, Oil
15100G Bolt,Stud(FOR OIL PUMP)
15102 Rotor Set, Oil Pump
15104 Strainer Sub-assy, Oil
15104A Ring, O(FOR OIL STRAINER)
15115 Cover, Oil Pump
15119 Gasket, Oil Pump Cover
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15163 Gear, Oil Pump Drive Shaft
15193 Gasket, Oil Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
