Toyota RAV4
2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe
Supported model
Data version 2013-01
Engine Oil Cooler

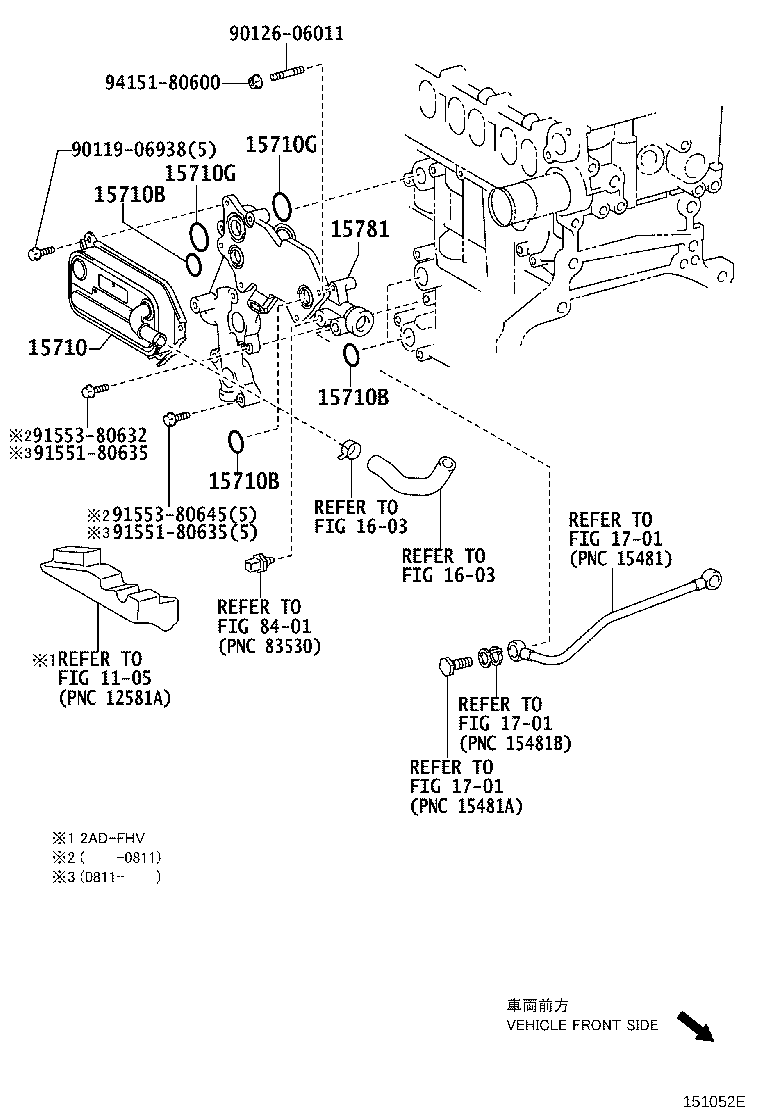

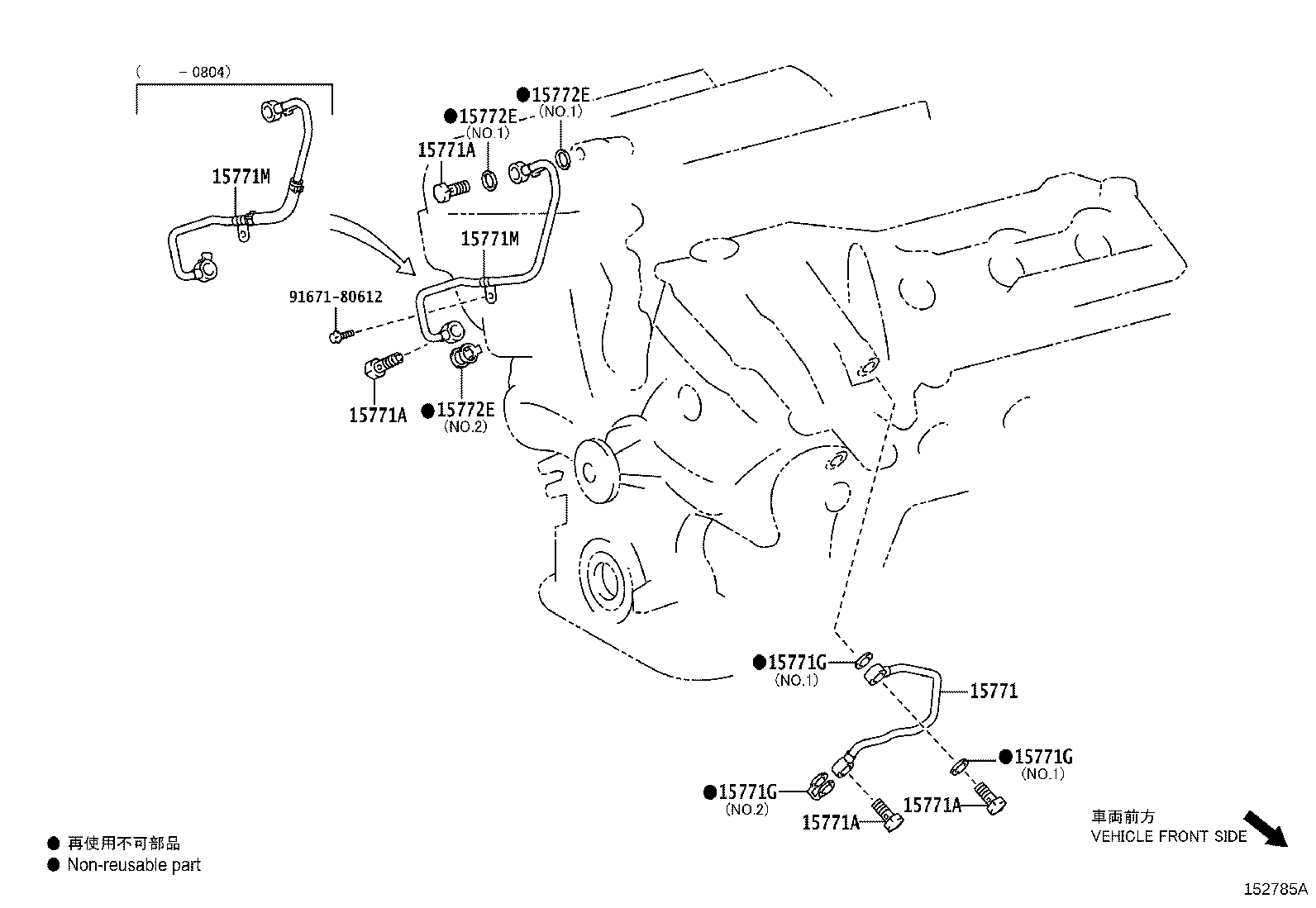

18 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 15710 | Cooler Assy, Oil |
| 15710B | Ring, O(FOR OIL COOLER) |
| 15710G | Ring, O, NO.2 |
| 15771 | Pipe, Oil, NO.1 |
| 15771A | Union(FOR OIL PIPE) |
| 15771G | Gasket |
| 15771M | Pipe, Oil |
| 15772E | Gasket(FOR OIL PIPE) |
| 15777 | Hose, Oil Cooler |
| 15777B | Pipe, Oil Cooler |
| 15777C | Hose, Oil Cooler |
| 15777D | Clamp OR Clip, Hose(FOR OIL COOLER HOSE) |
| 15777K | Cock Assy, Drain(FOR OIL COOLER HOSE) |
| 15777L | Plug,Air(FOR OIL COOLER DRAIN COCK) |
| 15777M | Ring, O(FOR OIL COOLER DRAIN COCK) |
| 15777R | Gasket(FOR OIL COOLER PIPE UNION BOLT) |
| 15777S | Clamp OR Clip, Hose |
| 15781 | Bracket, Oil Cooler, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
