Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

10 part groups · 6 illustrations

Illustrations

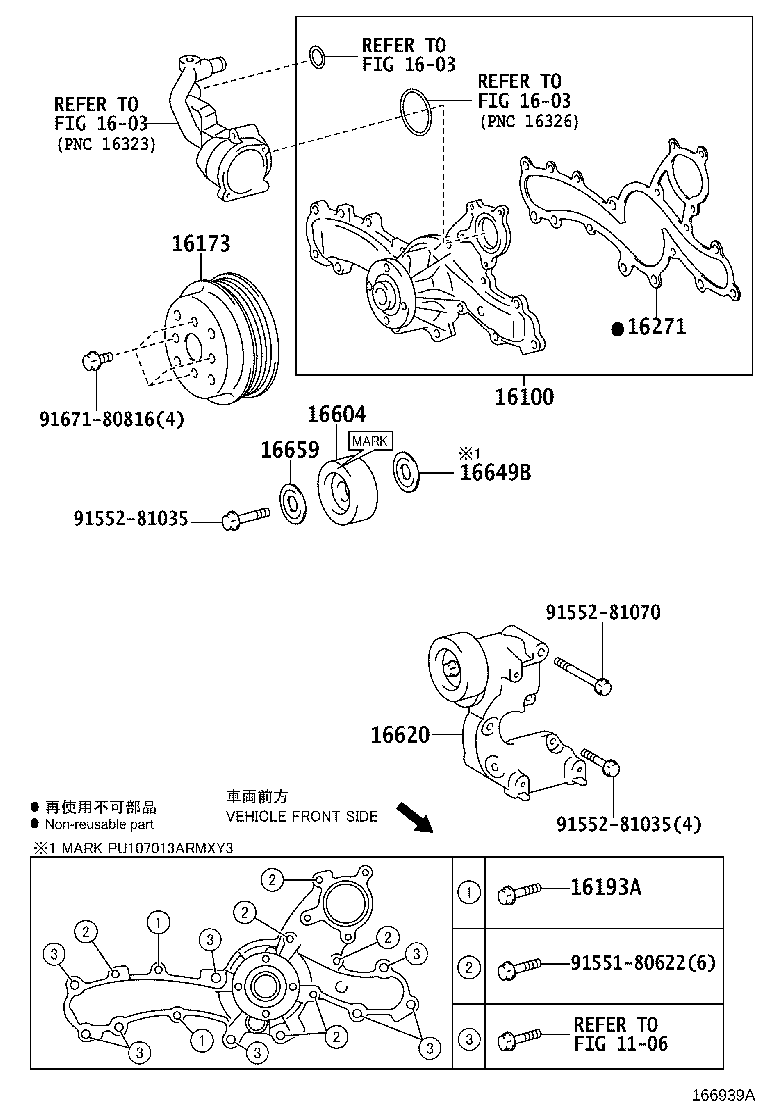

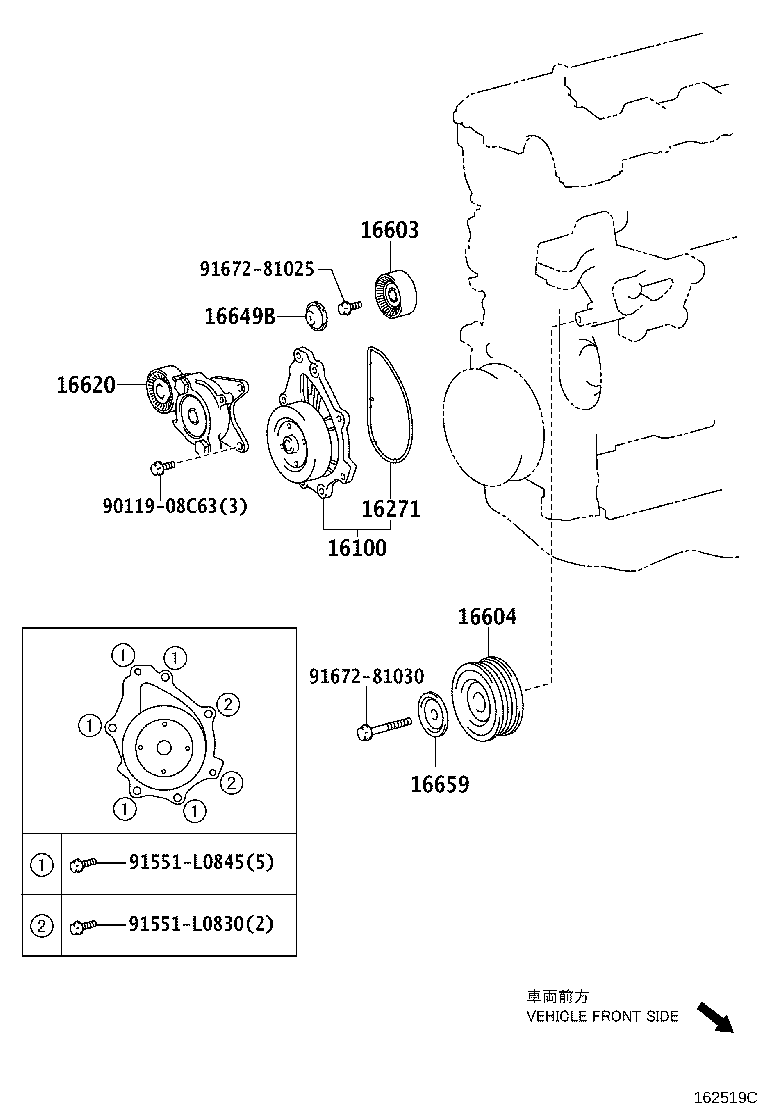

Figure 162518H 162518H 2005-11 → 2008-04 Figure 162518H 162518H 2008-04 → — Figure 163468B 163468B 2008-04 → — Figure 162519C 162519C 2005-11 → — Figure 166939A 166939A 2007-08 → — Figure 167005A 167005A 2008-12 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16173 Pulley, Water Pump
16193A Bolt(FOR WATER PUMP COVER)
16271 Gasket, Water Pump
16601 Tensioner Sub-assy, V-ribbed Belt
16603 Pulley Sub-assy, Idler, NO.1
16604 Pulley Sub-assy, Idler, NO.2
16620 Tensioner Assy, V-ribbed Belt
16649B Plate, Idler Pulley Cover
16659 Plate, Idler Pulley Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
