Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

96 part groups · 19 illustrations

Illustrations

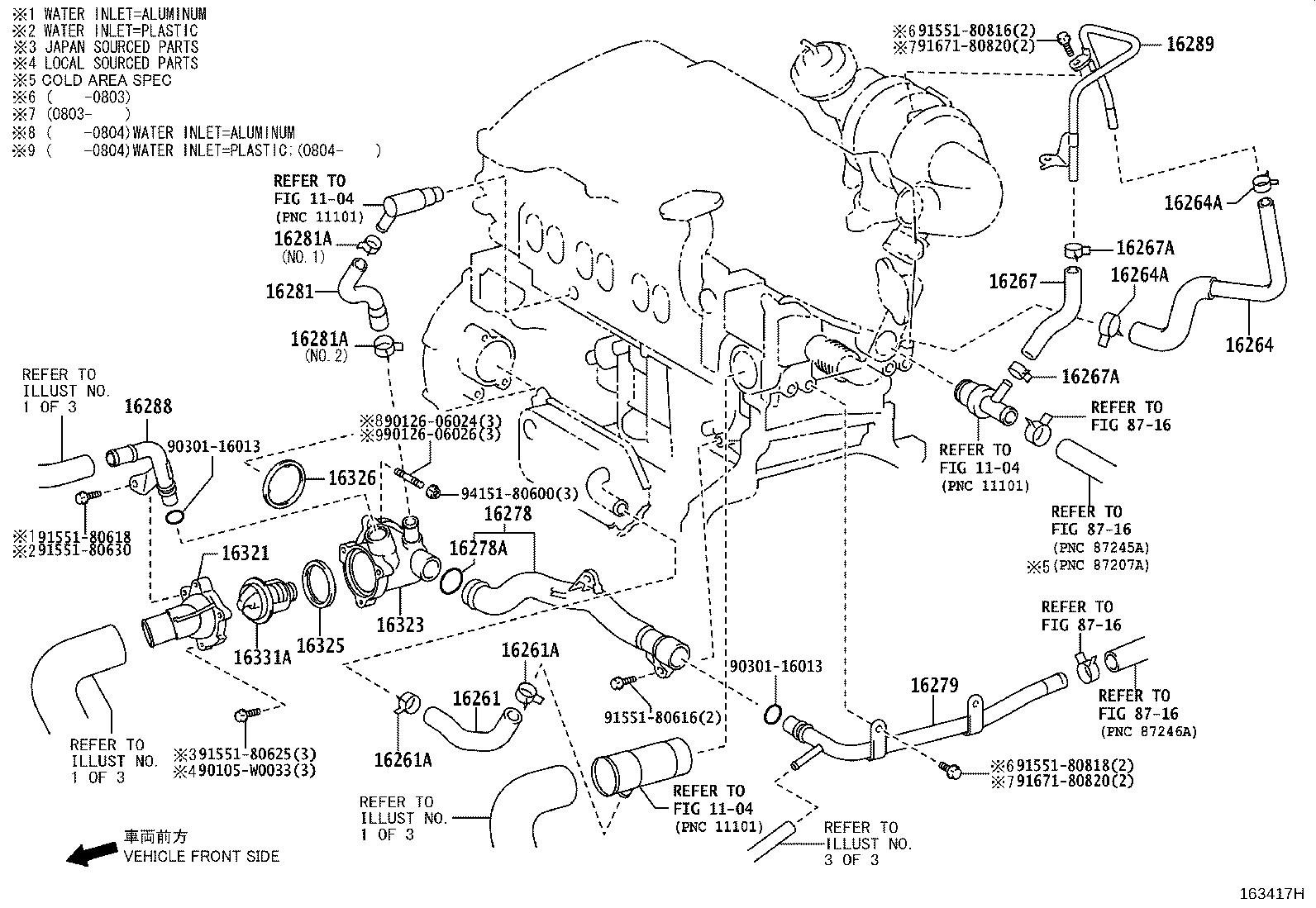

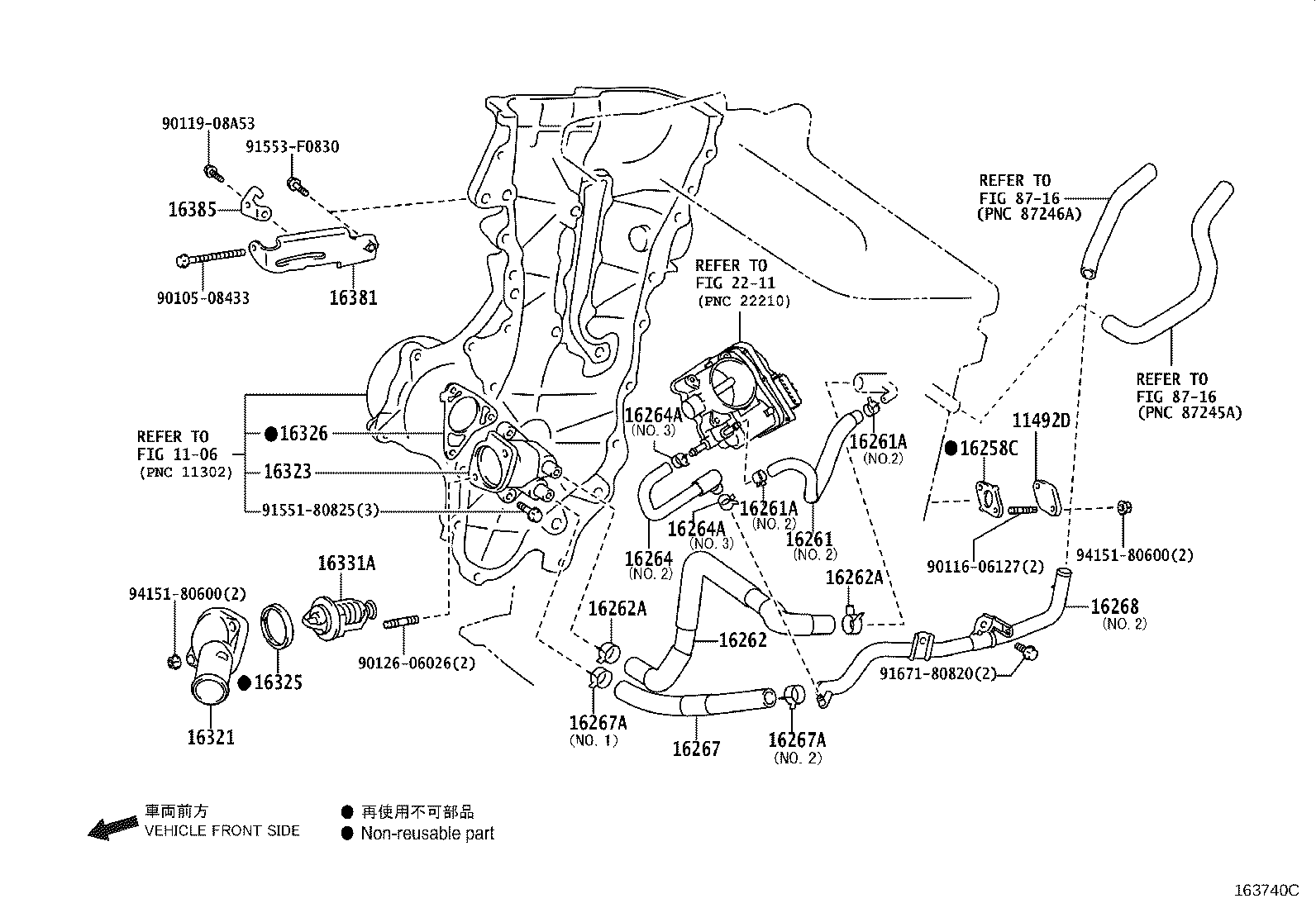

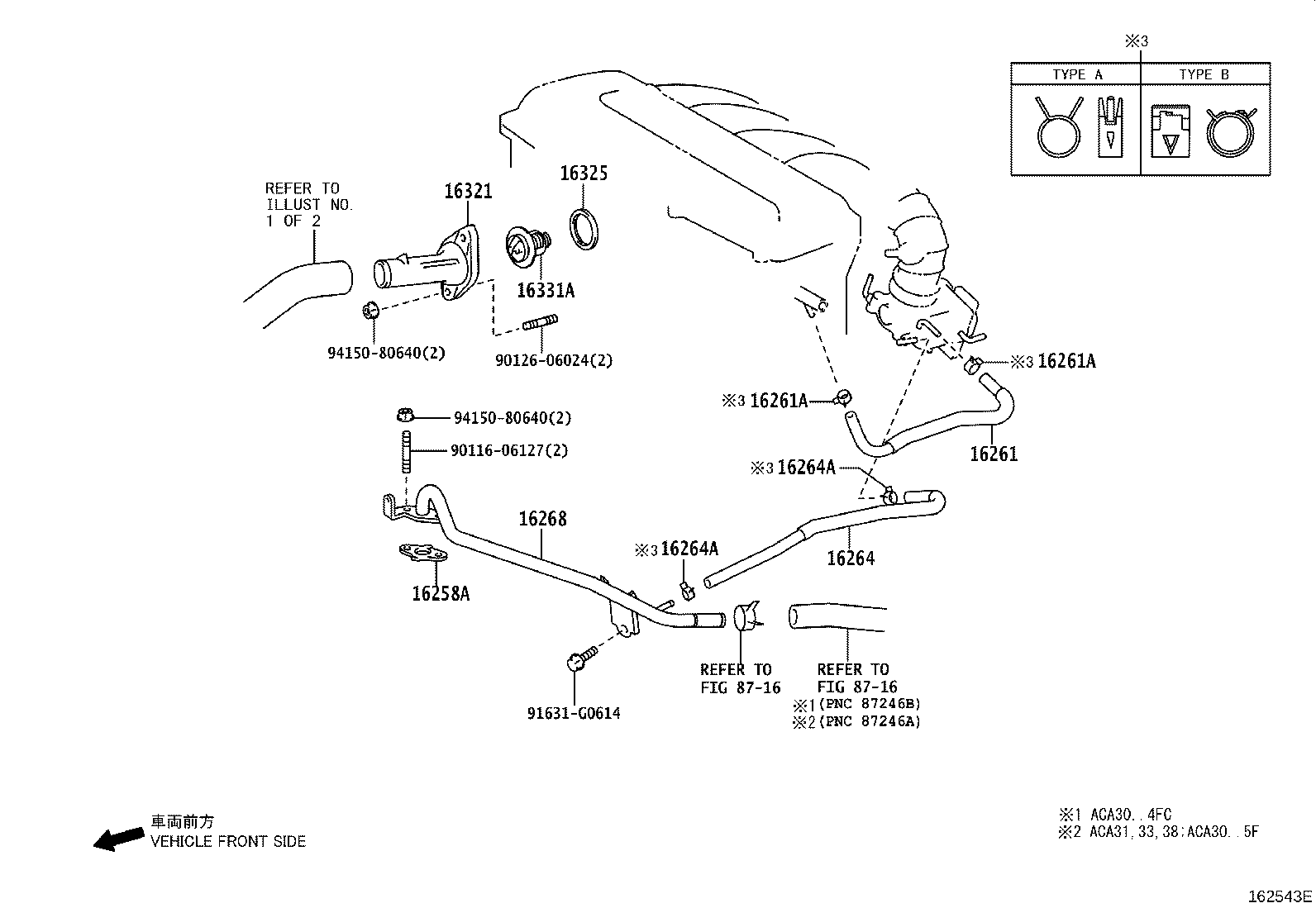

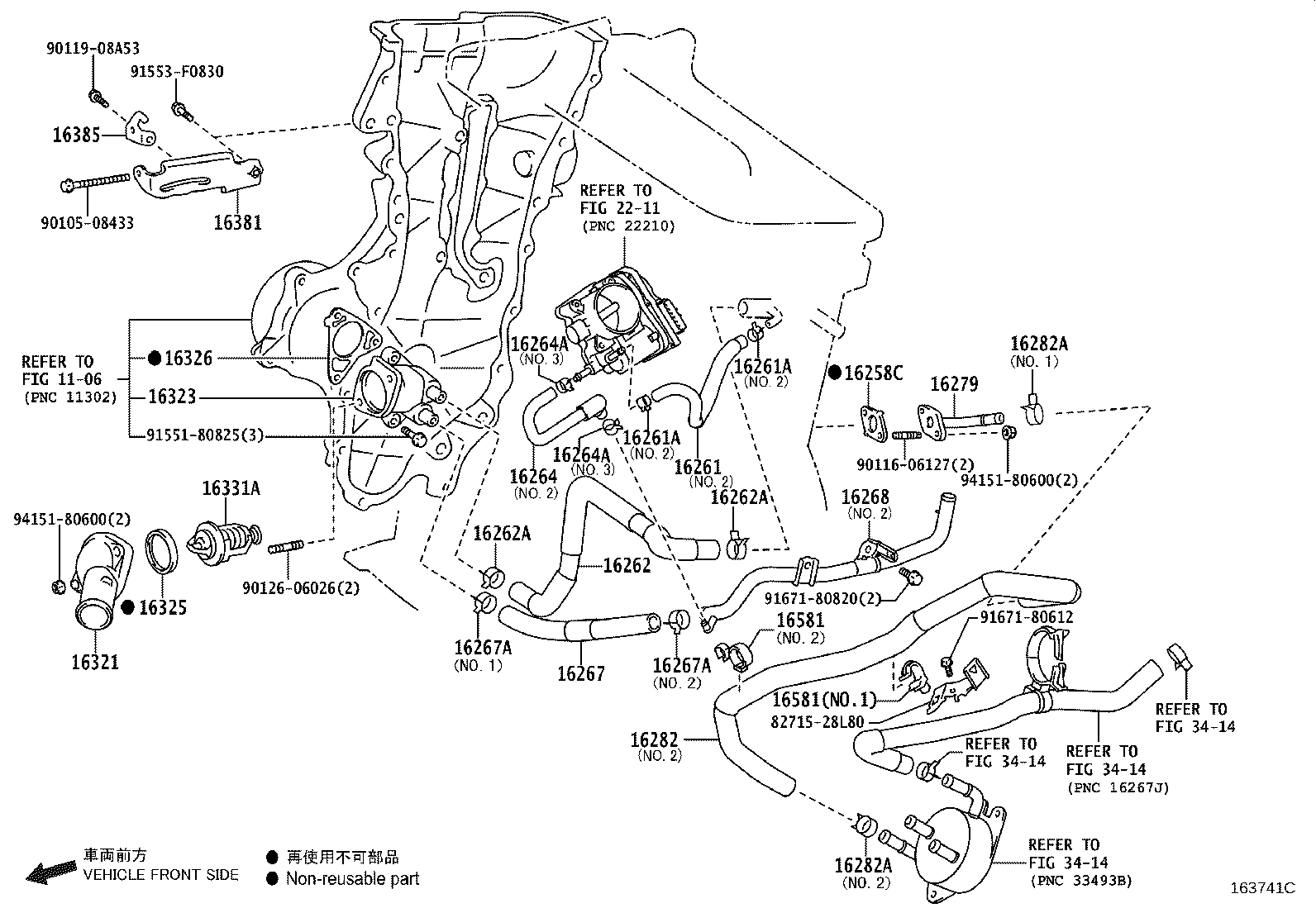

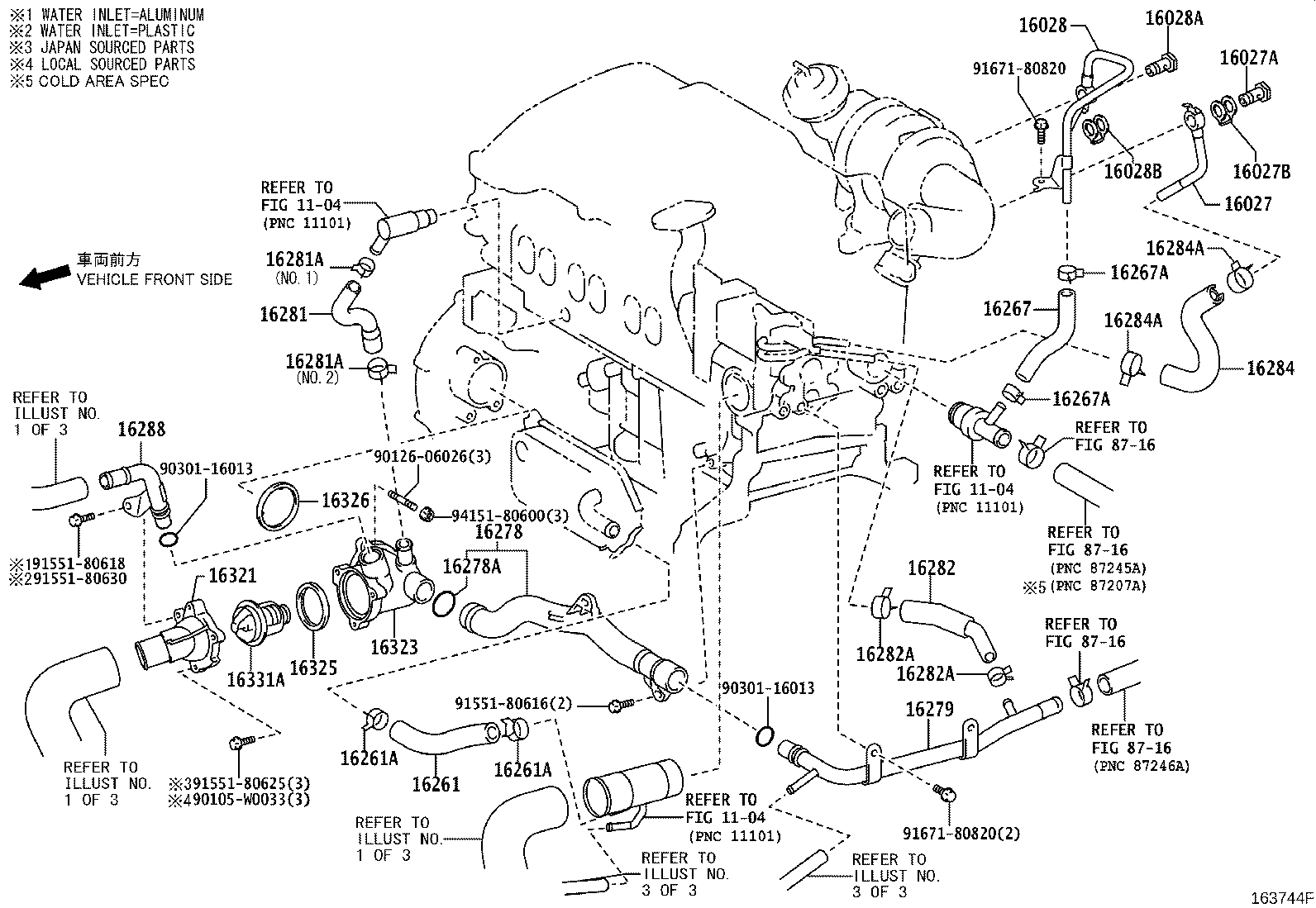

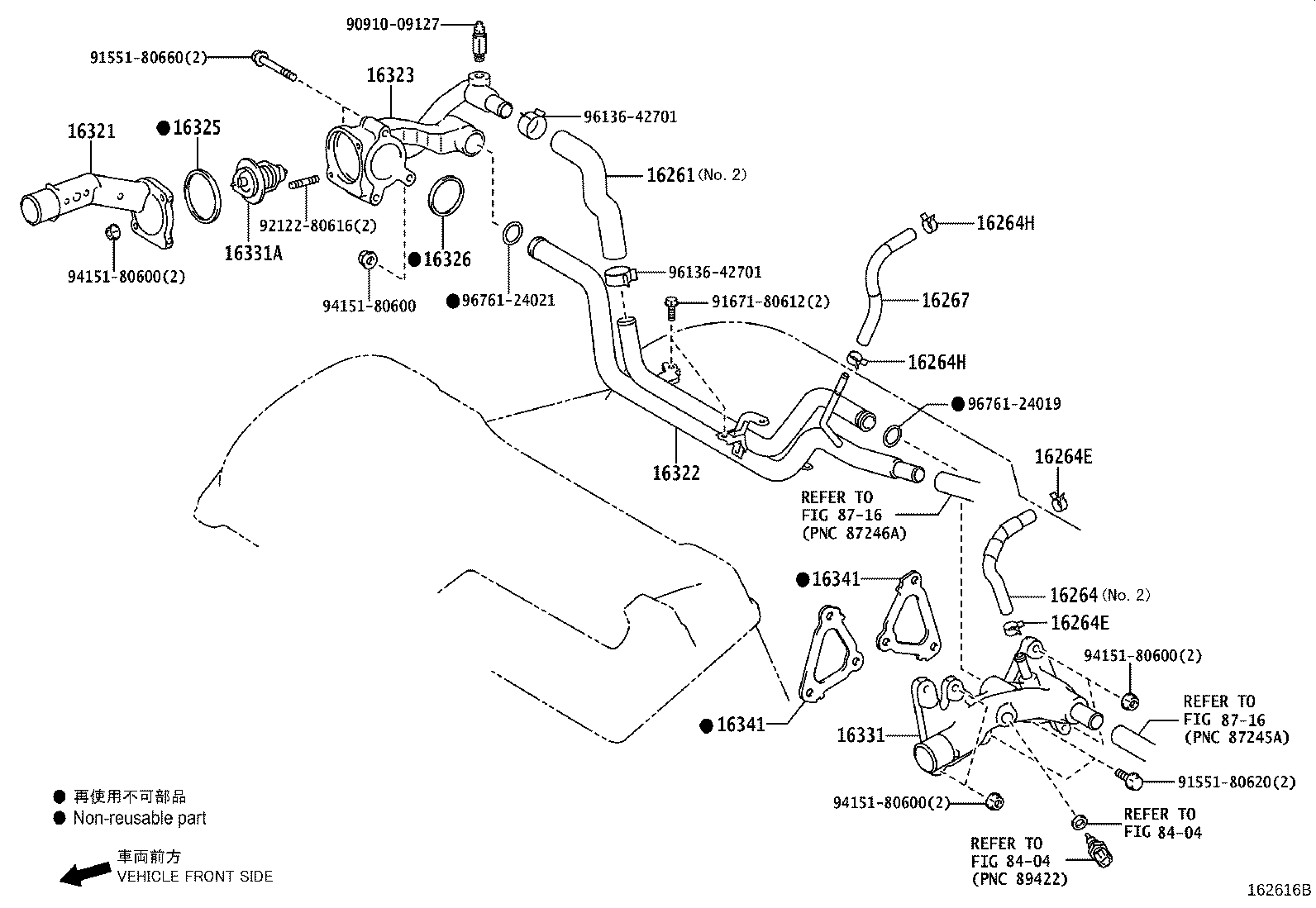

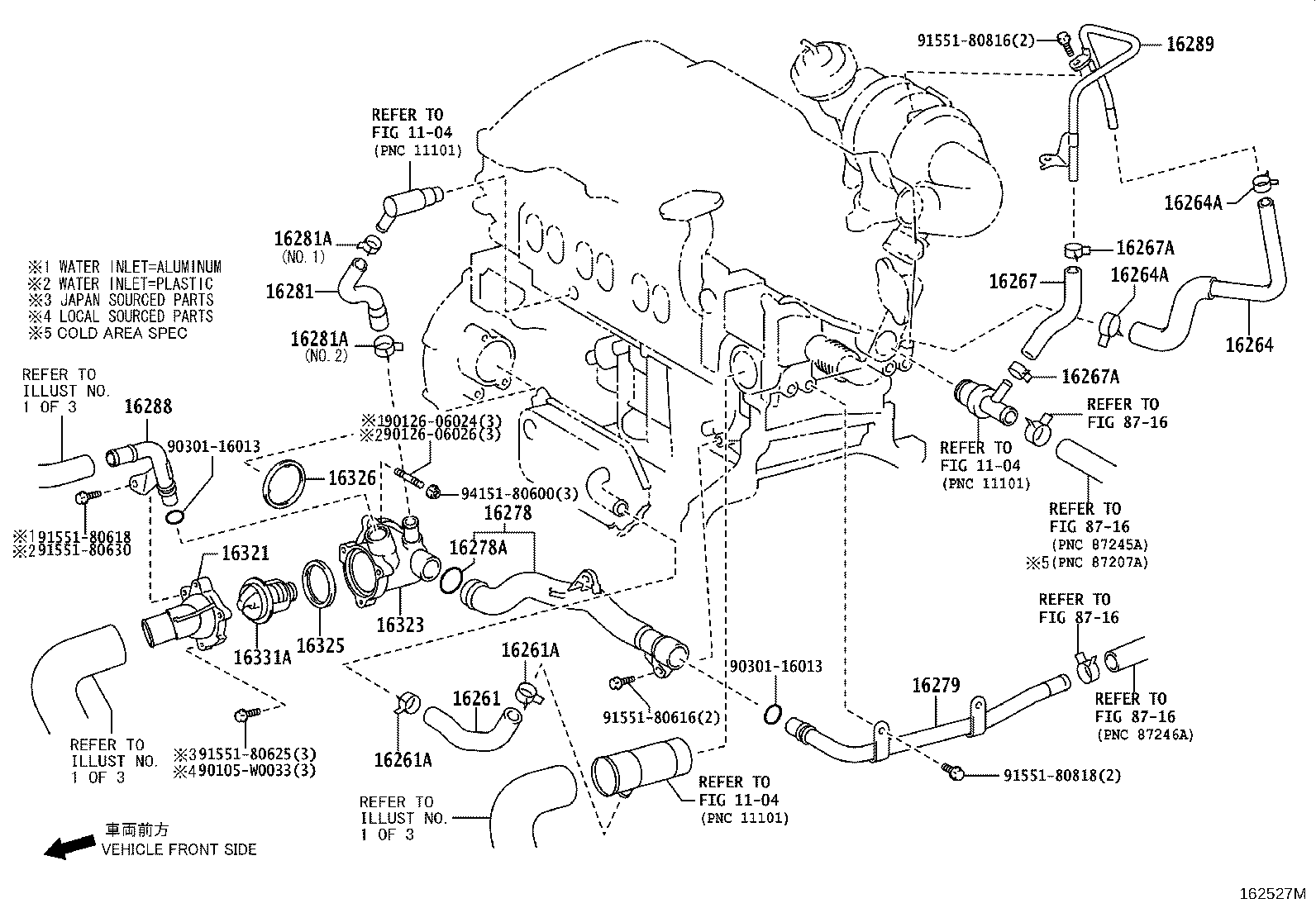

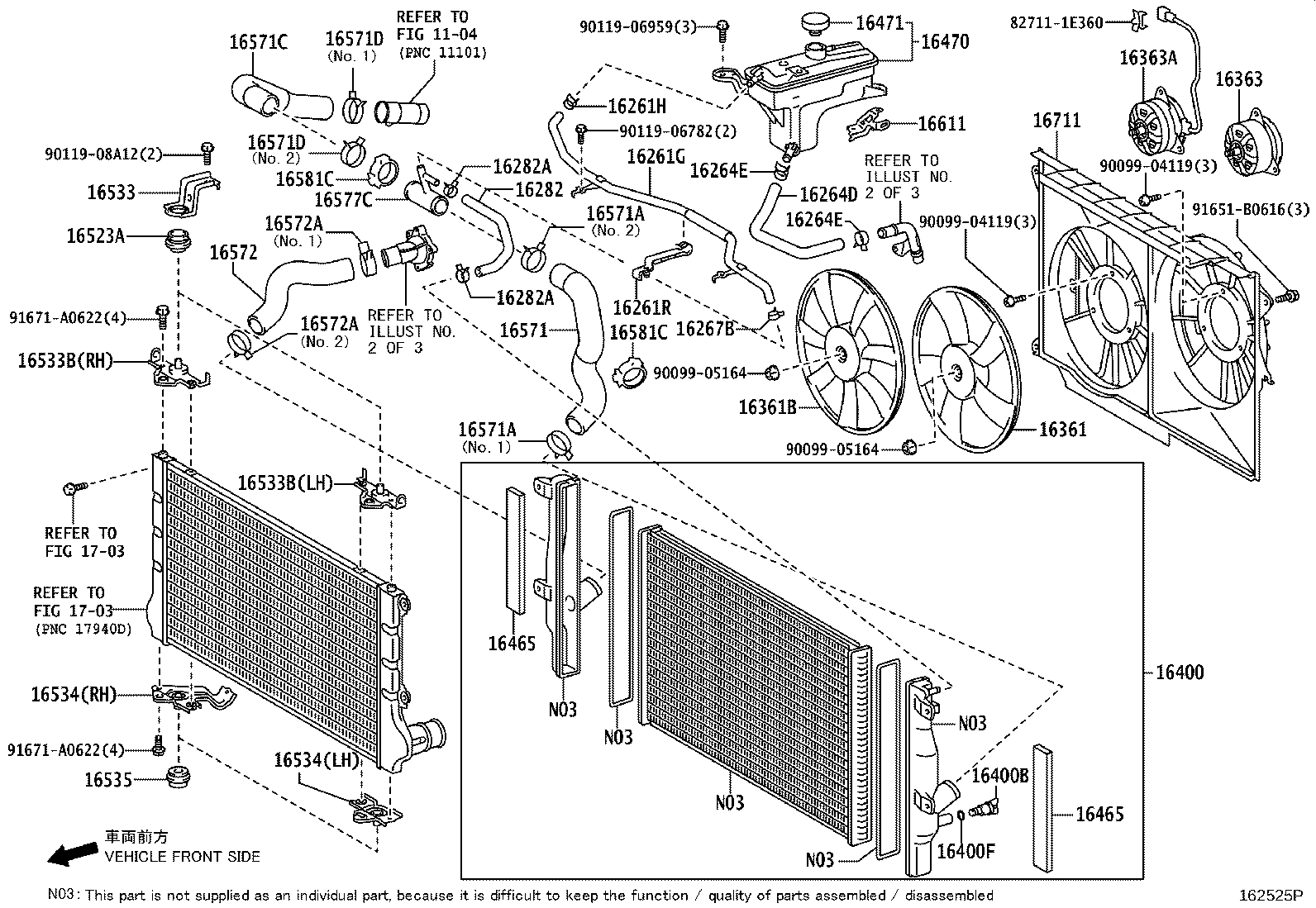

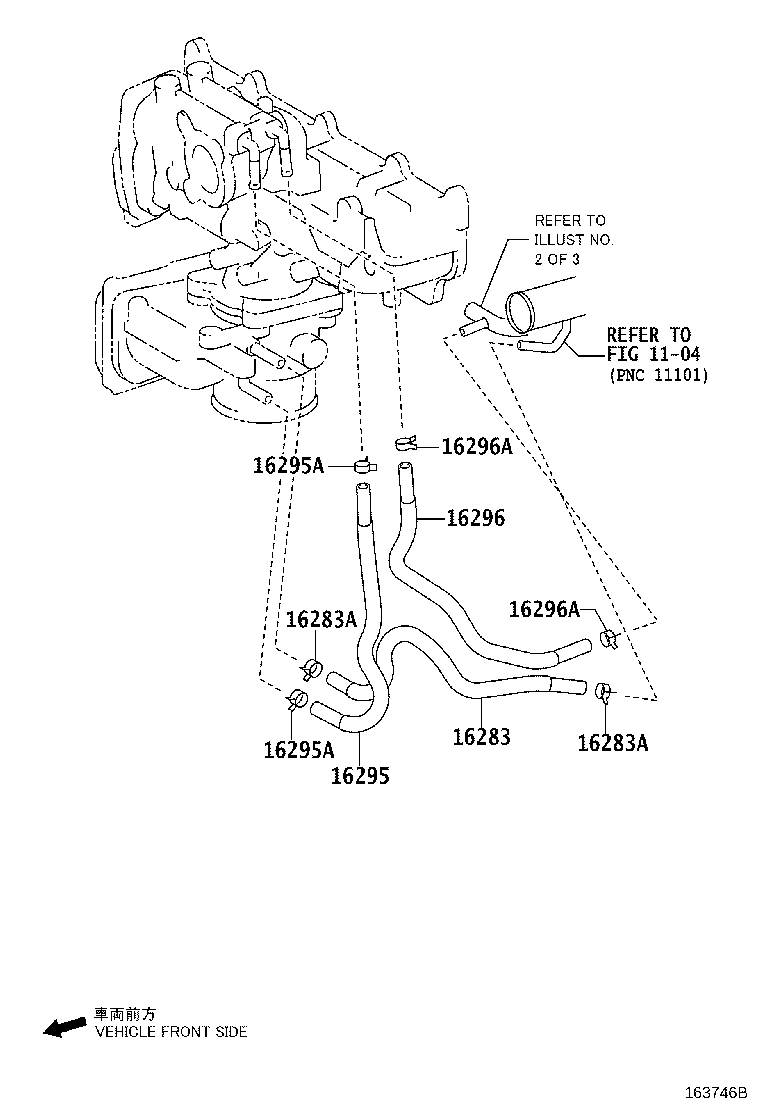

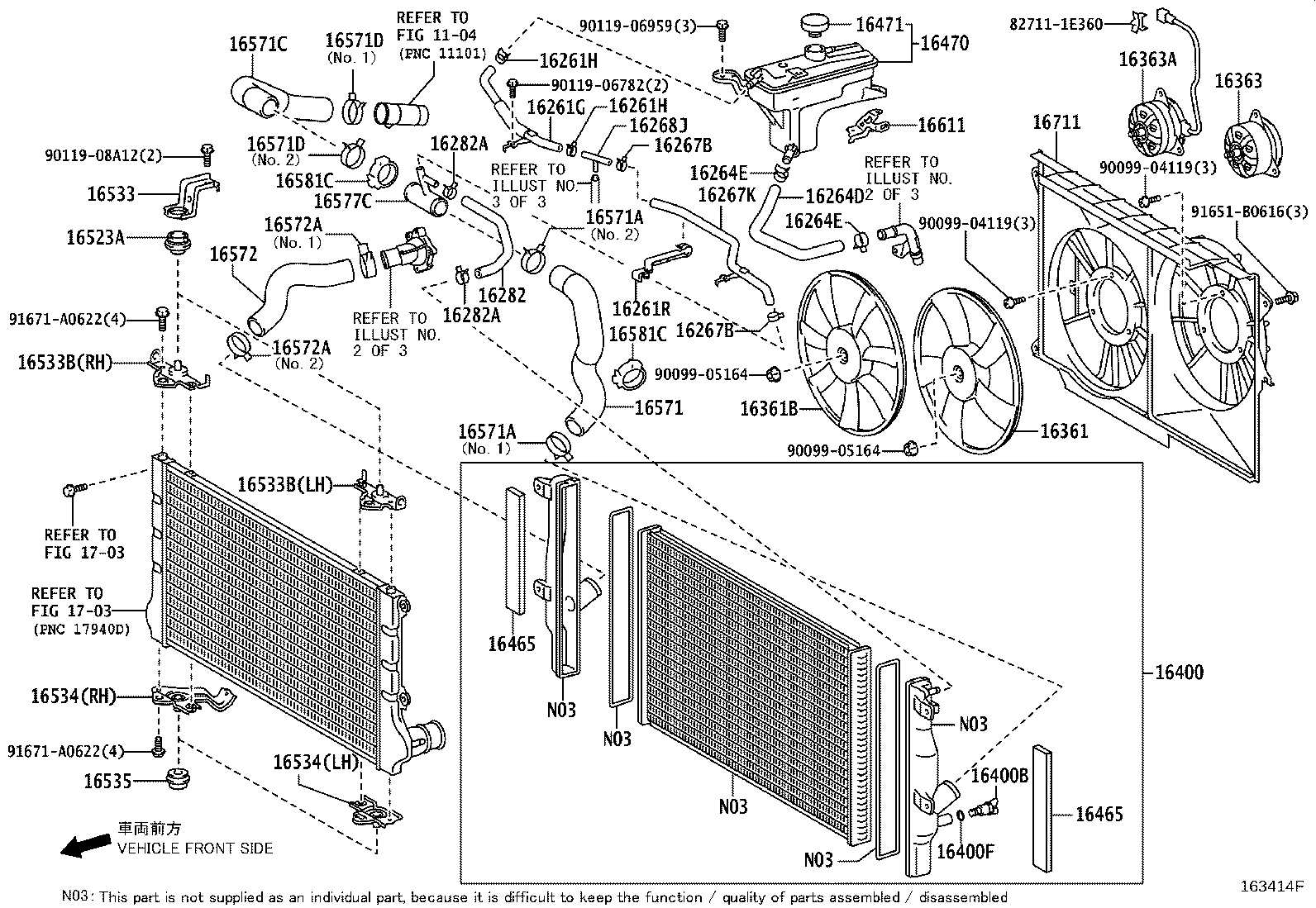

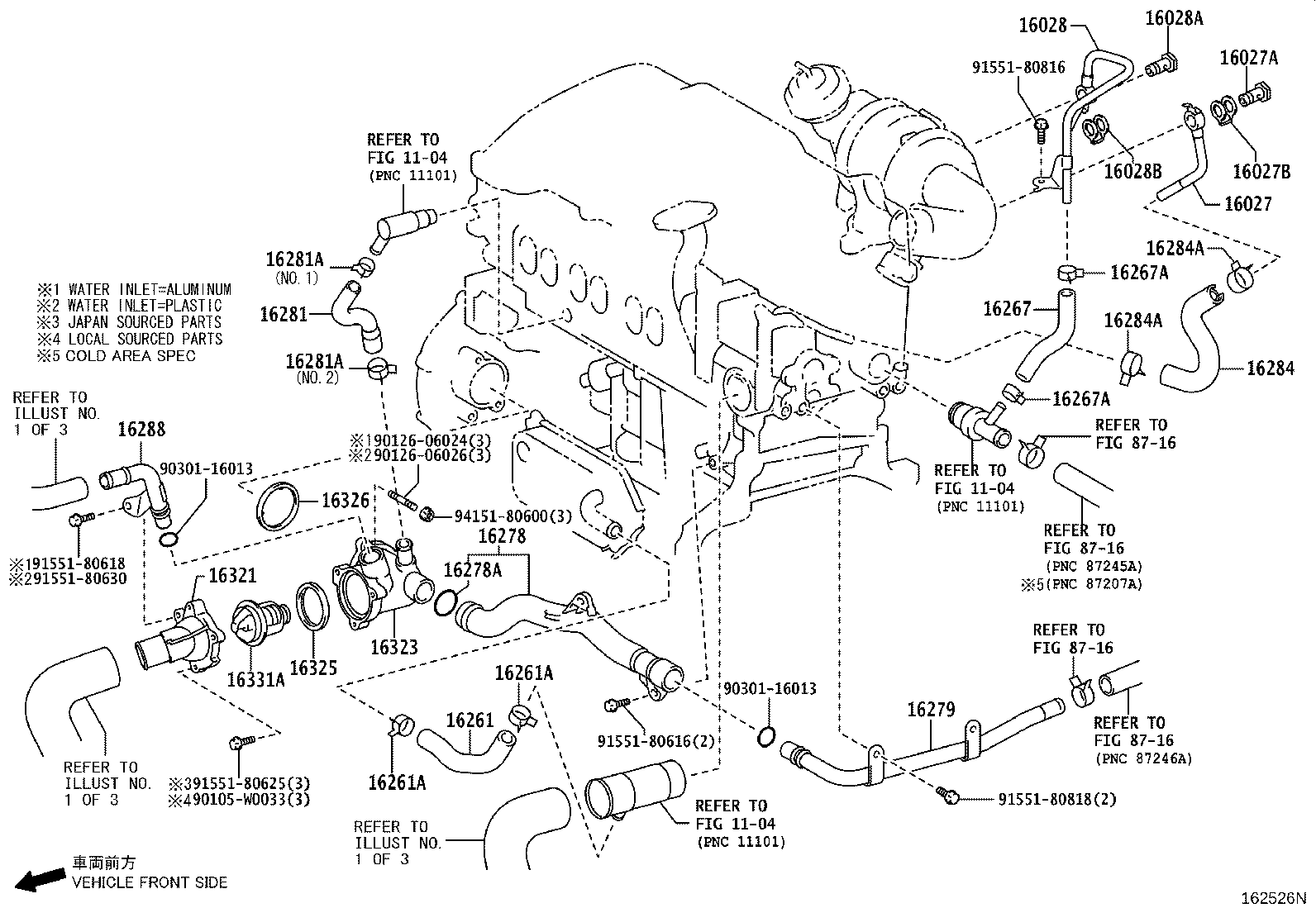

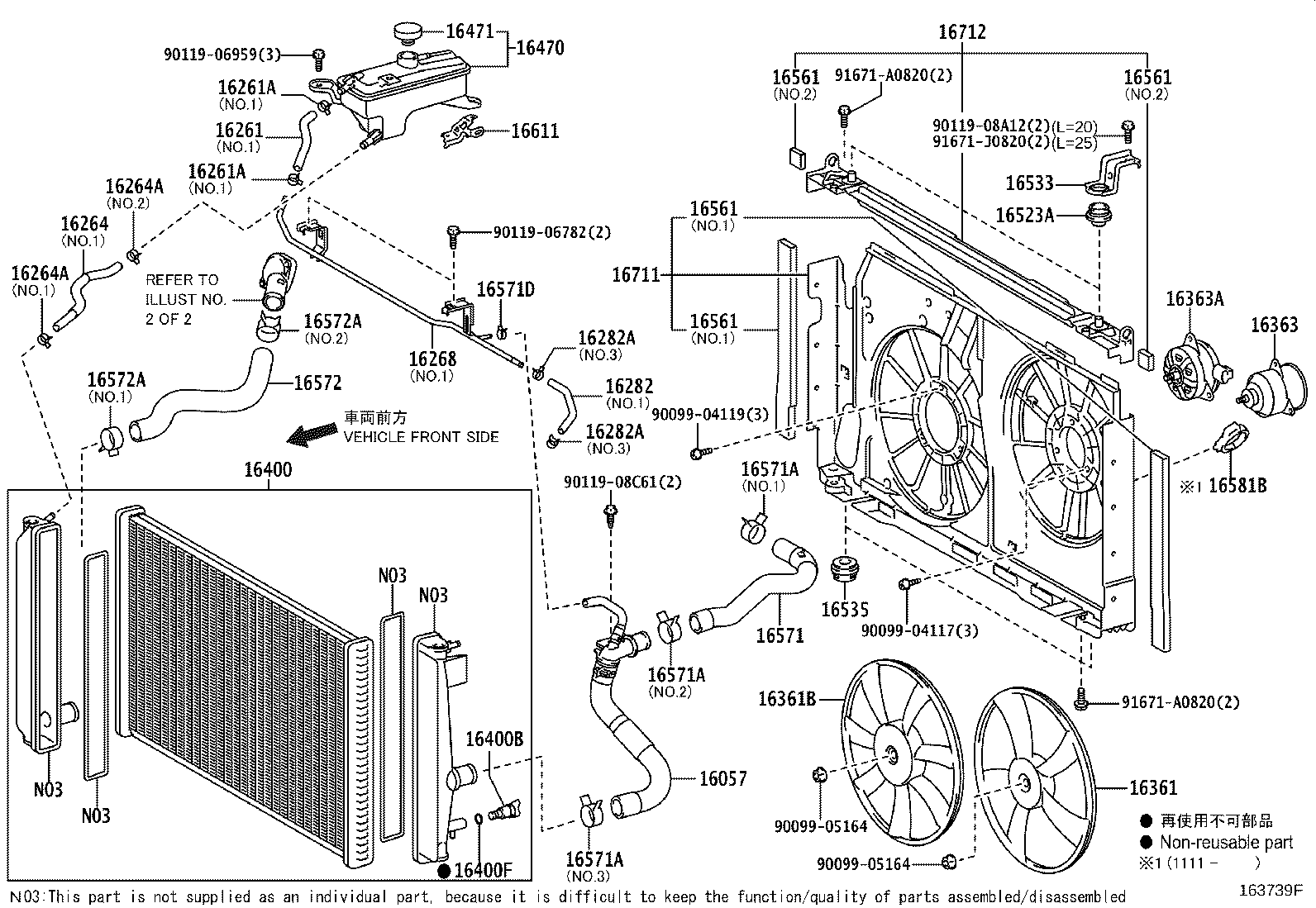

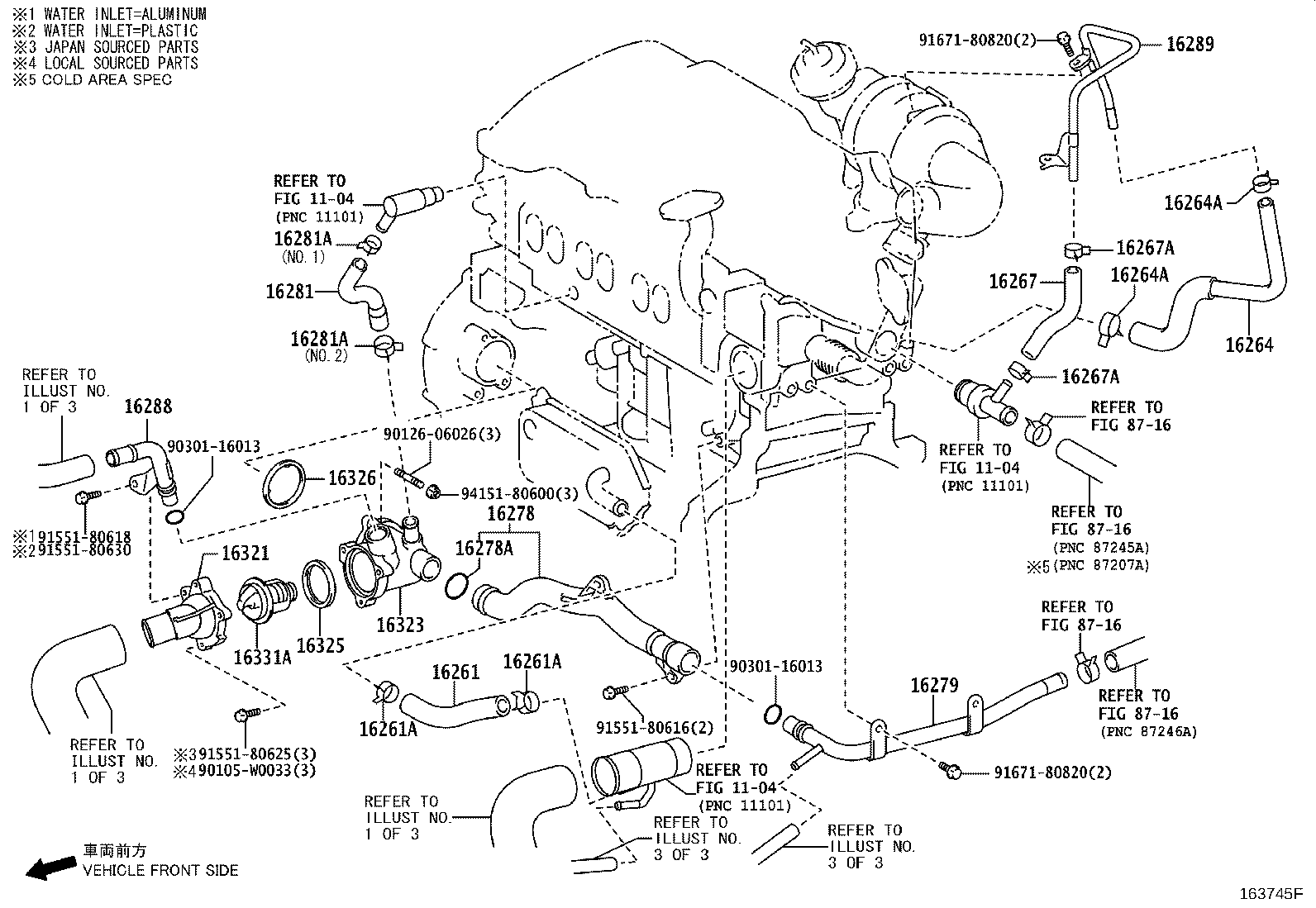

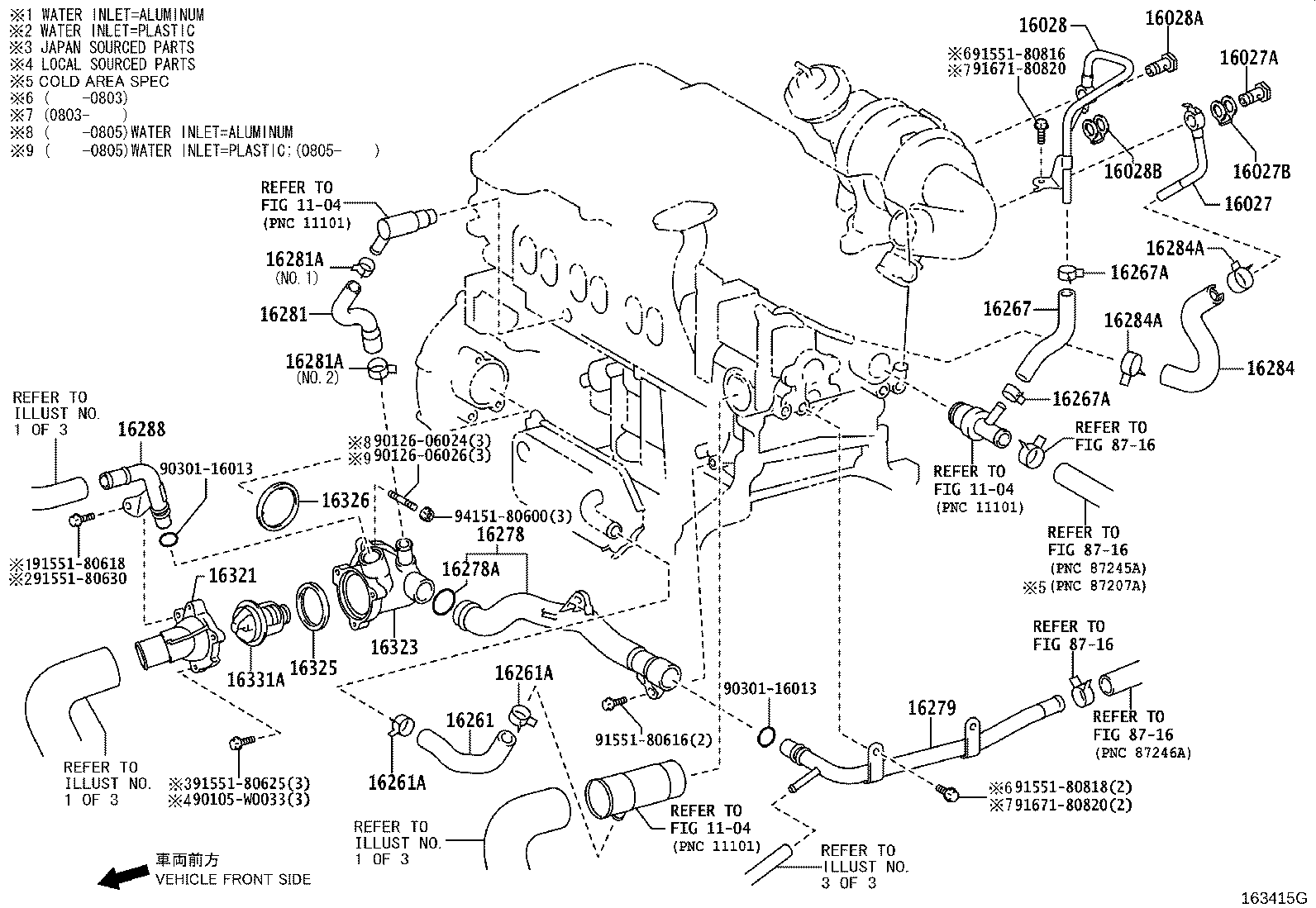

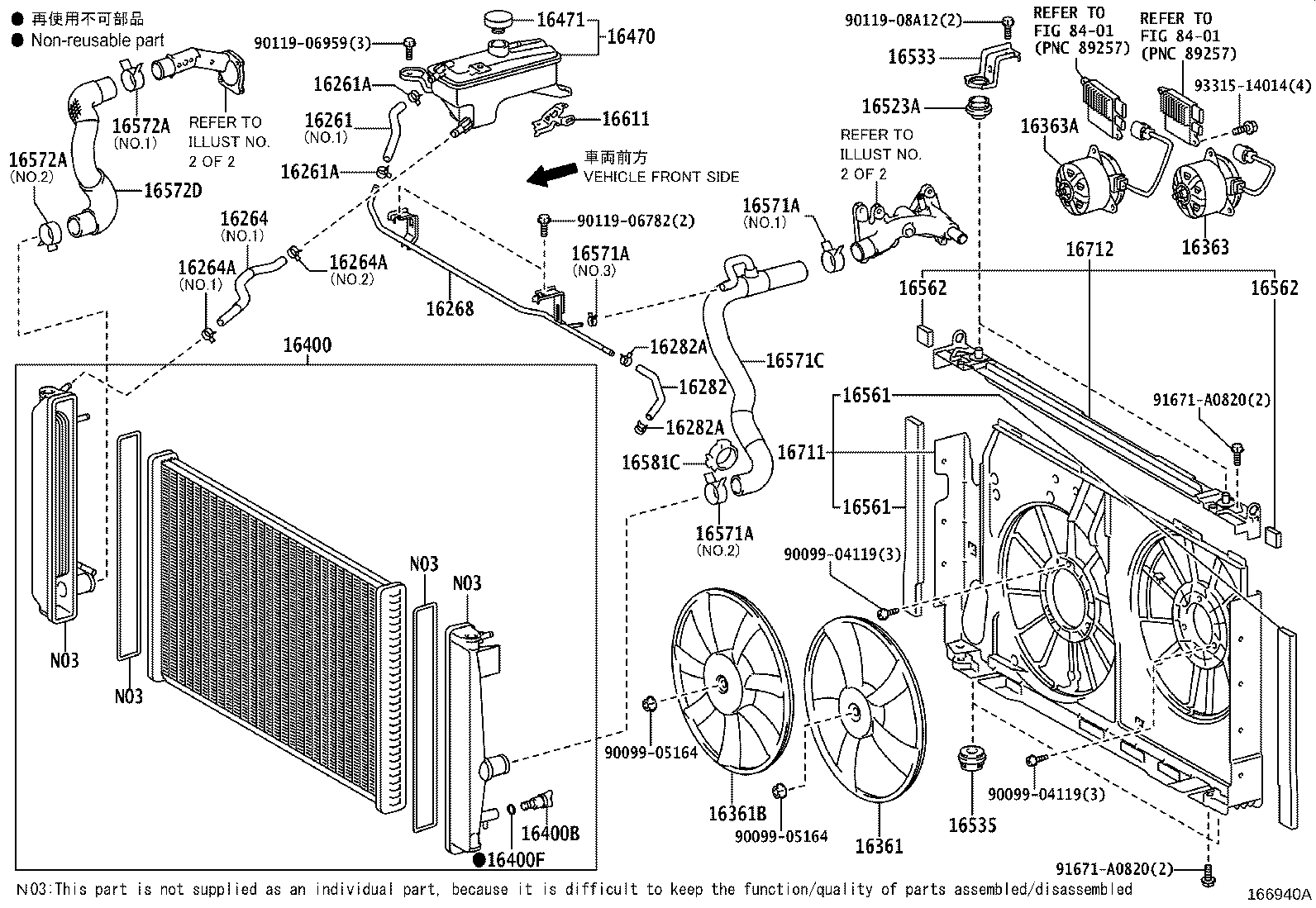

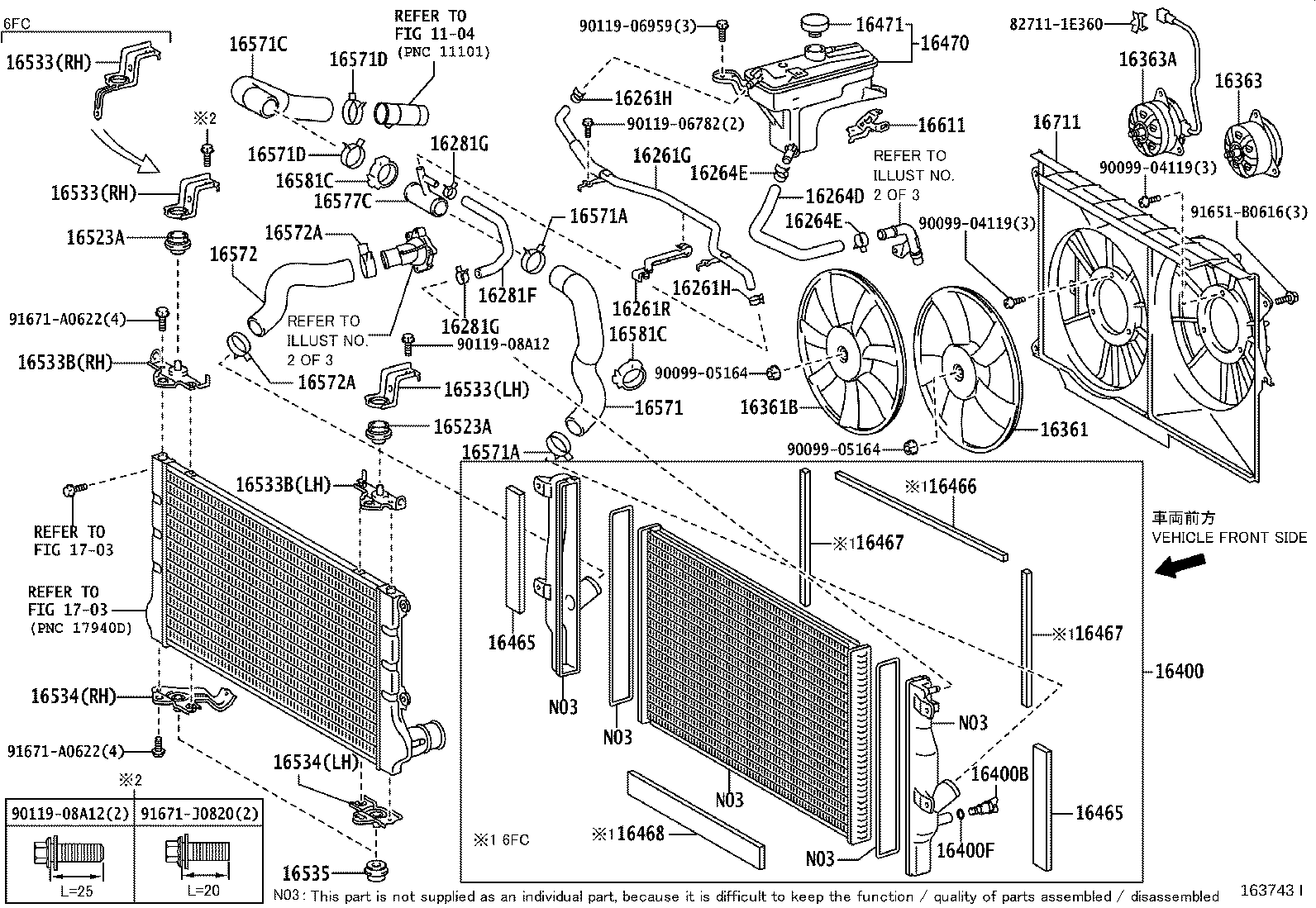

Figure 162542O 162542O 2005-11 → — Figure 162543E 162543E 2005-11 → — Figure 162525P 162525P 2005-11 → 2007-11 Figure 163414F 163414F 2007-11 → 2008-12 Figure 163743I 163743I 2008-12 → — Figure 162526N 162526N 2005-11 → 2007-11 Figure 163415G 163415G 2007-11 → 2008-12 Figure 163744F 163744F 2008-12 → — Figure 162527M 162527M 2005-11 → 2007-11 Figure 163417H 163417H 2007-11 → 2008-12 Figure 163745F 163745F 2008-12 → — Figure 163745F 163745F 2009-03 → — Figure 163416A 163416A 2007-11 → 2008-12 Figure 163746B 163746B 2008-12 → — Figure 166940A 166940A 2007-08 → — Figure 162616B 162616B 2007-08 → — Figure 163739F 163739F 2008-12 → — Figure 163740C 163740C 2008-12 → — Figure 163741C 163741C 2008-12 → —

Part groups

PNCDescription
11492D Plate, Seal, NO.1
16027 Pipe Sub-assy, Turbo Water, NO.1
16027A Bolt, Union(FOR TURBO WATER PIPE)
16027B Gasket(FOR TURBO WATER PIPE)
16028 Pipe Sub-assy, Turbo Water, NO.2
16028A Bolt, Union(FOR TURBO WATER PIPE NO.2)
16028B Gasket(FOR TURBO WATER PIPE NO.2)
16057 Hose Sub-assy, Radiator
16258A Gasket(FOR HEATER RETURN)
16258C Gasket(FOR WATER BY-PASS PIPE)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261R Clamp OR Clip(FOR WATER BY-PASS HOSE)
16262 Hose, Water Inlet
16262A Clip(FOR WATER INLET HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16264H Clip(FOR WATER BY-PASS HOSE NO.3)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267B Clip(FOR WATER BY-PASS HOSE)
16267K Hose, Water By-pass, NO.3
16268 Pipe, Water By-pass, NO.1
16268J Pipe, Water By-pass, NO.5
16278 Pipe, Water By-pass, NO.2
16278A Gasket, Water By-pass
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16281F Hose, Water By-pass, NO.5
16281G Clip(FOR WATER BY-PASS HOSE NO.5)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16288 Pipe, Water By-pass, NO.4
16289 Pipe, Water By-pass, NO.5
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16296 Hose, Water By-pass, NO.8
16296A Clip(FOR WATER BY-PASS HOSE NO.8)
16297 Hose, Water By-pass, NO.9
16297A Clip(FOR WATER BY-PASS HOSE NO.9)
16321 Inlet, Water
16322 Pipe, Water Inlet
16323 Housing, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16331 Outlet, Water
16331A Thermostat
16331J Thermostat, Manifold
16341 Gasket, Water Outlet
16361 Fan
16361B Fan, NO.2
16363 Motor, Cooling Fan
16363A Motor, Cooling Fan, NO.2
16381 Bar, Fan Belt Adjusting
16385 Slider, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16465 Packing, Radiator
16466 Seal, Radiator
16467 Side Seal
16468 Packing, Radiator
16470 Tank Assy, Radiator Reserve
16471 Cap Sub-assy, Reserve Tank
16523A Cushion, Radiator Support
16533 Support, Radiator, Upper
16533B Support, Radiator, NO.1
16534 Support, Radiator, NO.2
16535 Support, Radiator, Lower
16561 Seal, Radiator TO Support, NO.1
16562 Seal, Radiator TO Support, NO.2
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16571F Clamp OR Clip(FOR WATER HOSE)
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16577C Pipe, Radiator
16581 Clamp, Hose(FOR WATER HOSE)
16581B Clamp, Hose(FOR RADIATOR HOSE)
16581C Clamp, Hose(FOR RADIATOR HOSE NO.2)
16611 Bracket, Radiator Reserve Tank
16711 Shroud, Fan
16712 Shroud, Fan, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
