Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

43 part groups · 10 illustrations

Illustrations

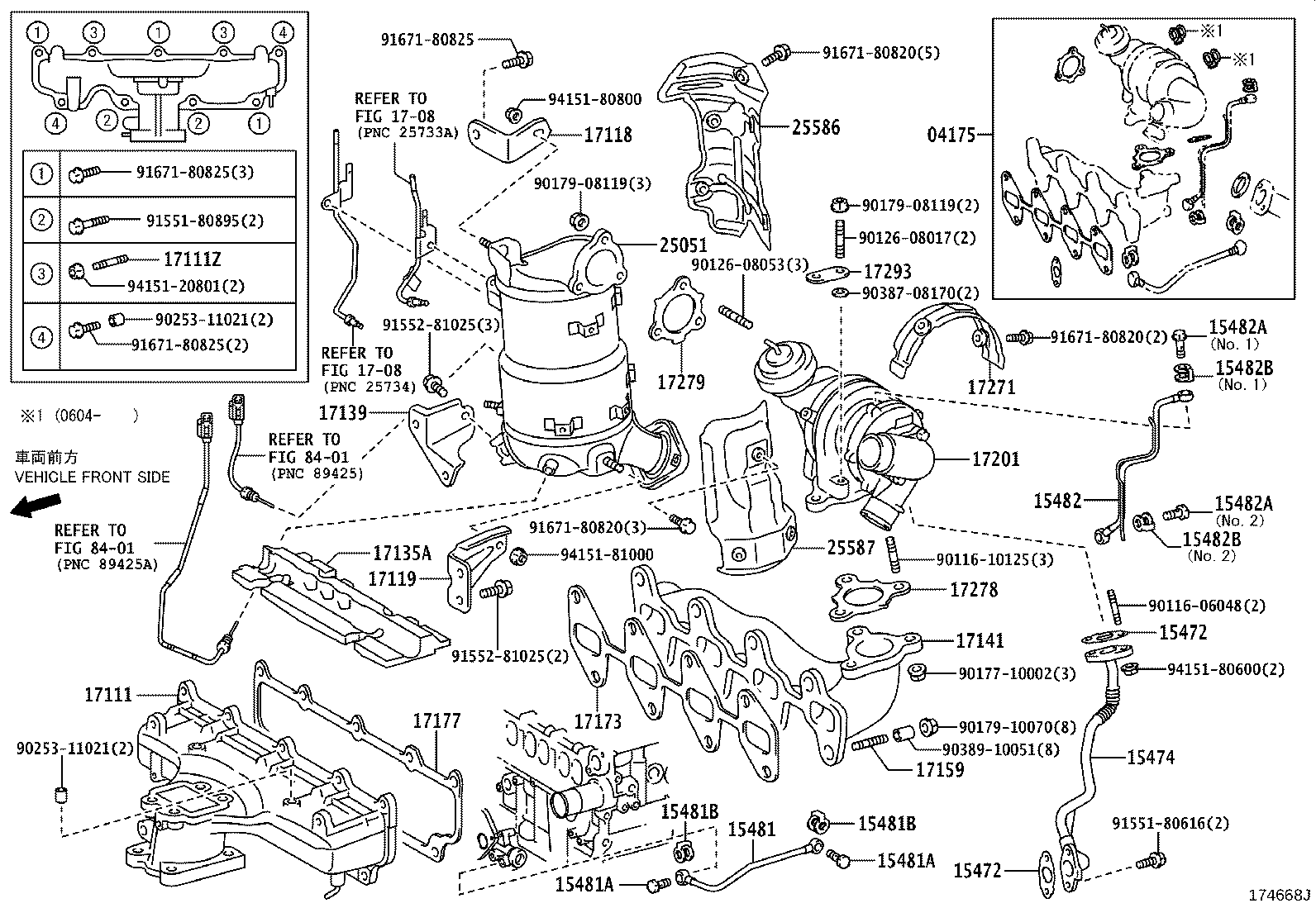

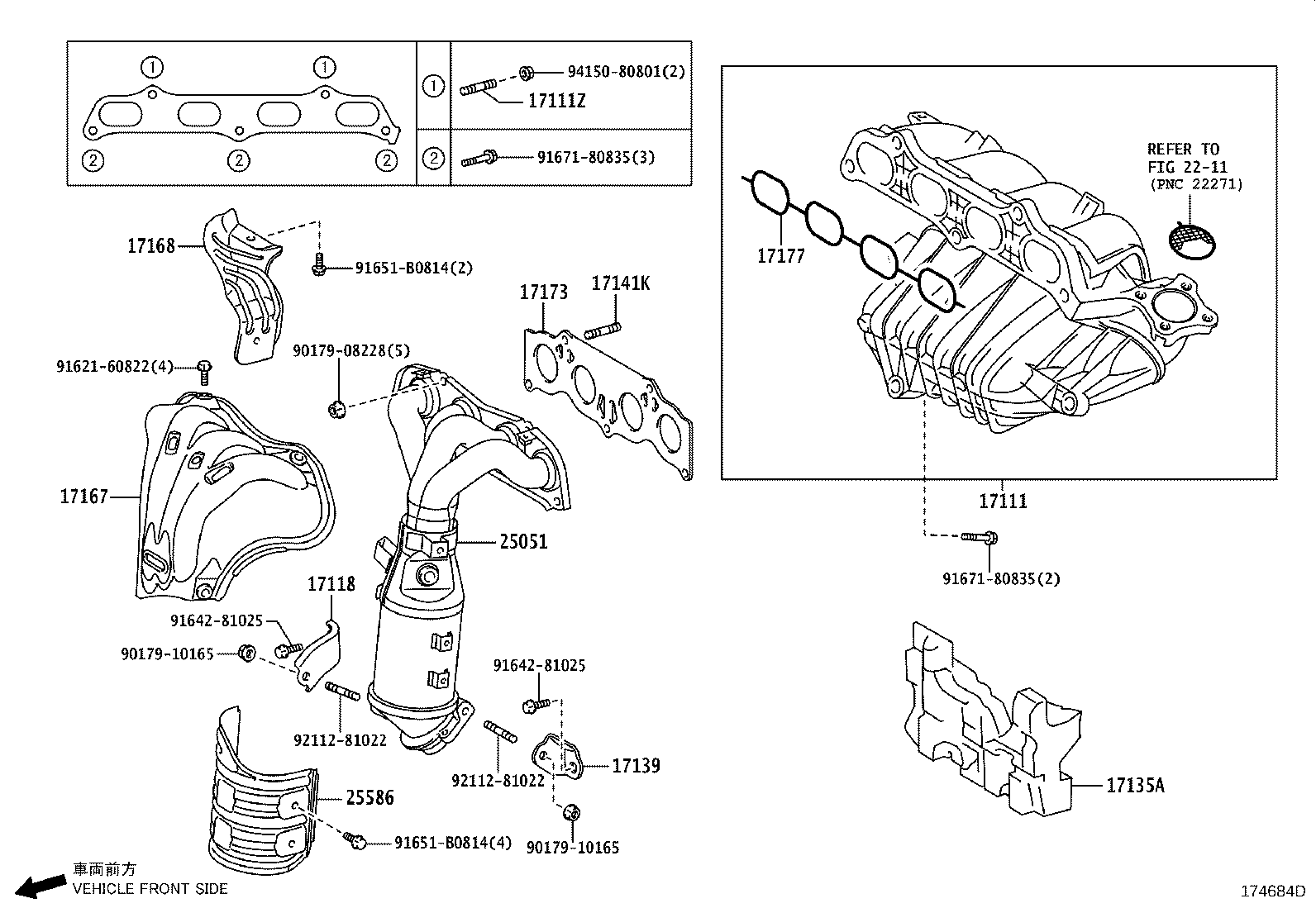

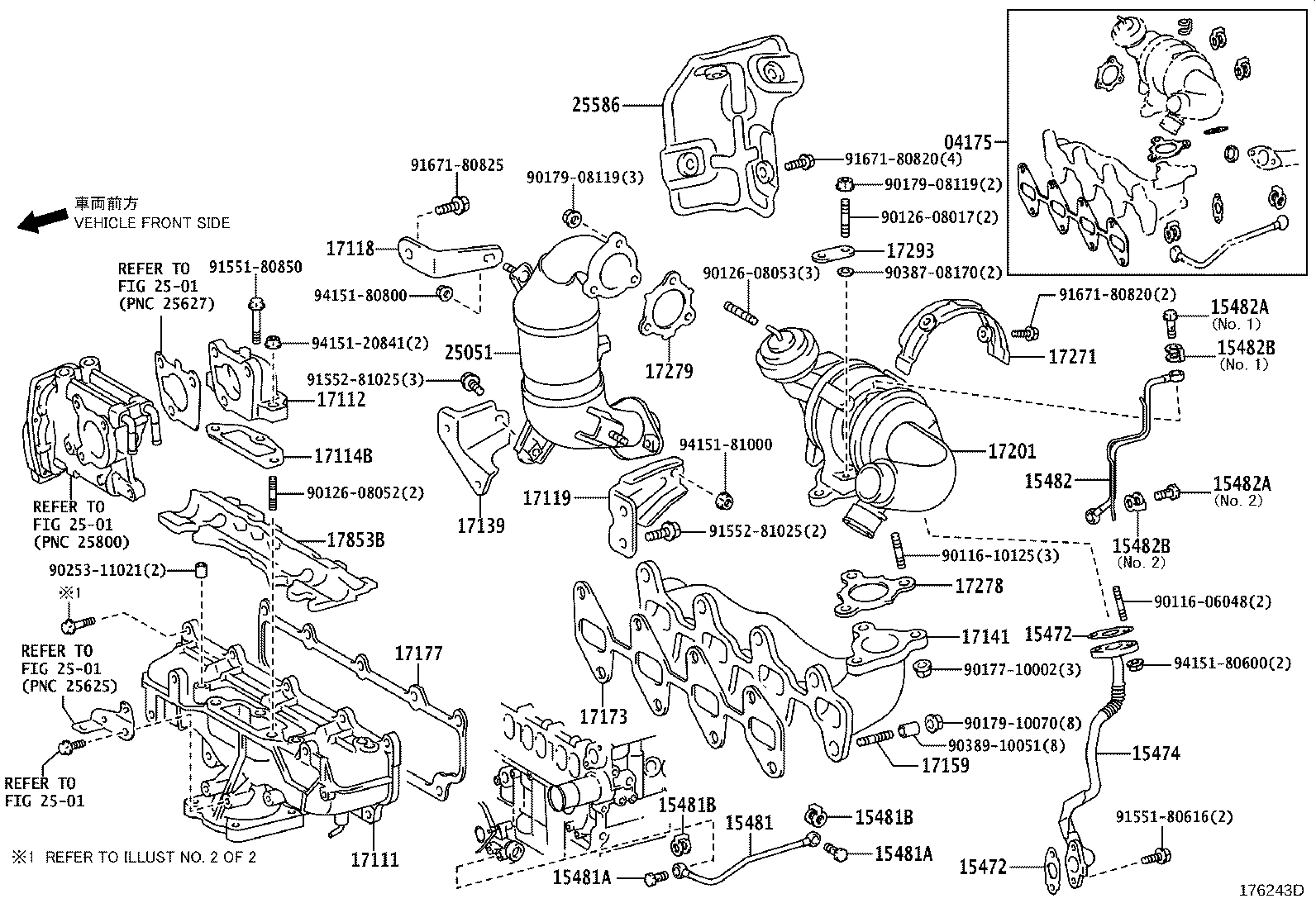

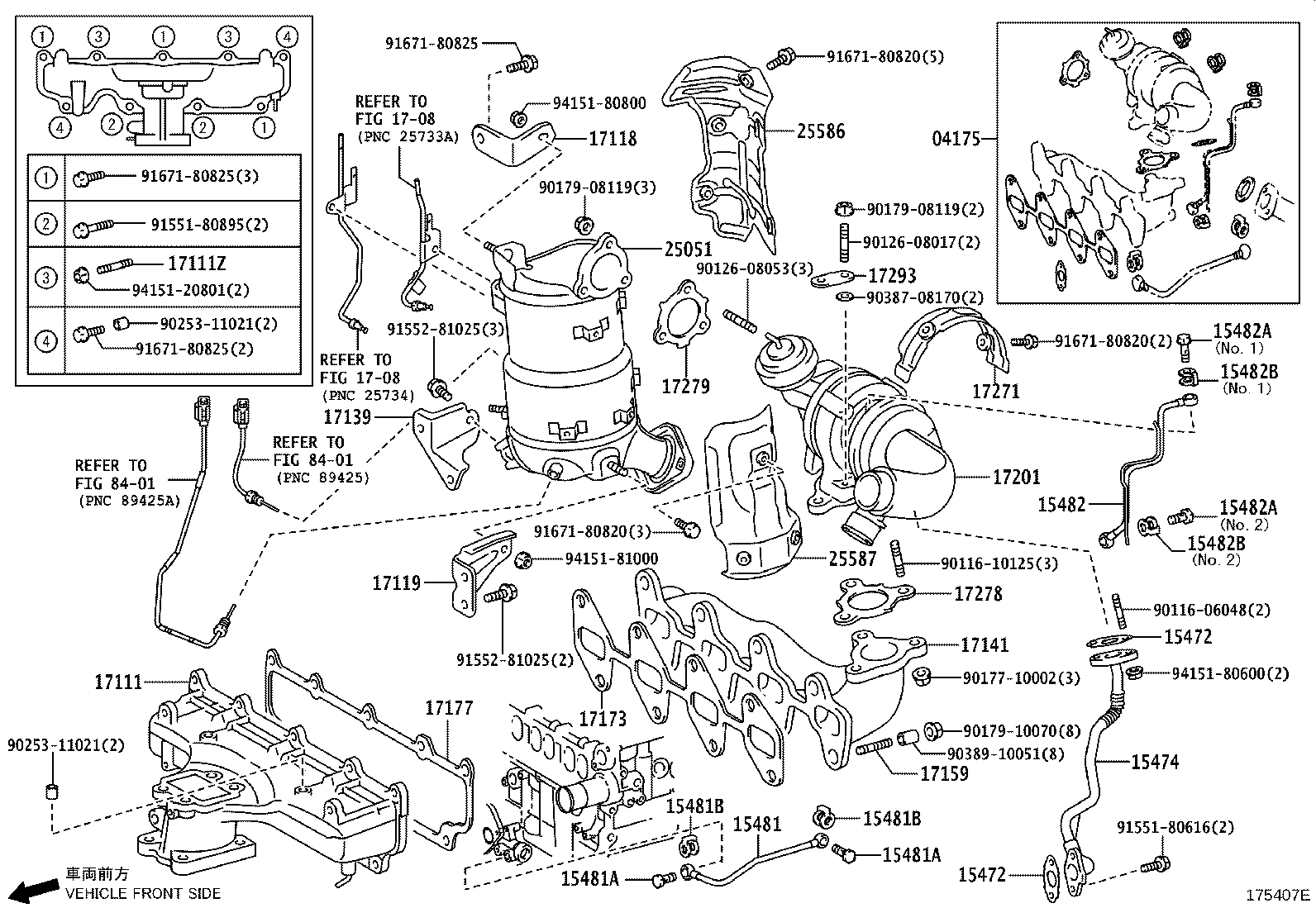

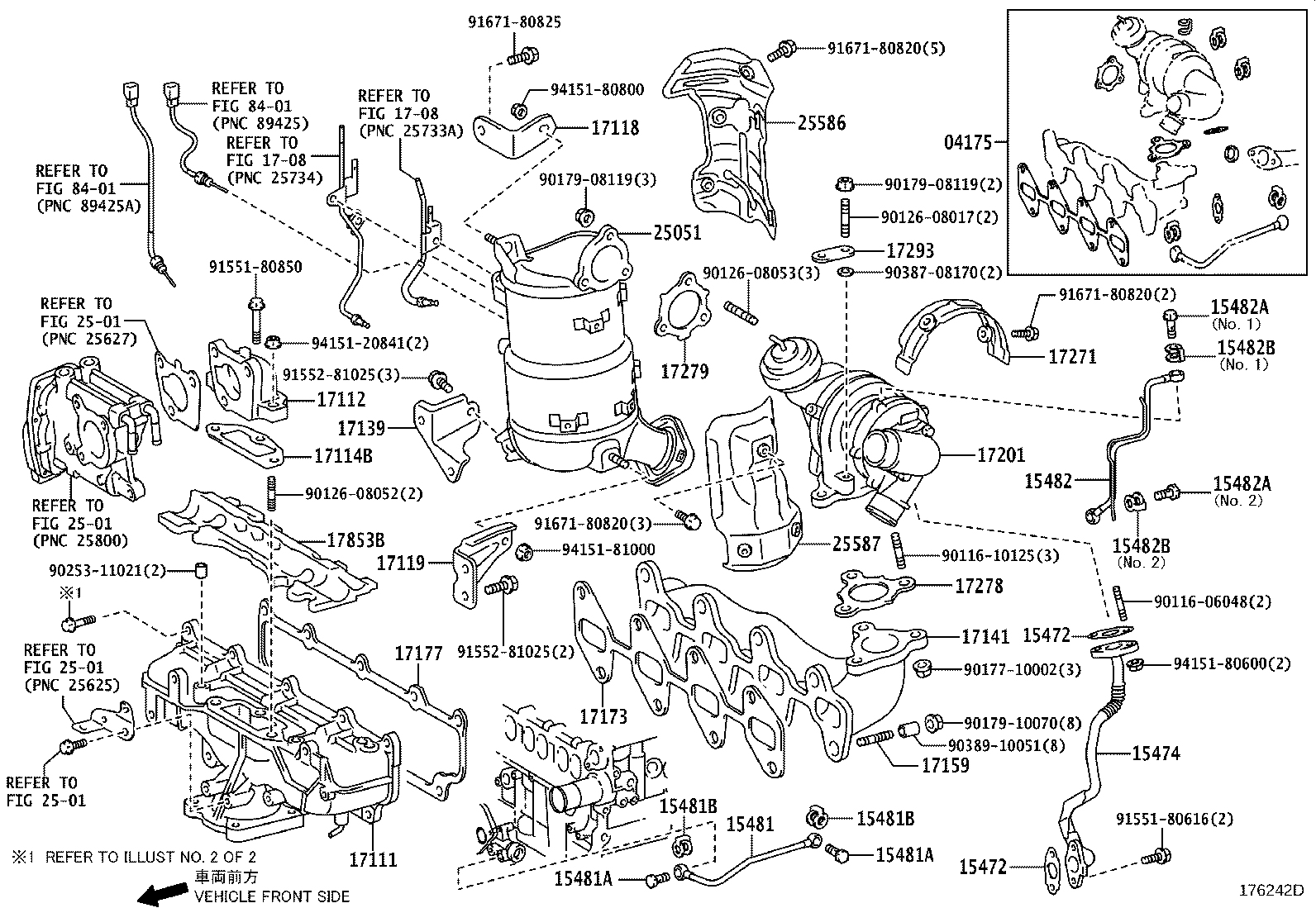

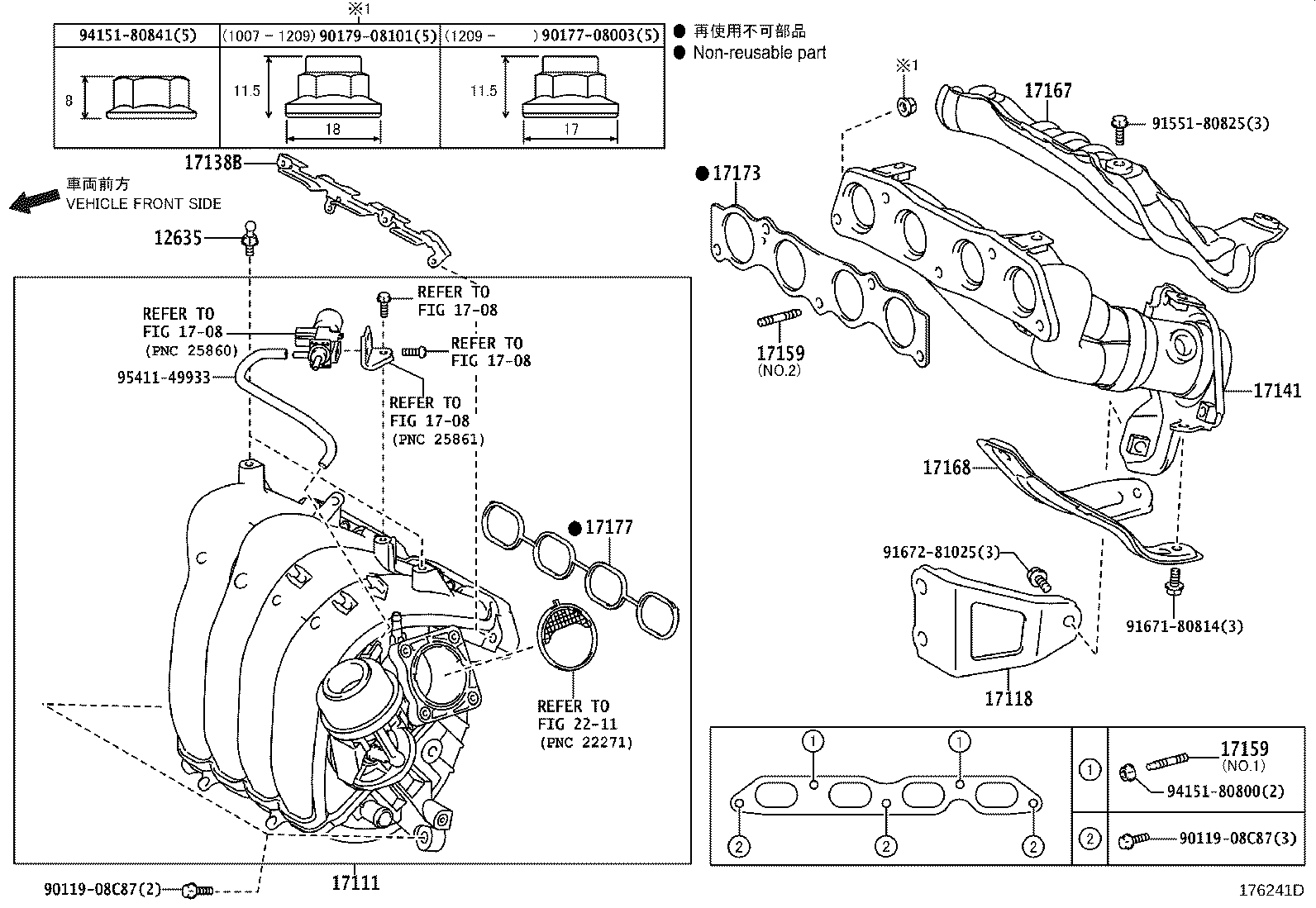

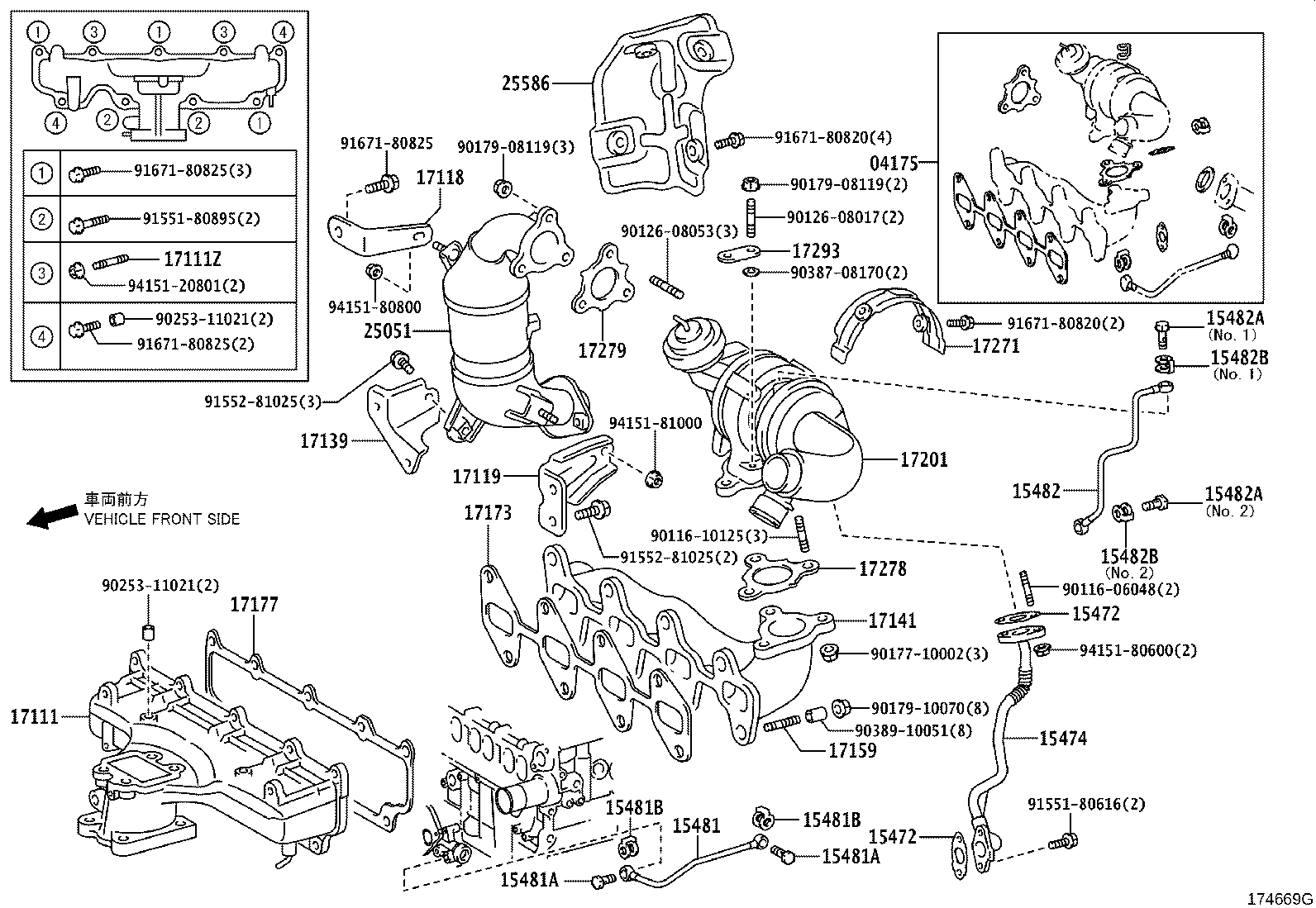

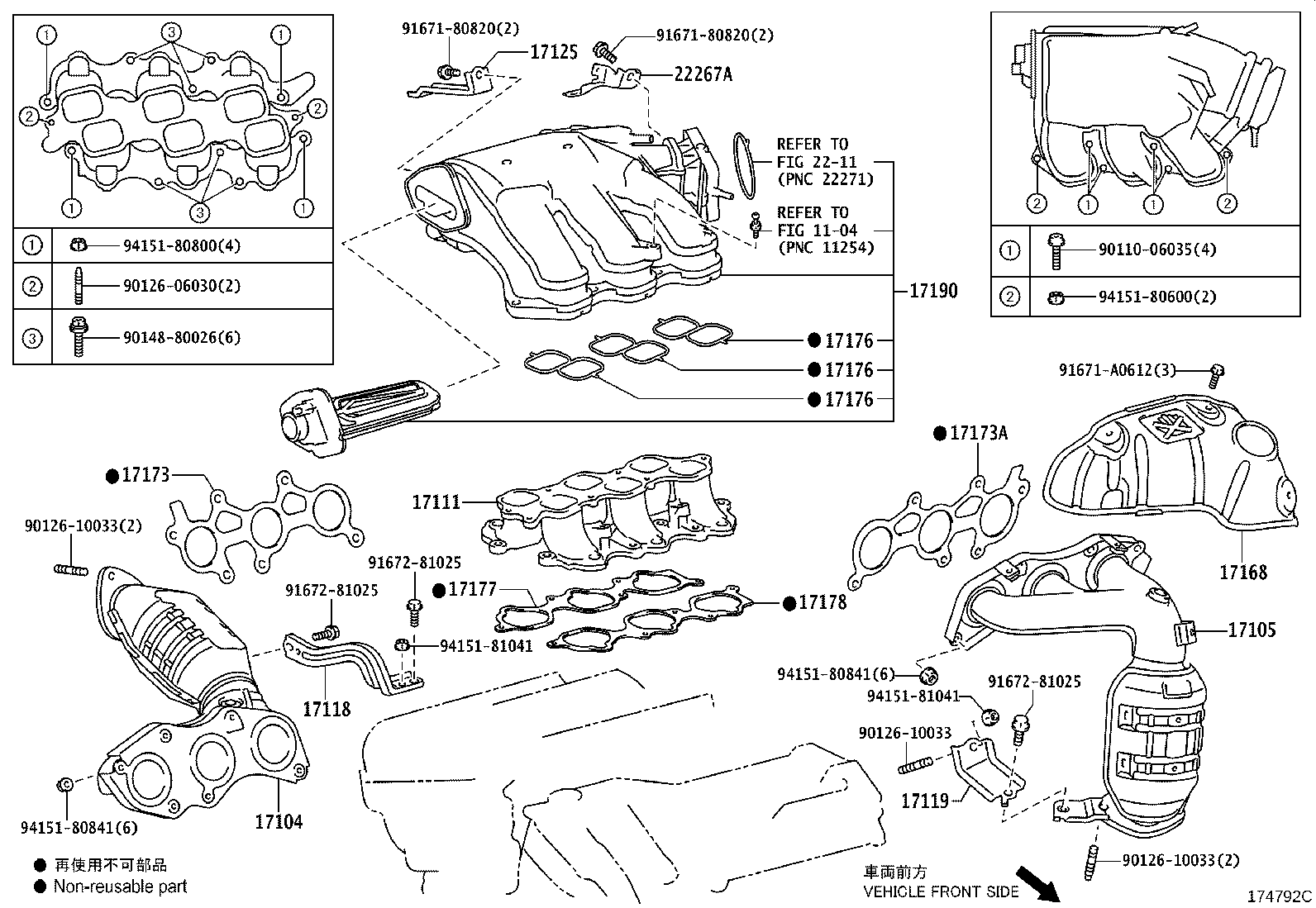

Figure 174667D 174667D 2005-11 → — Figure 174684D 174684D 2005-11 → — Figure 174668J 174668J 2005-11 → 2008-12 Figure 174669G 174669G 2005-11 → 2008-12 Figure 175407E 175407E 2007-01 → 2008-12 Figure 176243D 176243D 2008-12 → — Figure 176242D 176242D 2008-12 → — Figure 176245B 176245B 2008-12 → — Figure 174792C 174792C 2007-08 → — Figure 176241D 176241D 2008-12 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
12635 Joint, Engine Cover
15472 Gasket, Turbo Oil Outlet, NO.1
15474 Pipe, Turbo Oil Outlet
15481 Pipe, Turbo Oil, NO.1
15481A Bolt, Union, NO.1
15481B Gasket(FOR UNION BOLT NO.1)
15482 Pipe, Turbo Oil, NO.2
15482A Bolt, Union, NO.2
15482B Gasket(FOR UNION BOLT NO.2)
17104 Manifold Sub-assy, Exhaust, RH
17105 Manifold Sub-assy, Exhaust, LH
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17112 Manifold, Intake, NO.2
17114B Gasket, Intake Flange
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17135A Insulator, Intake Manifold, NO.1
17138B Stay, Intake Manifold
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141K Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
17190 Tank Assy, Intake Air Surge
17201 Turbocharger Sub-assy
17271 Insulator, Turbo, NO.1
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17293 Stay, Turbocharger
17853B Insulator, Intake Manifold
22267A Bracket, Throttle Body
25051 Converter Sub-assy, Exhaust Manifold
25586 Insulator, Manifold Converter, NO.1
25587 Insulator, Manifold Converter, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
