Toyota RAV4
2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe
Supported model
Data version 2013-01

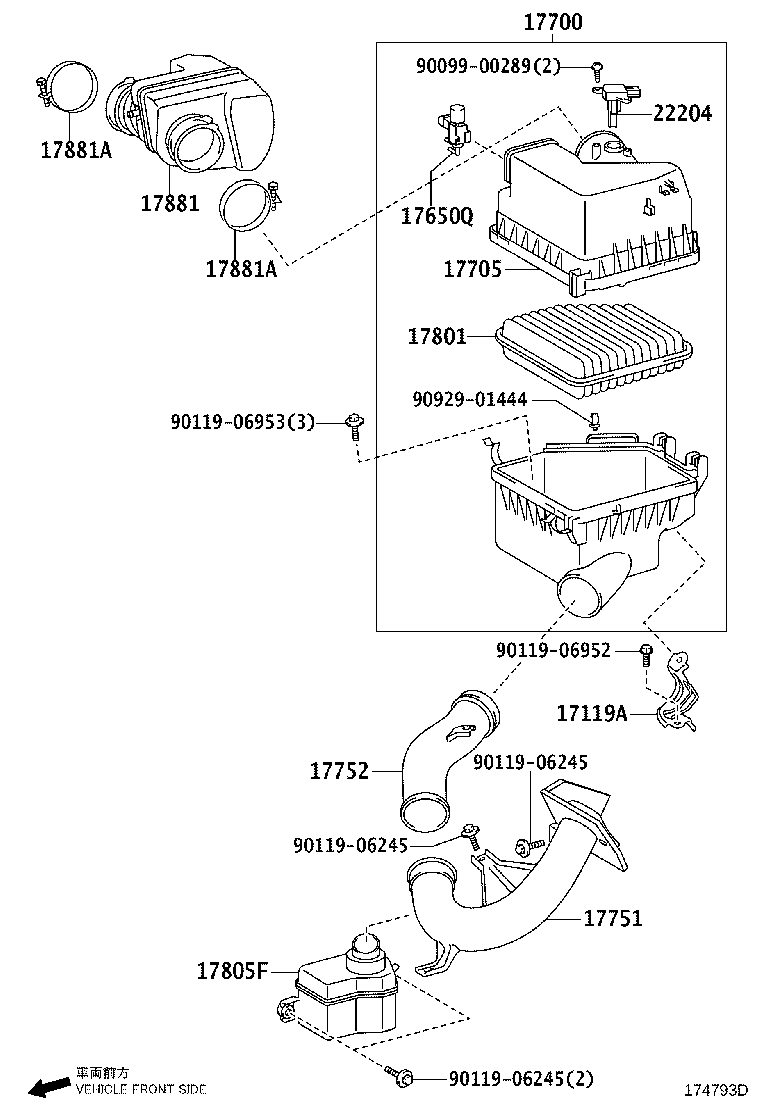

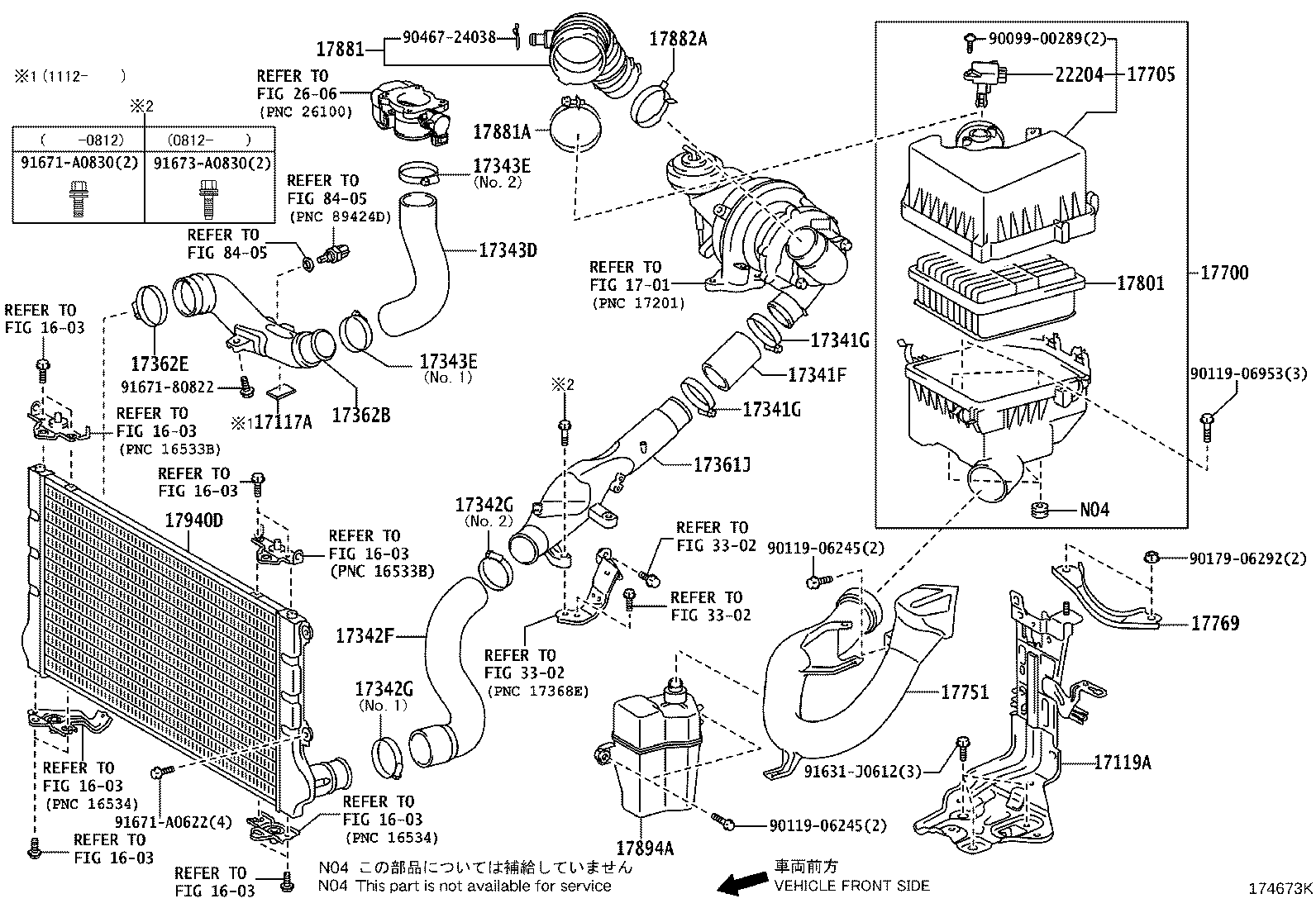

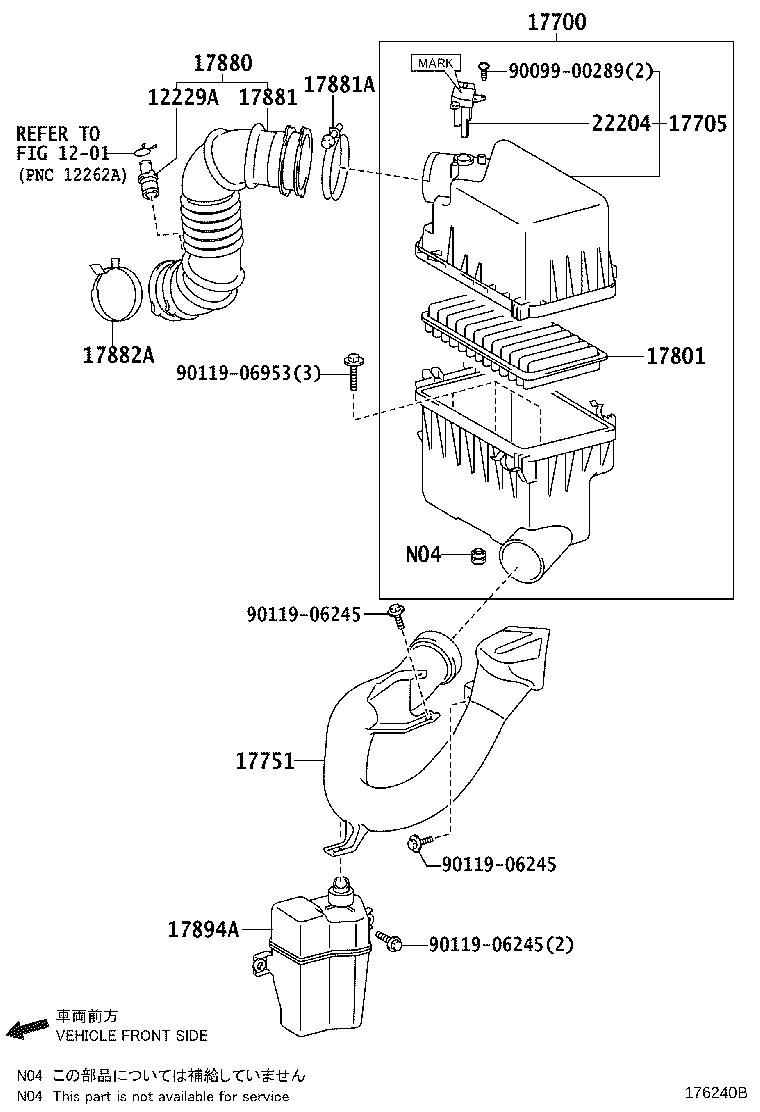

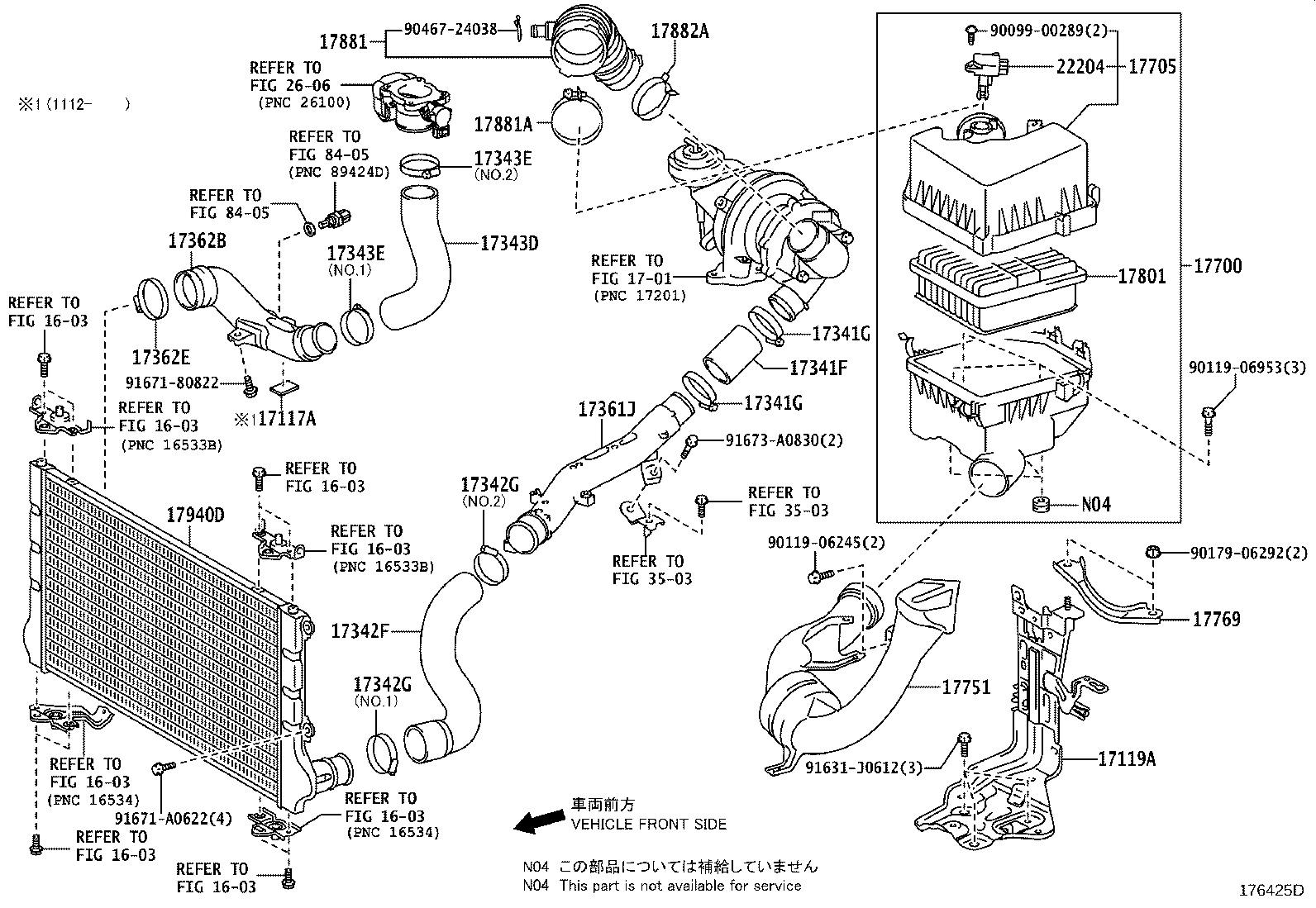

Air Cleaner
29 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 12229A | Pipe, Ventilation |
| 17117A | Insulator, Intake Pipe |
| 17119A | Bracket, Air Cleaner |
| 17341F | Hose, Air, NO.1 |
| 17341G | Clamp OR Clip(FOR AIR HOSE, NO.1) |
| 17342F | Hose, Air, NO.2(FOR INTERCOOLER) |
| 17342G | Clamp, Hose, NO.2(FOR INTERCOOLER) |
| 17343D | Hose, Air, NO.3 |
| 17343E | Clamp, Hose(FOR AIR HOSE, NO.3) |
| 17361J | Tube, Air, NO.1 |
| 17362B | Tube, Air, NO.2 |
| 17362E | Clamp, NO.2(FOR AIR TUBE, NO.2) |
| 17650Q | Valve, Vacuum Switching |
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17751 | Inlet, Air Cleaner, NO.1 |
| 17752 | Inlet, Air Cleaner, NO.2 |
| 17769 | Support, Air Cleaner |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17805F | Resonator Sub-assy, Intake Air |
| 17880 | Hose Assy, Air Cleaner |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17893 | Resonator, Intake Air |
| 17893A | Clamp, Hose |
| 17894A | Resonator, Intake Air, NO.2 |
| 17940D | Intercooler Assy |
| 22204 | Meter Sub-assy, Intake Air Flow |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
