Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

32 part groups · 10 illustrations

Illustrations

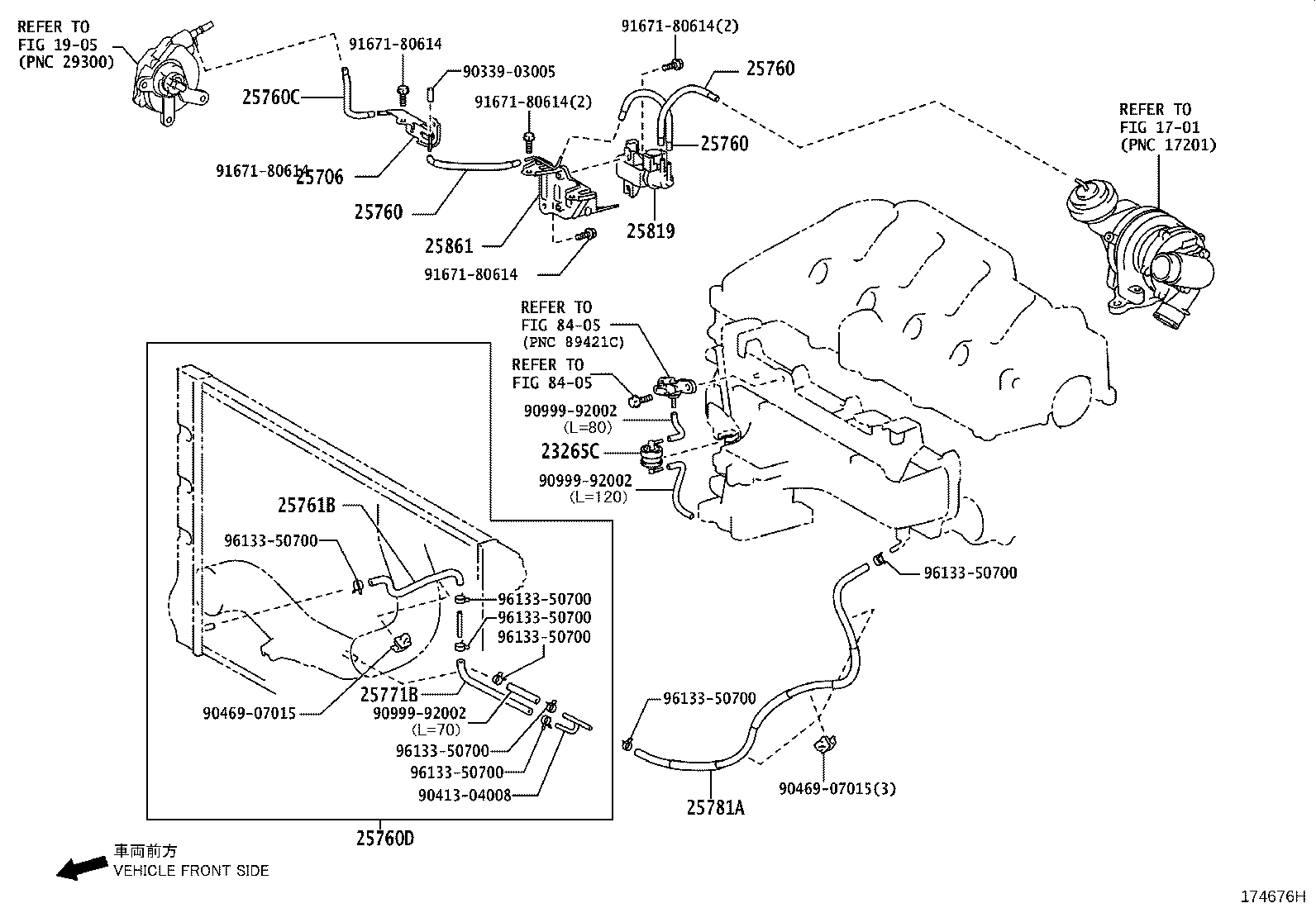

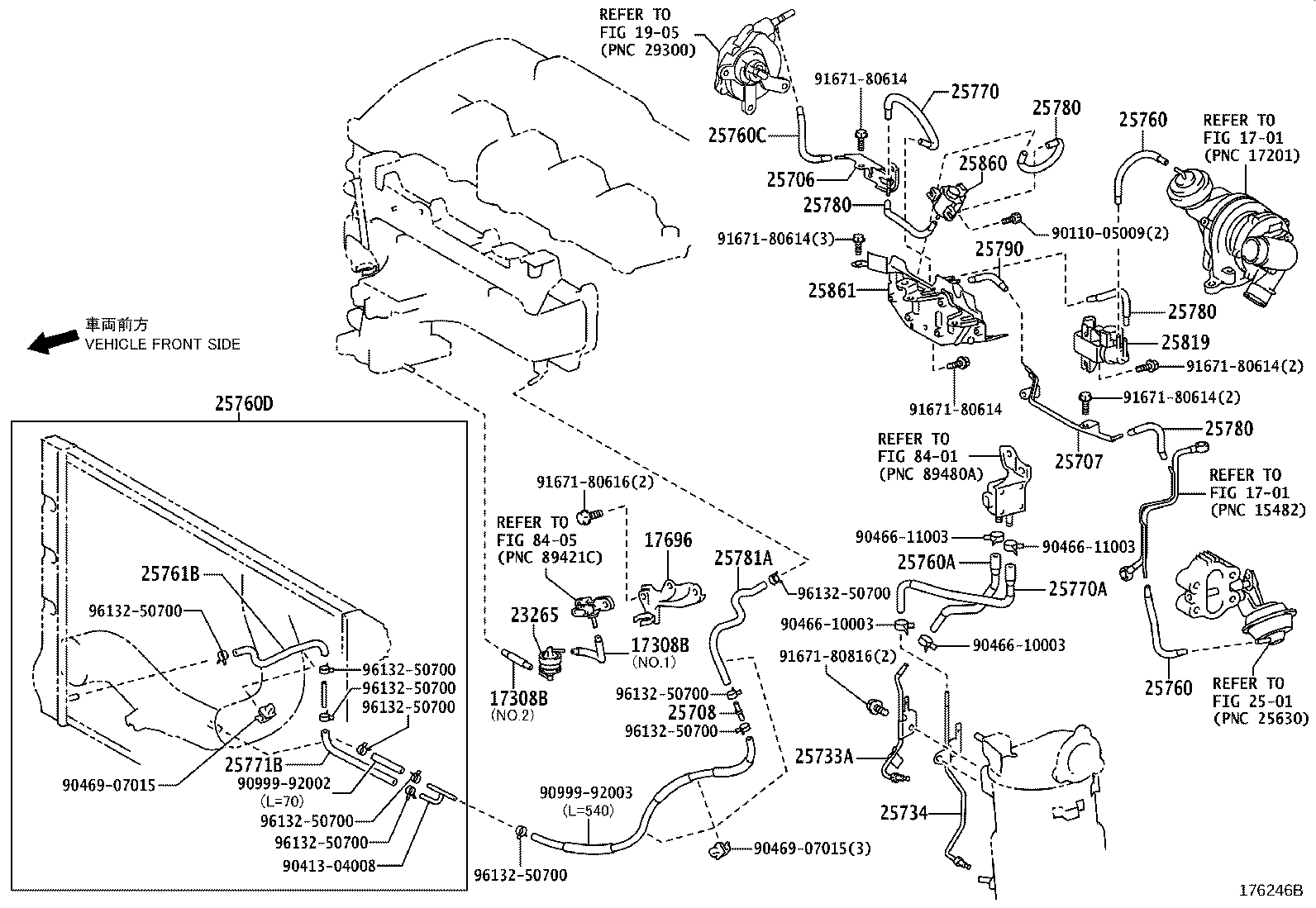

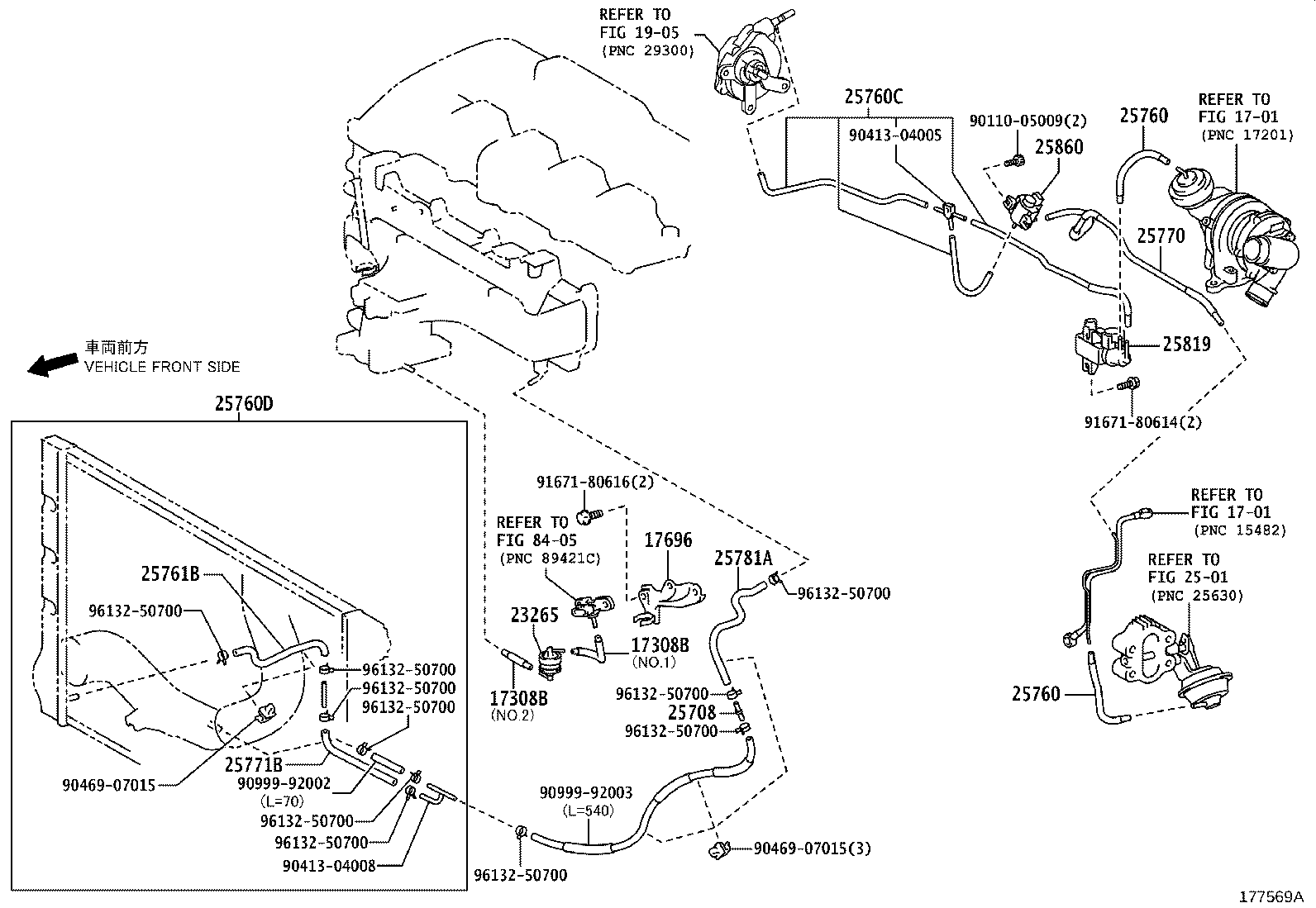

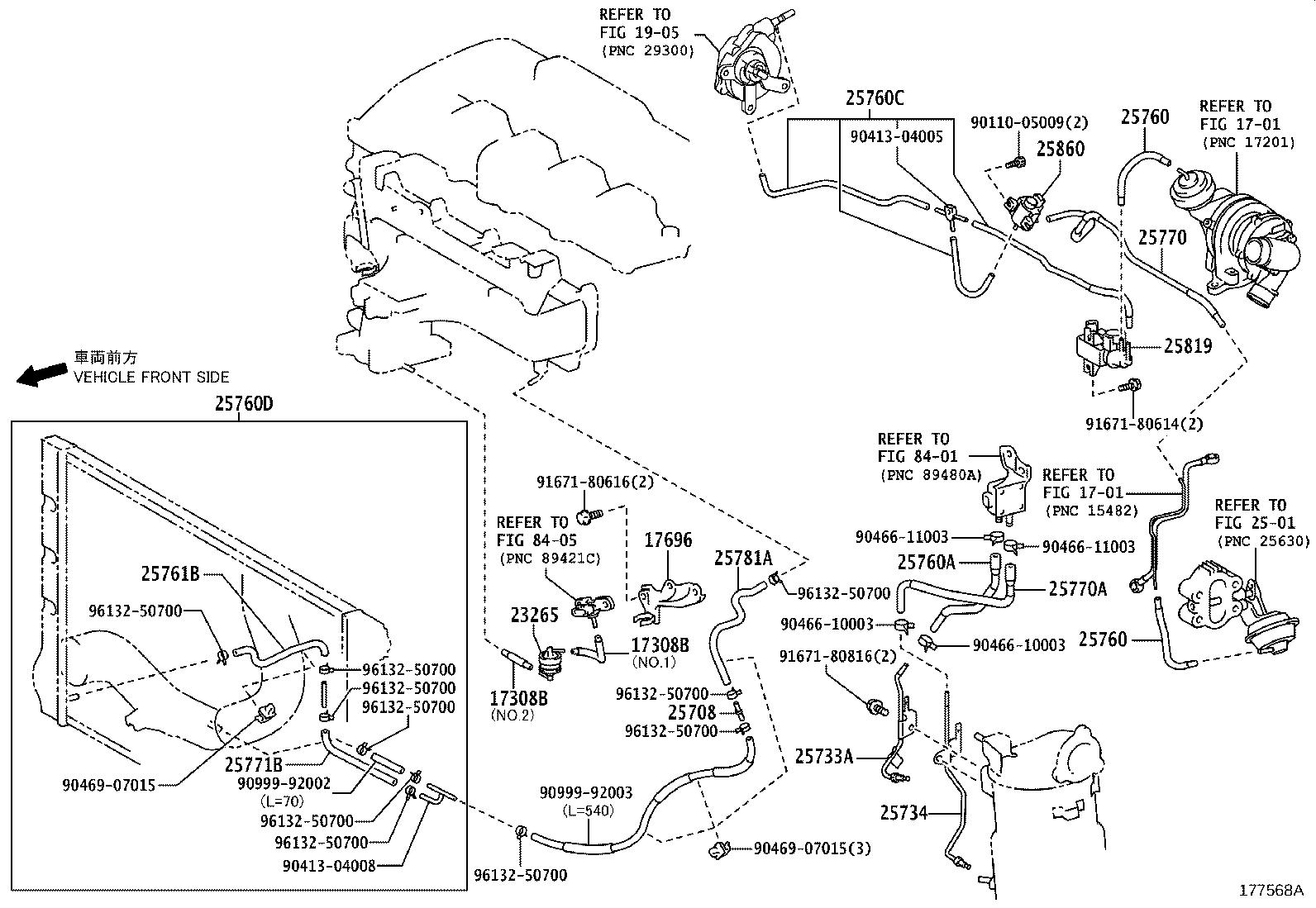

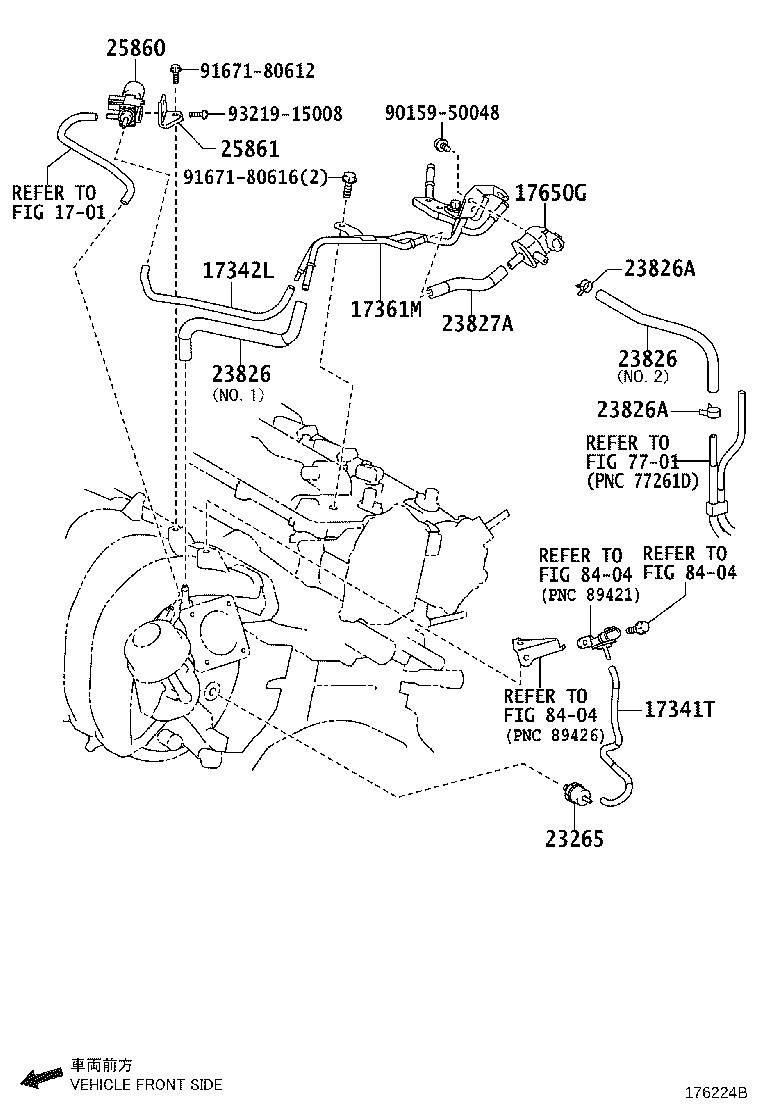

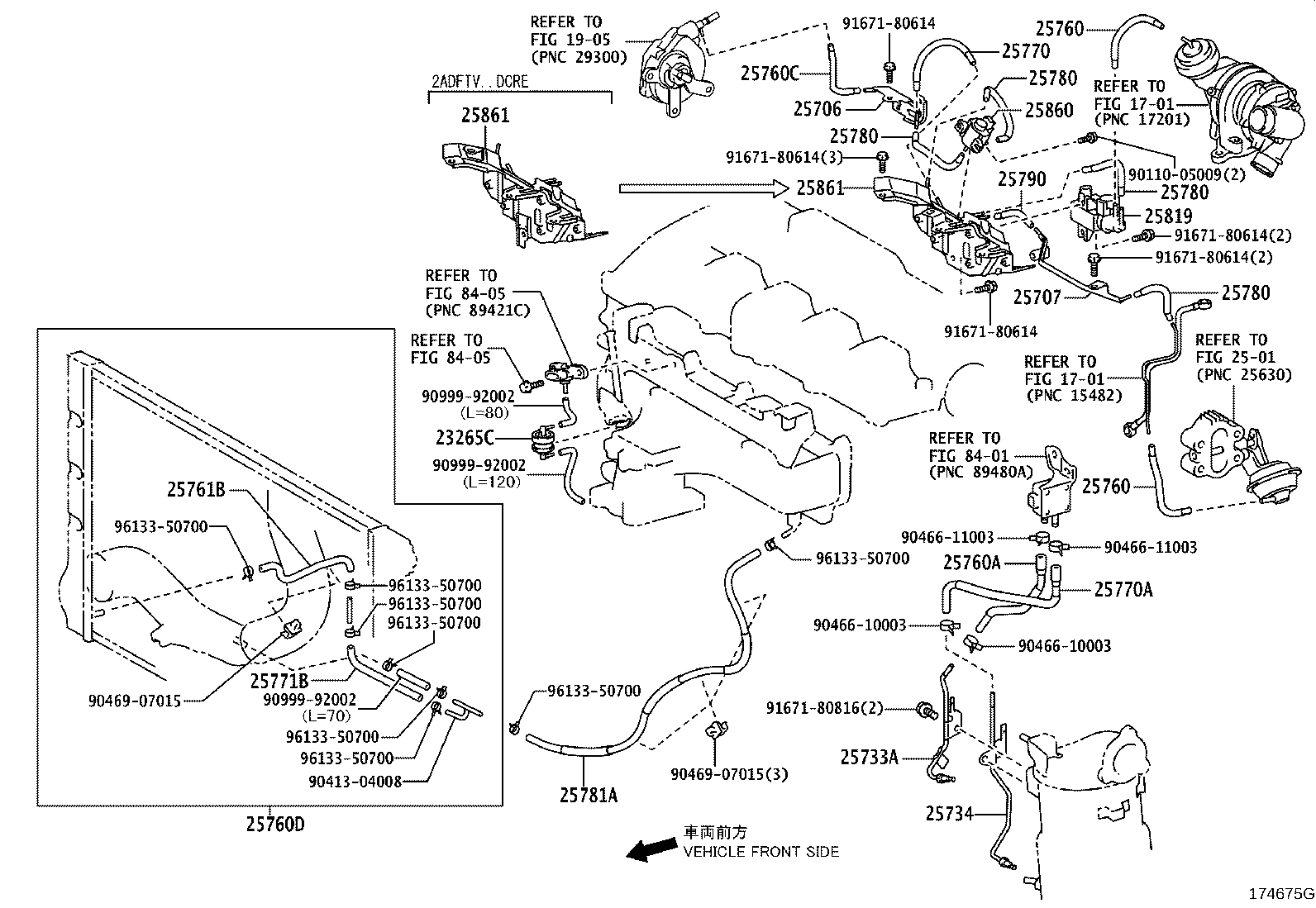

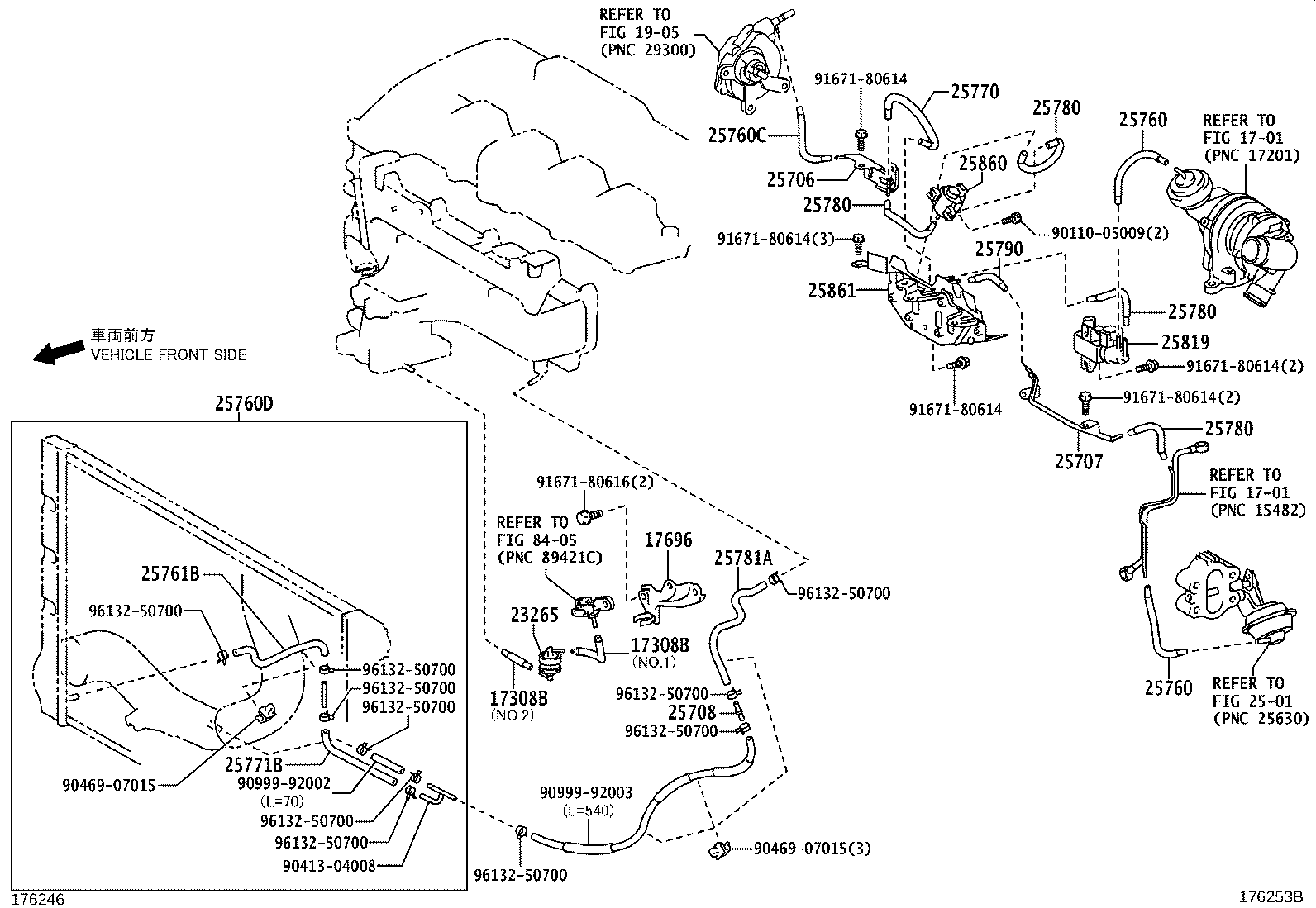

Figure 174674B 174674B 2005-11 → — Figure 174675G 174675G 2005-11 → 2008-12 Figure 174675G 174675G 2007-01 → 2008-12 Figure 174676H 174676H 2005-11 → 2008-12 Figure 176246B 176246B 2008-12 → 2012-08 Figure 176253B 176253B 2008-12 → 2012-08 Figure 177568A 177568A 2012-08 → — Figure 177569A 177569A 2012-08 → — Figure 175716B 175716B 2007-08 → — Figure 176224B 176224B 2008-12 → —

Part groups

PNCDescription
17308B Hose Sub-assy, Vacuum
17341T Hose, Air, NO.1
17342L Hose, Air, NO.2
17361M Tube, Air
17650G Valve, Duty Vacuum Switching
17696 Bracket, Gas Filter
23265 Filter, Gas, NO.1
23265C Filter, Gas
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25708 Pipe Sub-assy, Vacuum Transmitting, NO.3
25733A Pipe, Vacuum, NO.1
25734 Pipe, Vacuum, NO.2
25760 Hose Assy, Vacuum Transmitting
25760A Hose Assy, Vacuum Transmitting
25760C Hose Assy, Vacuum Transmitting, NO.3
25760D Hose Assy, Vacuum Transmitting, NO.4
25761B Hose, Vaccum Transmitting, NO.1
25770 Hose Assy, Vacuum Transmitting, NO.2
25770A Hose Assy, Vacuum Transmitting, NO.2
25771B Hose, Vaccum Transmitting, NO.2
25780 Hose Assy, Vacuum Transmitting, NO.3
25781A Hose, Vacuum Transmitting, NO.3
25790 Hose Assy, Vacuum Transmitting, NO.4
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
