Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

19 part groups · 10 illustrations

Illustrations

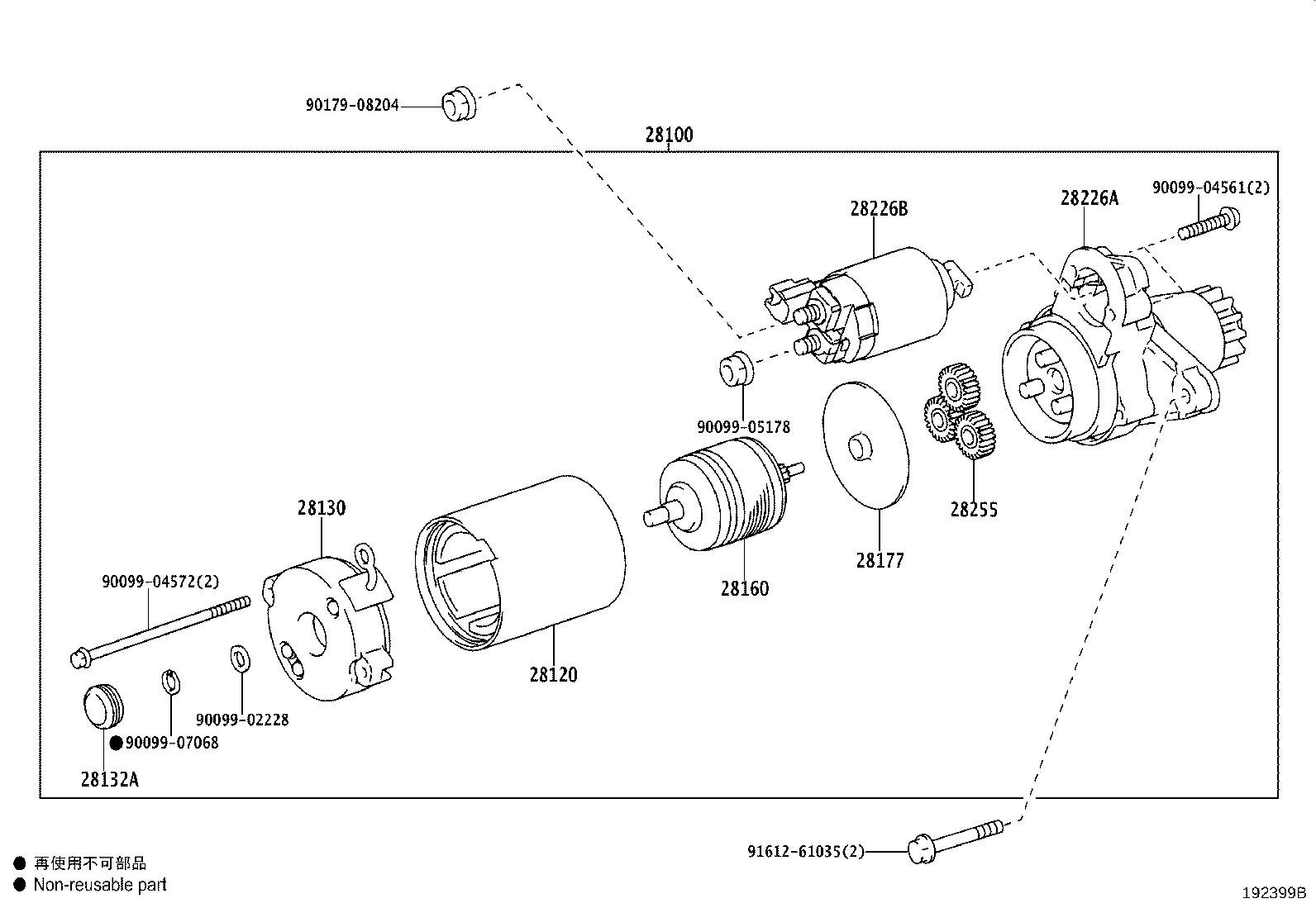

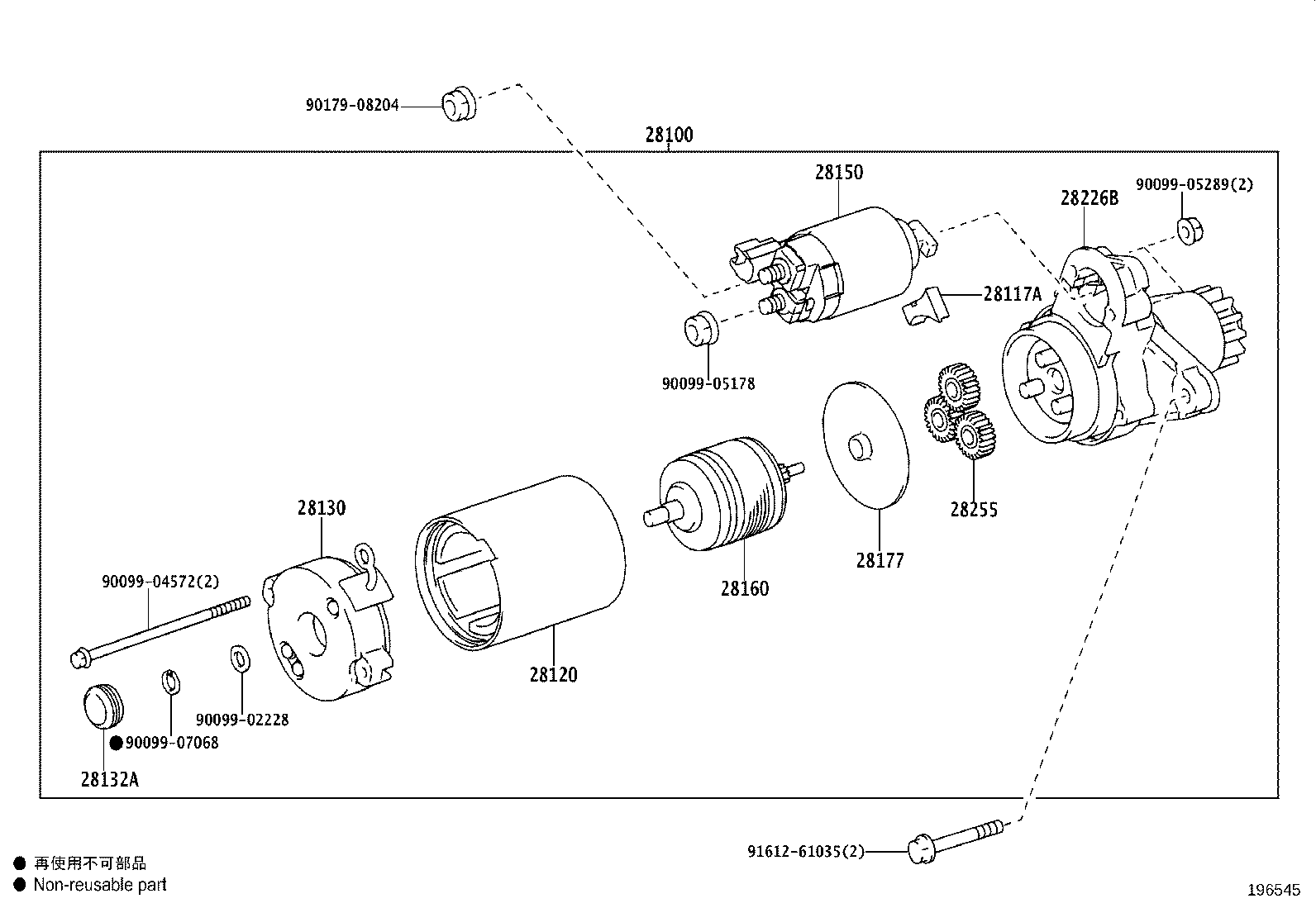

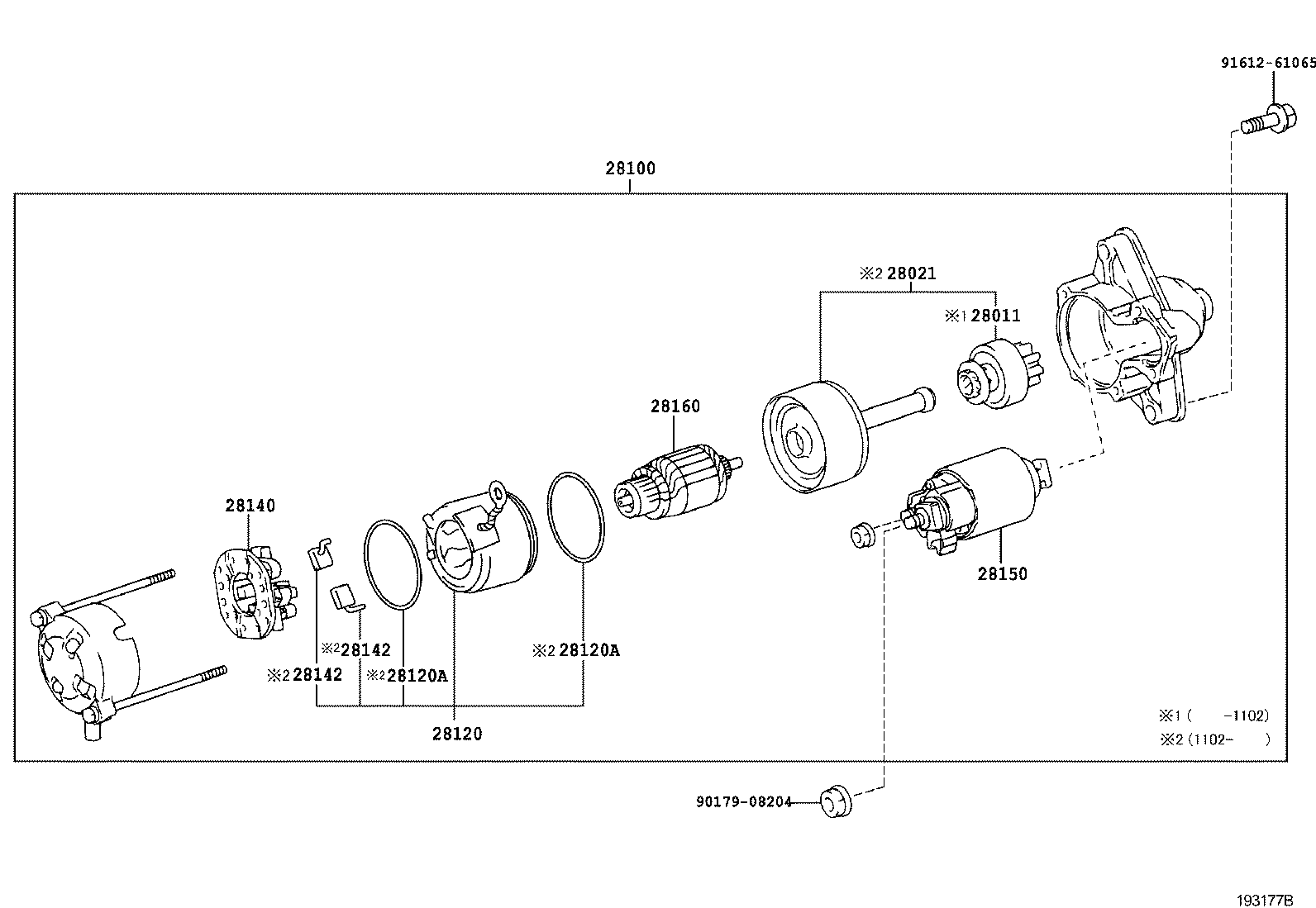

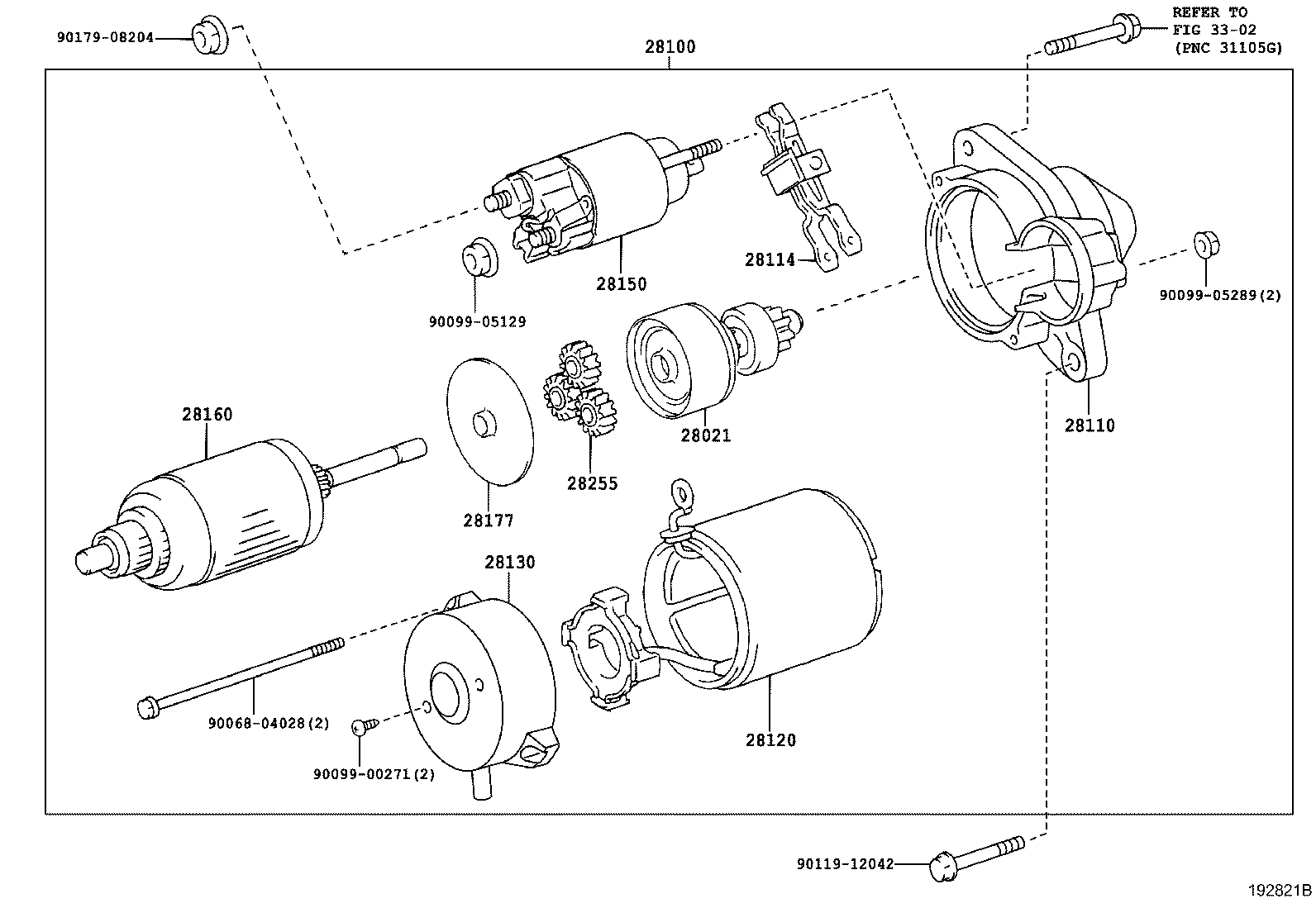

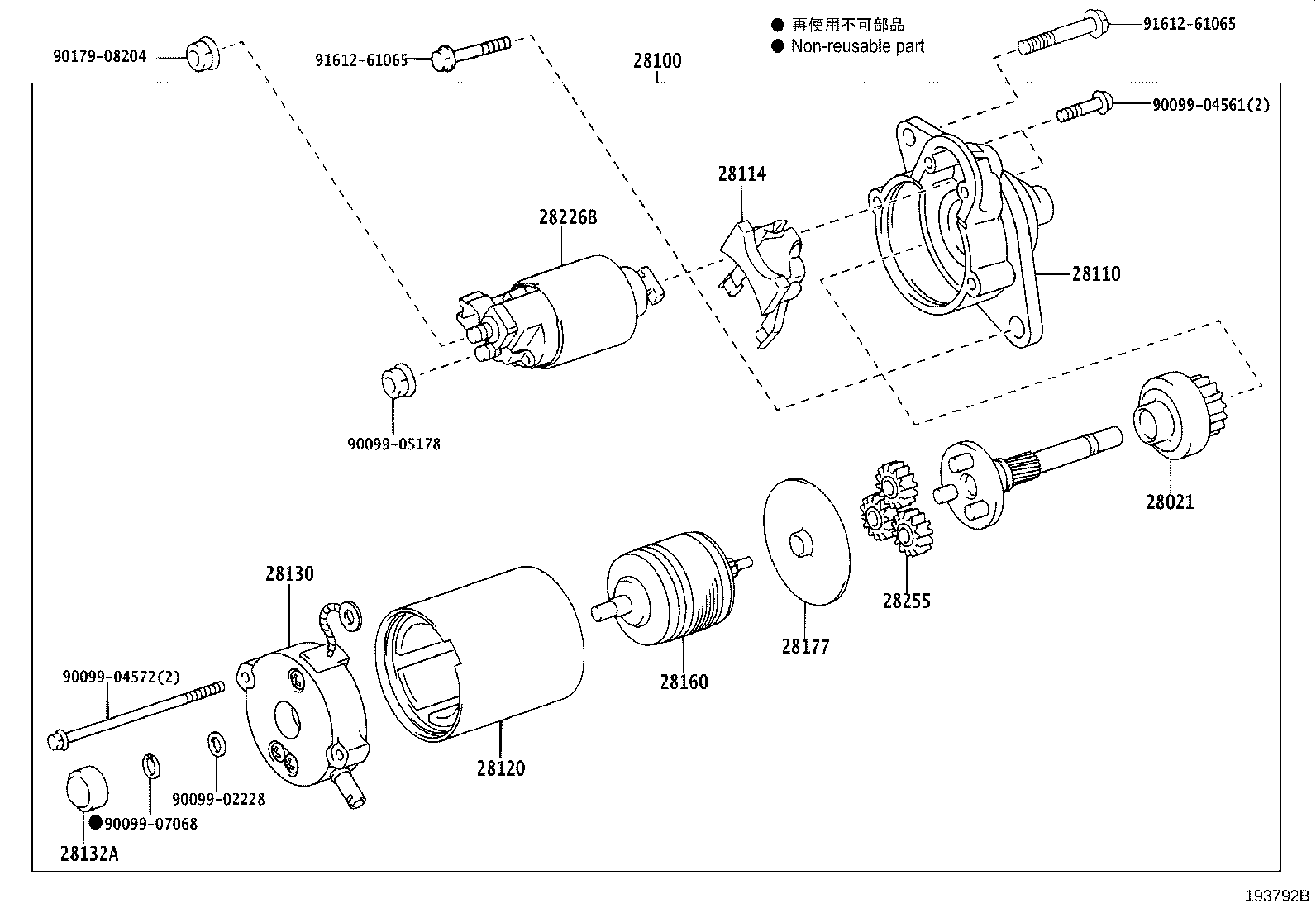

Figure 192401 192401 2005-11 → 2006-12 Figure 192399B 192399B 2005-11 → 2008-07 Figure 192399B 192399B 2005-11 → 2008-12 Figure 192821B 192821B 2006-12 → — Figure 196545 196545 2008-08 → 2011-06 Figure 196545 196545 2008-08 → — Figure 196545 196545 2008-12 → — Figure 193786A 193786A 2011-07 → — Figure 193177B 193177B 2008-12 → — Figure 193792B 193792B 2011-07 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28113 Lever, Starter Pinion Drive
28114 Pin, Starter Drive Lever Set
28117A Seal, Rubber
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28130 Frame Assy, Starter Commutator End
28132A Cover, Starter Commutator End Frame
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28177 Plate(FOR STARTER ARMATURE)
28226A Starter Kit, Motor Terminal
28226B Starter Kit, Repair Service
28255 Gear, Planet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
