Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Nozzle

10 part groups · 4 illustrations

Illustrations

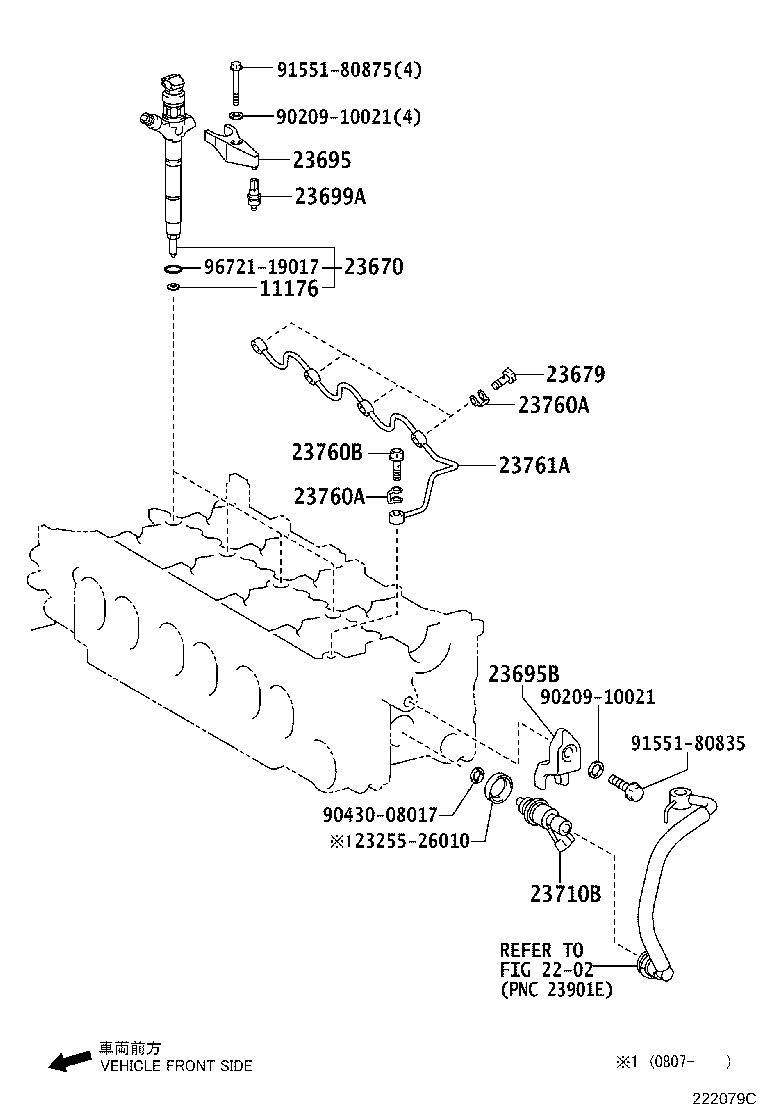

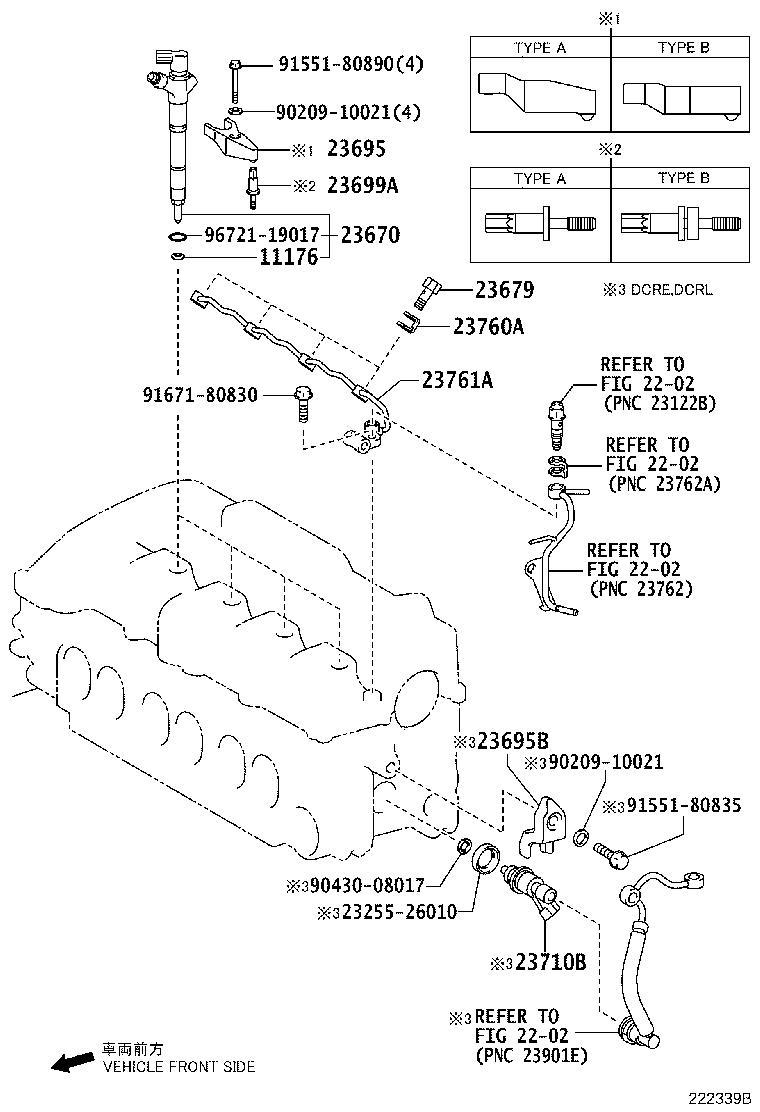

Figure 221839G 221839G 2005-11 → 2008-12 Figure 221840B 221840B 2005-11 → 2008-12 Figure 222079C 222079C 2007-01 → 2008-12 Figure 222339B 222339B 2008-12 → —

Part groups

PNCDescription
11176 Seat, Injection Nozzle
23670 Injector Assy
23679 Screw, Injector Follow
23695 Clamp, Nozzle Holder, NO.1
23695B Clamp, Nozzle Holder, NO.2
23699A Seat, Nozzle Holder Clamp
23710B Injector Assy, Exhaust Fuel Addition
23760A Gasket
23760B Bolt, Union(FOR NOZZLE LEAKAGE PIPE)
23761A Pipe, Nozzle Leakage, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
