Toyota RAV4
2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe
Supported model
Data version 2013-01

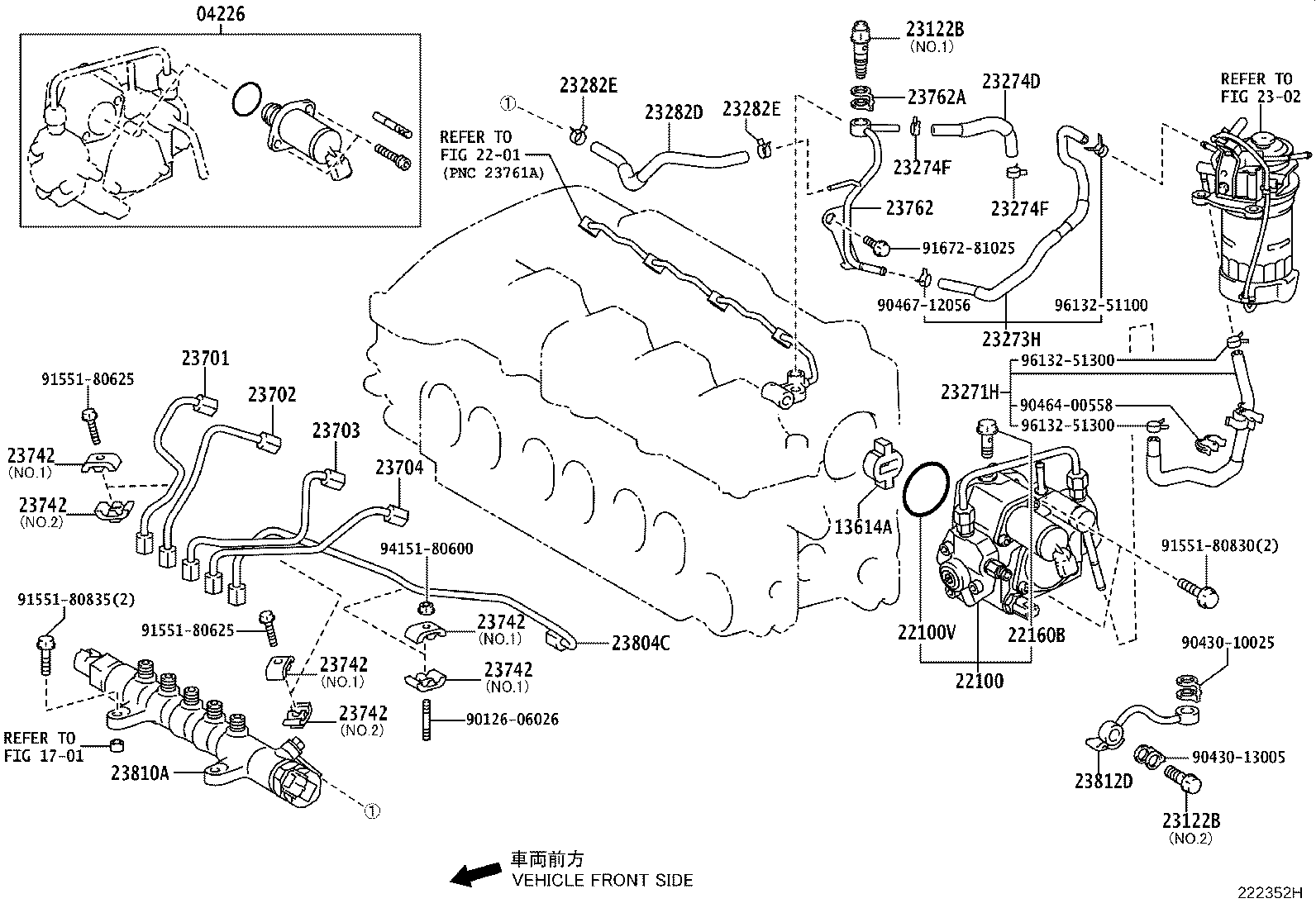

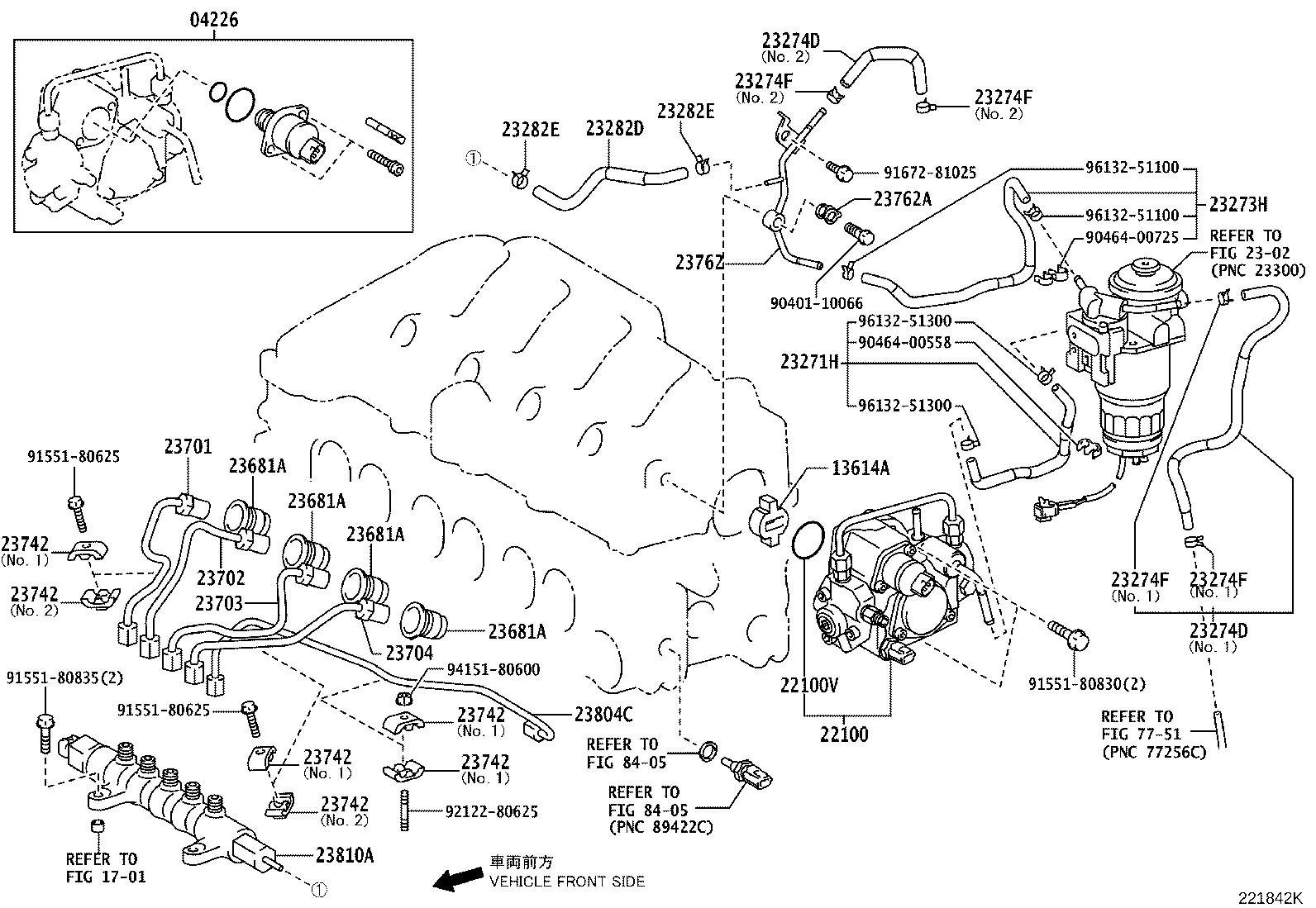

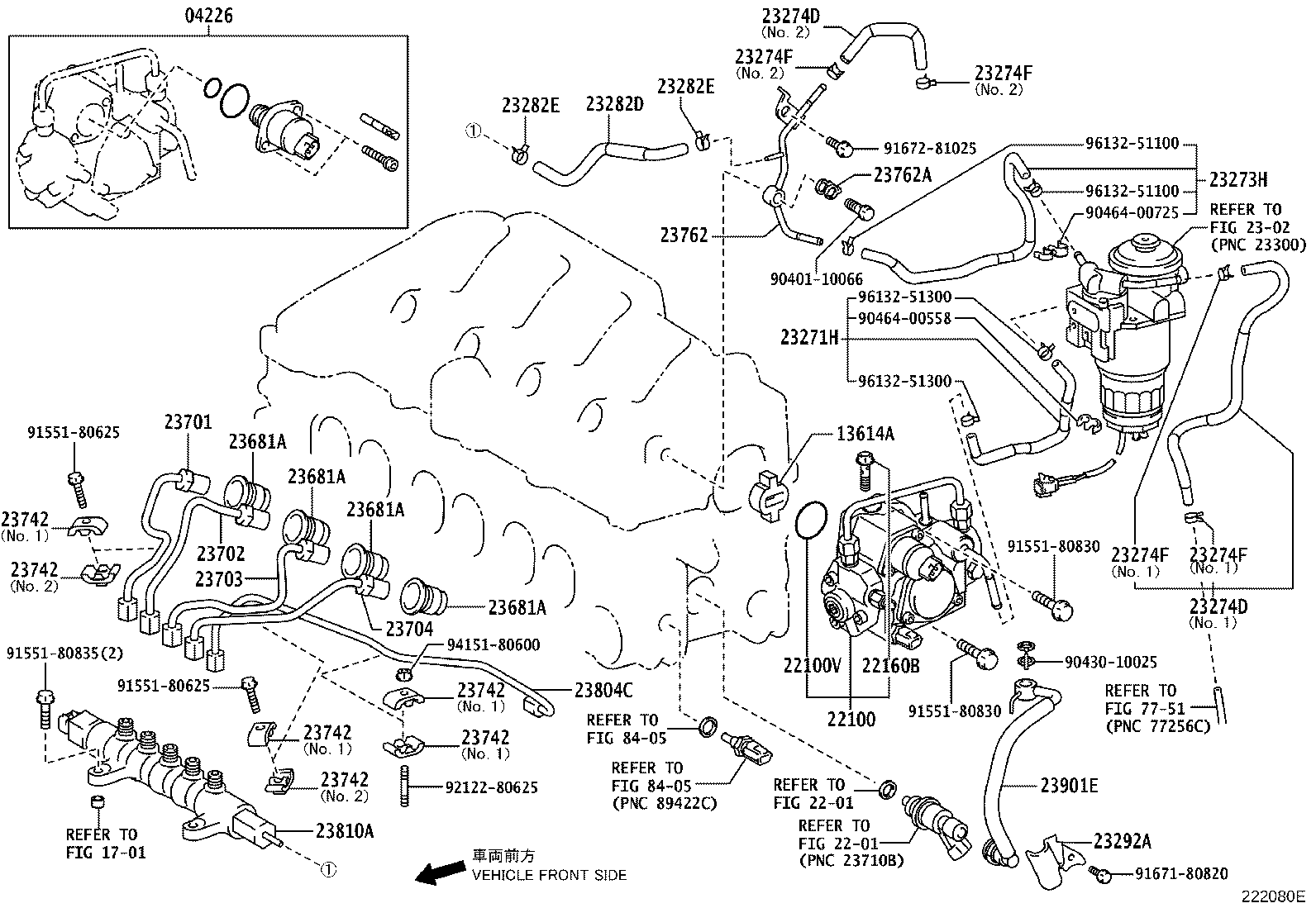

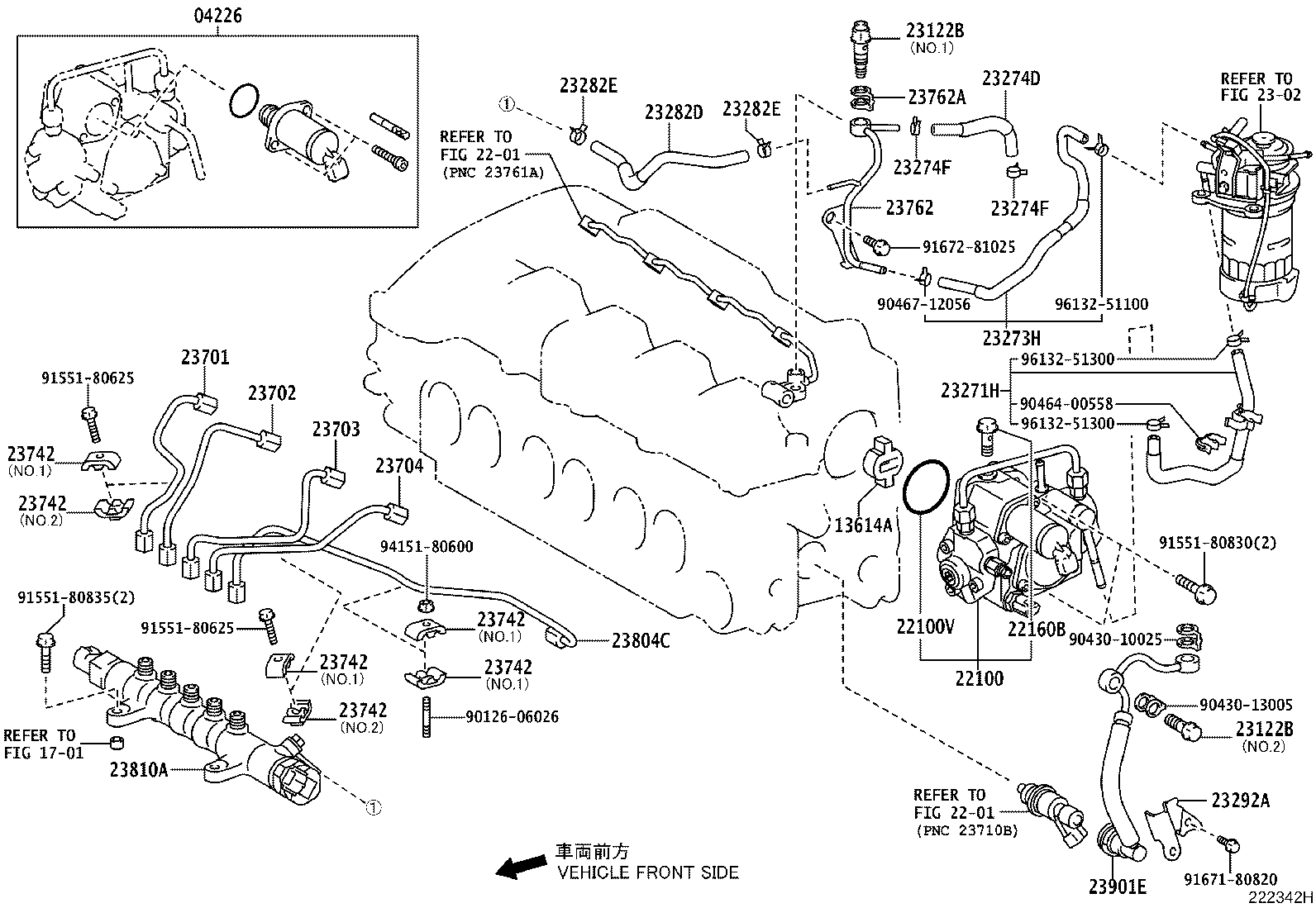

Injection Pump Assembly
25 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 04226 | Valve Kit, Suction Control |
| 13614A | Coupling, Supply Pump Drive, NO.1 |
| 22100 | Pump Assy, Injection OR Supply |
| 22100V | Ring, O(FOR INJECTION PUMP) |
| 22160B | Screw |
| 23122B | Valve, Check |
| 23271H | Hose, Fuel, NO.1 |
| 23273H | Hose, Fuel, NO.2 |
| 23274D | Hose, Fuel, NO.3 |
| 23274F | Clip(FOR FUEL HOSE NO.3) |
| 23282D | Hose, Fuel, NO.4 |
| 23282E | Clip(FOR FUEL HOSE NO.4) |
| 23292A | Protector, Fuel Hose |
| 23681A | Seal, Nozzle Holder |
| 23701 | Pipe Sub-assy, Injection, NO.1 |
| 23702 | Pipe Sub-assy, Injection, NO.2 |
| 23703 | Pipe Sub-assy, Injection, NO.3 |
| 23704 | Pipe Sub-assy, Injection, NO.4 |
| 23742 | Clamp, Injection Pipe, NO.2 |
| 23762 | Pipe, Nozzle Leakage, NO.2 |
| 23762A | Gasket, Nozzle Leakage Pipe NO.2 |
| 23804C | Pipe Sub-assy, Fuel Inlet |
| 23810A | Rail Assy, Common |
| 23812D | Pipe, Fuel, NO.2 |
| 23901E | Tube Sub-assy, Fuel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
