Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

8 part groups · 2 illustrations

Illustrations

Figure 230386E

230386E 2005-11 → 2008-12

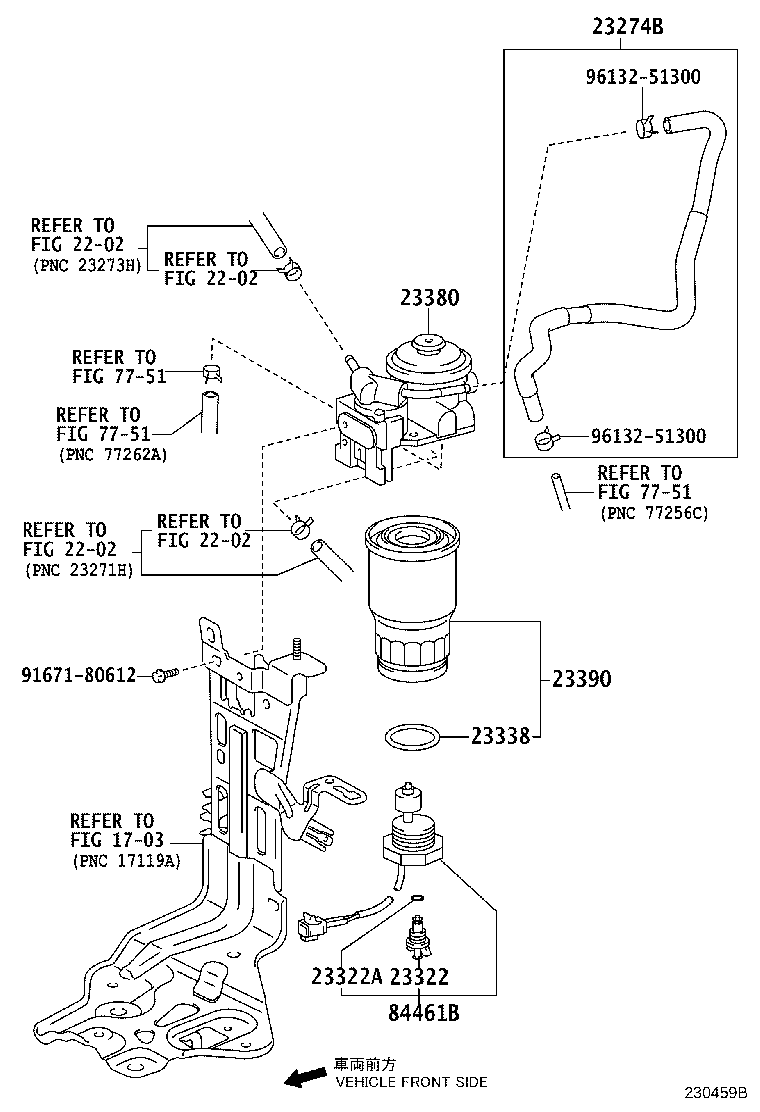

Figure 230459B

230459B 2008-12 → —

Part groups

PNC	Description
23274B	Hose, Fuel, NO.3
23300	Filter Assy, Fuel
23322	Plug, Drain(FOR FUEL FILTER)
23322A	Ring, O(FOR DRAIN PLUG)
23338	Gasket(FOR WARNING SWITCH)
23380	Cap Assy, Fuel Filter
23390	Element Assy, Fuel Filter
84461B	Switch, Level Warning

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
