Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle Assy(CVT)

27 part groups · 3 illustrations

Illustrations

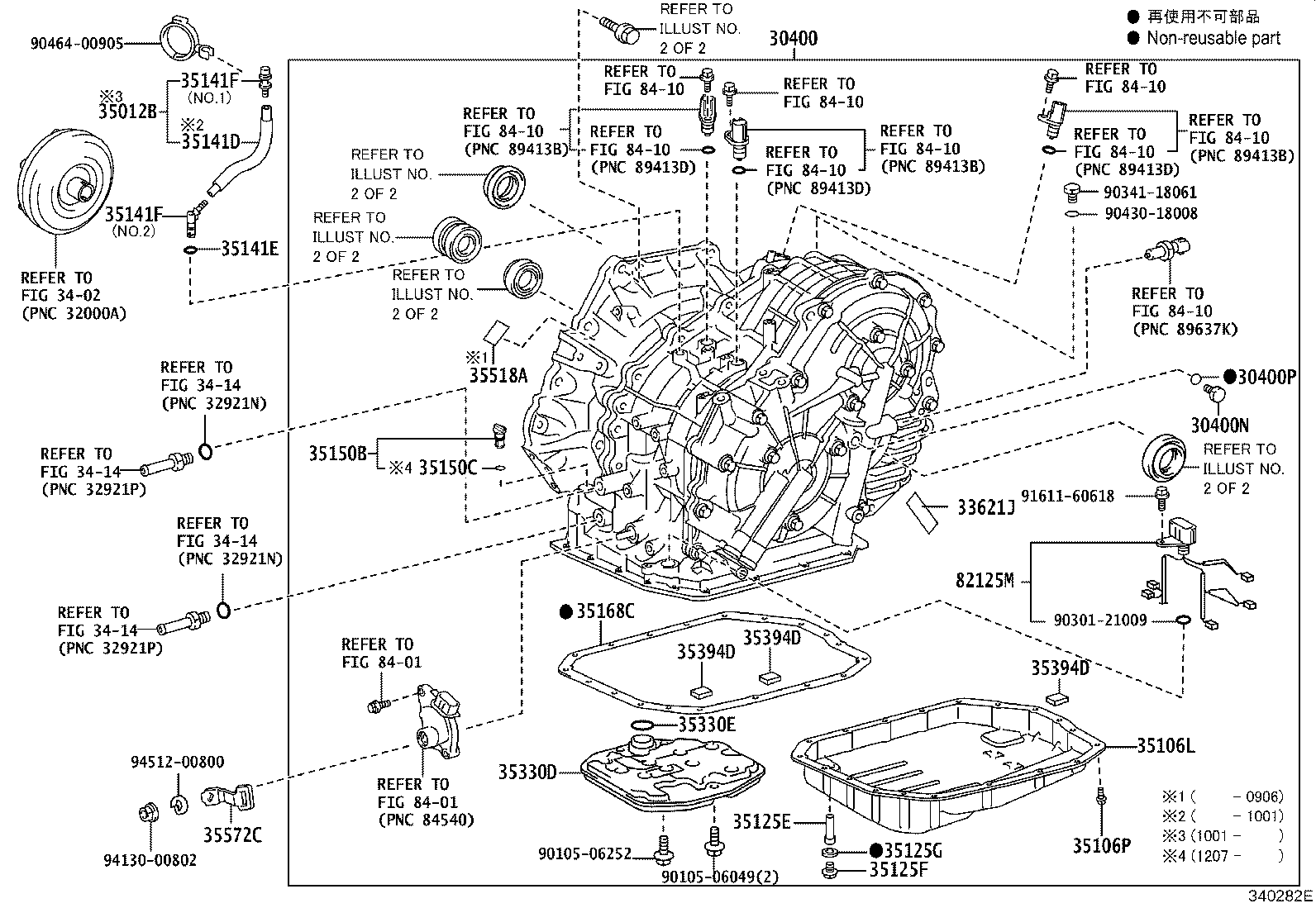

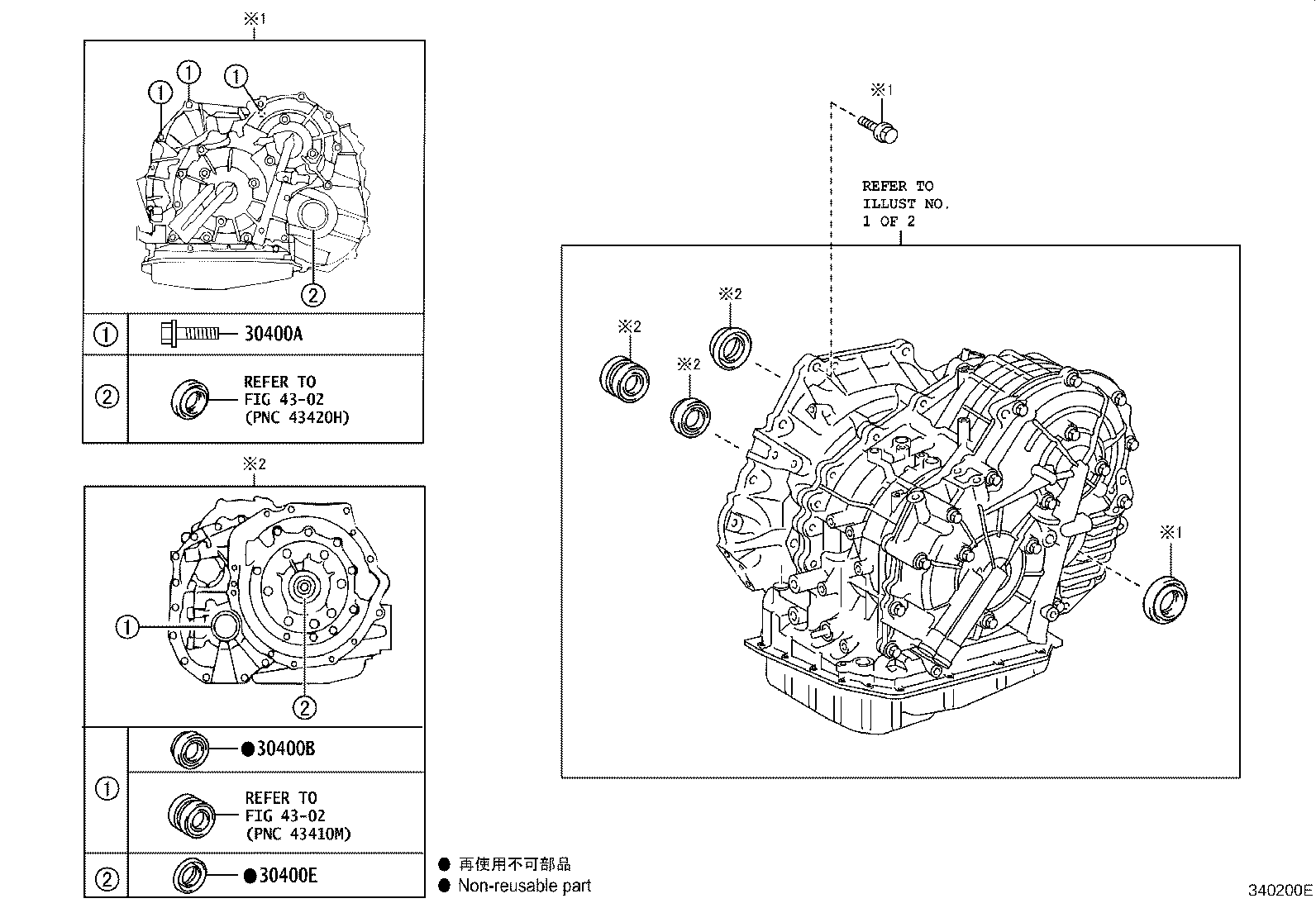

Figure 340199F 340199F 2008-12 → 2010-09 Figure 340282E 340282E 2010-09 → — Figure 340200E 340200E 2008-12 → —

Part groups

PNCDescription
30400 Transaxle Assy, Continuously Variable
30400A Bolt(FOR TRANSAXLE & ENGINE SETTING)
30400B Seal, Type T Oil, NO.1(FOR CVT)
30400E Seal, Type T Oil(FOR CVT OIL PUMP)
30400N Plug, Refill(CVT)
30400P Gasket, Refill Plug(CVT)
33621J Label, Transaxle Oil Information
35012B Hose Sub-assy, Transmission Breather
35106L Pan Sub-assy, Transaxle Oil(CVT)
35106M Plug Sub-assy, Drain(CVT)
35106N Gasket, Drain Plug(CVT)
35106P Bolt(FOR TRANSAXLE OIL PAN)
35125E Tube, Overflow(CVT)
35125F Plug, Overflow(CVT)
35125G Gasket, Overflow Plug(CVT)
35141D Hose(FOR BREATHER PLUG)
35141E Ring, O(FOR BREATHER PLUG)
35141F Plug, Breather, NO.1(CVT)
35150B Plug Assy, Transmission Case
35150C Ring, O (FOR TRANSMISSION CASE PLUG)
35168C Gasket, Transaxle Oil Pan(CVT)
35330D Strainer Assy, Oil
35330E Ring, O (FOR OIL STRAINER)
35394D Magnet, Oil Cleaner(CVT)
35518A Label, Automatic Transaxle Information, NO.2
35572C Lever, Transmission Control Shaft
82125M Wire, Transmission
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
