Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Axle Shaft & Hub

38 part groups · 3 illustrations

Illustrations

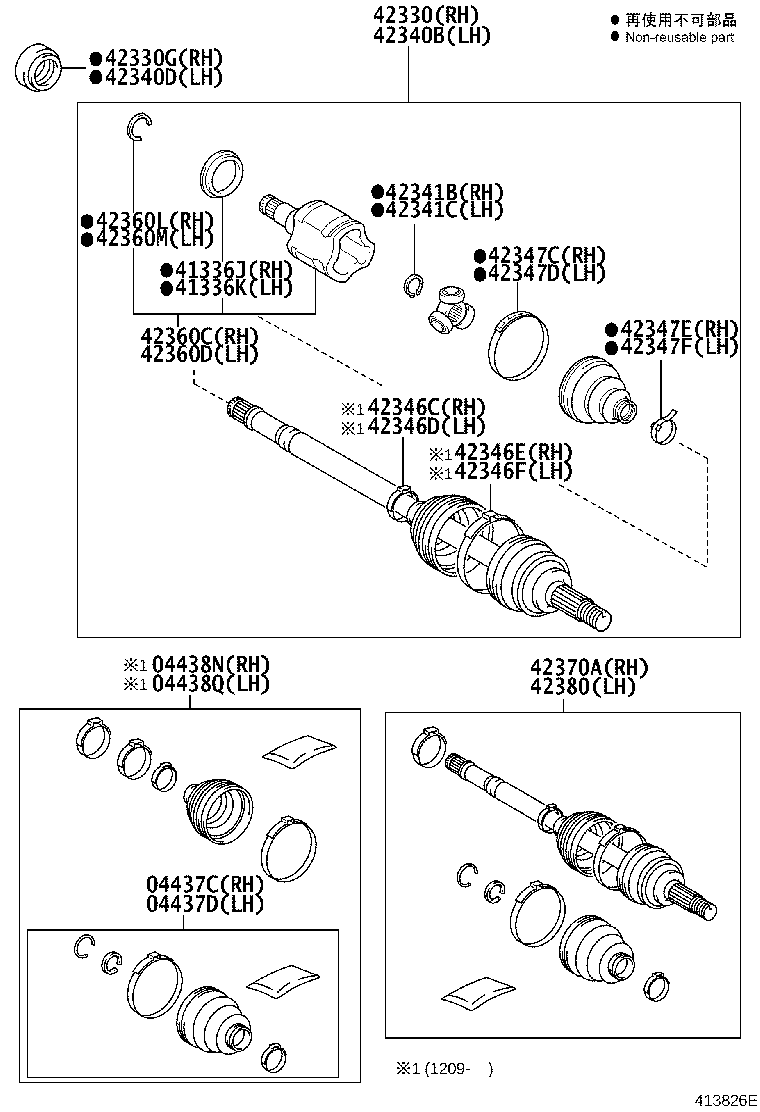

Figure 412321J 412321J 2005-11 → — Figure 412322K 412322K 2005-11 → — Figure 413826E 413826E 2005-11 → —

Part groups

PNCDescription
04437C Boot Kit, Rear Drive Shaft Inboard Joint, RH
04437D Boot Kit, Rear Drive Shaft Inboard Joint, LH
04438N Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH
04438Q Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
41336J Cover, Rear Drive Shaft Dust, RH
41336K Cover, Rear Drive Shaft Dust, LH
42311N Nut(FOR REAR AXLE SHAFT RH)
42311U Bolt, Hub(FOR REAR AXLE RH)
42312B Nut(FOR REAR AXLE SHAFT LH)
42312E Bolt, Hub(FOR REAR AXLE LH)
42330 Shaft Assy, Rear Drive, RH
42330G Oil Seal, Rear Drive Shaft, RH
42340B Shaft Assy, Rear Drive, LH
42340D Oil Seal, Rear Drive Shaft, LH
42341B Ring, Snap (FOR REAR DRIVE SHAFT RH)
42341C Ring, Snap (FOR REAR DRIVE SHAFT LH)
42346C Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42346D Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42346E Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42346F Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42347C Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42347D Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42347E Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42347F Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
42360C Joint Assy, Rear Drive Shaft Inboard, RH
42360D Joint Assy, Rear Drive Shaft Inboard, LH
42360L Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT RH)
42360M Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
42370A Shaft Assy, Rear Drive Outboard Joint, RH
42380 Shaft Assy, Rear Drive Outboard Joint, LH
42410 Hub & Bearing Assy, Rear Axle, RH
42421E Bolt (FOR REAR AXLE BEARING CASE RH)
42422A Bolt (FOR REAR AXLE BEARING CASE LH)
42431 Disc, Rear
42440 Hub & Bearing Assy, Rear Axle, LH
42450A Hub & Bearing Assy, Rear Axle, RH
42450B Hub & Bearing Assy, Rear Axle, LH
42491 Plug, Shoe Adjusting Hole (FOR PARKING BRAKE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
