Brake Pedal & Bracket

4 part groups · 4 illustrations

Illustrations

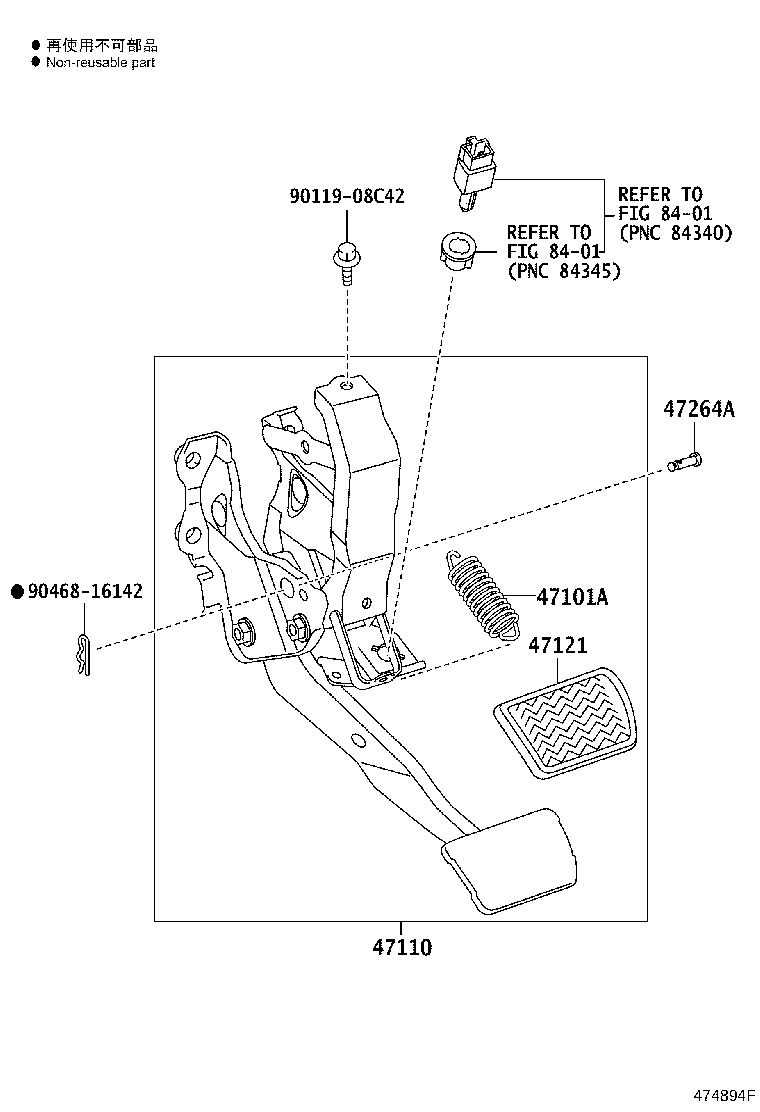

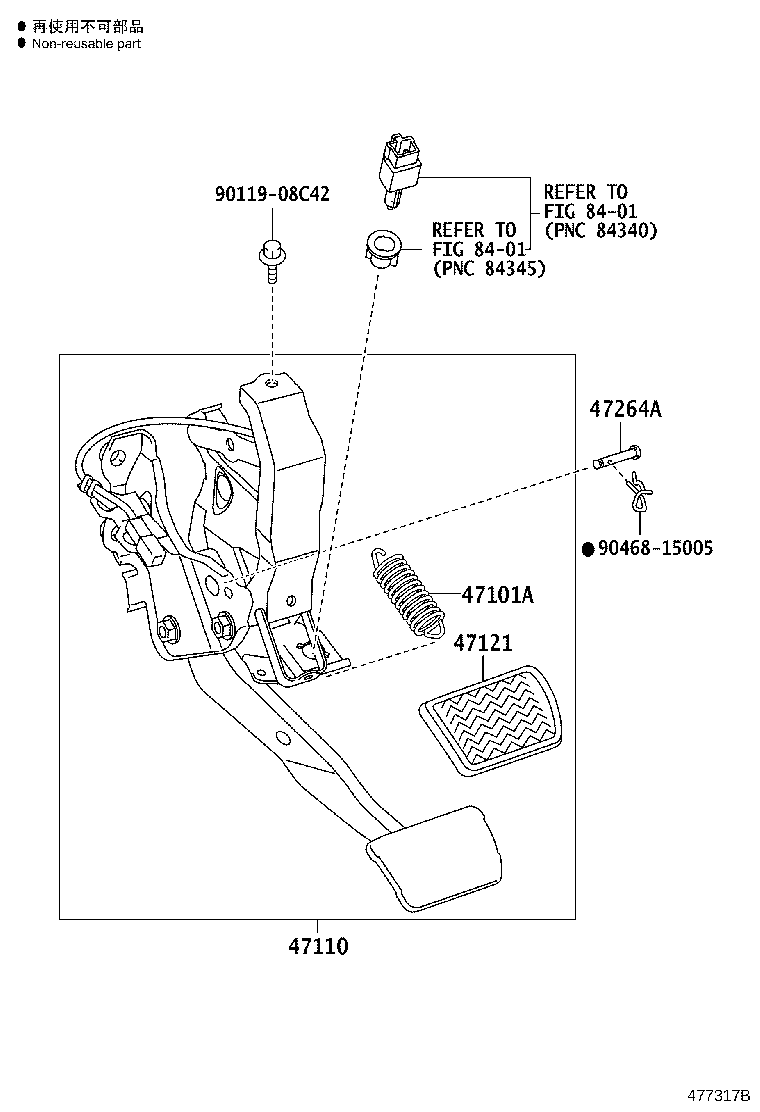

Figure 474893F 474893F 2005-11 → — Figure 477316B 477316B 2005-11 → — Figure 474894F 474894F 2005-11 → — Figure 477317B 477317B 2005-11 → —

Part groups

PNCDescription
47101A Spring(FOR BRAKE PEDAL RETURN)
47110 Support Assy, Brake Pedal
47121 Pad, Brake Pedal
47264A Pin(FOR PUSH ROD)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
