Brake Booster & Vacuum Tube

16 part groups · 7 illustrations

Illustrations

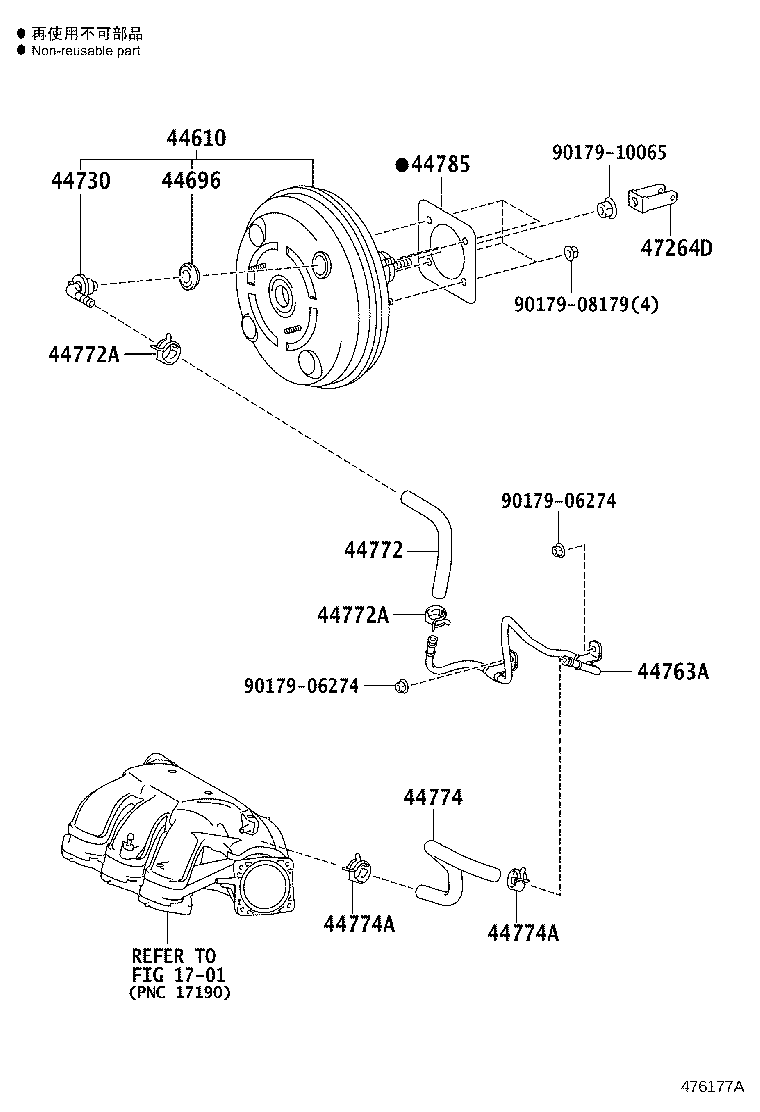

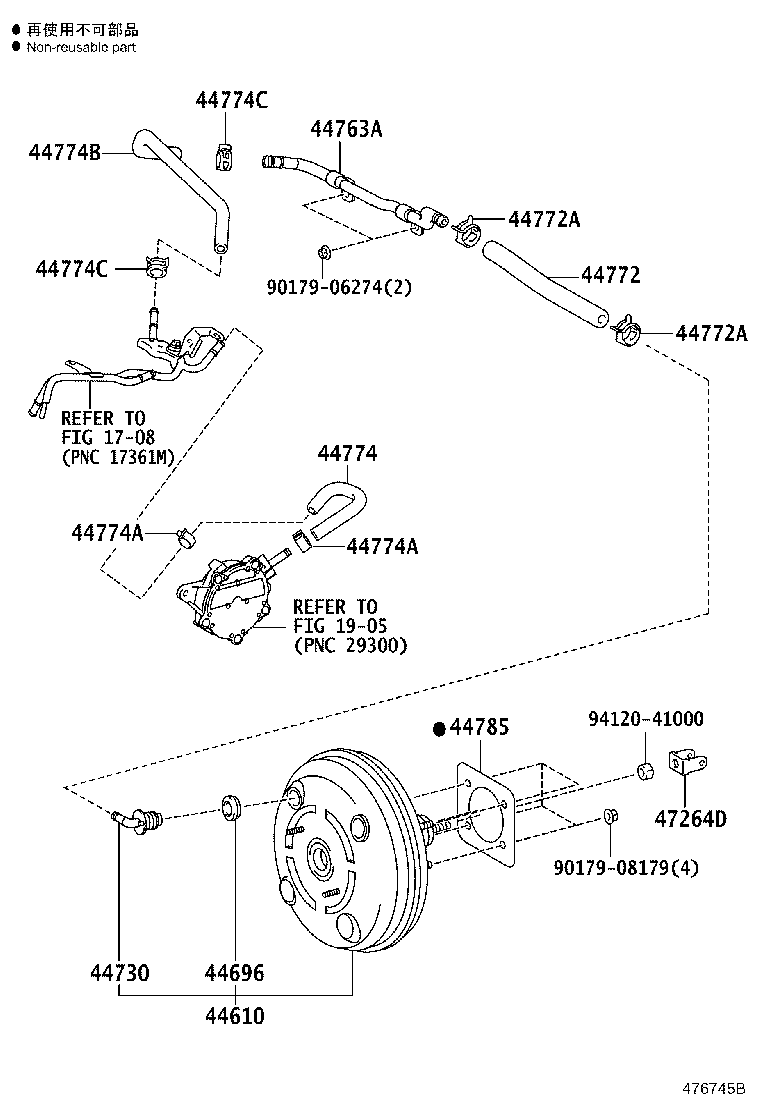

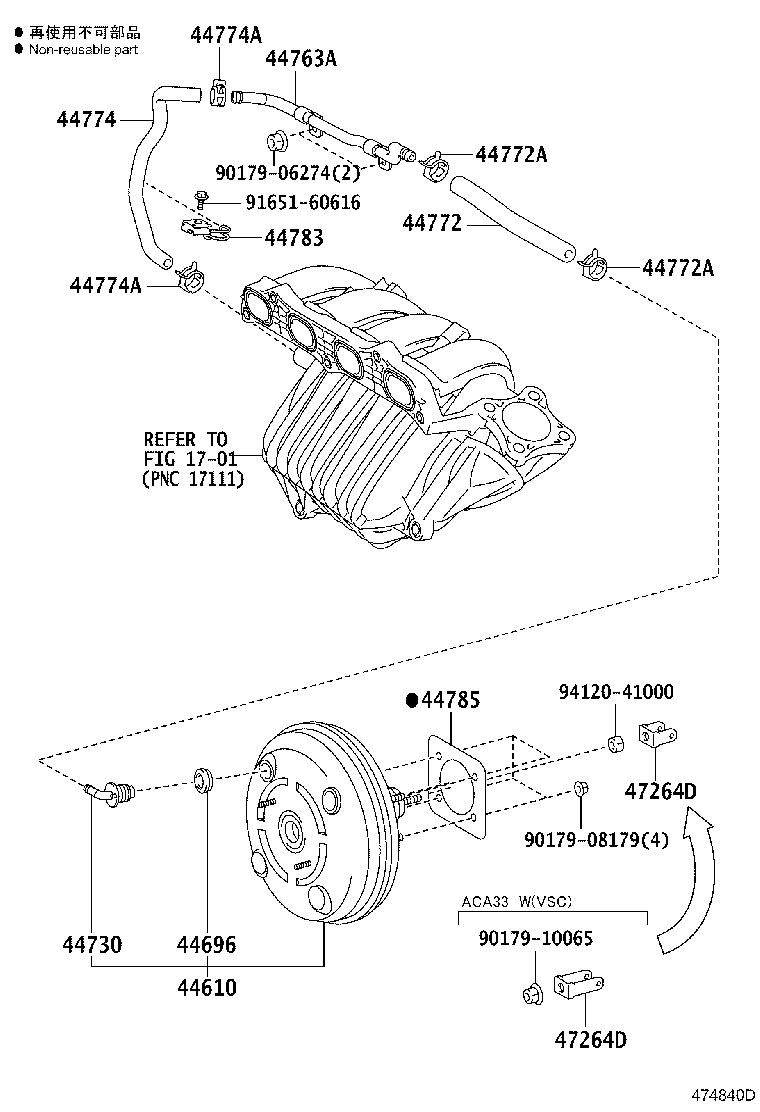

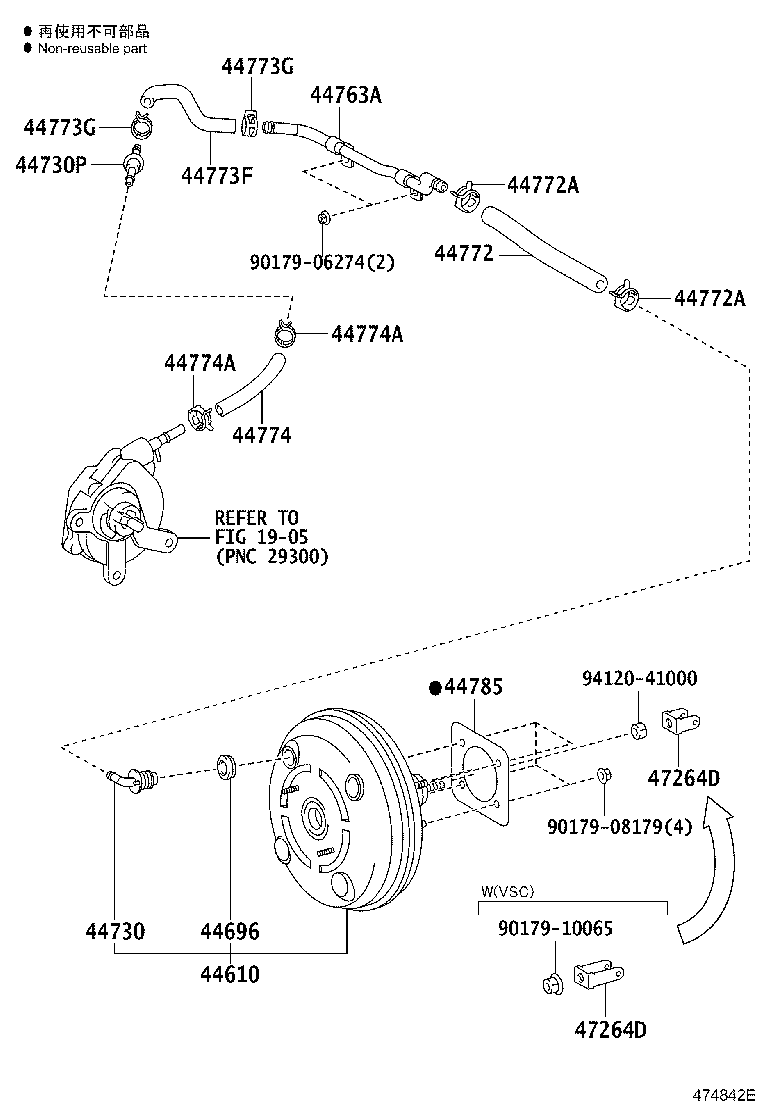

Figure 474876E 474876E 2005-11 → — Figure 474840D 474840D 2005-11 → — Figure 474841E 474841E 2005-11 → — Figure 474842E 474842E 2005-11 → — Figure 476177A 476177A 2007-08 → — Figure 476744B 476744B 2008-12 → — Figure 476745B 476745B 2008-12 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730P Valve Assy, Vacuum Check, NO.1
44763A Tube, Hose TO Hose, NO.1
44772 Hose, Check Valve TO Connector Tube
44772A Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44774 Hose, Union TO Connector Tube
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774B Hose, Union TO Connector Tube
44774C Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44783 Clamp, Vacuum Hose
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
