Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

34 part groups · 3 illustrations

Illustrations

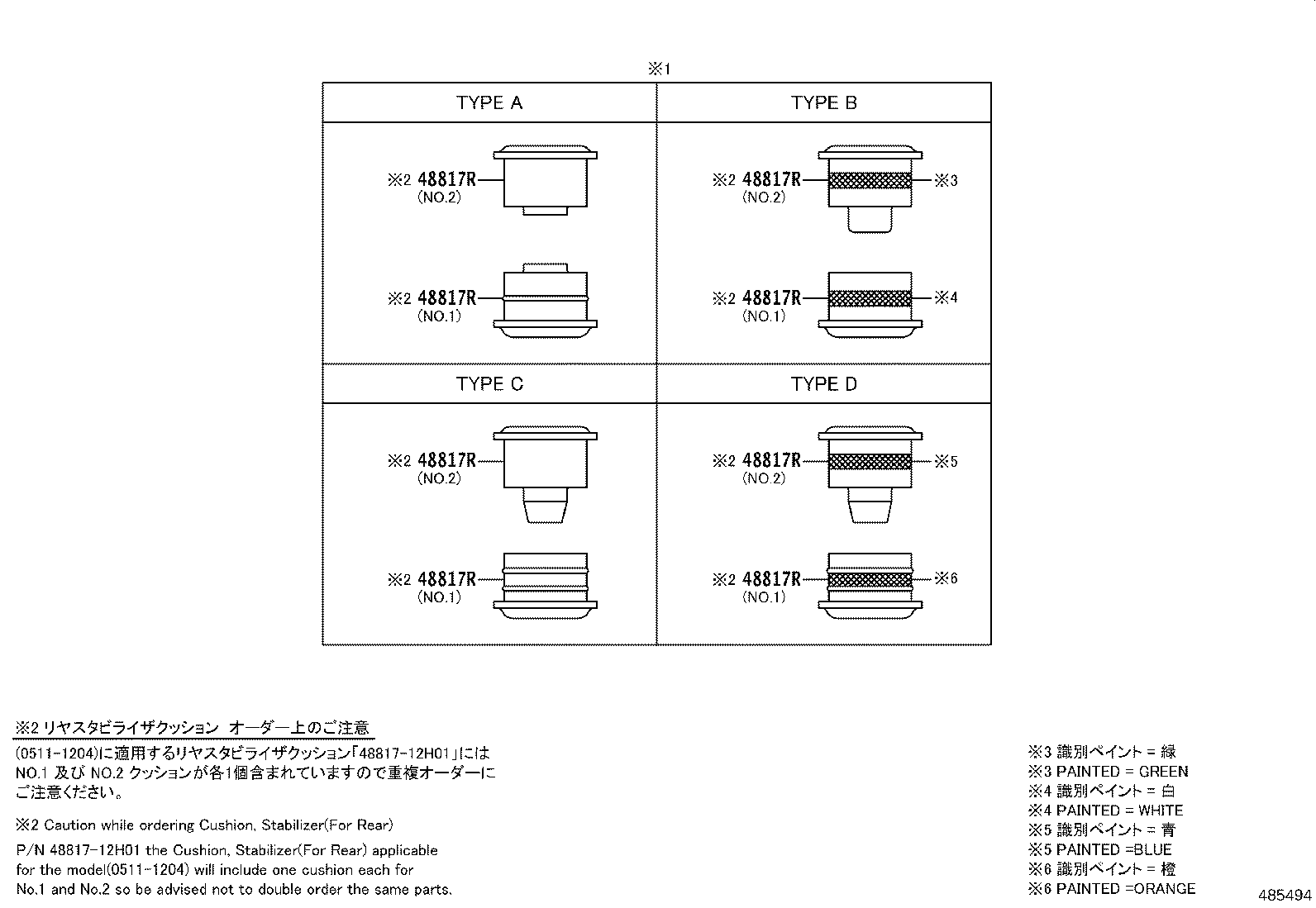

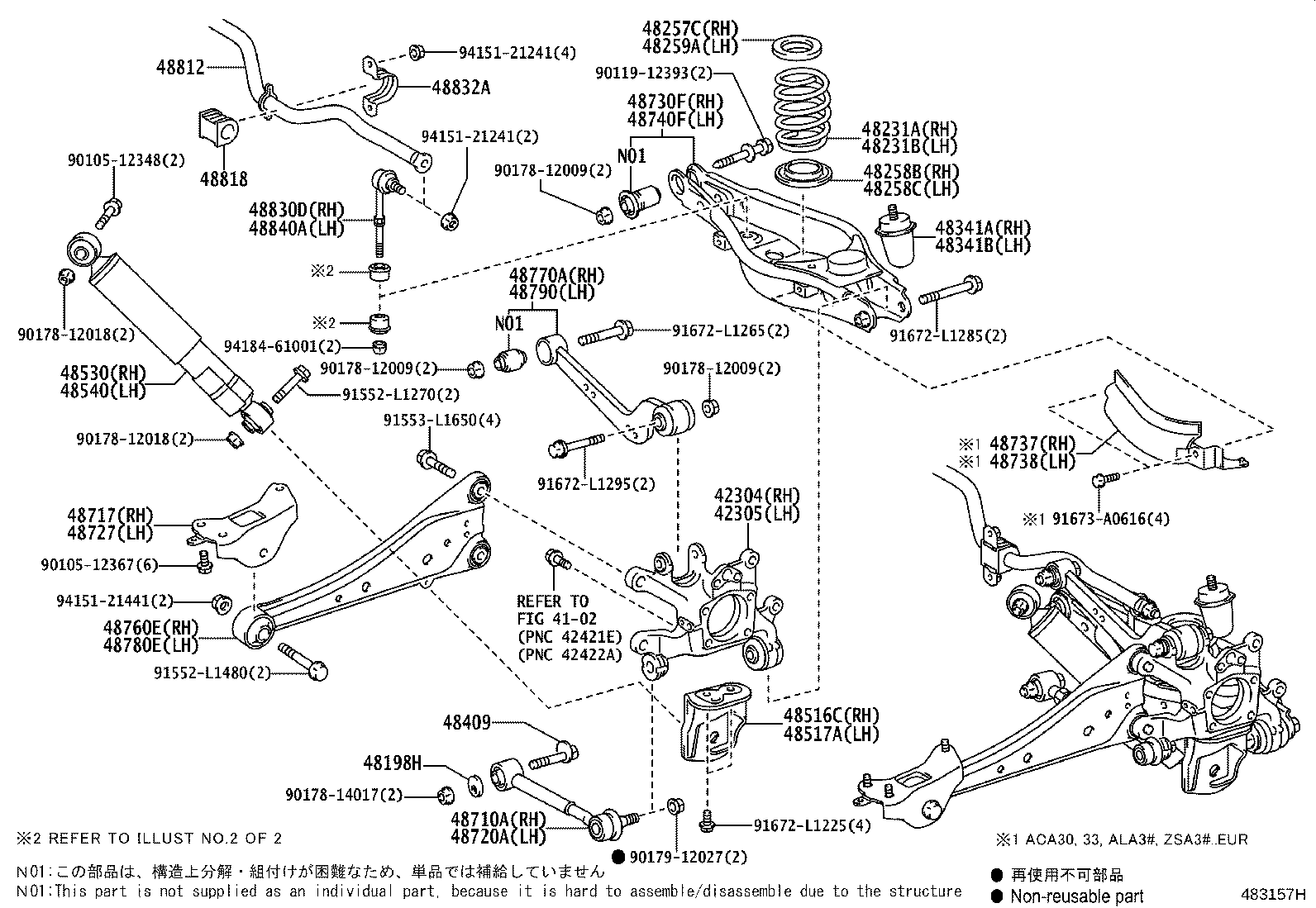

Figure 482206M 482206M 2005-11 → 2010-08 Figure 483157H 483157H 2010-08 → — Figure 485494 485494 2005-11 → —

Part groups

PNCDescription
42304 Carrier Sub-assy, Rear Axle, RH
42305 Carrier Sub-assy, Rear Axle, LH
48198H Cam, Camber Adjust, NO.2
48231A Spring, Coil, Rear RH
48231B Spring, Coil, Rear LH
48257C Insulator, Rear Coil Spring, Upper RH
48258B Insulator, Rear Coil Spring, Lower RH
48258C Insulator, Rear Coil Spring, Lower LH
48259A Insulator, Rear Coil Spring, Upper LH
48341A Bumper, Rear Spring, NO.1 RH
48341B Bumper, Rear Spring, NO.1 LH
48409 Cam Sub-assy, Rear Suspension Toe Adjust
48516C Bracket, Rear Shock Absorber, NO.1 RH
48517A Bracket, Rear Shock Absorber, NO.1 LH
48530 Absorber Assy, Shock, Rear RH
48540 Absorber Assy, Shock, Rear LH
48710A Arm Assy, Rear Suspension, NO.1 RH
48717 Bracket, Rear Suspension Arm, RH
48720A Arm Assy, Rear Suspension, NO.1 LH
48727 Bracket, Rear Suspension Arm, LH
48730F Arm Assy, Rear Suspension, NO.2 RH
48737 Cover, Rear Suspension Arm, RH
48738 Cover, Rear Suspension Arm, LH
48740F Arm Assy, Rear Suspension, NO.2 LH
48760E Arm Assy, Trailing, Rear RH
48770A Arm Assy, Upper Control, Rear RH
48780E Arm Assy, Trailing, Rear LH
48790 Arm Assy, Upper Control, Rear LH
48812 Bar, Stabilizer, Rear
48817R Cushion, Stabilizer(FOR REAR)
48818 Bush, Stabilizer, Rear
48830D Link Assy, Rear Stabilizer, RH
48832A Bracket, Rear Stabilizer Bar, NO.1
48840A Link Assy, Rear Stabilizer, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
