Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

22 part groups · 2 illustrations

Illustrations

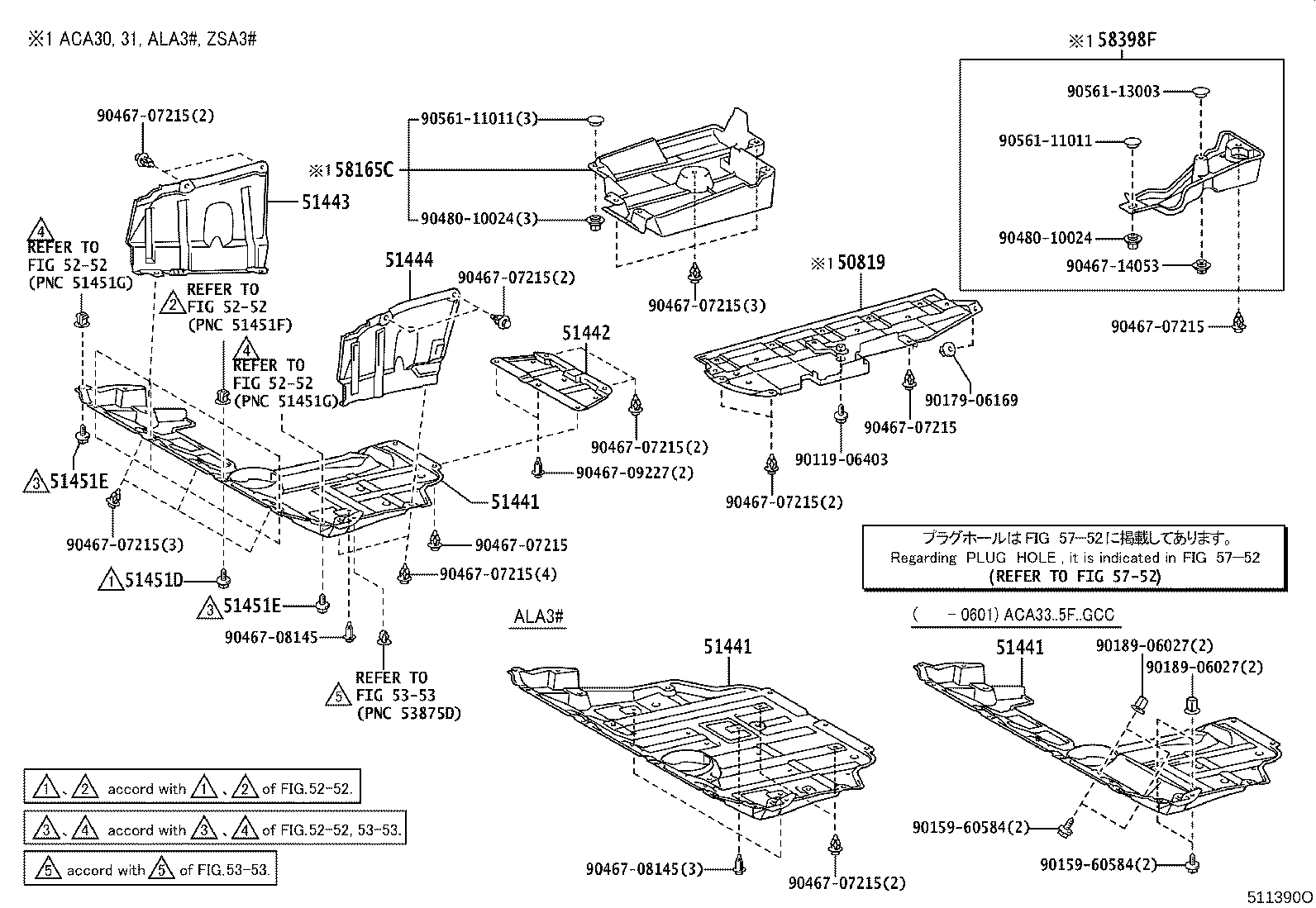

Figure 511376D 511376D 2005-11 → — Figure 511390O 511390O 2005-11 → —

Part groups

PNCDescription
50819 Cover, Front Floor
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51217A Reinforcement, Front Suspension Member, RH
51218A Reinforcement, Front Suspension Member, LH
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51443 Cover, Engine Under, Rear RH
51444 Cover, Engine Under, Rear LH
51451D Screw, NO.1
51451E Screw, NO.2
51968B Hook, Transport, Rear LH
52203A Cushion Sub-assy, Body Mounting, Rear Upper
52255A Brace, Front Suspension Member, Front RH
52256A Brace, Front Suspension Member, Front LH
52257A Brace, Front Suspension Member, Rear RH
52258B Brace, Front Suspension Member, Rear LH
52295 Brace, Rear Suspension Member, RH
52296 Brace, Rear Suspension Member, LH
57104E Member Sub-assy, Front Cross
58165C Cover, Front Floor, RH
58398F Cover, Floor Under, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
