Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

32 part groups · 18 illustrations

Illustrations

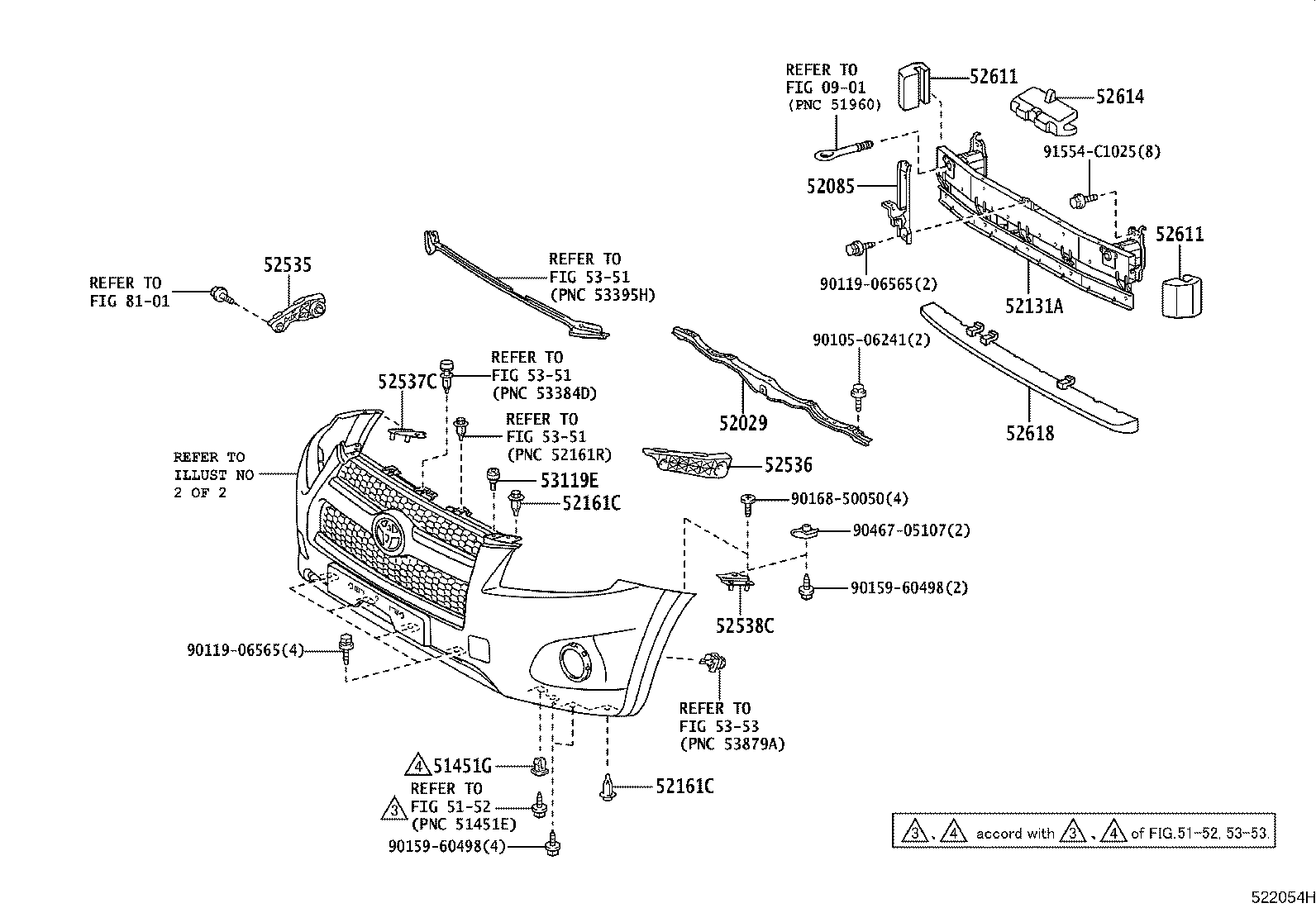

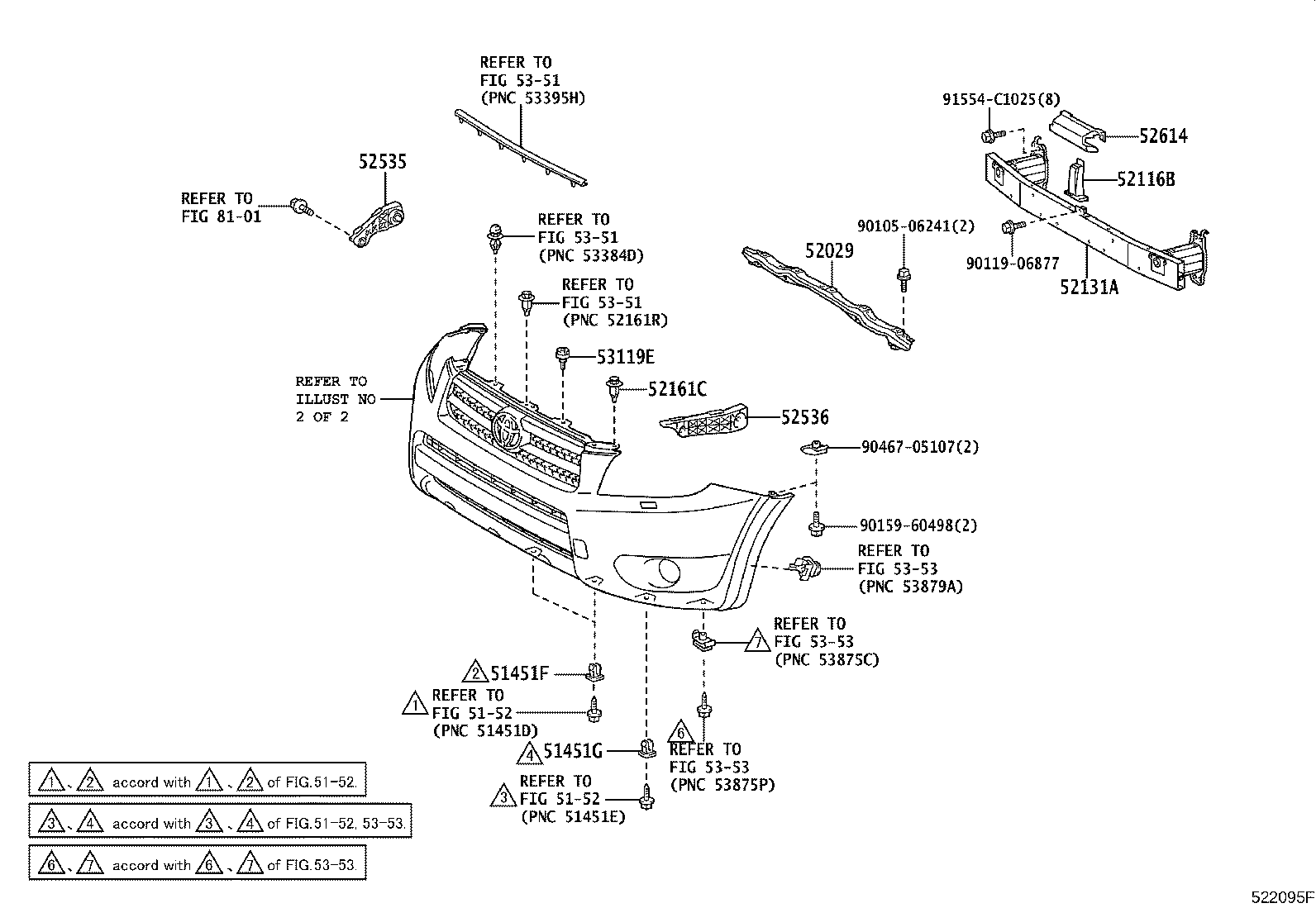

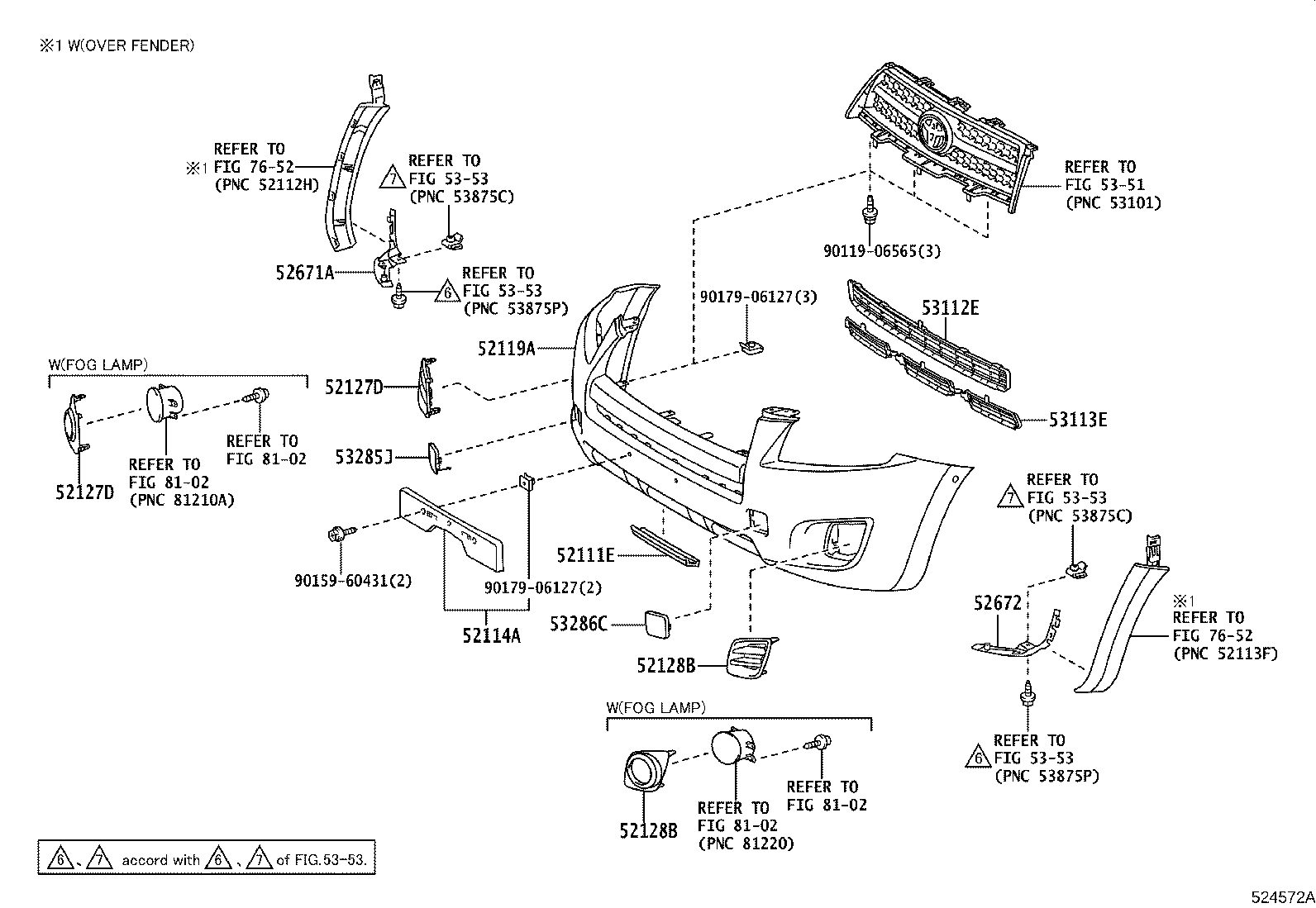

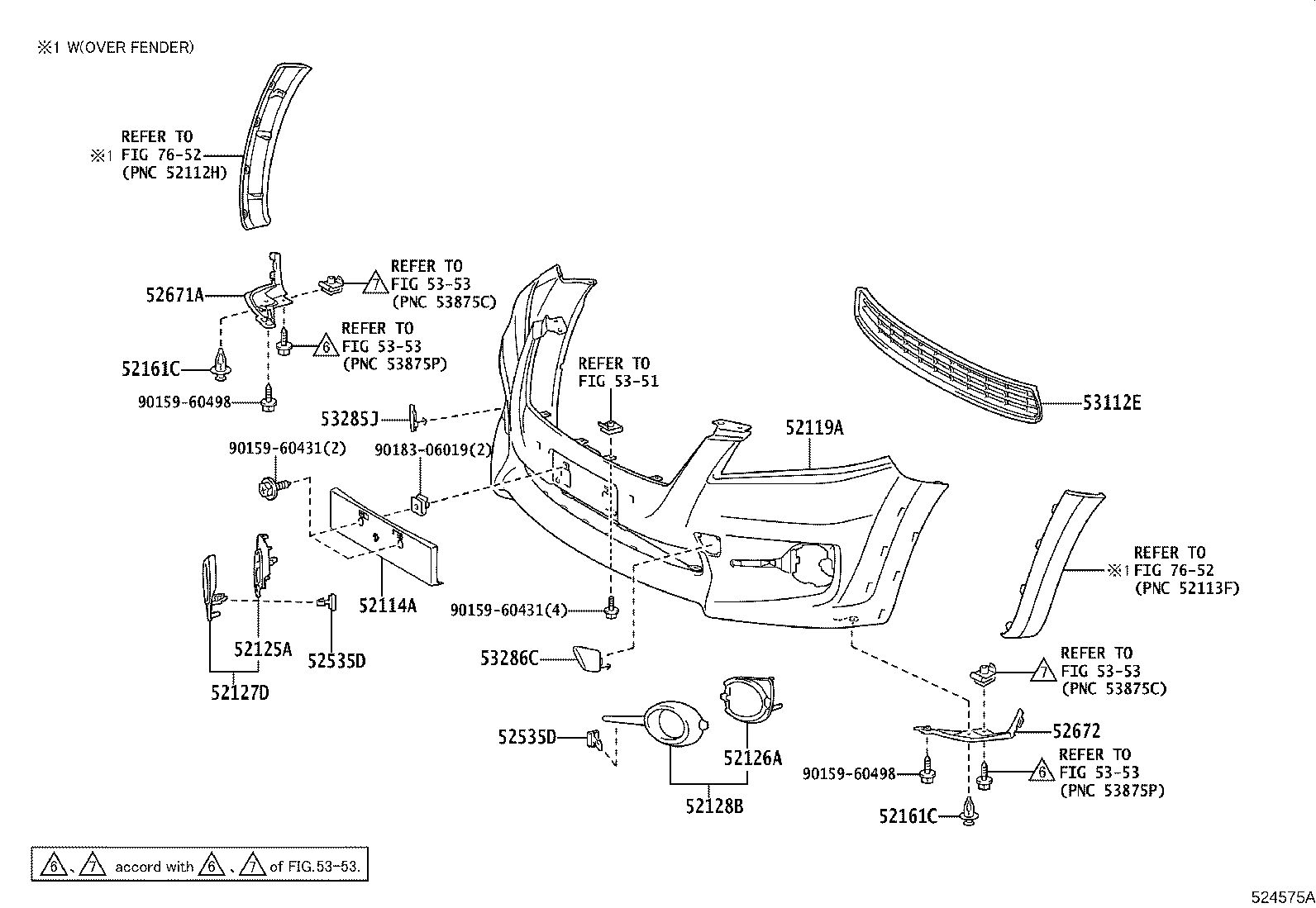

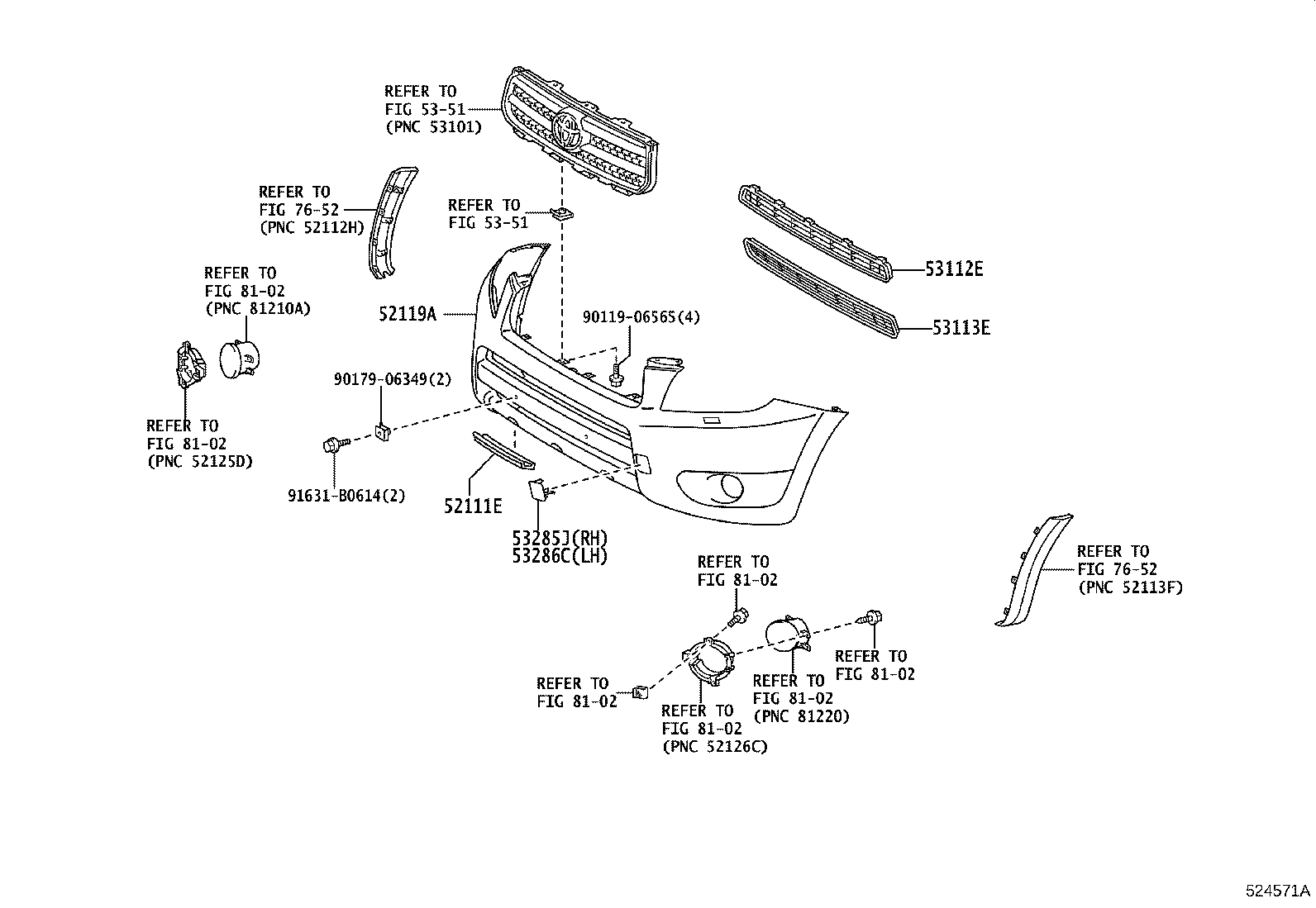

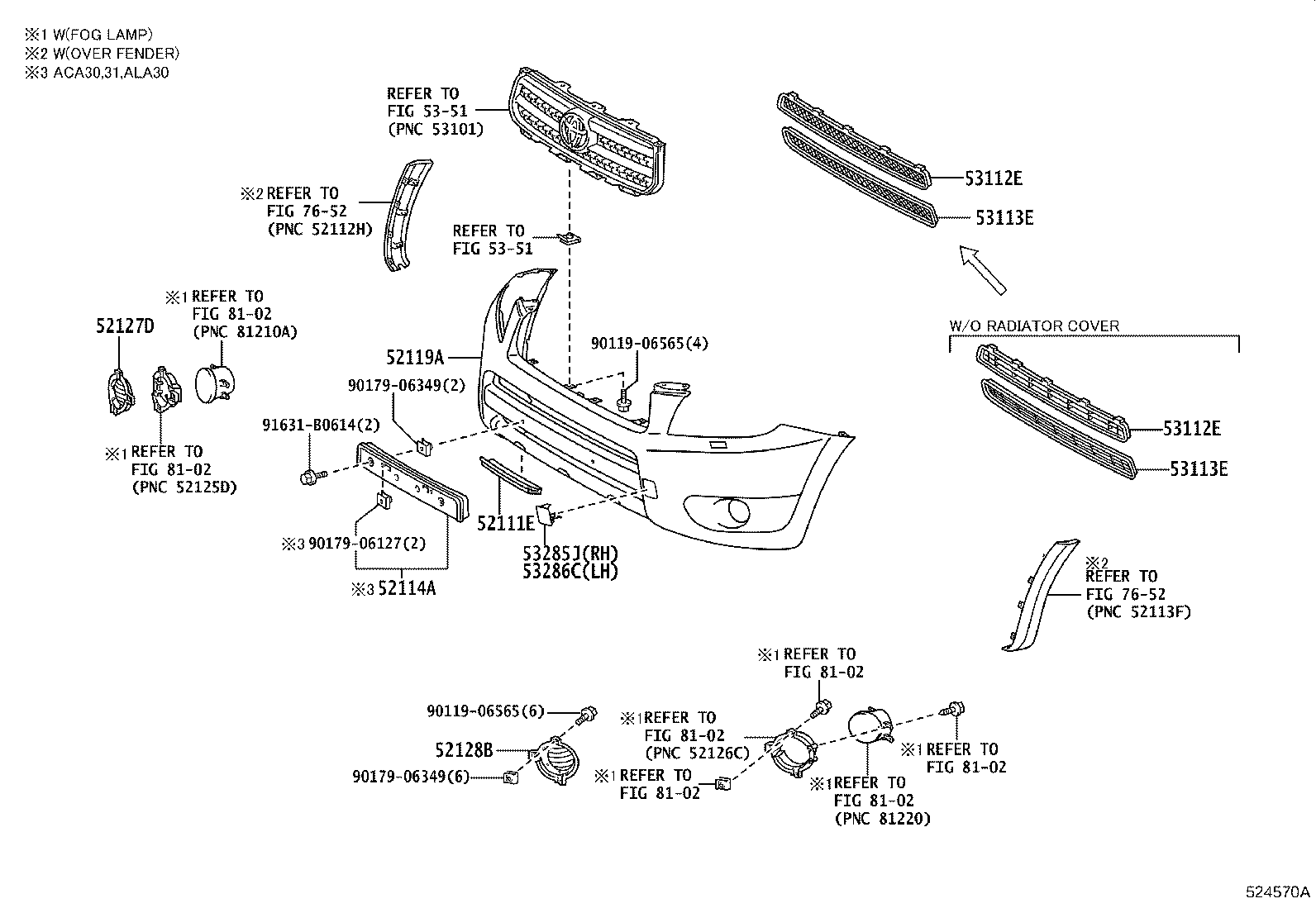

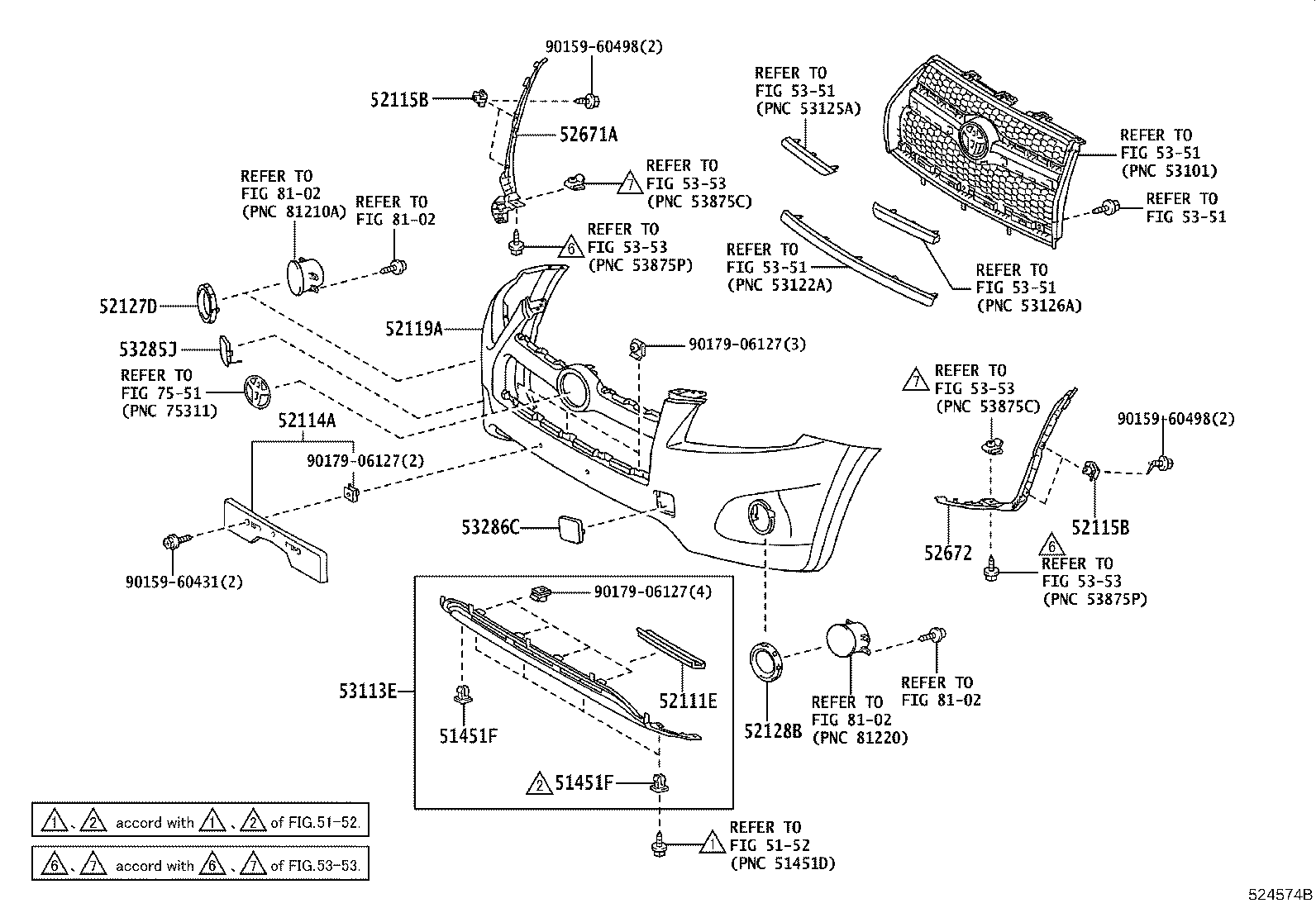

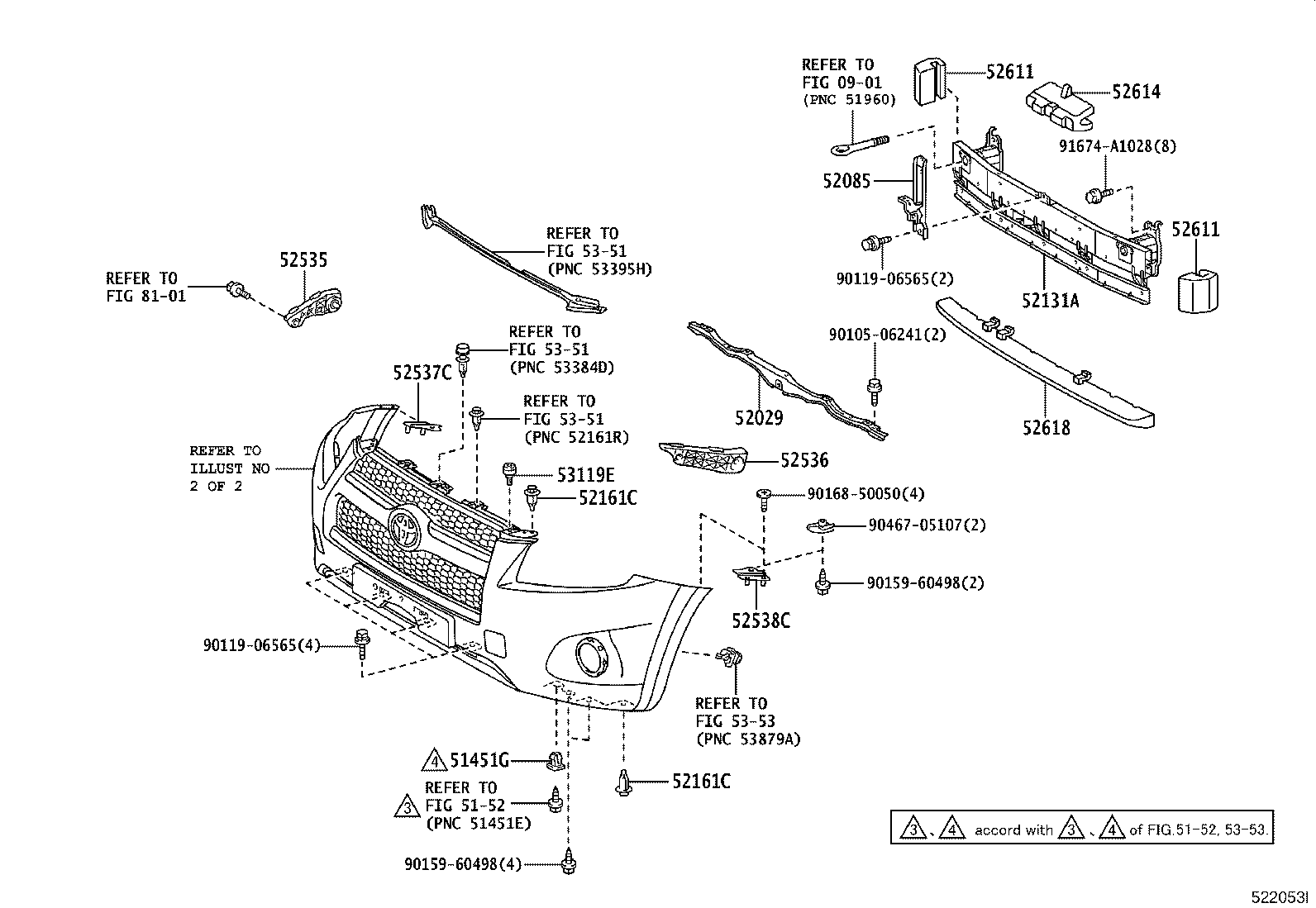

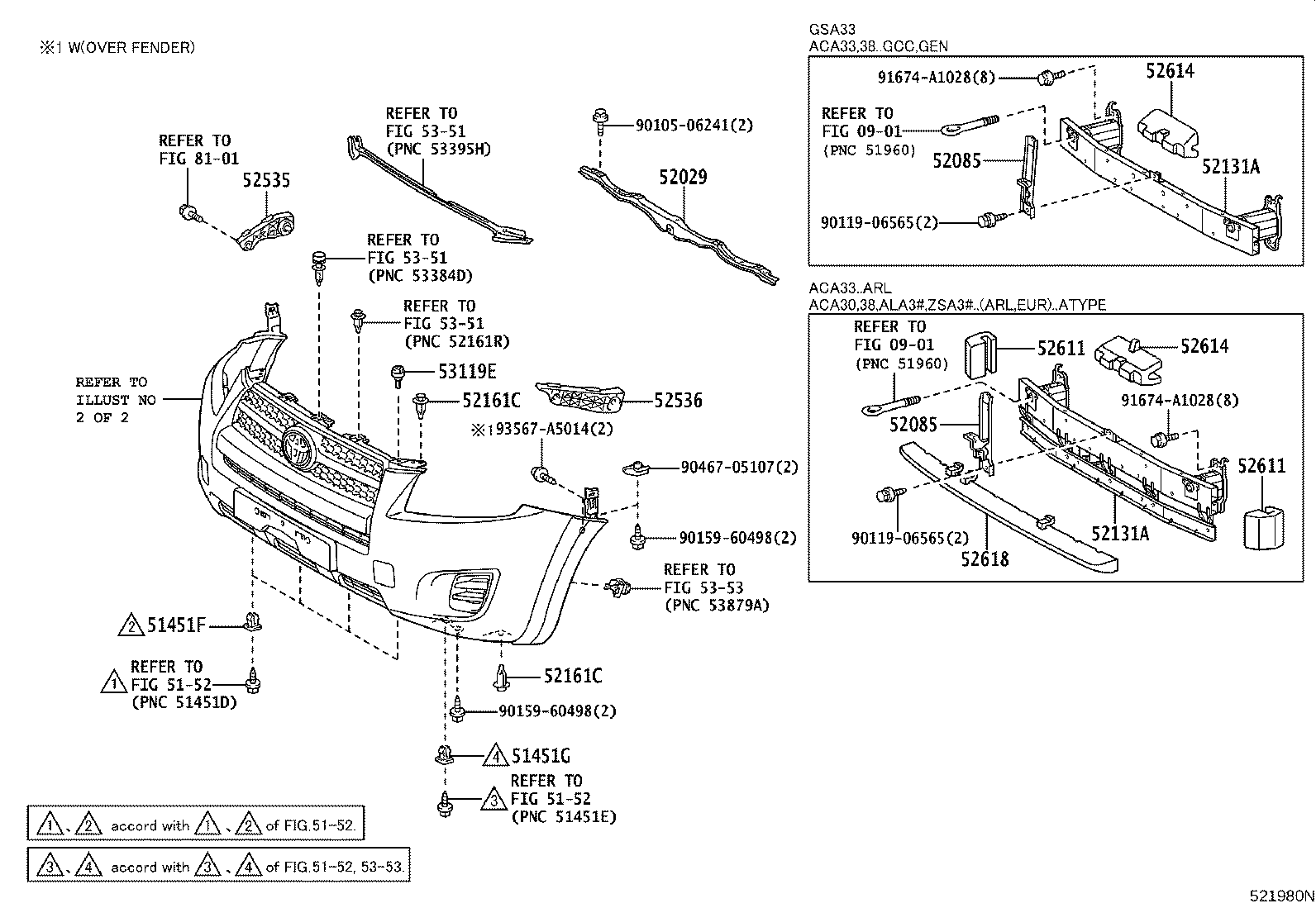

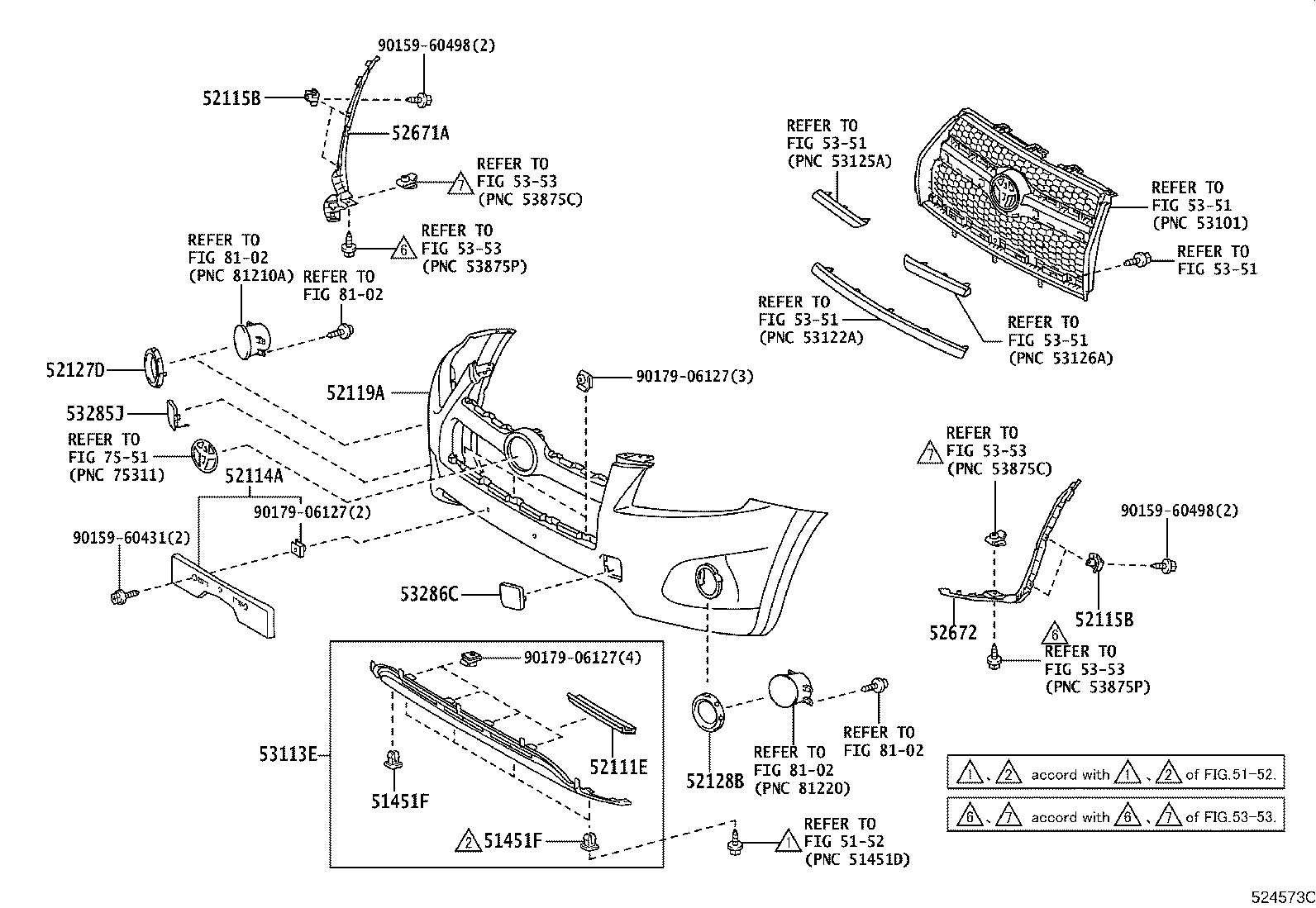

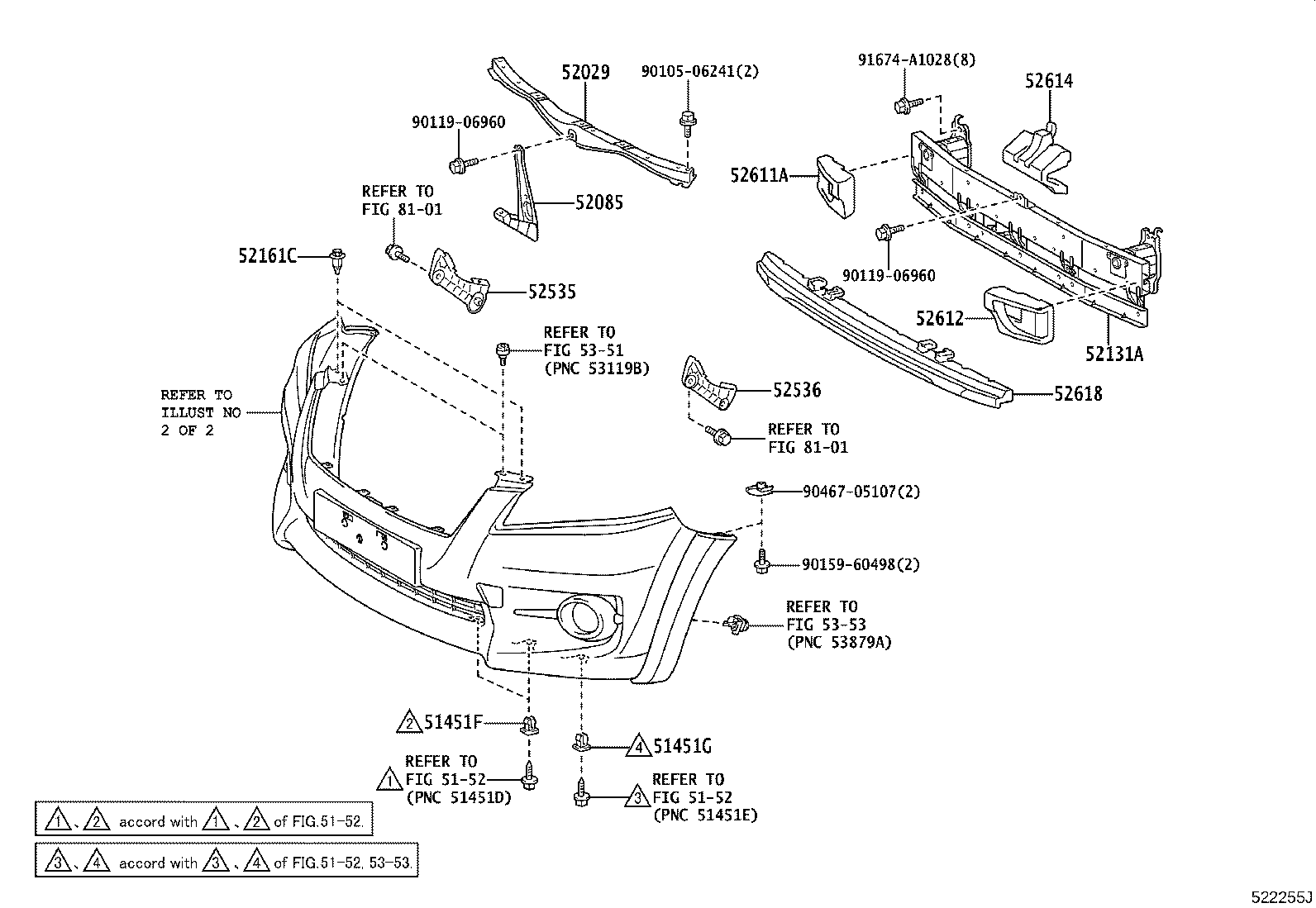

Figure 521462W 521462W 2005-11 → 2008-08 Figure 521462W 521462W 2005-11 → 2008-12 Figure 524570A 524570A 2005-11 → 2008-08 Figure 524570A 524570A 2005-11 → 2008-12 Figure 522095F 522095F 2008-08 → 2008-12 Figure 524571A 524571A 2008-08 → 2008-12 Figure 521980N 521980N 2008-08 → — Figure 521980N 521980N 2008-12 → — Figure 524572A 524572A 2008-08 → — Figure 524572A 524572A 2008-12 → — Figure 522053I 522053I 2008-12 → — Figure 524573C 524573C 2008-12 → — Figure 522054H 522054H 2008-12 → 2010-02 Figure 522054H 522054H 2010-03 → 2010-05 Figure 524574B 524574B 2008-12 → 2010-02 Figure 524574B 524574B 2010-03 → 2010-05 Figure 522255J 522255J 2010-02 → — Figure 524575A 524575A 2010-02 → —

Part groups

PNCDescription
51451F Grommet, NO.1
51451G Grommet, NO.2
52029 Reinforcement Sub-assy, Front Bumper, Upper
52085 Stay Sub-assy, Front Bumper, Center
52111E Bar, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52115B Retainer, Front Bumper Extension, NO.1
52116B Retainer, Front Bumper
52119A Cover, Front Bumper
52125A Bracket, Fog Lamp Mounting, RH
52126A Bracket, Fog Lamp Mounting, LH
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52161C Piece, Front Bumper
52535 Retainer, Front Bumper Side, RH
52535D Retainer, Front Bumper Side
52536 Retainer, Front Bumper Side, LH
52537C Retainer, Front Bumper Side, NO.2 RH
52538C Retainer, Front Bumper Side, NO.2 LH
52611 Absorber, Front Bumper Energy
52611A Absorber, Front Bumper Energy, RH
52612 Absorber, Front Bumper Energy, LH
52614 Absorber, Front Bumper Energy, NO.2
52618 Absorber, Front Bumper, Lower
52671A Extension, Front Bumper Arm, RH
52672 Extension, Front Bumper Arm, LH
53112E Grille, Radiator, Lower NO.1
53113E Grille, Radiator, Lower NO.2
53119E Protector, Radiator Grille
53285J Cover, Front Bumper Arm Hole, RH
53286C Cover, Front Bumper Arm Hole, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
