Toyota RAV4
2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe
Supported model
Data version 2013-01

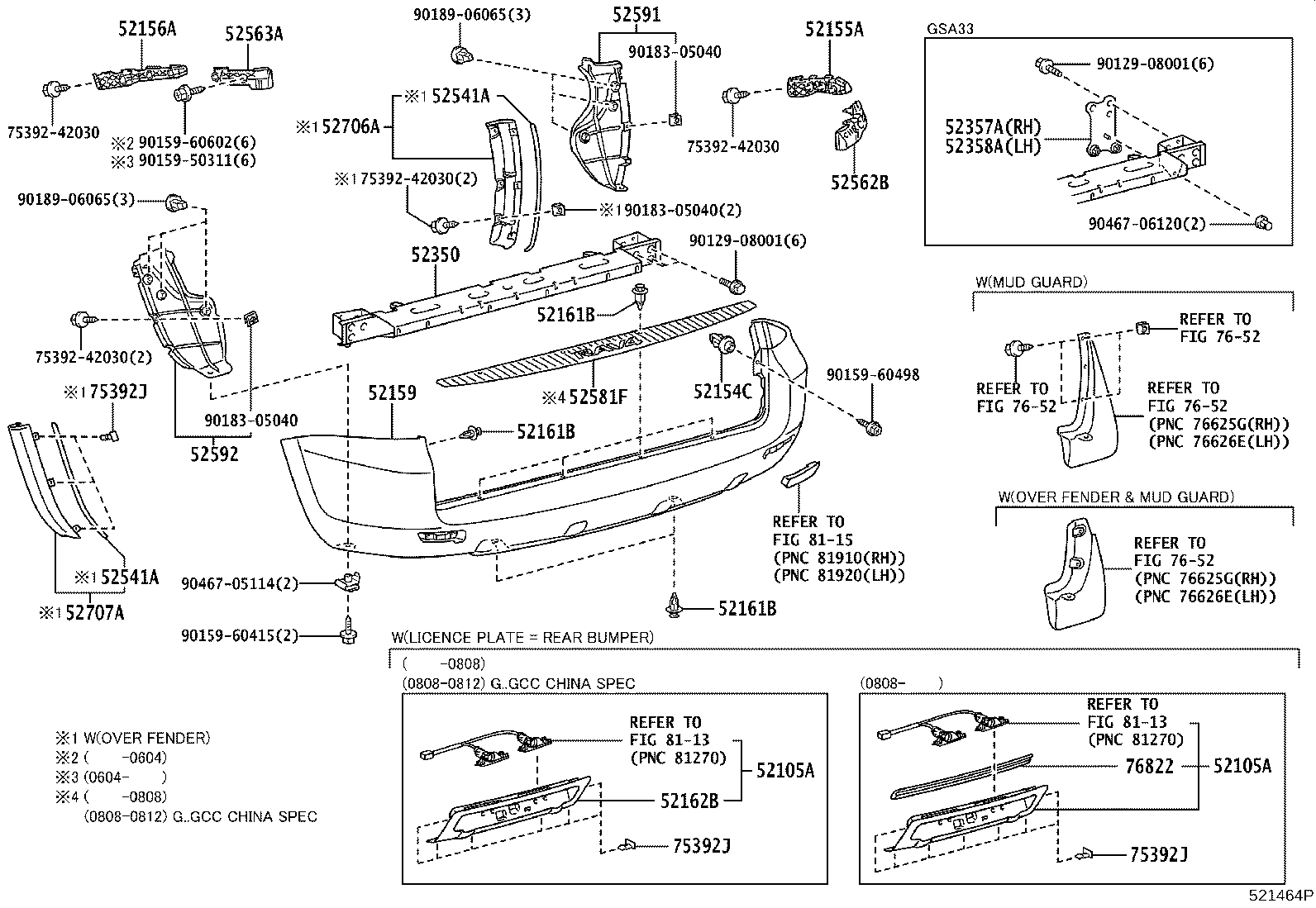

Rear Bumper & Bumper Stay
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52105A | Bumper Sub-assy, Rear Center |
| 52154C | Support, Rear Bumper, NO.1 |
| 52155A | Support, Rear Bumper Side, RH |
| 52156A | Support, Rear Bumper Side, LH |
| 52159 | Cover, Rear Bumper |
| 52161B | Piece, Rear Bumper |
| 52162B | Plate, Rear Bumper, NO.1 |
| 52171A | Reinforcement, Rear Bumper, NO.1 |
| 52350 | Step Assy, Rear Bumper |
| 52357A | Plate, Back Step, RH |
| 52358A | Plate, Back Step, LH |
| 52541A | Protector, Rear Bumper |
| 52562B | Retainer, Rear Bumper, Upper RH |
| 52563A | Retainer, Rear Bumper, Upper LH |
| 52581F | Protector, Rear Bumper |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
| 52615 | Absorber, Rear Bumper Energy |
| 52706A | Moulding Sub-assy, Rear Bumper Side, RH |
| 52707A | Moulding Sub-assy, Rear Bumper Side, LH |
| 58323H | Reinforcement, Rear Bumper Arm Support, RH |
| 58324E | Reinforcement, Rear Bumper Arm Support, LH |
| 75392J | Retainer, Outside Moulding |
| 76822 | Protector, Back Door Garnish Moulding, Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
