Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

9 part groups · 9 illustrations

Illustrations

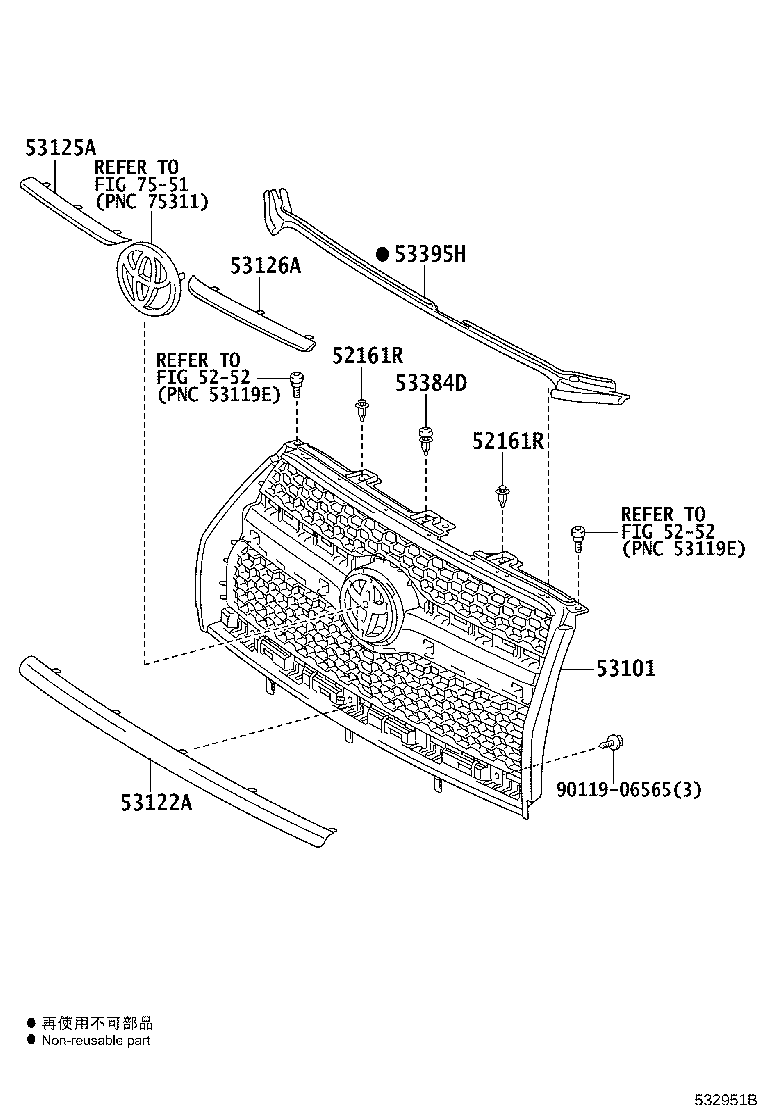

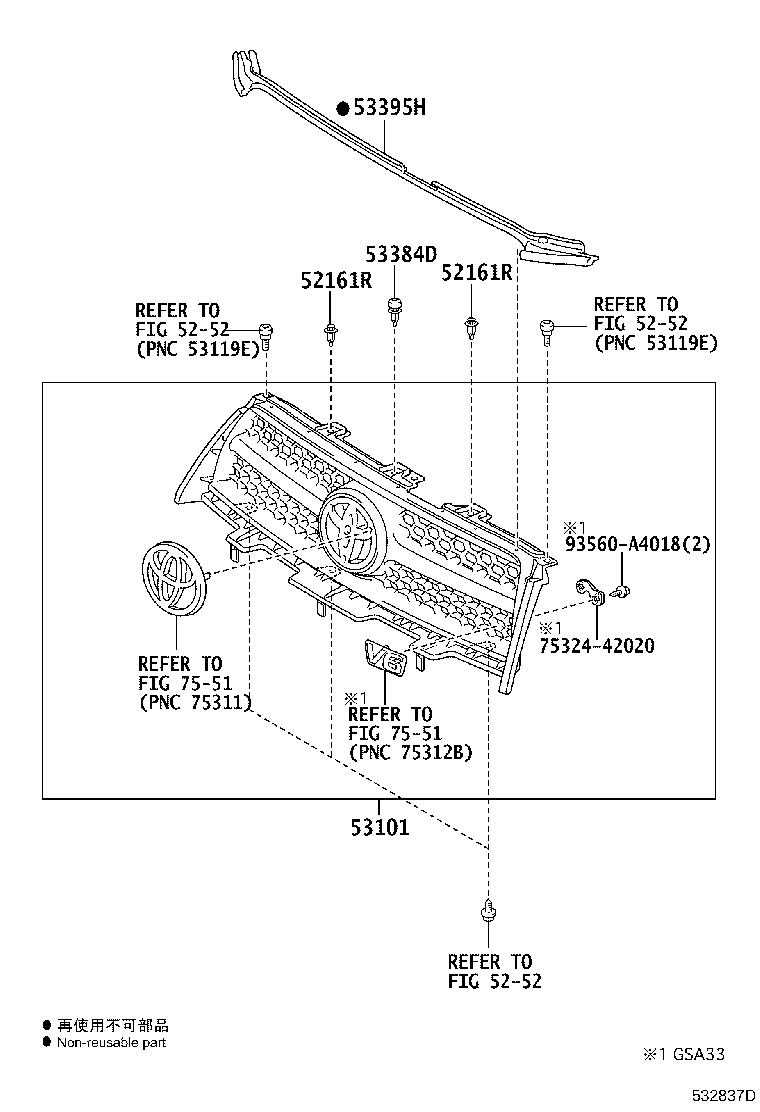

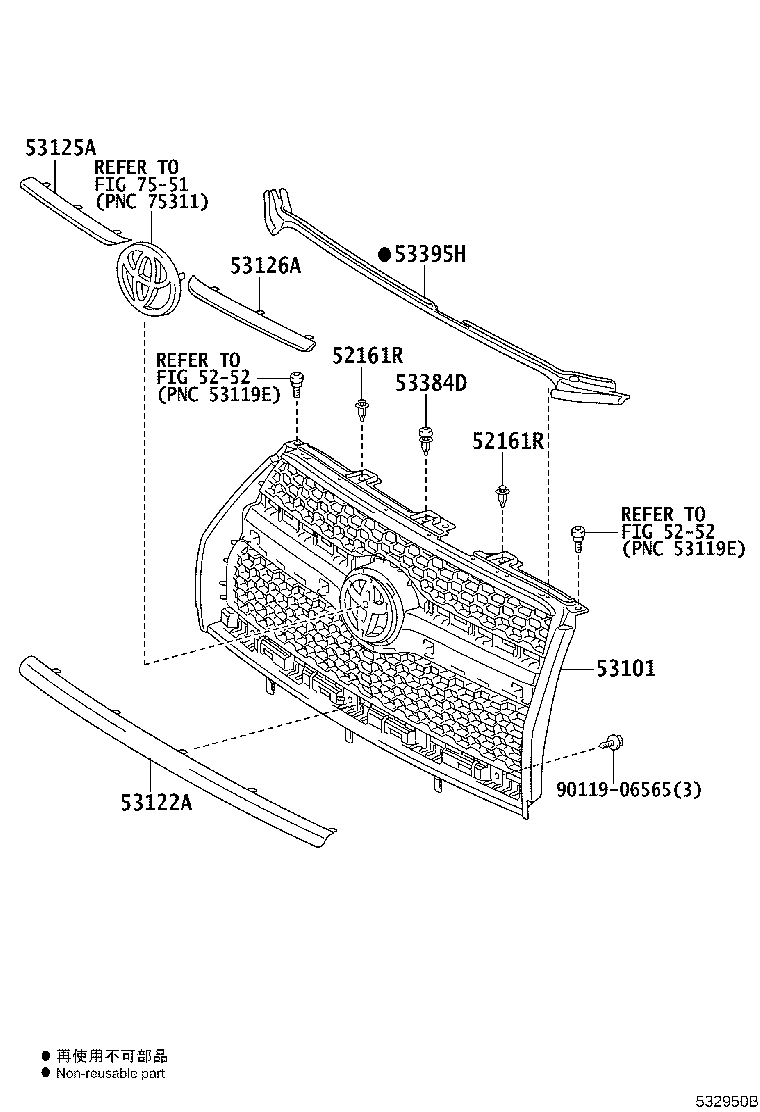

Figure 532648F 532648F 2005-11 → 2008-08 Figure 532648F 532648F 2005-11 → 2008-12 Figure 533022A 533022A 2008-08 → 2008-12 Figure 532837D 532837D 2008-08 → — Figure 532837D 532837D 2008-12 → — Figure 532950B 532950B 2008-12 → — Figure 532951B 532951B 2008-12 → 2010-02 Figure 532951B 532951B 2010-03 → 2010-05 Figure 533232A 533232A 2010-02 → —

Part groups

PNCDescription
52161R Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53119B Protector, Radiator Grille
53122A Moulding, Radiator Grille, Lower
53125A Moulding, Radiator Grille, Center RH
53126A Moulding, Radiator Grille, Center LH
53384D Cushion, Hood, Center
53395H Seal, Hood TO Radiator Grille
75317A Plate, Radiator Grille Ornament
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
