Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01

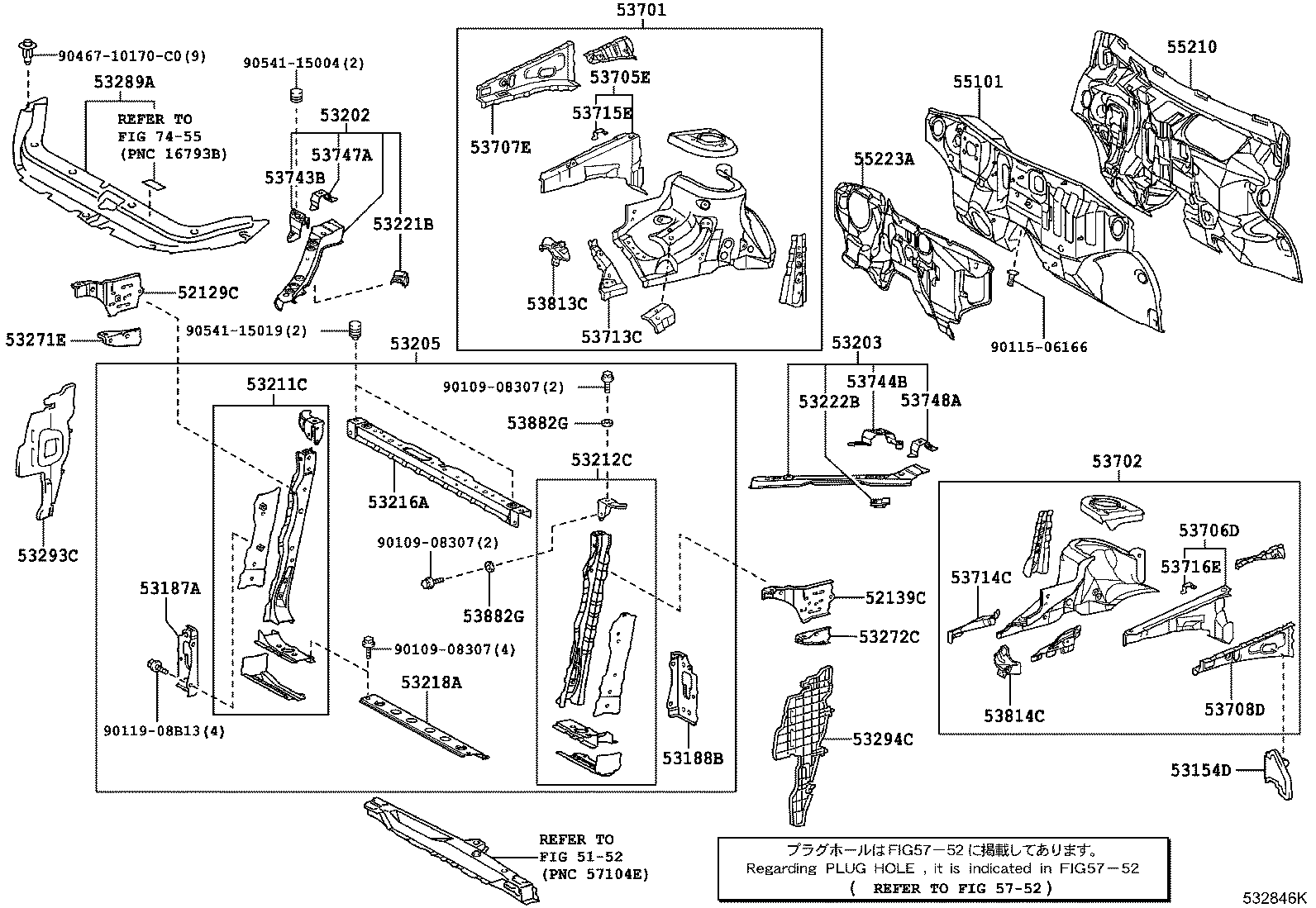

Front Fender Apron & Dash Panel

39 part groups · 2 illustrations

PNC	Description
52129C	Arm, Front Bumper, Upper NO.2 RH
52139C	Arm, Front Bumper, Upper NO.2 LH
53154D	Guide, Radiator Grille Side Air, LH
53187A	Stay, Radiator Support, RH
53188B	Stay, Radiator Support, LH
53202	Support Sub-assy, Radiator, RH
53203	Support Sub-assy, Radiator, LH
53205	Support Sub-assy, Radiator, Upper
53211C	Support, Radiator, RH
53212C	Support, Radiator, LH
53216A	Support, Radiator, Upper
53218A	Support, Radiator, Lower
53221B	Brace, Radiator Support Apron, RH
53222B	Brace, Radiator Support Apron, LH
53271E	Bracket, Headlamp Mounting, RH
53272C	Bracket, Headlamp Mounting, LH
53289A	Cover, Radiator Support Opening
53293C	Deflector, Radiator Side, RH
53294C	Deflector, Radiator Side, LH
53701	Apron Sub-assy, Front Fender, RH
53702	Apron Sub-assy, Front Fender, LH
53705E	Member Sub-assy, Front Apron TO Cowl Side, RH
53706D	Member Sub-assy, Front Apron TO Cowl Side, LH
53707E	Apron Sub-assy, Fender Side, RH
53708D	Apron Sub-assy, Fender Side, LH
53713C	Extension, Front Fender Apron, Front RH
53714C	Extension, Front Fender Apron, Front LH
53715E	Extension, Front Fender Apron, Rear RH
53716E	Extension, Front Fender Apron, Rear LH
53743B	Reinforcement, Front Fender Apron, Front RH
53744B	Reinforcement, Front Fender Apron, Front LH
53747A	Extension, Apron Fender Side, RH
53748A	Extension, Apron Fender Side, LH
53813C	Extension, Front Fender, RH
53814C	Extension, Front Fender, LH
53882G	Seal, Front Fender
55101	Panel Sub-assy, Dash
55210	Insulator Assy, Dash Panel
55223A	Insulator, Dash Panel, Outer

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
