Toyota RAV4
2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe
Supported model
Data version 2013-01

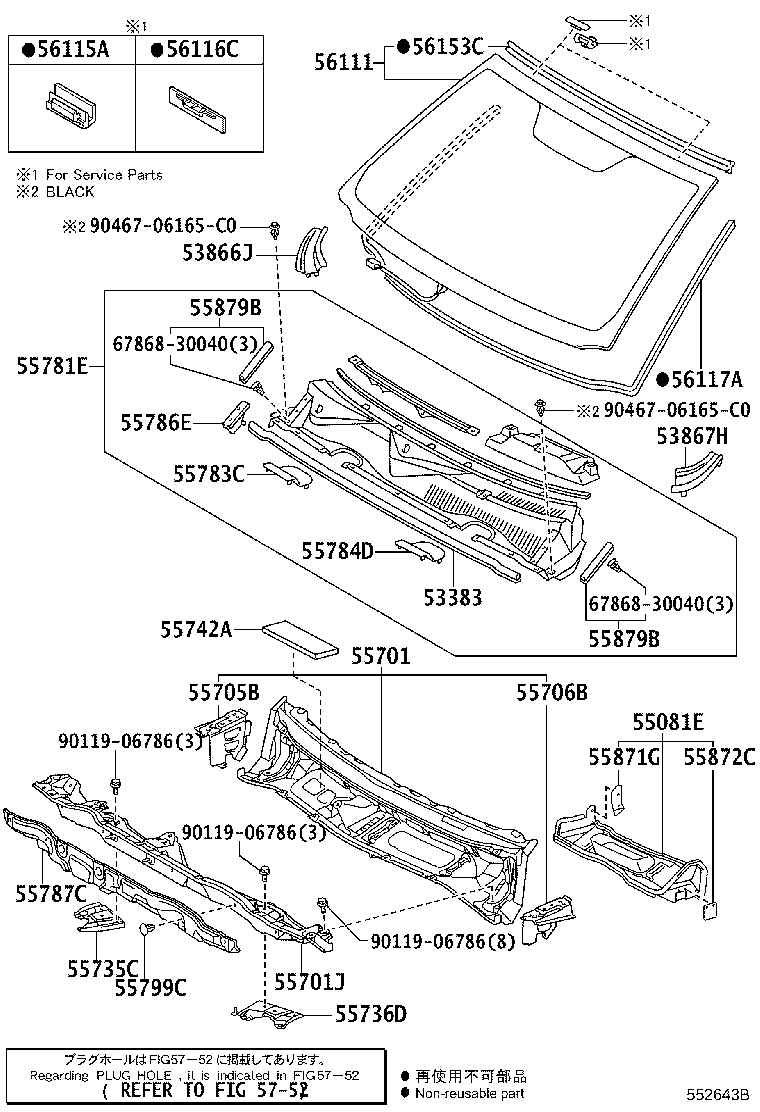

Cowl Panel & Windshield Glass
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53383 | Seal, Hood TO Cowl Top |
| 53866J | Seal, Front Fender TO Cowl Side, RH |
| 53867H | Seal, Front Fender TO Cowl Side, LH |
| 55081E | Housing Sub-assy, Cowl Ventilator |
| 55701 | Panel Sub-assy, Cowl |
| 55701J | Panel Sub-assy, Cowl Top, Outer |
| 55705B | Panel Sub-assy, Cowl Top Side, RH |
| 55706B | Panel Sub-assy, Cowl Top Side, LH |
| 55735C | Reinforcement, Cowl Body Mounting, RH |
| 55736D | Reinforcement, Cowl Body Mounting, LH |
| 55742A | Sheet, Cowl Top Insulator |
| 55781E | Louver Sub-assy, Cowl Top Ventilator |
| 55783C | Bracket, Cowl Top Ventilator Louver, RH |
| 55784D | Bracket, Cowl Top Ventilator Louver, LH |
| 55786E | Plate, Cowl Top Ventilator Louver |
| 55787C | Insulator, Cowl Top Panel, NO.1 |
| 55799C | Clip, Cowl Top Ventilator Louver |
| 55871G | Seal, Air Duct, NO.1 |
| 55872C | Seal, Air Duct, NO.2 |
| 55879B | Seal, Cowl Vent |
| 56111 | Glass, Windshield |
| 56115A | Stopper, Windshield Glass, NO.1 |
| 56116C | Stopper, Windshield Glass, NO.2 |
| 56117A | Dam, Window Glass Adhesive |
| 56153C | Moulding, Front Window, Inner Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
