Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

13 part groups · 4 illustrations

Illustrations

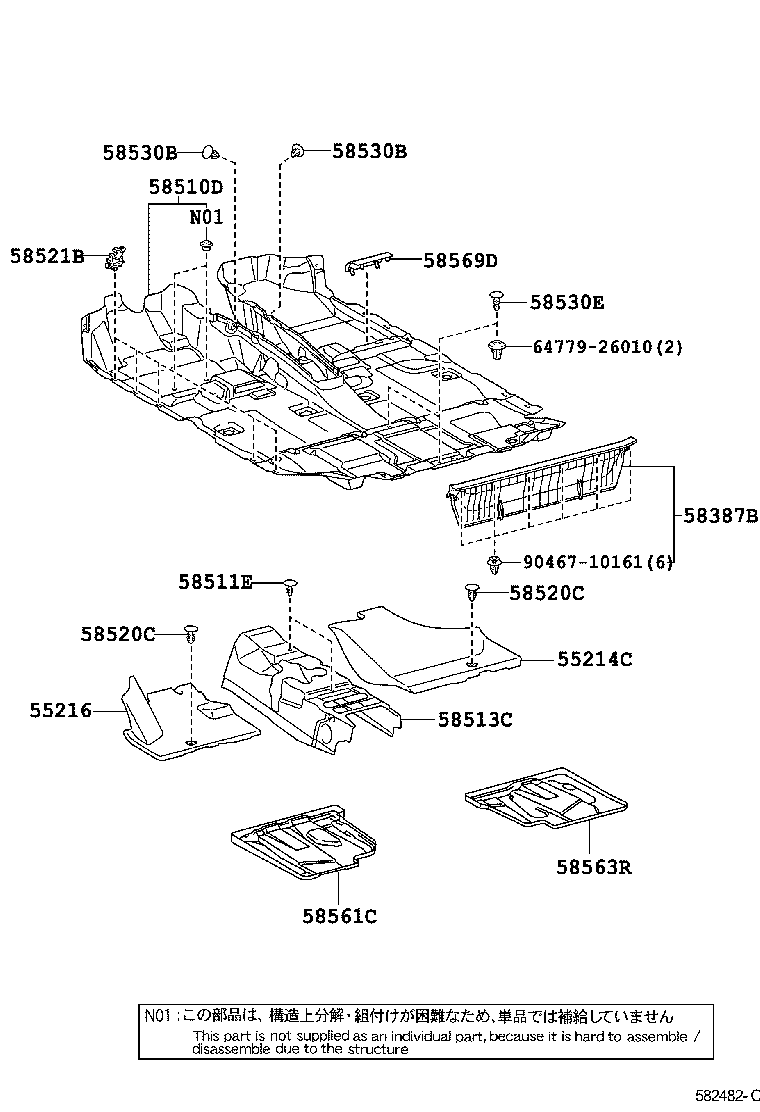

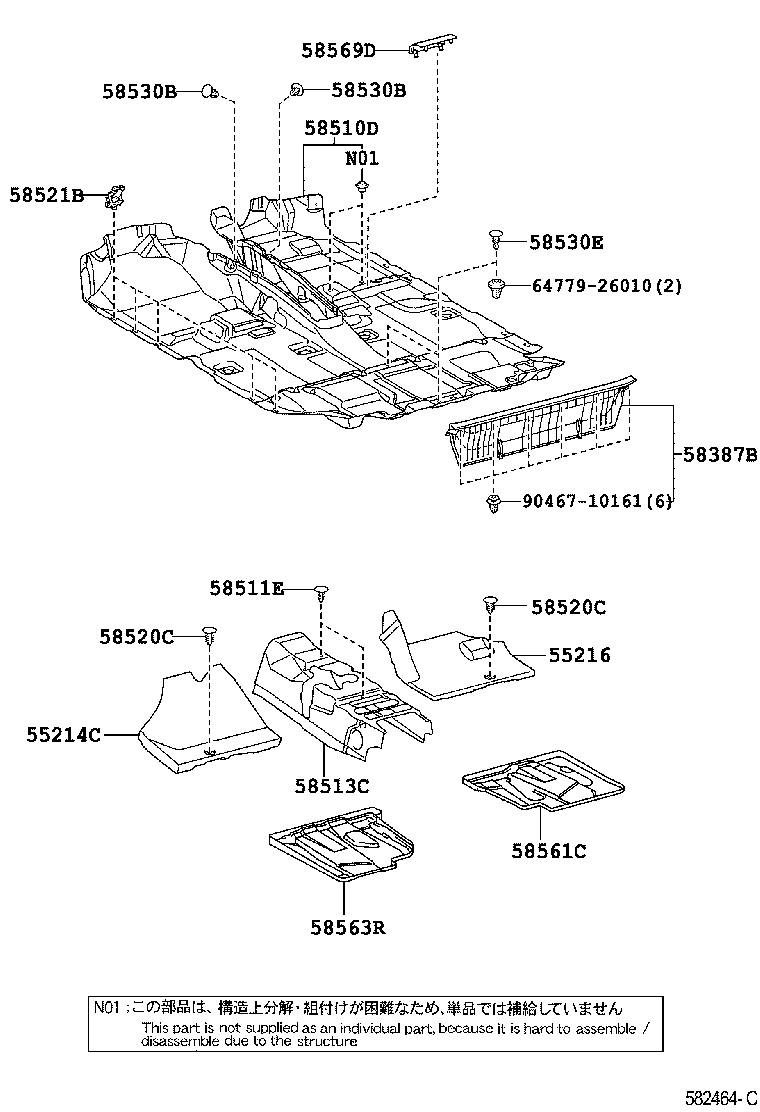

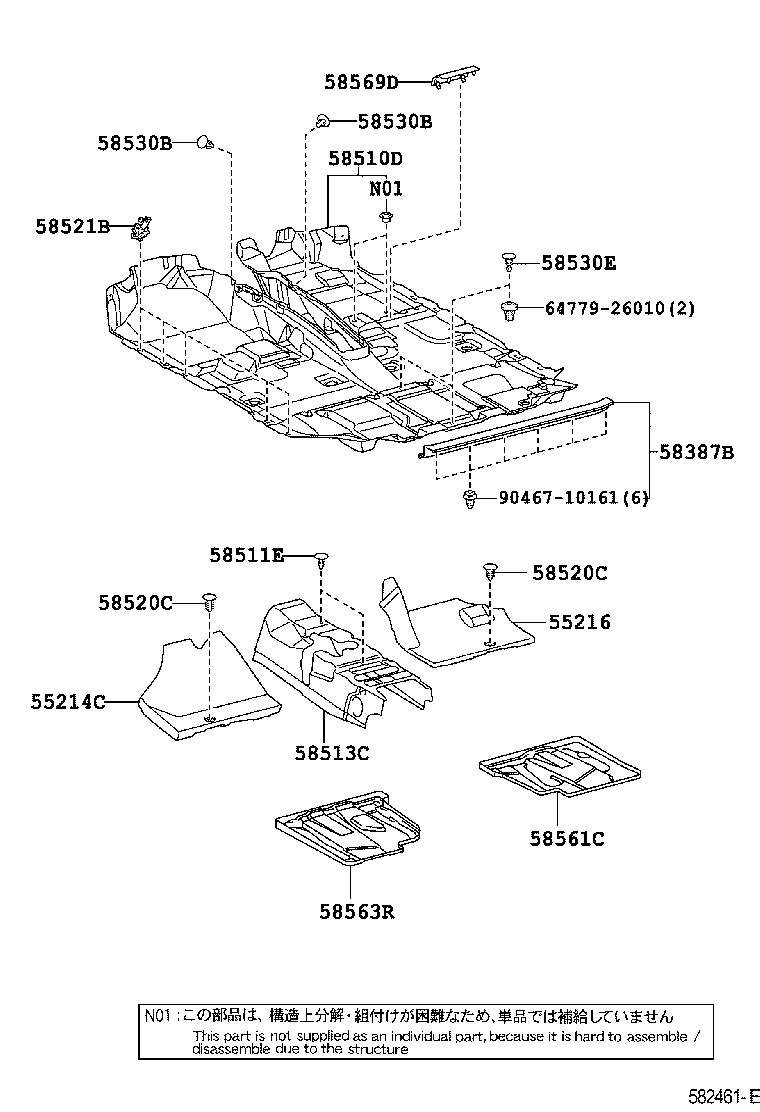

Figure 582463C 582463C 2005-11 → — Figure 582482C 582482C 2005-11 → — Figure 582461E 582461E 2005-11 → — Figure 582464C 582464C 2005-11 → —

Part groups

PNCDescription
55214C Pad, Dash Panel Insulator, NO.2
55216 Pad, Dash Panel Insulator, NO.4
58387B Plate, Rear Floor Finish
58510D Carpet Assy, Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58513C Mat, Floor, Front Center
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58530B Clip(FOR FRONT FLOOR CARPET)
58530E Clip(FOR FRONT FLOOR REAR CARPET)
58561C Silencer, Front Floor, NO.1
58563R Silencer, Front Floor, NO.3
58569D Cover, Front Floor Caution Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
