Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

20 part groups · 2 illustrations

Illustrations

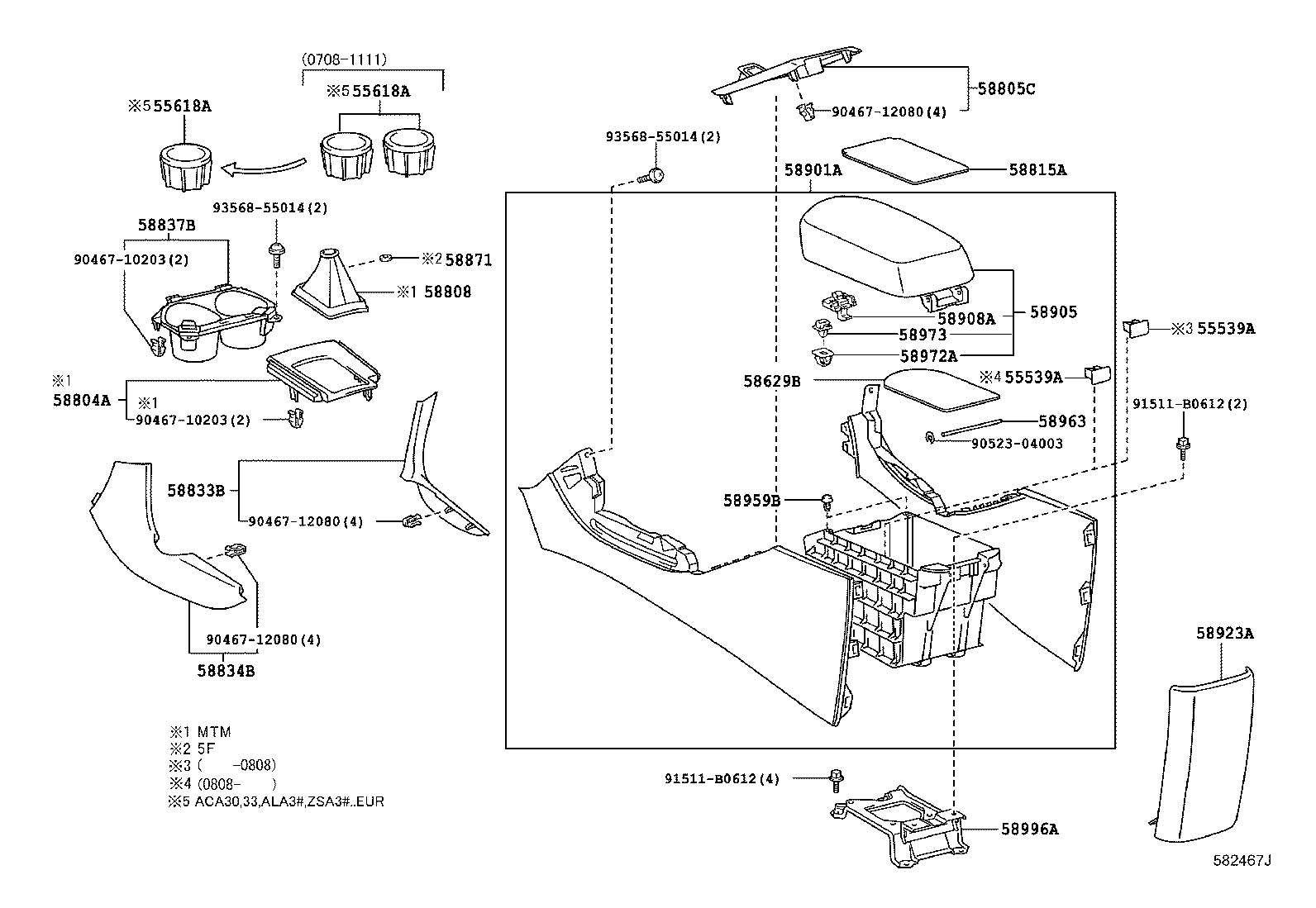

Figure 582466J 582466J 2005-11 → — Figure 582467J 582467J 2005-11 → —

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
55618A Holder, Console Box Cup
58629B Mat, Center Console
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58808 Cover Sub-assy, Shifting Hole
58815A Carpet, Console Box
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58837B Box, Console Cup Holder
58871 Cushion, Console Box
58901A Box Sub-assy, Console, Rear
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58923A Panel, Console Rear End
58959B Cushion, Console Compartment Door
58963 Shaft, Console Compartment Door Hinge
58972A Base, Console Compartment Door Lock
58973 Pin, Console Compartment Door Lock
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
