Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

18 part groups · 4 illustrations

Illustrations

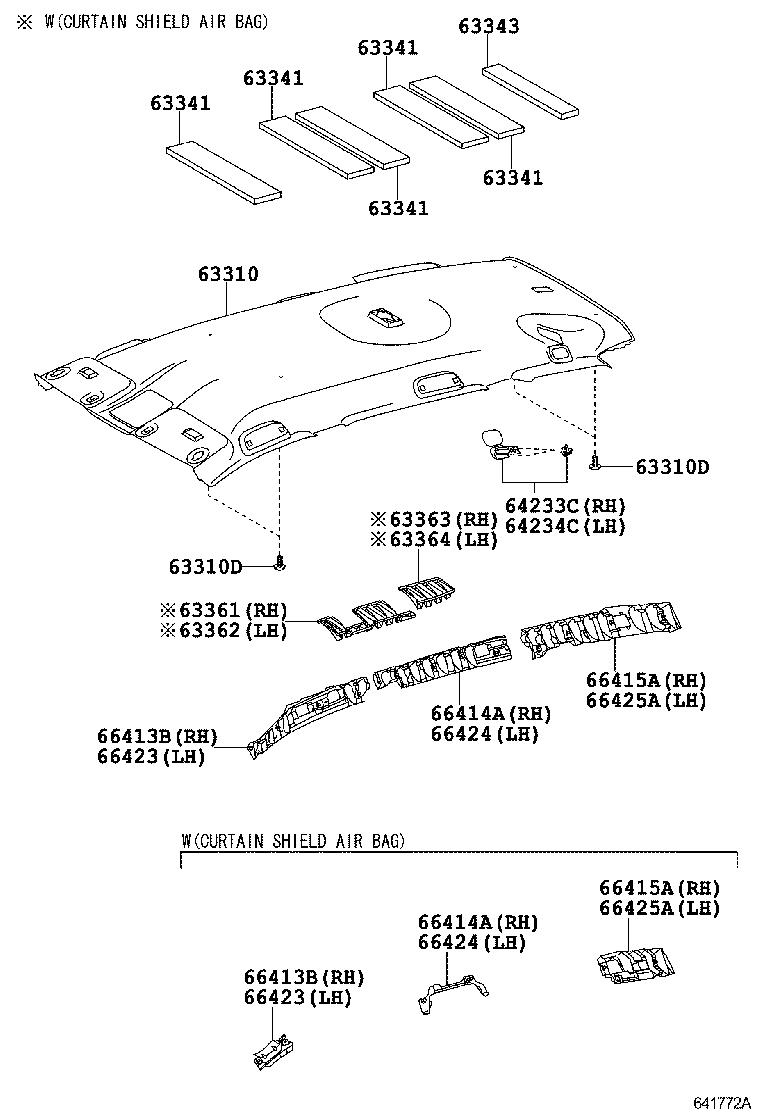

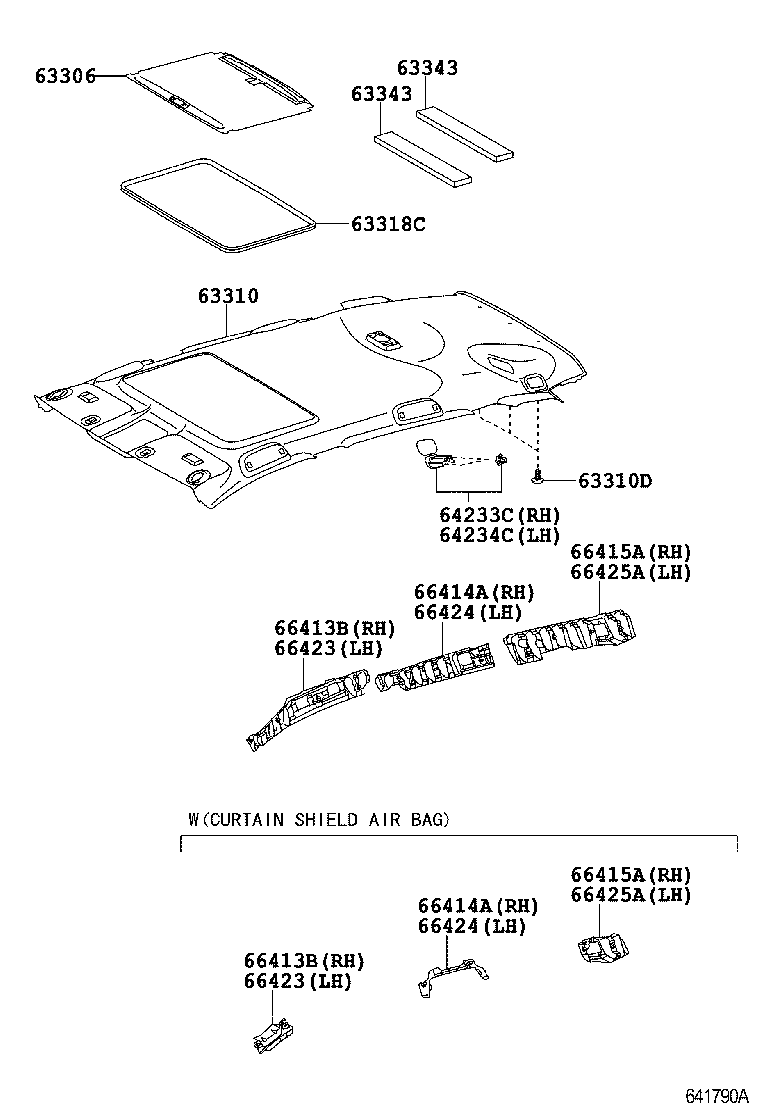

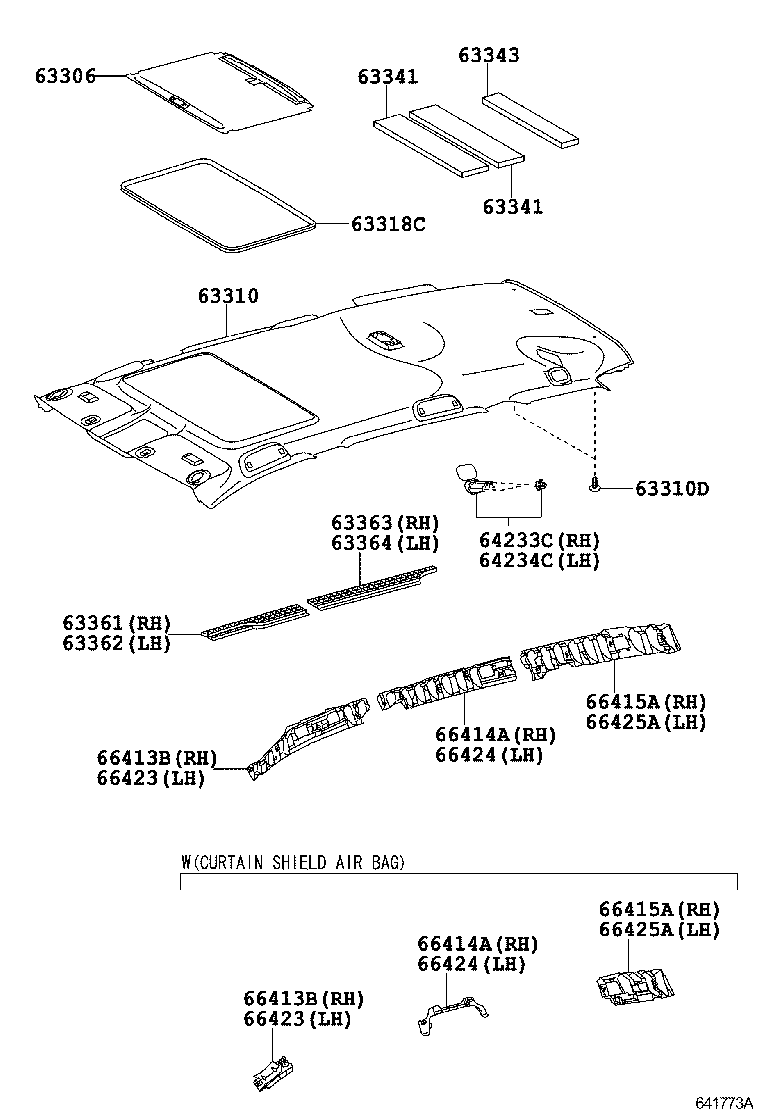

Figure 641789A 641789A 2005-11 → — Figure 641790A 641790A 2005-11 → — Figure 641772A 641772A 2005-11 → — Figure 641773A 641773A 2005-11 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63318C Moulding, Sun Roof Opening Trim
63341 Pad, Roof Silencer, NO.1
63343 Pad, Roof Silencer, NO.3
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63364 Support, Roof Headlining, NO.4
64233C Hook, Room Partition Net, Rear RH
64234C Hook, Room Partition Net, Rear LH
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66415A Spacer, Side Rail, Rear NO.2 RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
66425A Spacer, Side Rail, Rear NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
