Seat & Seat Track

133 part groups · 51 illustrations

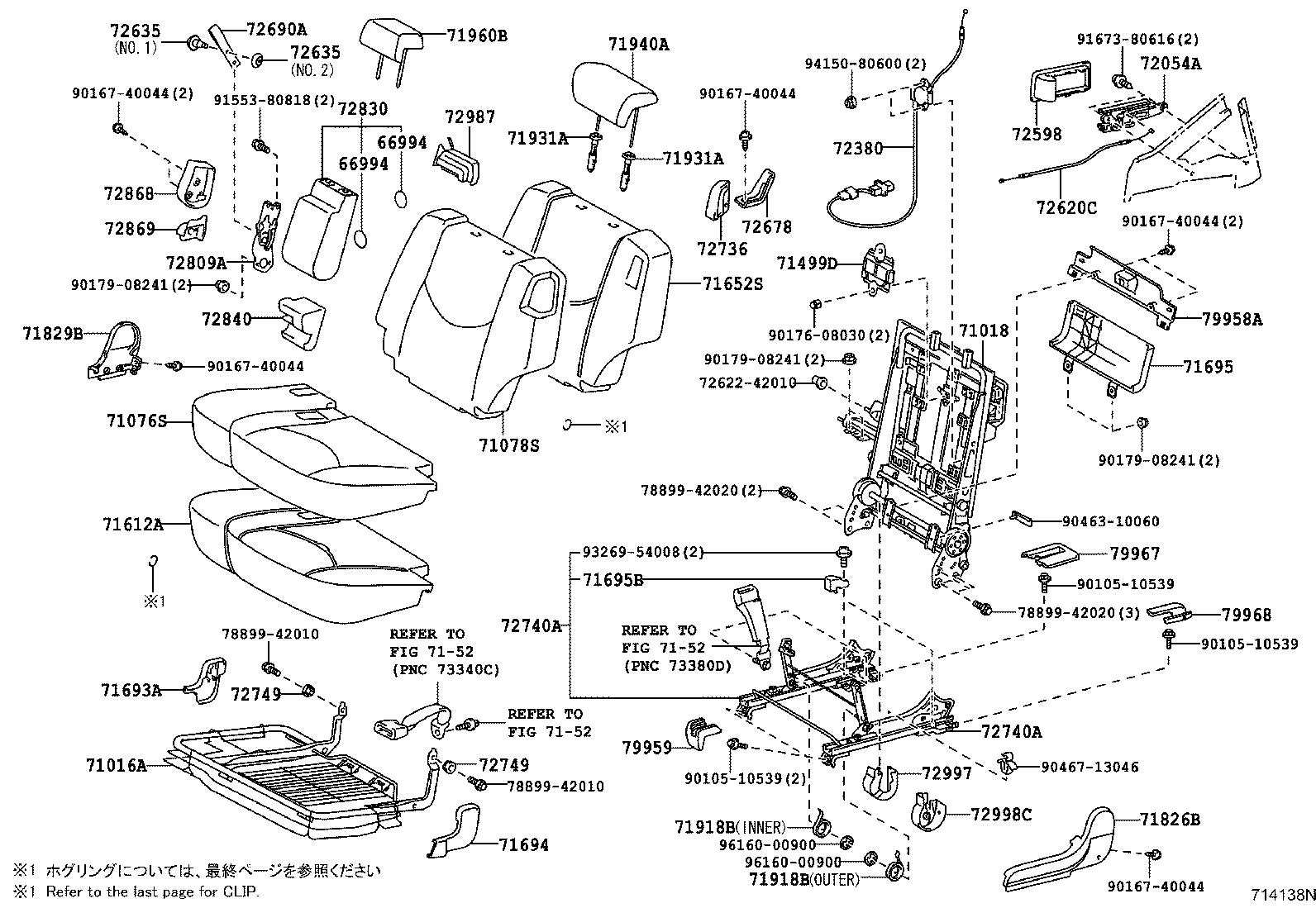

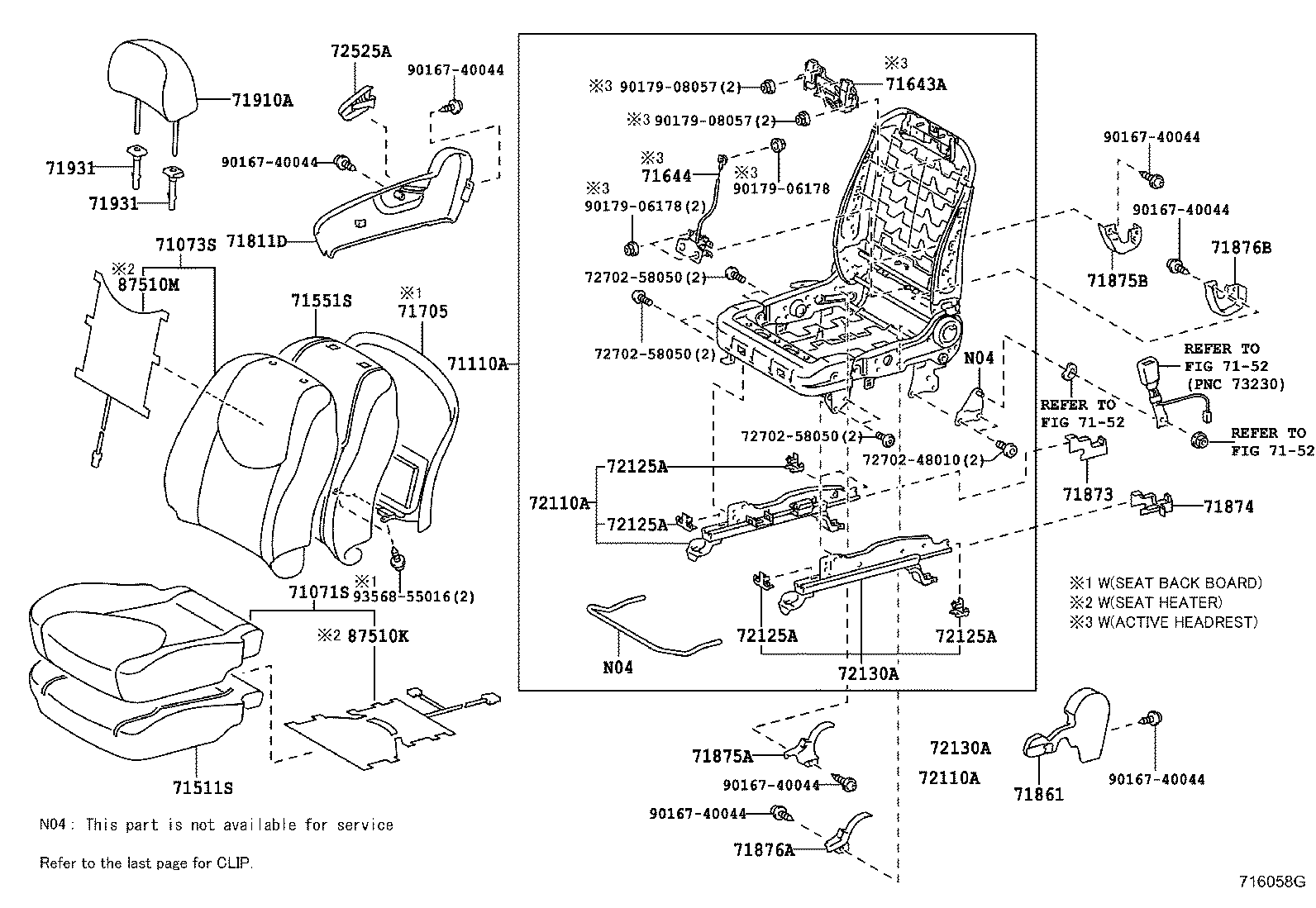

Illustrations

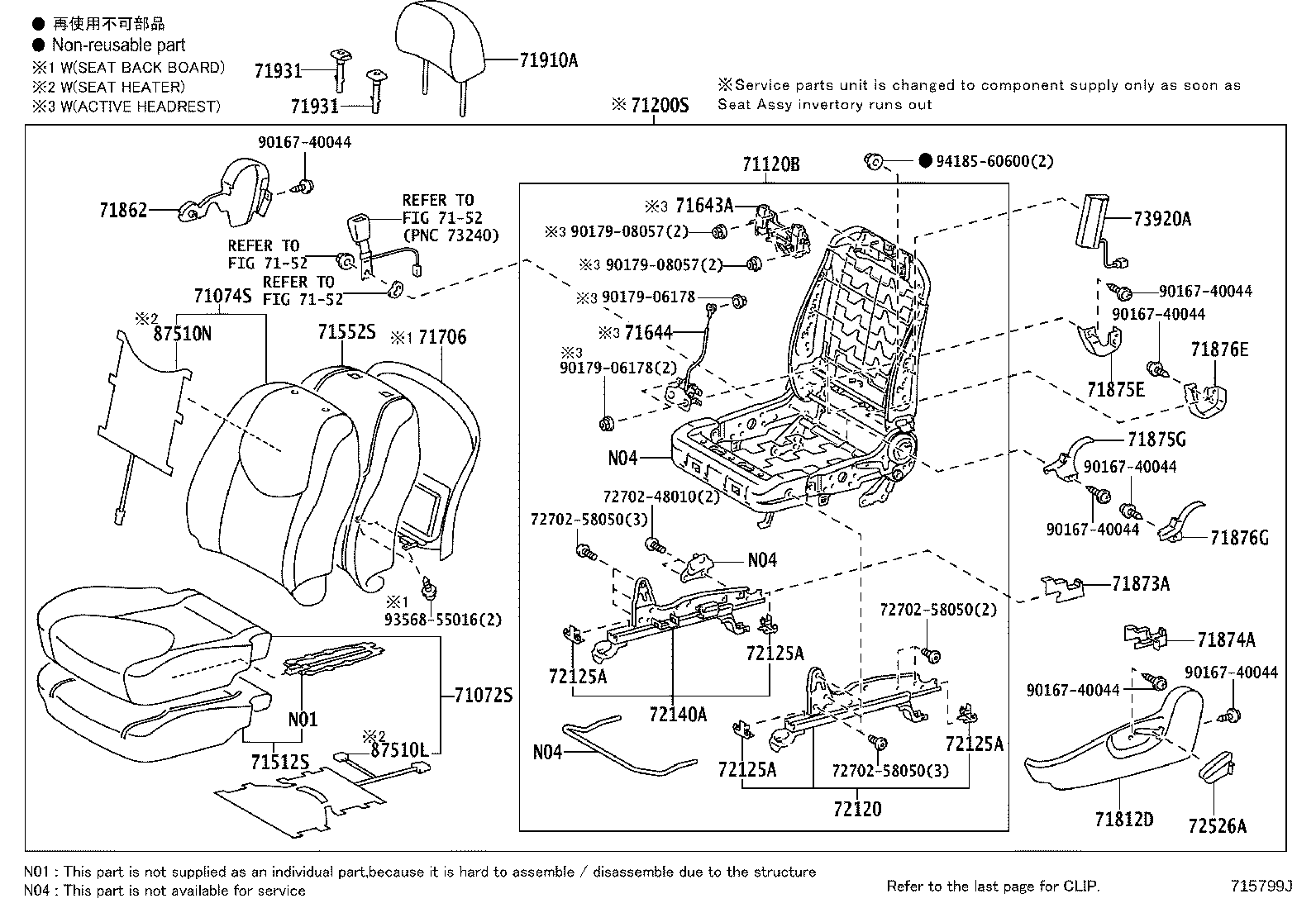

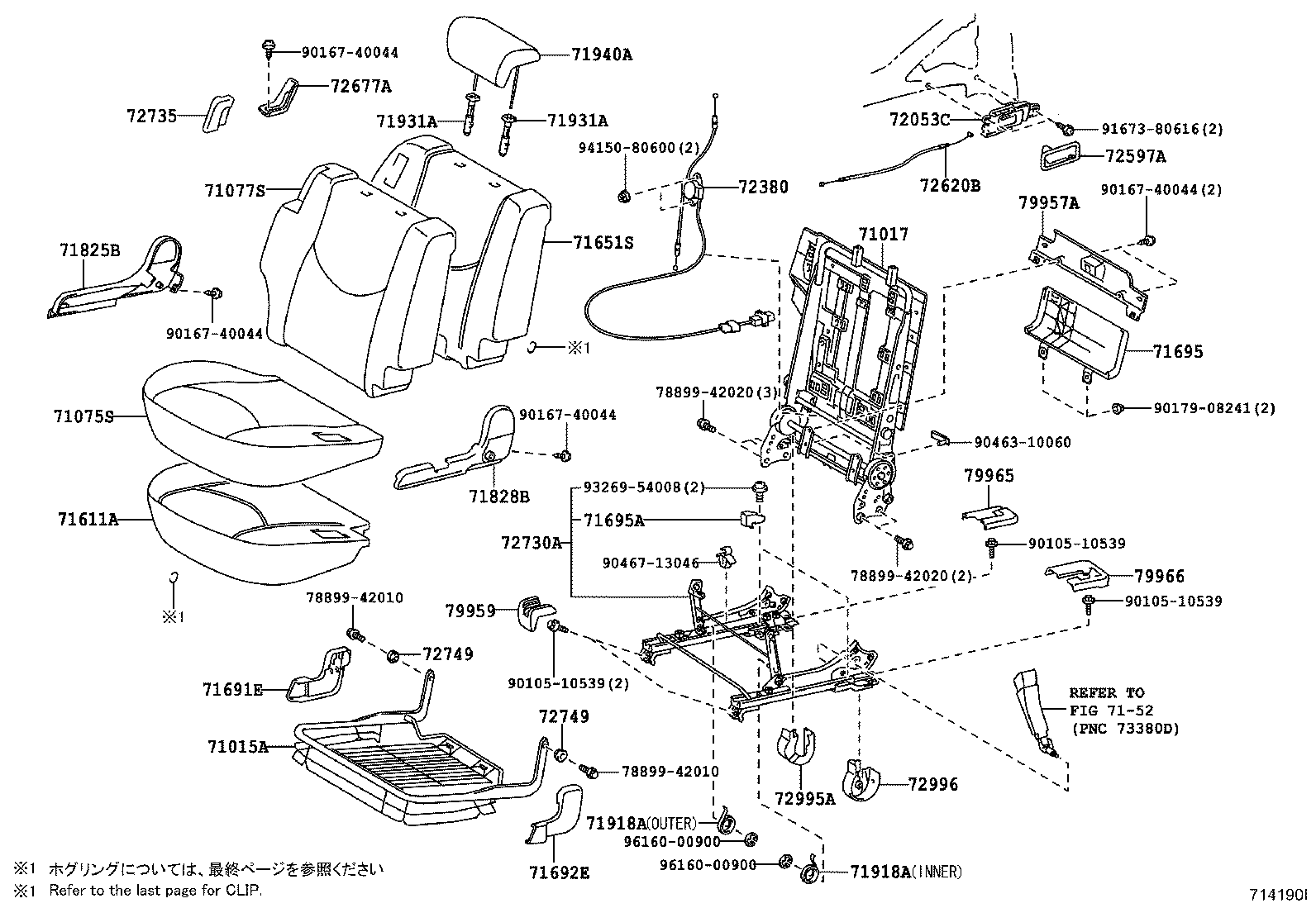

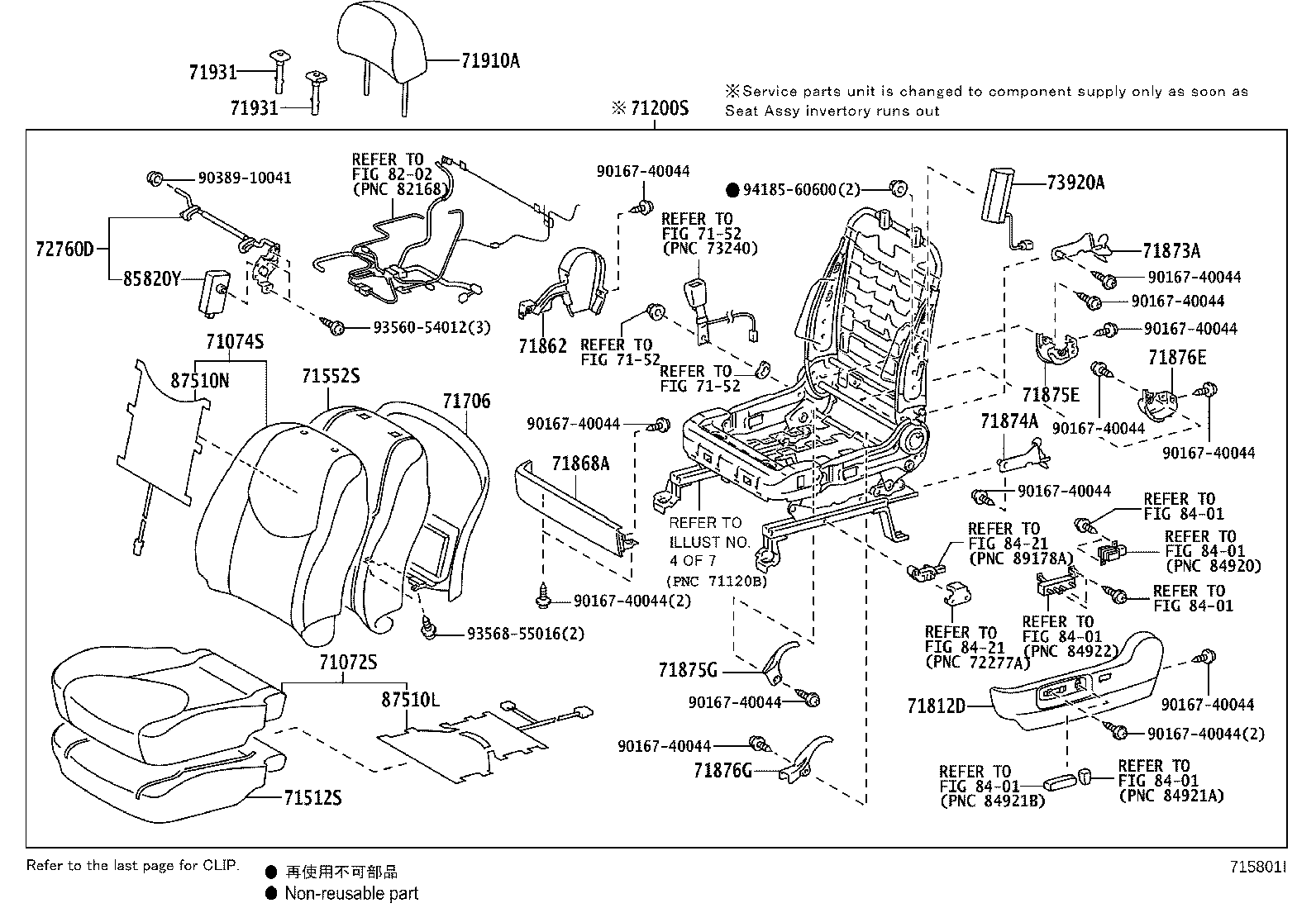

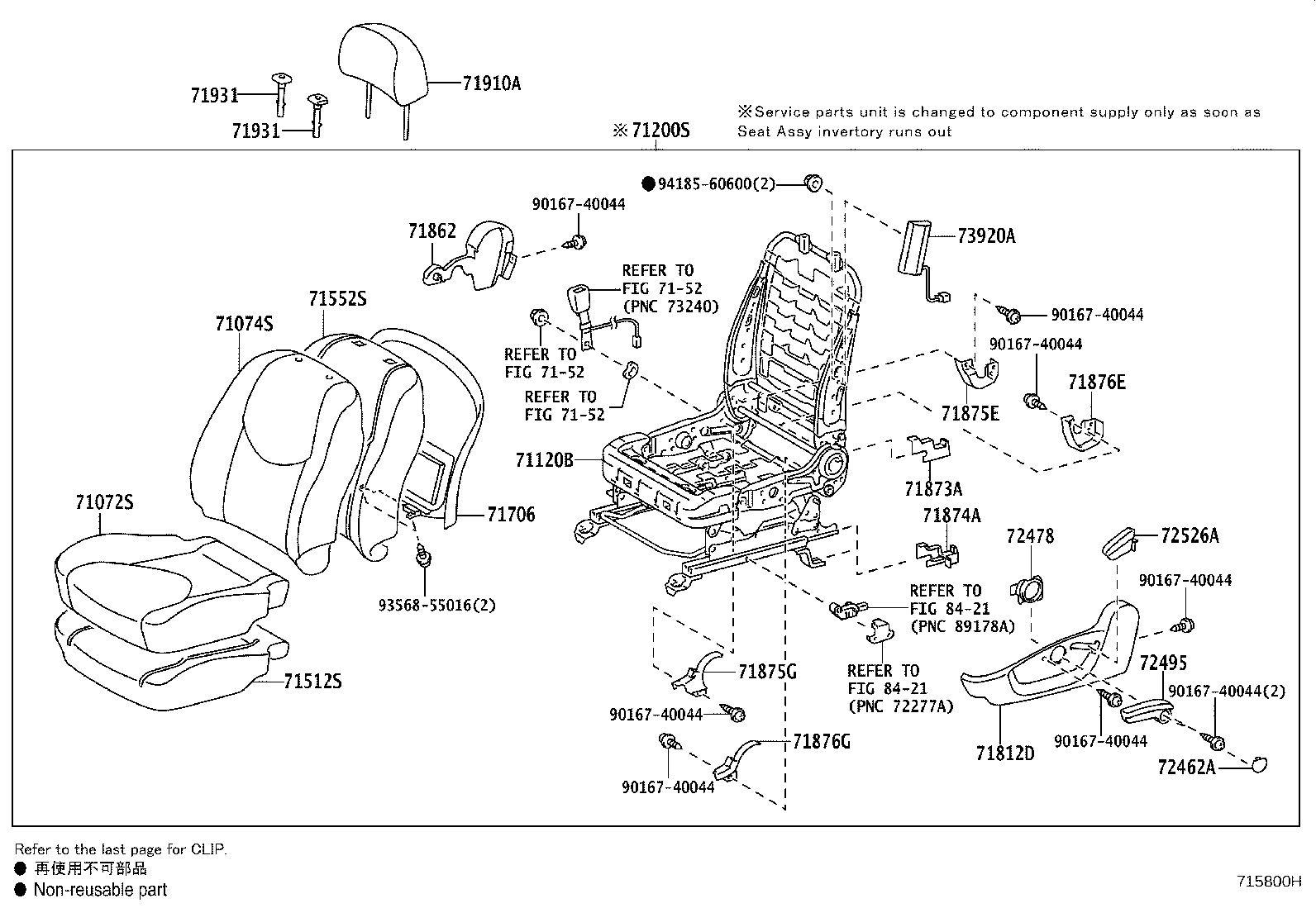

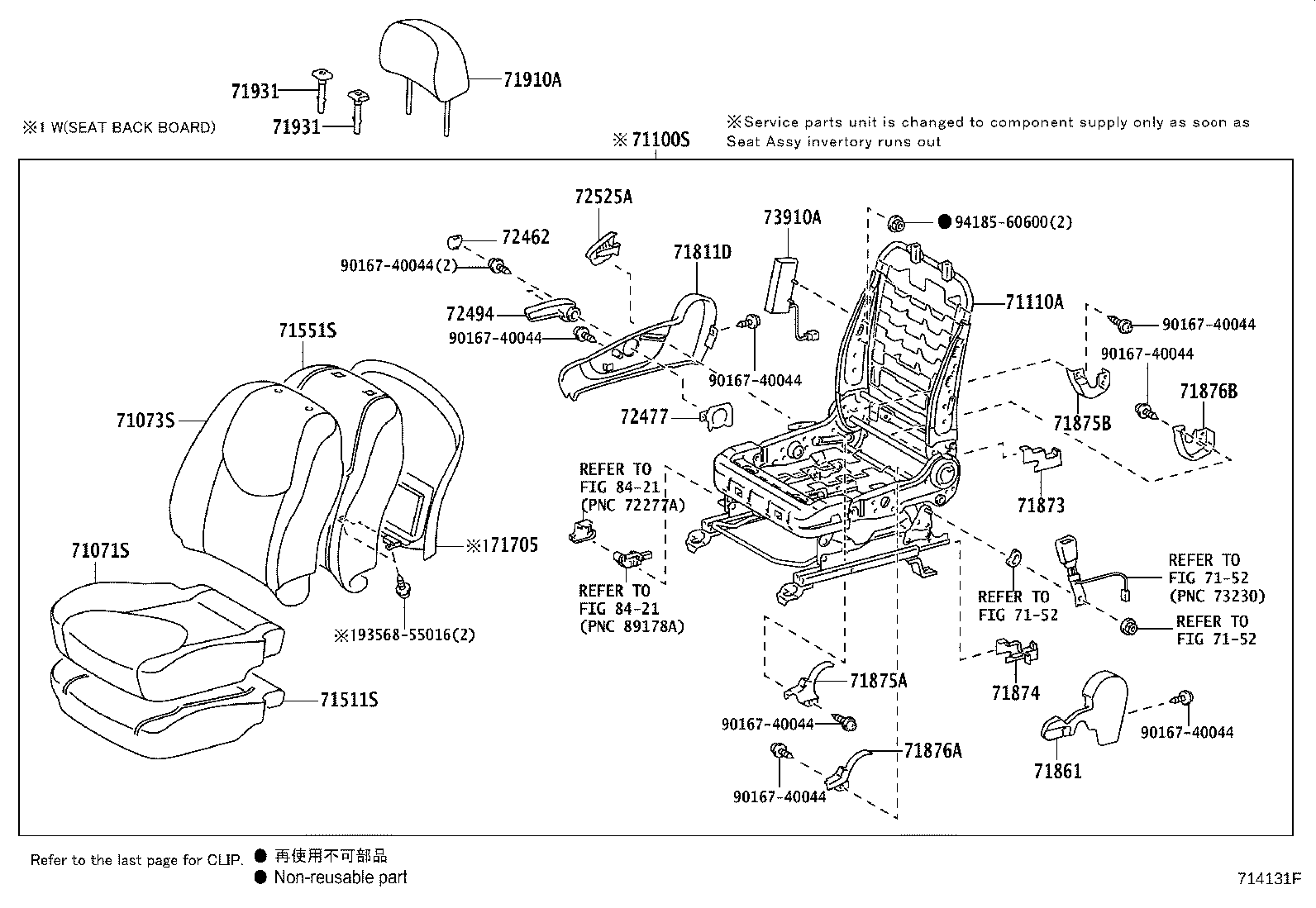

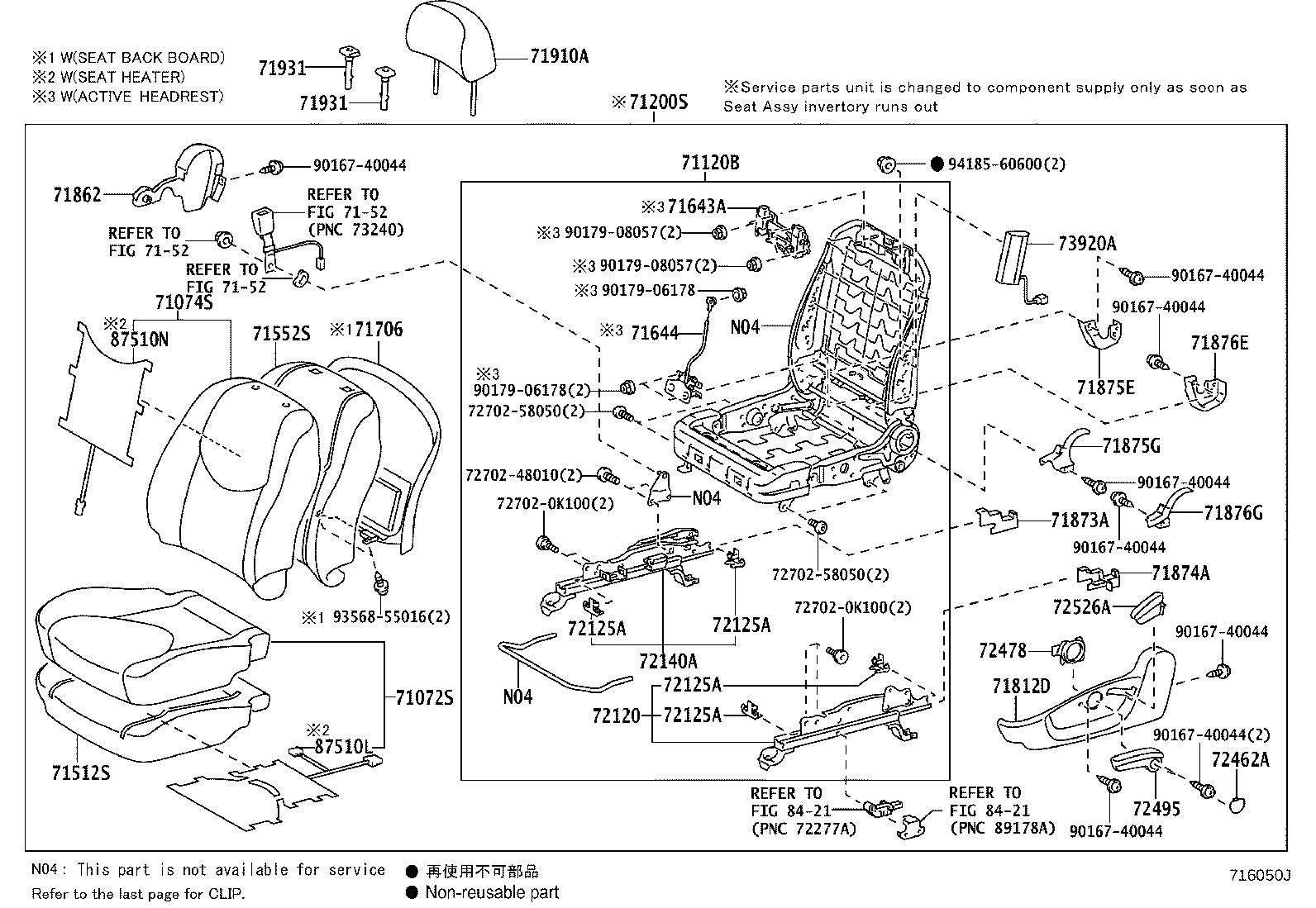

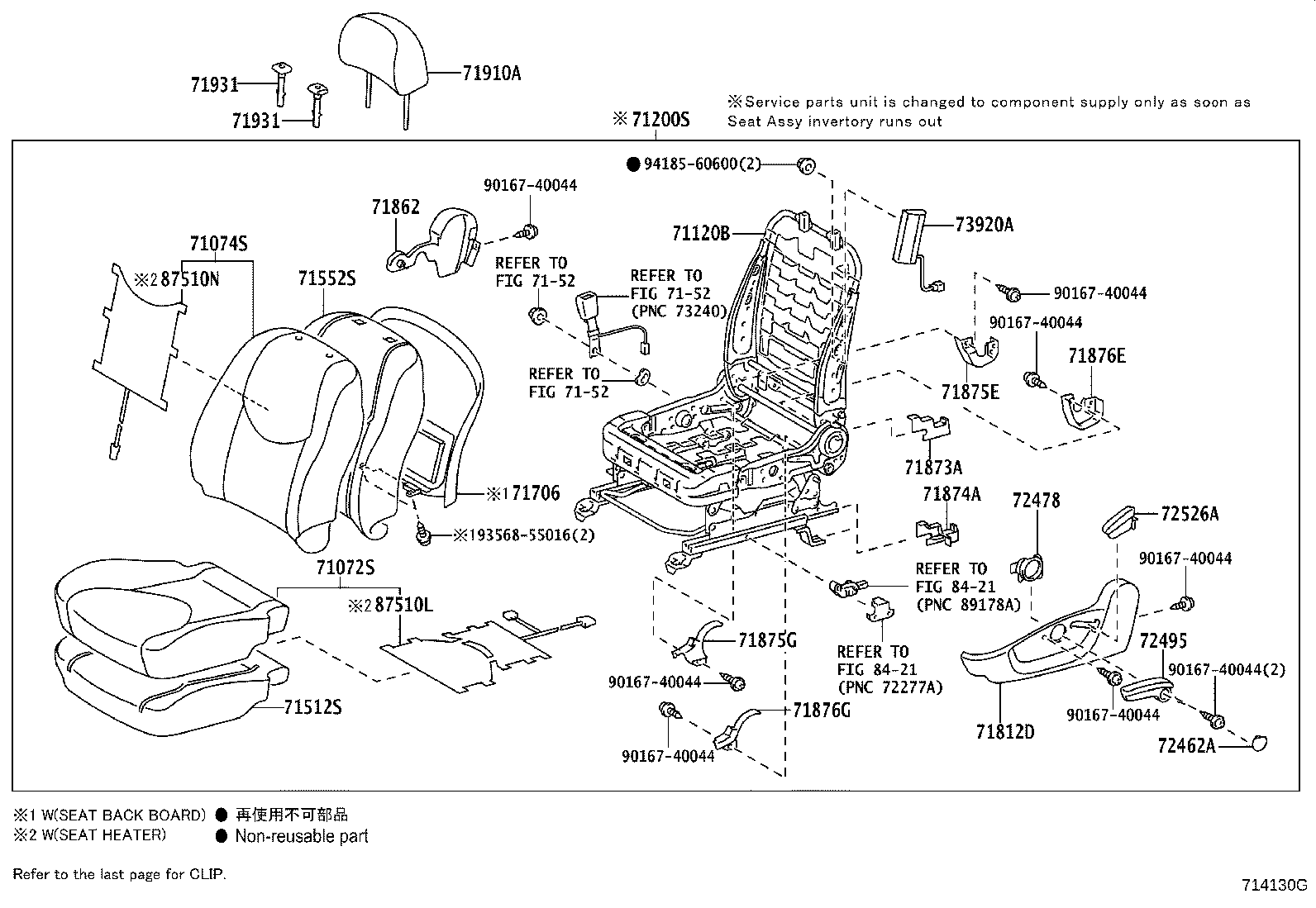

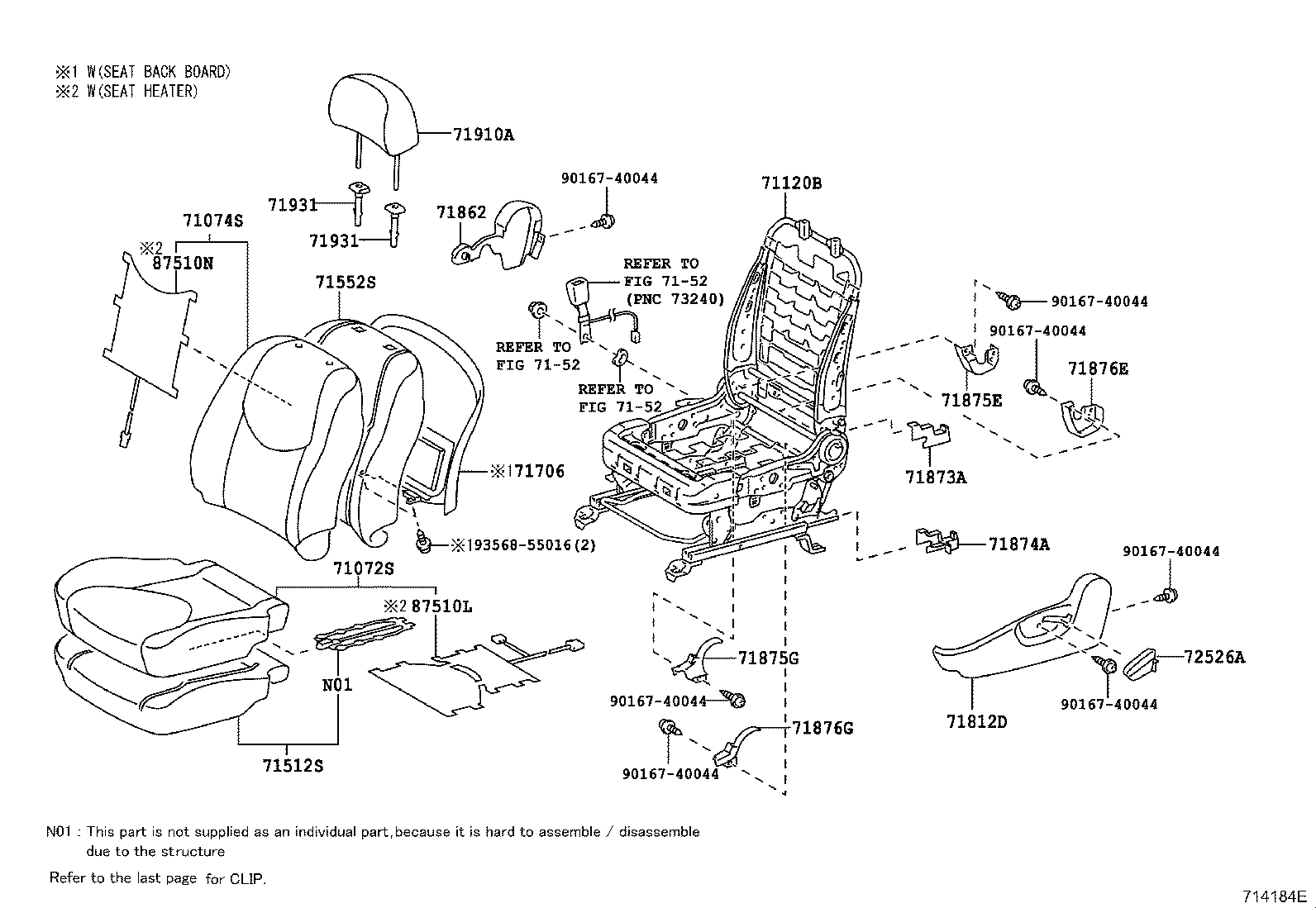

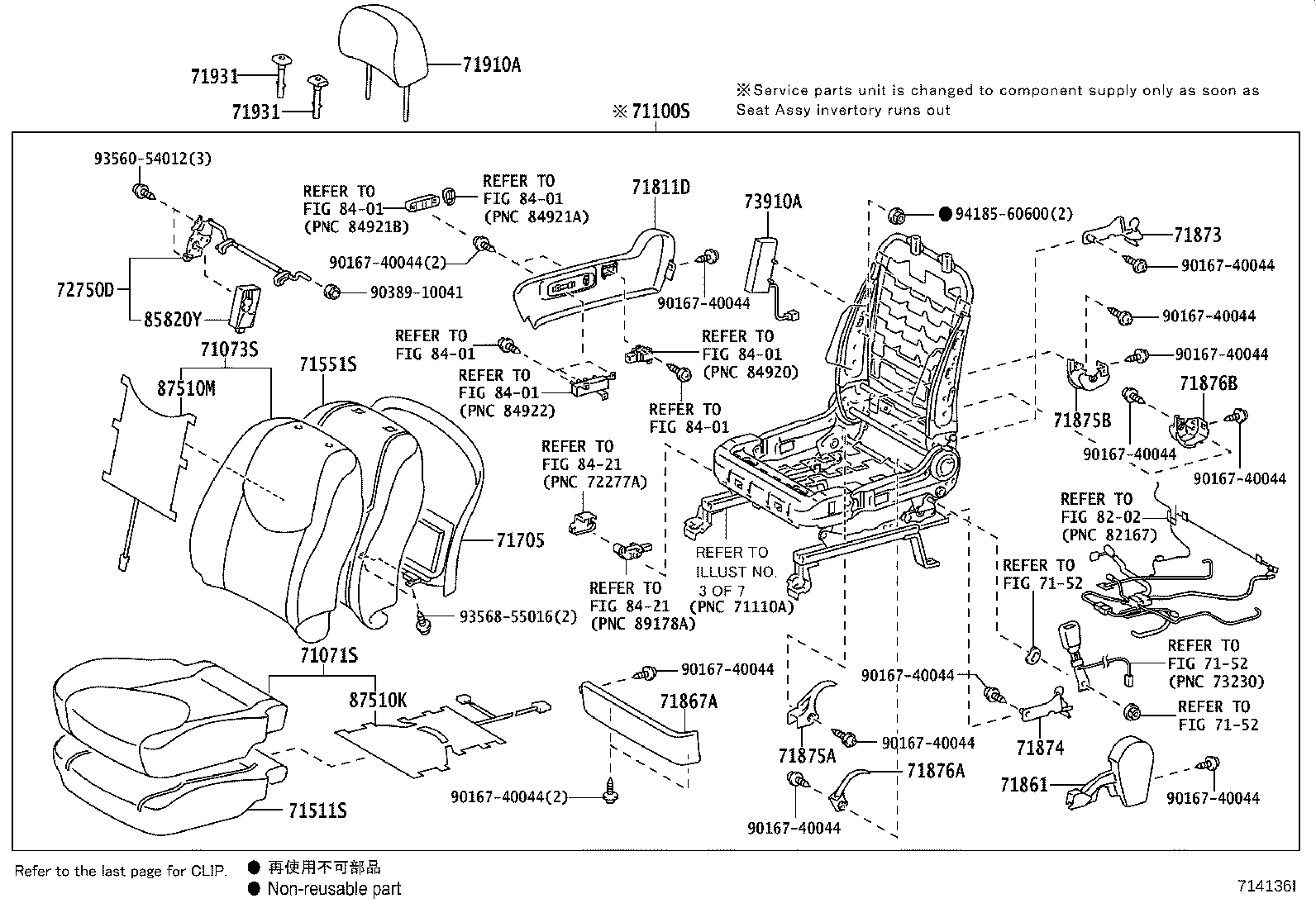

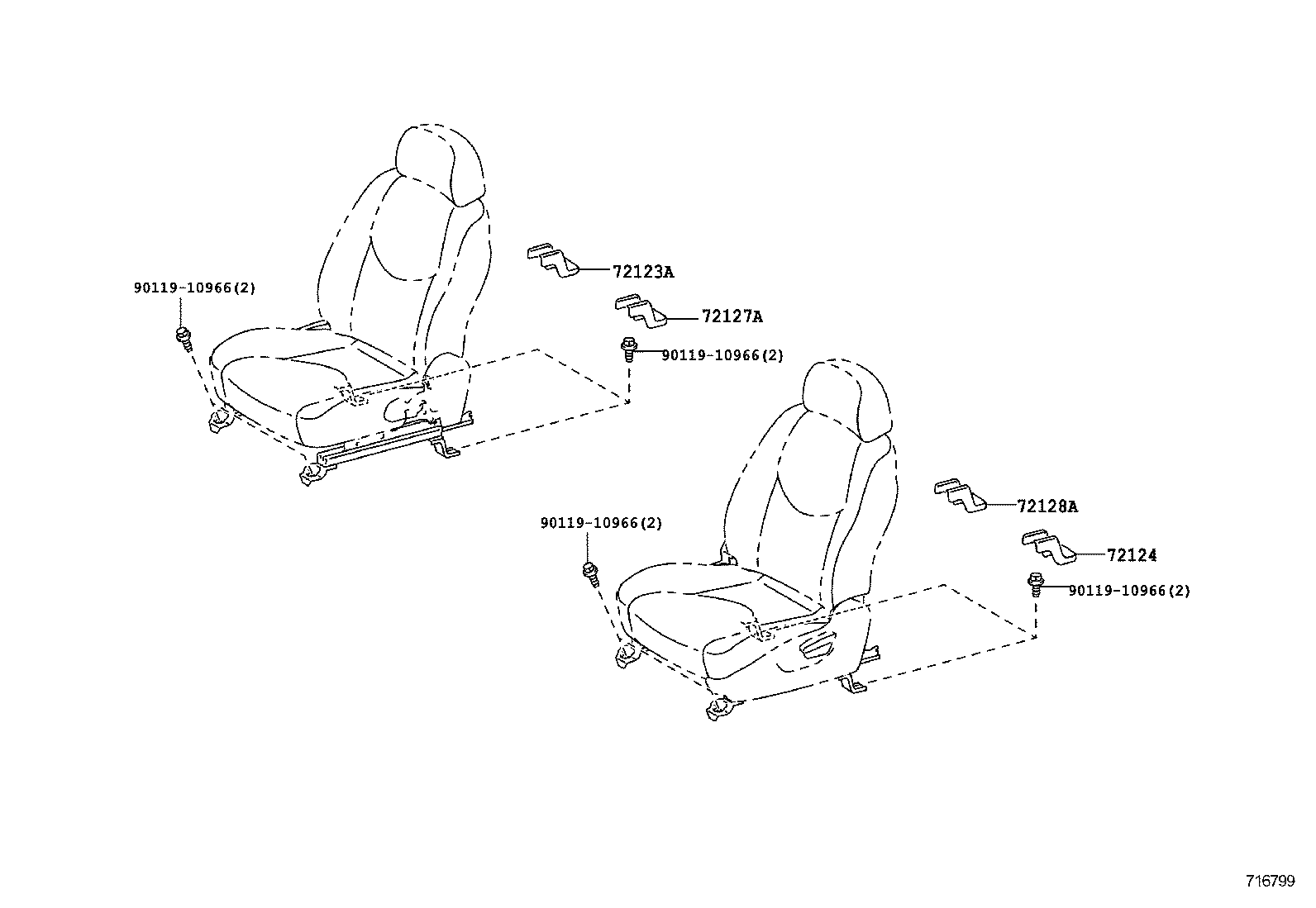

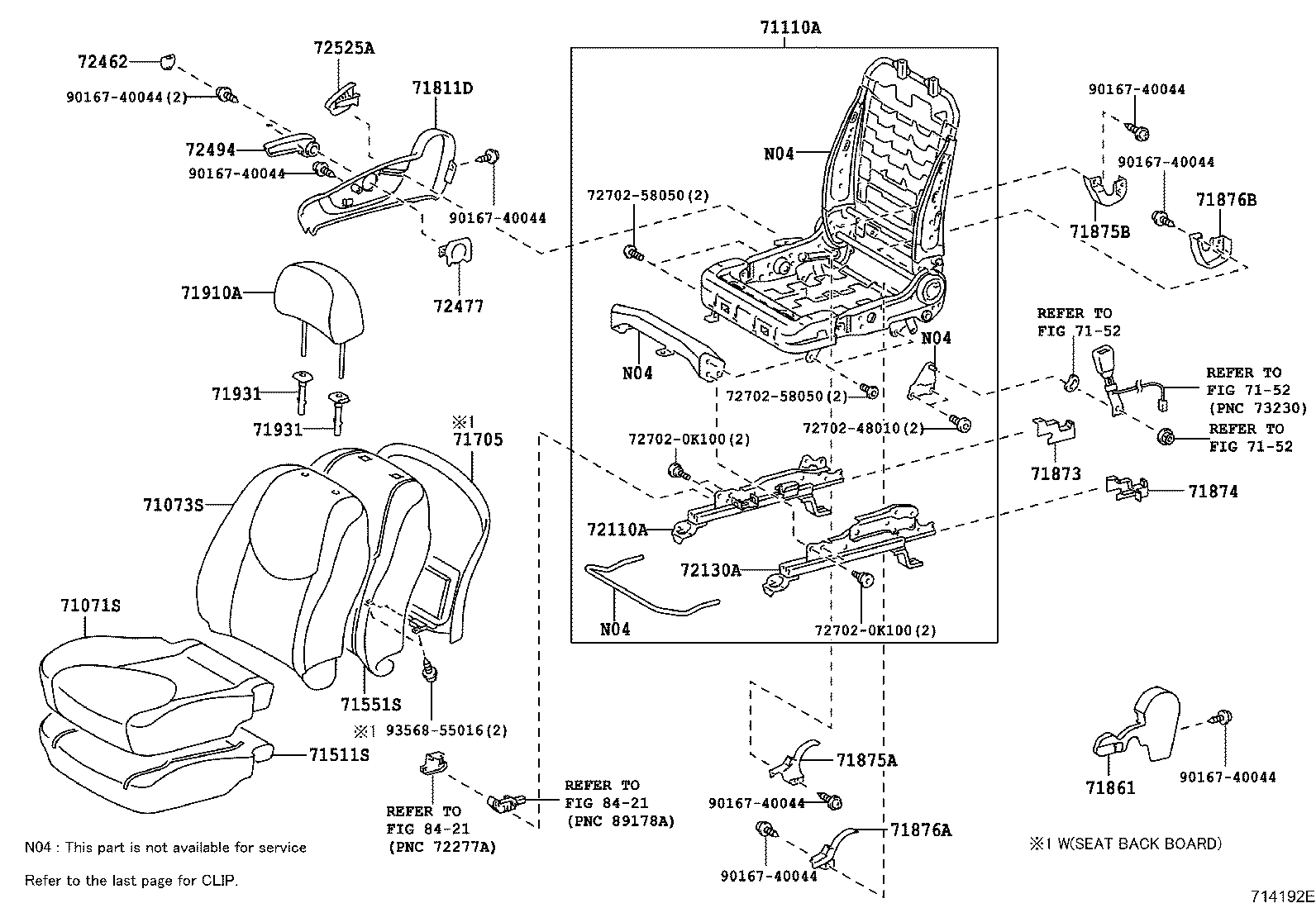

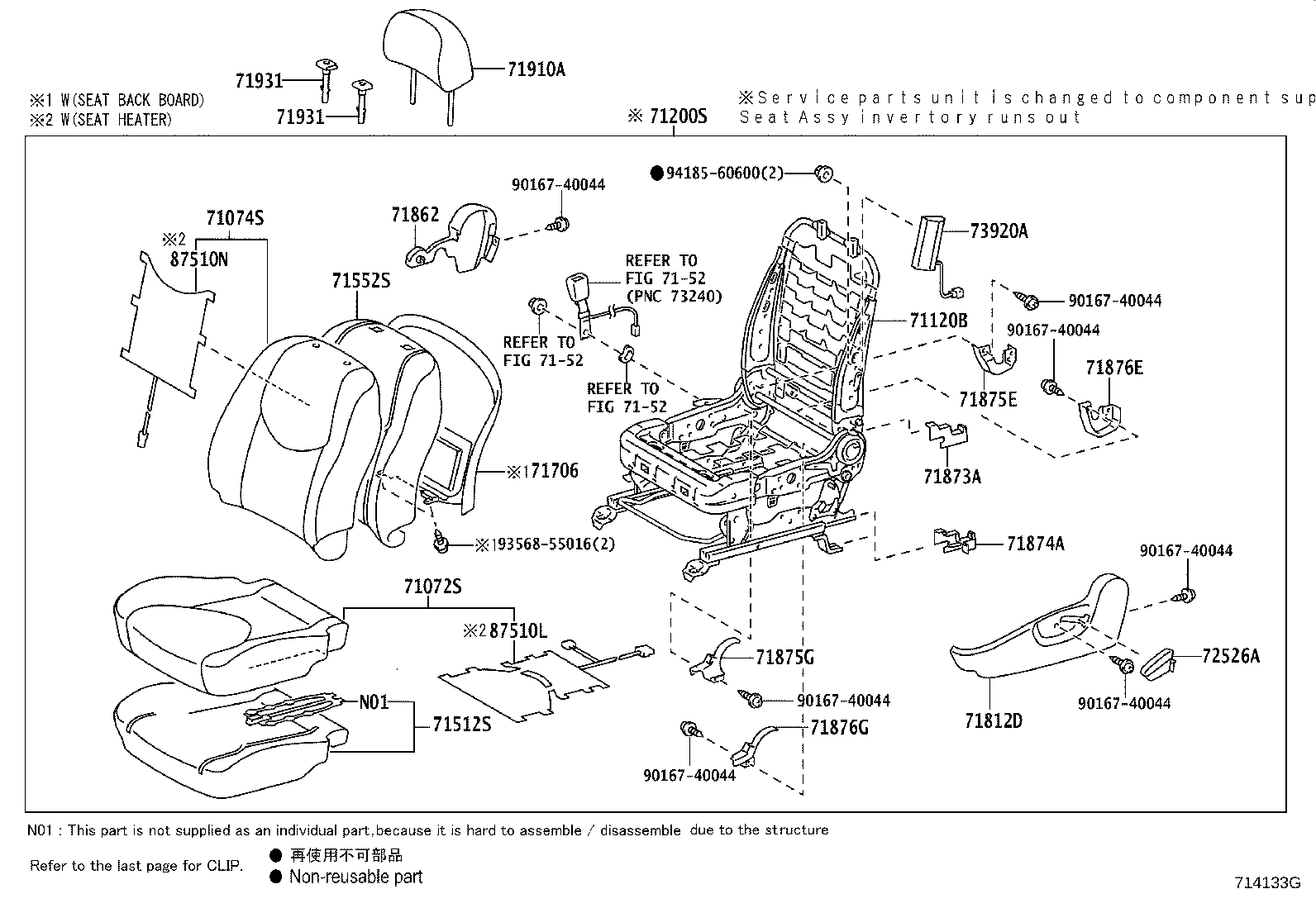

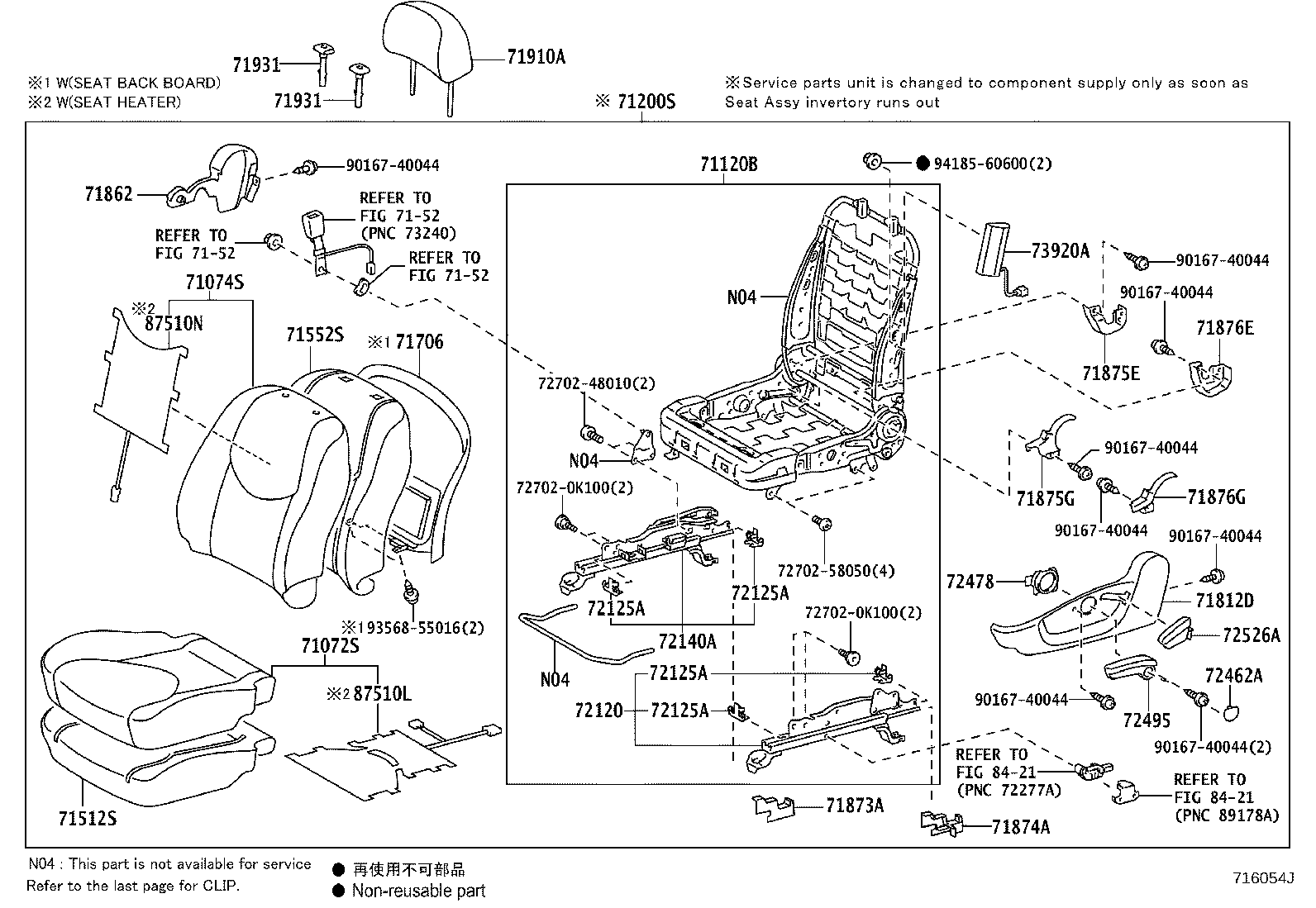

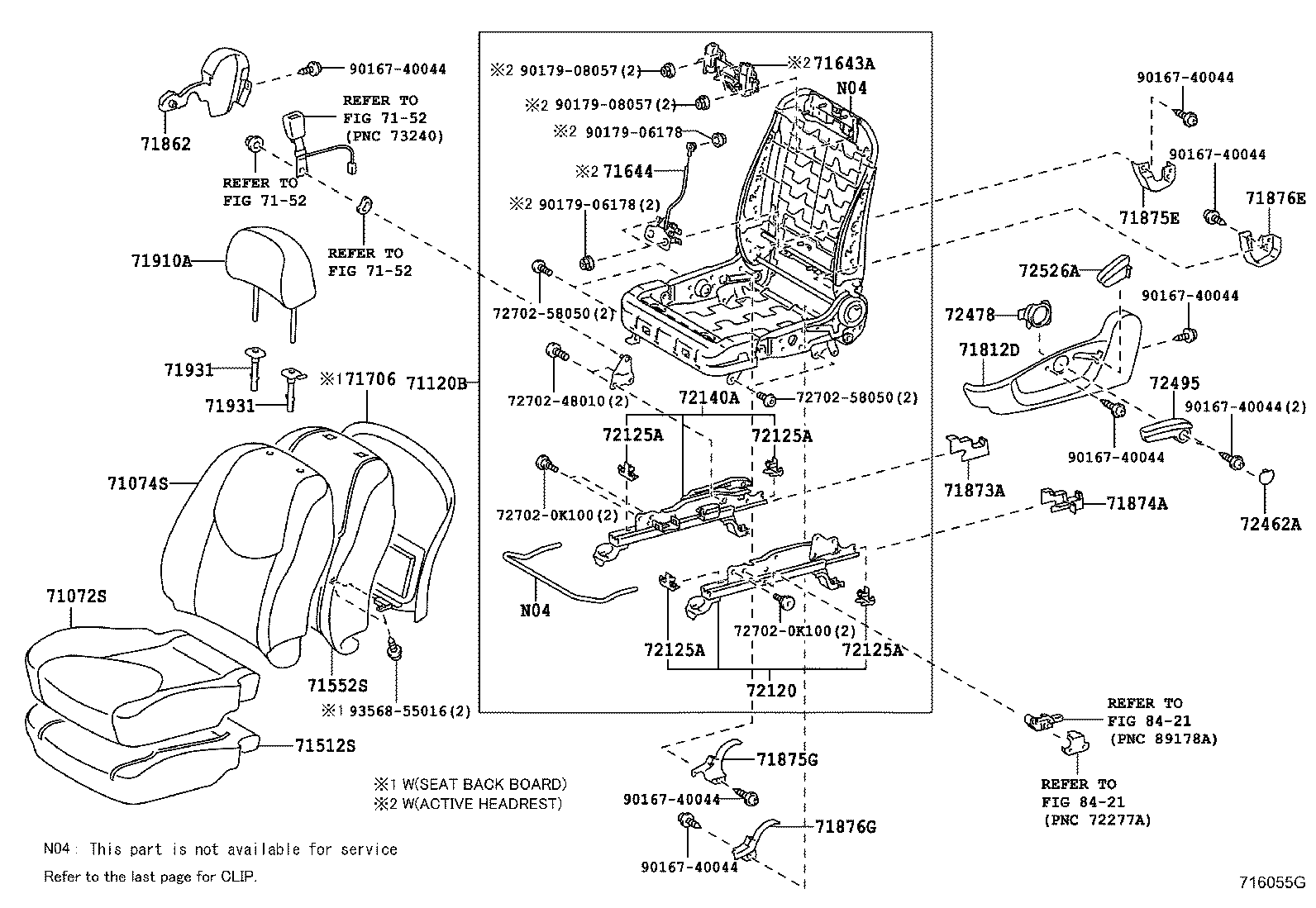

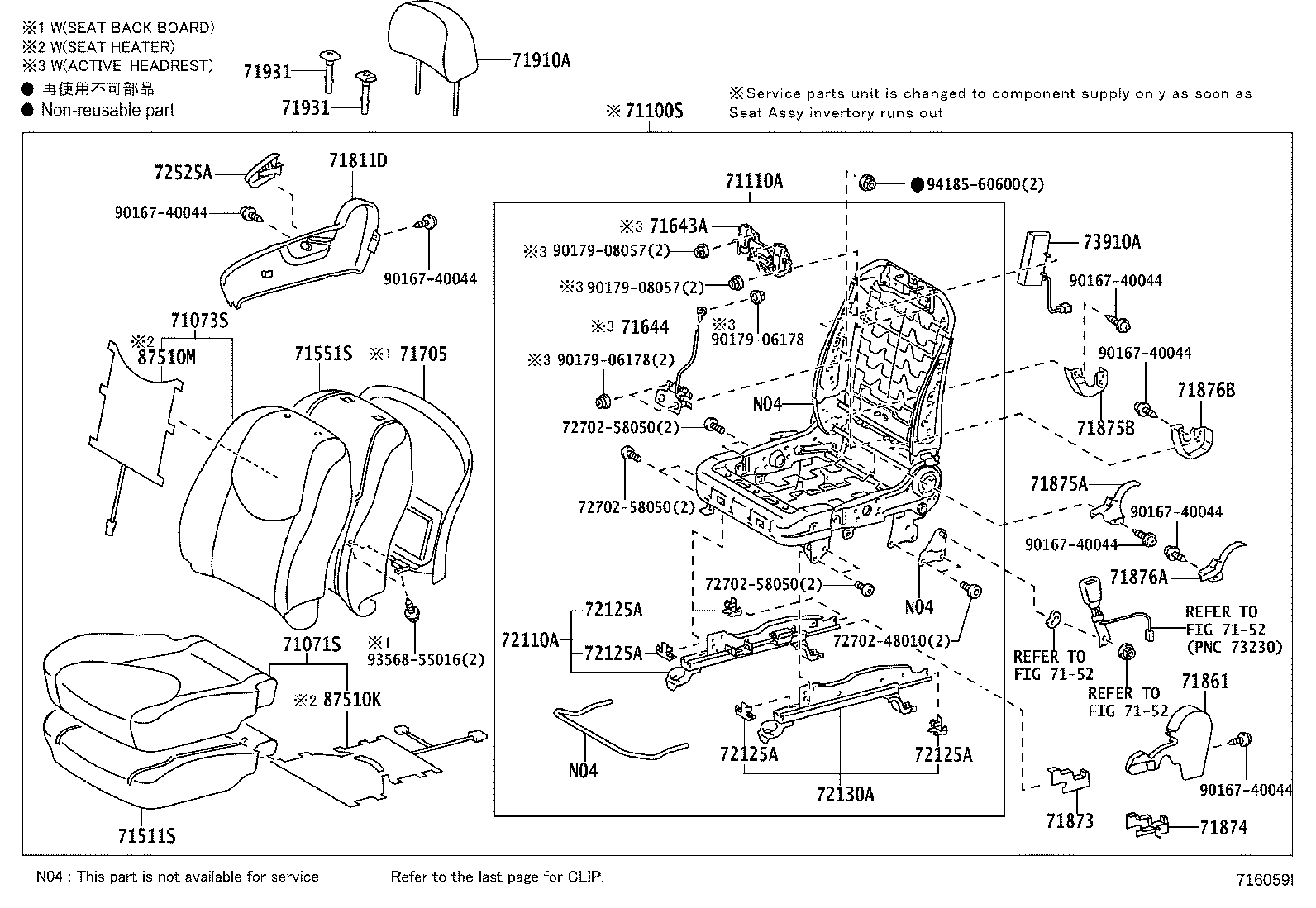

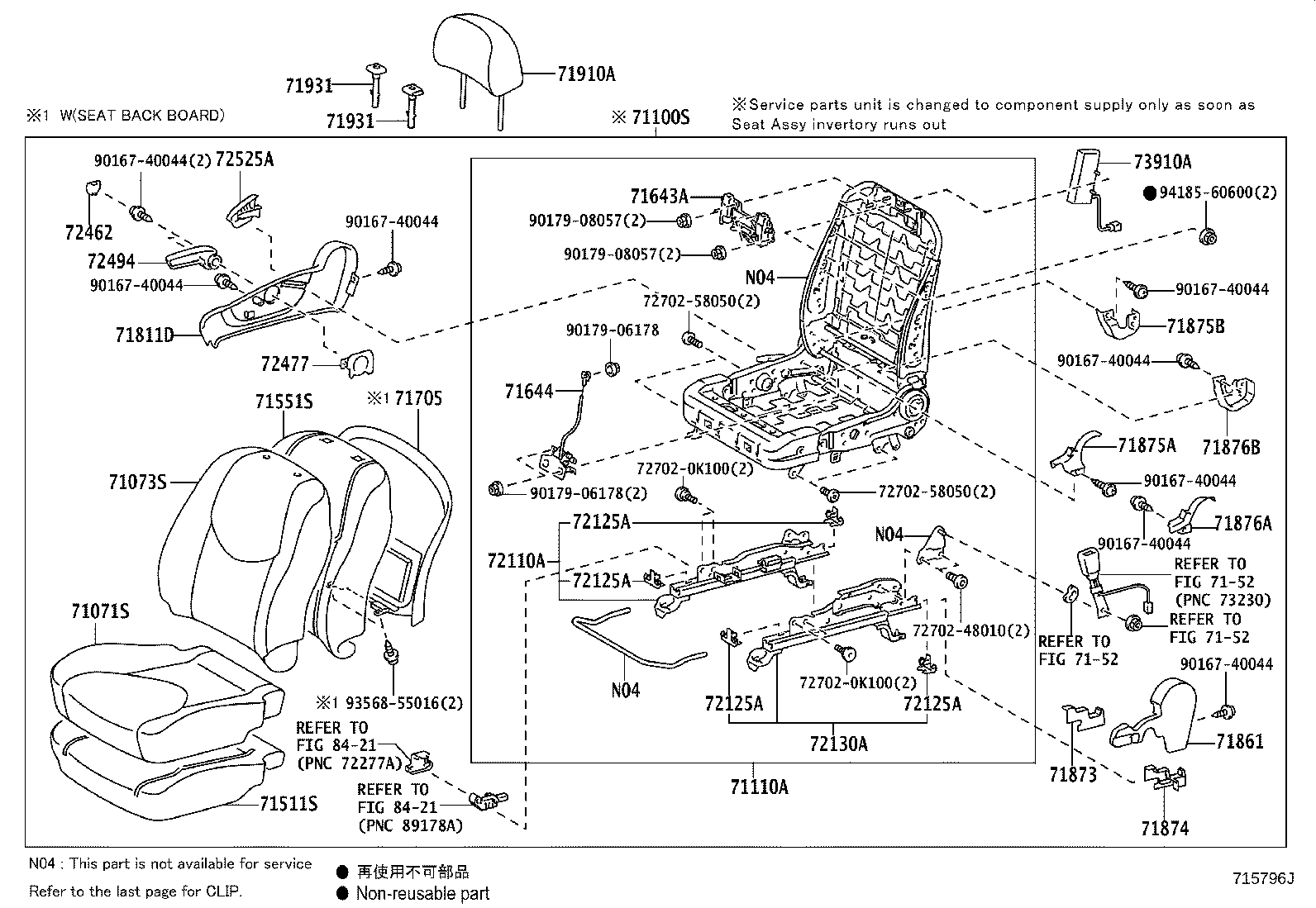

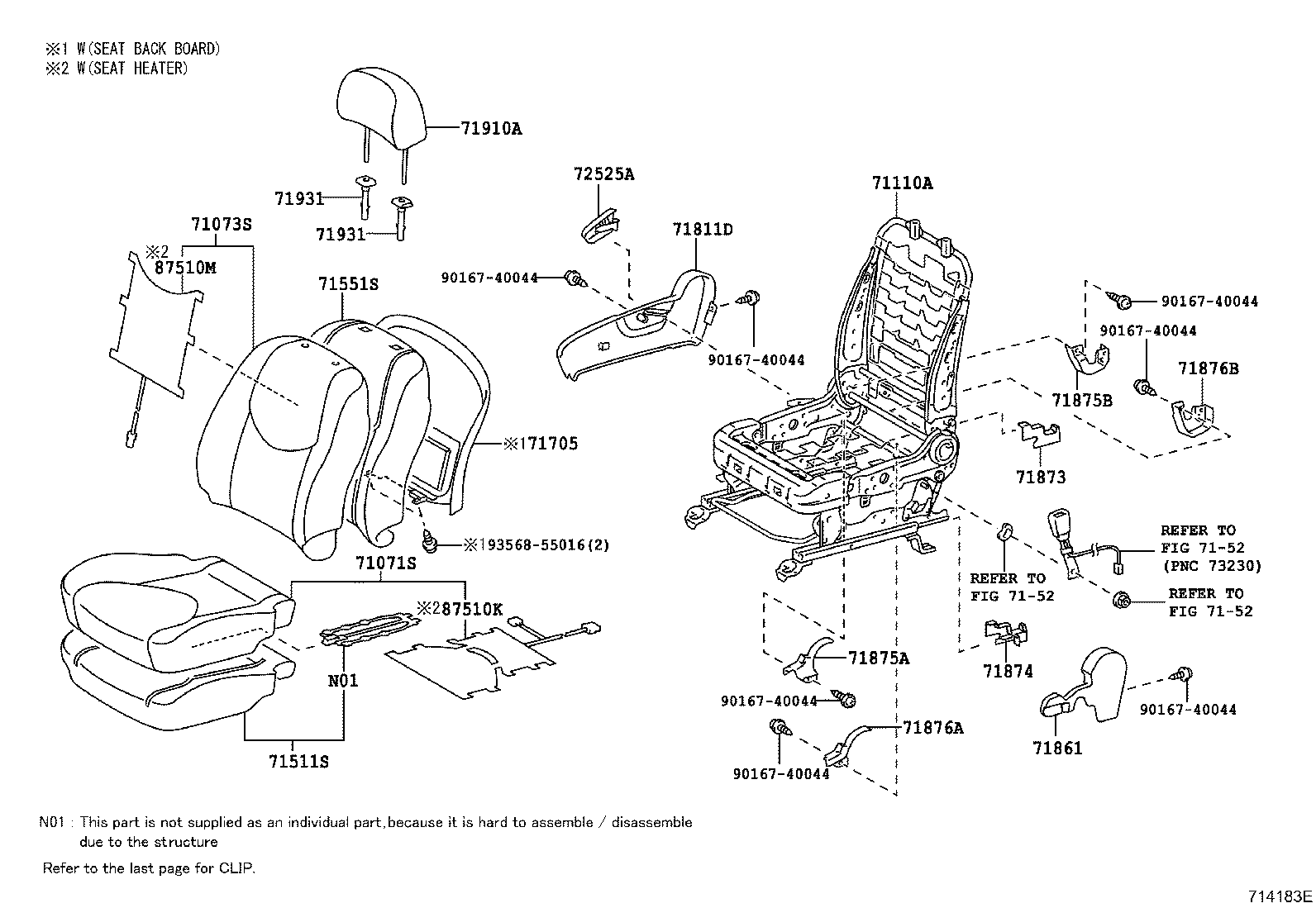

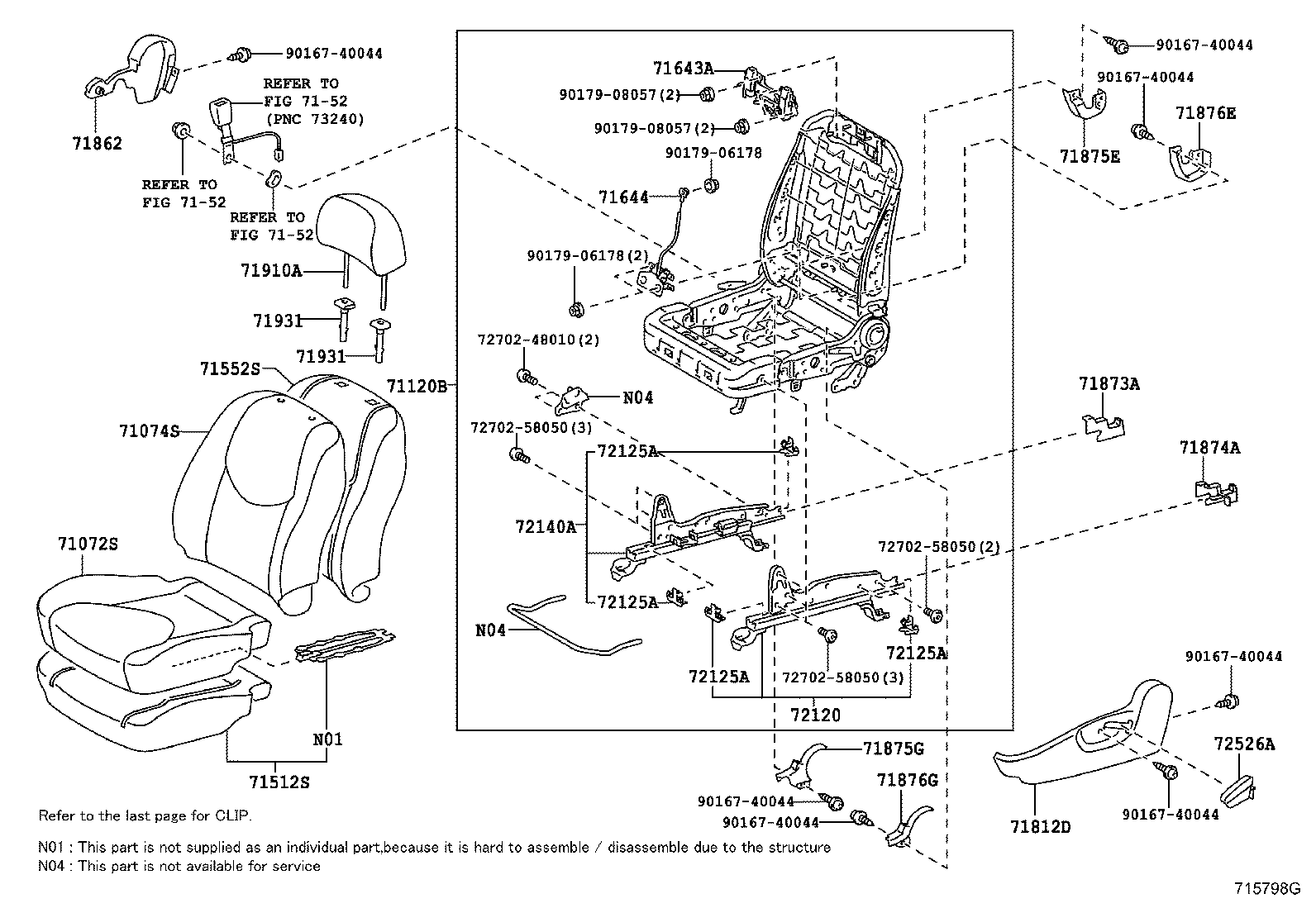

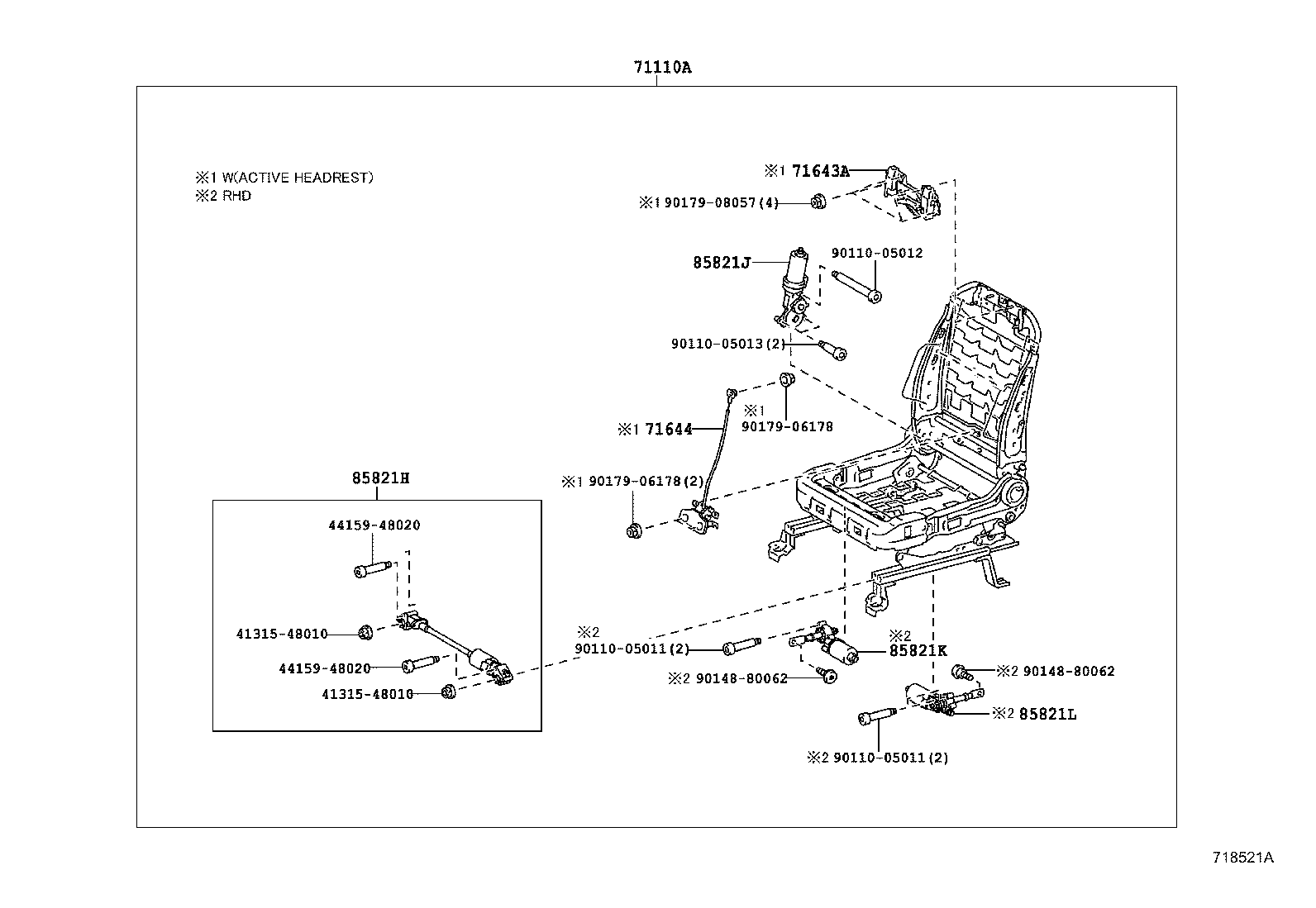

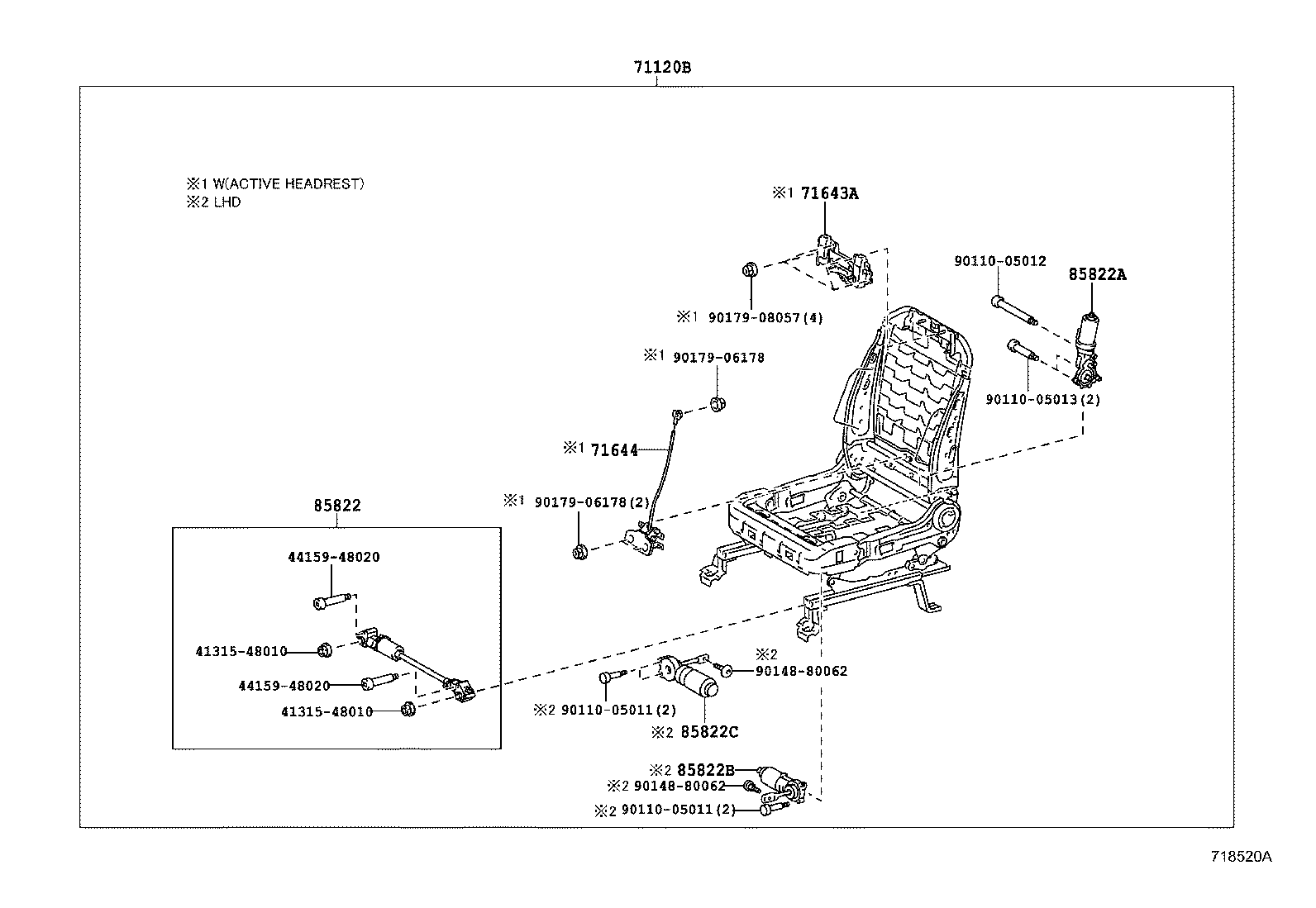

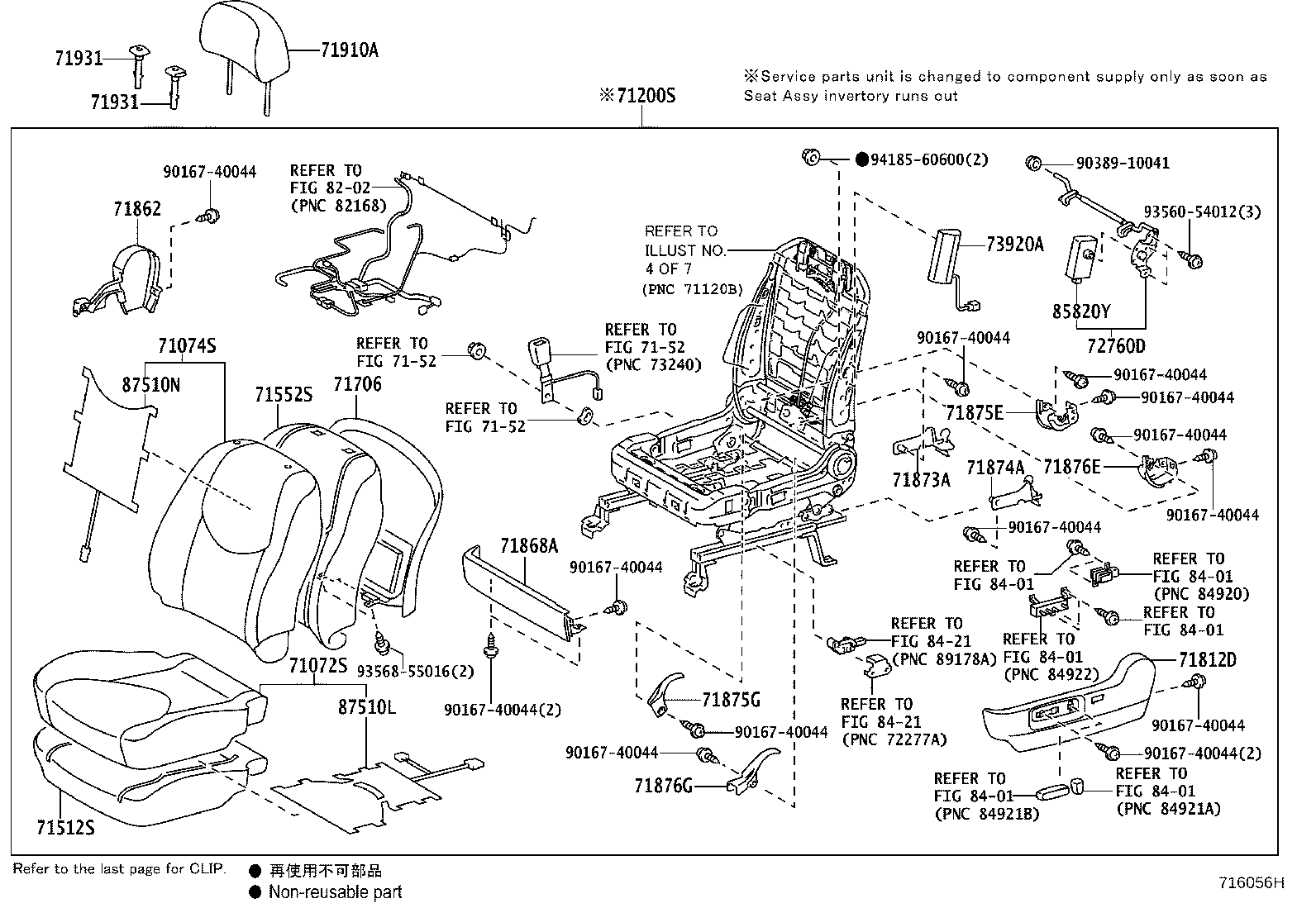

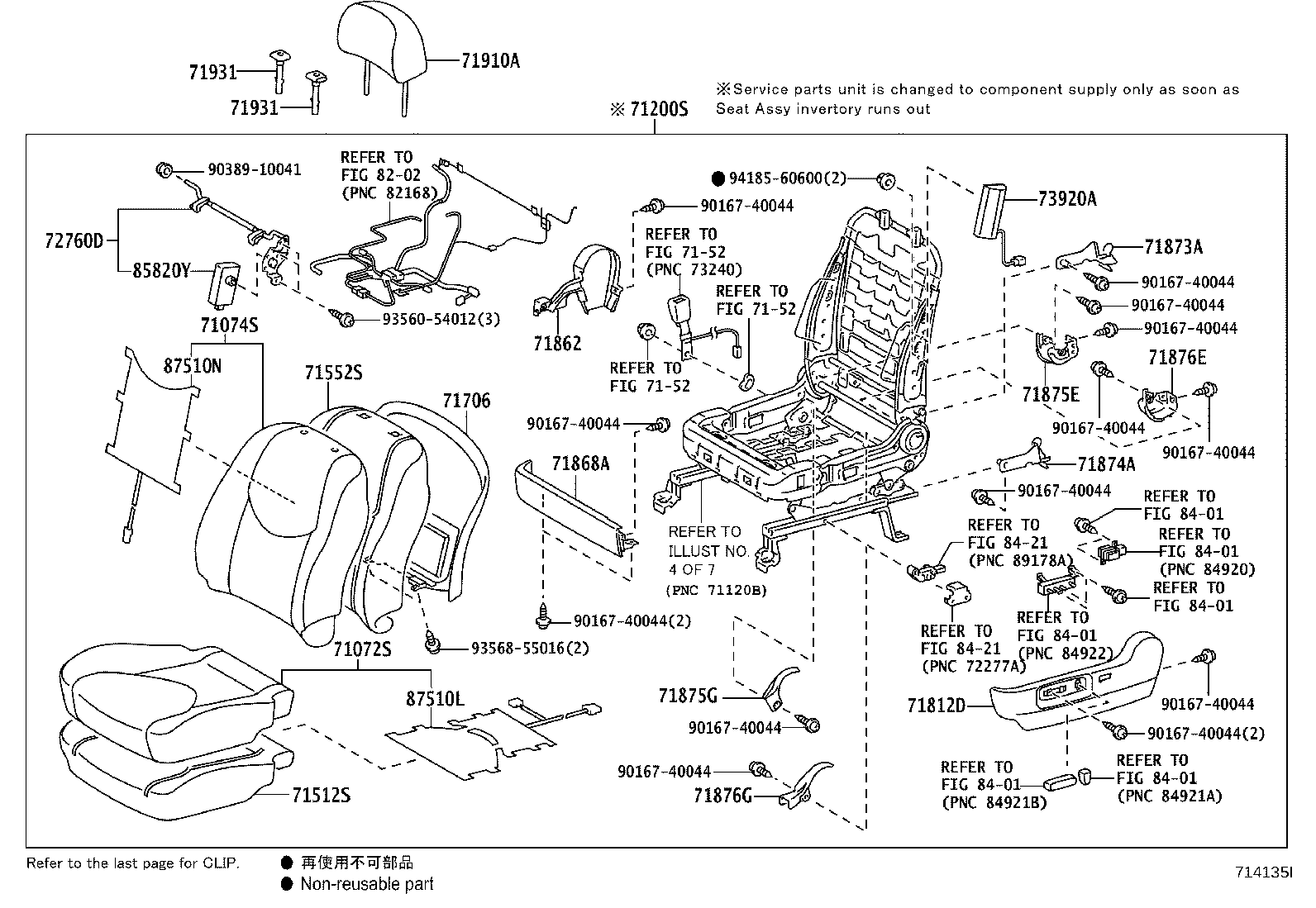

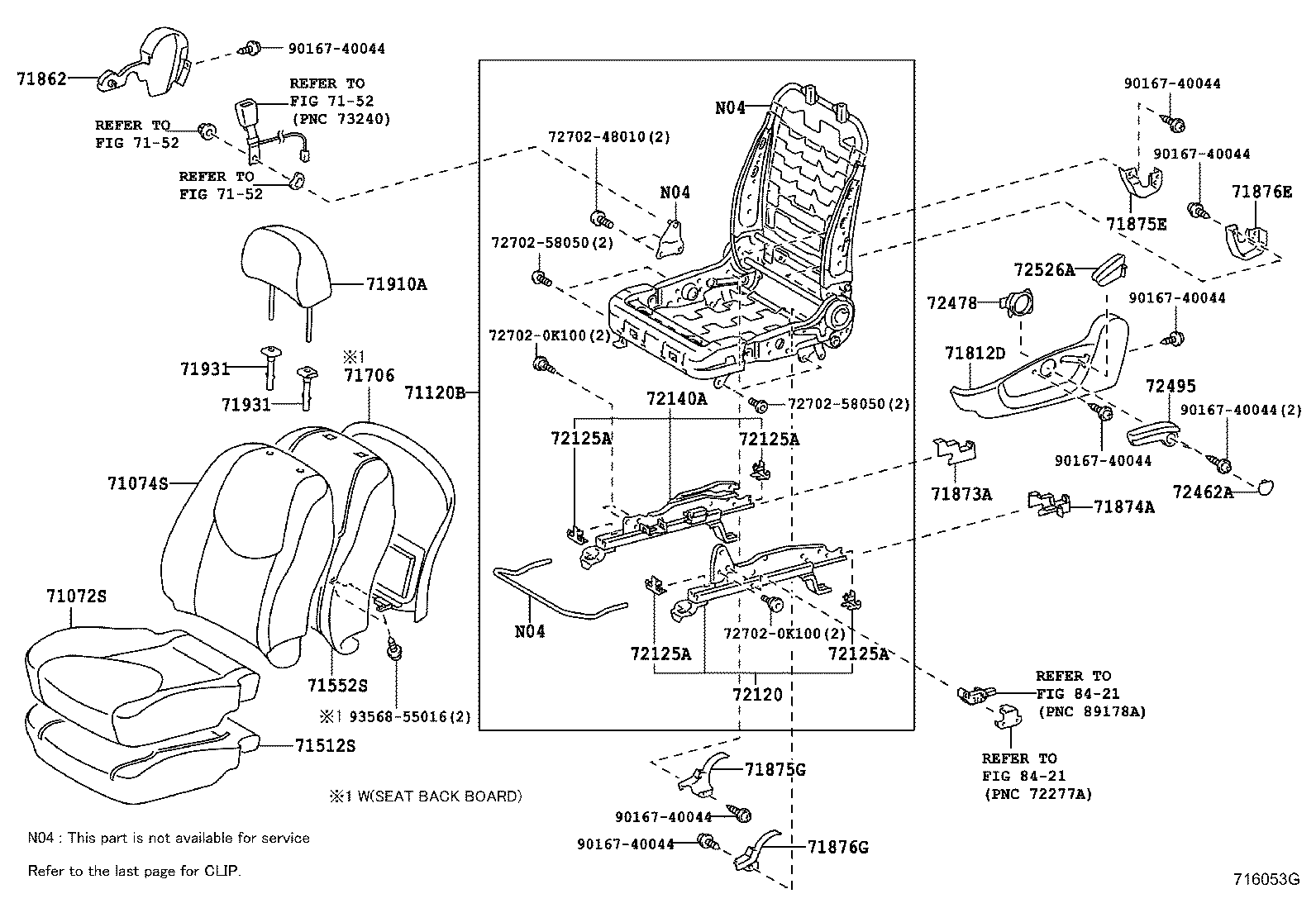

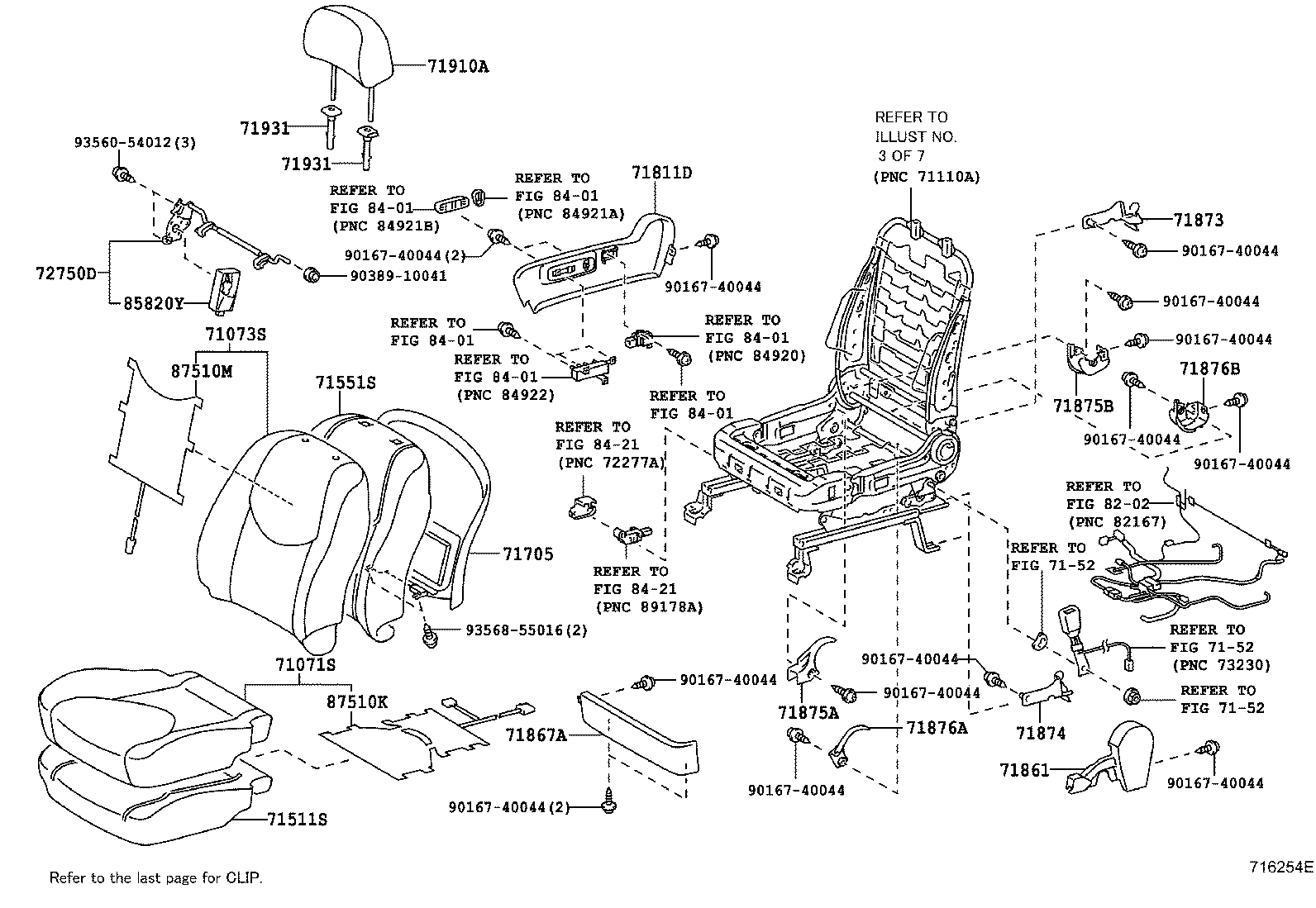

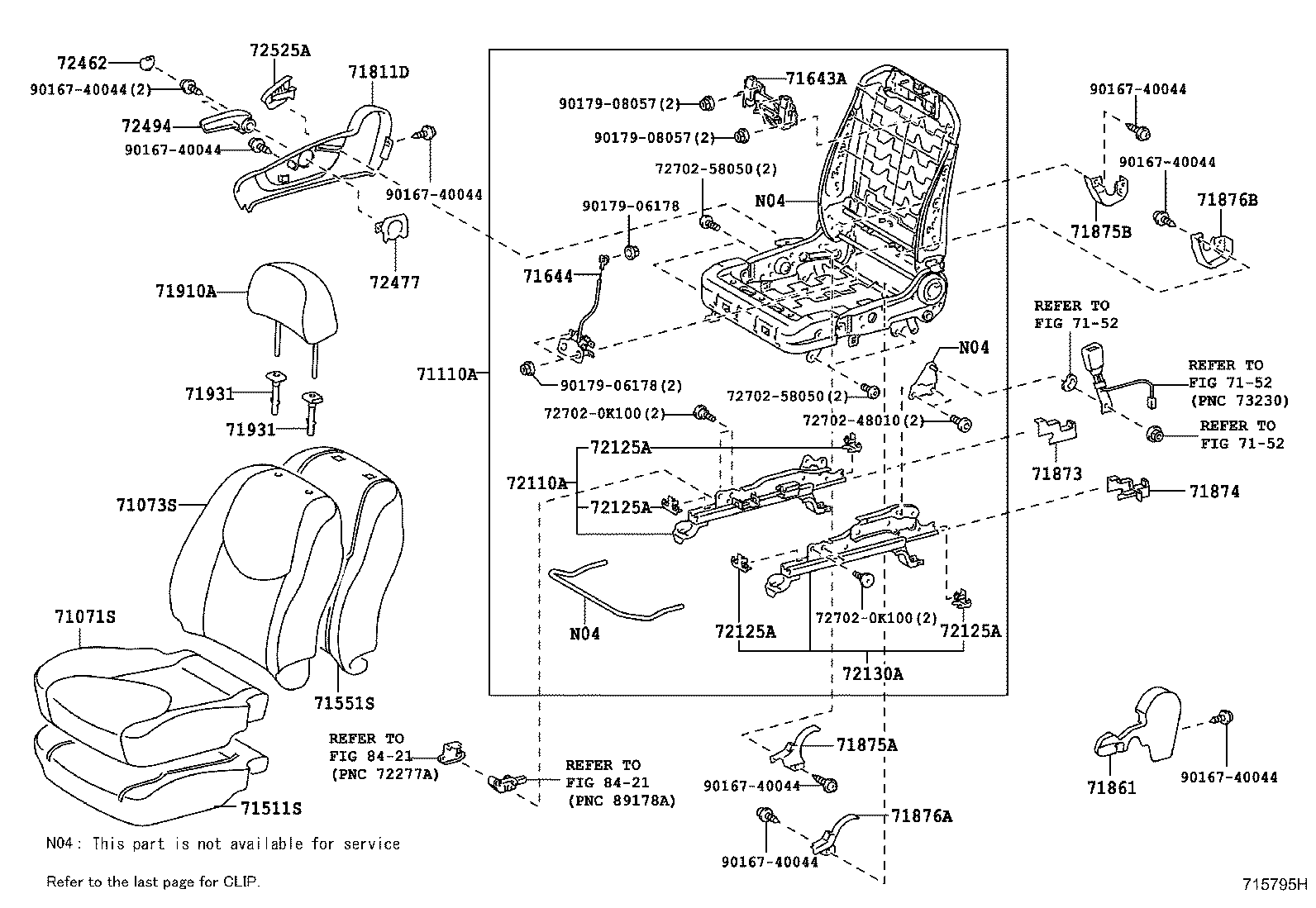

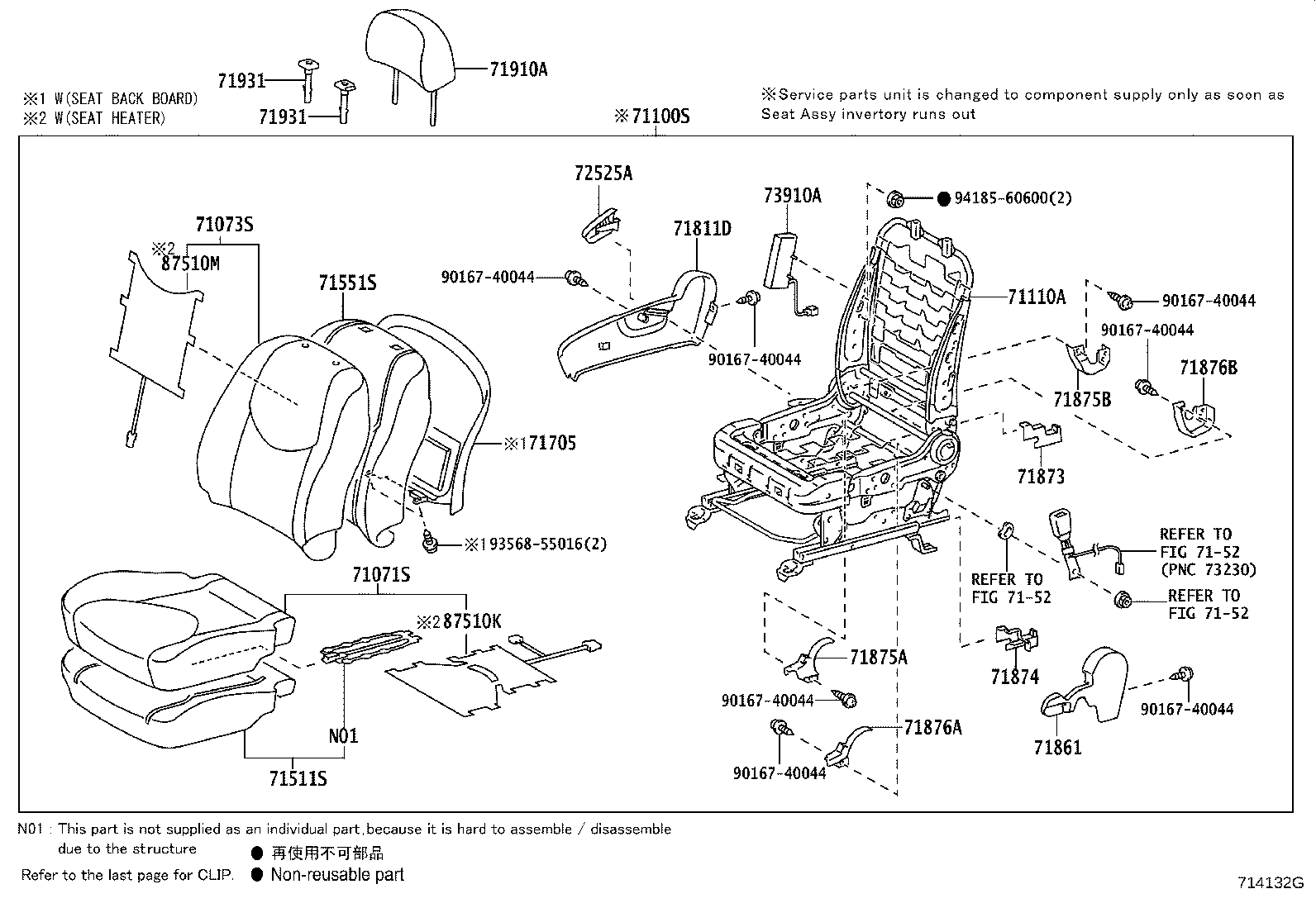

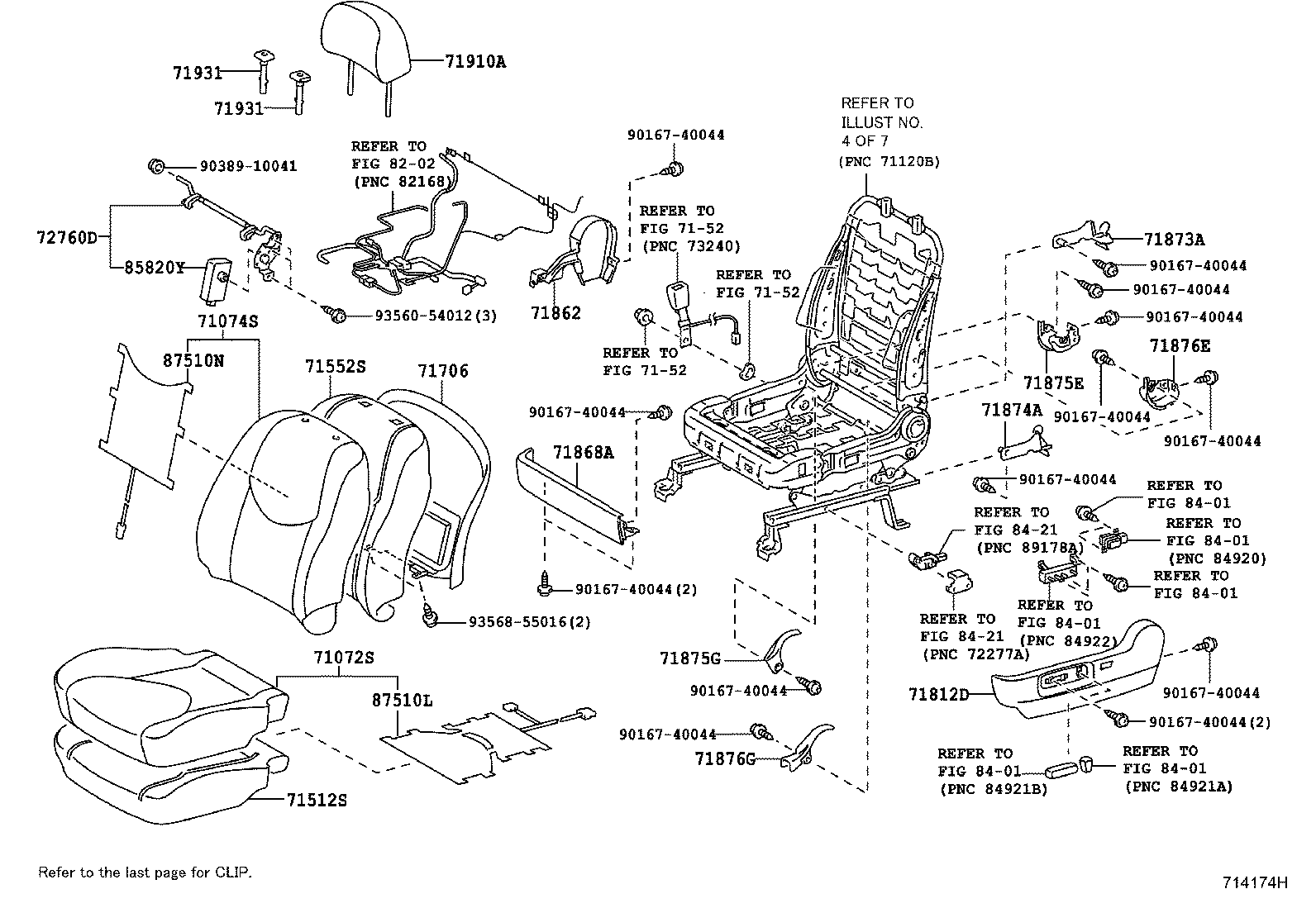

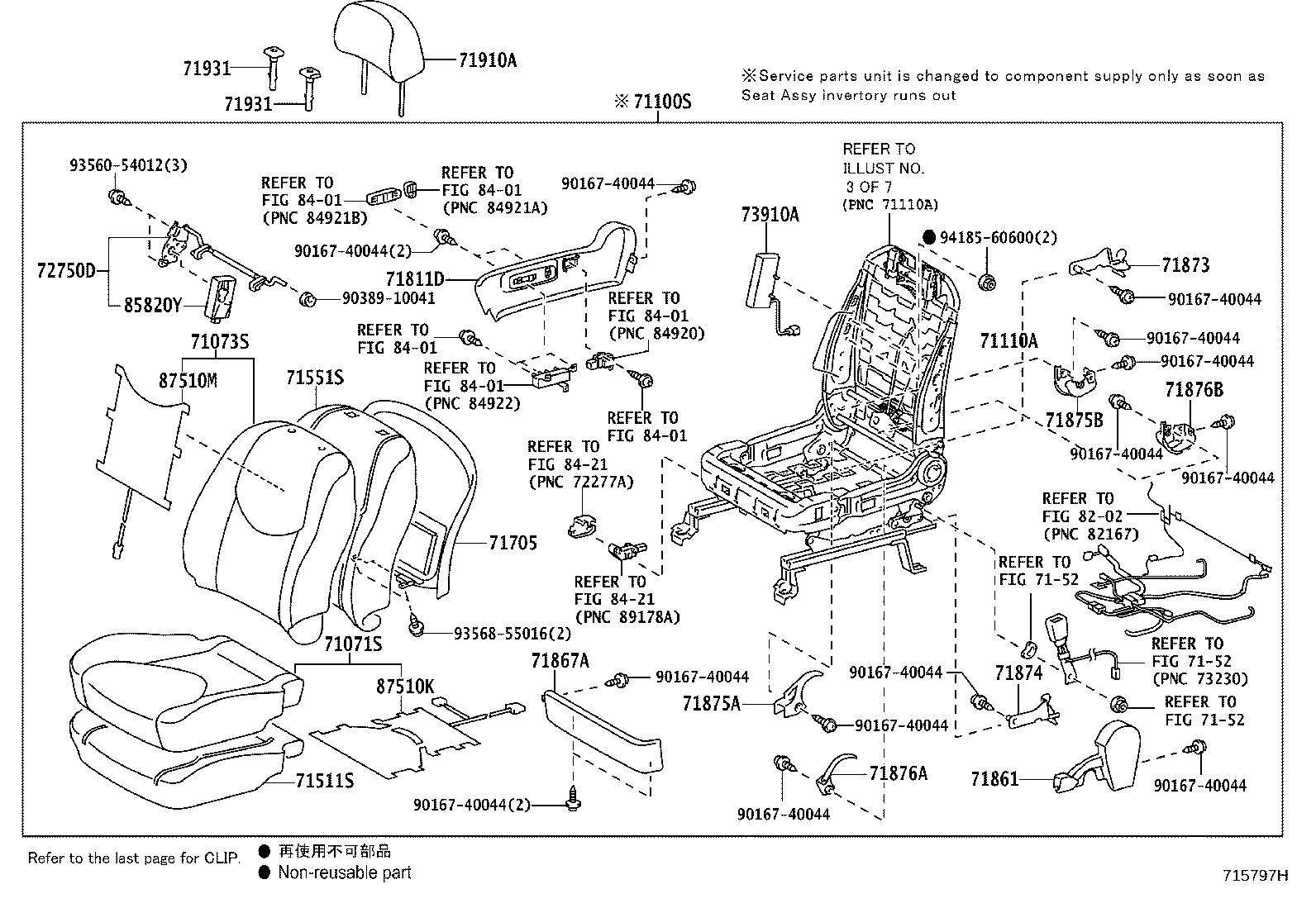

Figure 714194E 714194E 2005-11 → 2008-08 Figure 714194E 714194E 2005-11 → 2008-12 Figure 714130G 714130G 2005-11 → 2008-08 Figure 714130G 714130G 2005-11 → 2008-12 Figure 714135I 714135I 2005-11 → 2008-08 Figure 714135I 714135I 2005-11 → 2008-12 Figure 714192E 714192E 2005-11 → 2008-08 Figure 714192E 714192E 2005-11 → 2008-12 Figure 714131F 714131F 2005-11 → 2008-08 Figure 714131F 714131F 2005-11 → 2008-12 Figure 716254E 716254E 2005-11 → 2008-08 Figure 716254E 716254E 2005-11 → 2008-12 Figure 714136I 714136I 2005-11 → 2008-08 Figure 714136I 714136I 2005-11 → 2008-12 Figure 714174H 714174H 2005-11 → 2008-08 Figure 714174H 714174H 2005-11 → 2008-12 Figure 714174H 714174H 2005-11 → — Figure 715795H 715795H 2008-08 → — Figure 715796J 715796J 2008-08 → — Figure 715796J 715796J 2008-12 → — Figure 715797H 715797H 2008-08 → — Figure 715797H 715797H 2008-12 → — Figure 716053G 716053G 2008-08 → — Figure 715800H 715800H 2008-08 → — Figure 716054J 716054J 2008-08 → — Figure 715801I 715801I 2008-08 → — Figure 716055G 716055G 2008-12 → — Figure 716050J 716050J 2008-12 → — Figure 716050J 716050J 2009-08 → — Figure 716056H 716056H 2008-12 → — Figure 714132G 714132G 2005-11 → 2008-08 Figure 714132G 714132G 2005-11 → 2008-12 Figure 714183E 714183E 2005-11 → 2008-08 Figure 714183E 714183E 2005-11 → 2008-12 Figure 714184E 714184E 2005-11 → 2008-08 Figure 714184E 714184E 2005-11 → 2008-12 Figure 714133G 714133G 2005-11 → 2008-08 Figure 714133G 714133G 2005-11 → 2008-12 Figure 716058G 716058G 2008-08 → — Figure 716058G 716058G 2008-12 → — Figure 715798G 715798G 2008-08 → — Figure 715799J 715799J 2008-08 → — Figure 715799J 715799J 2008-12 → — Figure 716059I 716059I 2008-08 → — Figure 716059I 716059I 2008-12 → — Figure 718521A 718521A 2005-11 → 2012-12 Figure 718520A 718520A 2005-11 → 2012-12 Figure 716799 716799 2005-11 → — Figure 714190I 714190I 2005-11 → — Figure 714138N 714138N 2005-11 → — Figure 718166C 718166C 2005-11 → —

Part groups

PNCDescription
66994 Cover, Cup Holder
71015A Frame Sub-assy, Rear Seat Cushion, RH
71016A Frame Sub-assy, Rear Seat Cushion, LH
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71100S Seat Assy, Front RH
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71200S Seat Assy, Front LH
71499D Damper, Rear Seatback Spring
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71643A Unit, Active Headrest, Upr
71644 Unit, Active Headrest, Lwr
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71691E Cover, Rear Seat Cushion Hinge, NO.1
71692E Cover, Rear Seat Cushion Hinge, NO.2
71693A Cover, Rear Seat Cushion Hinge, NO.3
71694 Cover, Rear Seat Cushion Hinge, Lower LH
71695 Protector, Rear Seatback
71695A Protector, Rear Seat, NO.1 RH
71695B Protector, Rear Seat, NO.1 LH
71705 Board Sub-assy, Front Seatback, RH
71706 Board Sub-assy, Front Seatback, LH
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71825B Moulding, Rear Seat Cushion, RH
71826B Moulding, Rear Seat Cushion, LH
71828B Moulding, Rear Seat Cushion, Rear RH
71829B Moulding, Rear Seat Cushion, Rear LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875E Cover, Reclining Adjuster Inside, RH
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876A Cover, Reclining Adjuster Inside, LH
71876B Cover, Reclining Adjuster Inside, LH
71876E Cover, Reclining Adjuster Inside, LH
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A Headrest Assy, Front Seat
71918A Spring, Center Seat Cushion Catch
71918B Spring, Center Seat Cushion Catch, NO.2
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
72053C Lever Sub-assy, Reclining Remote Control, RH
72054A Lever Sub-assy, Reclining Remote Control, LH
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72125A Cover, Seat Track, Upper Rear
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72130A Track Assy, Front Seat, Inner RH
72140A Track Assy, Front Seat,Inner LH
72380 Cable Assy, Seat Adjuster Control, NO.2
72462 Cover, Vertical Adjuster RH
72462A Cover, Vertical Adjuster LH
72477 Spacer, Vertical Adjuster
72478 Bush, Vertical Adjuster
72494 Handle, Vertical Adjusting, RH
72495 Handle, Vertical Adjusting, LH
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72597A Bezel, Reclining Remote Control Lever, RH
72598 Bezel, Reclining Remote Control Lever, LH
72620B Cable Assy, Rear NO.1 Seat Lock
72620C Cable Assy, Rear NO.1 Seat Lock
72635 Hook, Rear Seatback Lock
72677A Base, Rear Seatback Lock Control Lever, RH
72678 Base, Rear Seatback Lock Control Lever, LH
72690A Strap Assy, Rear Seat Lock Release
72730A Adjuster Assy, Rear Seat Reclining, RH
72735 Lever, Rear Seat Reclining Release
72736 Lever, Rear Seat Reclining Release, LH
72740A Adjuster Assy, Rear Seat Reclining, LH
72749 Spacer, Rear Seat Reclining
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
72809A Lock Sub-assy, Center Armrest
72830 Armrest Assy, Rear Seat, Center
72840 Armrest Assy, Rear NO.1 Seat, LH
72868 Cover, Center Armrest Hinge, RH
72869 Cover, Center Armrest Hinge, LH
72987 Cover, Rear Seat Center Armrest
72995A Cover, Rear Seat
72996 Cover, Rear Seatback, RH
72997 Cover, Rear Seatback, LH
72998C Cover, Rear Seat, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
79957A Cover, Rear Seat Rear Bracket, RH
79958A Cover, Rear Seat Rear Bracket, LH
79959 Cover, RR Seat Leg
79965 Cover, Rear Seat Leg Side, NO.2
79966 Cover, Rear Seat Leg Side, NO.3
79967 Cover, Rear Seat Leg Side, NO.4
79968 Cover, Rear Seat Leg Side, NO.5
85820Y Motor Assy, Power Seat
85821H Motor Assy, Power Seat Slide, RH
85821J Motor Assy, Power Seat Reclining, RH
85821K Motor Assy, Power Seat Tilt, RH
85821L Motor Assy, Power Seat Lifter, RH
85822 Motor Assy, Power Seat Slide, LH
85822A Motor Assy, Power Seat Reclining, LH
85822B Motor Assy, Power Seat Tilt, LH
85822C Motor Assy, Power Seat Lifter, LH
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
