Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

21 part groups · 3 illustrations

Illustrations

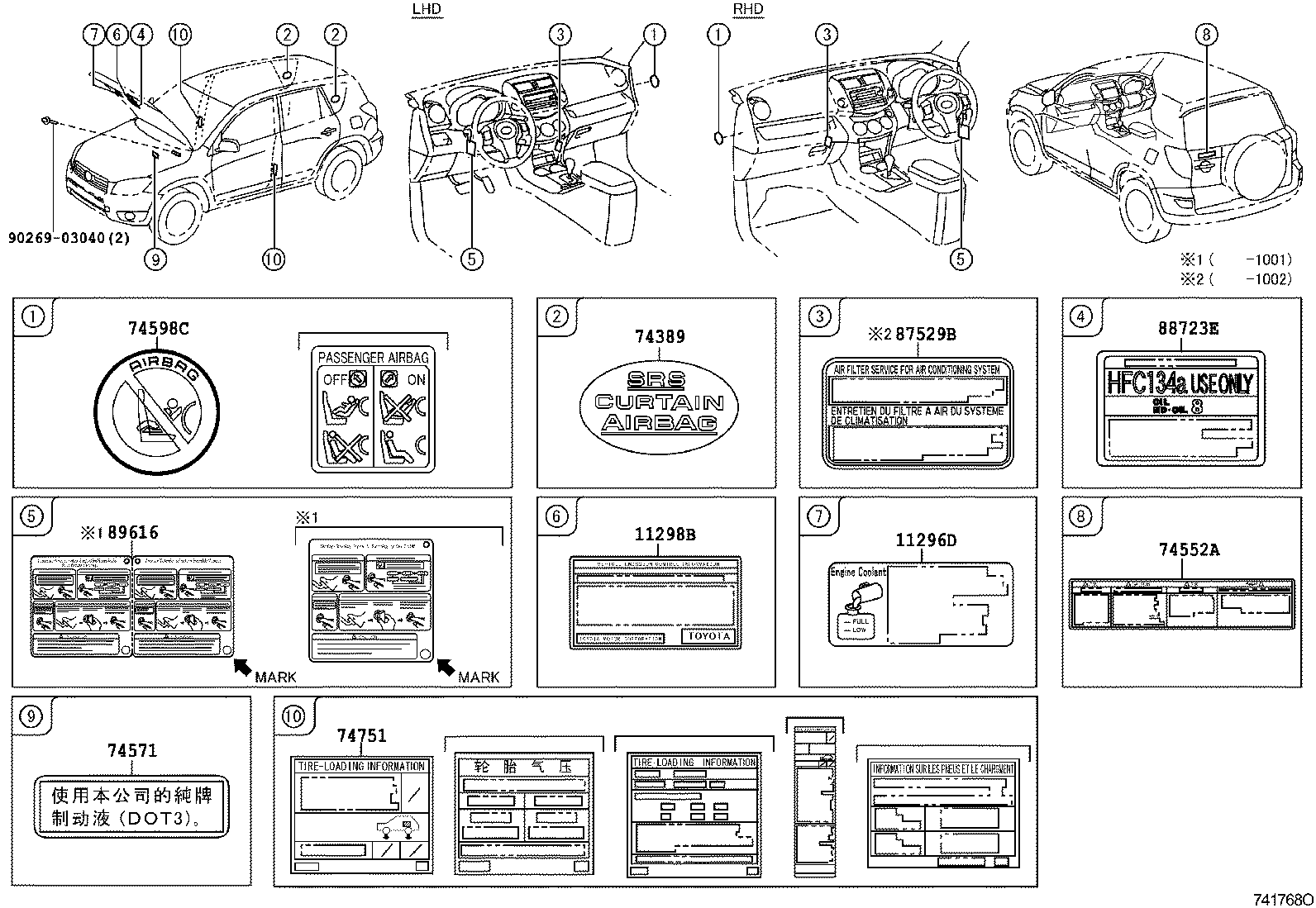

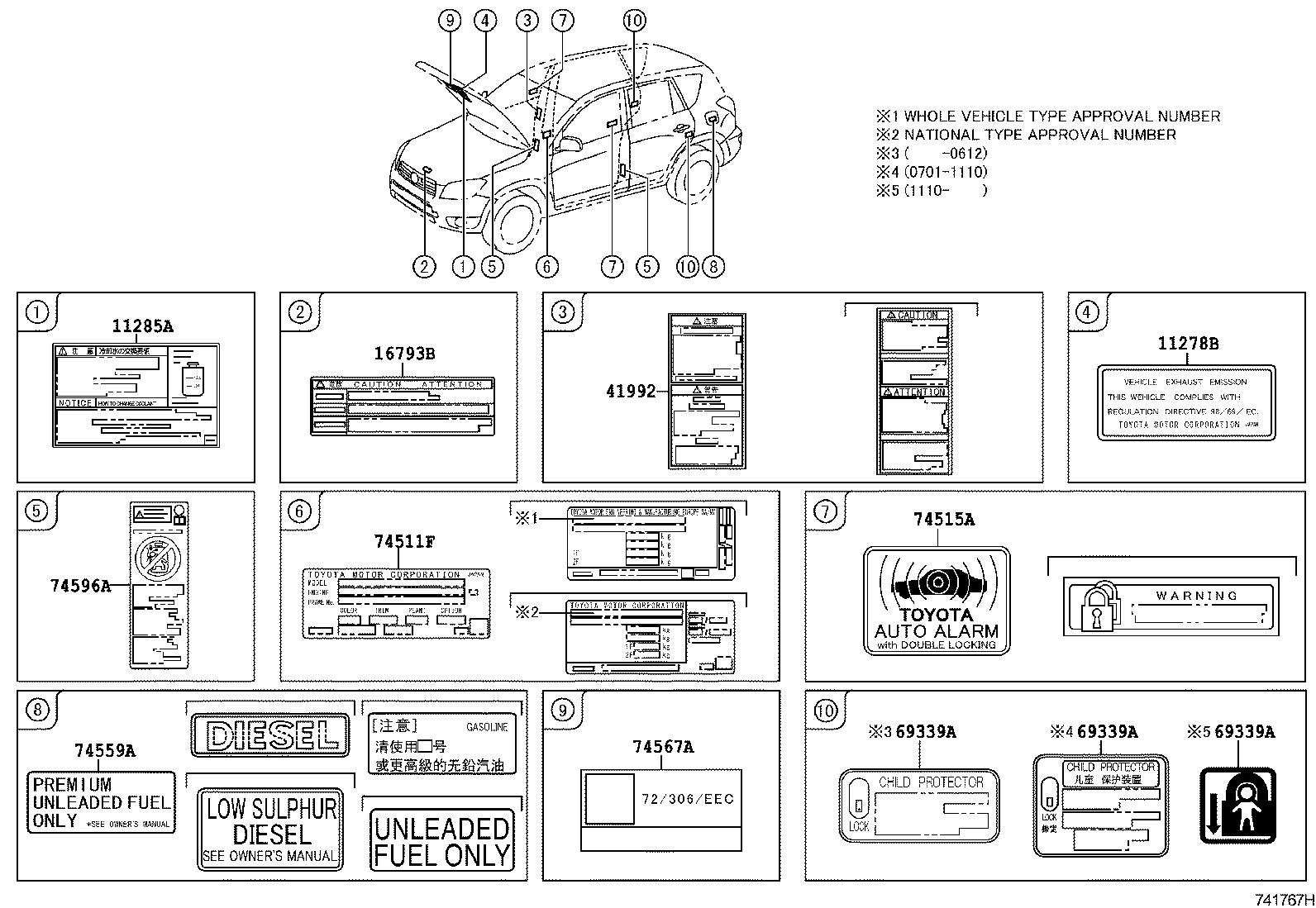

Figure 745985 745985 2005-11 → — Figure 741767H 741767H 2005-11 → — Figure 741768O 741768O 2005-11 → —

Part groups

PNCDescription
11278B Label, Engine Emission Compliance Information
11285A Label, Coolant System Notice
11291B Plate, Engine Name
11296D Label, Engine Service Information
11298B Label, Emission Control Information
16793B Label, Cooling Fan Information
41992 Label, Differential Notice
69339A Plate, Child Protector Lock Caution
74389 Label, Airbag Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515A Plate, Theft Warning
74552A Label, Safety Caution
74559A Plate, Fuel Caution
74567A Plate, E.C.E Approved Number
74571 Plate, Brake Fluid Caution
74596A Label, Side Airbag Caution
74598C Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
89616 Label, Push Start Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
