Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

12 part groups · 8 illustrations

Illustrations

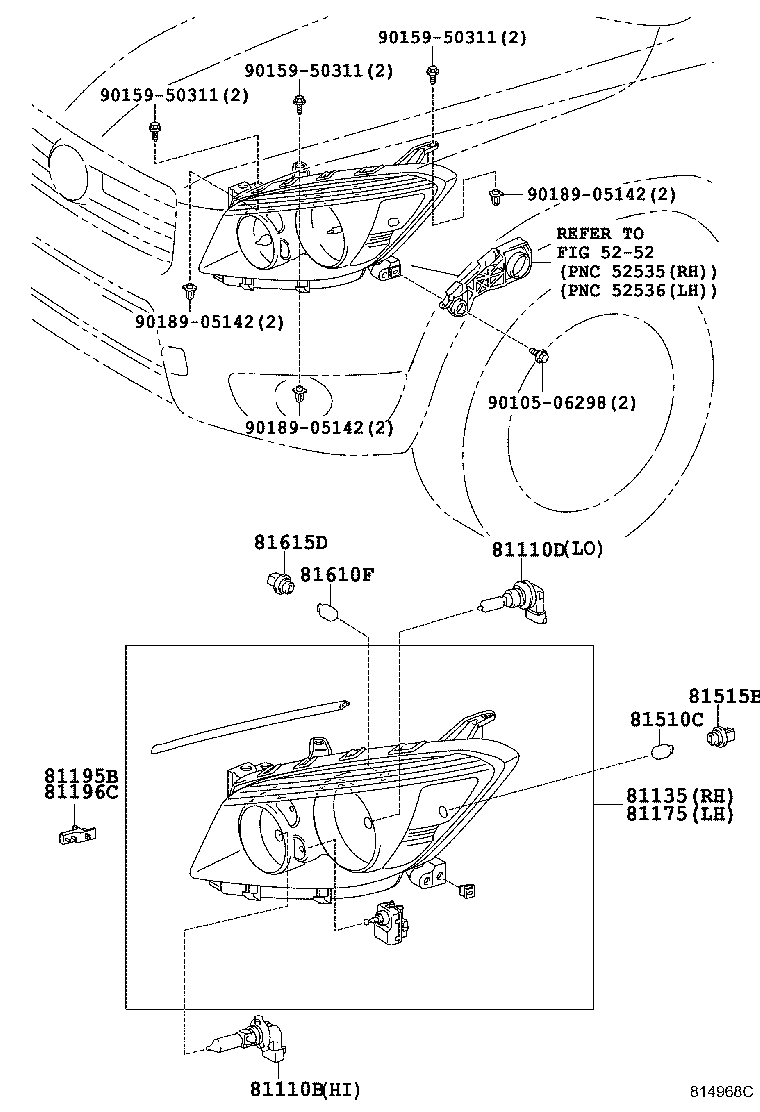

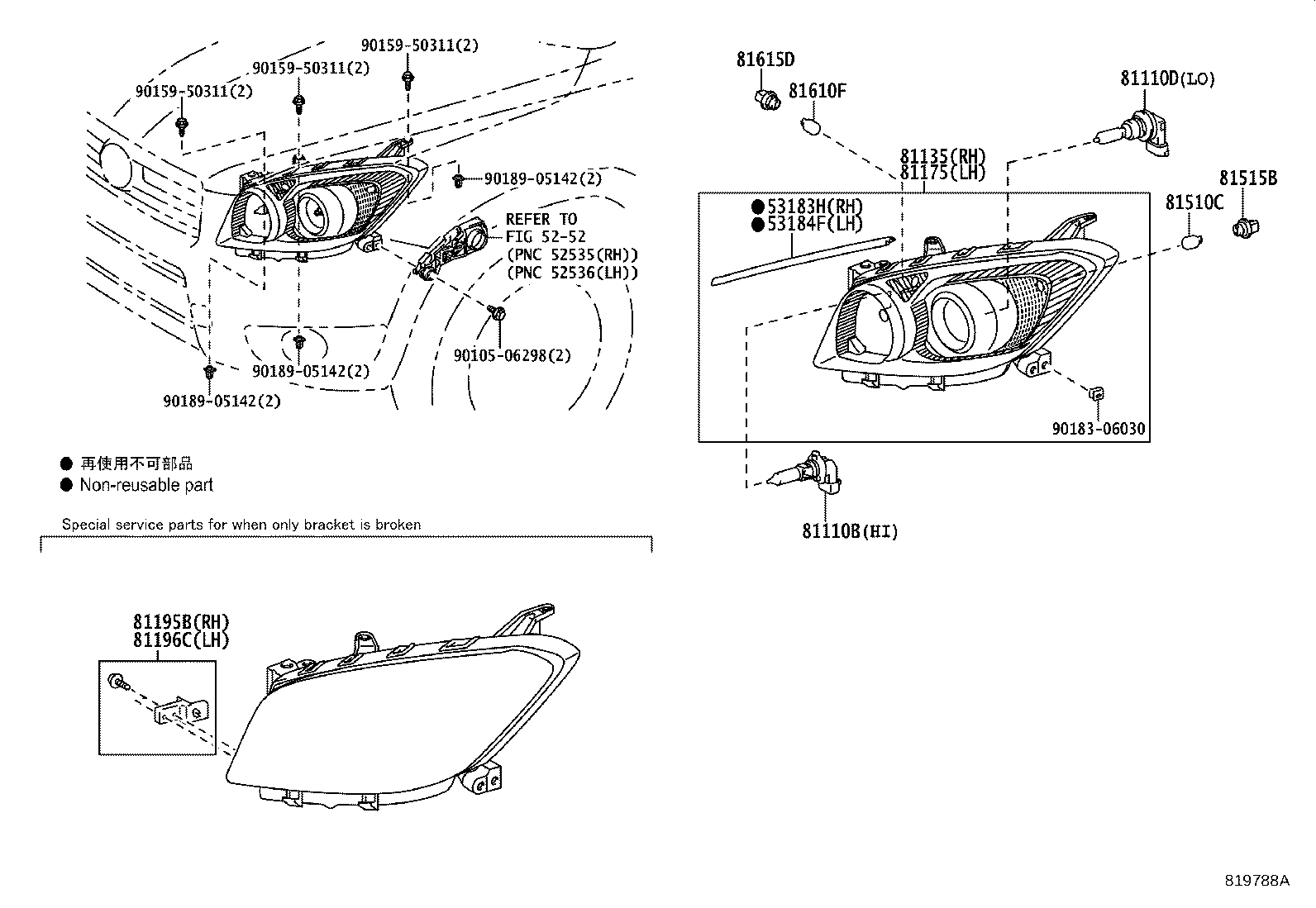

Figure 813486I 813486I 2005-11 → 2008-08 Figure 813486I 813486I 2005-11 → 2008-12 Figure 814968C 814968C 2008-08 → 2008-12 Figure 819788A 819788A 2008-08 → — Figure 819788A 819788A 2008-12 → — Figure 819788A 819788A 2009-08 → — Figure 819788A 819788A 2010-03 → — Figure 815353F 815353F 2010-02 → —

Part groups

PNCDescription
53183H Seal, Headlamp Cover, RH
53184F Seal, Headlamp Cover, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81135 Unit Assy, Headlamp, RH
81175 Unit Assy, Headlamp, LH
81195B Retainer, RH Headlamp Protector, Lower RH
81196C Retainer, LH Headlamp Protector, Lower LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
