Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

5 part groups · 9 illustrations

Illustrations

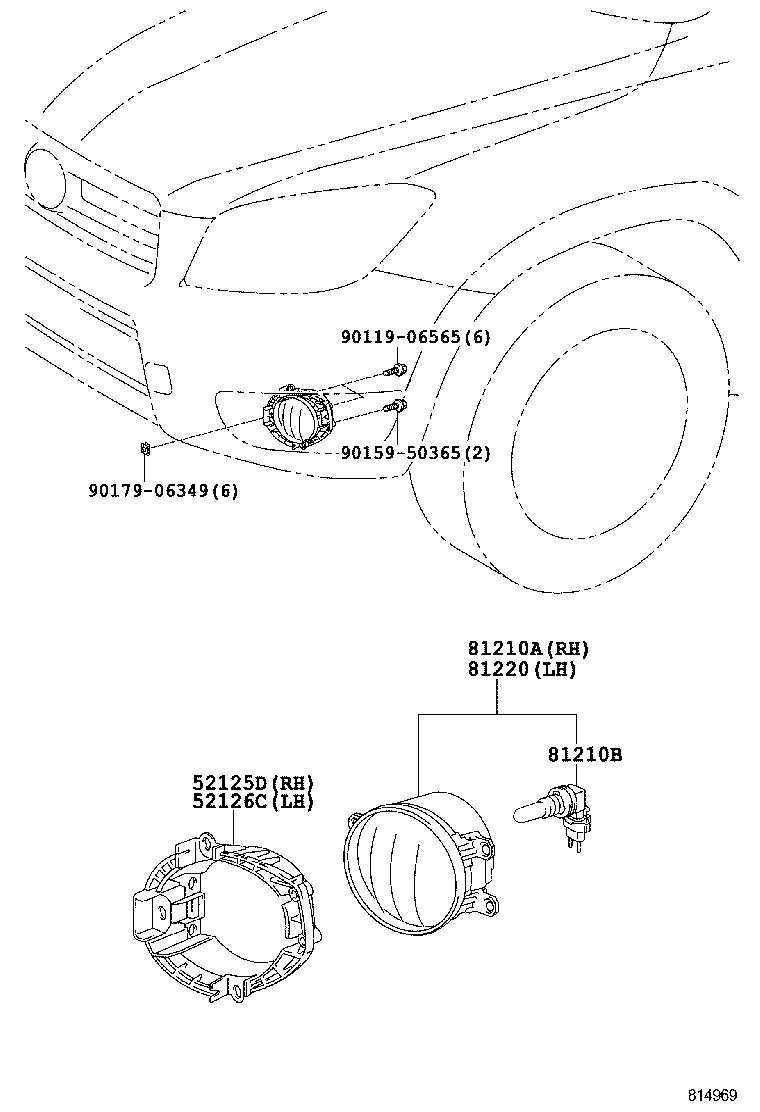

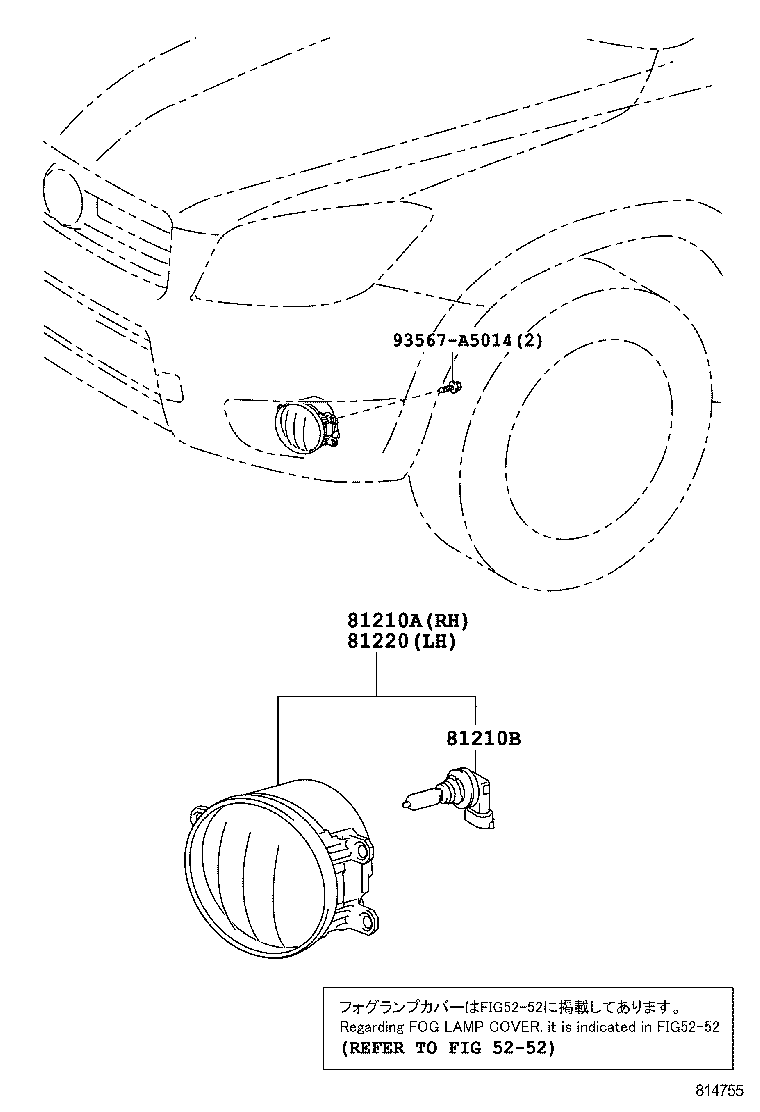

Figure 813448D 813448D 2005-11 → 2008-08 Figure 813448D 813448D 2005-11 → 2008-12 Figure 814969 814969 2008-08 → 2008-12 Figure 814755 814755 2008-08 → — Figure 814755 814755 2008-12 → — Figure 814755 814755 2009-08 → — Figure 814755 814755 2010-02 → — Figure 814755 814755 2011-07 → — Figure 814755 814755 2011-07 → —

Part groups

PNCDescription
52125D Bracket, Fog Lamp Mounting, RH
52126C Bracket, Fog Lamp Mounting, LH
81210A Lamp Assy, Fog, RH
81210B Bulb, Fog Lamp
81220 Lamp Assy, Fog, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
