Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

7 part groups · 8 illustrations

Illustrations

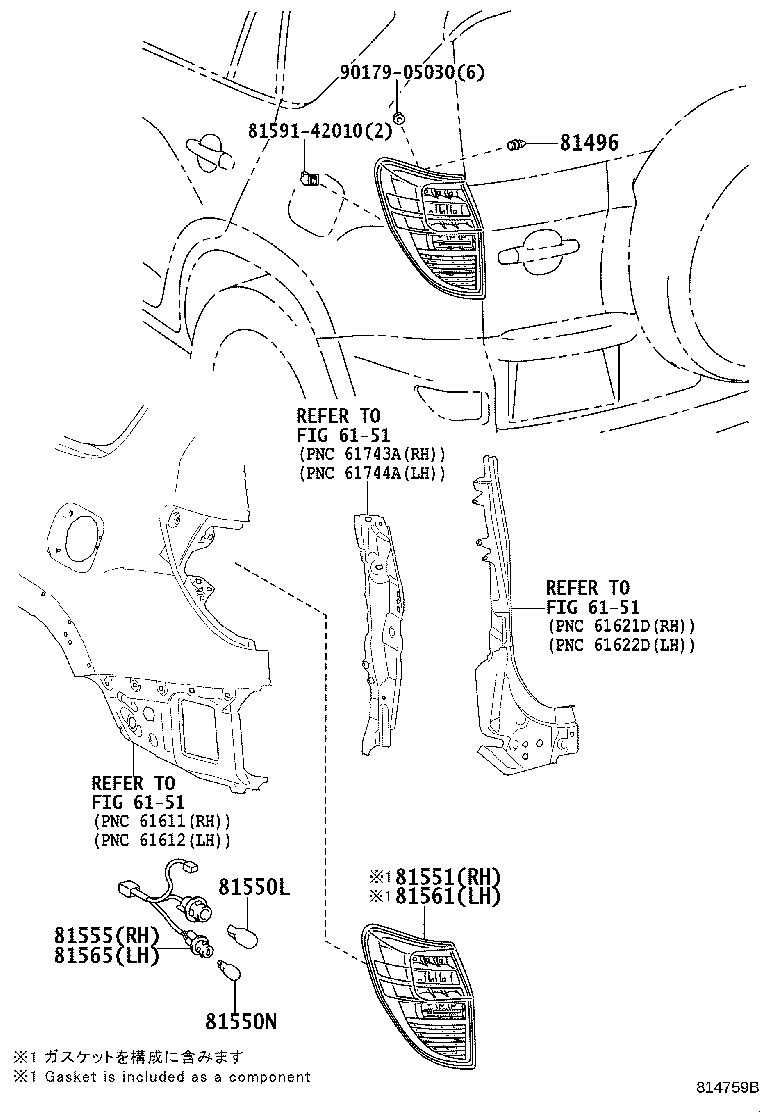

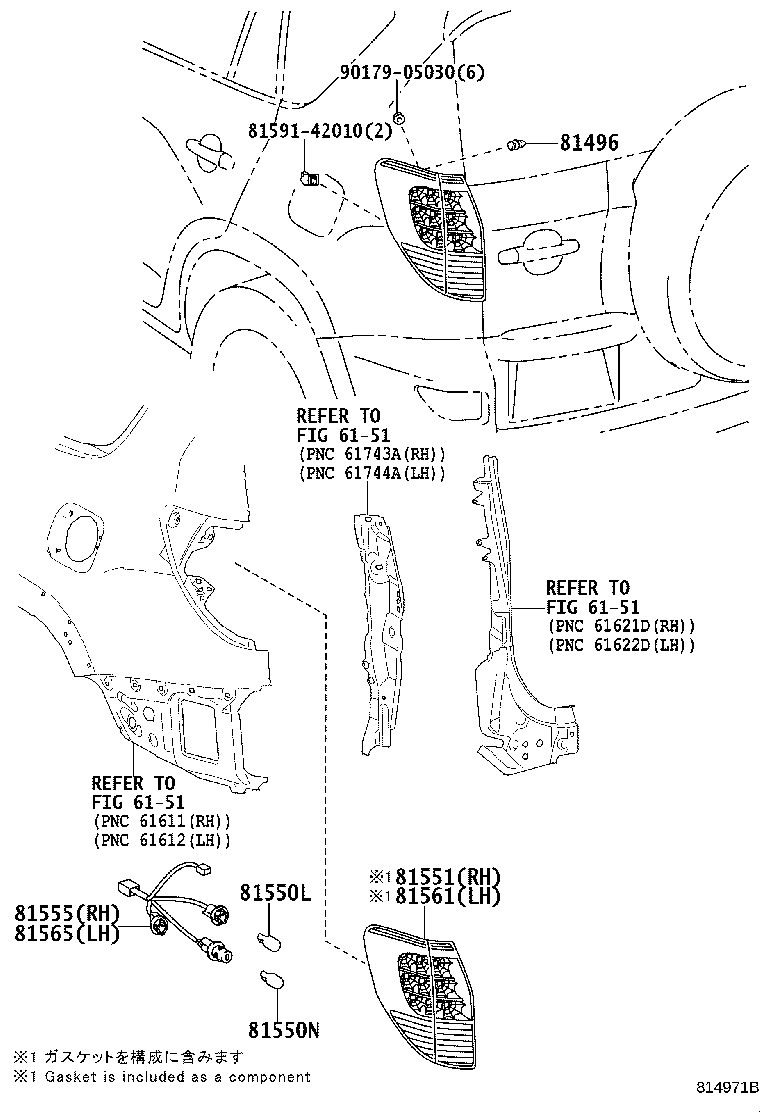

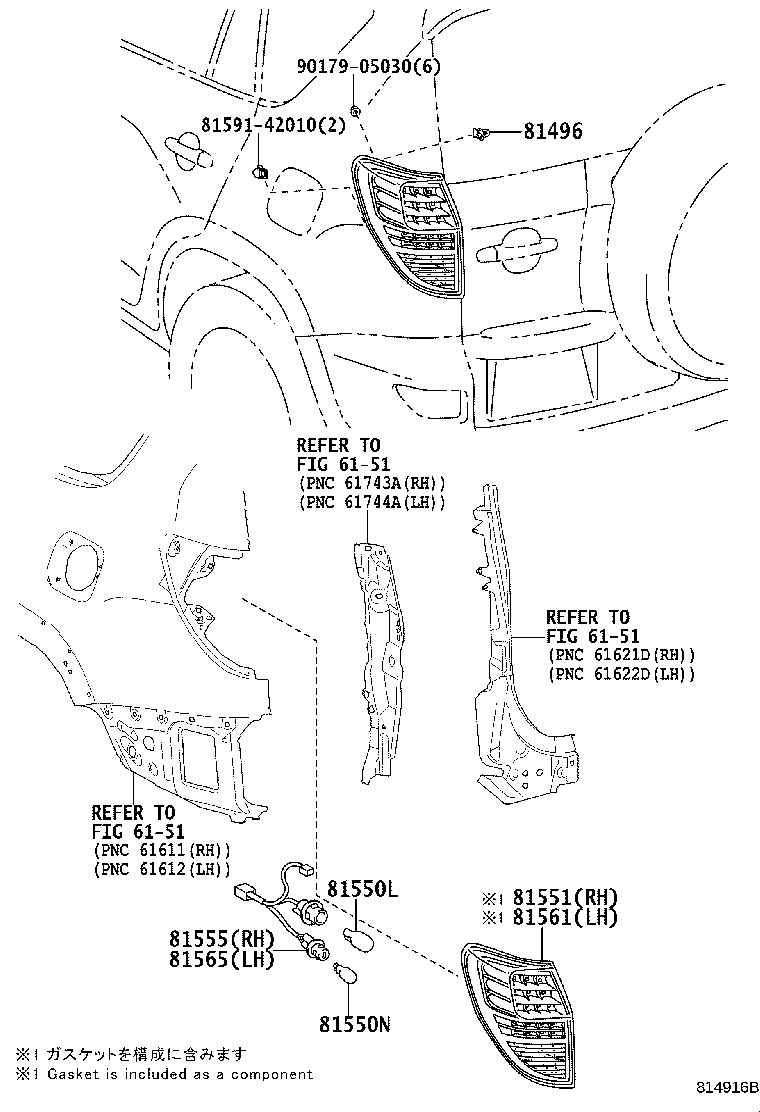

Figure 813453B 813453B 2005-11 → 2008-08 Figure 813453B 813453B 2005-11 → 2008-12 Figure 814971B 814971B 2008-08 → 2008-12 Figure 814759B 814759B 2008-08 → — Figure 814759B 814759B 2008-12 → — Figure 814759B 814759B 2009-08 → — Figure 814759B 814759B 2010-02 → — Figure 814916B 814916B 2008-12 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81551 Lens, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81561 Lens, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
