Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

62 part groups · 27 illustrations

Illustrations

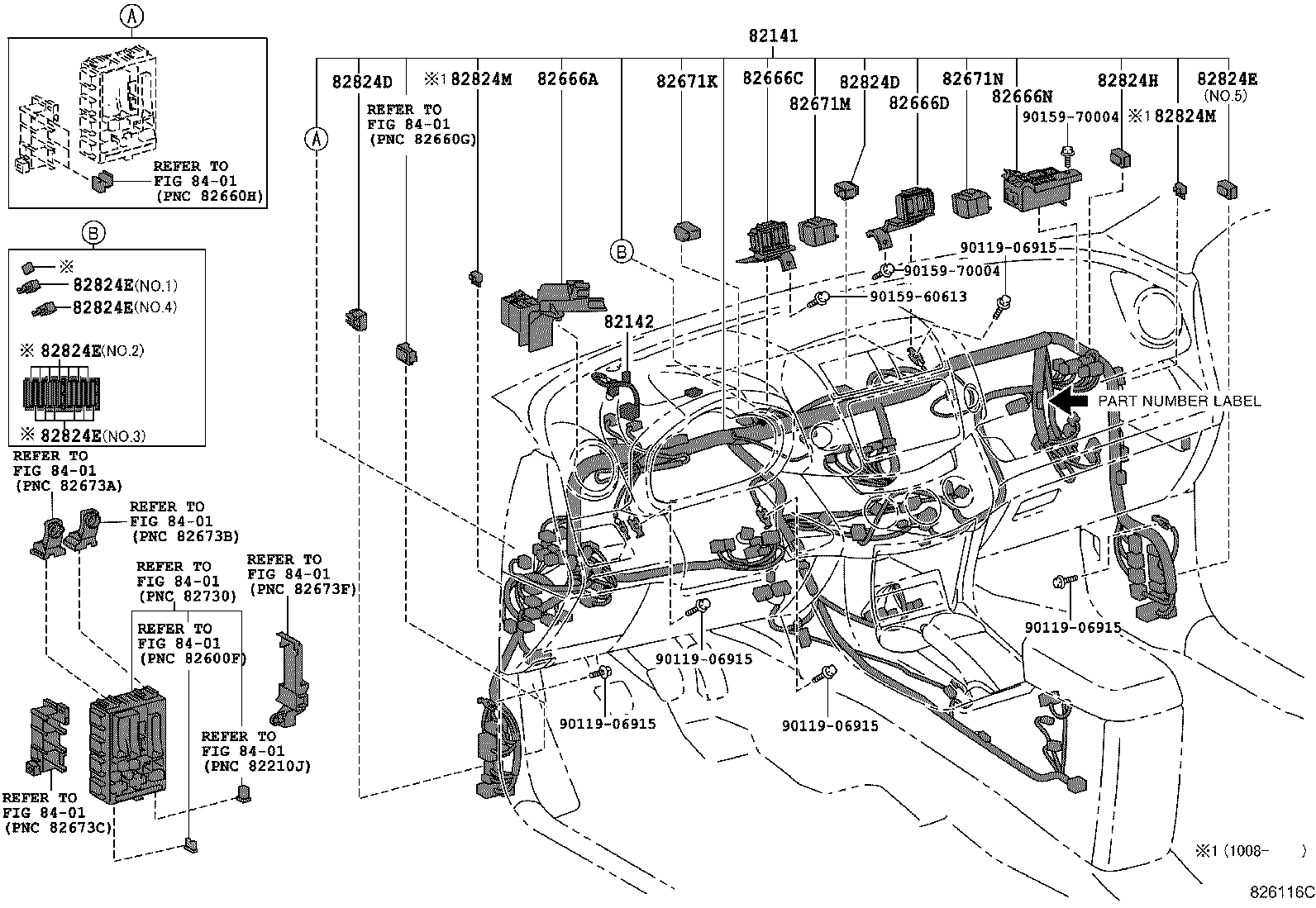

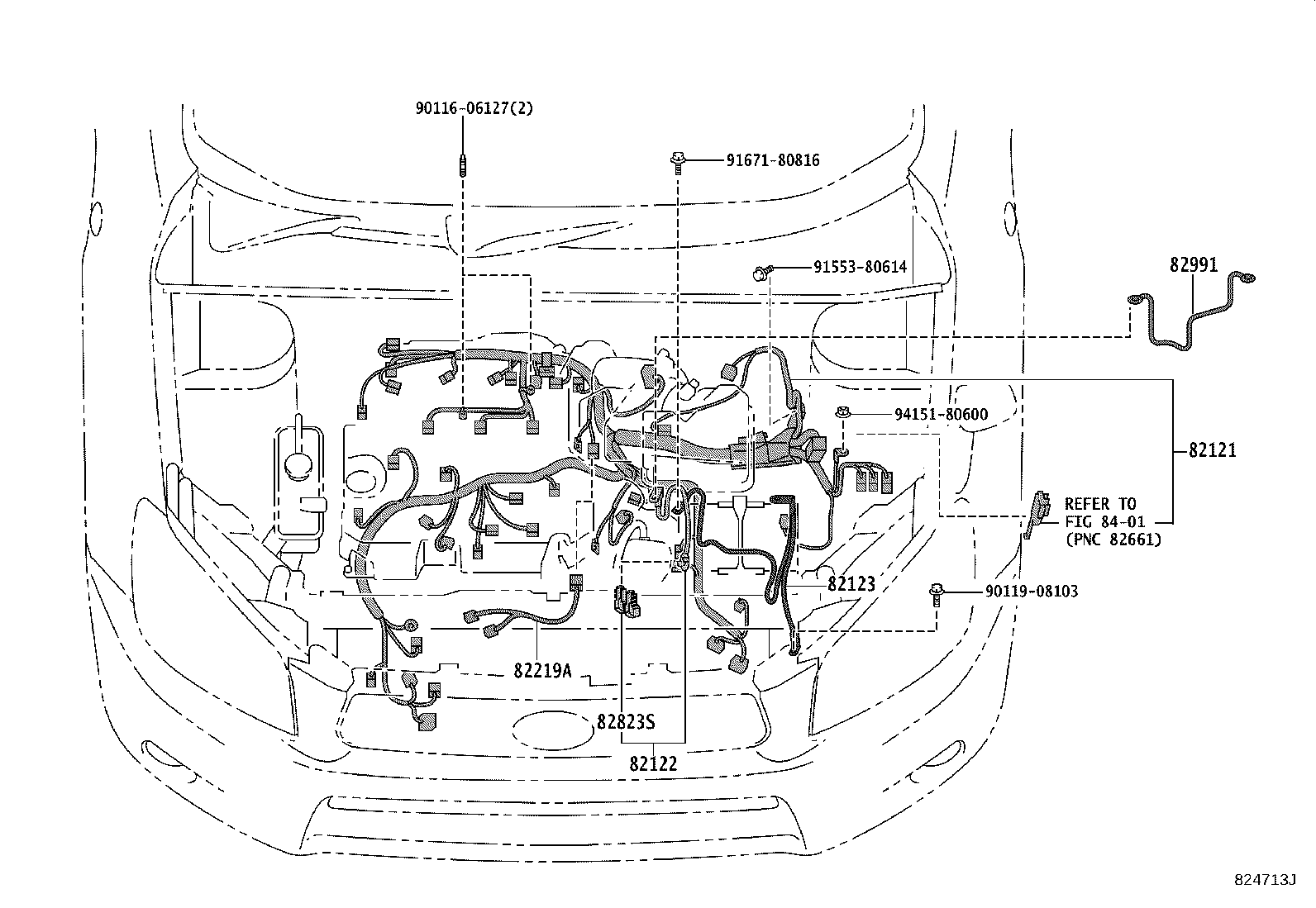

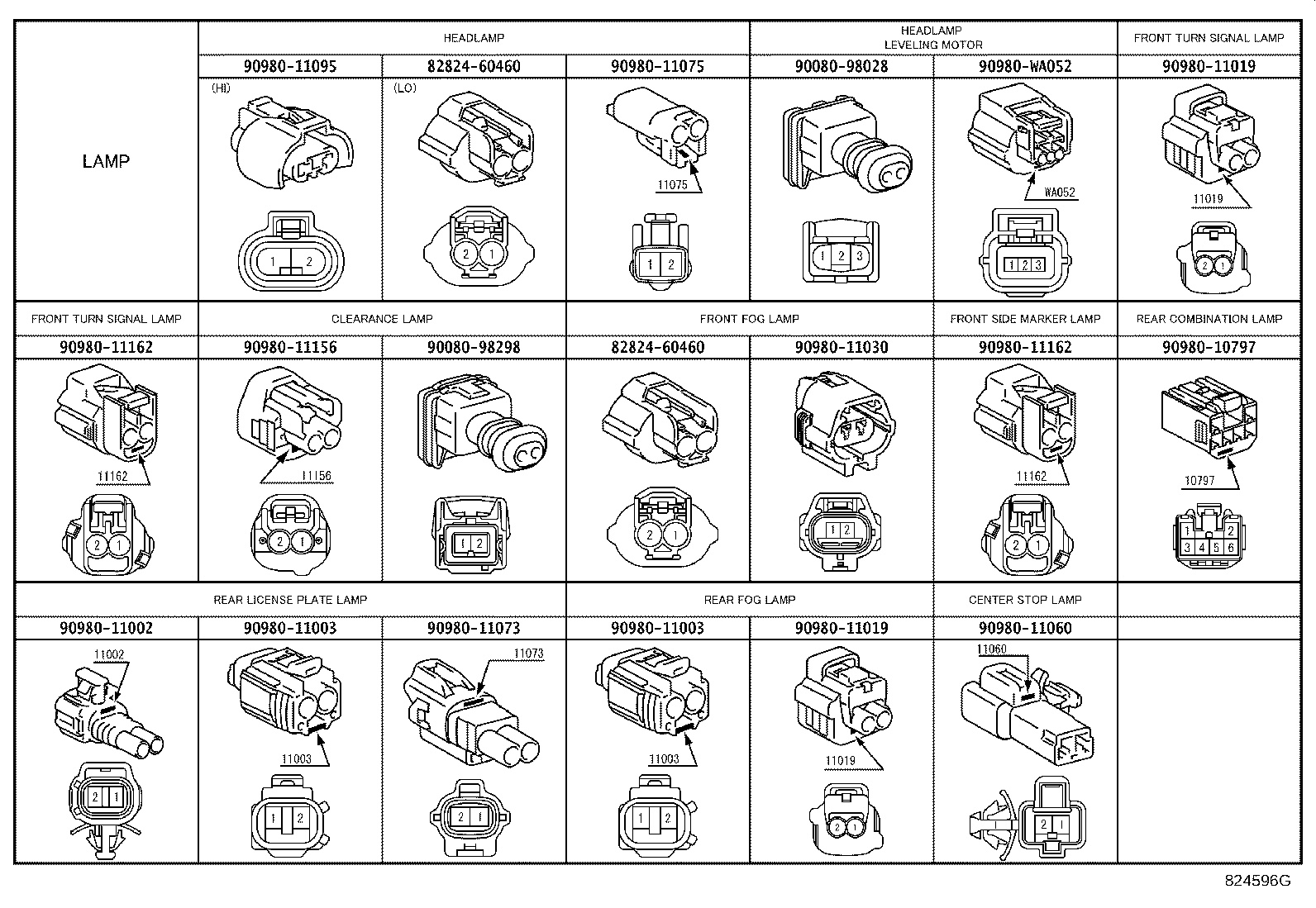

Figure 824588J 824588J 2005-11 → — Figure 824587J 824587J 2005-11 → — Figure 824614J 824614J 2005-11 → — Figure 824589F 824589F 2005-11 → 2008-12 Figure 826328C 826328C 2008-12 → — Figure 824713J 824713J 2007-08 → — Figure 826329C 826329C 2008-12 → — Figure 824592I 824592I 2005-11 → 2008-08 Figure 824592I 824592I 2005-11 → 2008-12 Figure 826488A 826488A 2008-08 → 2008-12 Figure 824591I 824591I 2005-11 → 2008-08 Figure 824591I 824591I 2005-11 → 2008-12 Figure 826116C 826116C 2008-08 → — Figure 826116C 826116C 2008-12 → — Figure 826115B 826115B 2008-08 → — Figure 826115B 826115B 2008-12 → — Figure 824593D 824593D 2005-11 → — Figure 824594E 824594E 2005-11 → — Figure 824625 824625 2005-11 → — Figure 824595E 824595E 2005-11 → — Figure 826489 826489 2007-08 → — Figure 826330 826330 2008-12 → — Figure 825660 825660 2005-11 → — Figure 824586B 824586B 2005-11 → — Figure 826331 826331 2008-12 → — Figure 824596G 824596G 2005-11 → — Figure 82F093 82F093 2005-11 → —

Part groups

PNCDescription

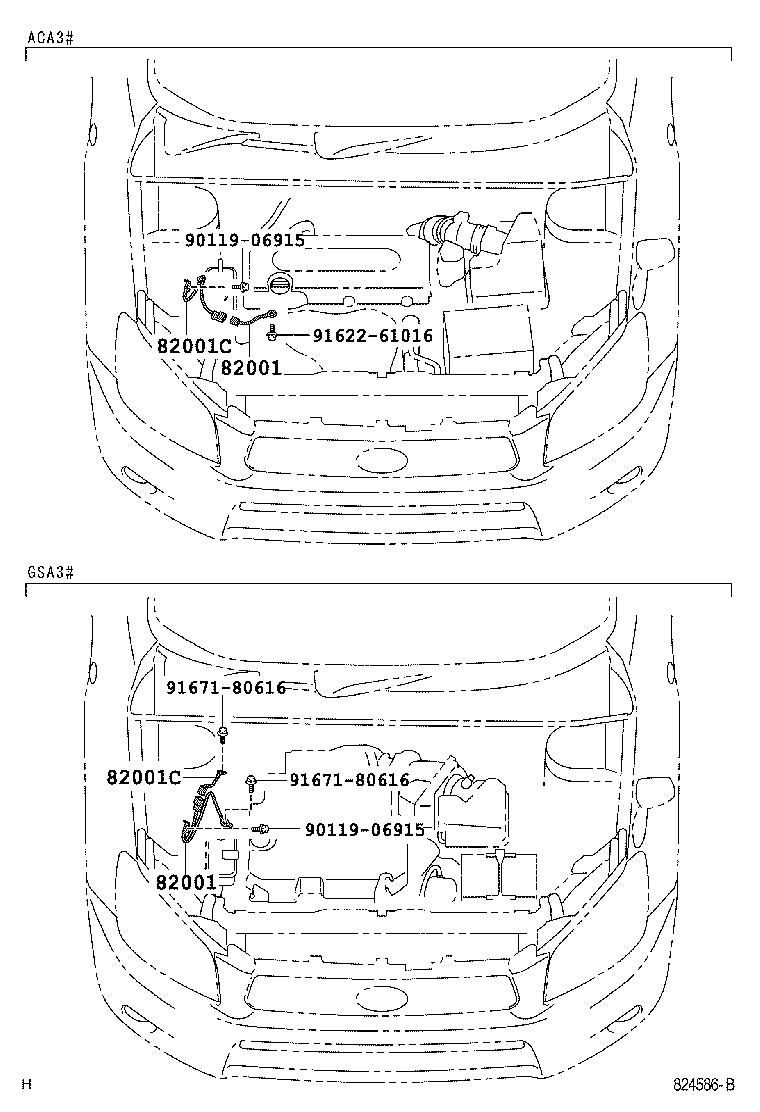

82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2

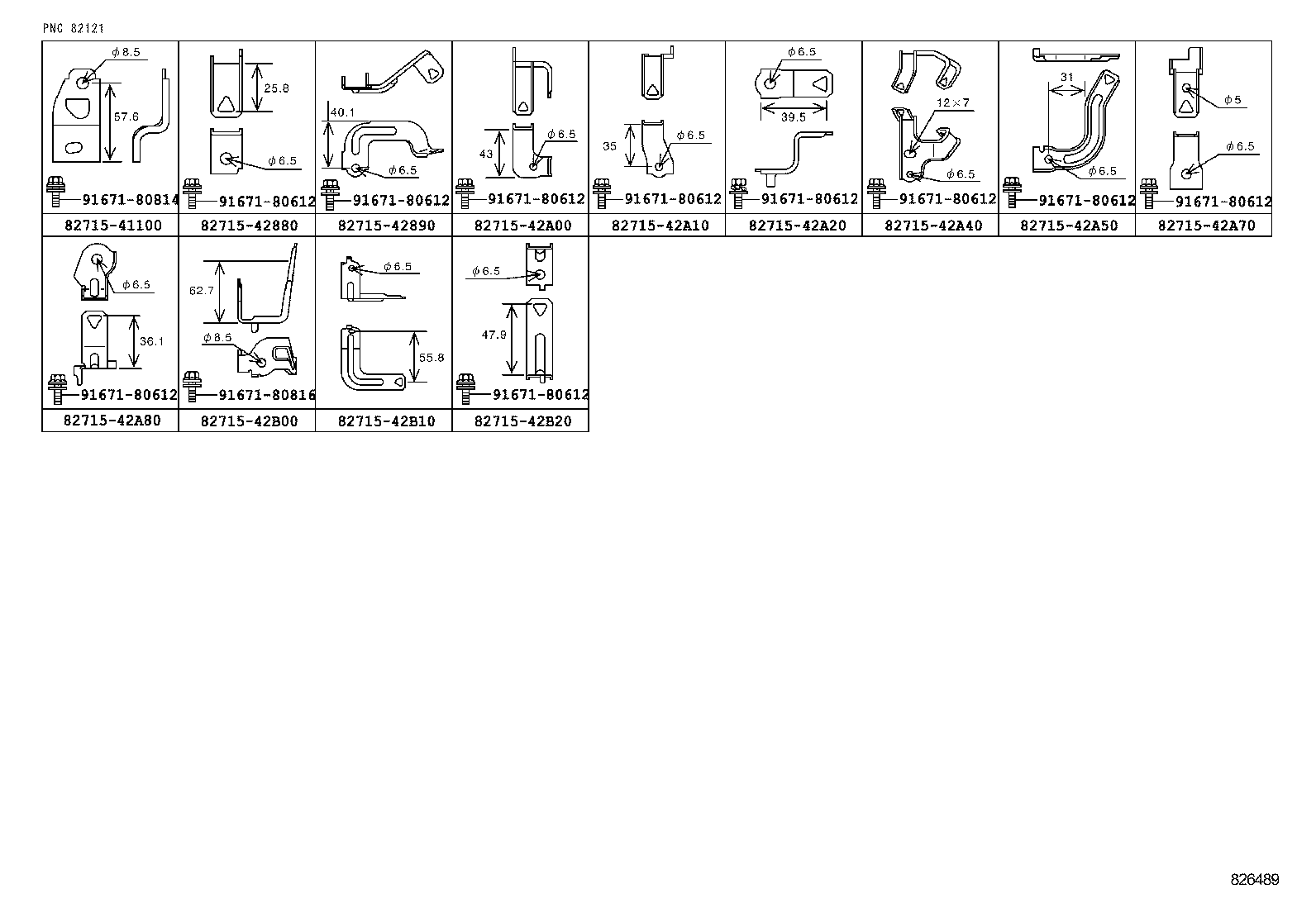

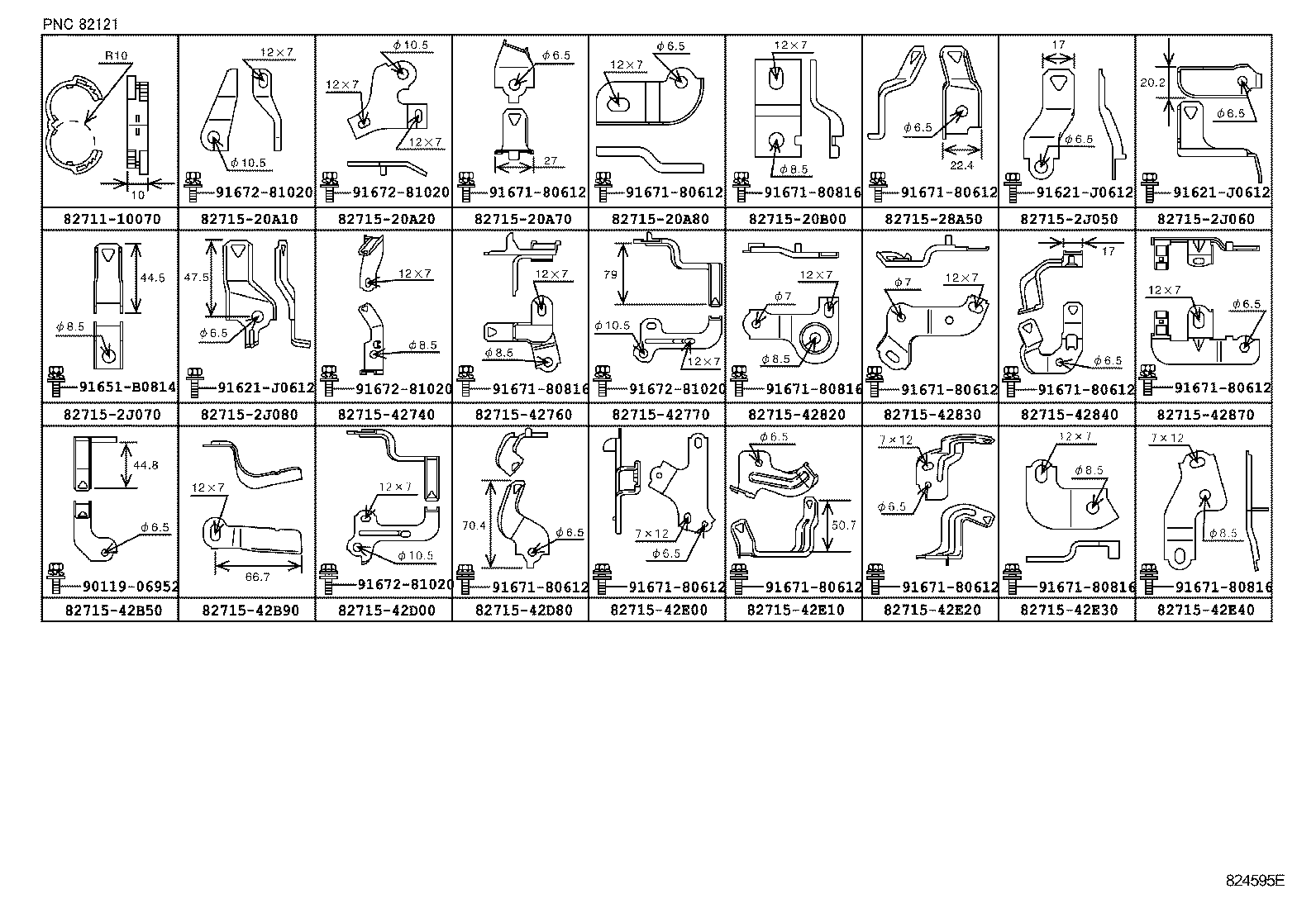

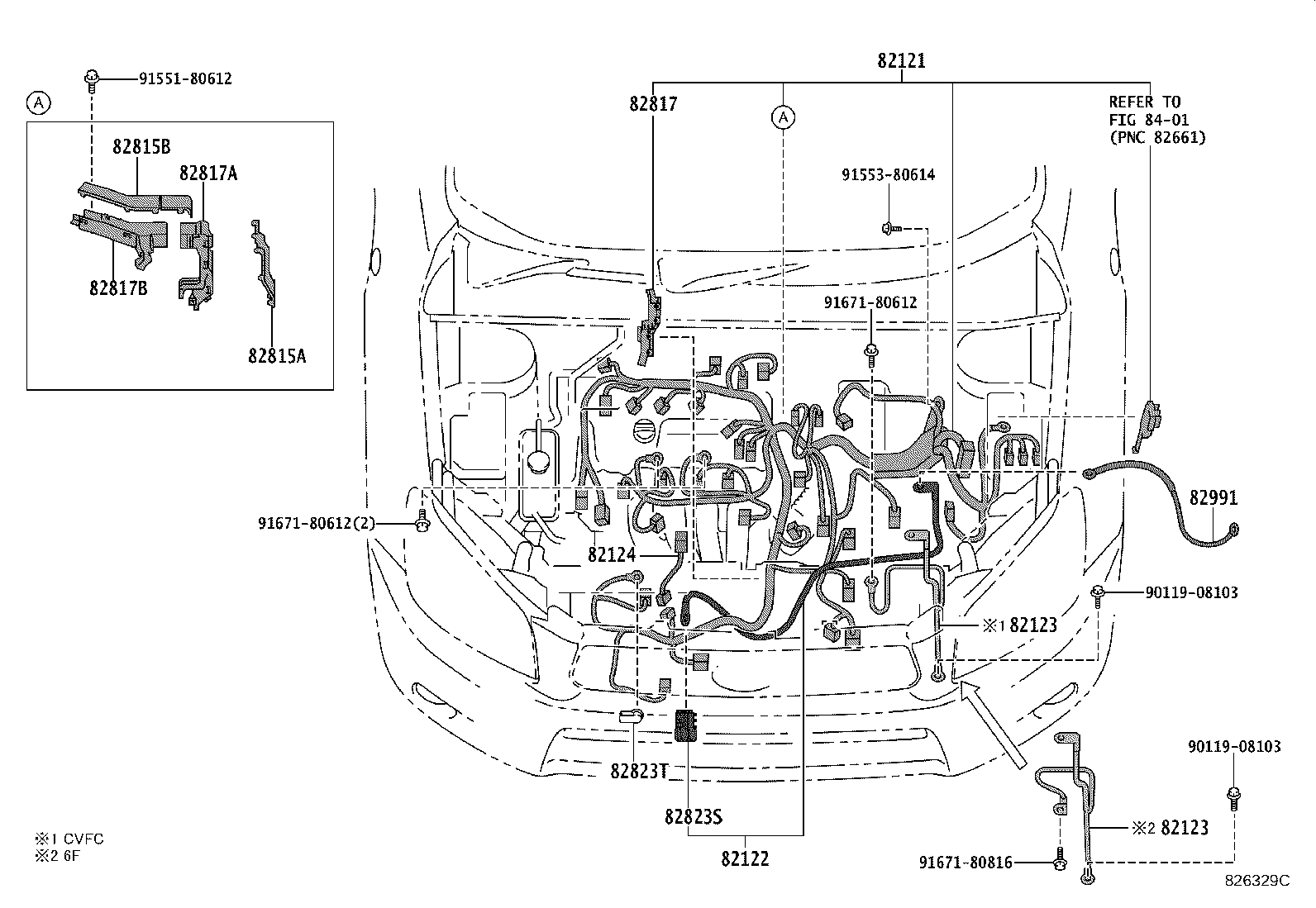

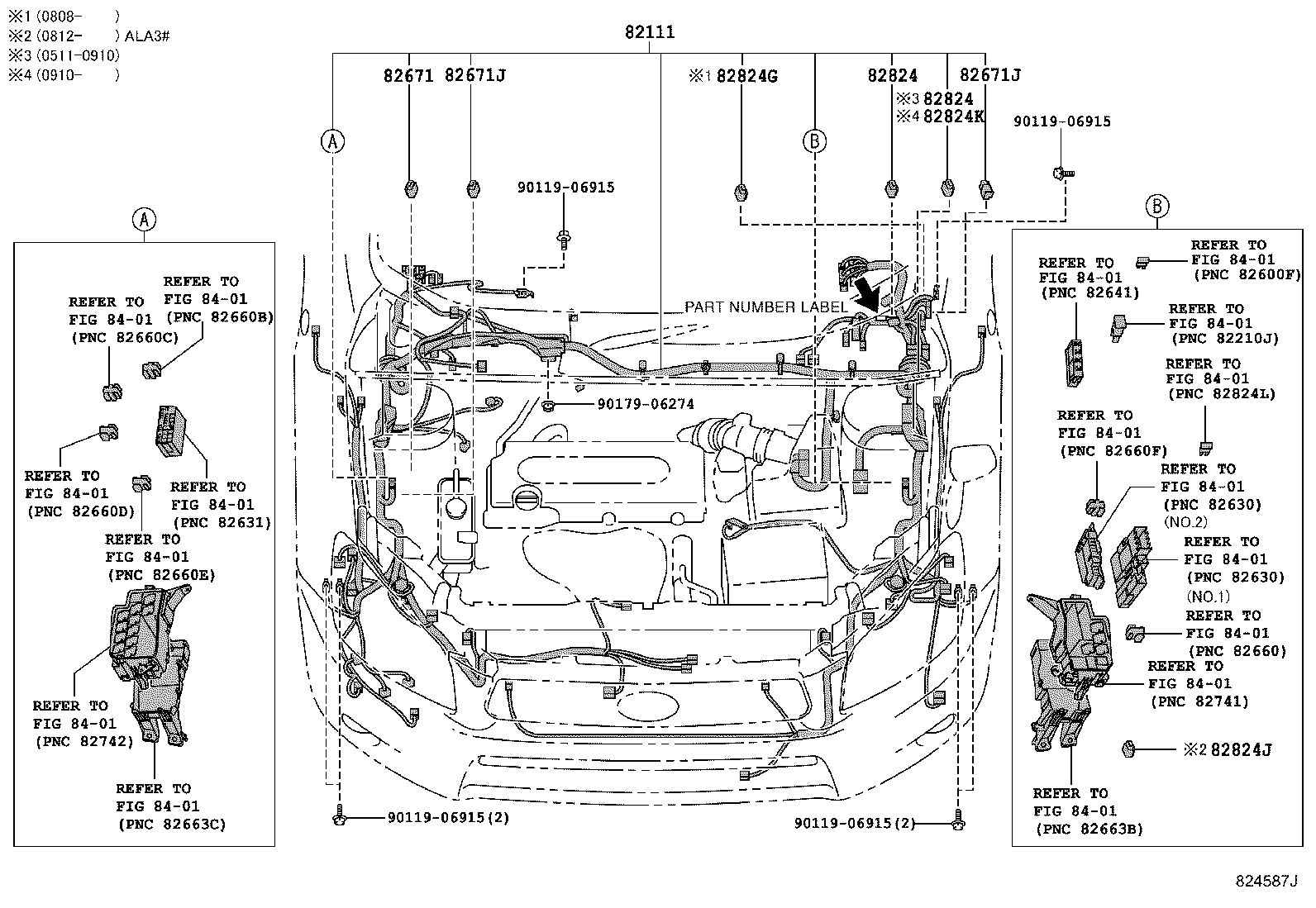

82111 Wire, Engine Room Main

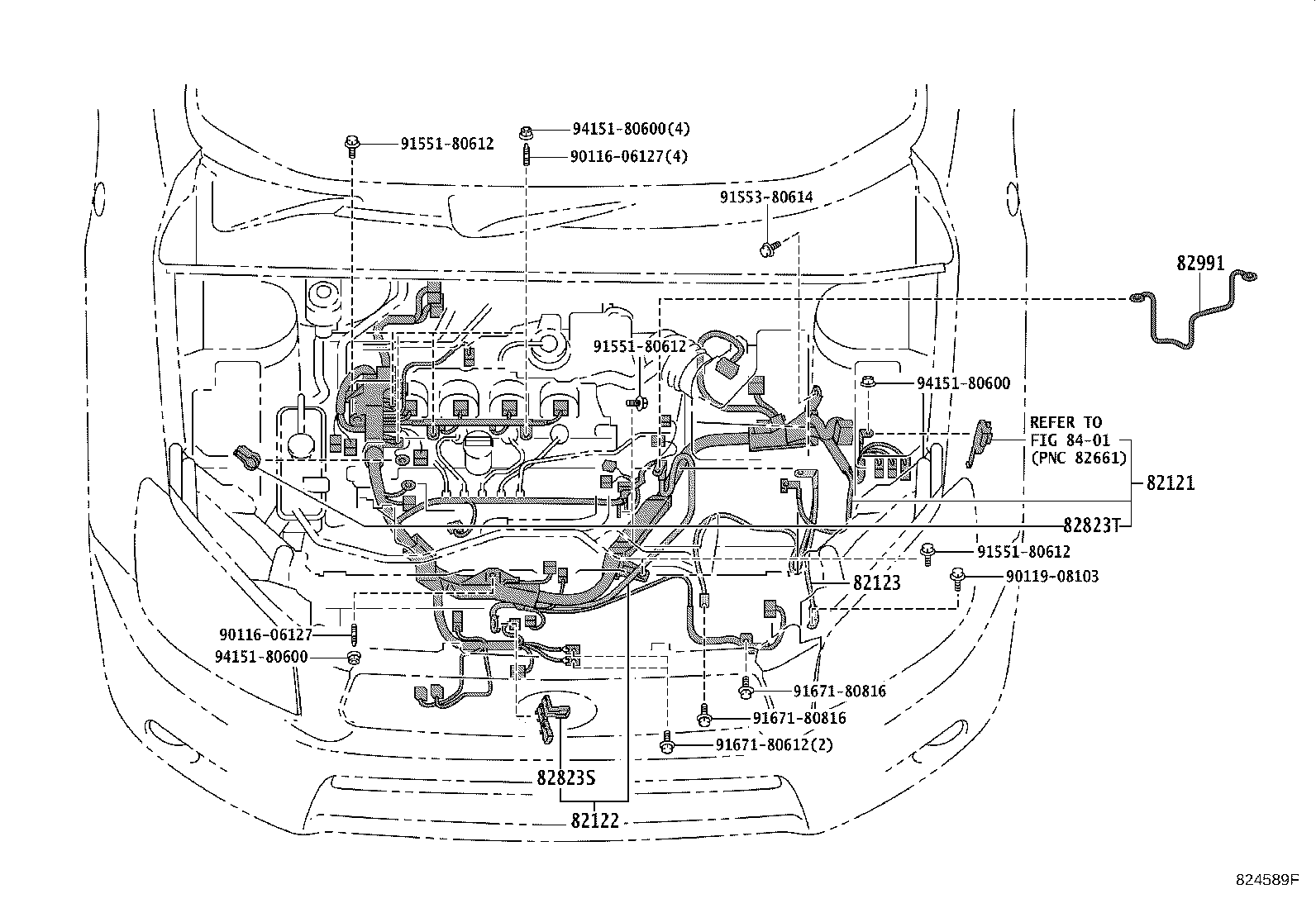

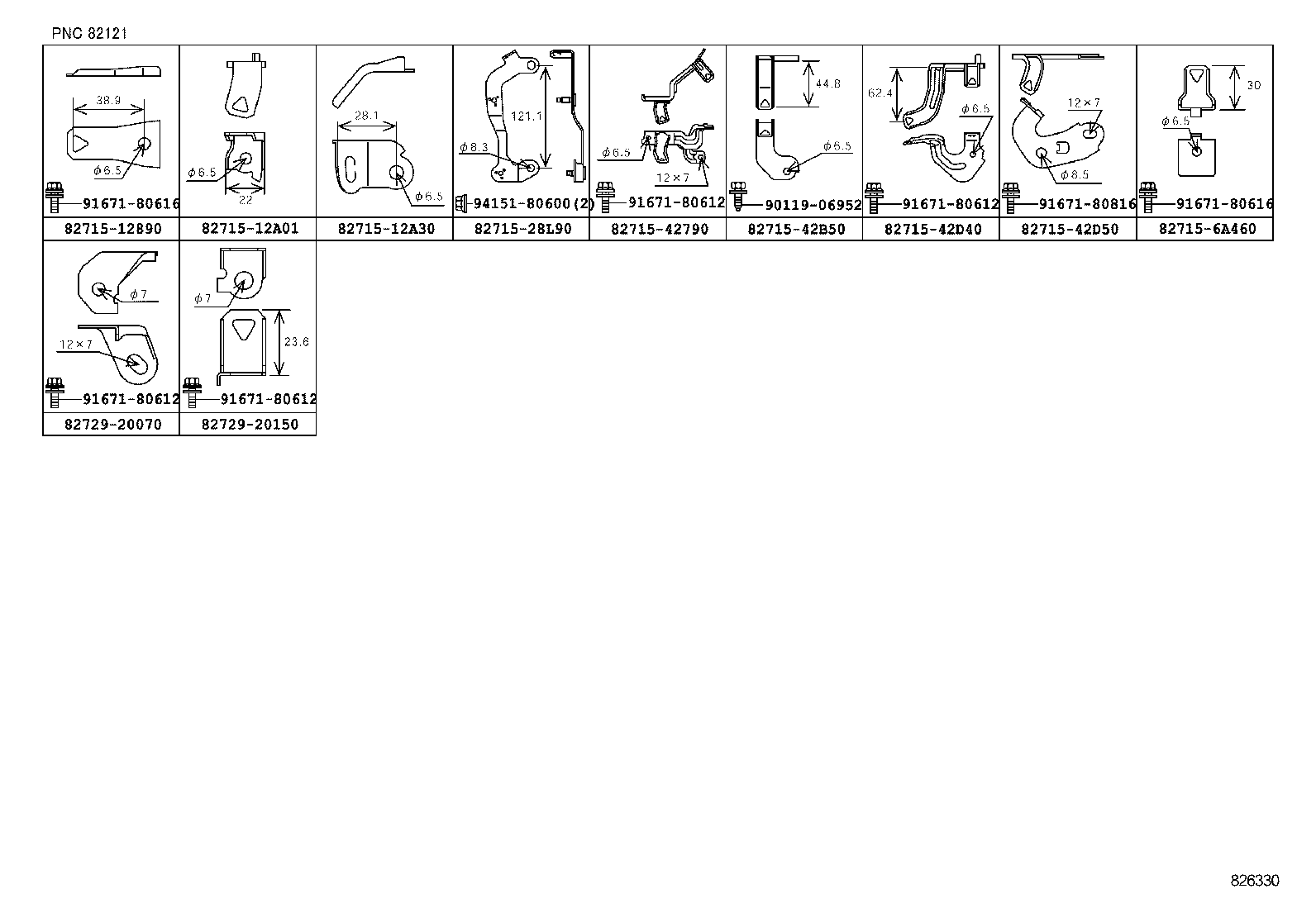

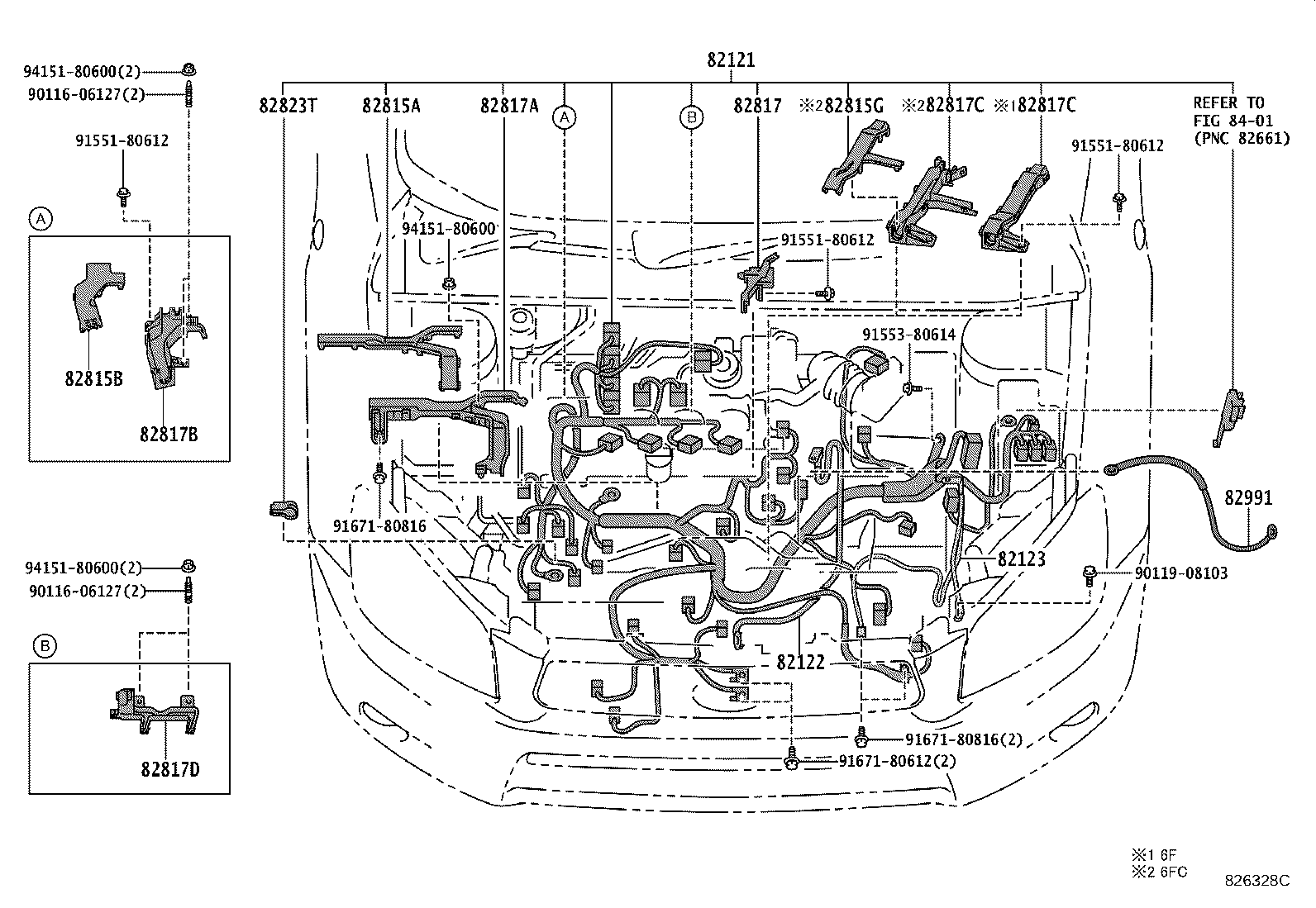

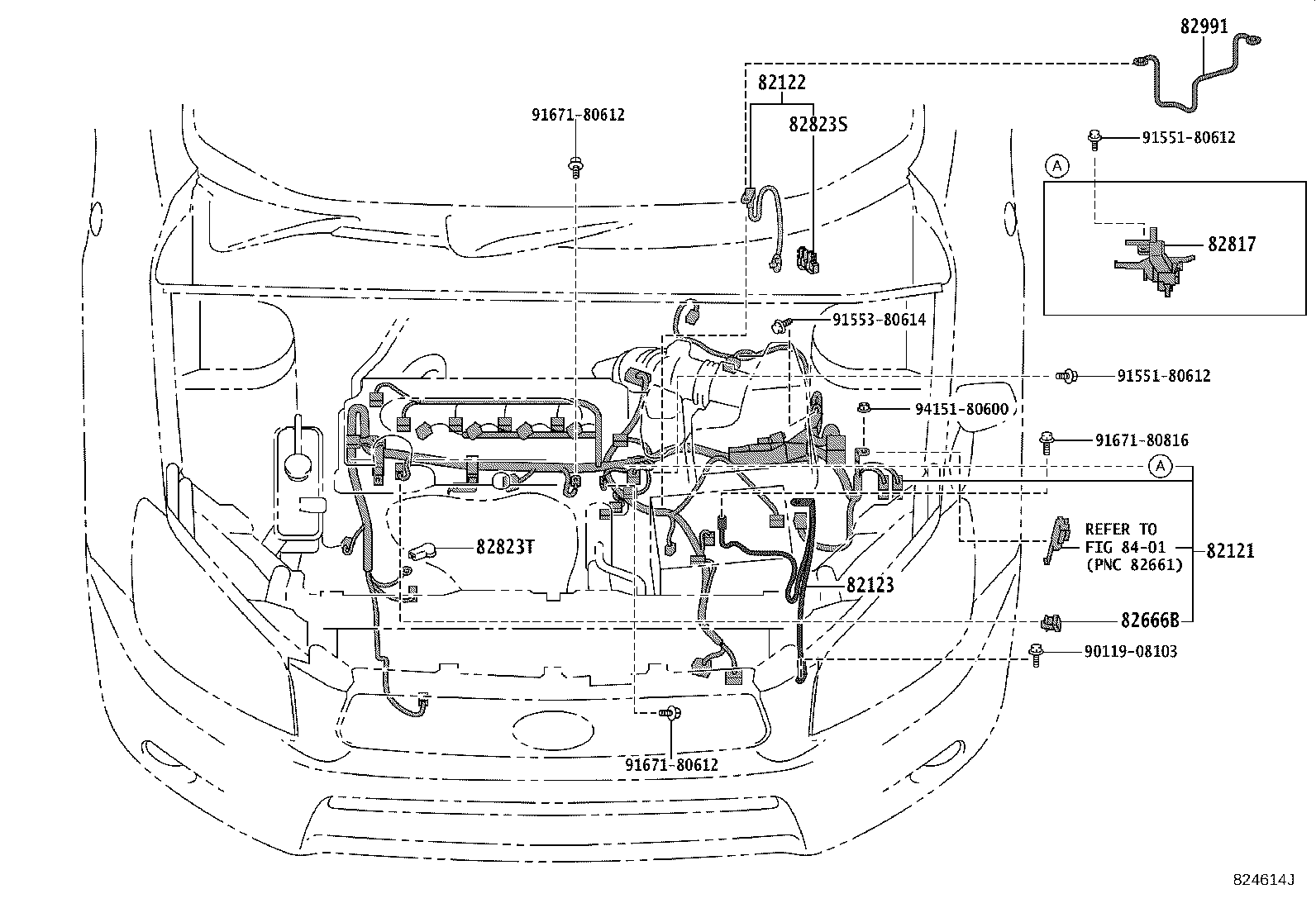

82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4

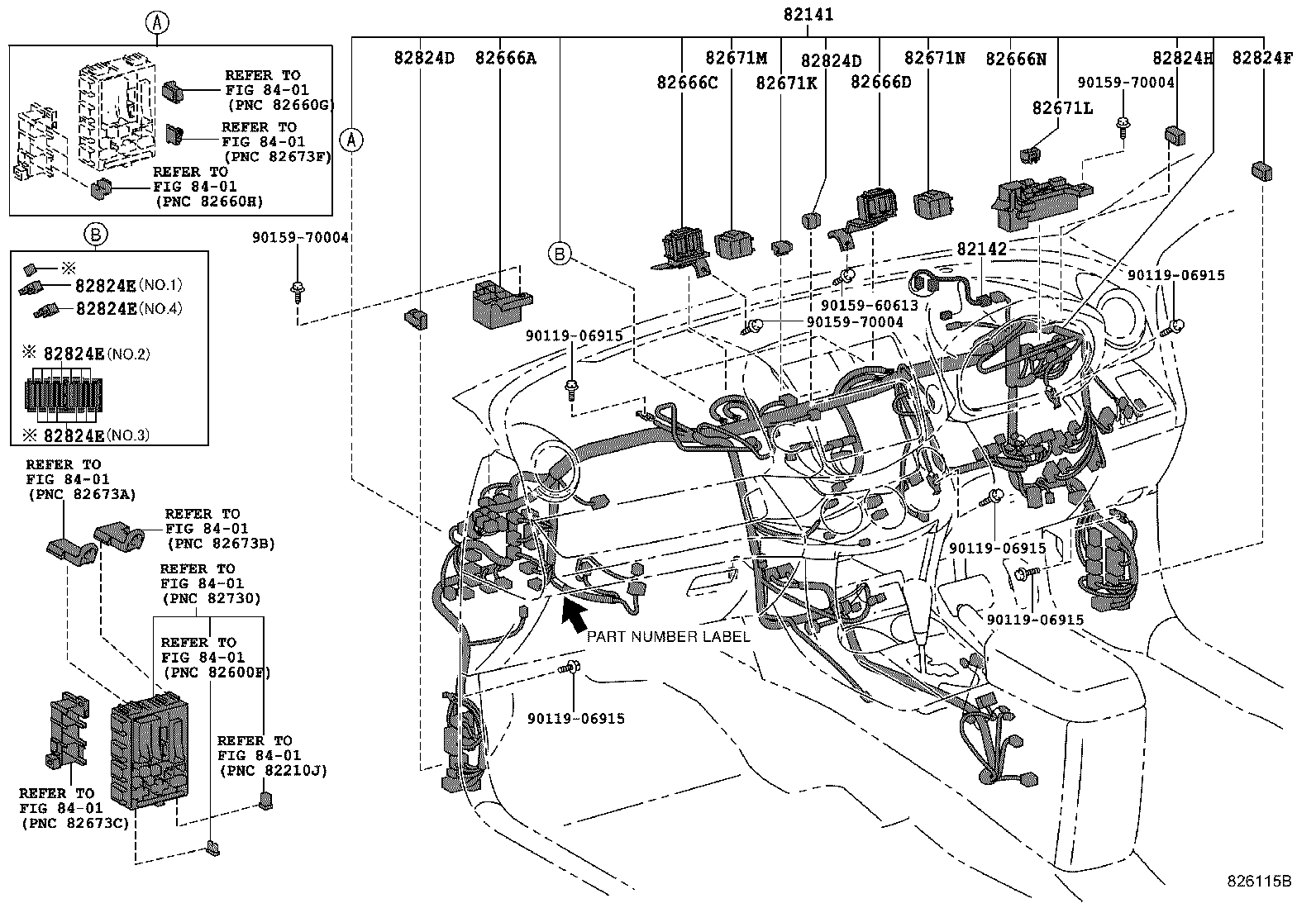

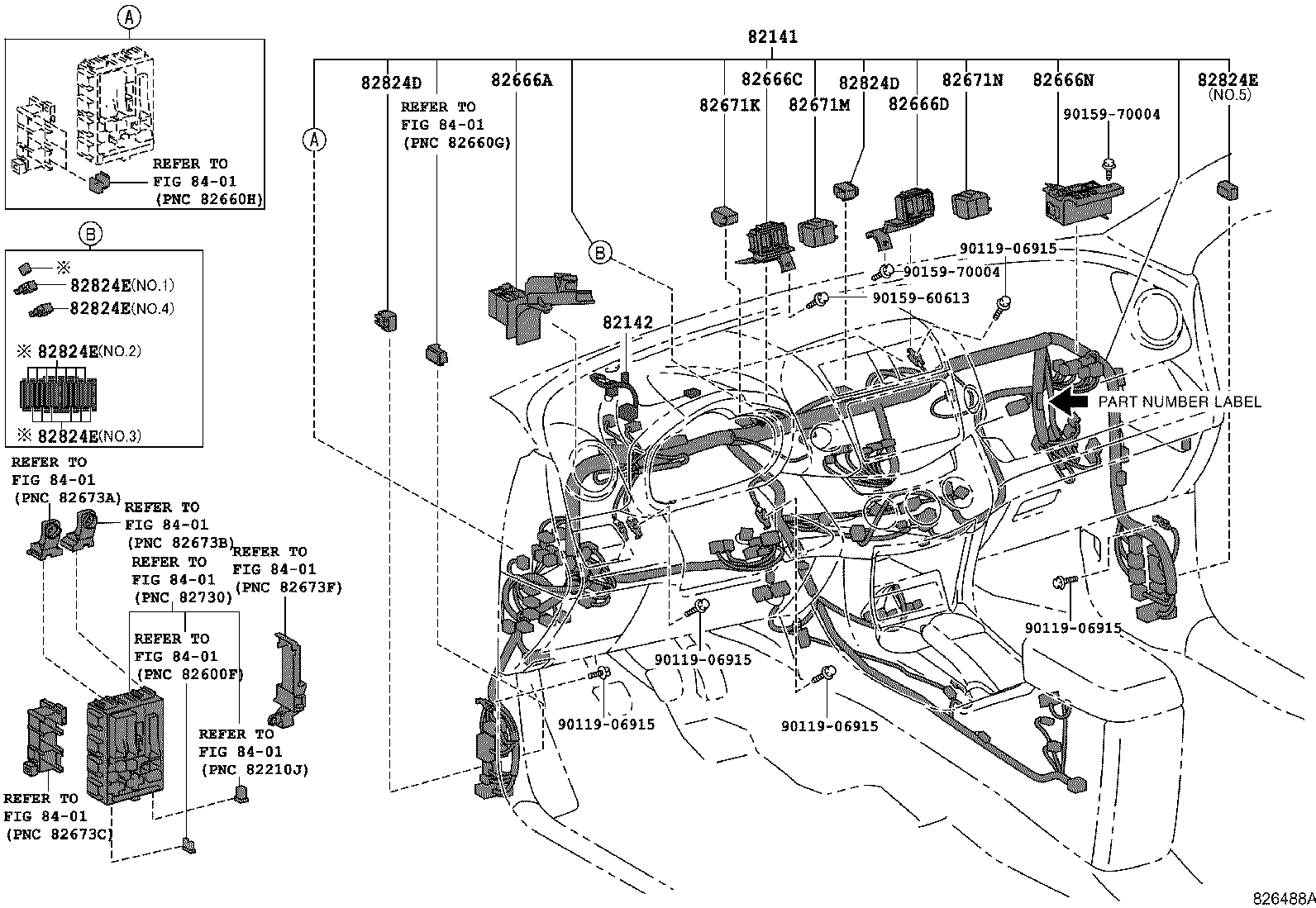

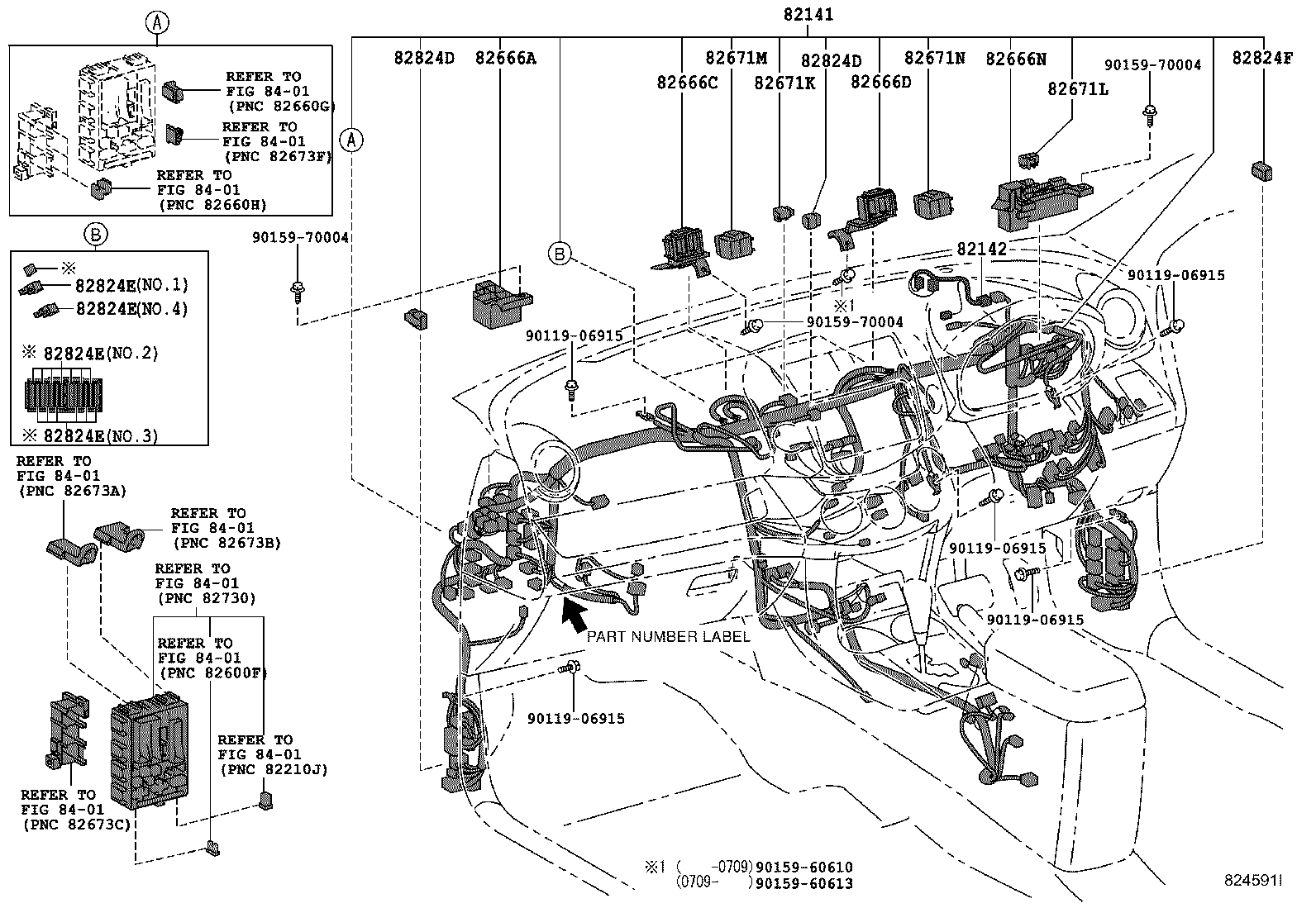

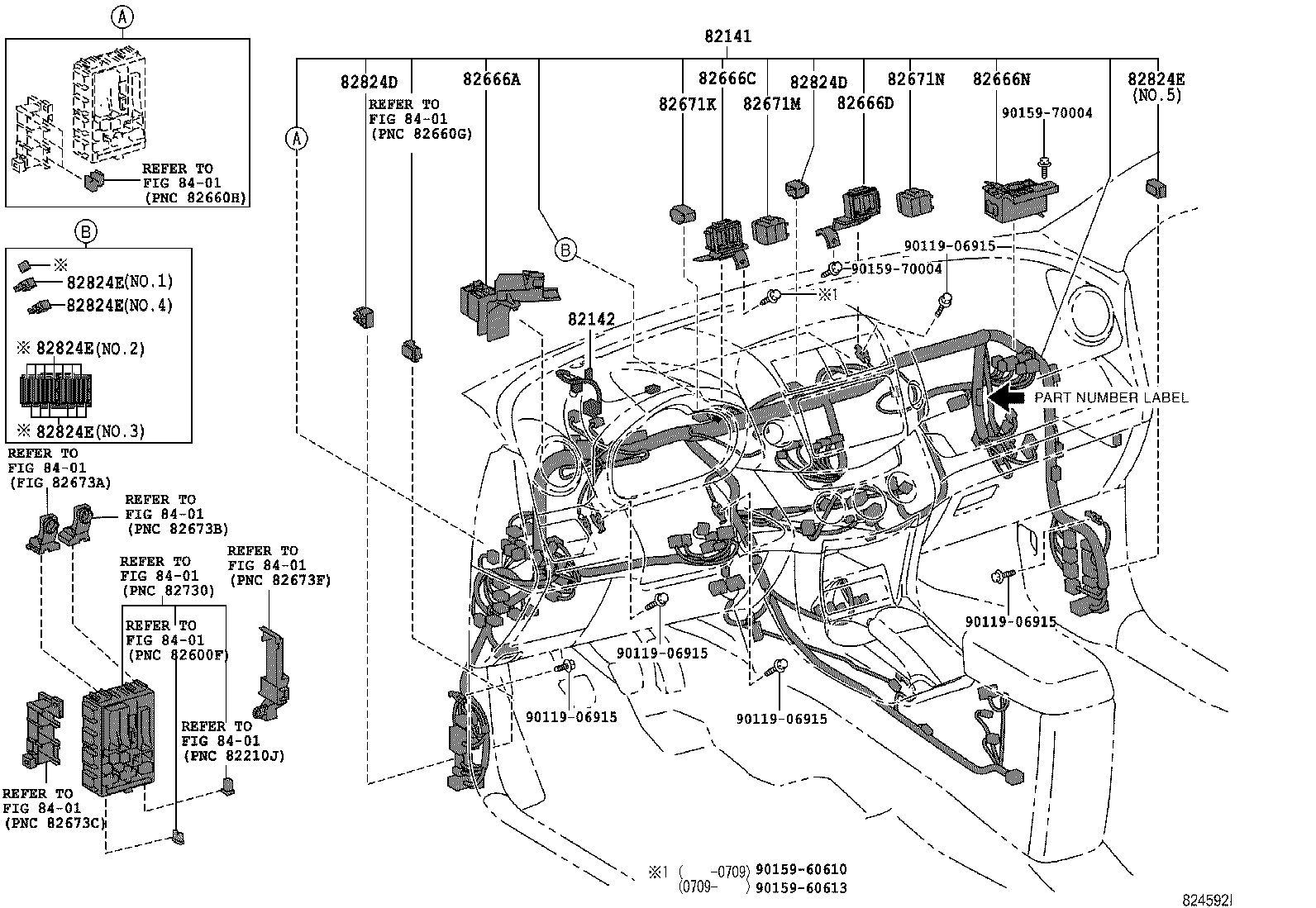

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH

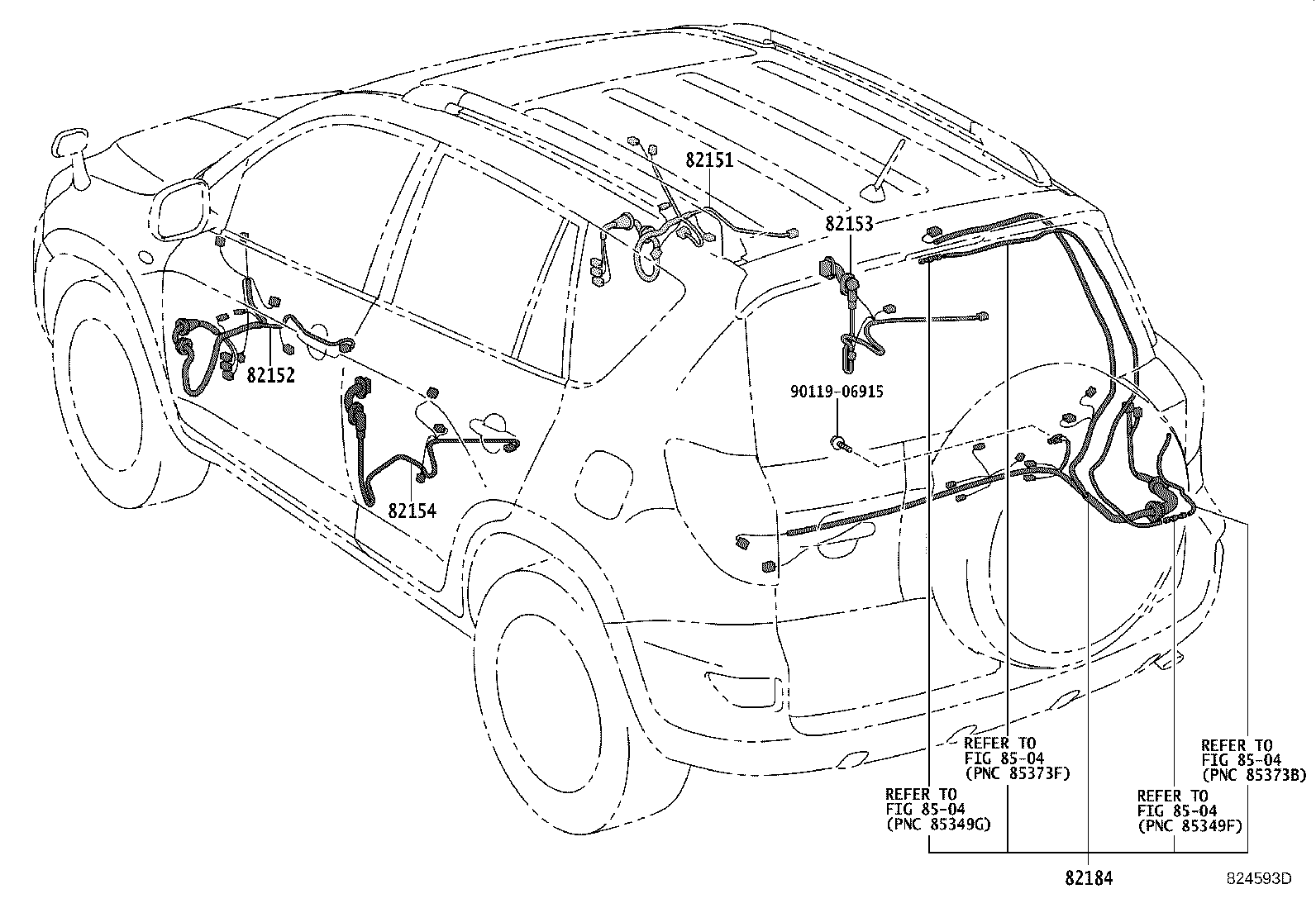

82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

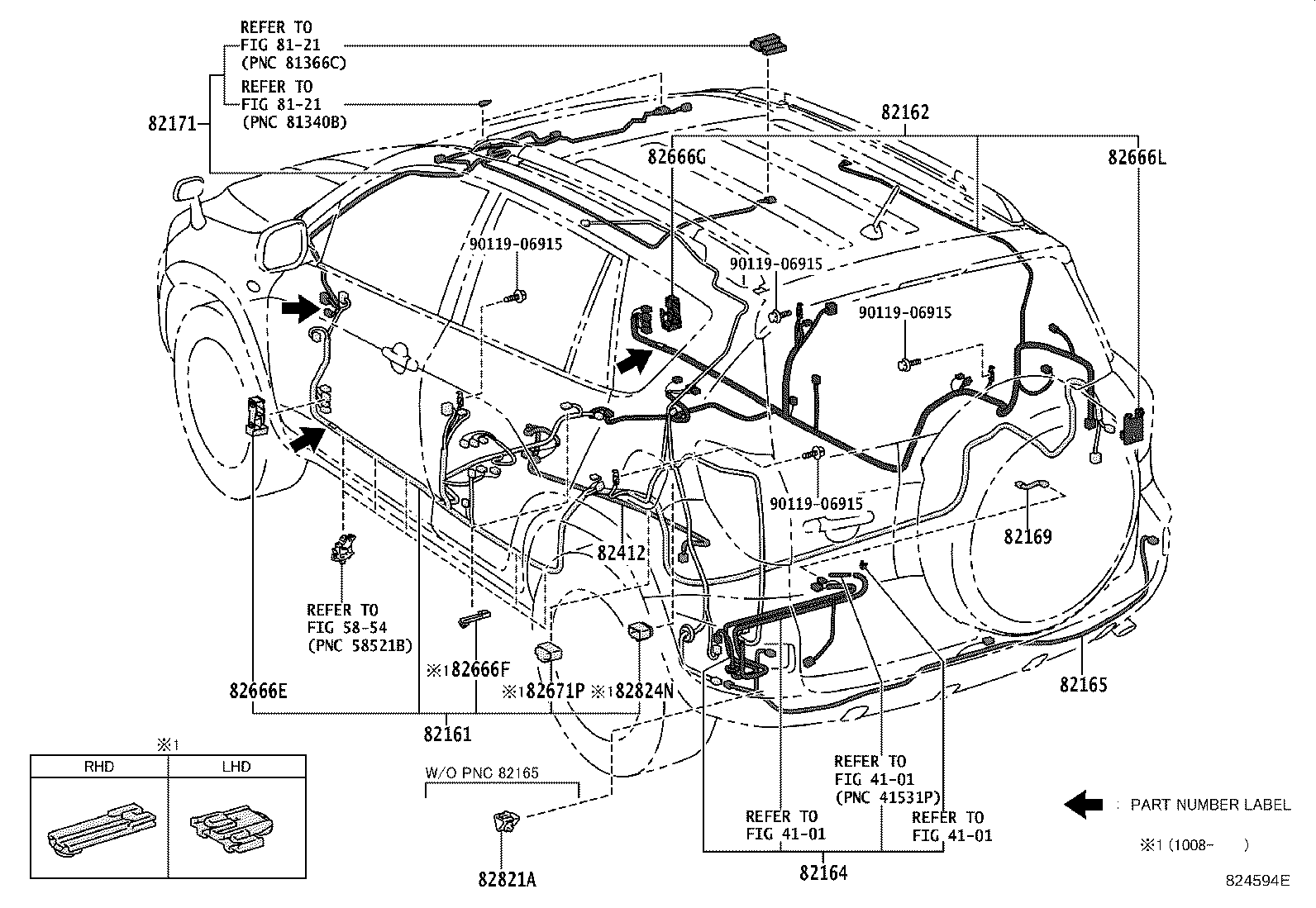

82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82165 Wire, Frame, NO.2
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82219A Wire, Sensor
82412 Wire, Fuel Gage
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82671 Block, Junction
82671J Block, Junction, NO.2
82671K Block, Junction, NO.3
82671L Block, Junction, NO.4
82671M Block, Junction, NO.5
82671N Block, Junction, NO.6
82671P Block, Junction, NO.7
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82821A Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
82824K Connector, Wiring Harness
82824M Connector, Wiring Harness
82824N Connector, Wiring Harness
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
