Toyota RAV4

2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

123 part groups · 37 illustrations

Illustrations

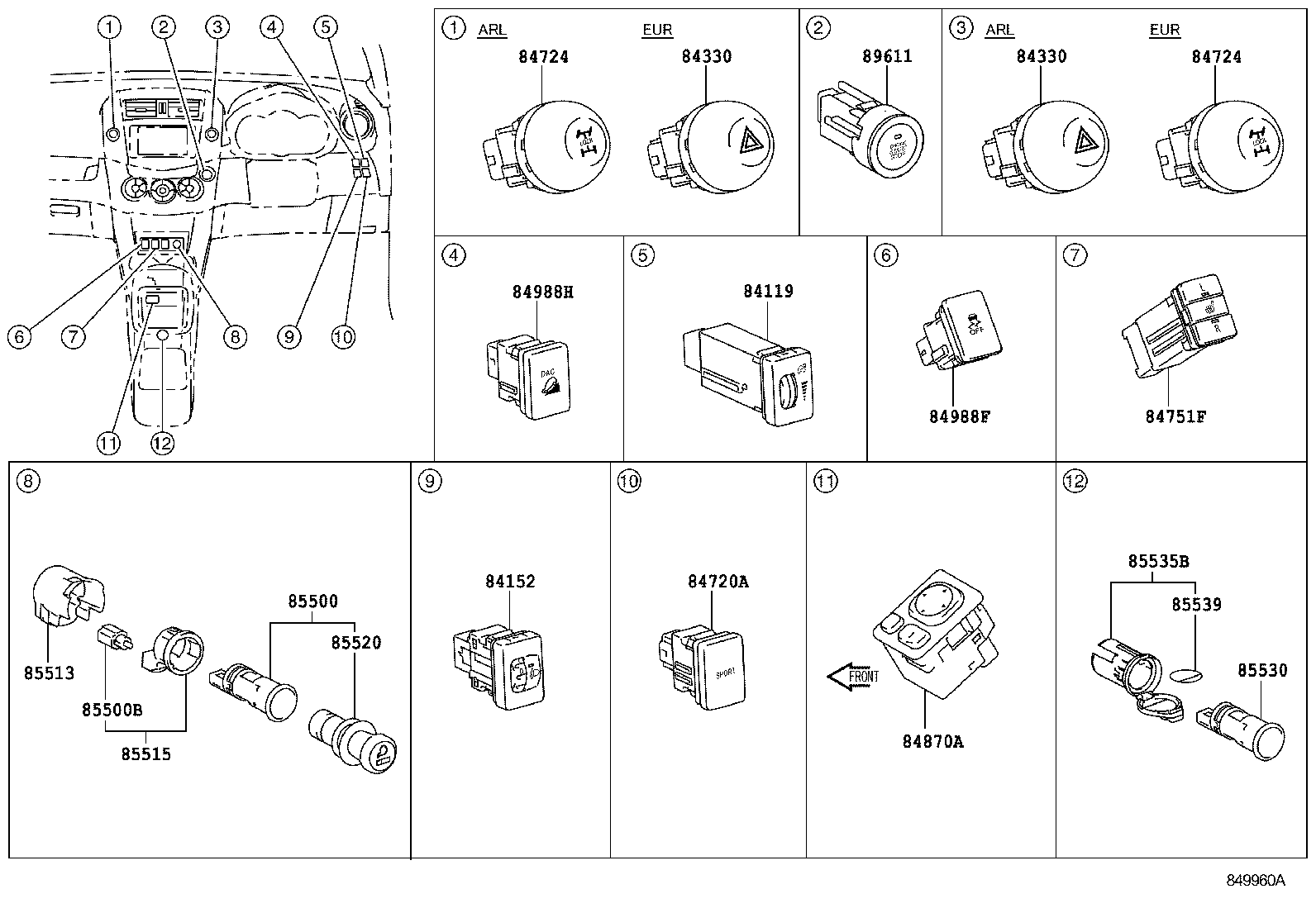

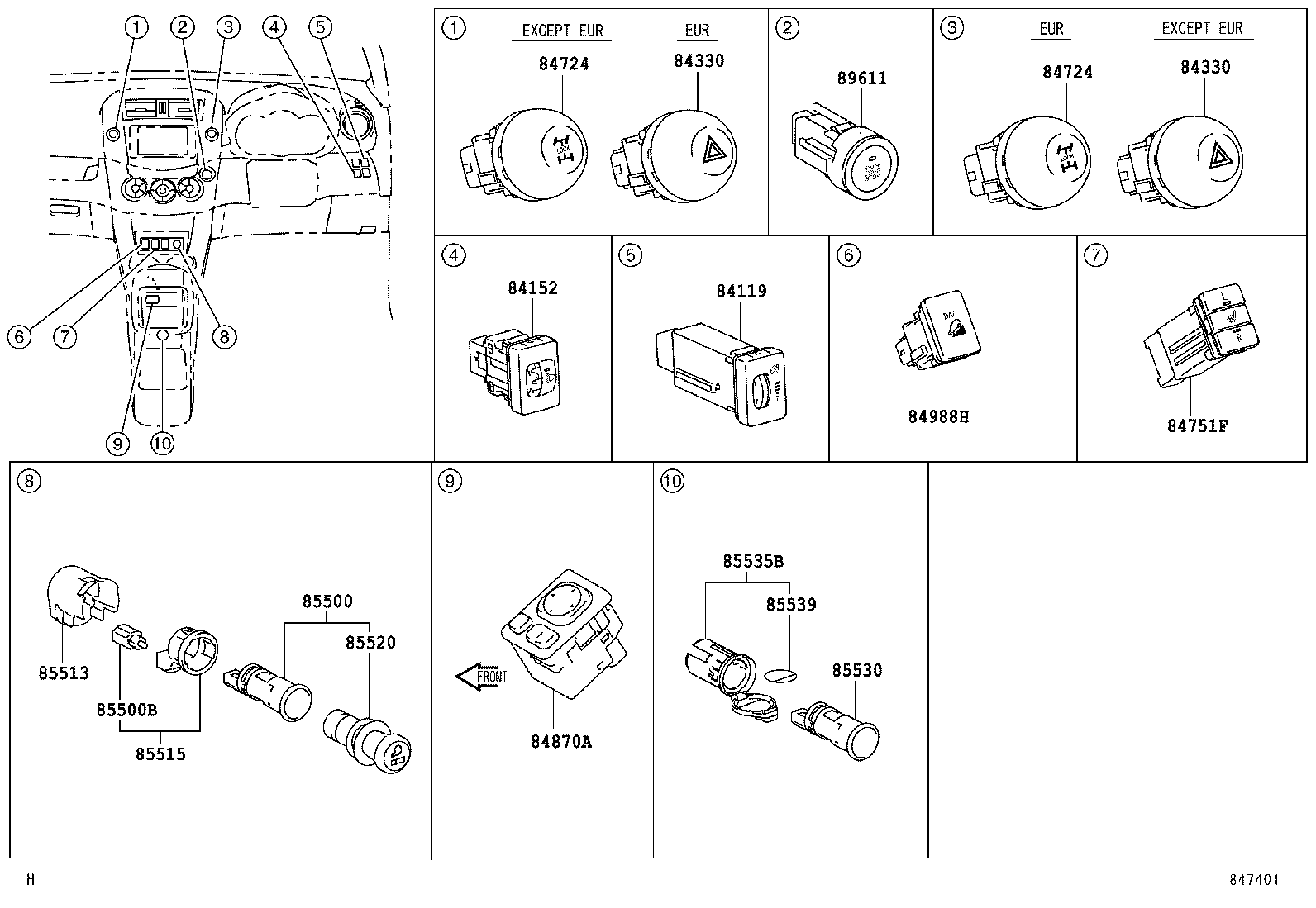

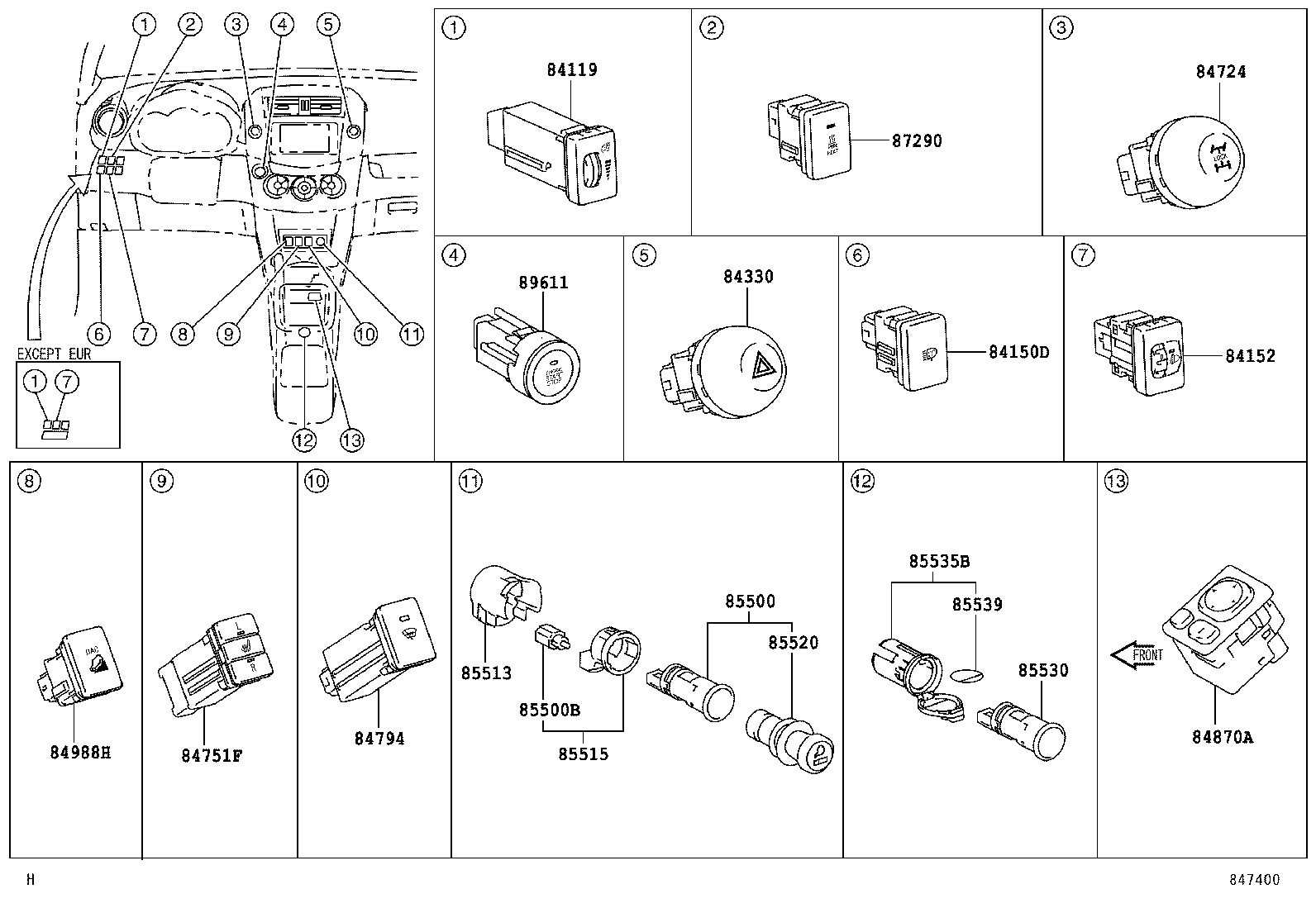

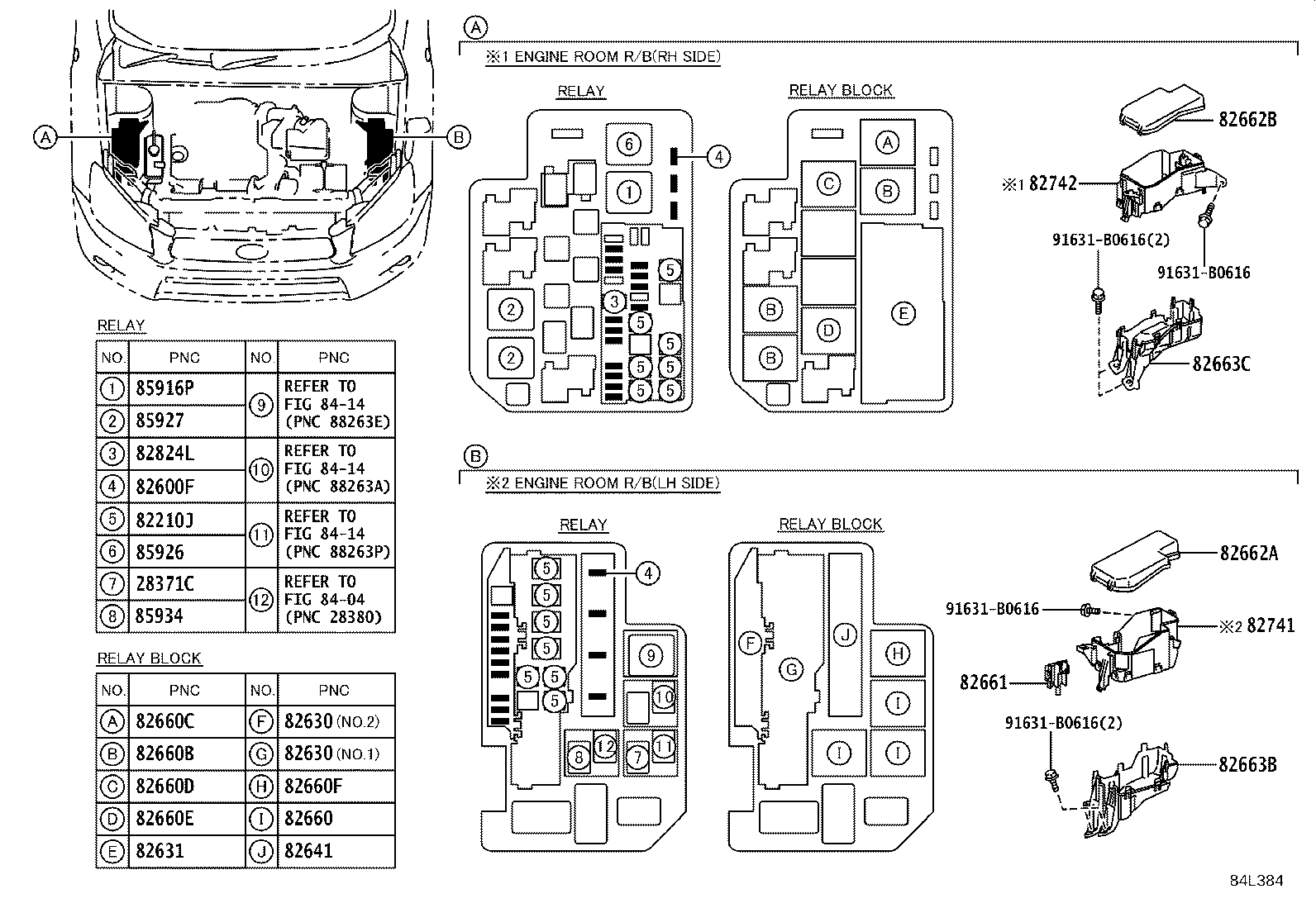

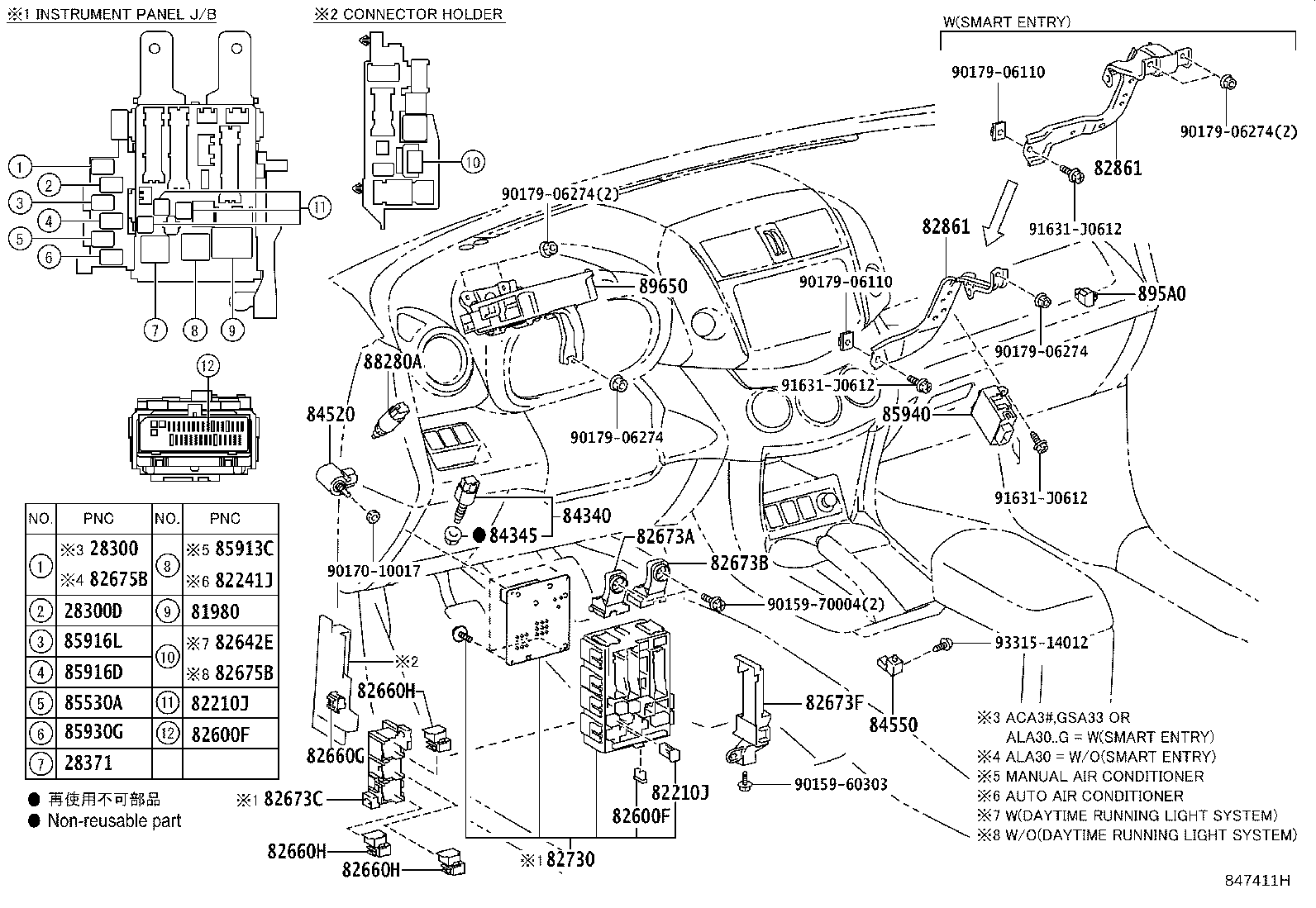

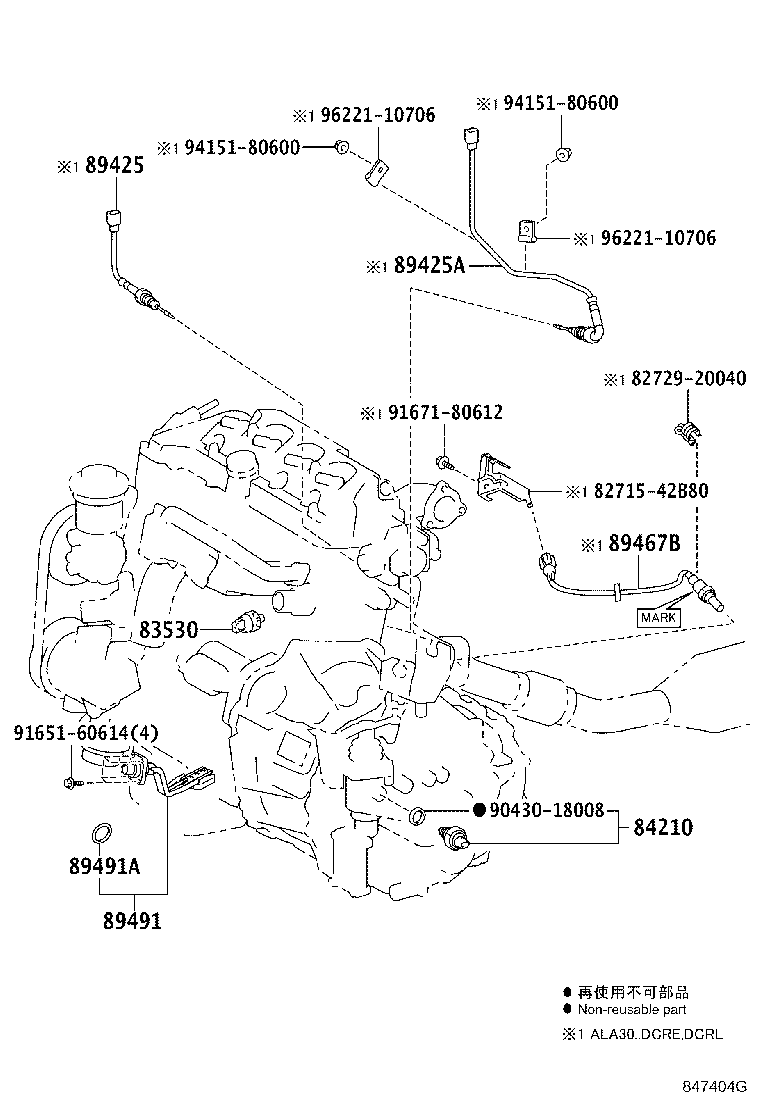

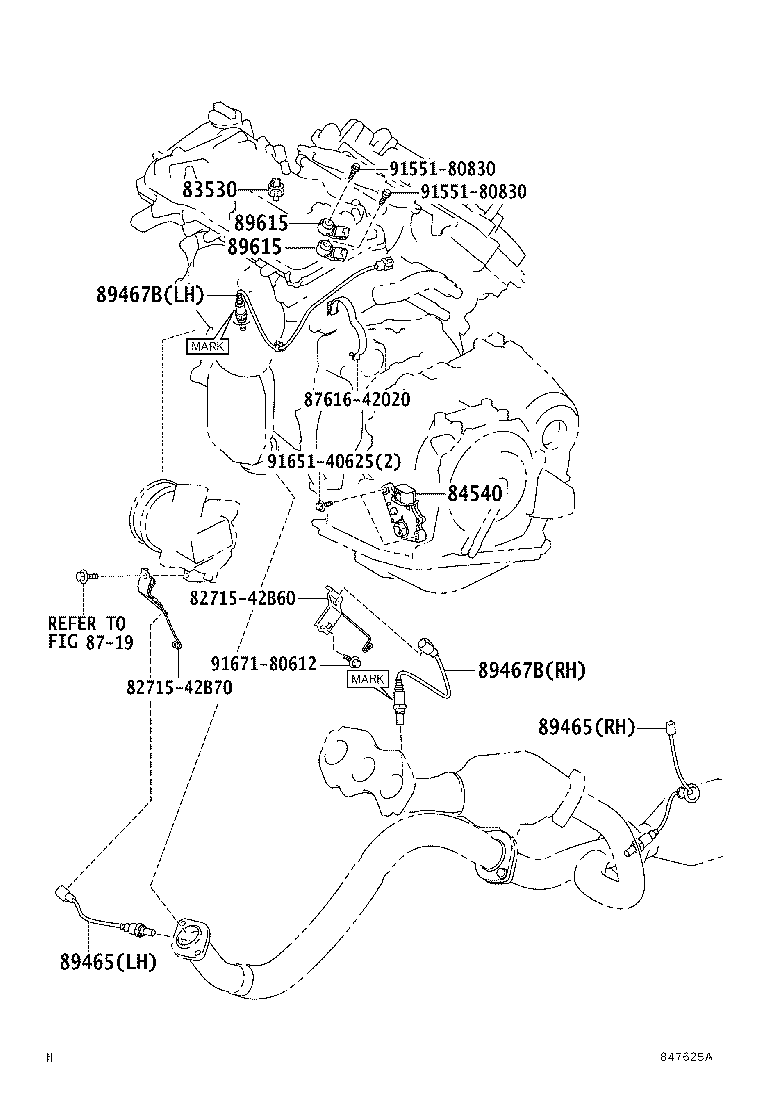

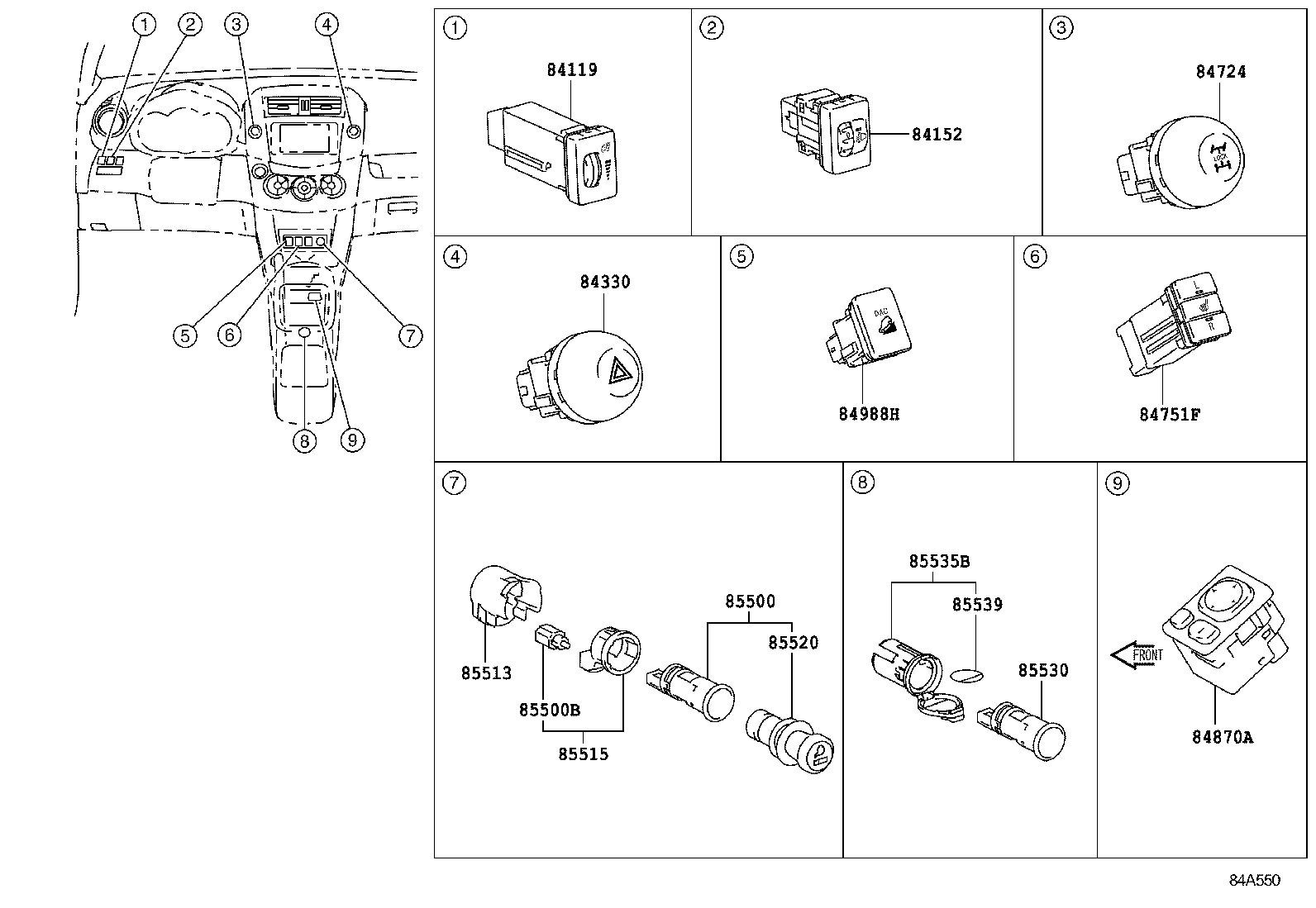

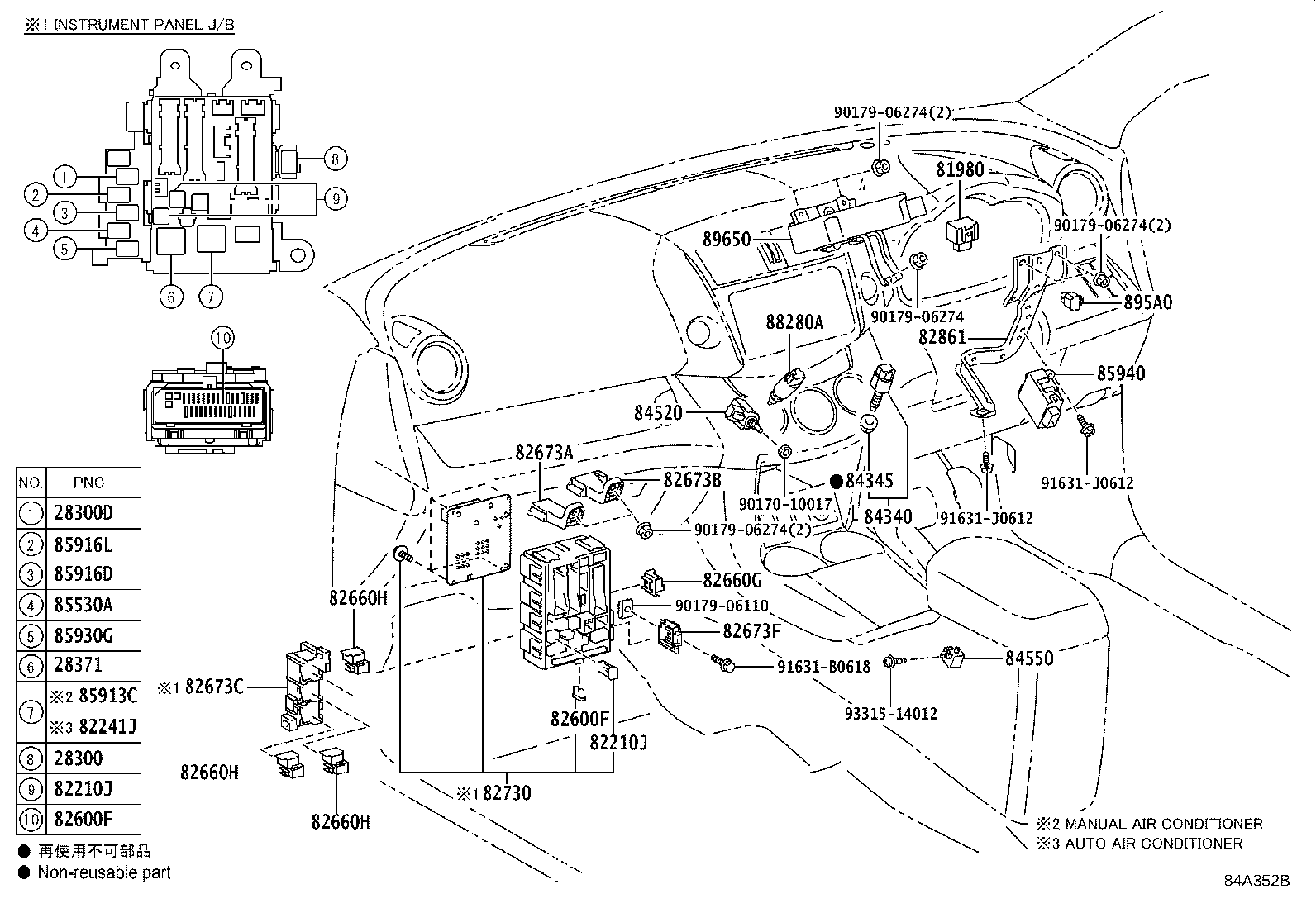

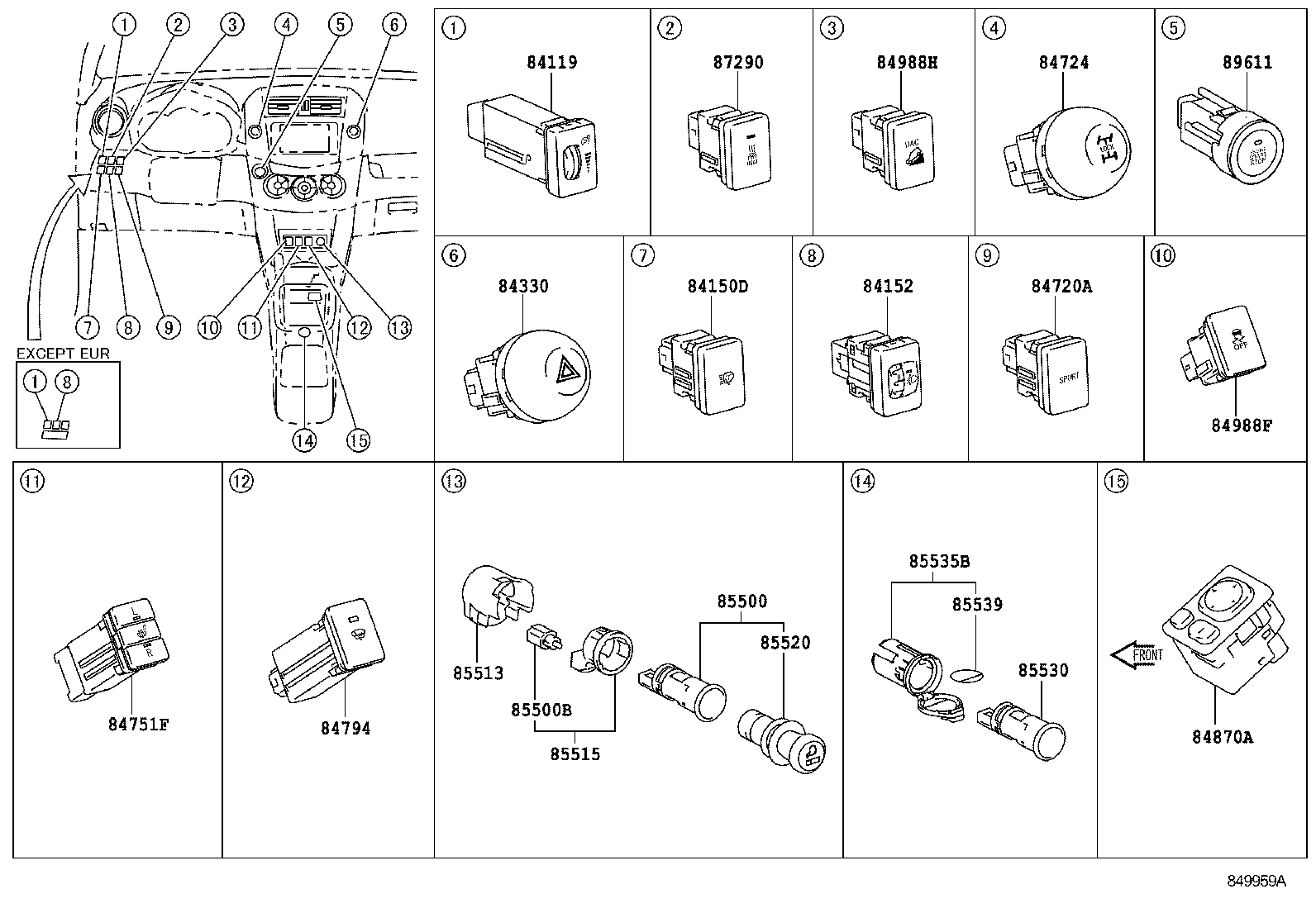

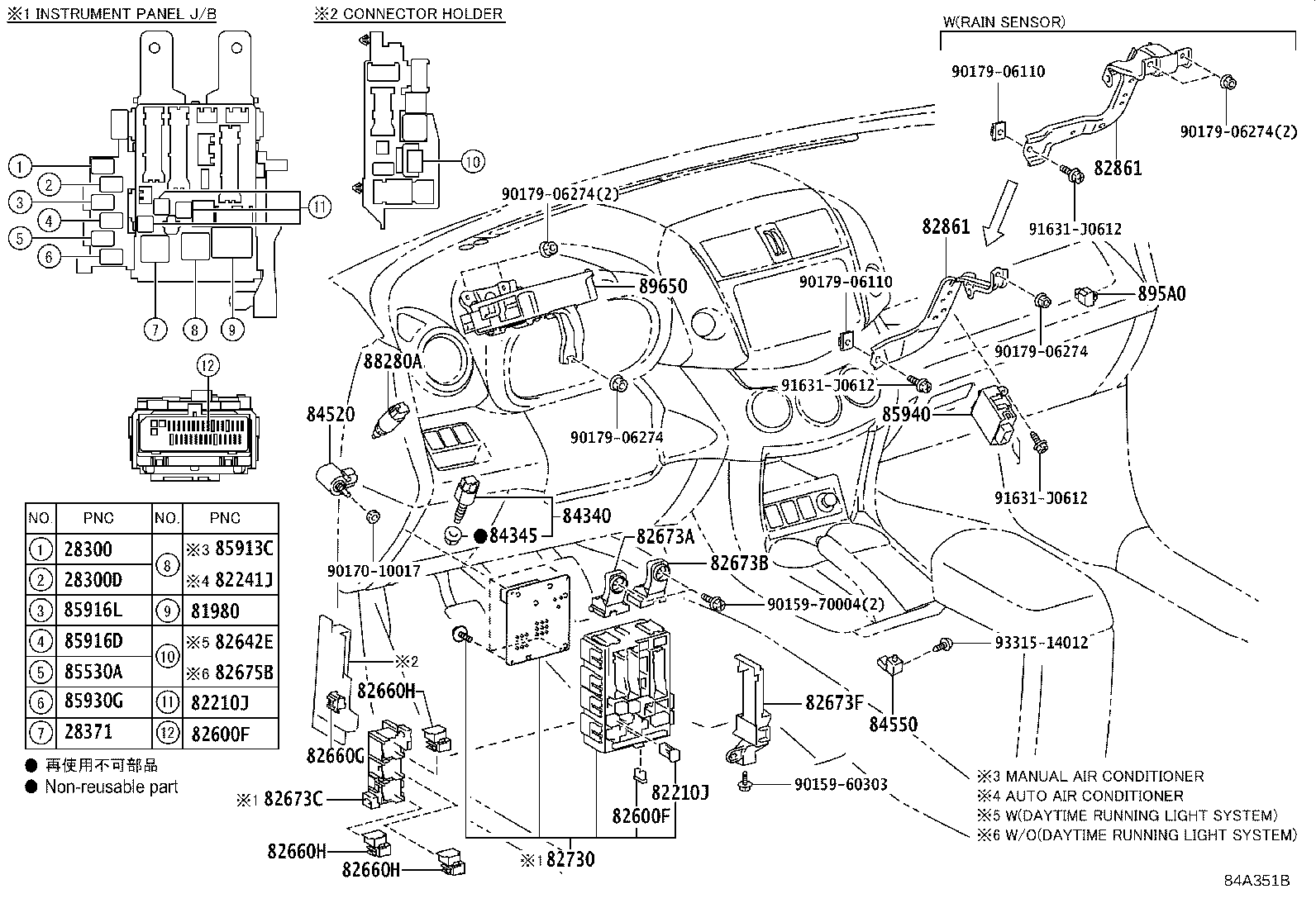

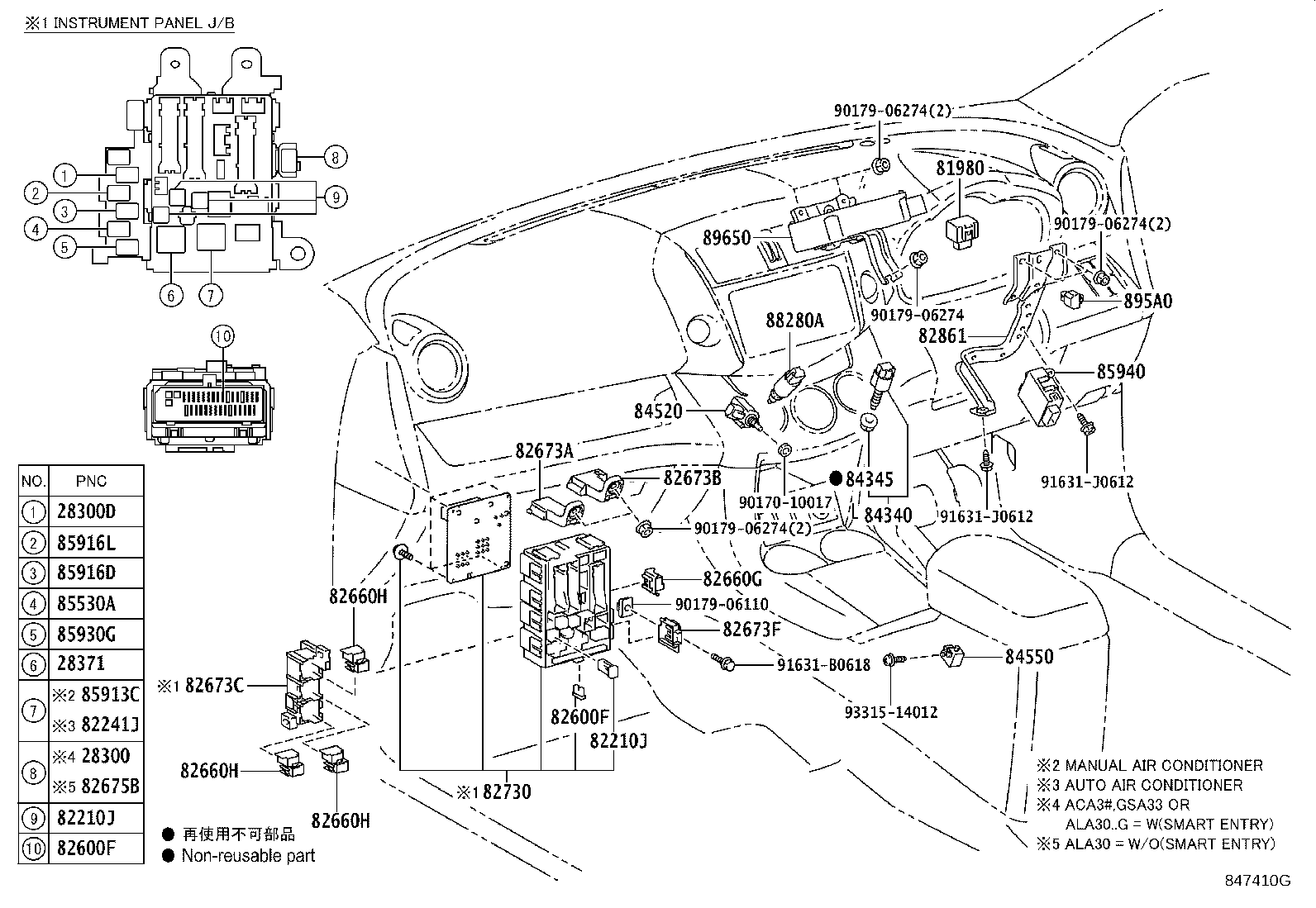

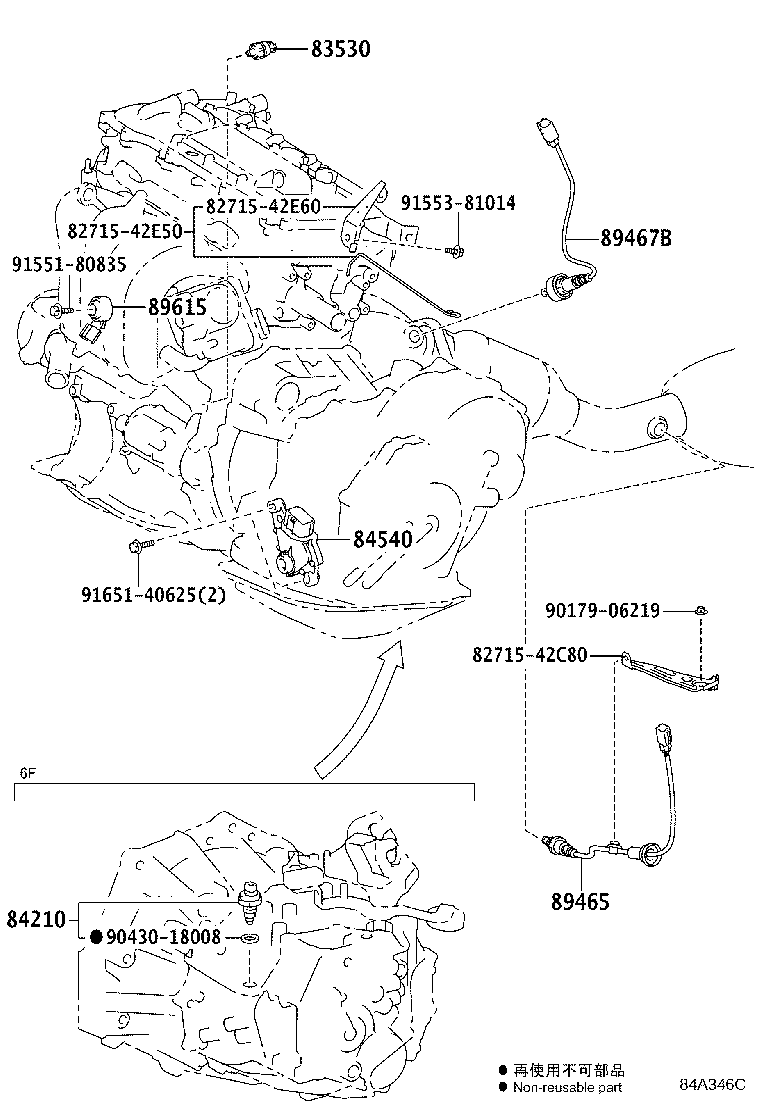

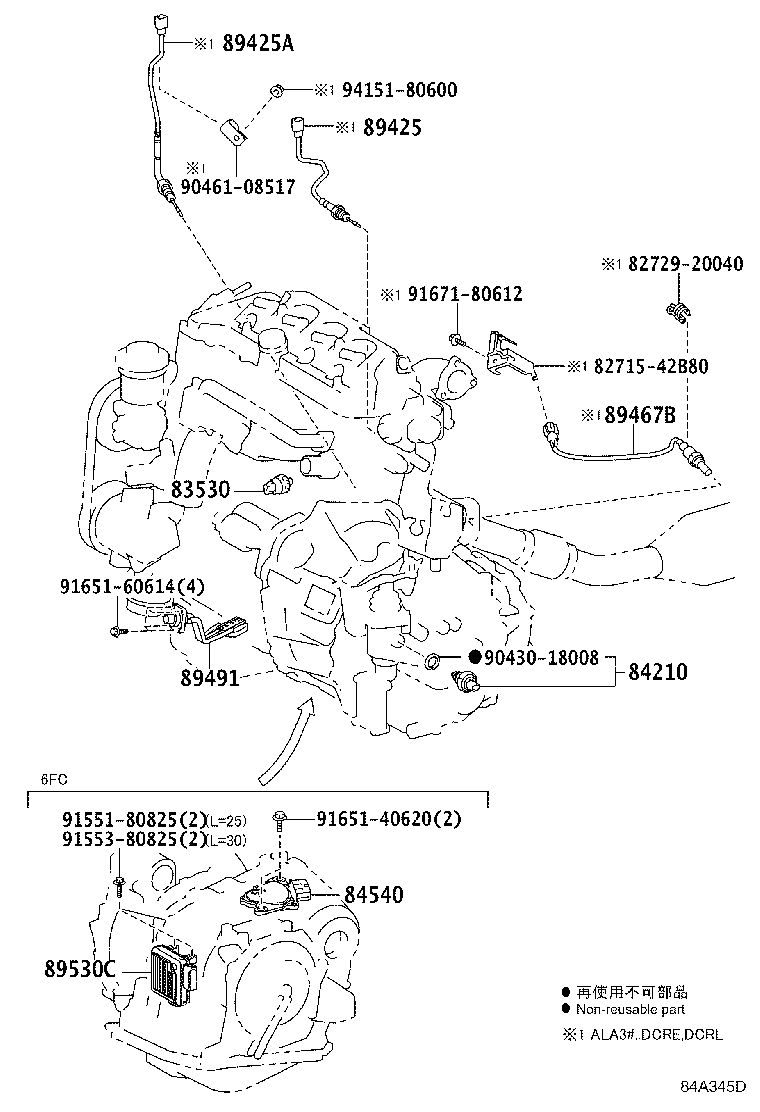

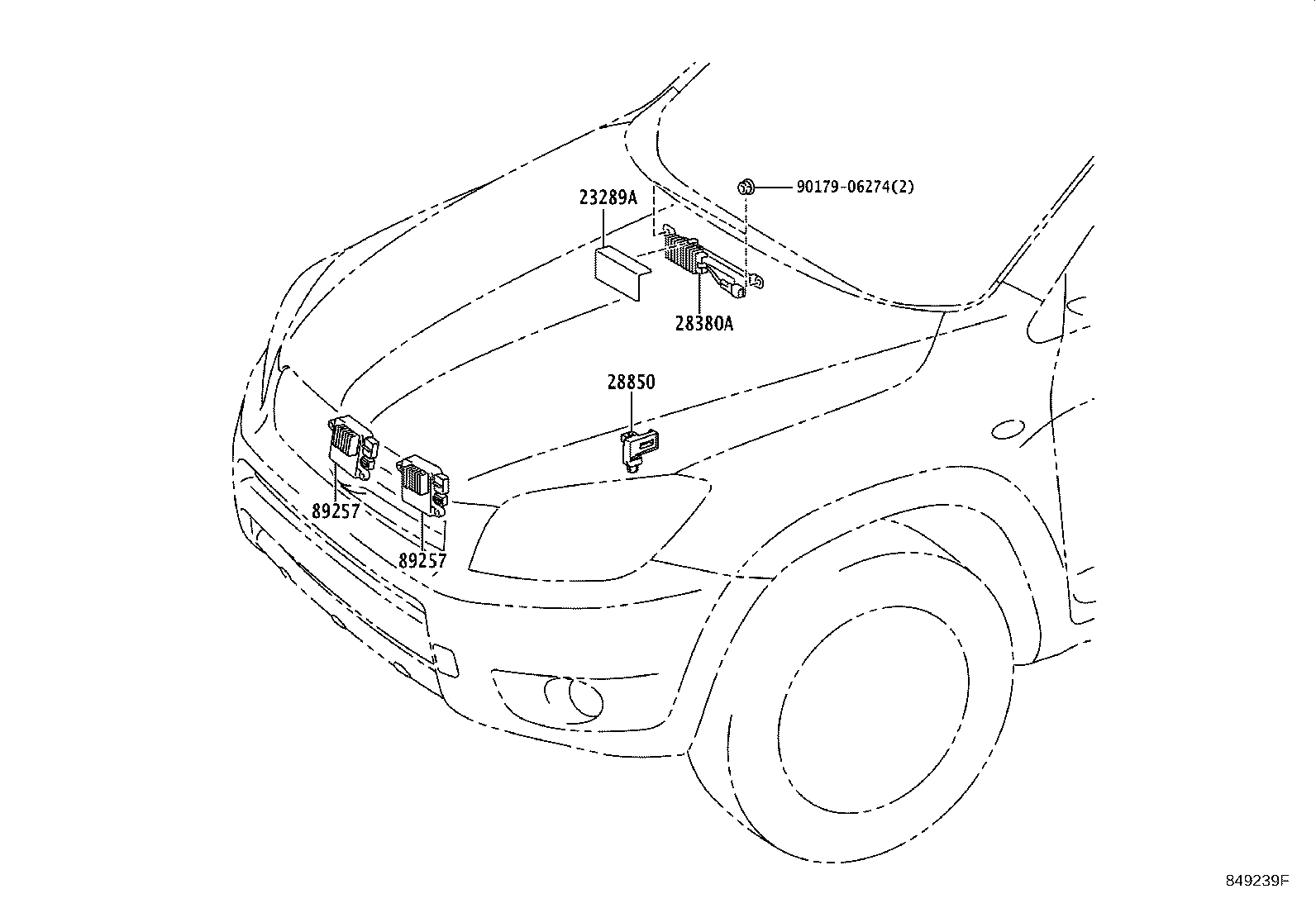

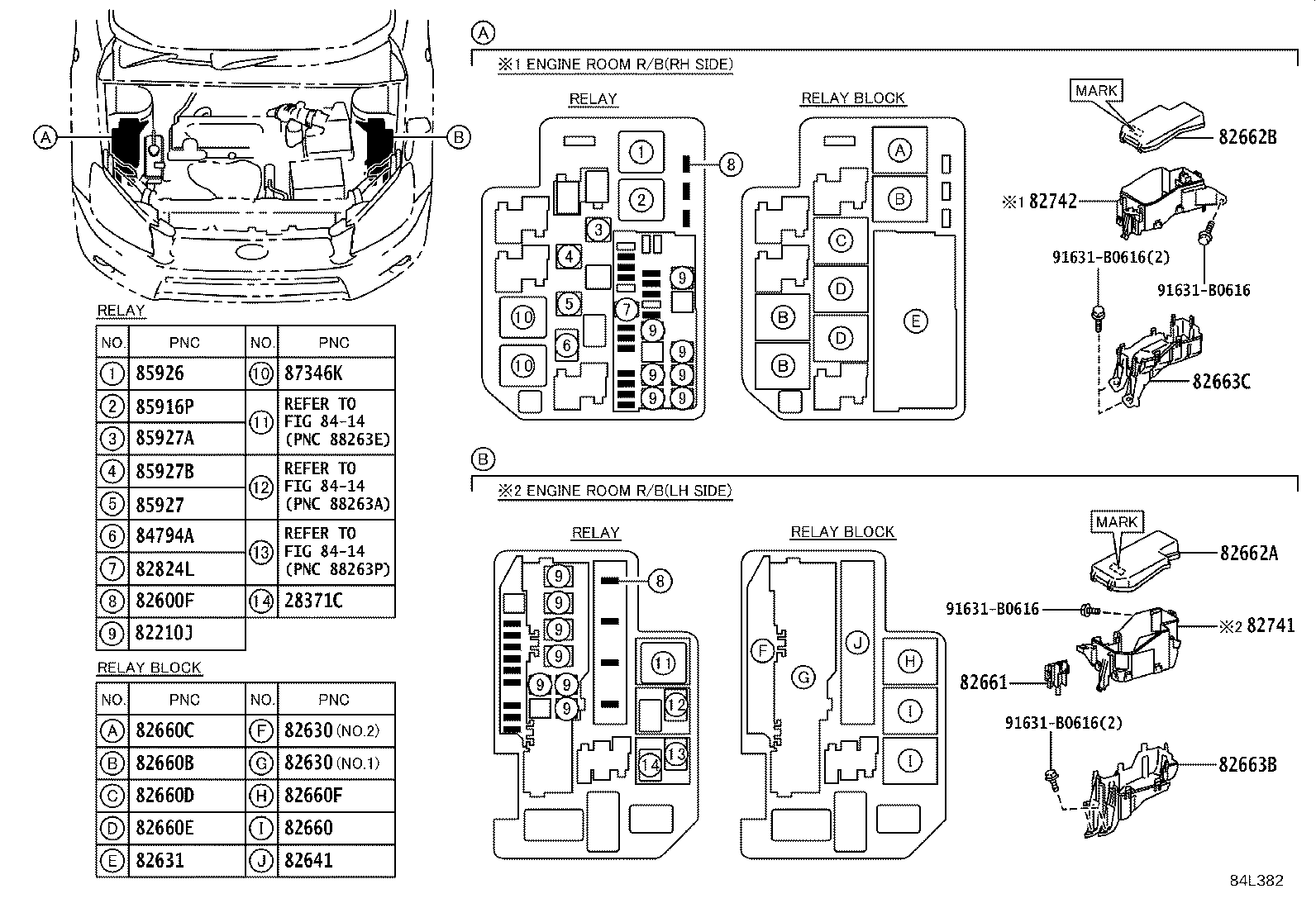

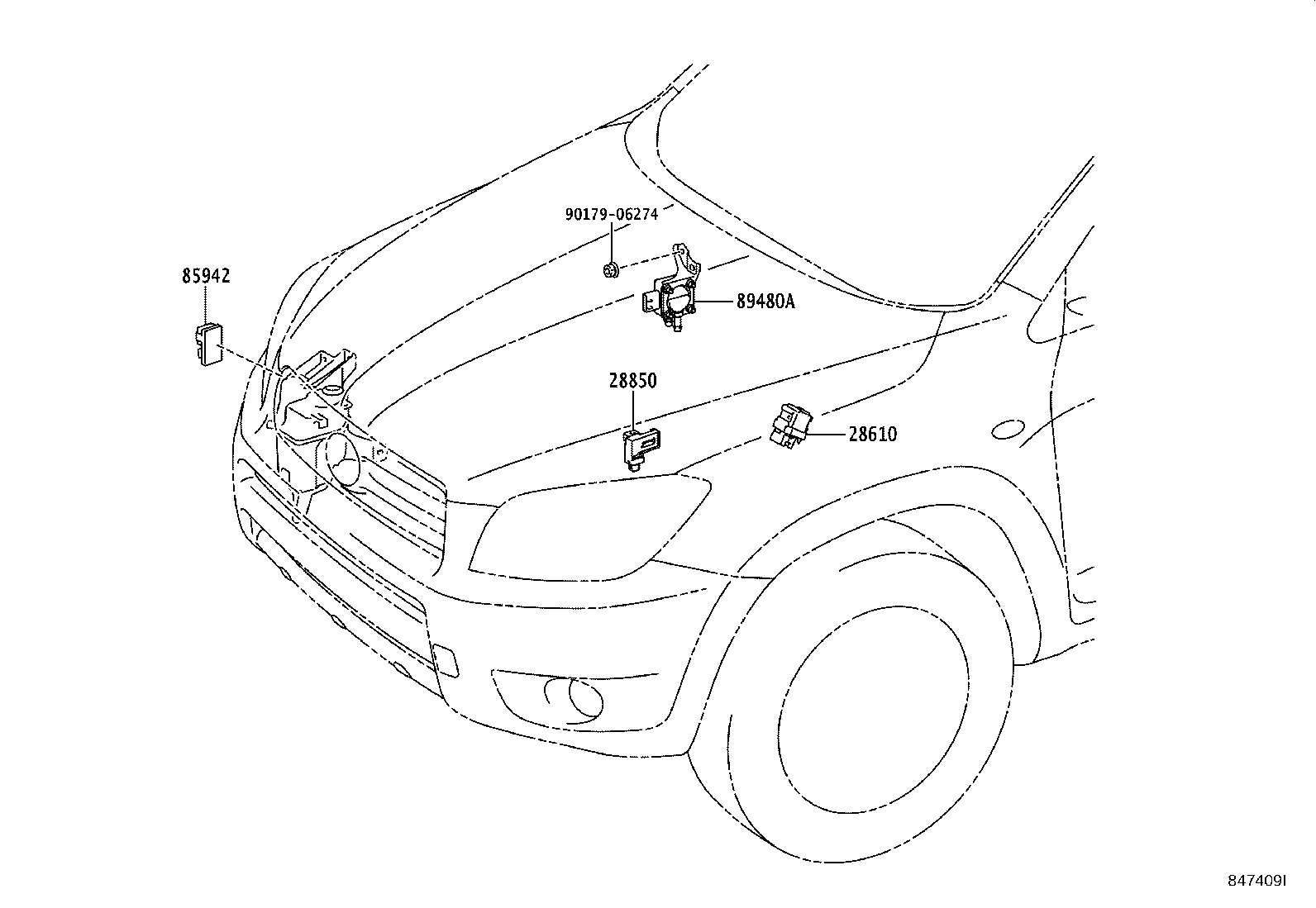

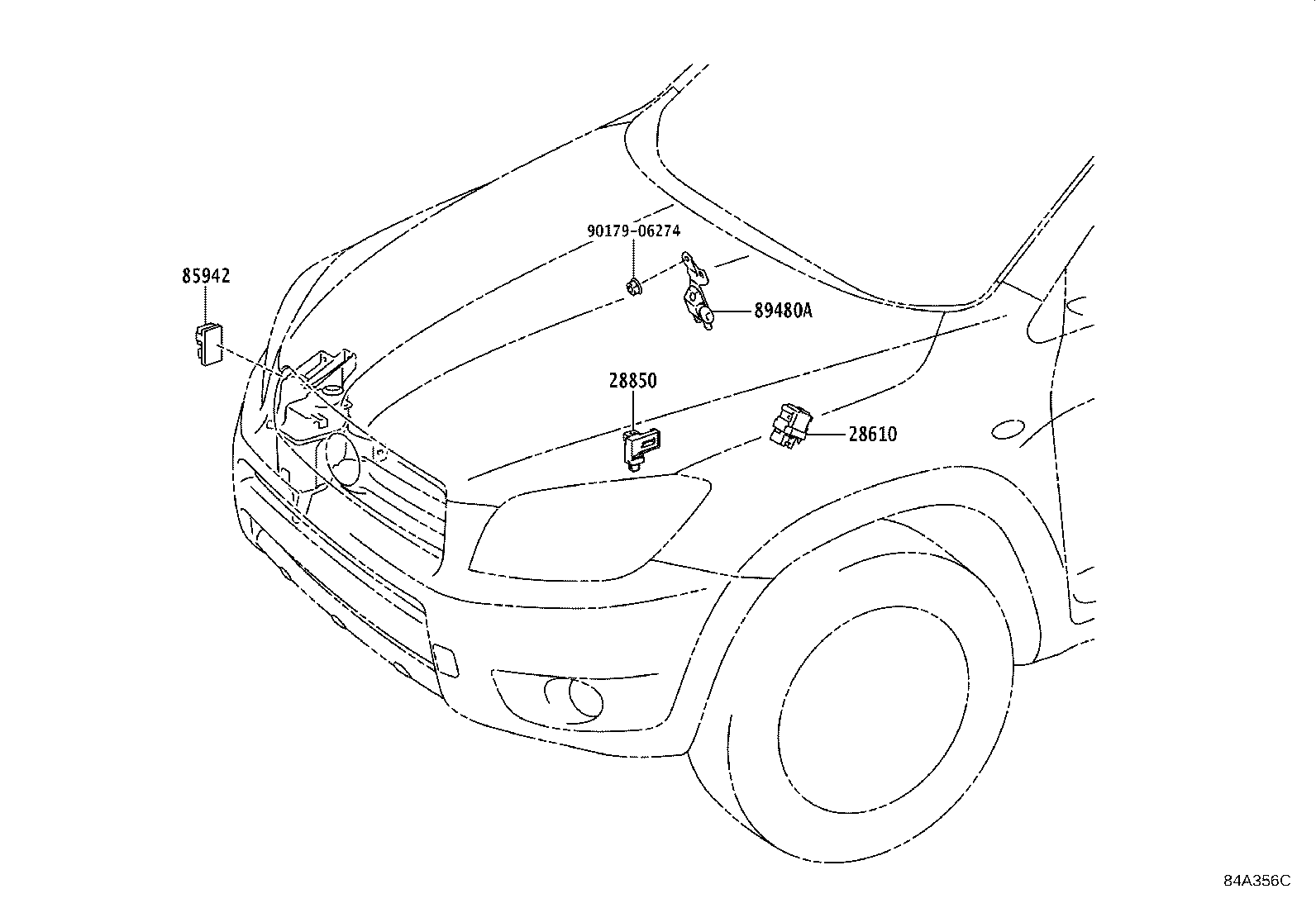

Figure 847402D 847402D 2005-11 → — Figure 847404G 847404G 2005-11 → 2008-12 Figure 847625A 847625A 2007-08 → — Figure 84A345D 84A345D 2008-12 → — Figure 84A346C 84A346C 2008-12 → — Figure 847409I 847409I 2005-11 → 2008-08 Figure 847409I 847409I 2005-11 → 2008-12 Figure 849239F 849239F 2007-08 → — Figure 84A356C 84A356C 2008-08 → — Figure 84A356C 84A356C 2008-12 → — Figure 84L382 84L382 2005-11 → 2008-08 Figure 84L382 84L382 2005-11 → 2008-12 Figure 84L384 84L384 2007-08 → — Figure 84L383 84L383 2008-08 → — Figure 84L383 84L383 2008-12 → — Figure 847411H 847411H 2005-11 → 2008-08 Figure 847411H 847411H 2005-11 → 2008-12 Figure 847410G 847410G 2005-11 → 2008-08 Figure 847410G 847410G 2005-11 → 2008-12 Figure 84A351B 84A351B 2008-08 → — Figure 84A351B 84A351B 2008-12 → — Figure 84A352B 84A352B 2008-08 → — Figure 84A352B 84A352B 2008-12 → — Figure 847400A 847400A 2005-11 → 2008-08 Figure 847400A 847400A 2005-11 → 2008-12 Figure 847401A 847401A 2005-11 → 2008-08 Figure 847401A 847401A 2005-11 → 2008-12 Figure 84A550 84A550 2008-08 → 2008-12 Figure 849959A 849959A 2008-08 → — Figure 849959A 849959A 2008-12 → — Figure 849960A 849960A 2008-08 → — Figure 849960A 849960A 2008-12 → — Figure 847397D 847397D 2005-11 → 2008-12 Figure 847397D 847397D 2005-11 → — Figure 84A359C 84A359C 2008-12 → — Figure 847398B 847398B 2005-11 → — Figure 847408A 847408A 2005-11 → —

Part groups

PNCDescription
23289A Cover, Fuel Pump Resistor
28300 Relay Assy, Starter
28300D Relay, Starter Cut
28371 Relay, Ignition, NO.1
28371C Relay, Ignition, NO.2
28380A Resister, Fuel Pump
28610 Relay Assy, Intake Heater OR Glow Plug
28850 Sensor Assy, Battery Current
45116A Ornament, Steering Wheel, NO.1
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82241J Pin, Short
82291D Wire, TO Solenoid
82600F Fuse, Fuse Block
82630 Holder Assy, Fuse
82631 Holder, Fuse
82641 Relay, Integration NO.1
82642E Relay, Day Time Running Light, NO.3
82660 Block Assy, Relay, Engine Room
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82660F Block Assy, Relay
82660G Block Assy, Relay
82660H Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663B Cover, Relay Block, Lower, NO.3
82663C Cover, Relay Block Lower, NO.4
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82673C Bracket, Junction Block
82673F Bracket, Junction Block
82675B Terminal, Junction
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82824L Pin, Short
82861 Bracket, Computer Integration, NO.1
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84119 Rheostat, Light Control

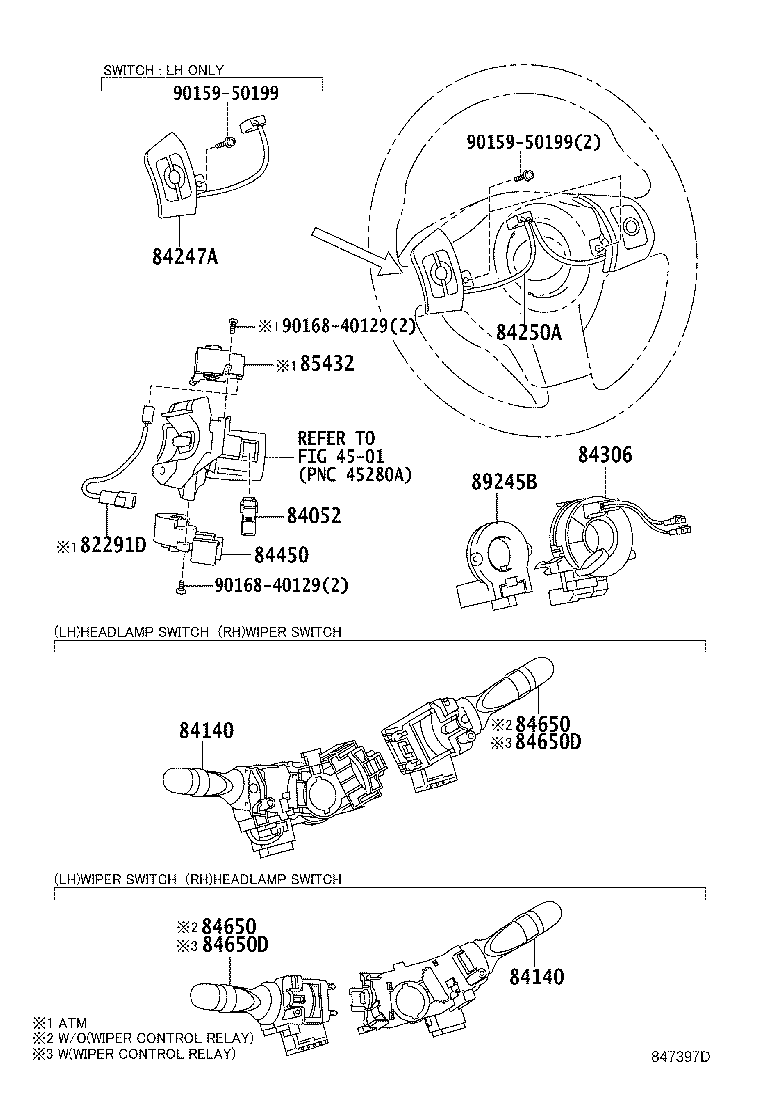

84140 Switch Assy, Headlamp Dimmer
84150D Switch Assy, Headlamp Cleaner
84152 Switch, Headlamp Leveling
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84235 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84244B Switch, Steering Pad, RH
84247A Switch, Steering Pad, LH
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84520 Switch Assy, Clutch Start
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake

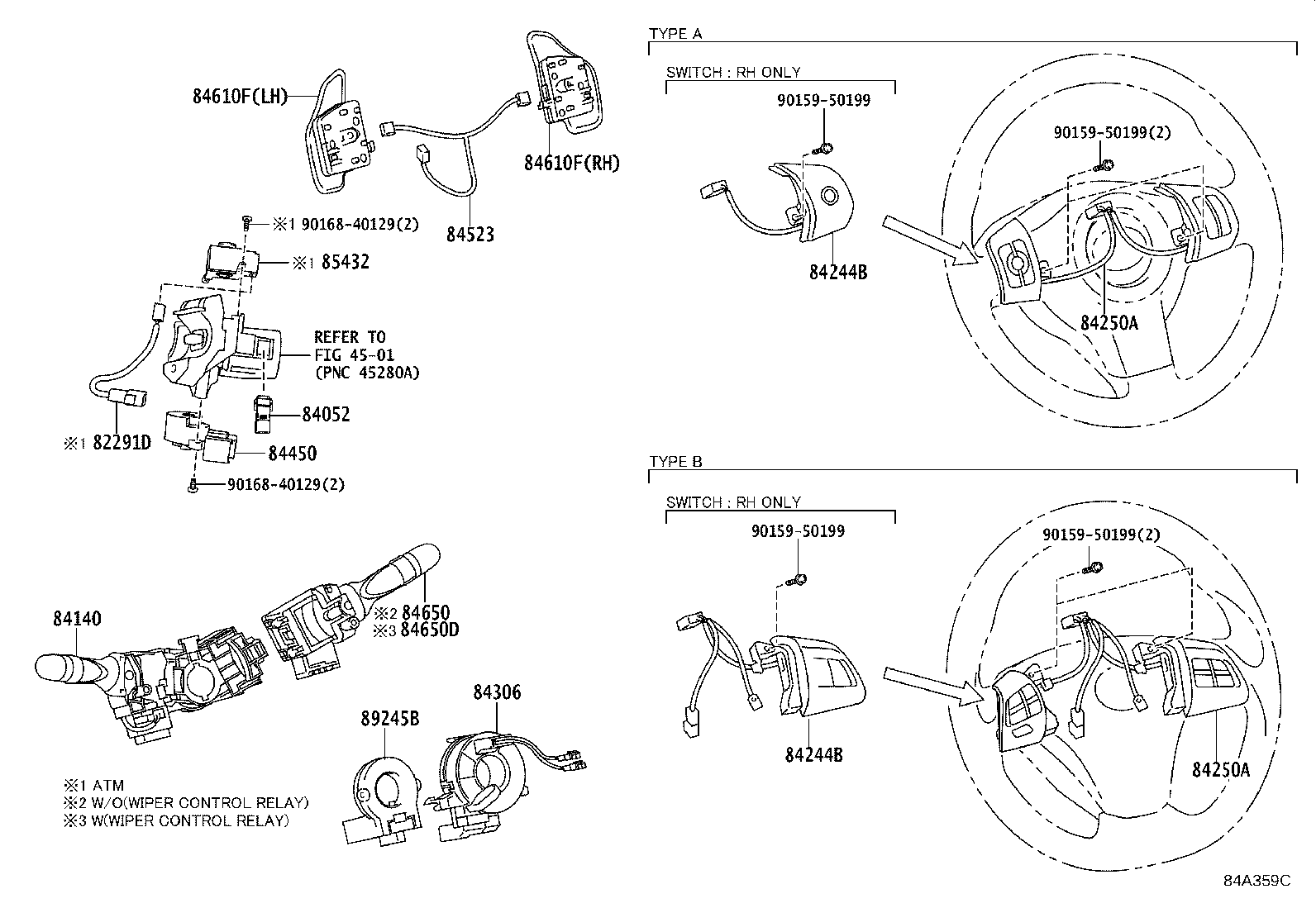

84610F Switch Assy, Transmission Shift
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84720A Switch Assy, Pattern Select, NO.1
84724 Switch, 4 Wheel Drive Control
84751F Switch, Seat Heater
84794 Switch, FR Wiper Deicer
84794A Relay, FR Wiper Deicer

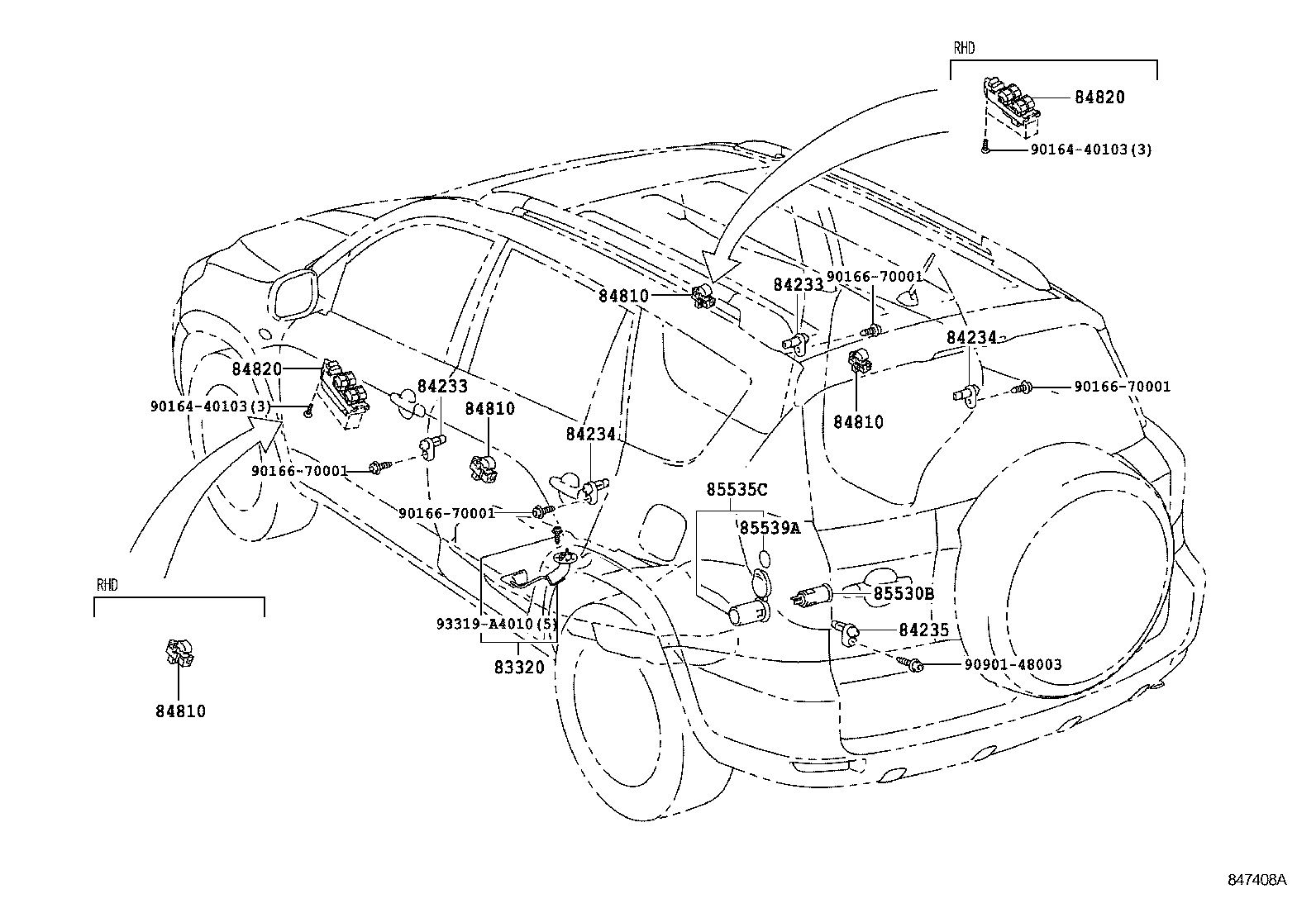

84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror

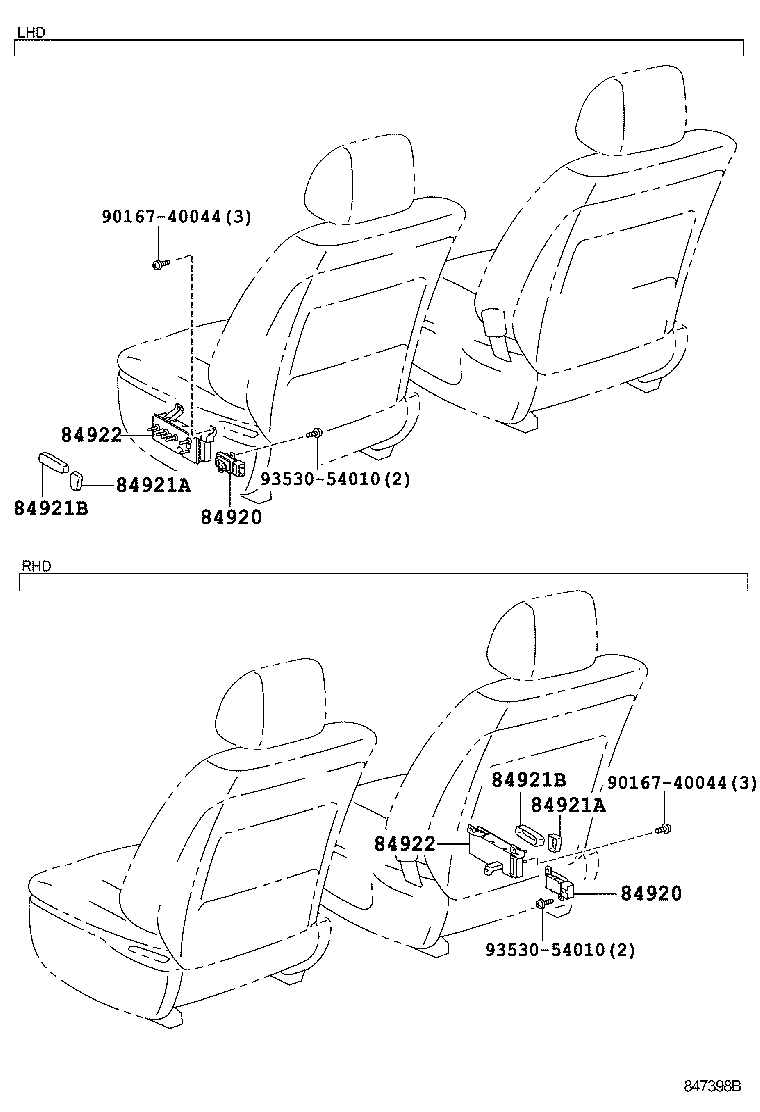

84920 Switch Assy, Power Seat
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922 Switch, Front Power Seat
84988F Switch, Traction Control
84988H Switch, Downhill Assist Control
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85513 Cover, Cigarette Lighter
85515 Stay, Cigarette Lighter Bezel
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85530A Relay, Power Outlet Socket
85530B Socket Assy, Power Outlet, Rear NO.1
85535B Cover, Power Outlet Socket, NO.1
85535C Cover, Power Outlet Socket, Rear
85539 Label, Power Outlet Notice
85539A Label, Power Outlet Notice, Rear
85913C Relay, Heater, NO.1
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916P Relay, Headlamp
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85930G Relay, Acc
85934 Relay, Magnet-clutch
85940 Relay Assy, Windshield Wiper
85942 Relay, Headlamp Cleaner Control
87290 Switch Assy, Heater
87346K Relay, Ptc Heater
88280A Switch Assy, Clutch
89245B Sensor, Steering
89257 Computer, Cooling Fan
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89480A Sensor Assy, Differential Pressure
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89530C Computer Assy, Transmission Control
895A0 Relay Assy, Stop Lamp Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
