Toyota RAV4
2005-11 → 2012-12 · chassis ACA3#,ALA3#,GSA33,ZSA3# · catalogue 662230 · Europe
Supported model
Data version 2013-01

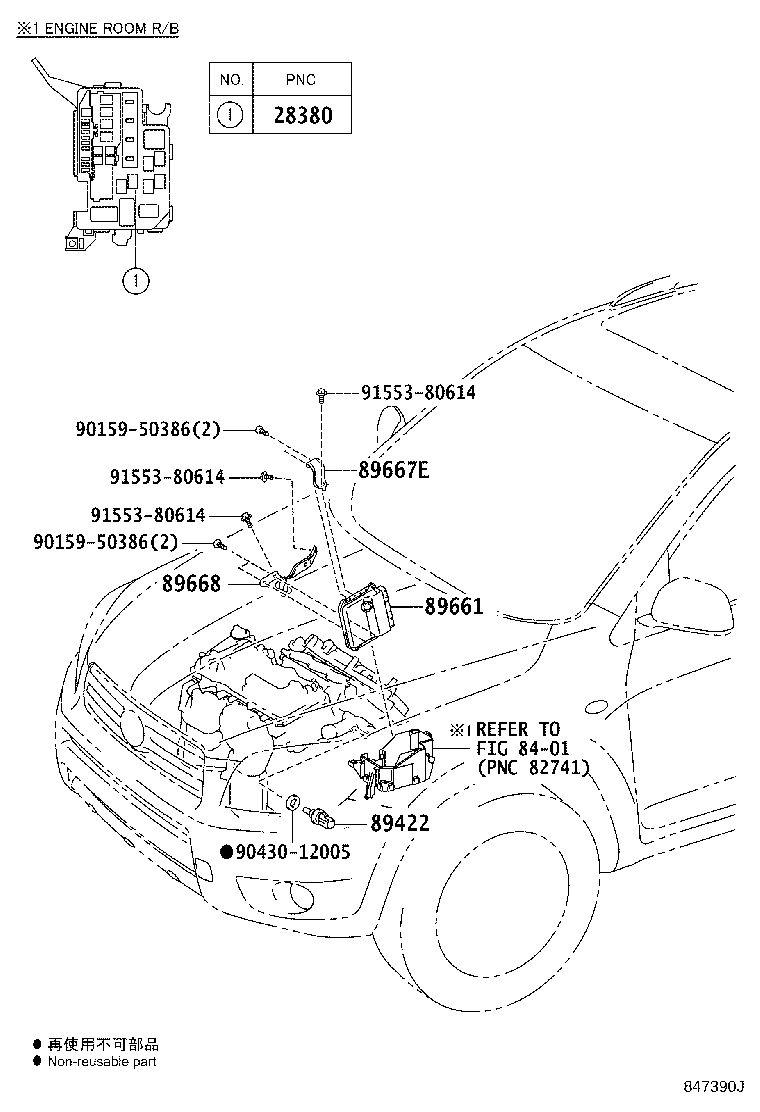

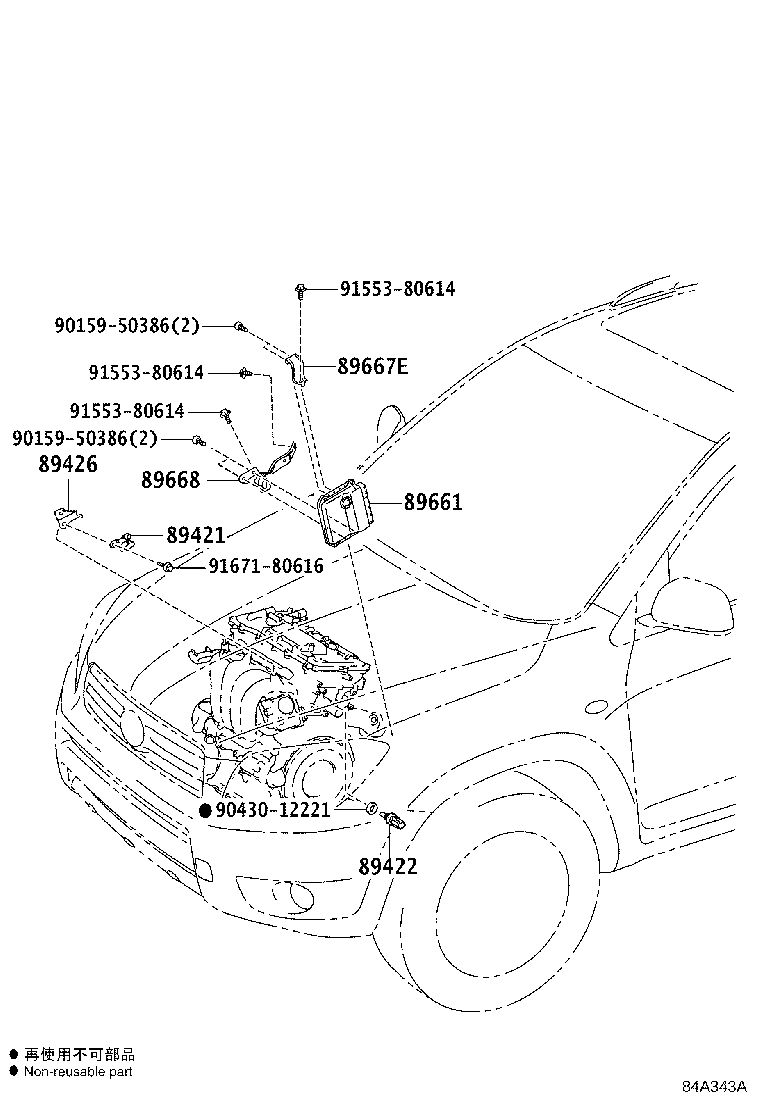

Electronic Fuel Injection System
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 28380 | Relay Assy, Fuel Pump |
| 89421 | Sensor Assy, Vacuum (FOR E.F.I.) |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89426 | Bracket, Vacuum Sensor |
| 89661 | Computer, Engine Control |
| 89667E | Bracket, Engine Control Computer, NO.1 |
| 89668 | Bracket, Engine Control Computer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
